Top 15 AGV Hub Motor Manufacturers in Japan: 2026 Guide for OEM Buyers

Choosing an AGV hub motor manufacturer in Japan is not simply a matter of comparing rated power or motor diameter. For AGV and AMR manufacturers, the drive motor directly affects payload capacity, acceleration, navigation accuracy, battery consumption, turning performance, noise, and long-term reliability.

A good AGV hub motor normally combines a BLDC motor, wheel structure, bearings, feedback device, and sometimes a reduction mechanism into a compact drivetrain. Direct-drive in-wheel motors can reduce mechanical transmission components, while geared hub motors can provide higher wheel torque within a relatively small package.

Japan has a strong ecosystem of precision motors, motion-control components, robotics technology, and industrial automation. At the same time, international OEM suppliers such as JKONGMOTOR, BESFOC Motor, and LeanMotor can be attractive alternatives when buyers need OEM/ODM customization, flexible specifications, competitive pricing, or low-volume development support.

This guide reviews 15 companies that are relevant to AGV hub motors, in-wheel motors, BLDC wheel drives, and AGV drivetrain applications.

Important: The list is a practical procurement-oriented shortlist rather than an official Japanese industry ranking. The first three suppliers are included according to the requested buyer shortlist; positions 4–15 focus on Japan-based manufacturers or Japan-based motor/AGV solution companies with relevant technologies.

What Is an AGV Hub Motor?

An AGV hub motor is a motor integrated directly into or closely coupled with the driving wheel of an Automated Guided Vehicle. Instead of using a conventional motor connected to a separate gearbox, shaft, coupling, and wheel, the hub-motor architecture places much of the drivetrain inside the wheel assembly.

A typical system may include:

• Brushless DC motor

• Hub or wheel housing

• Bearings

• Hall sensors or encoder

• Gear reduction mechanism, where required

• Electromagnetic brake, optional

• Motor controller or servo drive

• Wheel/tire assembly

• Mounting bracket and wiring

In-wheel motors are particularly useful when the AGV chassis has limited internal space. Japanese motor suppliers also emphasize compactness, feedback, low noise, efficiency, and long service life because these characteristics are important in mobile robotics.

For example, Nidec describes in-wheel motors as a way to simplify vehicle structure and reduce size, while its AGV product portfolio includes dedicated wheel-drive assemblies and AGV motors.

JK130BLW65-24V AGV Hub Motor Specification

Main Types of AGV Hub Motors

1. Direct-Drive Hub Motors

A direct-drive hub motor transfers motor torque to the wheel without a conventional external gearbox.

Advantages:

• Simple mechanical structure

• Low mechanical backlash

• Low maintenance

• Compact drivetrain

• Quiet operation

• Good dynamic response

Disadvantages:

• Larger motor diameter may be required

• High low-speed torque can increase motor size

• Thermal management needs careful design

Direct-drive designs are attractive for compact AMRs, service robots, AGVs, and applications where smooth motion is more important than extremely high wheel torque.

2. Geared Hub Motors

A geared hub motor combines a BLDC motor with planetary, spur, or other reduction gearing.

Advantages:

• Higher output torque

• Smaller motor for a given wheel torque

• Better suitability for heavy payloads

• Flexible speed-to-torque optimization

Disadvantages:

• More mechanical components

• Gear noise

• Potential backlash

• Gearbox efficiency losses

• More complicated maintenance

For heavy-duty AGVs, geared wheel-drive systems are often more practical than pure direct-drive motors.

3. Servo Hub Motors

A servo hub motor adds high-resolution feedback and closed-loop control.

Typical feedback options include:

• Incremental encoder

• Absolute encoder

• Hall sensors

• Magnetic encoder

Servo feedback is especially useful when the AGV needs accurate speed matching between left and right wheels, precise positioning, controlled acceleration, or reliable low-speed operation.

Advantages and Disadvantages of AGV Hub Motors

AGV hub motors are increasingly used in automated guided vehicles (AGVs), autonomous mobile robots (AMRs), warehouse robots, and material-handling platforms because they combine the motor and wheel-drive mechanism into a compact assembly. Depending on the design, an AGV hub motor can use a direct-drive architecture or integrate a BLDC motor with planetary gearing, encoder, brake, and wheel.

For OEM AGV manufacturers, the key question is not simply whether a hub motor is compact. The real consideration is whether its torque, wheel load capacity, thermal performance, feedback accuracy, efficiency, protection rating, and mechanical structure match the vehicle's operating conditions.

Major Advantages of AGV Hub Motors

1. Compact and Space-Saving Design

One of the biggest advantages of an AGV hub motor is its compact drivetrain architecture.

Traditional AGV drive systems may require:

• Motor

• Gearbox

• Coupling

• Drive shaft

• Separate wheel

• Bearings

• Mounting brackets

A hub motor integrates many of these components into the wheel-drive assembly. This can significantly simplify the mechanical layout and free internal space for batteries, controllers, LiDAR, sensors, lifting mechanisms, and payload structures.

Nidec's AGV SU Series, for example, uses an in-hub planetary design combining a BLDC motor and planetary gearing in a compact wheel-drive assembly.

For low-profile AMRs where every millimeter of chassis space matters, this can be particularly valuable.

2. High Torque Density

AGVs often need substantial torque when:

• Starting from rest

• Carrying heavy payloads

• Climbing ramps

• Accelerating

• Turning under load

• Crossing uneven surfaces

A geared hub motor can provide high wheel torque without requiring a large external transmission.

For example, Nidec's AGV wheel-drive products combine compact motor structures with gearing to provide high torque in a relatively small package.

For OEM buyers, it is important to compare continuous wheel torque and peak wheel torque, rather than comparing motor wattage alone.

3. Reduced Mechanical Components

An integrated hub motor can eliminate or reduce the need for external:

• Couplings

• Drive shafts

• Gearbox mounting structures

• Separate wheel hubs

• Transmission components

Fewer mechanical components can simplify assembly and reduce potential sources of mechanical failure.

Direct-mount AGV drive solutions can also reduce mechanical installation work. Nidec specifically notes that direct mounting can reduce additional mechanical parts and setup time.

4. Better Packaging Flexibility

Hub motors allow AGV designers to place the drive system directly around the wheel rather than allocating a large internal area for a conventional motor and transmission.

This is useful for:

• Low-profile AMRs

• Warehouse robots

• Hospital robots

• Delivery robots

• Pallet AGVs

• Autonomous forklifts

• Mobile inspection robots

A low-profile outer-rotor AGV motor, for example, can combine the wheel and motor into a compact drive solution. Nidec's OR Series is specifically designed as a low-profile AGV wheel solution.

5. Excellent Speed Control With BLDC Technology

Many AGV hub motors use brushless DC (BLDC) motors because BLDC technology provides high efficiency, long service life, low noise, and compact construction.

Nidec identifies BLDC motors as offering characteristics including compact size, high output, low vibration, low noise, and long life.

When combined with closed-loop feedback, the motor can provide accurate speed regulation, which is important for differential-drive AGVs.

Oriental Motor, for example, describes closed-loop BLDC drive systems capable of servo-grade speed regulation for AGV/AMR applications.

6. Low Maintenance

Unlike brushed DC motors, BLDC motors do not use mechanical brushes for commutation.

This eliminates brush wear and reduces maintenance requirements.

For AGVs operating continuously in warehouses or factories, lower maintenance can translate into:

• Less scheduled downtime

• Lower maintenance labor

• Longer operating life

• More consistent performance

Nidec specifically identifies maintenance-free operation as a major characteristic of BLDC motors.

7. Good Energy Efficiency

Battery-powered AGVs are highly sensitive to energy consumption.

A motor with good efficiency can help increase:

• Operating time per charge

• Battery utilization

• Available vehicle range

• Overall system efficiency

BLDC motors generally offer high efficiency compared with many conventional motor technologies. Oriental Motor also highlights the suitability of BLDC motors for battery-powered AGV and AMR applications.

However, the motor, gearbox, controller, wheel, and operating point must be evaluated as a complete system. A highly efficient motor does not automatically mean the entire drivetrain is efficient.

8. Encoder and Brake Integration

Many AGV hub motors can be supplied with optional feedback and braking components.

Common options include:

• Incremental encoder

• Absolute encoder

• Hall sensors

• Electromagnetic brake

• Temperature sensor

These options are useful when the AGV requires accurate positioning, wheel synchronization, or parking on slopes.

For example, Nidec's SU Series supports optional absolute encoders and brakes.

9. Easier AGV System Integration

A complete wheel-drive assembly can reduce the number of components the OEM needs to source and integrate.

Instead of separately purchasing a motor, gearbox, wheel, encoder, and mounting hardware, the manufacturer can potentially obtain a more complete solution.

This can shorten:

• Mechanical design time

• Assembly time

• Prototype development

• Supplier coordination

• Testing cycles

For OEM/ODM projects, suppliers can also customize wheel dimensions, gear ratio, encoder, brake, connector, mounting structure, and wiring according to the AGV design.

Disadvantages of AGV Hub Motors

Despite their advantages, hub motors are not ideal for every AGV.

1. Higher Unsprung or Wheel-Side Mass

Because the motor and transmission are located close to the wheel, the wheel assembly can become relatively heavy.

This can be problematic when the vehicle operates over:

• Uneven floors

• Expansion joints

• Ramps

• Thresholds

• Outdoor surfaces

• Areas with frequent impacts

Nidec's in-wheel motor development has specifically addressed structural rigidity and vibration because wheel-mounted motors experience external shocks and vibration directly.

For indoor warehouse AGVs operating on smooth concrete, this may be less problematic than for outdoor mobile robots.

2. Heat Dissipation Can Be More Challenging

A motor integrated into a compact wheel assembly has limited physical space for heat dissipation.

This becomes important during:

• Continuous operation

• High-load transportation

• Frequent acceleration

• Ramp climbing

• High ambient temperatures

The motor should therefore be evaluated based on continuous torque and temperature rise, rather than only peak torque.

BLDC motors generally have good heat-dissipation characteristics, but the complete hub assembly still needs appropriate thermal design.

3. Higher Exposure to Shock and Vibration

Unlike a motor mounted inside the protected AGV chassis, a hub motor is positioned close to the wheel and therefore experiences more mechanical disturbance.

Potential stresses include:

• Wheel impacts

• Shock loads

• Vibration

• Radial loads

• Axial loads

• Uneven-floor impacts

The bearing structure and wheel housing must therefore be designed for the actual AGV payload and operating environment.

4. Bearing Load Becomes Critical

The motor may have enough torque but still fail prematurely if the bearings cannot handle the vehicle's actual wheel load.

OEM buyers should ask manufacturers for:

• Maximum radial load

• Maximum axial load

• Bearing type

• Bearing life

• Dynamic load rating

• Static load rating

• Shock-load capability

This is particularly important for heavy-duty AGVs and pallet transportation systems.

5. Repair Can Be More Complicated

With a conventional drivetrain, a failed motor, gearbox, or wheel can sometimes be replaced separately.

With an integrated hub motor, several components may form one assembly.

Depending on the design, maintenance personnel may need to replace the complete:

motor + gearbox + bearing + wheel assembly

rather than a single component.

This can increase replacement cost if the assembly is highly customized.

6. Direct-Drive Hub Motors Can Require Larger Motors

Direct-drive systems eliminate the gearbox, but they must generate the required wheel torque directly.

For applications requiring very high starting torque, this can increase:

• Motor diameter

• Motor weight

• Magnet quantity

• Cost

• Thermal requirements

A geared hub motor can sometimes provide the same wheel torque with a smaller high-speed motor.

7. Gearbox Versions Introduce Mechanical Losses

Not every hub motor is direct drive.

Many AGV wheel motors use planetary or other gear reduction to increase torque.

The gearbox introduces additional considerations:

• Efficiency loss

• Gear noise

• Backlash

• Lubrication

• Wear

• Manufacturing tolerance

Therefore, a geared hub motor and a direct-drive hub motor should not be evaluated using exactly the same criteria.

8. More Complex Electronics

A BLDC hub motor normally requires an electronic controller for commutation and speed control.

An advanced AGV system may additionally require:

• Encoder feedback

• Closed-loop control

• CAN communication

• RS-485

• EtherCAT

• Fault output

• Brake control

• STO or other safety functions

This makes the complete system more sophisticated than a basic brushed DC motor.

AGV Hub Motor Advantages vs. Disadvantages

When Should You Choose an AGV Hub Motor?

An AGV hub motor is particularly attractive when the design requires:

• Compact chassis dimensions

• High wheel torque

• Battery-powered operation

• Low maintenance

• Accurate speed control

• Encoder feedback

• Integrated braking

• Simplified mechanical transmission

• OEM customization

For warehouse AMRs, compact material-handling AGVs, service robots, and indoor logistics vehicles, the advantages often outweigh the disadvantages.

For extremely heavy AGVs, highly uneven outdoor environments, or applications exposed to severe wheel impacts, a conventional motor-and-drive architecture may sometimes provide easier thermal management, maintenance, and mechanical protection.

Final Consideration for OEM Buyers

The best AGV hub motor should be selected according to the complete vehicle operating profile, not motor power alone.

Before choosing a supplier, calculate:

Vehicle weight + payload → required traction force → wheel torque → motor torque → gear ratio → motor speed → thermal load → battery consumption.

Then verify the mechanical specifications, including wheel diameter, radial load, bearing life, IP rating, encoder resolution, brake torque, operating temperature, and shock resistance.

For a production AGV, the most reliable approach is to evaluate the motor, gearbox, wheel, controller, encoder, brake, and mounting structure as one integrated drivetrain. That is where the real performance difference between AGV hub motor suppliers becomes visible.

Top 15 AGV Hub Motor Manufacturers and Suppliers in Japan

1. JKONGMOTOR

Company Profile

JKONGMOTOR is an OEM/ODM motor manufacturer focused on motion-control products for automation, robotics, AGVs, AMRs, and other industrial applications.

Although it is not a Japan-based manufacturer, it is included here because international OEM buyers evaluating Japanese AGV motor solutions may also compare it against Japanese suppliers when developing customized AGV platforms.

Main Products

• AGV hub motors

• BLDC motors

• Integrated BLDC motors

• DC servo motors

• Integrated DC servo motors

• Stepper servo motors

• Geared motors

• AGV drive motors

• Customized motor assemblies

Advantages

JKONGMOTOR's major advantage is OEM/ODM flexibility. Buyers can request customized voltage, power, torque, speed, encoder, brake, gearbox, shaft, mounting structure, connector, and cable configurations.

For AGV manufacturers developing their own chassis, this flexibility can be more valuable than simply purchasing a standard motor.

2. BESFOC Motor

Company Profile

BESFOC Motor is a motion-control motor supplier offering BLDC, servo, stepper, and integrated motor solutions for automation and robotics.

Main Products

• BLDC motors

• Hub motors

• Servo motors

• Integrated servo motors

• Stepper motors

• Gear motors

• Customized motion-control solutions

Advantages

The key strength is the breadth of motor technologies available for automation applications. This can be useful when an AGV project requires different motors for traction, lifting, steering, and auxiliary mechanisms.

3. LeanMotor

Company Profile

LeanMotor provides motion-control and motor solutions for robotics, automation, and mobile equipment.

Main Products

• BLDC motors

• Hub motors

• Servo motors

• Geared motors

• Stepper motors

• Integrated motor solutions

Advantages

LeanMotor is worth considering when an OEM needs a combination of compact motor design, customization, and motion-control integration rather than a single off-the-shelf motor.

4. Nidec

Company Profile

Nidec is one of Japan's best-known motor manufacturers and has extensive experience in motors, drives, reducers, and AGV/AMR applications.

Its AGV portfolio includes dedicated motor platforms, wheel-drive assemblies, and integrated drivetrain solutions.

Main Products

• AGV motors

• In-wheel motors

• Wheel-drive assemblies

• BLDC motors

• Gear motors

• Motor controllers

• AGV kits

Advantages

Nidec offers an unusually broad AGV ecosystem. Its SU Series, for example, is an in-hub planetary wheel-drive assembly available with options such as absolute encoders and brakes.

5. Mabuchi Motor

Company Profile

Mabuchi Motor is a major Japanese motor manufacturer that has expanded its portfolio into compact brushless motor systems for mobile robots and other applications.

Main Products

Its MS Series includes geared BLDC motors specifically targeting:

• AGVs

• AMRs

• Delivery robots

• Electric wheelchairs

Advantages

Mabuchi emphasizes compactness, high torque density, planetary reduction, and water-resistant construction. Its MS-94BZD, for example, is a 203 W geared BLDC motor with a 20:1 planetary reduction configuration.

This makes Mabuchi particularly interesting for compact mobile robots and light-to-medium-duty AGVs.

6. Oriental Motor

Company Profile

Oriental Motor is a well-established Japanese motion-control manufacturer with extensive experience in motors, gearheads, drivers, and automation.

Main Products

• BLDC motors

• BLDC gear motors

• Stepper motors

• Servo systems

• Gearheads

• AGV/AMR drivetrain motors

Advantages

Oriental Motor has developed its BLV series specifically around battery-powered transportation robots. Its AGV/AMR products support features such as wide speed ranges, closed-loop speed control, compact gearhead configurations, and electromagnetic brakes.

Its BLV Series R Type supports 24–48 VDC applications and is designed for battery-powered AGV/AMR systems.

7. MinebeaMitsumi

Company Profile

MinebeaMitsumi is a Japanese precision-components manufacturer with extensive motor and electronic component expertise.

Main Products

• Small precision motors

• BLDC motors

• Fan motors

• Actuators

• Motion-control components

• Robotics-related motor technologies

Advantages

MinebeaMitsumi's robotics portfolio specifically identifies AMR/AGV applications, covering travel drives as well as other motorized functions.

Its strength is particularly relevant for OEMs requiring high-volume precision motor manufacturing and compact electromechanical components.

8. CAZMO-Motiontech

Company Profile

CAZMO-Motiontech is a Japan-based motion-control supplier offering in-wheel motors, hub motors, AC servo systems, and brushless motors.

Main Products

• Direct-drive hub motors

• In-wheel motors

• AGV servo systems

• BLDC motors

• Gear motors

• Brushless motors

Advantages

CAZMO is especially relevant to buyers specifically searching for Japanese hub motor solutions for AGVs.

Its published AGV hub motor example is a 200 mm OD, 24/36 V, 100 rpm, 10 Nm, 200 W design. The company also states that custom sizes and outputs can be discussed.

9. Corelss Motor

Company Profile

Corelss Motor is a Japanese company associated with HSM-series in-wheel motors and wheel motors for autonomous robots.

Main Products

• AGV in-wheel motors

• AMR wheel motors

• Hub motors

• Mecanum wheel motors

• Encoder-equipped wheel motors

Advantages

Corelss is particularly interesting for robotics developers and smaller OEM projects looking for a wider selection of wheel-motor configurations.

Its HSM series is marketed for lightweight AGVs and autonomous robots, including encoder-equipped versions.

10. Ginga Motor

Company Profile

Ginga Electric Industry develops customized motor solutions, including brushless DC motors and in-wheel motors.

Main Products

• In-wheel motors

• BLDC motors

• Axial-gap motors

• Radial-gap motors

• Custom motor assemblies

Advantages

Ginga's major strength is custom motor engineering.

Its in-wheel motor portfolio covers approximately 12–450 V and 100 W–1 kW, with applications including AGV/AMR and mobility equipment.

The company also promotes full customization involving motors, control circuits, and reduction mechanisms.

11. Sanyo Denki

Company Profile

Sanyo Denki is a Japanese manufacturer known for motors, cooling systems, and industrial automation technologies.

Main Products

• Servo motors

• AC/DC motors

• BLDC motors

• Cooling fans

• Motion-control systems

Advantages

Sanyo Denki is a suitable candidate when the project requires industrial-grade motor engineering and a mature automation component supplier rather than a simple commodity hub motor.

12. Shinano Kenshi

Company Profile

Shinano Kenshi is a Japanese precision motor manufacturer with experience in motion-control applications.

Main Products

• Stepper motors

• BLDC motors

• Servo motors

• Actuators

• Precision motion components

Advantages

Its experience in precision motors makes it relevant for robotics and automated equipment where compactness, controllability, repeatability, and manufacturing consistency matter.

13. Tamagawa Seiki

Company Profile

Tamagawa Seiki is a Japanese motion-control manufacturer specializing in motors, sensors, resolvers, and servo-related technologies.

Main Products

• Servo motors

• Brushless motors

• Resolvers

• Encoders

• Motion-control components

Advantages

The company's strength is its feedback and motion-control expertise. For AGVs requiring accurate wheel synchronization and positioning, motor feedback can be just as important as nominal motor power.

14. Harmonic Drive Systems

Company Profile

Harmonic Drive Systems is a Japanese precision motion-control company best known for precision gear reducers and actuator technologies.

Main Products

• Harmonic gearing

• Servo actuators

• Precision reducers

• Motion-control systems

Advantages

Harmonic Drive Systems is not a conventional commodity AGV hub motor manufacturer. However, its precision transmission technology makes it relevant when an AGV or mobile robot requires high positioning accuracy, compact transmission, and low backlash.

15. Nabtesco

Company Profile

Nabtesco is a Japanese industrial manufacturer with strong expertise in precision reduction technology and robotics.

Main Products

• Precision reducers

• Robotics drive components

• Motion-control systems

• Industrial automation components

Advantages

For OEMs designing customized mobile robots, Nabtesco can be considered when the drivetrain requires high-performance reduction and transmission technology rather than a basic integrated wheel motor.

How to Choose the Right AGV Hub Motor Manufacturer in Japan?

Choosing the right AGV hub motor manufacturer in Japan requires more than comparing motor power, price, or brand reputation. For AGV and AMR OEMs, the motor is a critical part of the drivetrain and directly affects traction, acceleration, positioning accuracy, battery life, noise, reliability, and overall vehicle performance.

Japanese motor manufacturers are well known for precision manufacturing and motion-control technology. However, not every company listed as an AGV motor supplier specializes in hub motors or in-wheel drive systems. Buyers should therefore evaluate the manufacturer's actual AGV experience, engineering capabilities, product architecture, customization options, and after-sales support.

Japanese suppliers such as Oriental Motor publish detailed AGV selection criteria involving vehicle weight, operating environment, number of drive axes, wheel diameter, battery voltage, and travel speed. Nidec likewise offers multiple AGV motor platforms with different torque, speed, feedback, connector, and mounting configurations.

1. Start With Your AGV's Actual Operating Requirements

Before contacting an AGV hub motor manufacturer, define the vehicle's operating conditions.

At minimum, prepare:

• AGV self-weight

• Maximum payload

• Total operating weight

• Wheel diameter

• Number of driven wheels

• Maximum speed

• Required acceleration

• Maximum slope

• Floor condition

• Operating hours per day

• Battery voltage

• Required turning radius

• Indoor or outdoor operation

• Ambient temperature

• Required IP rating

These parameters determine the motor's required torque, speed, power, bearing capacity, thermal performance, and protection level.

Oriental Motor specifically identifies weight, running environment, number of drive axes, wheel diameter, supply voltage, and travel speed as key conditions when selecting motors for AGVs and AMRs.

Why Vehicle Weight Matters

Motor selection should be based on total vehicle weight, including the payload.

For example:

AGV weight = 150 kg

Maximum payload = 350 kg

Total design weight = 500 kg

The motor should therefore be selected around the 500 kg operating condition rather than the empty AGV weight.

2. Calculate Required Wheel Torque Before Comparing Manufacturers

One of the most common purchasing mistakes is choosing a motor based only on watts.

A better approach is to calculate the required wheel torque.

A simplified relationship is:

Wheel torque = Traction force × Wheel radius

The required traction force is influenced by:

• Vehicle weight

• Rolling resistance

• Acceleration

• Incline

• Wheel-floor friction

• Mechanical efficiency

• Safety margin

For an AGV operating on a slope, the gravitational component becomes especially important.

A simplified calculation can be expressed as:

F = ma + mg sinθ + Crr × mg

Where:

• m = total vehicle mass

• a = required acceleration

• g = gravitational acceleration

• θ = slope angle

• Crr = rolling-resistance coefficient

Once the required traction force is known:

T = F × r

where r is the wheel radius.

This calculation gives you a much better basis for comparing Japanese AGV hub motor manufacturers.

3. Check Continuous Torque and Peak Torque

Do not compare manufacturers using peak torque alone.

An AGV may require high torque during:

• Starting

• Acceleration

• Ramp climbing

• Turning

• Load pickup

• Obstacle crossing

But the motor also needs sufficient continuous torque for normal transportation.

Ask every manufacturer to provide:

A manufacturer that cannot provide a meaningful torque-speed curve should be evaluated carefully.

4. Choose Between Direct-Drive and Geared Hub Motors

The right Japanese supplier should offer a drivetrain architecture that matches your AGV.

Direct-Drive Hub Motor

Direct-drive motors transmit torque without a conventional reduction gearbox.

Advantages

• Low mechanical complexity

• Low backlash

• Quiet operation

• High positioning response

• Fewer transmission components

Limitations

• Larger motor may be required

• High low-speed torque can increase motor size

• Thermal design can become challenging

Geared Hub Motor

A geared hub motor combines a motor with a reduction gearbox.

Advantages

• Higher wheel torque

• Smaller motor for a given output torque

• Better suited to heavy payloads

• Flexible speed-to-torque ratio

Limitations

• Gear losses

• Gear noise

• Potential backlash

• Additional mechanical components

For many warehouse AGVs, a BLDC motor with planetary reduction can provide a practical balance between compactness and wheel torque.

Nidec, for example, offers AGV platforms ranging from high-torque solutions to ultra-compact outer-rotor designs.

5. Evaluate the Wheel and Bearing Structure

A motor may have enough torque but still be unsuitable if the wheel assembly cannot support the AGV's actual load.

This is particularly important for hub motors because the motor is integrated directly around the wheel.

Ask the manufacturer for:

• Maximum radial load

• Maximum axial load

• Bearing type

• Bearing life

• Wheel load rating

• Shaft strength

• Shock-load capability

• Static load capacity

Oriental Motor's AGV selection guidance also emphasizes that vehicle weight affects required torque as well as allowable radial loading and load-bearing performance.

For heavy-duty AGVs, bearing capacity can be just as important as motor torque.

6. Check Encoder and Feedback Options

Encoder selection is critical for AGVs using differential-drive or closed-loop motion control.

Typical options include:

• Hall sensors

• Incremental encoder

• Magnetic encoder

• Absolute encoder

• High-resolution encoder

An encoder allows the controller to monitor wheel speed and position.

This is particularly important when the AGV needs:

• Straight-line accuracy

• Precise stopping

• Left/right wheel synchronization

• Low-speed control

• Repeatable positioning

• Closed-loop speed regulation

Oriental Motor's AGV-oriented BLDC systems are designed around speed regulation and provide a wide speed-control range.

For higher-end AMRs, ask whether the encoder resolution is sufficient for your wheel diameter and navigation accuracy.

7. Match the Motor to the AGV Battery Voltage

The battery voltage should be considered at the beginning of the motor-selection process.

Common AGV DC bus voltages include:

• 24 VDC

• 36 VDC

• 48 VDC

• Higher-voltage systems for larger vehicles

Oriental Motor identifies 24 V and 48 V as common AGV/AMR battery voltages.

Do not only check the nominal battery voltage. Check the complete operating range.

For example, a nominal 48 V battery does not necessarily remain at exactly 48 V during:

• Full charge

• Normal discharge

• High-current acceleration

• Low battery conditions

The motor and controller should support the actual voltage range.

8. Examine the Motor Controller and Communication Interface

A good AGV hub motor supplier should be able to explain how the motor integrates with the AGV's control architecture.

Ask about:

• PWM control

• Analog speed control

• Pulse/direction

• CAN

• CANopen

• RS-485

• Modbus

• EtherCAT

• Digital I/O

• Fault output

If the motor and controller are supplied as a matched system, integration can be easier.

Oriental Motor, for example, provides dedicated drivers with its BLV brushless motor systems for battery-powered AGV and AMR applications.

9. Check Brake Options

A brake may be necessary when an AGV must remain stationary on a slope or hold a heavy payload.

Ask whether the manufacturer offers:

• Electromagnetic brake

• Spring-applied brake

• Brake release voltage

• Brake holding torque

• Brake response time

• Manual release option

However, motor braking, regenerative braking, dynamic braking, and mechanical holding brakes are not interchangeable.

If the AGV must safely hold its position when power is removed, verify that the proposed brake is actually rated for that function.

10. Consider IP Rating and Environmental Protection

For indoor warehouse AGVs, the environmental requirements may be relatively moderate.

For outdoor or harsh industrial applications, the requirements can be significantly higher.

Consider:

• Water exposure

• Dust

• Oil

• Cleaning chemicals

• Humidity

• Condensation

• Temperature

• Shock

• Vibration

Depending on the application, an OEM may require IP54, IP65, IP66, or IP67 protection.

Do not accept an IP rating based only on the motor itself. Check the complete hub assembly, including:

Motor + encoder + connector + cable + gearbox + wheel housing

11. Evaluate Thermal Performance

Thermal performance is one of the most overlooked AGV motor-selection factors.

A motor that produces excellent peak torque for several seconds may not be able to maintain the same output continuously.

Ask for:

• Rated ambient temperature

• Maximum winding temperature

• Continuous torque

• Temperature-rise data

• Thermal protection

• Continuous-duty rating

• Duty-cycle curves

This is especially important for AGVs operating 24/7.

A motor that is perfectly suitable for intermittent warehouse operation may not be suitable for continuous heavy-duty transportation.

12. Check the Manufacturer's Customization Capability

For AGV OEMs, customization is often more important than catalog selection.

Possible customizations include:

• Wheel diameter

• Wheel material

• Gear ratio

• Motor winding

• Voltage

• Power

• Torque

• Speed

• Encoder

• Brake

• Shaft

• Mounting flange

• Connector

• Cable length

• Communication interface

• Controller

• Housing

• IP protection

Nidec explicitly highlights customization across speed, torque, feedback, connectors, and mounting options within its AGV motor portfolio.

This is an important question to ask during RFQ:

Can you modify the standard motor to fit our AGV chassis, or must we redesign the chassis around your motor?

For an OEM developing hundreds or thousands of AGVs, the answer can significantly affect total development cost.

13. Investigate Manufacturing Quality and Production Capability

A technically impressive prototype does not guarantee reliable mass production.

Ask potential Japanese AGV hub motor manufacturers about:

• Manufacturing location

• Production capacity

• Incoming inspection

• Rotor balancing

• Winding inspection

• Encoder testing

• Gearbox testing

• End-of-line testing

• Traceability

• Failure-rate data

• Quality certifications

• Production lead time

Oriental Motor states that it manufactures products under strict quality standards at plants in Japan and the United States and uses a one-piece-flow manufacturing approach.

For OEM procurement, the important point is to evaluate repeatability, not simply prototype quality.

14. Check Whether the Supplier Supports OEM/ODM Development

There is a major difference between:

Distributor → Standard motor → Catalog purchase

and:

Manufacturer → Engineering support → Customized prototype → Validation → Mass production

For an AGV OEM, the second model is often preferable.

Ask whether the supplier can support:

• Prototype development

• Motor parameter optimization

• Gear-ratio selection

• Encoder selection

• Wheel customization

• Controller matching

• Sample testing

• Reliability testing

• Engineering changes

• Mass-production support

Mabuchi Motor, for example, states that many of its motors are produced to order based on specifications agreed with customers, rather than being sold as simple off-the-shelf units.

15. Compare Total Cost of Ownership, Not Just Unit Price

The cheapest motor is not necessarily the lowest-cost solution.

Calculate:

Total Cost of Ownership = Purchase Cost + Integration Cost + Maintenance + Downtime + Replacement Cost + Energy Cost

A lower-cost motor may require:

• Additional gearbox

• External encoder

• Separate brake

• Custom mounting

• More wiring

• Additional controller

• More engineering work

A slightly more expensive integrated hub motor may actually reduce the total system cost.

16. Evaluate Lead Time and Long-Term Supply

For AGV manufacturers, supply continuity is critical.

Ask:

• What is the sample lead time?

• What is the production lead time?

• What is the MOQ?

• Can production capacity scale?

• Are critical components single-sourced?

• How long will the model remain available?

• Can engineering changes be controlled?

• Is there a second production location?

This matters particularly when an AGV platform moves from prototype to mass production.

A supplier that can deliver 20 prototypes but cannot reliably supply 10,000 motors annually is not necessarily the right long-term partner.

17. Ask for Real AGV Application Experience

A manufacturer may have excellent BLDC motors but limited experience with mobile robots.

Ask for evidence of experience with:

• AGVs

• AMRs

• Warehouse robots

• Pallet movers

• Tugger AGVs

• Autonomous forklifts

• Service robots

• Delivery robots

Nidec explicitly positions its motor platforms around AGV/AMR applications and lists multiple dedicated product families, while IPROS's current Japanese AGV supplier/product listings also identify Corelss's encoder-equipped in-wheel motor for AGV/AMR applications.

This type of application experience can shorten the engineering process because the supplier already understands typical AGV drivetrain requirements.

18. Compare Japanese Manufacturers With OEM/ODM Alternatives

Japanese manufacturers can offer excellent precision, engineering experience, and manufacturing consistency. Companies such as Oriental Motor have a broad motion-control portfolio and long-established manufacturing infrastructure.

However, OEM buyers should also compare:

The right choice should be based on the actual technical and commercial requirements of the AGV project, rather than country of origin alone.

19. Request a Complete Technical Datasheet

Before approving a manufacturer, request a complete specification sheet containing at least:

Motor

• Rated voltage

• Rated power

• Rated torque

• Peak torque

• Rated speed

• Maximum speed

• Efficiency

• Current

• Torque constant

Mechanical

• Wheel diameter

• Overall dimensions

• Weight

• Radial load

• Axial load

• Shaft dimensions

• Mounting dimensions

• Bearing specifications

Feedback

• Encoder type

• Encoder resolution

• Hall sensor

• Communication interface

Environmental

• IP rating

• Operating temperature

• Storage temperature

• Humidity

• Vibration

• Shock resistance

Safety

• Brake

• Thermal protection

• Overcurrent protection

• Overvoltage protection

• Fault output

• STO, if required

20. Use a Practical AGV Hub Motor Supplier Scorecard

A useful supplier evaluation model can look like this:

This approach prevents purchasing teams from selecting a supplier simply because it offers the lowest quotation.

Final Checklist: How to Choose the Right AGV Hub Motor Manufacturer in Japan

Before placing an order, ask these 10 questions:

1. Can the motor provide our required continuous and peak wheel torque?

2. Can the wheel and bearings support our maximum AGV load?

3. Does the motor support our actual battery voltage range?

4. Can the manufacturer provide the required encoder resolution?

5. Is an electromagnetic brake available if required?

6. Can the motor withstand our duty cycle and operating temperature?

7. Does the complete assembly meet our IP and environmental requirements?

8. Can the supplier customize the wheel, gearbox, shaft, encoder, brake, and mounting?

9. Can the manufacturer support prototype development and mass production?

10. Can it provide stable long-term supply and technical support?

Conclusion

Choosing the right AGV hub motor manufacturer in Japan should be treated as an engineering and supply-chain decision rather than a simple brand comparison.

The best supplier should provide the right combination of wheel torque, motor speed, battery compatibility, encoder feedback, bearing capacity, thermal performance, mechanical durability, customization, quality control, and production support.

For standard industrial motion-control requirements, established Japanese manufacturers can offer strong engineering infrastructure and mature quality systems. For highly customized AGV platforms, it is also worth comparing Japanese suppliers with specialized OEM/ODM motor manufacturers that can modify wheel dimensions, gear ratios, encoders, brakes, controllers, connectors, and mounting structures.

Most importantly, select the manufacturer only after validating the complete wheel-drive system under real AGV conditions—including payload, acceleration, slope, duty cycle, floor conditions, turning, braking, and battery operation. That approach provides a much more reliable basis for choosing an AGV hub motor manufacturer than comparing catalog specifications alone.

AGV Hub Motor Applications

AGV hub motors are widely applicable to:

Warehouse AGVs

Used for pallet transportation, material movement, picking, and replenishment.

AMRs

Compact wheel-drive systems help AMRs maintain a low chassis profile while leaving more internal space for batteries and electronics.

Manufacturing Logistics

AGVs can move components between production lines, assembly stations, warehouses, and inspection areas.

Hospital and Service Robots

Compact, quiet BLDC wheel motors are useful for mobile service robots operating around people.

Delivery Robots

Geared BLDC wheel motors can provide compact propulsion and sufficient torque for low-speed delivery platforms.

Heavy-Duty AGVs

High-torque geared wheel drives are suitable for pallet carriers, tugger AGVs, and industrial transportation platforms.

Why OEM Buyers Often Prefer Customized AGV Hub Motors

For AGV and AMR manufacturers, choosing a drive motor is rarely as simple as selecting a standard 24V BLDC motor from a catalog. Wheel diameter, vehicle weight, payload, torque, speed, encoder feedback, mounting dimensions, communication protocol, brake requirements, and available chassis space all affect the final drivetrain design.

That is why more OEM buyers are looking for customized AGV hub motors rather than forcing their vehicle design to fit a standard motor.

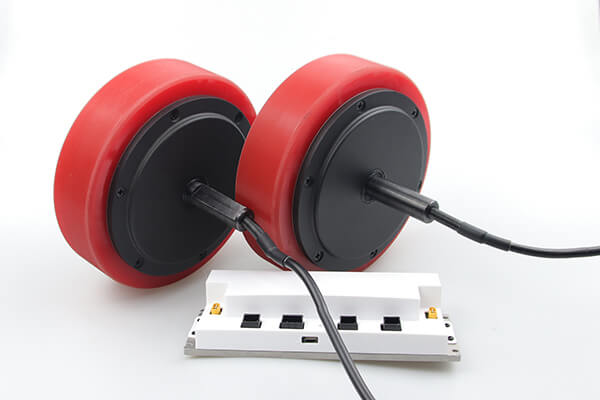

JKONGMOTOR's JK130BLW65-24V AGV hub motor is a practical example of this approach. It is a 24V brushless DC wheel-drive motor with a 130 mm hub diameter, 65 mm body length, 212 W rated power, 5.8 Nm rated torque, and 15 Nm peak torque. The product can also be configured with options such as an encoder, gearbox, brake, and integrated driver.

What Is a Customized AGV Hub Motor?

A customized AGV hub motor is a wheel-drive motor engineered or modified according to the mechanical, electrical, and control requirements of a specific AGV or AMR platform.

Instead of purchasing a motor first and redesigning the robot around it, an OEM can work with the manufacturer to optimize the drive system around the actual vehicle.

Typical customization areas include:

• Motor voltage

• Rated power

• Rated torque

• Peak torque

• Rated speed

• Wheel diameter

• Gear ratio

• Encoder type

• Brake

• Shaft configuration

• Mounting flange

• Cable length

• Connector

• Communication interface

• Integrated driver

• IP protection

• Wheel material and structure

For JKONGMOTOR, the customization scope extends beyond the motor itself. The company's AGV hub motor page specifically lists motors, gearboxes, encoders, brakes, and integrated drivers as customizable components.

1. Customized Dimensions Fit the AGV Chassis Better

One of the biggest reasons OEMs choose customized hub motors is mechanical compatibility.

AGV chassis designs are often highly space-constrained. The motor must fit within a defined:

• Wheel diameter

• Wheel width

• Mounting area

• Ground clearance

• Shaft position

• Axial space

• Chassis height

A standard motor may provide the required torque but still be impossible to install because its mounting pattern or overall dimensions do not match the vehicle.

The JK130BLW65-24V uses a 130 × 130 mm NEMA 52 frame with a 65 mm body length and 16 mm shaft diameter, providing a compact wheel-drive format for mobile robot applications.

More importantly, JKONGMOTOR provides customized shaft configurations, including key shafts, threaded shafts, hollow shafts, single-flat shafts, dual-flat shafts, gears, pulleys, and panel-mount configurations.

This gives OEM engineers greater freedom to optimize the mechanical connection between the hub motor and AGV chassis.

2. Torque Can Be Matched to the Real AGV Payload

OEM buyers should not select an AGV motor simply because it has a higher wattage.

For mobile robots, wheel torque is often more important than rated power.

An AGV may need high torque when:

• Starting from rest

• Carrying maximum payload

• Climbing ramps

• Accelerating

• Turning

• Reversing

• Crossing floor transitions

The JK130BLW65-24V is specified at 5.8 Nm rated torque and 15 Nm peak torque, with 212 W rated power and a rated speed of 350 RPM. JKONGMOTOR's published application information associates this configuration with AGV payloads up to 50 kg, acceleration up to 2 m/s⊃2;, and travel speeds up to 3.5 m/s under the stated conditions.

Customization allows an OEM to optimize the torque-speed relationship rather than simply oversizing the motor.

That can help avoid:

Oversized motor → higher cost → greater weight → unnecessary battery consumption

while also avoiding:

Undersized motor → insufficient starting torque → overheating → unstable operation

3. The Motor Can Be Matched to the Battery System

Most AGVs and AMRs use battery-powered DC systems.

Common battery voltages include:

• 24V

• 36V

• 48V

• 60V

The JK130BLW65-24V is designed around a 24VDC power system, making it suitable for AGV platforms using a 24V battery architecture.

For OEM projects, voltage customization can be important because the motor should work efficiently across the battery's actual operating range rather than only at its nominal voltage.

A properly matched motor and battery system can help simplify:

• Power architecture

• Motor-driver selection

• Wiring

• Battery management

• Thermal design

• Energy consumption

4. Encoder Customization Improves Motion Control

An AGV needs much more than simple forward and reverse movement.

Modern AGVs and AMRs often require:

• Accurate speed regulation

• Smooth acceleration

• Precise stopping

• Left/right wheel synchronization

• Position feedback

• Low-speed stability

• Closed-loop control

The JK130BLW65-24V can be equipped with a 17-bit absolute encoder. Its published wiring also includes RS485 communication and motor temperature monitoring.

For OEM developers, encoder customization is valuable because different AGV control architectures require different feedback solutions.

A low-cost indoor transport AGV may need relatively simple feedback, while a high-precision AMR may require a higher-resolution absolute encoder.

5. Communication Interfaces Can Be Customized

The motor should also communicate effectively with the AGV's main controller.

JKONGMOTOR lists several communication options for the JK130BLW65-24V platform, including:

• Pulse control

• RS485 Modbus

• CANopen

The product's encoder interface also provides RS485 A/B connections.

This matters because the AGV's communication architecture is often determined before the drivetrain is selected.

For OEMs, customized communication support can reduce the need for additional interface hardware and make integration with the vehicle controller more straightforward.

6. Gearbox Options Help Optimize Wheel Torque

Not every AGV requires the same motor speed or wheel torque.

A motor can be combined with an appropriate reduction mechanism to achieve the desired wheel performance.

JKONGMOTOR offers several geared BLDC configurations, and the JK130BLW65-24V platform can be customized with a gearbox, including planetary and other gear configurations depending on the project requirements.

A gearbox can be useful when the OEM needs:

• Higher wheel torque

• Lower wheel speed

• Compact motor dimensions

• Better starting performance

• A specific speed-to-torque ratio

For heavy-load AGVs, gearbox selection should be evaluated together with motor torque, efficiency, backlash, noise, and thermal performance.

7. Brake Integration Can Improve Vehicle Safety and Holding

Some AGVs need a mechanical brake, particularly when they operate with:

• Heavy payloads

• Sloped floors

• Loading platforms

• Lifting mechanisms

• Parking requirements

JKONGMOTOR lists brake integration as one of the available customization options for its AGV motor platform.

Integrating the brake during motor development can be more practical than trying to add an external brake after the chassis has already been designed.

For safety-critical applications, however, OEM engineers should separately verify brake holding torque, response time, failure behavior, and applicable safety requirements.

8. Customized Shafts Reduce Mechanical Adaptation

Shaft geometry is a small detail that can create a large integration problem.

A standard shaft may require:

• Additional coupling

• Adapter plate

• Pulley

• Gear

• Custom bracket

• Additional machining

Every additional component increases assembly complexity and creates another possible source of backlash or mechanical tolerance.

JKONGMOTOR provides multiple shaft customization options, including keyed, threaded, hollow, flat, gear, pulley, and panel-mount configurations.

This allows the motor's mechanical interface to be designed around the OEM's drivetrain architecture.

9. Cable and Connector Customization Simplifies Installation

AGVs often have very limited internal space.

Cable routing can become difficult when standard motor cables are too long, too short, or positioned incorrectly.

JKONGMOTOR's published JK130BLW65-24V configuration specifies a 500 mm lead length, while its broader AGV/AMR OEM approach supports customized cable and connector configurations.

Customization can cover:

• Cable length

• Cable direction

• Connector type

• Pin assignment

• Communication wiring

• Power wiring

This can make the final AGV assembly cleaner and reduce unnecessary wiring.

10. Integrated Drive Electronics Can Reduce System Complexity

Some OEMs prefer a traditional architecture:

Motor → External Driver → Controller

Others prefer:

Motor + Encoder + Driver → Integrated Drive Unit

JKONGMOTOR supports both approaches and lists integrated drivers among its customization options.

An integrated motor-drive solution can reduce:

• Wiring

• Cabinet space

• External components

• Assembly time

• Installation complexity

For compact AMRs, this can be particularly useful because chassis space is often reserved for batteries, LiDAR, cameras, industrial PCs, and other electronics.

JKONGMOTOR's broader AGV/AMR solution portfolio also describes integrated drive units combining a servo motor, planetary gearbox, drive wheel, and motor driver into a compact module.

11. Customization Helps OEMs Avoid Redesigning the Robot

This is one of the most important commercial benefits.

A standard motor may force an OEM to change:

• Chassis dimensions

• Wheel position

• Battery location

• Gearbox structure

• Mounting brackets

• Controller location

• Cable routing

Those changes can affect the entire AGV.

With an OEM-customized hub motor, the motor manufacturer can instead adapt selected motor parameters to the existing platform.

This is particularly valuable when an AGV is already in prototype testing.

12. OEM Customization Supports Product Differentiation

For AGV manufacturers, the drive system is part of the overall product design.

Two AGVs may have similar payload ratings but different requirements for:

• Acceleration

• Maximum speed

• Noise

• Turning

• Battery life

• Positioning accuracy

• Wheel dimensions

• Controller architecture

A customized hub motor allows the OEM to optimize the drivetrain around its own vehicle rather than using exactly the same motor configuration as competitors.

This can create a more differentiated product architecture.

13. Why Choose JKONGMOTOR for Customized AGV Hub Motors?

JKONGMOTOR positions itself as an OEM/ODM motor manufacturer and motion-control solution provider, with AGV/AMR applications covering integrated servo motors, BLDC motors, geared motors, and customized drive solutions. Its AGV application materials describe prototype support and production scaling, while its product portfolio includes customizable motor, gearbox, encoder, brake, and driver configurations.

For AGV OEM buyers, the main advantages of working with JKONGMOTOR include:

Application-Specific Motor Engineering

Rather than focusing only on catalog specifications, the motor can be matched to the AGV's payload, speed, torque, battery voltage, wheel dimensions, and control requirements.

Multiple Customization Options

JKONGMOTOR can customize key mechanical and electrical elements such as:

• Motor parameters

• Gearbox

• Encoder

• Brake

• Shaft

• Flange

• Cable

• Connector

• Integrated driver

Integrated Motion-Control Solutions

For OEMs that want to reduce the number of separate drivetrain components, JKONGMOTOR can provide integrated BLDC and servo solutions combining motor, feedback, drive electronics, and gearing according to the application.

Prototype-to-Production Support

JKONGMOTOR states that it can support small prototype quantities and scale production for larger OEM requirements. Its AGV solution page describes a development approach ranging from initial prototypes to high-volume production.

Customized AGV Hub Motor vs. Standard Hub Motor

When Should OEMs Choose a Customized AGV Hub Motor?

Customization is particularly worthwhile when:

• The AGV has a unique chassis design

• Available installation space is limited

• The wheel diameter is non-standard

• The payload requires specific torque

• The battery voltage is application-specific

• High-resolution encoder feedback is required

• A mechanical brake is necessary

• The motor must communicate through a specific protocol

• The OEM wants an integrated driver

• The AGV will be produced in significant volume

• The OEM wants to avoid repeated mechanical redesign

For a simple prototype using standard dimensions, a catalog motor may be sufficient. For a production AGV platform, however, customization can provide substantially more control over the final drivetrain.

What Information Should OEM Buyers Send to JKONGMOTOR?

To obtain an accurate AGV hub motor recommendation, provide:

1. Total AGV weight

2. Maximum payload

3. Number of drive wheels

4. Wheel diameter

5. Target travel speed

6. Required acceleration

7. Maximum slope

8. Battery voltage

9. Continuous operating time

10. Required wheel torque

11. Encoder requirement

12. Brake requirement

13. Communication protocol

14. Available motor dimensions

15. Mounting-hole pattern

16. Operating temperature

17. IP protection requirement

18. Expected annual quantity

The more complete the specification, the easier it is to optimize the motor around the actual AGV rather than simply selecting a similar catalog model.

Final Takeaway

OEM buyers prefer customized AGV hub motors because the drivetrain must fit the vehicle—not the other way around.

A customized solution can optimize torque, speed, voltage, wheel diameter, shaft configuration, gearbox ratio, encoder, brake, communication, cabling, and driver integration around the AGV's actual requirements.

The JKONGMOTOR JK130BLW65-24V demonstrates this OEM-oriented approach with a compact 130 mm hub design, 212 W rated output, 5.8 Nm rated torque, 15 Nm peak torque, 24V operation, 350 RPM rated speed, 17-bit absolute encoder option, and configurable gearbox, brake, and integrated-driver options.

For AGV and AMR manufacturers developing a new platform, the key is not simply to ask “What is the cheapest AGV hub motor?” A better question is:

“Which AGV hub motor can be optimized to fit our mechanical structure, payload, battery, control system, and production requirements?”

That is where an experienced OEM/ODM AGV hub motor manufacturer such as JKONGMOTOR can provide greater value than a purely standard motor supplier.

Japanese AGV Hub Motors vs. OEM/ODM Alternatives

The right choice ultimately depends on whether the project prioritizes brand, existing product qualification, engineering support, cost, customization, or production volume.

Conclusion

The best AGV hub motor manufacturer in Japan depends heavily on the application.

For highly established industrial motor technology, Nidec, Mabuchi Motor, Oriental Motor, MinebeaMitsumi, and Sanyo Denki are strong names to evaluate. For specialized in-wheel and hub-motor development, CAZMO-Motiontech, Corelss Motor, and Ginga Motor are particularly relevant.

For OEM buyers who prioritize customization, competitive pricing, integrated motor solutions, and rapid product development, international suppliers such as JKONGMOTOR, BESFOC Motor, and LeanMotor can also be included in the technical comparison.

The most important point is to evaluate the complete AGV drivetrain, including motor torque, wheel load, encoder feedback, gearbox, bearing capacity, brake, controller, thermal performance, and mechanical integration. A motor that looks attractive on a specification sheet may not necessarily be the right choice once payload, acceleration, floor conditions, duty cycle, and battery limitations are considered.

Frequently Asked Questions About Customized AGV Hub Motors

1. What is an AGV hub motor?

An AGV hub motor is a wheel-drive motor designed to integrate directly with the AGV wheel assembly. It can reduce the need for separate transmission components and save valuable chassis space. JKONGMOTOR's JK130BLW65-24V is a 24V, 212W brushless AGV hub motor designed for AGVs, AMRs, warehouse robots, and material-handling systems.

2. Why do OEMs choose customized AGV hub motors?

OEMs choose customized AGV hub motors to match the motor to their specific payload, wheel size, speed, torque, battery voltage, mounting dimensions, encoder, brake, and control requirements. Customization can reduce mechanical redesign and simplify integration into the final AGV platform.

3. What are the specifications of the JK130BLW65-24V AGV hub motor?

The JK130BLW65-24V has a 24V rated voltage, 212W rated power, 5.8 Nm rated torque, 15 Nm peak torque, 350 RPM rated speed, and 30 poles. It uses a compact NEMA 52, 130 mm hub design and is intended for AGV and AMR applications.

4. Can the JKONGMOTOR AGV hub motor be customized?

Yes. JKONGMOTOR lists customization options including motors, gearboxes, encoders, brakes, and integrated drivers. Mechanical interfaces, shaft configurations, cabling, and other parameters can also be discussed according to OEM project requirements.

5. What encoder options are available for AGV hub motors?

AGV hub motors can be configured with different feedback solutions depending on the control system. The JK130BLW65-24V platform supports encoder integration, including a 17-bit absolute encoder option, for applications requiring accurate speed and position feedback.

6. Can an AGV hub motor include a gearbox and brake?

Yes. A gearbox and brake can be integrated or specified according to the AGV's torque, speed, and holding requirements. A gearbox can increase wheel torque, while a mechanical brake can provide holding capability when the AGV needs to remain stationary.

7. What communication interfaces does the JK130BLW65-24V support?

The JK130BLW65-24V platform supports Pulse control, RS485 Modbus, and CANopen communication options. The appropriate interface depends on the AGV's main controller and motion-control architecture.

8. Is the JK130BLW65-24V suitable for AMRs?

Yes. The motor is designed for AGVs, AMRs, warehouse robots, and intelligent material-handling equipment. Its compact 130 mm hub structure and 24V DC power configuration make it suitable for compact mobile robot platforms where installation space is limited.

9. How do I select the right AGV hub motor for my OEM project?

Start with the total vehicle weight, maximum payload, wheel diameter, required speed, acceleration, slope, battery voltage, duty cycle, and required wheel torque. Then determine the encoder, brake, gearbox, communication, IP rating, and mounting requirements. JKONGMOTOR can use these parameters to recommend or customize an appropriate AGV hub motor configuration.

10. Can JKONGMOTOR provide OEM/ODM AGV hub motor solutions?

Yes. JKONGMOTOR provides OEM/ODM customization for AGV and AMR motor applications, covering motor parameters, gearbox, encoder, brake, integrated driver, and mechanical interfaces. This allows OEM manufacturers to develop a wheel-drive solution around their specific vehicle architecture instead of adapting the entire chassis to a standard motor.
