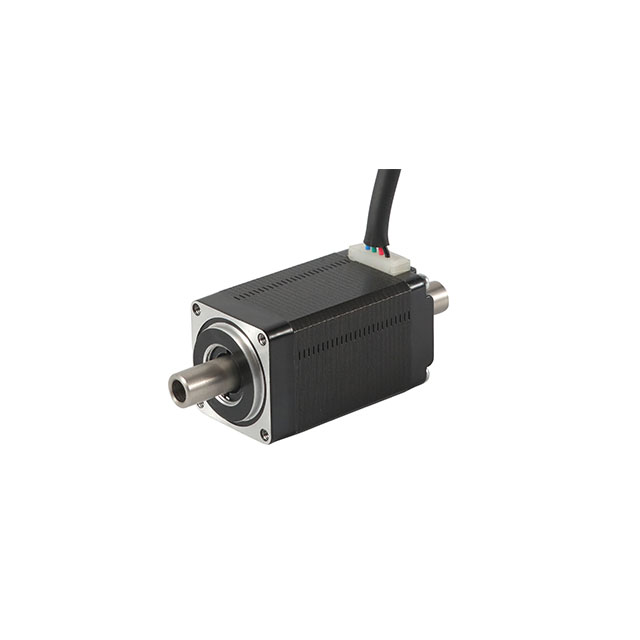

NEMA 8 Hollow Shaft Stepper Motor

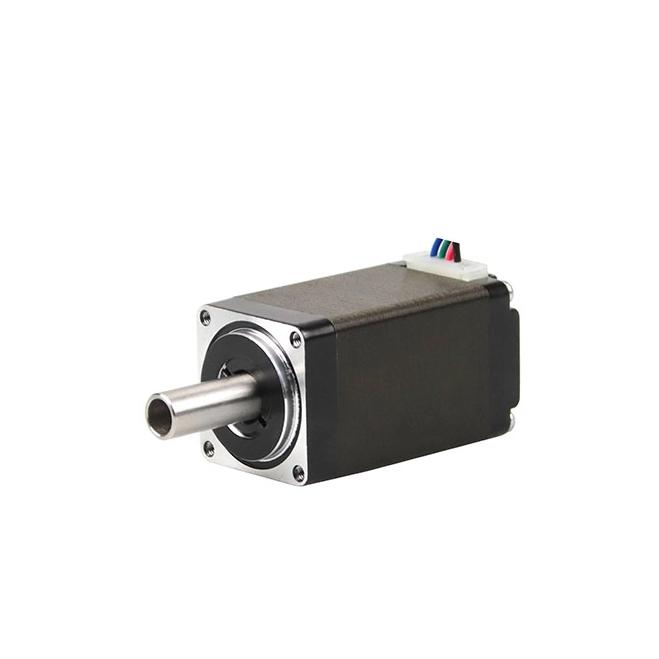

NEMA 11 Hollow Shaft Stepper Motor

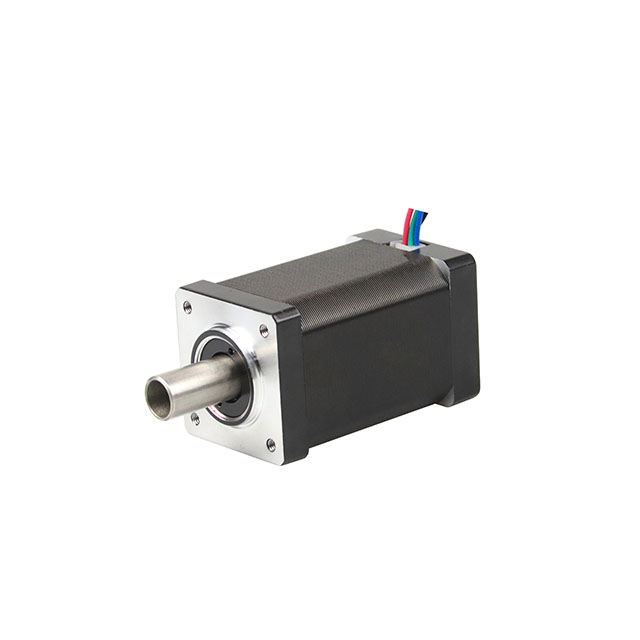

NEMA 14 Hollow Shaft Stepper Motor

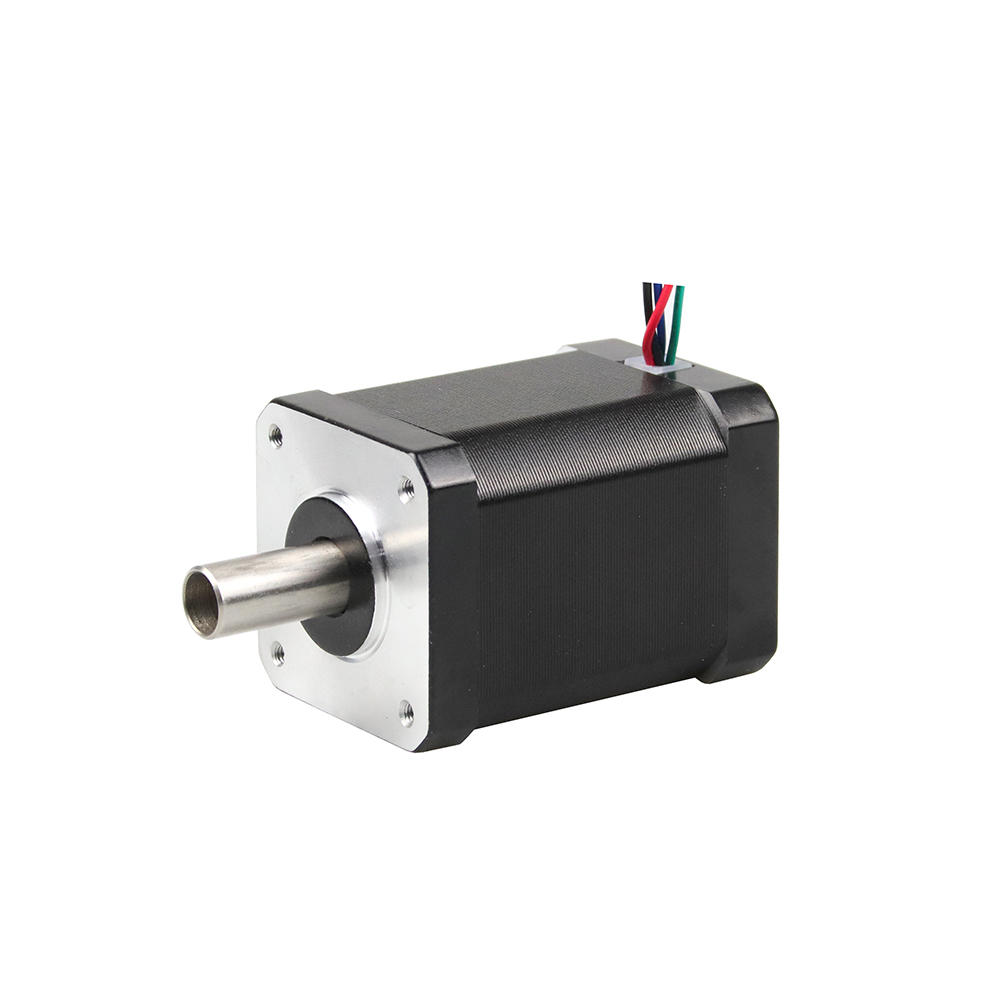

NEMA 17 Hollow Shaft Stepper Motor

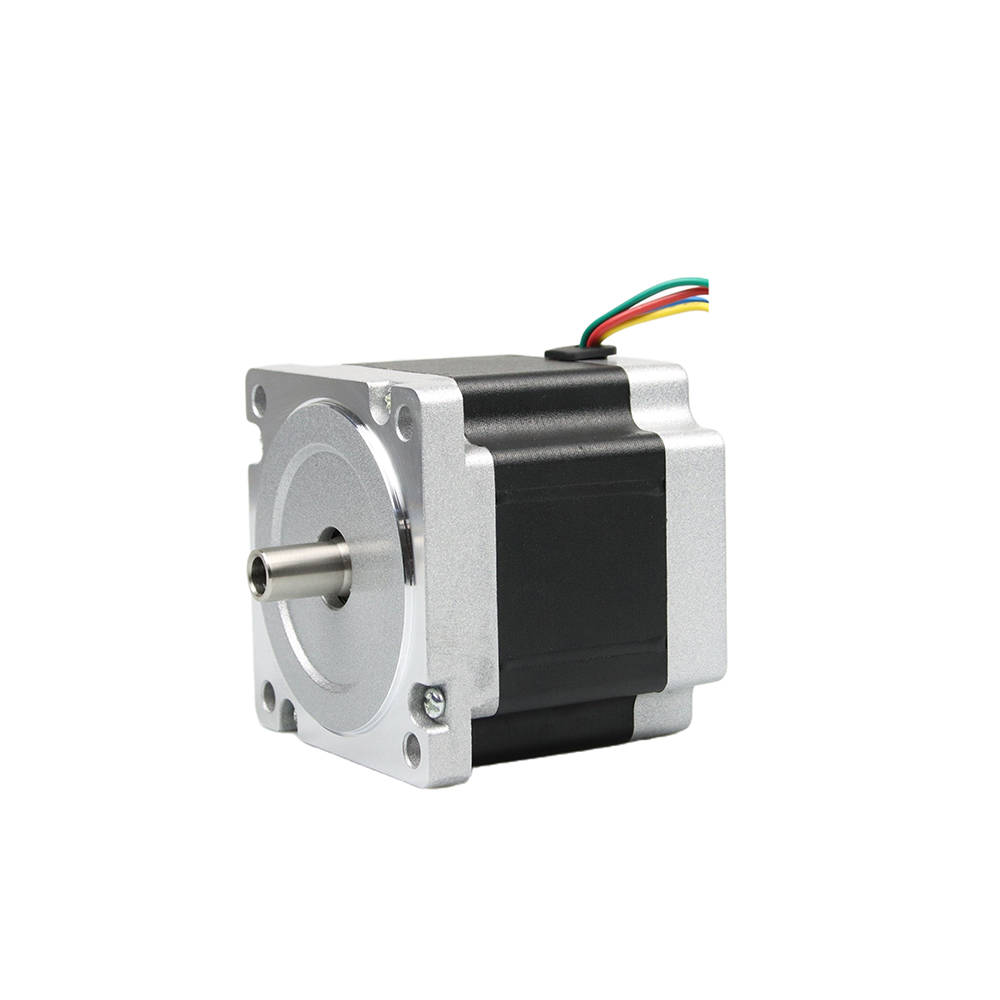

NEMA 23 Hollow Shaft Stepper Motor

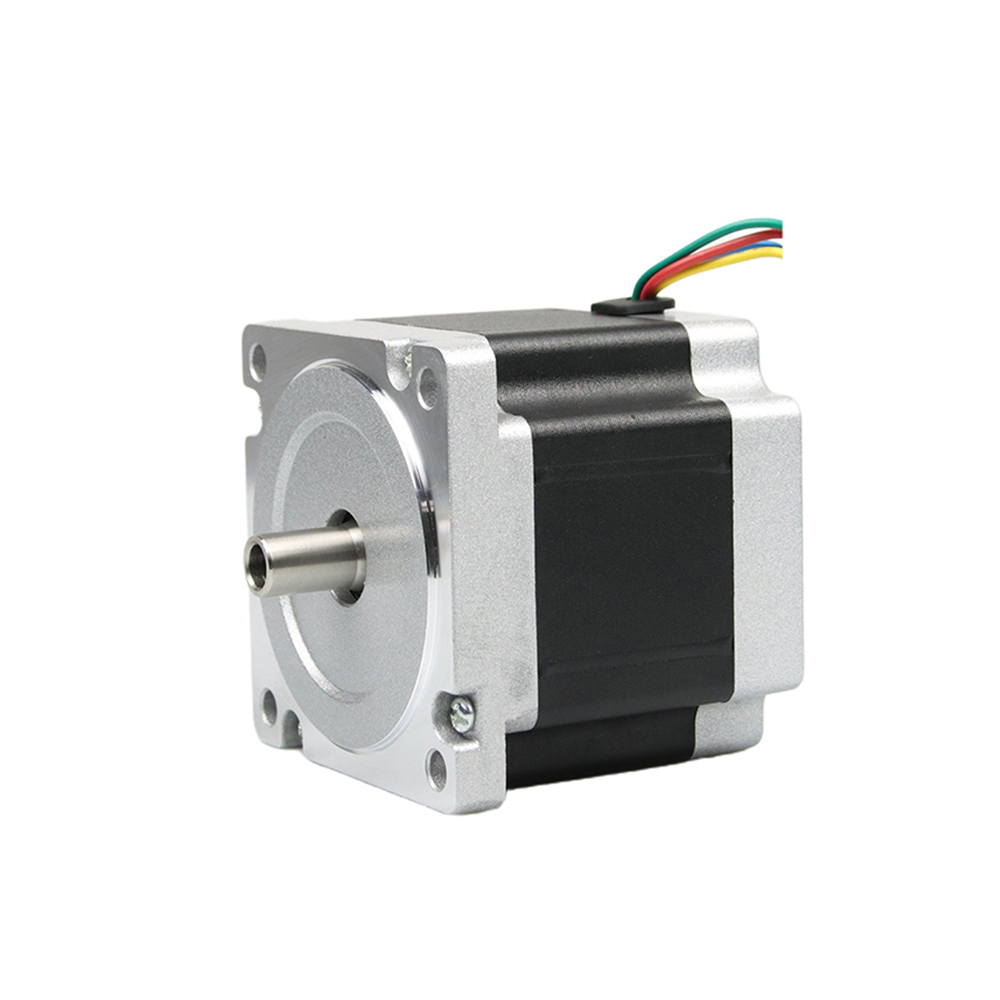

NEMA 34 Hollow Shaft Stepper Motor

Features of Hollow Shaft Stepper Motors

Central Hollow Shaft:

The standout feature of hollow shaft stepper motors is their hollow center, which allows for easy routing of cables and other mechanical components. This design reduces clutter and saves valuable space.

Compact Design:

Despite the hollow shaft, these motors retain a compact profile, delivering high torque and performance while minimizing their footprint in the system.

Direct Coupling:

The hollow design enables direct coupling with various mechanical elements, such as gearboxes and actuators, streamlining integration and enhancing operational efficiency.

Installation Flexibility:

These motors are ideal for setups where other components, like wiring or optical systems, need to pass through the center. This ensures a more organized and cleaner design.

Smooth Operation:

Hollow shaft stepper motors offer precise and smooth step-by-step motion control, making them suitable for applications requiring high accuracy and reliability.

How Hollow Shaft Stepper Motors Work?

Hollow shaft stepper motors operate similarly to traditional stepper motors, but they benefit from their unique shaft design. Here’s a breakdown of their operation:

Input Signal:

The motor receives control signals that dictate movement, whether it be position or speed.

Magnetic Field Interaction:

Inside the motor, a configuration of permanent magnets and windings generates torque, enabling the rotor to rotate in precise steps.

Hollow Shaft Advantage:

The rotor features a hollow shaft that allows for the passage of additional components, like cables or other mechanical systems. This design simplifies integration into confined spaces.

Motion Control:

The motor rotates incrementally, with each step correlating to a specific mechanical increment, allowing for precise control of both position and speed without interference from passing components.

Benefits of Hollow Shaft Stepper Motors

Space Efficiency:

The central hollow area allows other components to pass through, minimizing the space required for installation and facilitating compact system designs.

Simplified Integration:

The unique design reduces the need for additional adapters or connectors, making integration into complex mechanical systems straightforward.

Higher Torque Density:

Hollow shaft stepper motors can deliver impressive torque levels comparable to solid shaft motors, making them suitable for high-performance applications.

Reduced Mechanical Complexity:

By eliminating the need for extra couplings, these motors simplify mechanical designs, resulting in fewer parts and enhanced reliability.

Clean and Organized Systems:

The capability to route cables through the hollow shaft maintains an organized setup, which is critical for efficient operation and minimal maintenance in automated environments.

Applications of Hollow Shaft Stepper Motors

Hollow shaft stepper motors are versatile and find use in a variety of industries, especially where compactness and high performance are necessary:

Robotics:

Used in robotic arms and grippers, their hollow design integrates sensors and cables, simplifying complexity and contributing to compactness.

CNC Machines:

These motors power tools and axes in CNC setups, facilitating cleaner installations and reducing the need for additional components.

3D Printers:

Commonly employed to control the movement of print heads or build platforms, the compact design ensures an organized system crucial for successful 3D printing.

Automated Conveyor Systems:

They drive belts and components in conveyor systems, with the hollow shaft enabling effective routing of power and control cables.

Medical Equipment:

Essential in devices like MRI machines and surgical robots, their precision and compactness allow for efficient and clean setups in sensitive environments.

Optical Systems:

Used to drive lenses and mirrors, the hollow shaft allows routing of optical fibers or cables, simplifying designs and maintaining system efficiency.

Hollow shaft stepper motors stand out in applications that require compactness, high torque, and effortless integration. Their design not only simplifies mechanical setups but also enhances performance across various sectors, from robotics to medical equipment. Understanding these capabilities enables businesses to leverage this technology for optimized systems in modern automation demands.
