Can Integrated Brushless Hub Servo Motors Support Modbus RTU for Industrial Mobile Robot Control?

Yes. Integrated brushless hub servo motors can support Modbus RTU when the motor's integrated servo drive includes a compatible RS-485 communication interface and implements the required Modbus RTU protocol. This combination can be particularly useful for industrial mobile robots, AGVs, AMRs, autonomous transport platforms, warehouse vehicles, and material-handling systems that require coordinated wheel control, adjustable operating parameters, and straightforward communication with a PLC or robot controller.

Unlike a conventional motor-and-drive architecture, an integrated brushless hub servo motor combines the motor, servo drive electronics, feedback system, and often the communication interface within a compact wheel-drive assembly. When Modbus RTU is integrated into the drive, the robot controller can exchange commands and status information directly with individual wheel motors over an RS-485 network.

However, protocol support alone does not determine whether a motor is suitable for a mobile robot. The communication architecture, register mapping, response time, feedback requirements, control modes, electrical specifications, and network topology should all be considered during system design.

What Is Modbus RTU in an Integrated Brushless Hub Servo Motor?

Modbus RTU is a serial communication protocol commonly used to connect an integrated brushless hub servo motor with a PLC, industrial PC, motion controller, or other automation equipment. It typically communicates through an RS-485 interface, allowing the controller to send motor commands and receive operating status from the integrated servo drive.

In an integrated brushless hub servo motor, the motor, servo drive, feedback device, and communication interface can be combined into one compact unit. With Modbus RTU, the central controller can communicate directly with the motor's integrated drive.

Typical Modbus RTU Functions

Depending on the servo drive design, Modbus RTU can be used to:

• Set motor speed

• Control forward and reverse rotation

• Enable or disable the servo

• Set position or motion commands

• Read actual motor speed

• Read position feedback

• Monitor motor current and status

• Read alarm and fault information

• Reset certain drive faults

• Configure operating parameters

The exact commands and register addresses depend on the manufacturer's Modbus RTU communication protocol and register map.

How Modbus RTU Works

Each integrated hub servo motor can be assigned a unique Modbus address. The controller sends commands to a specific motor and reads its operating data through the RS-485 network.

Why Is Modbus RTU Useful for Hub Servo Motors?

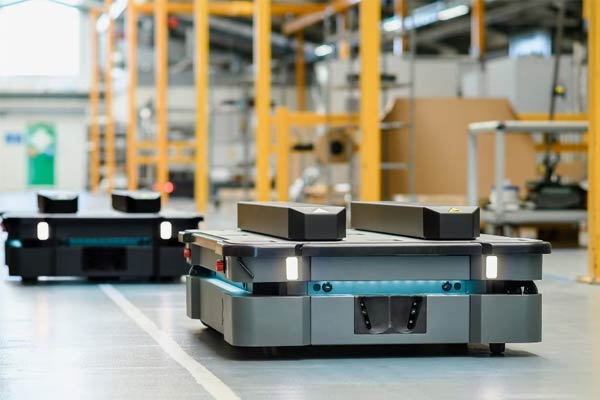

For AGVs, AMRs, industrial mobile robots, and automated transport vehicles, Modbus RTU provides a relatively simple way to coordinate multiple wheel motors.

The integrated servo drive handles the motor's local closed-loop control, while Modbus RTU provides the communication link between the robot controller and each wheel.

In simple terms:

Modbus RTU handles communication, while the integrated servo drive handles motor control.

This architecture can reduce external wiring and simplify the integration of brushless hub servo motors into distributed mobile robot drive systems.

Jkongmotor Customized Servo Motor Motions

One-Stop Integrated DC Servo Motor Solution Provider

How Does Modbus RTU Control an Integrated Hub Servo Motor?

In a typical Modbus RTU implementation, the robot controller acts as the Modbus master, while each integrated brushless hub servo motor operates as a slave device.

The master sends a request containing information such as:

1. Device address

2. Function code

3. Register address

4. Register data

5. CRC error-checking information

The selected servo drive receives the message, processes the command, and returns a response.

For example, a controller could send a velocity command to the left wheel motor while separately commanding the right wheel motor. The motors can then provide actual operating data and fault information through subsequent Modbus requests.

This architecture is particularly practical for robots using four independently driven wheels, although two-wheel differential-drive platforms and other configurations can also use the same principle.

Why Is Modbus RTU Useful for Industrial Mobile Robots?

Industrial mobile robots often need to exchange information between a central controller and multiple distributed motor drives.

Modbus RTU provides a relatively simple and widely understood communication method for this type of architecture.

1. Centralized Motor Control

A PLC or industrial controller can communicate with multiple hub servo motors from a central control system.

This allows the robot controller to coordinate:

• Wheel speed

• Rotation direction

• Acceleration

• Deceleration

• Enable status

• Fault status

• Operating modes

For a differential-drive AGV, for example, the controller can independently control the left and right wheels to generate forward motion, reverse motion, or turning.

2. Reduced Wiring Complexity

An integrated hub servo motor eliminates some of the external components normally required between the motor and controller.

Instead of having:

Motor → External Servo Drive → Communication Cable

the architecture can become:

Integrated Hub Servo Motor → Communication Network

This can reduce cabinet space and simplify distributed drive installation.

3. Real-Time Status Monitoring

A properly implemented Modbus RTU interface can allow the robot controller to periodically read operating information.

Depending on the drive, this may include:

• Actual motor speed

• Commanded speed

• Position

• Current

• DC bus voltage

• Temperature

• Servo state

• Alarm code

• Communication status

Such information can be useful for robot diagnostics and predictive maintenance.

Can Modbus RTU Provide Precise Motion Control?

Yes. Modbus RTU can support precise motion control when it is combined with an integrated servo drive that provides closed-loop control and accurate feedback. However, Modbus RTU itself is a communication protocol; the actual motion accuracy depends mainly on the servo drive, encoder, control algorithm, and motor specifications.

How It Works

In an integrated brushless hub servo motor, the encoder provides real-time feedback on motor position and speed. The internal servo drive compares this feedback with the target command and adjusts motor operation accordingly.

The controller can send commands such as:

• Target speed

• Target position

• Acceleration and deceleration

• Rotation direction

• Servo enable/disable

The motor can then return information such as:

• Actual speed

• Actual position

• Current

• Servo status

• Fault information

What Determines Motion Accuracy?

The precision of the overall system depends on several factors:

• Encoder resolution

• Servo control algorithm

• Motor torque

• Mechanical backlash

• Load variation

• Communication update rate

• Controller performance

Therefore, a Modbus RTU interface does not automatically guarantee high positioning accuracy. The integrated servo motor's closed-loop control system is the key factor.

Is Modbus RTU Suitable for Mobile Robots?

For many AGVs, AMRs, warehouse robots, and industrial mobile platforms, Modbus RTU can provide sufficient communication for speed and motion commands, particularly when the high-speed servo control loop is handled locally inside the integrated drive.

For applications requiring highly synchronized multi-axis motion or very fast deterministic control, designers may also consider protocols such as CANopen or EtherCAT.

Modbus RTU provides the communication channel, while the integrated servo drive and feedback system determine the actual motion-control performance.

What Modbus RTU Functions Are Important for AGVs and AMRs?

For an industrial mobile robot, not every Modbus register is equally important. The most useful register groups generally relate to motion commands, feedback, configuration, and diagnostics.

Motion Command Registers

Typical command registers may include:

• Target speed

• Target position

• Direction

• Torque or current command

• Acceleration

• Deceleration

• Servo enable

The actual register addresses and scaling must always be taken from the manufacturer's communication manual.

Feedback Registers

The controller may need to read:

• Actual speed

• Actual position

• Motor current

• Encoder position

• Servo status

• Error status

This information can be used by the robot control algorithm to determine whether the wheels are following their commanded trajectories.

Diagnostic Registers

Industrial mobile robots also benefit from accessible diagnostic information.

Possible parameters include:

• Overcurrent alarms

• Overvoltage alarms

• Undervoltage alarms

• Overtemperature alarms

• Encoder errors

• Communication errors

• Position errors

• Drive faults

A centralized controller can use these registers to identify abnormal wheel behavior and initiate appropriate safety or recovery procedures.

How Does Modbus RTU Work with Differential-Drive Robots?

Modbus RTU allows a robot controller to communicate with the left and right integrated hub servo motors through an RS-485 network. In a differential-drive robot, the controller independently controls the speed and direction of each wheel to achieve forward, reverse, and turning movements.

Basic Control Structure

Each motor is assigned a unique Modbus RTU address. The controller sends the required speed or position command to each motor and can read feedback such as actual speed, position, and fault status.

How Differential Steering Works

The controller calculates separate speeds for the left and right wheels based on the desired robot movement.

For reverse motion, both wheels rotate in the opposite direction.

The simplified differential-drive equations are:

VL=V−ωL2V_L = V - \frac{\omega L}{2}

VR=V+ωL2V_R = V + \frac{\omega L}{2}

Where:

• Vₗ = left-wheel velocity

• Vᵣ = right-wheel velocity

• V = desired linear velocity

• ω = desired angular velocity

• L = distance between the two wheels

What Does Modbus RTU Control?

Depending on the integrated servo drive, the controller can use Modbus RTU to send:

• Target speed

• Rotation direction

• Servo enable/disable

• Position commands

• Acceleration and deceleration settings

It can also read:

• Actual motor speed

• Actual position

• Motor current

• Servo status

• Alarm and fault codes

Why Is This Useful for AGVs and AMRs?

For AGVs, AMRs, warehouse robots, and automated transport vehicles, Modbus RTU provides a straightforward communication method between the central controller and distributed wheel motors.

With integrated brushless hub servo motors, the servo drive and motor are combined, reducing the need for separate external motor-drive units. The controller can therefore manage each wheel through the communication network while the integrated servo drive performs the local motor control.

In short, Modbus RTU provides the communication link, while the differential-drive controller determines the required left- and right-wheel motion.

Can Multiple Integrated Hub Servo Motors Share One Modbus RTU Network?

Yes. RS-485-based Modbus RTU is designed for multi-device serial networks, provided that the electrical interface, addressing, wiring, termination, and protocol implementation are correctly configured.

Each motor drive should have a unique Modbus address.

For example:

The controller can address each drive individually.

The network should also be configured according to the drive manufacturer's specified:

• Baud rate

• Data bits

• Stop bits

• Parity

• Slave address

• Communication timeout

• RS-485 wiring requirements

Correct network termination and grounding practices are especially important in electrically noisy industrial environments.

Is Modbus RTU Fast Enough for Mobile Robot Applications?

The answer depends on the required control-loop frequency and robot architecture.

Modbus RTU can be suitable for many industrial mobile robot applications, particularly when the integrated servo drive performs the high-speed current, velocity, and position loops internally.

However, it should not automatically be treated as a substitute for a deterministic high-performance motion bus in every application.

For example, a robot requiring extremely fast synchronized multi-axis control may have different communication requirements from a basic warehouse AGV.

The system designer should evaluate:

• Baud rate

• Number of connected drives

• Number of registers exchanged

• Polling frequency

• Message length

• Controller processing time

• Network latency

• Required synchronization accuracy

• Servo update frequency

For applications requiring very tight synchronization, protocols such as CANopen, EtherCAT, or other real-time industrial Ethernet technologies may be considered depending on system requirements.

Modbus RTU vs. CANopen for Integrated Hub Servo Motors

Both Modbus RTU and CANopen can be used in distributed motor-control architectures, but their characteristics differ.

The appropriate choice depends on the robot's motion-control architecture, synchronization requirements, controller capabilities, and motor-drive interface.

What Should We Check Before Selecting a Modbus RTU Hub Servo Motor?

A product advertised as supporting Modbus RTU should not be evaluated solely by the presence of an RS-485 port.

The following specifications should be verified.

1. Actual Modbus RTU Support

Confirm that the integrated drive supports Modbus RTU rather than merely providing an RS-485 electrical interface.

2. Communication Register Map

The manufacturer should provide documentation covering:

• Register addresses

• Function codes

• Data formats

• Scaling factors

• Read/write permissions

• Error codes

3. Operating Modes

Verify whether the drive supports the required mode, such as:

• Speed control

• Position control

• Torque/current control

• Homing

• Preset-speed operation

4. Feedback Resolution

For mobile robot applications, encoder resolution and feedback quality can affect wheel-speed regulation and odometry.

5. Rated and Peak Torque

The hub motor must provide sufficient torque for:

• Robot mass

• Payload

• Wheel diameter

• Floor conditions

• Inclines

• Acceleration requirements

6. Communication Update Requirements

The controller and drive should be tested under the actual number of connected motors and expected command frequency.

7. Environmental Protection

Mobile robot motors may operate in dusty warehouses, production facilities, cold storage areas, or other demanding environments.

Relevant specifications can include:

• IP rating

• Operating temperature

• Shock resistance

• Vibration resistance

• Connector protection

How Does an Integrated Hub Servo Motor Simplify AGV Design?

A conventional mobile robot drivetrain may require separate:

• BLDC motor

• Servo drive

• Encoder

• Motor cable

• Encoder cable

• Mounting hardware

• Drive cabinet

An integrated brushless hub servo motor combines several of these functions into a single wheel-drive assembly.

This can provide advantages in mechanical integration and distributed architecture.

The result can be a compact system in which each wheel functions as an intelligent motion node.

This architecture can be particularly attractive where space, wiring, modularity, and serviceability are important design considerations.

Conclusion: Modbus RTU for Integrated Brushless Hub Servo Motors

Integrated brushless hub servo motors can support Modbus RTU for industrial mobile robot control when the integrated servo drive includes an RS-485 interface and a compatible Modbus RTU implementation.

For AGVs, AMRs, warehouse robots, autonomous transport vehicles, and other mobile platforms, Modbus RTU can provide a practical communication link between the central controller and distributed wheel drives. It can support commands such as speed, direction, enable, and position while also providing access to operational and diagnostic information.

The most important consideration is not simply whether a motor has an RS-485 port, but whether its complete servo-drive system provides the Modbus RTU functions, register mapping, feedback capabilities, control modes, communication performance, and electrical characteristics required by the robot.

For applications with moderate communication and motion-control requirements, Modbus RTU can be a straightforward option. For highly synchronized multi-axis motion, designers should additionally evaluate protocols such as CANopen and EtherCAT against the required control-loop performance and system architecture.

A properly engineered integrated brushless hub servo motor with Modbus RTU can therefore serve as a compact, distributed motion-control node for modern industrial mobile robots.

FAQS:

1. Can integrated brushless hub servo motors support Modbus RTU?

Yes. Integrated brushless hub servo motors can support Modbus RTU when their integrated servo drive provides an RS-485 interface and a compatible Modbus RTU implementation. This allows a PLC, industrial PC, or motion controller to send commands and receive motor status data.

2. How does Modbus RTU control an integrated brushless hub servo motor?

The robot controller communicates with the integrated servo drive through RS-485 using Modbus RTU. Depending on the drive's register configuration, the controller can set speed, direction, position, acceleration, and other parameters while reading actual speed, position, status, and fault information.

3. Is Modbus RTU suitable for AGV and AMR applications?

Yes. Modbus RTU can be used for AGVs, AMRs, warehouse robots, and industrial mobile robots, particularly when the integrated servo drive performs the high-speed closed-loop motor control locally. The controller can use Modbus RTU to coordinate individual wheel motors.

4. Can multiple hub servo motors communicate through one Modbus RTU network?

Yes. Multiple servo drives can typically share an RS-485 Modbus RTU network when the drives support multi-device communication. Each motor drive requires a unique Modbus address, and the network must be configured according to the manufacturer's communication specifications.

5. What motor parameters can be controlled through Modbus RTU?

Depending on the servo drive, Modbus RTU may provide control over target speed, rotation direction, position, acceleration, deceleration, servo enable, and operating mode. Available functions and register addresses vary by manufacturer.

6. Can Modbus RTU provide precise motion control?

Modbus RTU can support precise motion control when it is combined with an appropriate closed-loop servo drive and encoder feedback system. The communication protocol transfers commands and data, while the integrated servo drive performs the local motion-control loop.

7. How does Modbus RTU work with differential-drive robots?

In a differential-drive robot, the controller independently calculates the required speed of the left and right wheels. It then sends the corresponding commands to each integrated hub servo motor through Modbus RTU. Different wheel speeds allow the robot to move forward, reverse, or turn.

8. What feedback can an integrated hub servo motor provide through Modbus RTU?

Depending on the drive, the controller may read actual motor speed, position, current, servo status, alarm codes, and fault information. These data can be used for motion monitoring, diagnostics, and robot control.

9. Is Modbus RTU better than CANopen for mobile robot motor control?

Modbus RTU and CANopen have different characteristics. Modbus RTU is commonly valued for its straightforward implementation and broad industrial compatibility, while CANopen provides features specifically suited to distributed motion-control applications. The appropriate protocol depends on the robot's communication, synchronization, and control requirements.

10. What should be considered when selecting a Modbus RTU hub servo motor?

Key factors include motor torque, rated speed, encoder resolution, servo control mode, RS-485/Modbus RTU support, communication parameters, feedback functions, protection rating, and available register documentation. The motor should also meet the robot's payload, wheel diameter, acceleration, and operating-environment requirements.
