Hybrid stepper motors integrate features from both Permanent Magnet (PM) and Variable Reluctance (VR) motors, offering enhanced performance characteristics. This makes them ideal for demanding applications, including CNC machines, 3D printers, and robotic systems.

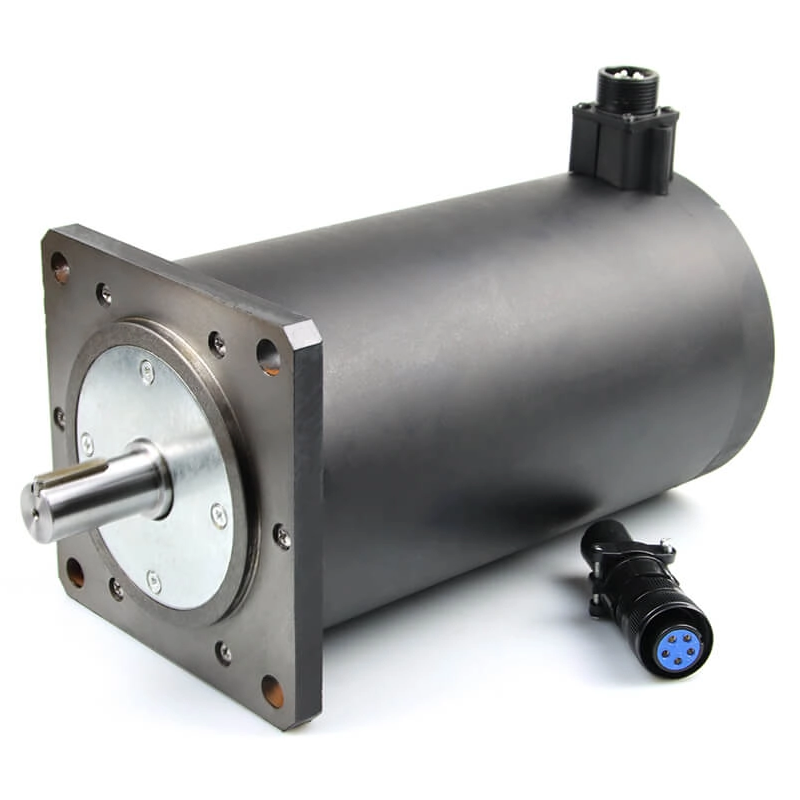

At Jkongmotor, our core products are hybrid stepper motors, available in both 2-phase and 3-phase configurations. We offer step angles of 0.9°, 1.2°, and 1.8°, along with motor sizes that include NEMA 8, 11, 14, 16, 17, 23, 24, 34, 42, and 52.
Beyond standard hybrid stepper motors, we also produce a variety of specialized models, such as:
All of our stepper motors can be customized to meet specific needs, including parameters related to the motor, encoders, gearboxes, brakes, and built-in drivers.
Model | Step Angle | Phase | Shaft | Wires | Body Length | Current | Resistance | Inductance | Holding Torque | Leads NO. | Rotor Inertia | Weight |
(°) | / | / | / | (L)mm | A | Ω | mH | g.cm | No. | g.cm2 | Kg | |
JK20HS30-0604 | 1.8 | 2 | Round | Connector | 30 | 0.6 | 6.5 | 1.7 | 180 | 4 | 2 | 0.05 |
JK20HS33-0604 | 1.8 | 2 | Round | Connector | 33 | 0.6 | 6.5 | 1.7 | 200 | 4 | 2 | 0.06 |
JK20HS38-0604 | 1.8 | 2 | Round | Connector | 38 | 0.6 | 9 | 3 | 220 | 4 | 3 | 0.08 |
Model | Step Angle | Phase | Shaft | Wires | Body Length | Current | Resistance | Inductance | Holding Torque | Leads No. | Rotor Inertia | Weight |
(°) | / | / | / | (L)mm | A | Ω | mH | g.cm | No. | g.cm2 | Kg | |
JK28HS32-0674 | 1.8 | 2 | Round | Directwires | 32 | 0.67 | 5.6 | 3.4 | 600 | 4 | 9 | 0.11 |
JK28HS45-0674 | 1.8 | 2 | Round | Directwires | 45 | 0.67 | 6.8 | 4.9 | 950 | 4 | 12 | 0.14 |
JK28HS51-0674 | 1.8 | 2 | Round | Directwires | 51 | 0.67 | 9.2 | 7.2 | 1200 | 4 | 18 | 0.2 |
Model | Step Angle | Phase | Shaft | Wires | Body Length | Current | Resistance | Inductance | Holding Torque | Leads No. | Rotor Inertia | Weight |
(°) | / | / | / | (L)mm | A | Ω | mH | g.cm | No. | g.cm2 | Kg | |
JK35HM27-0504 | 0.9 | 2 | Round | Direct wire | 27 | 0.5 | 10 | 14 | 1000 | 4 | 6 | 0.13 |
JK35HM34-1004 | 0.9 | 2 | Round | Direct wire | 34 | 1 | 2 | 3 | 1200 | 4 | 9 | 0.17 |
JK35HM40-1004 | 0.9 | 2 | Round | Direct wire | 40 | 1 | 2 | 4 | 1500 | 4 | 12 | 0.22 |
JK35HS28-0504 | 1.8 | 2 | Round | Direct wire | 28 | 0.5 | 20 | 14 | 1000 | 4 | 11 | 0.13 |
JK35HS34-1004 | 1.8 | 2 | Round | Direct wire | 34 | 1 | 2.7 | 4.3 | 1400 | 4 | 13 | 0.17 |
JK35HS42-1004 | 1.8 | 2 | Round | Direct wire | 42 | 1 | 3.8 | 3.5 | 2000 | 4 | 23 | 0.22 |
Model | Step Angle | Phase | Shaft | Wires | Body Length | Current | Resistance | Inductance | Holding Torque | Leads No. | Rotor Inertia | Weight |
(°) | / | / | / | (L)mm | A | Ω | mH | g.cm | No. | g.cm2 | Kg | |
JK36HM12-0304 | 0.9 | 2 | Round | Direct wire | 12 | 0.3 | 16.8 | 8.5 | 420 | 4 | 4 | 0.06 |
JK36HM18-0404 | 0.9 | 2 | Round | Direct wire | 18 | 0.4 | 12 | 5 | 560 | 4 | 6 | 0.1 |
JK36HM21-0404 | 0.9 | 2 | Round | Direct wire | 21 | 0.4 | 9 | 5 | 810 | 4 | 7 | 0.13 |
Model | Step Angle | Phase | Shaft | Wires | Body Length | Current | Resistance | Inductance | Holding Torque | Leads No. | Rotor Inertia | Weight |
(°) | / | / | / | (L)mm | A | Ω | mH | g.cm | No. | g.cm2 | Kg | |
JK39HY20-0404 | 1.8 | 2 | Round | Lead wire | 20 | 0.4 | 6.6 | 7.5 | 650 | 4 | 11 | 0.12 |
JK39HY34-0404 | 1.8 | 2 | Round | Lead wire | 34 | 0.4 | 30 | 32 | 2100 | 4 | 20 | 0.18 |
JK39HY38-0504 | 1.8 | 2 | Round | Lead wire | 38 | 0.5 | 24 | 45 | 2900 | 4 | 24 | 0.2 |
Model | Step Angle | Phase | Shaft | Wires | Body Length | Current | Resistance | Inductance | Holding Torque | Leads No. | Rotor Inertia | Weight |
(°) | / | / | / | (L)mm | A | Ω | mH | kg.cm | No. | g.cm2 | Kg | |
JK42HM34-1334 | 0.9 | 2 | Round | Lead wire | 34 | 1.33 | 2.1 | 4.2 | 2.2 | 4 | 35 | 0.22 |
JK42HM40-1684 | 0.9 | 2 | Round | Lead wire | 40 | 1.68 | 1.65 | 3.2 | 3.3 | 4 | 54 | 0.28 |
JK42HM48-1684 | 0.9 | 2 | Round | Lead wire | 48 | 1.68 | 1.65 | 4.1 | 4.4 | 4 | 68 | 0.35 |
JK42HM60-1684 | 0.9 | 2 | Round | Lead wire | 60 | 1.68 | 1.65 | 5 | 5.5 | 4 | 106 | 0.55 |
JK42HW20-1004-03F | 1.8 | 2 | D-cut | Lead wire | 20 | 1.0 | 3.4 | 4.3 | 13 | 4 | 20 | 0.13 |
JK42HS25-0404 | 1.8 | 2 | Round | Lead wire | 25 | 0.4 | 24 | 36 | 1.5 | 4 | 20 | 0.15 |
JK42HS28-0504 | 1.8 | 2 | Round | Lead wire | 28 | 0.5 | 20 | 21 | 1.8 | 4 | 24 | 0.22 |
JK42HS34-1334 | 1.8 | 2 | Round | Lead wire | 34 | 1.33 | 2.1 | 2.5 | 2.6 | 4 | 34 | 0.22 |
JK42HS34-0404 | 1.8 | 2 | Round | Lead wire | 34 | 0.4 | 30 | 35 | 2.8 | 4 | 34 | 0.22 |
JK42HS34-0956 | 1.8 | 2 | Round | Lead wire | 34 | 0.95 | 4.2 | 2.5 | 1.6 | 6 | 34 | 0.22 |
JK42HS40-1206 | 1.8 | 2 | Round | Lead wire | 40 | 1.2 | 3 | 2.7 | 2.9 | 6 | 54 | 0.28 |
JK42HS40-1704 | 1.8 | 2 | Round | Lead wire | 40 | 1.7 | 1.5 | 2.3 | 4.2 | 4 | 54 | 0.28 |
JK42HS40-1704-13A | 1.8 | 2 | D-cut | Connector | 40 | 1.7 | 1.5 | 2.3 | 4.2 | 4 | 54 | 0.28 |
JK42HS48-1206 | 1.8 | 2 | Round | Lead wire | 48 | 1.2 | 3.3 | 2.8 | 3.17 | 6 | 68 | 0.35 |
JK42HS48-1204 | 1.8 | 2 | Round | Lead wire | 48 | 1.2 | 4.8 | 8.5 | 5.5 | 4 | 68 | 0.35 |
JK42HS48-0404 | 1.8 | 2 | Round | Lead wire | 48 | 0.4 | 30 | 45 | 4.4 | 4 | 68 | 0.35 |
JK42HS48-1684 | 1.8 | 2 | Round | Lead wire | 48 | 1.68 | 1.65 | 2.8 | 4.4 | 4 | 68 | 0.35 |
JK42HS60-1206 | 1.8 | 2 | Round | Lead wire | 60 | 1.2 | 6 | 7 | 5.6 | 6 | 102 | 0.55 |
JK42HS60-1704A | 1.8 | 2 | D-cut | Connector | 60 | 1.7 | 3 | 6.2 | 7.3 | 4 | 102 | 0.55 |
Model | Step Angle | Phase | Shaft Dia | Shaft Type | Wires | Body Length | Current | Resistance | Inductance | Holding Torque | Leads No. | Rotor Inertia | Weight |
(°) | / | mm | / | / | (L) mm | A | Ω | mH | Nm | No. | g.cm2 | Kg | |
JK57HM41-2804 | 0.9 | 2 | 6.35 | Round | Direct wire | 41 | 2.8 | 0.7 | 2.2 | 0.5 | 4 | 120 | 0.45 |
JK57HM56-2804 | 0.9 | 2 | 6.35 | Round | Direct wire | 56 | 2.8 | 0.9 | 3.3 | 1.2 | 4 | 300 | 0.7 |
JK57HM76-2804 | 0.9 | 2 | 6.35 | Round | Direct wire | 76 | 2.8 | 1.15 | 5.6 | 1.8 | 4 | 480 | 1.0 |
JK57HS41-2804 | 1.8 | 2 | 6.35 | Round | Direct wire | 41 | 2.8 | 0.7 | 1.4 | 0.55 | 4 | 150 | 0.47 |
JK57HS51-2804 | 1.8 | 2 | 6.35 | Round | Direct wire | 51 | 2.8 | 0.83 | 2.2 | 1.0 | 4 | 230 | 0.59 |
JK57HS56-2804 | 1.8 | 2 | 6.35 | Round | Direct wire | 56 | 2.8 | 0.9 | 2.5 | 1.2 | 4 | 280 | 0.68 |
JK57HS76-2804 | 1.8 | 2 | 6.35 | Round | Direct wire | 76 | 2.8 | 1.1 | 3.6 | 1.89 | 4 | 440 | 1.1 |
JK57HS82-3004 | 1.8 | 2 | 8 | Round | Direct wire | 82 | 3.0 | 1.2 | 4.0 | 2.1 | 4 | 600 | 1.2 |
JK57HS100-3004 | 1.8 | 2 | 8 | Round | Direct wire | 100 | 3.0 | 0.75 | 3.0 | 2.8 | 4 | 700 | 1.3 |
JK57HS112-3004 | 1.8 | 2 | 8 | Round | Direct wire | 112 | 3.0 | 1.6 | 7.5 | 3.0 | 4 | 800 | 1.4 |
JK57HS112-4204 | 1.8 | 2 | 8 | Round | Direct wire | 112 | 4.2 | 0.9 | 3.8 | 3.1 | 4 | 800 | 1.4 |
Model | Step Angle | Phase | Shaft Type | Wires | Body Length | Current | Resistance | Inductance | Holding Torque | Leads No. | Rotor Inertia | Weight |
(°) | / | / | / | (L)mm | A | Ω | mH | N.m | No. | g.cm2 | Kg | |
JK60HS56-2804 | 1.8 | 2 | Round | Direct wire | 56 | 2.8 | 0.9 | 3.6 | 1.65 | 4 | 300 | 0.77 |
JK60HS67-2804 | 1.8 | 2 | Round | Direct wire | 67 | 2.8 | 1.2 | 4.6 | 2.1 | 4 | 570 | 1.2 |
JK60HS88-2804 | 1.8 | 2 | Round | Direct wire | 88 | 2.8 | 1.5 | 6.8 | 3.1 | 4 | 840 | 1.4 |
JK60HS100-2804 | 1.8 | 2 | Round | Direct wire | 100 | 2.8 | 1.6 | 6.4 | 4 | 4 | 980 | 1100 |
JK60HS111-2804 | 1.8 | 2 | Round | Direct wire | 111 | 2.8 | 2.2 | 8.3 | 4.5 | 4 | 1120 | 1200 |
Model | Step Angle | Phase | Shaft Type | Wires | Body Length | Current | Resistance | Inductance | Holding Torque | Leads No. | Rotor Inertia | Weight |
(°) | / | / | / | (L)mm | A | Ω | mH | N.m | No. | g.cm2 | Kg | |
JK86HS78-6004 | 1.8 | 2 | Key | Direct wire | 78 | 6.0 | 0.37 | 3.4 | 4.6 | 4 | 1400 | 2.3 |
JK86HS115-6004 | 1.8 | 2 | Key | Direct wire | 115 | 6.0 | 0.6 | 6.5 | 8.7 | 4 | 2700 | 3.8 |
JK86HS126-6004 | 1.8 | 2 | Key | Direct wire | 126 | 6.0 | 0.58 | 6.5 | 9.5 | 4 | 3200 | 4.5 |
JK86HS155-6004 | 1.8 | 2 | Key | Direct wire | 155 | 6.0 | 0.68 | 9.0 | 13.0 | 4 | 4000 | 5.4 |
A stepper motor is an electric motor designed to rotate its shaft in precise, fixed-degree increments. Thanks to its internal design, you can track the exact angular position of the shaft by simply counting the steps, eliminating the need for external sensors. This inherent precision makes stepper motors highly suitable for a wide range of applications.
The operation of a stepper motor system is centered on the interaction between the rotor and the stator. Here's a breakdown of how a typical stepper motor functions:
A controller issues a sequence of electrical pulses that indicate the intended movement.
The driver receives these signals from the controller and activates the motor windings in a predetermined sequence, generating a rotating magnetic field.
The magnetic field created by the stator interacts with the rotor, causing it to turn in discrete steps. The number of steps executed correlates with the pulse frequency generated by the controller.
Some systems incorporate a feedback mechanism, such as an encoder, to verify that the motor has moved the desired distance. However, many stepper motor systems function effectively without feedback, relying on the precision of the driver and controller.
A hybrid stepper motor merges the best characteristics of permanent magnet and variable reluctance technologies to provide superior performance. It is often referred to as a hybrid motor due to its combination of features from both motor types.
The rotor in a hybrid stepper motor contains a permanent magnet, while the stator has multiple coils that interact with the rotor to create a magnetic field. The rotor is designed with teeth or poles that align with the stator poles, allowing for finer control over the step resolution. This combination of permanent magnet and variable reluctance design provides high torque, excellent step resolution, and minimal backlash, making hybrid stepper motors highly efficient.
A hybrid stepper motor is composed of several essential components that work together to achieve its functionality:
The operation of a hybrid stepper motor involves several key steps:
The stator coils are activated in a specific sequence, producing magnetic fields that either attract or repel the rotor's teeth.
As the magnetic fields change, the rotor's teeth align with the active stator poles, causing the rotor to step to its next stable position.
The combination of a permanent magnet in the rotor and the structural teeth allows for high precision in positioning while delivering strong torque with minimal energy loss.
Hybrid stepper motors offer several significant benefits:
With small step angles (such as 0.9° or 1.8°), they provide accurate positioning capabilities.
The synergy between the permanent magnet and electromagnetic fields yields substantial torque even at low speeds.
Compared to variable reluctance stepper motors, hybrid motors are generally more efficient, leading to energy savings.
The ability to perform micro-stepping enables smoother movements while reducing vibrations, enhancing overall performance.
Hybrid stepper motors are used in various applications where precision and reliability are critical, including:
