What is an integrated servo motor and how does it work?

An integrated servo motor is a compact motion control solution that combines the motor, drive electronics, encoder, and controller into one unit, enabling precise closed-loop servo control with simplified system integration.

What types of integrated servo motors does JKongmotor offer?

JKongmotor provides integrated BLDC servo motors, geared BLDC motors, integrated stepper servo motors, and multiple frame-size options to support different power and application requirements.

What are the main advantages of integrated servo motors compared to traditional servo systems?

Integrated servo motors offer reduced wiring, compact structure, easier installation, faster response, space savings, and high-precision closed-loop control compared to separate motor and drive systems.

What control and communication protocols are supported by integrated servo motors?

Integrated servo motors support Pulse control, RS-485 Modbus-RTU, CANopen, and EtherCAT options, allowing flexible integration into industrial automation systems.

Do integrated servo motors include built-in encoders and feedback systems?

Yes, integrated servo motors come with built-in encoders such as high-resolution absolute encoders, providing accurate position, speed, and torque feedback for stable closed-loop control.

What performance characteristics do integrated servo motors provide?

They deliver wide speed ranges, stable torque output, low temperature rise, high efficiency, fast dynamic response, and reliable closed-loop motion performance under varying loads.

Are integrated servo motors energy efficient and stable under load changes?

Yes, optimized integration reduces energy loss while real-time feedback maintains accuracy, efficiency, and stability even under variable load conditions.

Can integrated servo motors be customized for specific applications?

Yes, JKongmotor supports OEM ODM customized integrated servo motors, including mechanical structure, power rating, frame size, communication protocol, and control parameters.

Are protection levels, accessories, and mechanical options customizable?

Integrated servo motors can be customized with IP30, IP54, or IP65 protection levels, as well as accessories such as brakes, cooling fans, gearboxes, and special mounting designs.

What industries commonly use OEM ODM customized integrated servo motors?

Integrated servo motors are widely used in industrial automation, robotics, CNC machinery, packaging equipment, material handling systems, medical devices, and semiconductor manufacturing.

Intelligent Servo Motors & Motion Control Manufacturer & Supplier Since 2011

Professional Customized Service | OEM ODM Service | ISO CE Rohs Reach CCC | Intelligent BLDC Motion Control Solutions

Request a Quick Quote

Dedicated To Providing Customers With Motion Control Solutions Experts

You are here: Home » Services » Customized Integrated Servo Motors

Customized Integrated Dc Servo Motor Types

—— OEM ODM Customized Intelligent BLDC / Stepper Motion Control Manufacturer / Solution Provider Since 2011 ——

Jkogmotor Integrated Servo Motor 2024.pdf

Jkongmotor IDC Series Integrated DC Servo Motor Catalog 2025.pdf

JKIDC42/57/60/80/86 Series of Intelligent Integrated Servo Motors Model Name

① Name	JK: Changzhou Jkongmotor	⑦ Encoder Type	A1: 17bit single turn absolute encoder
② Integrated Dc Motor Series	IDP: Integrated Dc Servo Waterproof Type		A2: 17bit multi turn absolute encoder
	IDC: Integrated Dc Servo Plug Type		A3: 15bit single turn absolute encoder
	IBP: Integrated BLDC Waterproof Type		A4: 15bit multi turn absolute encoder
	IBC: Integrated BLDC Plug Type	⑧ Brake (Optional)	B1: 24V Brake; B2: 48V Brake
③ Motor Frame	42=42mm	⑨ Shaft Type	None: Standard Output Shaft
	57=57mm	⑨ Shaft Type	01: Special Output Shaft
	60=60mm	⑩ Leading Wire Type	Y: Crimping Shell
	80=80mm		H: Aviation Plug
	86=86mm		M:PG Gland
④ Control Type	P: Pulse	⑪ Number of Leading Wires	Crimping Shell: 3=Power supply + communication + I/O
	R: RS485		Crimping Shell: 4=Power supply + 2 x communication + I/O
	C: CANopen		Aviation Plug: 2=Power supply + communication
⑤ Output Power Options	42: 1=26W; 2=53W; 3=78W		Aviation Plug: 4=Power supply + 2 x communication + I/O
	57: 1=91W; 2=140W; 3=200W		PG Gland: 2=Power supply + communication
	60: 1=200W; 2=400W		PG Gland: 4=Power supply + 2 x communication + I/O
	80: 1=750W; 2=1000W	⑫ Gearbox (Optional)	G: Planetary Gearbox
	86: 1=220W; 2=315W; 3=440W; 4=565W; 6=785W		RG: Right-angle Planetary Gearbox
⑥ Voltage	24=24V; 36=36V; 48=48V; 72=72V		WG: Worm Gearbox
⑬ Gear Ratio of the Reducer	03-1:3; 05-1:5; 10-1:10; 20-1:20...

Customized Integrated Stepper Servo Motor Types

—— OEM ODM Customized Intelligent BLDC / Stepper Motion Control Manufacturer / Solution Provider Since 2011 ——

Jkongmotor ISC Series Integrated Stepper Servo Motor Catalog 2025.pdf

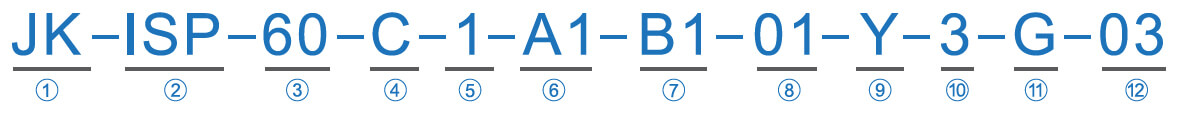

JKISC28/42/57/60/86 Series of Intelligent Integrated Stepper Servo Motors Model Name

① Name	JK: Changzhou Jkongmotor	⑦ Brake (Optional)	B1: 24V Brake
② Integrated Stepper Motor Series	ISP: Waterproof Type	⑦ Brake (Optional)	B2: 48V Brake
② Integrated Stepper Motor Series	ISC: Plug Type	⑧ Shaft Type	None: Standard Output Shaft
③ Motor Frame	28=28mm	⑧ Shaft Type	01: Special Output Shaft
	42=42mm	⑨ Leading Wire Type	Y: Crimping Shell
	57=57mm		H: Aviation Plug
	60=60mm		M:PG Gland
	86=86mm	⑩ Number of Leading Wires	Crimping Shell: 3=Power supply + communication + I/O
④ Control Type	P: Pulse		Crimping Shell: 4=Power supply + 2 x communication + I/O
	R: RS485		Aviation Plug: 2=Power supply + communication
	C: CANopen		Aviation Plug: 4=Power supply + 2 x communication + I/O
⑤ Motor Length	/		PG Gland: 2=Power supply + communication
⑥ Encoder Type	A1: 17bit single turn absolute encoder		PG Gland: 4=Power supply + 2 x communication + I/O
	A2: 17bit multi turn absolute encoder	⑪ Gearbox (Optional)	G: Planetary Gearbox
	A3: 15bit single turn absolute encoder		RG: Right-angle Planetary Gearbox
	A4: 15bit multi turn absolute encoder		WG: Worm Gearbox
⑫ Gear Ratio of the Reducer	03-1:3; 05-1:5; 10-1:10; 20-1:20...

OEM ODM Customized Service

Customized Service Including

What differentiates us from other manufacturers is our extensive capability to optimize and tailor our motors to your exact application requirements. We ensure our brushless dc motors are finely tuned to deliver the desired performance for your needs—whether that's increasing torque within a specific speed range, reducing noise or vibration, or optimizing for minimal power consumption. Additionally, we can customize the motor’s envelope to achieve a native, proper fit within your assembly. We can implement custom modifications to lead wires and connectors, design customized mounting brackets or motor housings for precise fit and alignment, or tailor motor shafts with gears or pulleys to drive your system. Moreover, we can enhance the motor’s capabilities with value-add components such as gearboxes, encoders and brakes, integrated drivers, or even custom electronics.

Motor parameters special customized.
Special shaft customized, such as size, shape, etc.
Belt wheels, gears and couplings customized.
Encoders and other feedback components customized.
Gearboxes and brakes customized.
Lead length and customer use termination plug-in.
Lead screw customized.
RS485 Canopen integrated built-in drivers customized.

Integrated Servo Motor Customized Service

Jkongmotor integrated stepper servo motors cover nema 11 17 23 24 34 sizes, including ISS ISC ISP Series. In addition to customized standard motors, Jkongmotor also provide complementary encoders, brakes, gearboxes, and integrated drive control systems.

Shaft
Lead Screw
Module
Linear Motion
Brake
Gearbox
Worm Gearbox
Wires
Protect Level
Protect Level

Motor Shaft Customized Service

Multiple customisation requirements, ensuring your project is error-free.

Customized IP ratings to suit different operating environments.
A diverse range of gearboxes, varying in type and precision, offering multiple options for your project.
Our specialised expertise in all-in-one device manufacturing delivers professional technical support, making your projects more intelligent.
A stable supply chain ensures the quality and timeliness of every motor.
Manufacturing stepper motors with 20 years, Jkongmotor provide professional technical support and after-sales service.

Jkongmotor offer many different shaft options for your motor as well as customizable shaft lengths to make the motor fit your application seamlessly.

Pulleys
Gears
Shaft Pins
Screw Shafts
Cross Drilled Shafts
Flats
Keys
Knurlings
Hobbing Shafts
Hollow Shaft

A diverse range of products and bespoke services to match the optimal solution for your project.

Motors passed CE Rohs ISO Reach certifications
Rigorous inspection procedures ensure consistent quality for every motor.
Through high-quality products and superior service, jkongmotor have secured a solid foothold in both domestic and international markets.

OEM ODM Customized Service

OEM/ODM stepper motor manufacturer for equipment projects. Support custom design, drawings, prototypes and mass production. Serving global equipment manufacturers.

Prototype Development & Sample Build
▂▂

· Equipment Type / Operating Conditions
· Load / Speed / Accuracy / Usage Frequency
· Installation Space / Protection Rating
· Certification Requirements (CE / RoHS / FDA / UL)
· Estimated Annual Usage / Project Phase
Technical Evaluation & Feasibility Study

▂▂

· Motor Selection or Structural Redesign
· Torque Calculation / Lifespan Assessment
· Critical Risk Points Explanation
· Cost Range and Delivery Time Evaluation
· Customization Level and Recommendations
Solution Proposal & Drawing Approval

▂▂

· Recommended Motor Solution
· Key Parameters Table
· Outline Drawing / Installation Diagram
· Optional Configuration List
· Sample Lead Time & Test Plan
Prototype Development & Sample Build

▂▂

· Sample Production Schedule
· Critical Material Confirmation
· Sample Assembly
· Factory Testing
· Sample Documentation Package

Sample Testing & Application Validation

▂▂

· Performance Testing
· Lifetime and Stability Validation
· Customer Equipment Installation Testing
· Parameter Adjustment
· Secondary Sample Optimization
Pilot Order & Mass Production Preparation

▂▂

· Process Validation
· Critical Material Lockdown
· Quality Standard Documentation
· Inspection Specifications
· Packaging and Labeling Validation
Mass Production & Export Delivery

▂▂

· Mass Production Plan
· Batch Testing
· Aging Testing
· Final Inspection
· Documentation Support
After-Sales Support & Long-Term Supply

▂▂

· Technical Support
· Batch Traceability
· Spare Parts Solutions
· Cost Optimization
· New Project Collaborative Development

Motor Production Process

We specialize in custom stepper motor solutions for equipment manufacturers and system integrators worldwide.

Incoming Inspection
Stator Inner Grinding
Stator Winding
Rotor Pressing

Rotor Outside Grinding
Assembly
Motor Testing
Packing & Shipping

Advantages

—— OEM ODM Customized Intelligent BLDC / Stepper Motion Control Manufacturer / Solution Provider Since 2011 ——

15+ Years Experience

Jkongmotor was established in 2011 and features a professional R&D and design team. We provide customized R&D, design, and production services tailored to the unique requirements of each project, ensuring flexible solutions and reliable collaboration from concept to delivery.
High-Tech Enterprise

Drawing on years of professional motor production and R&D experience, we have repeatedly earned a variety of corporate honors and recognitions, reflecting our commitment to excellence, innovation, and reliable performance across diverse applications.
OEM ODM Manufacturing

Jkongmotor offers comprehensive OEM and ODM capabilities, along with bespoke R&D customization services tailored to each customer's specific requirements and project goals, ensuring seamless collaboration from concept to delivery.
Adequate Stock Available

Our standard product finished goods inventories are ample, ensuring steady supply and reducing stockout risk. This also shortens the time customers wait for samples, ultimately boosting customer satisfaction and confidence in our reliability.
Adequate Raw Material

A rich raw materials inventory ensures stable motor manufacturing, reducing costs and enhancing market competitiveness, while significantly shortening product production and delivery cycles. This robust supply chain supports steady production, improves efficiency, and accelerates time-to-market for our customers across diverse applications.
Various Products Kinds

In addition to stepper motors and brushless motors, Jkongmotor can tailor-make gearboxes, brakes, encoders, drivers, and integrated servo units to suit diverse usage requirements. Our flexible solutions address a wide range of applications, delivering cohesive, high-performance systems from specification to deployment.
Fully Testing Equipments

Strictly adhering to motor industry testing standards, we ensures every unit undergoes rigorous inspection, delivering stable, reliable quality from concept to completion. Our comprehensive QA practices and meticulous testing guarantee performance, durability, consistency, providing peace of mind and dependable results for diverse applications.
Quality Assured

Focusing on brand growth, Precision Motors has, for years, earned a reputation for high-quality products and services that reach 30+ countries, including the United States, Germany, Japan, Turkey, and Russia. Our commitment to excellence drives broad international adoption, expanding our global presence and reinforcing trust among customers worldwide.

Applications

—— OEM ODM Customized Intelligent BLDC / Stepper Motion Control Manufacturer / Solution Provider Since 2011 ——

One-stop motion control solutions manufacturer with 15+ years

Certifications

—— OEM ODM Customized Intelligent BLDC / Stepper Motion Control Manufacturer / Solution Provider Since 2011 ——

Our company has strong technical force, mature production technology, complete inspection equipment, excellent quality assurance system and service system, we have obtained ISO9001 quality management system certificate and ISO14001 environmental management system certificate, all the products have obtained CE, Reach certification, and comply with the EU RoHS requirements.

OEM ODM Customized Services FAQs

—— OEM ODM Customized Intelligent BLDC / Steper Motion Control Manufacturer / Solution Provider Since 2011 ——

1. What industries commonly use OEM ODM customized integrated servo motors?

Integrated servo motors are widely used in industrial automation, robotics, CNC machines, packaging equipment, material handling systems, medical devices, and semiconductor manufacturing.
2. Are protection levels, accessories, and mechanical options customizable?

Integrated servo motors can be customized with IP30, IP54, or IP65 protection, as well as accessories such as brakes, cooling fans, gearboxes, and special mounting designs.
3. Can integrated servo motors be customized for specific applications?

Yes, JKongmotor supports OEM ODM customized integrated servo motors, including mechanical structure, power rating, frame size, communication protocol, and control parameters.
4. Are integrated servo motors energy efficient and stable under load changes?

Yes, optimized integration reduces energy loss and wiring mismatch, while real-time feedback ensures consistent accuracy and efficiency even under changing load conditions.
5. What performance characteristics do integrated servo motors provide?

They deliver wide speed ranges, stable torque output, low temperature rise, high efficiency, fast dynamic response, and reliable closed-loop motion performance under varying loads.
6. Do integrated servo motors include built-in encoders and feedback systems?

Yes, integrated servo motors come with built-in encoders such as high-resolution absolute encoders, providing accurate position, speed, and torque feedback for stable closed-loop control.
7. What control and communication protocols are supported by integrated servo motors?

Integrated servo motors support Pulse control, RS-485/Modbus-RTU, CANopen, and EtherCAT (optional), allowing flexible integration into various industrial automation networks.
8. What are the main advantages of integrated servo motors compared to traditional servo systems?

Integrated servo motors offer reduced wiring, compact structure, easier installation, faster response, space savings, and high-precision closed-loop control compared to separate motor and drive systems.
9. What types of integrated servo motors does JKongmotor offer?

JKongmotor provides integrated BLDC servo motors, geared BLDC motors, integrated stepper servo motors, and multiple frame-size options to support different power and application requirements.
10. What is an integrated servo motor and how does it work?

An integrated servo motor is a compact motion control solution that combines the motor, drive electronics, encoder, and controller into one unit, enabling precise closed-loop servo control with simplified system integration.

Intelligent Servo Motors & Motion Control Manufacturer & Supplier Since 2011

Customized Integrated Dc Servo Motor Types

Integrated Dc Servo Motor

Integrated Geared Dc Servo

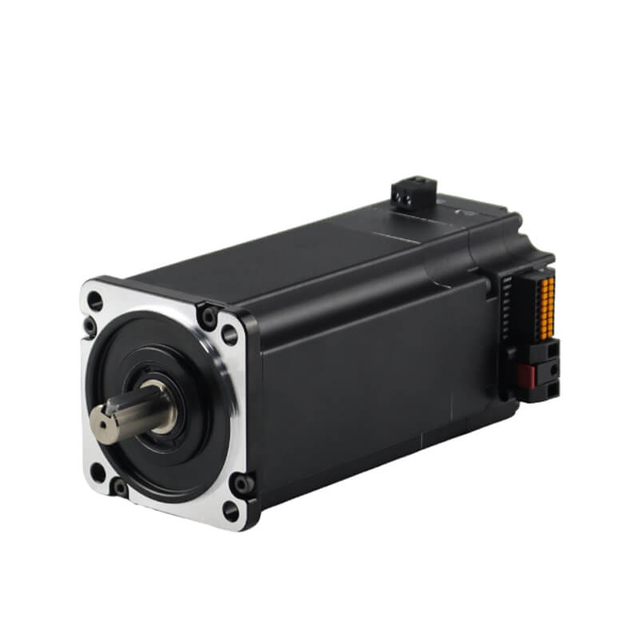

Brake Integrated Dc Servo

IP65 Integrated Dc Servo Motor

Jkogmotor Integrated Servo Motor 2024.pdf

Jkongmotor IDC Series Integrated DC Servo Motor Catalog 2025.pdf

JKIDC42/57/60/80/86 Series of Intelligent Integrated Servo Motors Model Name

Customized Integrated Stepper Servo Motor Types

Integrated Stepper Servo Motor

Integrated Geared Stepper Motor

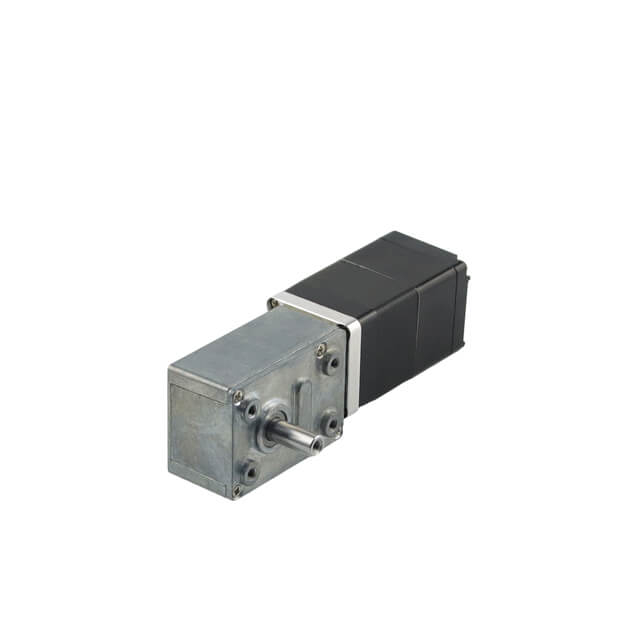

Integrated Worm Geared Stepper

Integrated Worm Geared Stepper

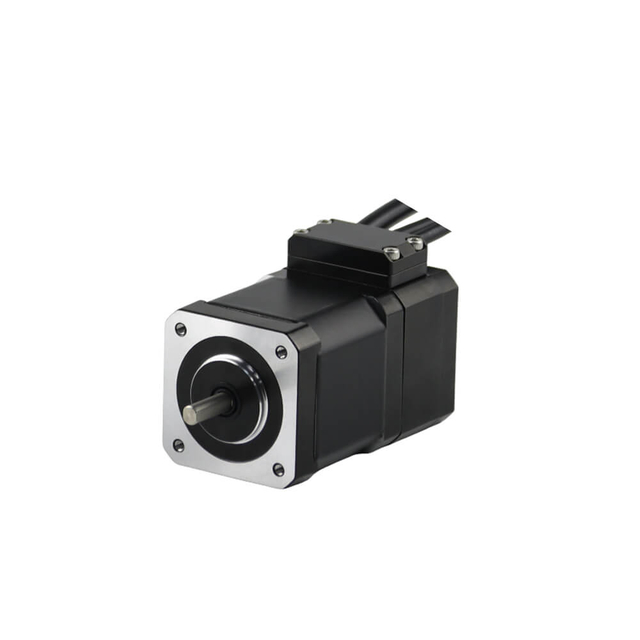

Integrated Waterproof Stepper

Integrated Linear Stepper Servo

Integrated Linear Motions

Jkongmotor ISC Series Integrated Stepper Servo Motor Catalog 2025.pdf

JKISC28/42/57/60/86 Series of Intelligent Integrated Stepper Servo Motors Model Name

OEM ODM Customized Service

Customized Service Including

Integrated Servo Motor Customized Service

Motor Shaft Customized Service

OEM ODM Customized Service

Prototype Development & Sample Build ▂▂

Technical Evaluation & Feasibility Study

Solution Proposal & Drawing Approval

Prototype Development & Sample Build

Sample Testing & Application Validation

Pilot Order & Mass Production Preparation

Mass Production & Export Delivery

After-Sales Support & Long-Term Supply

Motor Production Process

Advantages

15+ Years Experience

High-Tech Enterprise

OEM ODM Manufacturing

Adequate Stock Available

Adequate Raw Material

Various Products Kinds

Fully Testing Equipments

Quality Assured

Applications

Automation >

AGV >

Robots >

Textile >

Medical >

Printer >

Home Appliance >

Agriculture >

Certifications

OEM ODM Customized Services FAQs

Prototype Development & Sample Build
▂▂
