Integrated Dc Servo Motor with Gearbox

BesFoc integrated dc servo motor is a family of low-voltage servo systems that integrate a servo drive, servo motor and encoder into one package. Solutions with power output of 26w to 1000w are available. The product line supports pulse train based control methods (Pulse, RS-485, CANopen). It also offers packages with gearbox, electromagnetic brakes and cooling fans to meet the safety requirement of today's industries. The integrated servo motor is an ideal solution for manufacturers in logistics, AGV, medical, semiconductor and solar industries among many others. The servo drive is debugged by software. It is meant to assist users with configuration, tuning and troubleshooting.The software and the drive are connected via USB for fast and reliable communication.


Features of IDS low-voltage Integrated Dc Servo Motors:

  • Adopt new 32-bit M4+ core, 120M or 240M main frequency
  • Stable torque characteristics from low speed to high speed, high speed, high precision
  • Equipped with brake resistor interface to prevent damage to the electromechanical braking system
  • Wide speed range, low temperature rise, high efficiency
  • Integrated motor and drive, compact size, simple wiring, and drive Good compatibility with the motor
  • Equipped with overcurrent, overvoltage, over temperature, and over differential protection functions
  • Configure 17-bit single-turn absolute encoder


Control method:

  • Pulse type
  • RS485-Modbus-RTU network type
  • CANopen network type


Protection level:

  • Waterproof type: IP30 IP54 IP65 optional

Features:

  • High precision, closed-loop control with fast dynamic response
  • Adapted to high precision equipment with integrated precision encoder
  • Pulse / RS485 / CANopen / EtherCAT
The highly integrated design of the DC servo all-in-one machine can reduce the space occupation of the equipment, support a variety of international common protocols, and more intelligent control, which can make the efficiency of your equipment increase dramatically!

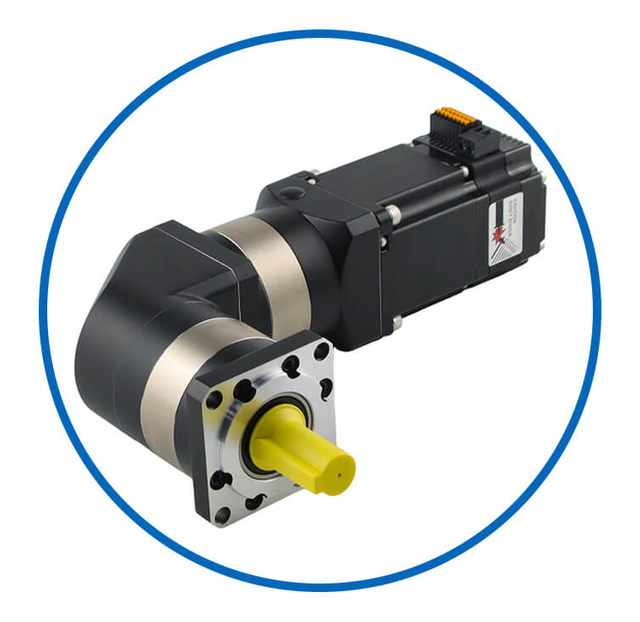

DC servo integrated geared motor

IDS42 42mm low voltage DC servo all-in-one machine with JK HPS/HPR42 Planetary Gearbox

The latest generation of precision control motor integrated brushless servo motor adopts high-resolution magnetic encoder design, and the encoder supports single-turn absolute value mode. Optional pulse, RS485 and CANopen three control methods.
Motor parameters: 26W ~ 78W, 24V, 0.0625Nm ~ 0.25Nm
Optional configuration: Gearbox, brake...
Series Model Control Method Power Rated Voltage Rated Current Rated Speed Rated Torque Total body Length Integrated Encoder
W V A Rpm Nm mm
IDS42-0.0625Nm JKIDS42-P01A pulse 26 24 1.8 4000 0.0625 61 17bit
JKIDS42-R01A RS485
JKIDS42-C01A CANopen
IDS42-0.125Nm JKIDS42-P02A pulse 53 24 3.3 4000 0.125 81 17bit
JKIDS42-R02A RS485
JKIDS42-C02A CANopen
IDS42-0.185Nm JKIDS42-P03A pulse 78 24 4.5 4000 0.185 101 17bit
JKIDS42-R03A RS485
JKIDS42-C03A CANopen
IDS42-0.25Nm JKIDS42-P04A pulse 78 24 4.5 3000 0.25 120 17bit
JKIDS42-R04A RS485
JKIDS42-C04A CANopen

NEMA 17 JK-HPR42-L/LSW Series Planetary Gearbox Specification

65Model / JK-HPR42-L1 JK-HPR42-L2 JK-HPR42-L1SW JK-HPR42-L2SW
Gear Ratio / 3 4 5 7 10 15 16 20 25 28 30 35 40 45 50 70 100 3 4 5 7 10 15 16 20 25 28 30 35 40 50 70 100
Gear Trains / 1 2 1 2
Gearbox Length mm 61.5 72.5 76.5 87.5
Rated Torque N.m 8 9 9 5 5 10 12 12 10 10 10 10 10 10 10 10 5 8 9 9 5 5 10 12 12 10 10 12 10 10 10 10 5
Sundden Stop Torque N.m 16 18 18 10 10 20 24 24 20 20 20 20 20 20 20 20 10 16 18 18 10 10 20 24 24 20 20 24 20 20 20 20 10
Back Lash arcmin ≤15 arcmin ≤20 arcmin ≤15 arcmin ≤20 arcmin
Efficiency % 96 94 96 94
Suitable Motor Dimension mm Φ5-10 / Φ22-2 / F31-M3Φ5-10 / Φ22-2 / F31-M3 Φ5-24 / Φ22-2 / F31-M3
Rated Input Speed rpm 3000
Max Input Speed rpm 6000
Average Life Span h 20000
Axial Force N 100
Radial Force N 300
Noise dB ≤65
Protection Level IP IP54
Work Temp. ℃ -20 to + 150
Out Shaft Type / Key Shaft Type

NEMA 17 JK-HPS42-L/LSW Series Planetary Gearbox Specification

Model / JK-HPS42-L1 JK-HPS42-L2 JK-HPS42-L1SW JK-HPS42-L2SW
Gear Ratio / 4 5 7 10 16 20 25 28 35 40 50 70 4 5 7 10 16 20 25 28 35 40 50 70
Gear Trains / 1 2 1 2
Gearbox Length mm 60 71 76.5 87.5
Rated Torque N.m 9 9 5 5 12 12 10 10 10 10 10 10 9 9 5 5 12 12 10 10 10 10 10 10
Sundden Stop Torque N.m 18 18 10 10 24 24 20 20 20 20 20 20 18 18 10 10 24 24 20 20 20 20 20 20
Back Lash arcmin ≤15 arcmin ≤20 arcmin ≤15 arcmin ≤20 arcmin
Efficiency % 96 94 96 94
Suitable Motor Dimension mm Φ5-10 / Φ22-2 / F31-M3 Φ5-10 / Φ22-2 / F31-M3
Rated Input Speed rpm 3000
Max Input Speed rpm 6000
Average Life Span h 20000
Axial Force N 100
Radial Force N 300
Noise dB ≤65
Protection Level IP IP54
Work Temp. ℃ -20 to + 150
Out Shaft Type / Key Shaft Type

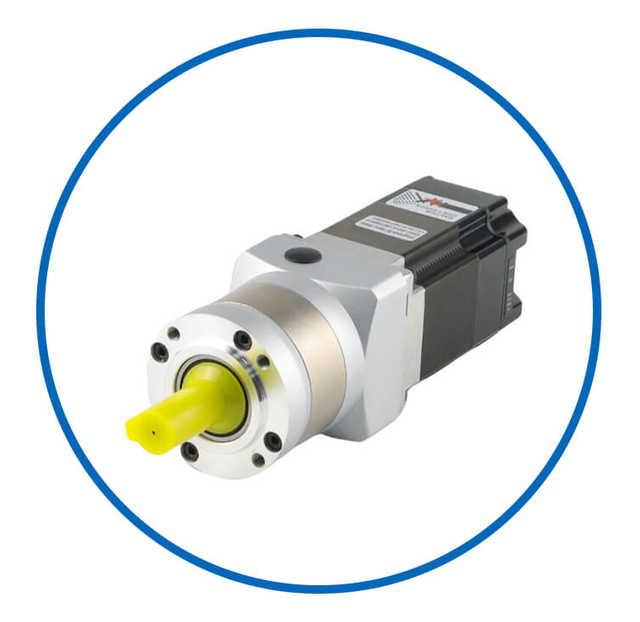

DC servo integrated machine

IDS57 57mm low voltage DC servo all-in-one machine

The latest generation of precision control motor integrated brushless servo motor adopts high-resolution magnetic encoder design, and the encoder supports single-turn absolute value mode. Optional pulse, RS485 and CANopen three control methods.
Motor parameters: 91W ~ 200W, 24V ~ 48V, 0.29Nm ~ 0.64Nm
Optional configuration: Gearbox, brake, cooling fan...
Series Model Control Method Power Rated Voltage Rated Current Rated Speed Rated Torque Total body Length Integrated Encoder
W V A Rpm Nm mm
IDS57-0.29Nm JKIDS57-P01A pulse 91 24/36 3.5 3000 0.29 101 17bit
JKIDS57-R01A RS485
JKIDS57-C01A CANopen
IDS57-0.45Nm JKIDS57-P02A pulse 140 24/36 5.4 3000 0.45 121 17bit
JKIDS57-R02A RS485
JKIDS57-C02A CANopen
IDS57-0.64Nm JKIDS57-P03A pulse 200 36/48 7.5 3000 0.64 141 17bit
JKIDS57-R03A RS485
JKIDS57-C03A CANopen

NEMA 23 JK-PLF60 Series Planetary Gearbox Specification

Model / JK-PLF60-Ⅰ Stage JK-PLF60-Ⅱ Stage JK-PLF60-Ⅲ Stage
Gear Ratio / 3 / 4 / 5 / 7 / 10 12 / 15 / 16 / 20 / 25 / 28 / 35 / 40 / 50 / 70 / 100 64 / 80 / 100 / 120 / 125 / 140 / 175 / 200 / 250 / 280 / 350 / 400 / 700 / 1000
Gearbox Length mm A B A B A B
40 110 59 127 76 144
Output Torque N.m 15 / 30 / 27 / 20 / 9 15 / 15 / 35 / 35 / 30 / 35 / 30 / 35 / 30 / 22 / 10 40 / 40 / 40 / 40 / 35 / 40 / 35 / 40 / 35 / 40 / 35 / 40 / 35 / 25 / 12
Max Output Torque N.m 30 / 60 / 54 / 40 / 18 30 / 30 / 70 / 70 / 60 / 70 / 60 / 70 / 60 / 44 / 20 80 / 80 / 80 / 80 / 70 / 80 / 70 / 80 / 70 / 80 / 70 / 80 / 70 / 50 / 24
Rotor Inertia g.cm² 0.135 / 0.093 / 0.078  / 0.072 / 0.064  0.135 / 0.135 / 0.088 / 0.075 / 0.075 / 0.070 / 0.064 / 0.076 / 0.064 / 0.075 / 0.076  0.076 / 0.064 / 0.075 / 0.064 / 0.064 / 0.064 / 0.064 / 0.064 / 0.064 / 0.064 / 0.064 / 0.064 / 0.064 / 0.064 / 0.064
Back Lash arcmin ≤10 arcmin ≤15 arcmin ≤18 arcmin
Efficiency % 96 94 90
Rated Input Speed rpm 4000
Max Input Speed rpm 8000
Average Life Span h ＞20000 （Continuous operating life halved）
Axial Force N 280
Radial Force N 320
Torsional rigidity  (Nm/arcmin) 2.3
Lubrication Method / Long-term
Rotation Direction / Input/Output Syntropy
Protection Class / IP65
Mounting Position / Arbitrarily

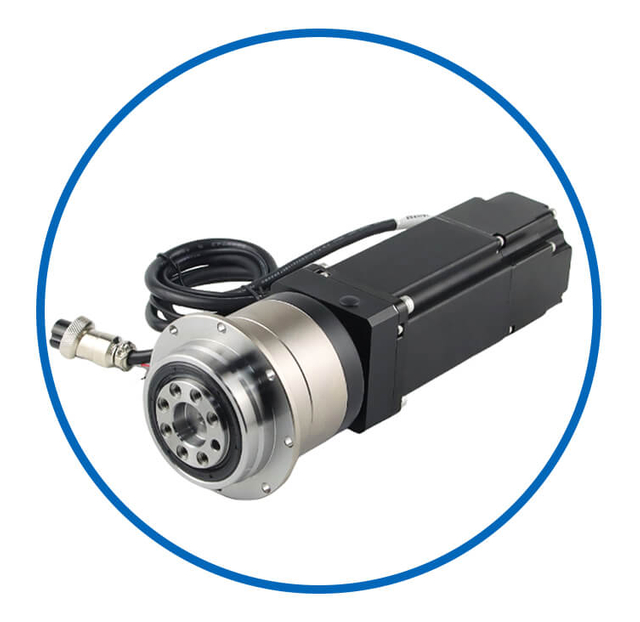

DC servo integrated geared motor

IDS60 60mm low voltage DC servo all-in-one machine with JK PLF60 Planetary Gearbox

The latest generation of precision control motor integrated brushless servo motor adopts high-resolution magnetic encoder design, and the encoder supports single-turn absolute value mode. Optional pulse, RS485 and CANopen three control methods.
Motor parameters: 200W ~ 400W, 24V ~ 48V, 0.64Nm ~ 1.27Nm
Optional configuration: Gearbox, brake, cooling fan...
Series Model Control Method Power Rated Voltage Rated Current Rated Speed Rated Torque Total body Length Integrated Encoder
W V A Rpm Nm mm
IDS60-0.64Nm JKIDS60-P01A pulse 200 24 12 3000 0.64 94 17bit
JKIDS60-R01A RS485
JKIDS60-C01A CANopen
IDS60-1.27Nm JKIDS60-P02A pulse 400 48 11 3000 1.27 112 17bit
JKIDS60-R02A RS485
JKIDS60-C02A CANopen

NEMA 24 JK-PLF60 Series Planetary Gearbox Specification

Model / JK-PLF60-Ⅰ Stage JK-PLF60-Ⅱ Stage JK-PLF60-Ⅲ Stage
Gear Ratio / 3 / 4 / 5 / 7 / 10 12 / 15 / 16 / 20 / 25 / 28 / 35 / 40 / 50 / 70 / 100 64 / 80 / 100 / 120 / 125 / 140 / 175 / 200 / 250 / 280 / 350 / 400 / 700 / 1000
Gearbox Length mm A B A B A B
40 110 59 127 76 144
Output Torque N.m 15 / 30 / 27 / 20 / 9 15 / 15 / 35 / 35 / 30 / 35 / 30 / 35 / 30 / 22 / 10 40 / 40 / 40 / 40 / 35 / 40 / 35 / 40 / 35 / 40 / 35 / 40 / 35 / 25 / 12
Max Output Torque N.m 30 / 60 / 54 / 40 / 18 30 / 30 / 70 / 70 / 60 / 70 / 60 / 70 / 60 / 44 / 20 80 / 80 / 80 / 80 / 70 / 80 / 70 / 80 / 70 / 80 / 70 / 80 / 70 / 50 / 24
Rotor Inertia g.cm² 0.135 / 0.093 / 0.078  / 0.072 / 0.064  0.135 / 0.135 / 0.088 / 0.075 / 0.075 / 0.070 / 0.064 / 0.076 / 0.064 / 0.075 / 0.076  0.076 / 0.064 / 0.075 / 0.064 / 0.064 / 0.064 / 0.064 / 0.064 / 0.064 / 0.064 / 0.064 / 0.064 / 0.064 / 0.064 / 0.064
Back Lash arcmin ≤10 arcmin ≤15 arcmin ≤18 arcmin
Efficiency % 96 94 90
Rated Input Speed rpm 4000
Max Input Speed rpm 8000
Average Life Span h ＞20000 （Continuous operating life halved）
Axial Force N 280
Radial Force N 320
Torsional rigidity  (Nm/arcmin) 2.3
Lubrication Method / Long-term
Rotation Direction / Input/Output Syntropy
Protection Class / IP65
Mounting Position / Arbitrarily
DC servo integrated geared motor

 IDS80 80mm low voltage DC servo all-in-one machine with JK PLF80 Planetary Gearbox

The latest generation of precision control motor integrated brushless servo motor adopts high-resolution magnetic encoder design, and the encoder supports single-turn absolute value mode. Optional pulse, RS485 and CANopen three control methods.
Motor parameters: 750W ~ 1000W, 48V ~ 72V, 2.4Nm ~ 3.2Nm
Optional configuration: Gearbox, brake, cooling fan...
Series Model Control Method Power Rated Voltage Rated Current Rated Speed Rated Torque Total body Length Integrated Encoder
W V A Rpm Nm mm
IDS80-2.4Nm JKIDS80-P01A pulse 750 48/72 19/12 3000 2.4 155 17bit
JKIDS80-R01A RS485
JKIDS80-C01A CANopen
IDS80-3.2Nm JKIDS80-P02A pulse 1000 72 17 3000 3.2 175 17bit
JKIDS80-R02A RS485
JKIDS80-C02A CANopen

 JK-PLF80 Series Planetary Gearbox Specification

Model / JK-PLF80-Ⅰ Stage JK-PLF80-Ⅱ Stage
Gear Ratio / 3 / 4 / 5 / 7 / 10 12 / 15 / 16 / 20 / 25 / 28 / 35 / 40 / 50 / 70 / 100
Gear Trains / 1 2
Gearbox Length mm A A
141.5 166.5
Output Torque N.m 55 / 90 / 95 / 64 / 40 60 / 60 / 95 / 95 / 100 / 95 / 100 / 95 / 100 / 70 / 45
Max Output Torque N.m 110 / 180 / 190 / 128 / 80 120 / 120 / 190 / 190 / 200 / 190 / 200 / 190 / 200 / 140 / 90
No-load Torque N.m 0.8 0.4
Rotor Inertia g.cm² 0.77 / 0.52 / 0.45 / 0.4 / 0.39  0.67 / 0.67 / 0.5 / 0.44 / 0.44 / 0.39 / 0.44 / 0.39 / 0.42 / 0.44 / 0.44
Back Lash arcmin ≤10 arcmin ≤15 arcmin
Efficiency % 96 94
Weight kg 3.0 3.6
Rated Input Speed rpm 3500
Max Input Speed rpm 6000
Average Life Span h ＞20000 （Continuous operating life halved）
Axial Force N 500
Radial Force N 550
Noise dB ≤62
Torsional rigidity  (Nm/arcmin) 7.5
Lubrication Method / Long-term
Rotation Direction / Input/Output Syntropy
Protection Class / IP65
Mounting Position / Arbitrarily
