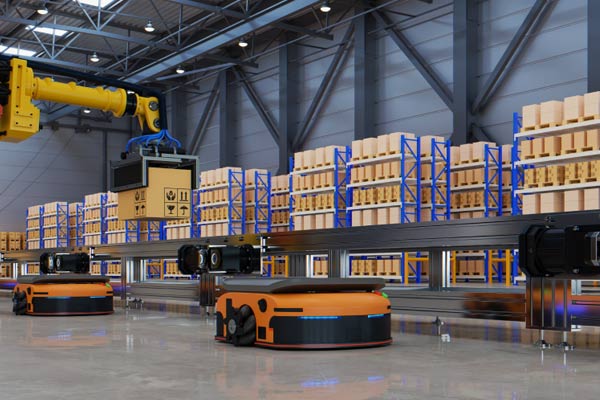

Automated Guided Vehicles (AGVs) require motion systems that combine precise positioning, fast communication, compact mechanical integration, and reliable real-time control. In this environment, the combination of an integrated brushless hub servo motor and CANopen communication provides a practical architecture for coordinating wheel speed, torque, direction, and vehicle-level motion commands.

Unlike conventional motor systems that separate the motor, encoder, servo drive, and communication interface into different components, an integrated brushless hub servo motor can place several of these functions directly inside the wheel assembly. CANopen then provides a standardized communication layer between the AGV controller and individual motor nodes.

This combination is particularly useful for differential-drive AGVs, omnidirectional mobile robots, warehouse vehicles, AMRs, and autonomous material-handling platforms.

What Is an Integrated Brushless Hub Servo Motor?

An integrated brushless hub servo motor is a compact motion-control unit that combines a brushless motor, servo drive, encoder, and hub mechanism into a single assembly. Unlike a conventional servo system, where the motor, controller, feedback device, and transmission components are installed separately, an integrated hub servo motor places key motion-control components directly inside or around the wheel.

This architecture is particularly suitable for AGVs, AMRs, mobile robots, automated material-handling equipment, and compact motion-control systems where space, wiring, and precise wheel control are important.

How Does an Integrated Brushless Hub Servo Motor Work?

A typical integrated brushless hub servo motor consists of four major functional elements:

The encoder continuously measures motor movement. The servo controller compares the actual motion with the commanded value and adjusts motor output accordingly.

Why Use a Brushless Motor in a Hub Servo System?

The brushless motor is a key part of the integrated architecture.

Compared with brushed motors, BLDC motors eliminate mechanical brushes and commutators, reducing mechanical wear and supporting efficient, reliable continuous operation.

Typical advantages include:

• High efficiency

• Low mechanical wear

• Compact construction

• High power-to-weight ratio

• Good speed control

• Low maintenance requirements

• Suitable for continuous operation

These characteristics make brushless technology suitable for mobile platforms that require frequent acceleration, deceleration, and direction changes.

What Makes It a Servo Motor?

A brushless motor becomes part of a servo system when closed-loop feedback is used to control motion.

The encoder provides information about:

• Rotor position

• Rotational speed

• Direction

• Position error

The servo controller uses this feedback to regulate the motor.

For example:

Commanded speed → 1000 rpm

Actual speed → 980 rpm

The controller detects the difference and adjusts motor output to reduce the error.

This closed-loop operation provides more precise motion control than a basic open-loop motor system.

How Is It Used in AGVs and AMRs?

One of the most common applications is mobile robot wheel drive.

For a differential-drive AGV, two integrated hub servo motors can independently control the left and right wheels.

By controlling the speed and direction of each wheel, the vehicle can perform:

• Forward movement

• Reverse movement

• Turning

• Acceleration

• Deceleration

• Differential steering

For more advanced platforms, four or more servo hub motors can be coordinated through industrial communication networks such as CANopen or other real-time protocols.

Integrated Brushless Hub Servo Motor: A Compact Motion Solution

An integrated brushless hub servo motor combines the functions of a brushless motor, servo drive, encoder, and wheel hub into a compact motion-control assembly. Its closed-loop architecture enables accurate control of speed, position, direction, and torque, while its integrated construction can reduce wiring, mechanical components, and installation space.

For AGVs, AMRs, mobile robots, and automated logistics equipment, this architecture provides a practical way to build compact, distributed, and precisely controlled wheel-drive systems.

Jkongmotor Customized Servo Motor Motions

One-Stop Integrated DC Servo Motor Solution Provider

Why Is CANopen Important for AGV Motion Control?

CANopen is a higher-layer communication protocol based on CAN bus technology. It defines standardized mechanisms for exchanging control commands, status information, configuration parameters, and process data between networked devices.

In an AGV, each integrated hub servo motor can operate as an individual CANopen node.

The vehicle controller does not need to manage every motor through a separate physical control interface. Instead, it can communicate with multiple servo nodes through the same CAN-based network.

This distributed architecture is well suited to mobile robots where several wheels must be coordinated continuously.

How CANopen Controls an Integrated Brushless Hub Servo Motor

The basic motion-control process can be divided into several stages.

1. AGV Controller Generates a Motion Command

The AGV's navigation or motion-control software calculates the required vehicle movement.

For a differential-drive AGV, this may involve determining:

• Left-wheel velocity

• Right-wheel velocity

• Wheel direction

• Acceleration

• Deceleration

• Target position

• Torque requirements

The vehicle controller then converts these requirements into commands for individual motor nodes.

2. CANopen Transfers the Command

The motion command is transmitted through the CANopen network.

Depending on the control architecture, the controller may use standardized CANopen mechanisms such as:

• Process Data Objects (PDOs)

• Service Data Objects (SDOs)

• Network Management (NMT)

• Emergency messages

• Heartbeat or node-guarding mechanisms

• Object Dictionary parameters

For cyclic motion control, PDOs are particularly useful because they allow frequently exchanged process data to be transmitted efficiently.

3. The Integrated Servo Drive Processes the Command

The integrated drive receives the CANopen command and converts it into an appropriate motor-control action.

The encoder provides feedback to the servo controller so that commanded and actual motion can be continuously compared.

4. Encoder Feedback Closes the Motion Loop

Servo control depends on feedback.

The integrated encoder can provide information such as:

• Rotor position

• Motor speed

• Direction

• Position error

• Actual motion status

The drive uses this information to regulate the motor.

For example:

Commanded speed: 1.00 m/s wheel-equivalent velocity

Actual speed: 0.98 m/s

The controller can detect the difference and adjust motor output accordingly.

This closed-loop architecture allows the AGV to achieve substantially more controlled motion than an open-loop motor system.

CANopen CiA 402 and AGV Servo Drives

For servo and motion-control applications, CiA 402 is an important CANopen device profile.

It defines standardized concepts for motion-control devices, including operating states and control objects.

The exact implementation depends on the drive and application, but standardized device behavior makes it easier for an AGV controller to communicate with different motion nodes.

Common CiA 402 Operating Modes

A CANopen servo drive may support operating modes such as:

For mobile AGVs, velocity-oriented control is especially relevant because wheel speeds are continuously adjusted according to vehicle trajectory calculations.

How CANopen Synchronizes Multiple AGV Wheels

A major advantage of CANopen networking is the ability to coordinate multiple motor nodes.

Consider a four-wheel AGV,Each motor can have its own CANopen node ID.The AGV controller can calculate the required speed for each wheel and distribute those commands over the CANopen network.

This is essential for:

• Straight-line driving

• Turning

• Acceleration

• Deceleration

• Curved trajectories

• Differential steering

• Coordinated wheel motion

CANopen PDOs for Real-Time Motion Data

Process Data Objects (PDOs) are central to efficient cyclic communication in CANopen motion systems.

Instead of repeatedly sending configuration information, PDOs can carry frequently changing process data.

CANopen SDOs for Configuration and Parameter Management

While PDOs are well suited to cyclic process data, Service Data Objects (SDOs) are commonly used for configuration and parameter access.

An AGV manufacturer may use SDO communication to configure:

• Motor parameters

• Encoder settings

• Acceleration limits

• Deceleration limits

• Velocity limits

• Current limits

• Error thresholds

• Operating modes

• PDO mappings

• Node configuration

This separation between configuration and cyclic motion data helps maintain an organized communication architecture.

How CANopen Improves AGV Distributed Control

One of the strongest characteristics of an integrated hub servo architecture is distributed intelligence.

Instead of placing all drive electronics in a central cabinet, individual wheels can perform their own low-level motion-control tasks.

The AGV controller can therefore focus on higher-level functions such as:

• Navigation

• Localization

• Path planning

• Obstacle avoidance

• Vehicle kinematics

• Fleet coordination

Meanwhile, each integrated servo module handles local motor-control functions.

Centralized vs. Distributed Control

This architecture can help simplify the mechanical and electrical design of compact AGVs.

CANopen Communication and AGV Motion Accuracy

Motion accuracy does not come from CANopen alone.

The final motion performance depends on the entire control chain:

Encoder resolution + servo control + mechanical transmission + wheel diameter + control algorithm + communication timing + vehicle mechanics

CANopen provides the communication framework, while the integrated servo drive performs the local closed-loop motor control.

For example, if the wheel circumference is CC, wheel rotational speed nn determines theoretical linear velocity:

v=C×n60v = \frac{C \times n}{60}

where:

• vv = linear velocity

• CC = wheel circumference

• nn = rotational speed in rpm

For a wheel with diameter DD:

C=πDC = \pi D

Therefore:

v=πDn60v = \frac{\pi D n}{60}

In an actual AGV, wheel slip, tire deformation, floor conditions, gearbox characteristics, and mechanical tolerances must also be considered.

CANopen Emergency Messages Improve Fault Handling

AGVs operate in environments where unexpected motor faults can affect vehicle safety and productivity.

CANopen provides mechanisms for communicating device faults, including Emergency (EMCY) messages.

A motor controller may report conditions associated with:

• Overcurrent

• Overvoltage

• Undervoltage

• Overtemperature

• Encoder faults

• Communication errors

• Drive faults

• Motor-control abnormalities

The exact protective response should be determined by the AGV's overall safety architecture rather than relying solely on CANopen communication.

Heartbeat Monitoring for Distributed Motor Nodes

In a multi-wheel AGV, the controller needs to know whether individual motor nodes remain operational.

CANopen heartbeat monitoring can be used to supervise node availability.

If a node stops communicating, the controller can detect a network or device problem and initiate an appropriate system response.

This is particularly useful for AGVs with several distributed motor modules.

Why Integrated Hub Servo Motors Are Suitable for AGVs

The mechanical structure of a hub motor can further simplify vehicle integration.

Because the motor is positioned directly around or within the wheel assembly, the drivetrain can potentially eliminate some conventional mechanical transmission components.

The exact mechanical arrangement varies by product, but the integrated concept can reduce the number of external components.

Potential design benefits include:

• Compact packaging

• Reduced transmission components

• Lower wiring complexity

• Simplified installation

• Modular wheel replacement

• Distributed control

• Easier system expansion

CANopen Network Design Considerations for AGVs

A reliable CANopen motion system requires more than selecting a compatible motor.

Important engineering considerations include:

1. Node ID Planning

Each motor must have a unique network identity.

A four-wheel AGV, for example, might reserve:

• Node 1 — Left-front

• Node 2 — Right-front

• Node 3 — Left-rear

• Node 4 — Right-rear

A consistent node-addressing strategy simplifies commissioning and maintenance.

2. Bus Termination

CAN networks require appropriate termination according to the physical-layer implementation.

Poor termination can cause:

• Reflections

• Communication errors

• Reduced reliability

• Intermittent faults

3. Cable Layout

Cable length, topology, electromagnetic interference, grounding, and shielding should be considered during system design.

Motor power cables should also be routed appropriately relative to communication cables.

4. Communication Load

The CANopen network must be configured so that cyclic traffic remains within practical bus-loading limits.

Higher numbers of motors and shorter control cycles increase network traffic.

CANopen is one option among several industrial communication approaches.

The appropriate protocol depends on the required update rate, synchronization, network scale, controller architecture, and system complexity.

For compact AGVs, CANopen can provide a useful balance between distributed control, standardized device profiles, wiring simplicity, and industrial communication functionality.

Key Advantages of CANopen Integrated Brushless Hub Servo Motors

When correctly engineered, this combination can provide several system-level advantages.

Compact Integration

The motor, drive, feedback device, and communication interface can be consolidated into a wheel-level module.

Reduced Wiring

A network connection can replace multiple individual control connections between a central controller and distributed drives.

Closed-Loop Control

Encoder feedback allows the servo drive to regulate actual motor motion.

Multi-Motor Coordination

Multiple wheel nodes can exchange motion data over the same CANopen network.

Standardized Communication

CANopen and CiA 402 provide standardized concepts for device control and motion profiles.

Modular Vehicle Design

Motor nodes can be designed as modular components, simplifying the development of different AGV platforms.

Fault Diagnostics

Status information, emergency messages, and node monitoring provide mechanisms for detecting communication and drive problems.

Design Checklist for CANopen AGV Hub Servo Systems

Before implementing an integrated brushless hub servo system, engineers should evaluate:

Conclusion

CANopen communication enables integrated brushless hub servo motors to function as intelligent, networked wheel modules within AGVs. Instead of treating the motor as an isolated actuator, the system can combine local servo control, encoder feedback, distributed communication, diagnostics, and vehicle-level motion coordination into a unified architecture.

Through mechanisms such as PDOs, SDOs, NMT, heartbeat monitoring, Emergency messages, and CiA 402 device profiles, an AGV controller can communicate with multiple servo nodes while each motor performs its own low-level closed-loop control.

For applications such as warehouse AGVs, autonomous mobile robots, intelligent logistics vehicles, automated carts, and material-handling platforms, the combination of an integrated brushless hub servo motor and CANopen can provide a compact and modular foundation for distributed motion control.

The most effective implementation depends on the complete system design—including motor torque, encoder resolution, wheel diameter, CANopen cycle timing, bus loading, mechanical configuration, thermal performance, braking requirements, and functional safety architecture. When these elements are engineered together, CANopen-based integrated servo wheels can provide a scalable approach to precise and coordinated AGV motion.

FAQ:

FAQ 1: What is CANopen communication in integrated brushless hub servo motors?

CANopen is a communication protocol based on CAN bus technology that enables integrated brushless hub servo motors to exchange motion commands, feedback data, and diagnostic information with an AGV controller. It supports standardized communication for distributed motion-control systems.

FAQ 2: How does CANopen control AGV hub servo motors?

CANopen allows the AGV controller to transmit target velocity, position, or torque commands to individual servo motors. The integrated servo drive processes these commands and uses encoder feedback to regulate motor movement and achieve closed-loop motion control.

FAQ 3: What is the role of CiA 402 in CANopen servo motors?

CiA 402 defines standardized device profiles for CANopen motion-control devices. It specifies operating modes, controlwords, statuswords, and drive-state transitions, helping AGV controllers communicate with compatible servo drives.

FAQ 4: Can CANopen synchronize multiple hub servo motors in an AGV?

Yes. CANopen supports coordinated communication between multiple motor nodes. With appropriate synchronization mechanisms, such as SYNC messages and configured cyclic communication, an AGV controller can coordinate wheel velocities and motion commands for differential-drive and multi-wheel vehicles.

FAQ 5: What are PDOs and SDOs in CANopen motion control?

Process Data Objects (PDOs) transfer time-sensitive motion and feedback data, including target velocity and actual position. Service Data Objects (SDOs) are primarily used for configuring drive parameters, accessing the Object Dictionary, and setting communication parameters.

FAQ 6: What operating modes are available for CANopen integrated servo motors?

Depending on the drive's CiA 402 implementation, supported modes may include Profile Position Mode, Profile Velocity Mode, Cyclic Synchronous Position Mode, Cyclic Synchronous Velocity Mode, and Cyclic Synchronous Torque Mode. Velocity control is commonly used for AGV wheel-drive applications.

FAQ 7: How does encoder feedback improve AGV motion accuracy?

An integrated encoder measures motor position and speed and supplies feedback to the servo controller. The controller compares actual motion with commanded values and adjusts motor output to reduce errors, improving wheel-speed regulation and positioning performance.

FAQ 8: How does CANopen improve fault monitoring in AGVs?

CANopen provides diagnostic mechanisms such as Emergency messages and heartbeat monitoring. These functions allow the AGV controller to detect reported drive faults or communication failures and initiate an appropriate vehicle-level response.

FAQ 9: What are the advantages of integrated brushless hub servo motors for AGVs?

Integrated brushless hub servo motors combine the motor, servo drive, encoder, and wheel hub into a compact assembly. This can reduce wiring, simplify installation, save space, support closed-loop wheel control, and facilitate modular AGV drivetrain design.

FAQ 10: What should engineers consider when selecting a CANopen hub servo motor for an AGV?

Engineers should evaluate rated and peak torque, wheel speed, encoder resolution, supply voltage, CANopen and CiA 402 compatibility, communication cycle time, bus loading, protection rating, thermal performance, braking requirements, and the vehicle's safety architecture.
