Top Planetary Geared BLDC Motor Solutions Providers in China

OEM ODM Customized Geared Brushless Dc Motor Motion Control Manufacturer / Solution Provider Since 2011



Integrated BLDC Motor with Planetary Gearbox for One-Stop Motion System Solutions

A BLDC motor with planetary gearbox can be delivered as a fully integrated system including controller, feedback sensors, and communication interfaces. This one-stop solution reduces development time and simplifies system integration. With factory-level customization, customers benefit from faster deployment and optimized performance across diverse industrial applications.



Jkongmotor‘s planetary geared brushless motors and BLDC motors with planetary gearboxes offer high efficiency, compact design, and superior torque performance. With OEM/ODM customization capabilities, these integrated motion solutions are widely used in robotics, automation, and precision equipment, providing reliable, low-maintenance, and application-specific performance advantages.

Custom Brushless BLDC Motor with Gearbox for Multi-Industry Motion Control Solutions

geared bldc motor with brake
Gearbox + Brake

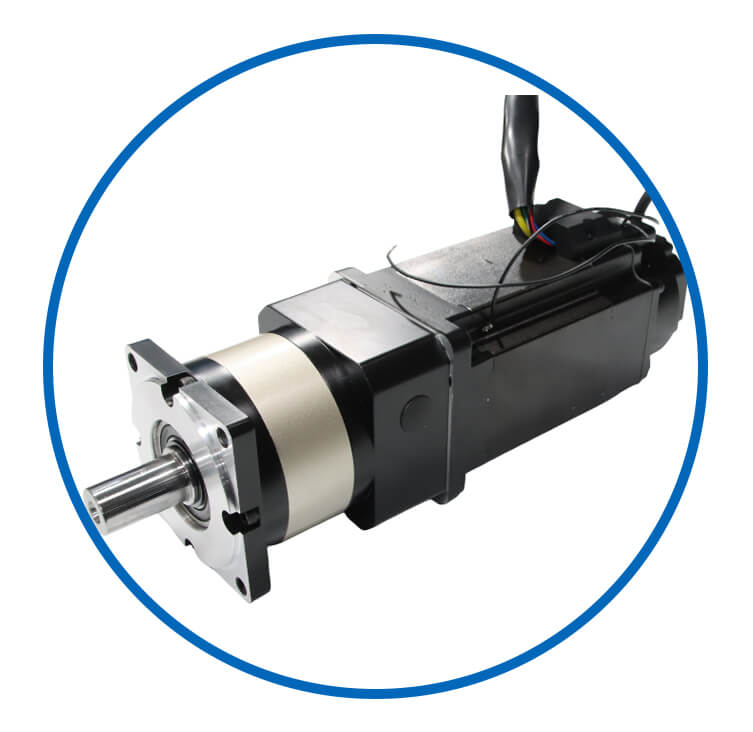

geared brushless dc motor supplier
Gearbox + Encoder

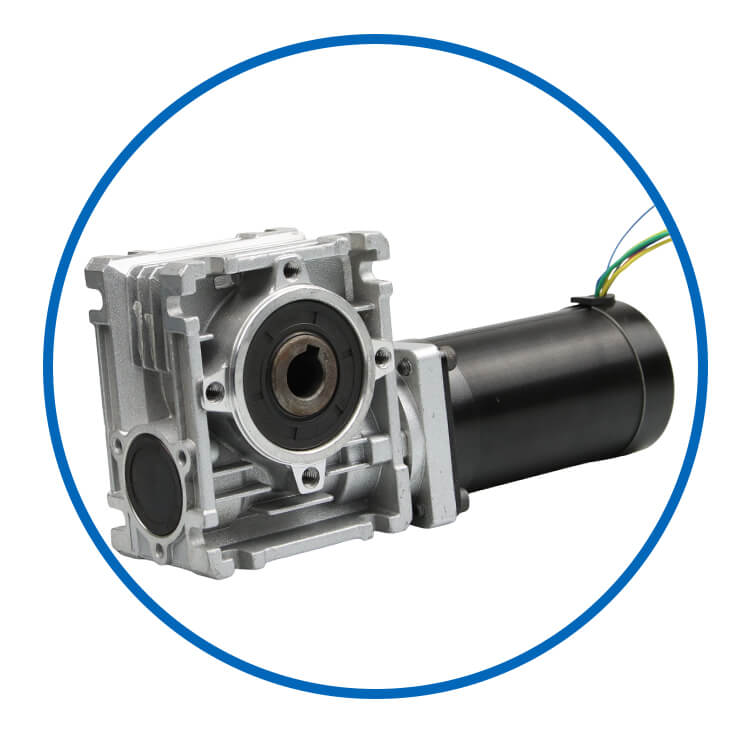

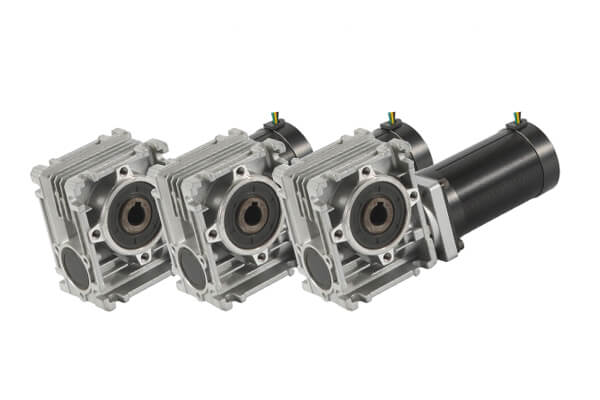

Worm geared bldcc motor supplier
Worm Gearbox

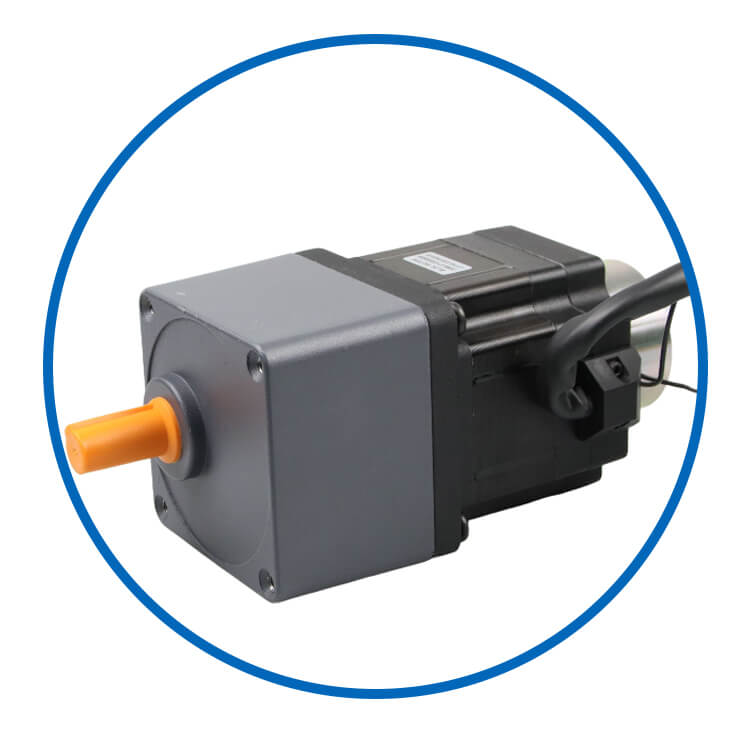

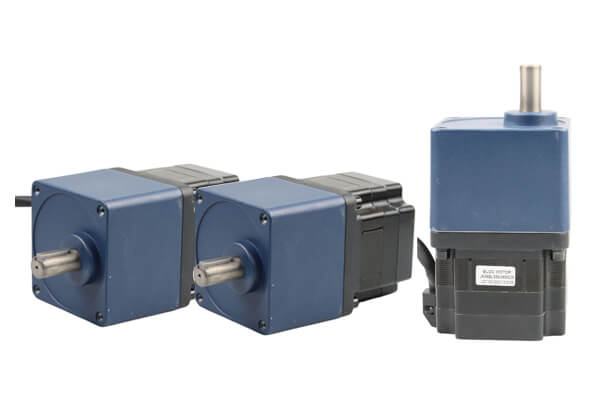

Brushless dc motor with gearbox
Eccentric Gearbox

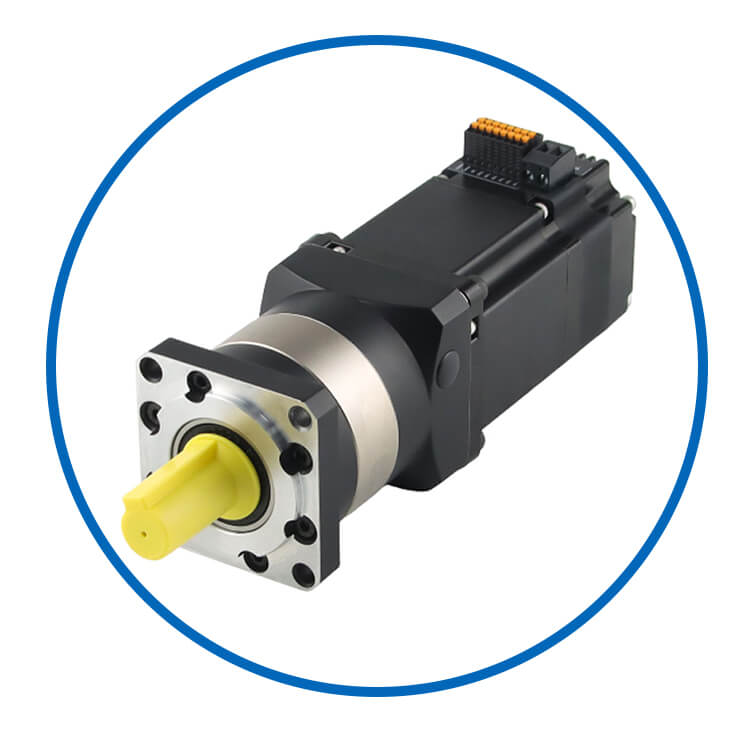

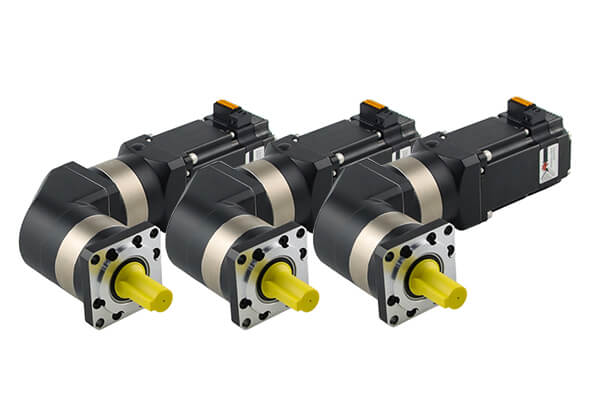

brushless dc motor with integrated driver
Built-In Driver
Manufacturers provide full OEM/ODM customized solutions for brushless BLDC motors with gearbox, supporting industries such as medical devices, electric vehicles, packaging machinery, and aerospace. Modular design enables integration of brakes, encoders, and drivers, creating a complete motion control system tailored to application needs.
33BLS brushless dc motor

33BLS Series 33mm Round Brushless DC Motor with Gearbox

Brushless DC motor, power: 7W ~ 40W, rated voltage: 24V 48V, rated speed: 3000 ~ 10000rpm, rated torque: 22mNm ~ 50mNm
Optional parts: Gearbox, brake, encoder...
Model Phase Poles Rated Voltage Rated Speed Rated Torque Peak Current Rated Power Body Length Rotor Inertia Driver Weight
Phase Poles Vdc Rpm mN.m A W mm g.cm2 / Kg
JK33BL38-24 3 4 24 3000 22 1.5 7 38 7.95 JKBLD120 0.085
JK33BL80-24 3 4 24 7800 50 5.6 40 80 23.55 JKBLD120 0.2
JK33BL80-48 3 4 48 10000 40 2.9 40 80 23.55 JKBLD120 0.2
24v brushless dc motor

Nema17 42BL Series Round Brushless DC Motor with Common / High Precision Planetary Gearbox

Brushless DC motor, power: 6.5W ~ 76W, rated voltage: 24V 36V, rated speed: 3500 ~ 6300rpm, rated torque: 18mNm ~ 115mNm
Optional parts: Gearbox, brake, encoder, integrated built-in drivers...
Model Phase Poles Rated Voltage Rated Speed Rated Torque Rated Current Rated Power Body Length Rotor Inertia Driver Weight
Phase Poles Vdc Rpm mN.m A W mm g.cm2 / Kg
JK42BL30 3 8 24 3500 18 1.5 6.5 30 15.6 JKBLD120 0.25
JK42BL60 3 8 36 4000 80 5 32 60 33 JKBLD120 0.35
JK42BL85 3 8 24 4000 150 7.5 62 85 84 JKBLD120 0.7
JK42BL93 3 8 24 6300 115 10 76 93 94 JKBLD120 0.8
brushless dc geared motor

Nema17 42BLS Series Square Brushless DC Motor with Common Precision Planetary Gearbox

6Brushless DC motor, power: 26W ~ 105W, rated voltage: 24V, rated speed: 4000rpm, rated torque: 0.0625Nm ~ 0.25Nm
Optional parts: Gearbox, brake, encoder, integrated built-in drivers...
Model Phase Poles Rated Voltage Rated Speed Rated Torque Rated Current Rated Power Body Length Rotor Inertia Driver Weight
Phase Poles Vdc Rpm N.m A W mm g.cm2 / Kg
JK42BLS01 3 8 24 4000 0.0625 1.8 26 41 24 JKBLD120 0.3
JK42BLS02 3 8 24 4000 0.125 3.3 52.5 61 48 JKBLD120 0.45
JK42BLS03 3 8 24 4000 0.185 4.8 77.5 81 72 JKBLD120 0.65
JK42BLS04 3 8 24 4000 0.25 6.3 105 100 96 JKBLD120 0.8

42JXLG200K Common Planetary Gearbox For 42BL/BLS BLDC Motor

Features of Gearbox ：
Ring Material Bearing at output Max. Radial Load（N) Max.shaft axial load(N) Radial play of shaft(mm） Axial play of shaft（mm） Backlash at no-load（°） Shaft press fit force.max（N）
metal Ball bearing 200 100 ≤0.06 ≤0.3 ≤2.5 150
Pinion Specifications ：
Module No. of teeth Pressure angle Hole diameter Reduction Ratio
0.6 11 20 ° Φ3.98 1:19 / 1:22 / 1:27 / 1:68 / 1:82 / 1:95 / 1:115
17 1:14 / 1:49 / 1:59
Gearbox Specifications ：
Reduction Ratio Exact Reduction Ratio Rated tolerance torque Max momentary tolerance torque Eifficiency L(mm) Weight(g)
1:3.71 , 1:5.18 1:3.71 , 1:5.18 2.0 N.m Max. 5.0 N.m 90％ 34.2±0.5 265
1:14, 1:19, 1:22, 1:27 1:13.76, 1:19.22, 1:22.21, 1:26.83 8.0 N.m Max. 20N.m 81％ 49.6±0.5 380
1:49, 1:59, 1:68, 1:82, 1:95, 1:115 1:48.83, 1:58.86, 1:68.28, 1:82.30, 1:95.47, 1:115.08 16.0 N.m Max. 40 N.m 73％ 62.0±0.5 475
1:181, 1:218, 1:253, 1:305, 1:354, 1:426, 1:495, 1:596 1:180.96, 1:218.12, 1:253.03, 1:304.99, 1:353.8, 1:426.46, 1:494.71, 1:596.31 20.0 N.m Max. 50 N.m 66％ 74.4±0.5 570
brushless dc motor with gearbox

Nema17 42BLS Series Square Brushless DC Motor with High Precision Planetary Gearbox

6Brushless DC motor, power: 26W ~ 105W, rated voltage: 24V, rated speed: 4000rpm, rated torque: 0.0625Nm ~ 0.25Nm
Optional parts: Gearbox, brake, encoder, integrated built-in drivers...
Model Phase Poles Rated Voltage Rated Speed Rated Torque Rated Current Rated Power Body Length Rotor Inertia Driver Weight
Phase Poles Vdc Rpm N.m A W mm g.cm2 / Kg
JK42BLS01 3 8 24 4000 0.0625 1.8 26 41 24 JKBLD120 0.3
JK42BLS02 3 8 24 4000 0.125 3.3 52.5 61 48 JKBLD120 0.45
JK42BLS03 3 8 24 4000 0.185 4.8 77.5 81 72 JKBLD120 0.65
JK42BLS04 3 8 24 4000 0.25 6.3 105 100 96 JKBLD120 0.8

HPS42 Series High Precision Planetary Gearbox For 42BL/BLS BLDC Motor

Model / JK-HPS42-L1 JK-HPS42-L2 JK-HPS42-L1SW JK-HPS42-L2SW
Gear Ratio / 4 5 7 10 16 20 25 28 30 35 40 45 50 70 4 5 7 10 16 20 25 28 30 35 40 50 70
Gear Trains / 1 2 1 2
Gearbox Length mm 60 71 75 86
Rated Torque N.m 9 9 5 5 12 12 10 10 10 10 10 10 10 10 9 9 5 5 12 12 10 10 12 10 10 10 10
Sundden Stop Torque N.m 18 18 10 10 24 24 20 20 20 20 20 20 20 20 18 18 10 10 24 24 20 20 24 20 20 20 20
Back Lash arcmin ≤15 arcmin ≤20 arcmin ≤15 arcmin ≤20 arcmin
Efficiency % 96 94 96 94
Suitable Motor Dimension mm Φ5-10 / Φ22-2 / F31-M3 Φ5-24 / Φ22-2 / F31-M3
Rated Input Speed rpm 3000
Max Input Speed rpm 6000
Average Life Span h 20000
Axial Force N 100
Radial Force N 300
Noise dB ≤55
Protection Level IP IP54
Work Temp. ℃ -20 to + 150
Out Shaft Type / Key Shaft Type
24v brushless dc motor

Nema17 42BL Series Round Brushless DC Motor with High Precision Planetary Gearbox

Brushless DC motor, power: 26W ~ 105W, rated voltage: 24V , rated speed: 4000rpm, rated torque: 0.0625Nm ~ 0.25Nm
Optional parts: Gearbox, brake, encoder, integrated built-in drivers...
Model Phase Poles Rated Voltage Rated Speed Rated Torque Rated Current Rated Power Body Length Rotor Inertia Driver Weight
Phase Poles Vdc Rpm N.m A W mm g.cm2 / Kg
JK42BLS01 3 8 24 4000 0.0625 1.8 26 41 24 JKBLD120 0.3
JK42BLS02 3 8 24 4000 0.125 3.3 52.5 61 48 JKBLD120 0.45
JK42BLS03 3 8 24 4000 0.185 4.8 77.5 81 72 JKBLD120 0.65
JK42BLS04 3 8 24 4000 0.25 6.3 105 100 96 JKBLD120 0.8

HPR42 Series High Precision Planetary Gearbox For 42BL/BLS BLDC Motor

Model / JK-HPR42-L1 JK-HPR42-L2 JK-HPR42-L1SW JK-HPR42-L2SW
Gear Ratio / 3 4 5 7 10 15 16 20 25 28 30 35 40 45 50 70 100 3 4 5 7 10 15 16 20 25 28 30 35 40 50 70 100
Gear Trains / 1 2 1 2
Gearbox Length mm 61.5 72.5 76.5 87.5
Rated Torque N.m 8 9 9 5 5 10 12 12 10 10 10 10 10 10 10 10 5 8 9 9 5 5 10 12 12 10 10 12 10 10 10 10 5
Sundden Stop Torque N.m 16 18 18 10 10 20 24 24 20 20 20 20 20 20 20 20 10 16 18 18 10 10 20 24 24 20 20 24 20 20 20 20 10
Back Lash arcmin ≤15 arcmin ≤20 arcmin ≤15 arcmin ≤20 arcmin
Efficiency % 96 94 96 94
Suitable Motor Dimension mm Φ5-10 / Φ22-2 / F31-M3 Φ5-24 / Φ22-2 / F31-M3
Rated Input Speed rpm 3000
Max Input Speed rpm 6000
Average Life Span h 20000
Axial Force N 100
Radial Force N 300
Noise dB ≤55
Protection Level IP IP54
Work Temp. ℃ -20 to + 150
Out Shaft Type / Key Shaft Type
36v brushless dc motor

Nema23 57BLS Series Round Brushless DC Motor with Common Planetary Gearbox

Brushless DC motor, power: 23W ~ 184W, rated voltage: 36V, rated speed: 4000rpm, rated torque: 0.055Nm ~ 0.44Nm
Optional parts: gearbox, brake, encoder, fan, integrated built-in drivers...
Model Phase Poles Rated Voltage Rated Speed Rated Torque Rated Current Rated Power Body Length Rotor Inertia Driver Weight
Phase Poles Vdc Rpm N.m A W mm g.cm2 / Kg
JK57BLS005 3 4 36 4000 0.055 1.2 23 37 30 JKBLD300 0.33
JK57BLS01 3 4 36 4000 0.11 2.0 46 47 75 JKBLD300 0.44
JK57BLS02 3 4 36 4000 0.22 3.6 92 67 119 JKBLD300 0.75
JK57BLS03 3 4 36 4000 0.33 5.3 138 87 173 JKBLD300 1.0
JK57BLS04 3 4 36 4000 0.44 6.8 184 107 230 JKBLD300 1.25

56JXE300K Common Planetary Gearbox For 57BLS/BLF BLDC Motor

Features of Gearbox ：
Ring Material Bearing at output Max. Radial Load（N) Max.shaft axial load(N) Radial play of shaft(mm） Axial play of shaft（mm） Backlash at no-load（°） Shaft press fit force.max（N）
metal Ball bearing 300 200 ≤0.08 ≤0.4 ≤2.5 300
Pinion Specifications ：
Module No. of teeth Pressure angle Hole diameter Reduction Ratio
1 12 20 ° Φ6H7 1:4.25 / 1:15 / 1:18 / 1:52 / 1:61 / 1:72 / 1:96 / 1:121 / 1:220 / 1:260 / 1:307
15 1:3.6 / 1:13 / 1:43 / 1:154 / 1:187
9 1:5.33 / 1:28
Gearbox Specifications ：
Reduction Ratio Exact Reduction Ratio Rated tolerance torque Max momentary tolerance torque Eifficiency L(mm) Weight(g)
1:3.6 , 1:4.25 , 1/5.33 1:3.6 , 1:4.25 , 1:5.33 3 N.m Max. 9.0 N.m 90％ 37.8±0.5 489
1:13, 1:15, 1:18, 1:23, 1:28 1:12.96, 1:15.30, 1:18.06, 1:22.67, 1:28.44 12 N.m Max. 36N.m 81％ 49.5±0.5 681
1:43, 1:52, 1:61, 1:72, 1:96, 1:121 1:42.69, 1:51.84, 1:61.20, 1:72.25, 1:96.33, 1:120.89 24 N.m Max. 72 N.m 73％ 60.8±0.5 871
1:154, 1:187, 1:220, 1:260, 1:307 1:153.69, 1:186.62, 1:220.32, 1:260.10, 1:307.06  30 N.m Max. 90 N.m 66％ 71.9±0.5 1066
Input & output same rotation direction; Motor Max. input speed: <4000rpm; Operating temperature range: -15℃ ~ +80℃

56JXE450K Common Planetary Gearbox For 57BLS/BLF BLDC Motor

Features of Gearbox ：
Ring Material Bearing at output Max. Radial Load（N) Max.shaft axial load(N) Radial play of shaft(mm） Axial play of shaft（mm） Backlash at no-load（°） Shaft press fit force.max（N）
metal Ball bearing 400 120 ≤0.08 ≤0.4 ≤2.5 300
Pinion Specifications ：
Module No. of teeth Pressure angle Hole diameter Reduction Ratio
1 12 20 ° Φ6H7 1:4.25 / 1:15 / 1:18 / 1:52 / 1:61 / 1:72 / 1:96 / 1:121 / 1:220 / 1:260 / 1:307
15 1:3.6 / 1:13 / 1:43 / 1:154 / 1:187
9 1:5.33 / 1:28
Gearbox Specifications ：
Reduction Ratio Exact Reduction Ratio Rated tolerance torque Max momentary tolerance torque Eifficiency L(mm) Weight(g)
1:3.6 , 1:4.25 , 1/5.33 1:3.6 , 1:4.25 , 1:5.33 4 N.m Max. 12 N.m 90％ 40.3±0.5 510
1:13, 1:15, 1:18, 1:23, 1:28 1:12.96, 1:15.30, 1:18.06, 1:22.67, 1:28.44 18 N.m Max. 50 N.m 81％ 53.8±0.5 720
1:43, 1:52, 1:61, 1:72, 1:96, 1:121 1:42.69, 1:51.84, 1:61.20, 1:72.25, 1:96.33, 1:120.89 36 N.m Max. 100 N.m 73％ 67.2±0.5 930
1:154, 1:187, 1:220, 1:260, 1:307 1:153.69, 1:186.62, 1:220.32, 1:260.10, 1:307.06  45 N.m Max. 110 N.m 66％ 80.6±0.5 1150
Input & output same rotation direction; Motor Max. input speed: <4000rpm; Operating temperature range: -15℃ ~ +80℃
36v bldc motor

Nema23 57BLF Series Square Brushless DC motor with High Precision Planetary Gearbox

Brushless DC motor, power: 23W ~ 184W, rated voltage: 36V, rated speed: 4000rpm, rated torque: 0.055Nm ~ 0.44Nm
Optional parts: gearbox, brake, encoder, fan, integrated built-in drivers...
Model Phase Poles Rated Voltage Rated Speed Rated Torque Rated Current Rated Power Body Length Rotor Inertia Driver Weight
Phase Poles Vdc Rpm N.m A W mm g.cm2 / Kg
JK57BLF005 3 4 36 4000 0.055 1.2 23 37 30 JKBLD300 0.33
JK57BLF01 3 4 36 4000 0.11 2.0 46 47 75 JKBLD300 0.44
JK57BLF02 3 4 36 4000 0.22 3.6 92 67 119 JKBLD300 0.75
JK57BLF03 3 4 36 4000 0.33 5.3 138 87 173 JKBLD300 1.0
JK57BLF04 3 4 36 4000 0.44 6.8 184 107 230 JKBLD300 1.25

PLF60 Series High Precision Planetary Gearbox For 57BLS / 60BLS BLDC Motor

Model / l Stage ll Stage lll Stage
Gear Ratio / 3，4，5，7，10 12,15,16,20,25,28,35,40,50,70,100 64,80,100,120,125,140,175,200,250,280,350,400,500,700,1000
A B A B A B
Gearbox Length mm 42 110 59 127 76 144
Rated Input Speed rpm 4000 4000 4000
Max Input Speed rpm 8000 8000 8000
Maximum radial force N 320 320 320
Maximum axial force N 280 280 280
No-load torque Nm ≈0.6 ≈0.3 ≈0.3
Efficiency ％ 96 94 90
Backlash arcmin ≤10 ≤15 ≤18
Noise dB ≤58 ≤58 ≤58
Weight Kg 1.1 1.3 1.5
Working Lifetime h ＞20000（Continuous operating life halved）
Max Input Speed rpm 2.3
Lubrication Method / Long-term
Rotation Direction / Input/Output Syntropy
Protection Level IP IP65
Mounting Position / Arbitrarily
Ratio 3 4 5 7 10 12 15 16 20 25 28 35 40 50 70 100
Rated output torque 15 30 27 20 9 15 15 35 35 30 35 30 35 30 22 10
Max output torque 30 60 54 40 18 30 30 70 70 60 70 60 70 60 44 20
Rotor Inertia 0.13 0.093 0.078 0.072 0.064 0.135 0.13 0.088 0.075 0.075 0.07 0.064 0.076 0.064 0.075 0.076
Ratio 64 80 100 120 125 140 175 200 250 280 350 400 500 700 1000 /
Rated output torque 15 30 27 20 9 15 15 35 35 30 35 30 35 30 22 /
Max output torque 30 60 54 40 18 30 30 70 70 60 70 60 70 60 44 /
Rotor Inertia 0.13 0.093 0.078 0.072 0.064 0.135 0.13 0.088 0.075 0.075 0.07 0.064 0.076 0.064 0.075 /
48v bldc motor kit

 Nema24 60BLS Series Square Brushless DC Motor with High Precision Planetary Gearbox

Brushless DC motor, power: 94W ~ 377W, rated voltage: 48V, rated speed: 3000rpm, rated torque: 0.3Nm ~ 1.2Nm
Optional parts: gearbox, brake, encoder, fan, integrated built-in drivers...
Model Phase Poles Rated Voltage Rated Speed Rated Torque Rated Current Rated Power Body Length Rotor Inertia Driver Weight
Phase Poles Vdc Rpm N.m A W mm kg.cm2 / Kg
JK60BLS01 3 8 48 3000 0.3 2.8 94 78 0.24 JKBLD300 0.85
JK60BLS02 3 8 48 3000 0.6 5.2 188 99 0.48 JKBLD300 1.25
JK60BLS03 3 8 48 3000 0.9 7.5 283 120 0.72 JKBLD750 1.65
JK60BLS04 3 8 48 3000 1.2 9.5 377 141 0.96 JKBLD750 2.05

PLF60 Series High Precision Planetary Gearbox For 57BLS / 60BLS BLDC Motor

Model / l Stage ll Stage lll Stage
Gear Ratio / 3，4，5，7，10 12,15,16,20,25,28,35,40,50,70,100 64,80,100,120,125,140,175,200,250,280,350,400,500,700,1000
A B A B A B
Gearbox Length mm 42 110 59 127 76 144
Rated Input Speed rpm 4000 4000 4000
Max Input Speed rpm 8000 8000 8000
Maximum radial force N 320 320 320
Maximum axial force N 280 280 280
No-load torque Nm ≈0.6 ≈0.3 ≈0.3
Efficiency ％ 96 94 90
Backlash arcmin ≤10 ≤15 ≤18
Noise dB ≤58 ≤58 ≤58
Weight Kg 1.1 1.3 1.5
Working Lifetime h ＞20000（Continuous operating life halved）
Max Input Speed rpm 2.3
Lubrication Method / Long-term
Rotation Direction / Input/Output Syntropy
Protection Level IP IP65
Mounting Position / Arbitrarily
Ratio 3 4 5 7 10 12 15 16 20 25 28 35 40 50 70 100
Rated output torque 15 30 27 20 9 15 15 35 35 30 35 30 35 30 22 10
Max output torque 30 60 54 40 18 30 30 70 70 60 70 60 70 60 44 20
Rotor Inertia 0.13 0.093 0.078 0.072 0.064 0.135 0.13 0.088 0.075 0.075 0.07 0.064 0.076 0.064 0.075 0.076
Ratio 64 80 100 120 125 140 175 200 250 280 350 400 500 700 1000 /
Rated output torque 15 30 27 20 9 15 15 35 35 30 35 30 35 30 22 /
Max output torque 30 60 54 40 18 30 30 70 70 60 70 60 70 60 44 /
Rotor Inertia 0.13 0.093 0.078 0.072 0.064 0.135 0.13 0.088 0.075 0.075 0.07 0.064 0.076 0.064 0.075 /
bldc motor with planetary gearbox

 80BLS Series Round Brushless DC Motor with Common Planetary Gearbox

Brushless DC motor, power: 110W ~ 440W, rated voltage: 48V, rated speed: 3000rpm, rated torque: 0.35Nm ~ 1.4Nm
Optional parts: gearbox, brake, encoder, fan, integrated built-in drivers...
Model Phase Poles Rated Voltage Rated Speed Rated Torque Rated Current Rated Power Body Length Rotor Inertia Driver Weight
Phase Poles Vdc Rpm N.m A W mm g.cm2 / Kg
JK80BLS01 3 8 48 3000 0.35 3 110 78 210 JKBLD750 1.4
JK80BLS02 3 8 48 3000 0.7 5.5 220 98 420 JKBLD750 2
JK80BLS03 3 8 48 3000 1.05 8 330 118 630 JKBLD750 2.6
JK80BLS04 3 8 48 3000 1.4 10.5 440 138 840 JKBLD750 3.2

80PMB800K Common Planetary Gearbox For 80BLS/BLF BLDC Motor

Features of Gearbox ：
Ring Material Bearing at output Max. Radial Load（N) Max.shaft axial load(N) Radial play of shaft(mm） Axial play of shaft（mm） Backlash at no-load（°） Shaft press fit force.max（N）
metal Ball bearing 600 200 ≤0.08 ≤0.4 ≤2.5 1000
Pinion Specifications ：
Module No. of teeth Pressure angle Hole diameter Reduction Ratio
1 12 20° 10 teeth pinion 1:6.6 / 1:23/ 1:26 / 1:37 / 1:92 / 1:138
13 Φ7H7 1:5.31 / 1:19/ 1:30 / 1:74 / 1:111
22 Φ8H7 1:3.55 / 1:13 / 1:50
Gearbox Specifications ：
Reduction Ratio Exact Reduction Ratio Rated tolerance torque Max momentary tolerance torque Eifficiency L(mm) Weight(g)
1:3.55 , 1:5.31 , 1/6.6 1:3.55 , 1:5.31 , 1:6.6 8 N.m Max. 12 N.m 90％ 55.7±0.5 1100
1:13, 1:19, 1:23 1:12.57, 1:18.82, 1:23.4 30 N.m Max. 45 N.m 81％ 72.2±0.5 1500
1:26, 1:30, 1:37 1:26.05, 1:30.08, 1:37.4 60 N.m Max. 90 N.m 73％ 72.2±0.5 1500
1:50, 1:74, 1:92, 1:111, 1:138 1:49.62, 1:74.28, 1:92.37, 1:111.2, 1:138.28  80 N.m Max. 120 N.m 66％ 88.5±0.5 1880
Input & output same rotation direction; Motor Max. input speed: <4000rpm; Operating temperature range: -15℃ ~ +80℃
bldc motor with planetary gearbox

 80BLS Series Round Brushless DC Motor with High Precision Planetary Gearbox

Brushless DC motor, power: 110W ~ 440W, rated voltage: 48V, rated speed: 3000rpm, rated torque: 0.35Nm ~ 1.4Nm
Optional parts: gearbox, brake, encoder, fan, integrated built-in drivers...
Model Phase Poles Rated Voltage Rated Speed Rated Torque Rated Current Rated Power Body Length Rotor Inertia Driver Weight
Phase Poles Vdc Rpm N.m A W mm g.cm2 / Kg
JK80BLS01 3 8 48 3000 0.35 3 110 78 210 JKBLD750 1.4
JK80BLS02 3 8 48 3000 0.7 5.5 220 98 420 JKBLD750 2
JK80BLS03 3 8 48 3000 1.05 8 330 118 630 JKBLD750 2.6
JK80BLS04 3 8 48 3000 1.4 10.5 440 138 840 JKBLD750 3.2

PLF80 Series High Precision Planetary Gearbox For 80BLS / 86BLS BLDC Motor

Model / l Stage ll Stage
Gear Ratio / 3，4，5，7，10 12,15,16,20,25,28,35,40,50,70,100
A A
Gearbox Length mm 141.5 166.5
Rated Input Speed rpm 3500 3500
Max Input Speed rpm 6000 6000
Maximum radial force N 550 550
Maximum axial force N 500 500
No-load torque Nm ≈0.8 ≈0.4
Efficiency ％ 96 94
Backlash arcmin ≤10 ≤15
Noise dB ≤62 ≤62
Weight Kg 3.0 3.6
Working Lifetime h ＞20000（Continuous operating life halved）
Max Input Speed rpm 7.5
Lubrication Method / Long-term
Rotation Direction / Input/Output Syntropy
Protection Level IP IP65
Mounting Position / Arbitrarily
Ratio 3 4 5 7 10 12 15 16 20 25 28 35 40 50 70 100
Rated output torque 55 90 95 64 40 60 60 95 95 100 95 100 95 100 70 45
Max output torque 110 180 190 128 80 120 120 190 190 200 190 200 190 200 140 90
Rotor Inertia 0.77 0.52 0.45 0.40 0.39 0.67 0.67 0.50 0.44 0.44 0.39 0.44 0.39 0.42 0.44 0.44
48v dc geared motor

Nema34 86BLS Series Square Brushless DC Motor

Brushless DC motor, power: 110W ~ 660W, rated voltage: 48V, rated speed: 3000rpm, rated torque: 0.35Nm ~ 2.1Nm
Optional parts: gearbox, brake, encoder, fan, integrated built-in drivers...
Model Phase Poles Rated Voltage Rated Speed Rated Torque Rated Current Rated Power Body Length Rotor Inertia Driver Weight
Phase Poles Vdc Rpm N.m A W mm g.cm2 / Kg
JK86BLS58-X002 3 8 48 3000 0.35 3 110 71 400 JKBLD750 1.5
JK86BLS71-X001 3 8 48 3000 0.7 6.3 220 84.5 800 JKBLD750 1.9
JK86BLS84 3 8 48 3000 1.05 9 330 98 1200 JKBLD750 2.3
JK86BLS98-X015 3 8 48 3000 1.4 11.5 440 111.5 1600 JKBLD750 2.7
JK86BLS125-X015 3 8 48 3000 2.1 18 660 138.5 2400 JKBLD750 4

PLF80 Series High Precision Planetary Gearbox For 80BLS / 86BLS BLDC Motor

Model / l Stage ll Stage
Gear Ratio / 3，4，5，7，10 12,15,16,20,25,28,35,40,50,70,100
A A
Gearbox Length mm 141.5 166.5
Rated Input Speed rpm 3500 3500
Max Input Speed rpm 6000 6000
Maximum radial force N 550 550
Maximum axial force N 500 500
No-load torque Nm ≈0.8 ≈0.4
Efficiency ％ 96 94
Backlash arcmin ≤10 ≤15
Noise dB ≤62 ≤62
Weight Kg 3.0 3.6
Working Lifetime h ＞20000（Continuous operating life halved）
Max Input Speed rpm 7.5
Lubrication Method / Long-term
Rotation Direction / Input/Output Syntropy
Protection Level IP IP65
Mounting Position / Arbitrarily
Ratio 3 4 5 7 10 12 15 16 20 25 28 35 40 50 70 100
Rated output torque 55 90 95 64 40 60 60 95 95 100 95 100 95 100 70 45
Max output torque 110 180 190 128 80 120 120 190 190 200 190 200 190 200 140 90
Rotor Inertia 0.77 0.52 0.45 0.40 0.39 0.67 0.67 0.50 0.44 0.44 0.39 0.44 0.39 0.42 0.44 0.44
geared bldc motor

Nema42 110BLS Series Square Brushless DC Motor with High Precision Planetary Gearbox

Brushless DC motor, power: 518W ~ 2073W, rated voltage: 310V, rated speed: 3000rpm, rated torque: 1.65Nm ~ 6.6Nm
Optional parts: gearbox, brake, encoder, fan, integrated built-in drivers...
Model Phase Poles Rated Voltage Rated Speed Rated Torque Rated Current Rated Power Body Length Driver Weight
Phase Poles Vdc Rpm N.m A KW mm / Kg
JK110BLS50 3 8 310 3000 2.38 2.7 0.75 134 JKBLD1100 3.3
JK110BLS75 3 8 310 3000 3.3 3.7 1.03 159 JKBLD2200 4.5
JK110BLS100 3 8 310 3000 5 5.6 1.57 184 JKBLD2200 5.8
JK110BLS125 3 8 310 3000 6.6 7.5 2.07 209 JKBLD2200 7

PLF120 Series High Precision Planetary Gearbox For 110BLS BLDC Motor

Model / l Stage   ll Stage     lll Stage
Gear Ratio   3，4，5，7，10   12,15,16,20,25,28,35,40,50,70,100     64,80,100,120,125,140,175,200,250,280,350,400,500,700,1000
A B A B A B
Gearbox Length mm 86 212 118 244 150 276
Rated Input Speed rpm 3500   3500     3500
Max Input Speed rpm 6000   6000     6000
Maximum radial force N 1600   1600     1600
Maximum axial force N 1350   1350     1350
No-load torque Nm ≈1.3   ≈0.6     ≈0.6
Efficiency ％ 96   94     90
Backlash arcmin ≤10   ≤15     ≤18
Noise dB ≤65   ≤65     ≤65
Weight Kg 8.0   9.0     10.0
Working Lifetime h ＞20000（Continuous operating life halved）
Max Input Speed rpm 15
Lubrication Method / Long-term
Rotation Direction / Input/Output Syntropy
Protection Level IP IP65
Mounting Position / Arbitrarily
Ratio 3 4 5 7 10 12 15 16 20 25 28 35 40 50 70 100
Rated output torque 105 230 220 160 100 105 105 260 260 245 260 245 260 245 195 110
Max output torque 210 460 440 320 200 210 210 520 520 490 520 490 520 490 390 220
Rotor Inertia 2.63 1.79 1.53 1.41 1.30 2.63 2.63 1.75 1.50 1.49 1.30 1.30 1.30 1.30 2.57 1.30
Ratio 64 80 100 120 125 140 175 200 250 280 350 400 500 700 1000 /
Rated output torque 105 230 220 160 100 105 105 260 260 245 260 245 260 245 195 /
Max output torque 210 460 440 320 200 210 210 520 520 490 520 490 520 490 390 /
Rotor Inertia 2.63 1.79 1.53 1.41 1.30 2.63 2.63 1.75 1.50 1.49 1.30 1.30 1.30 1.30 2.57 /
Brushless motor 48v

Nema52 130BLS Series Square Brushless DC Motor

Brushless DC motor, power: 0.75KW ~ 2.5KW, rated voltage: 310V, rated speed: 3000rpm, rated torque: 2.39Nm ~ 11.94Nm
Optional parts: gearbox, brake, encoder, fan, integrated built-in drivers...
Model Phase Poles Rated Voltage Rated Speed Rated Torque Rated Current Rated Power Body Length Rotor Inertia Weight
Phase Poles Vdc Rpm N.m A KW mm kg.cm2 Kg
JK130BLS115 3 10 310 3000 2.39 2.8 0.75 115 5.9 6.1
JK130BLS120 3 10 310 3000 3.18 3.8 1 120 7.4 6.5
JK130BLS140 3 10 310 3000 4.77 5.7 1.5 140 9.7 7
JK130BLS165 3 10 310 3000 7 8.5 2.2 165 13.5 8.5
JK130BLS190 3 10 310 3000 11.94 9.5 2.5 190 19.7 11

OEM Customized Planetary Geared Brushless Motor Solutions for High-Torque Automation Systems

A planetary geared brushless motor combines high torque density with compact structure, making it ideal for automation and robotics. With OEM/ODM customization, manufacturers can tailor gear ratios, voltage, and motor size to match specific load requirements. The planetary gearbox distributes load across multiple gears, ensuring stable torque output and long-term durability in demanding industrial environments.


Jkongmotor offers a wide range of brushless DC motor products featuring:

  • Output Power from 5 W (1/150 HP) up to 3000 W (4 HP)
  • Motor size from 28mm to 110mm ( Nema 11 to Nema 42)
  • Integrated brushless servo motor (pulse / RS485 / CANopen) options
  • Many different shaft kinds available
    • Spur gearbox, worm gearbox, planetary gearbox available
  • Electromagnetic Brake / Encoder options
  • AC or DC Input Drivers


Jkongmotor brushless dc motor:

As a professional brushless dc motor manufacturer with 13 years in china, Jkongmotor offer various bldc motors with customized requirements, including 33 42 57 60 80 86 110 130mm, additionally, gearboxes, brakes, encoders, brushless motor drivers and integrated drivers are optional.


Features:

  • No Brushes – Reduced Maintenance and Increased Lifespan
  • High Efficiency and Low Power Loss
  • High Torque-to-Weight Ratio
  • Precise Speed and Position Control
  • Quiet and Smooth Operation
  • Wide Speed Range and Dynamic Performance
  • Excellent Thermal Management Customizable Designs and Modular Configurations
  • Multiple Control Methods
  • Integration with Digital Interfaces and Sensors




OEM/ODM Customized Planetary Geared Brushless BLDC Motor Solutions for High Torque Applications

Jkongmotor provide OEM/ODM customization for planetary geared brushless BLDC motors, delivering optimized solutions tailored to diverse industrial applications. From motor size, voltage, torque, and speed to integrated drivers and braking systems, every parameter can be precisely engineered. Our modular design supports high efficiency, low noise, and excellent thermal management, ensuring reliable performance in automation, robotics, and medical equipment. With strong R&D capabilities and flexible production, we help clients achieve compact structures, high torque output, and seamless system integration for demanding projects.
  • bldc motor supplier
    Wires
  • bldc motor supplier
    Covers
  • bldc motor supplier
    Fans
  • bldc motor supplier
    Shafts
  • bldc motor supplier
    Integrated Drivers
  • bldc motor supplier
    Brakes
  • bldc motor supplier
    Gearboxes
  • bldc motor supplier
    Out Rotors
  • bldc motor supplier
    Coreless Dc
  • bldc motor supplier
    Drivers
Professional custom brushless motor services safeguard your projects or equipment.
  • No Brushes – Reduced Maintenance and Increased Lifespan
  • High Efficiency and Low Power Loss
  • High Torque-to-Weight Ratio
  • Precise Speed and Position Control
  • Quiet and Smooth Operation
  • Wide Speed Range and Dynamic Performance
  • Excellent Thermal Management Customizable Designs and Modular Configurations
  • Multiple Control Methods
  • Integration with Digital Interfaces and Sensors

Precision Shaft Customization Services for Planetary Geared BLDC Motors with OEM/ODM Engineering Support

In addition to motor customization, we offer comprehensive shaft customization services to match specific mechanical requirements. Options include shaft length, diameter, keyways, flats, cross drilling, knurling, and special surface treatments. Whether for planetary geared brushless BLDC motors or integrated systems, our precision machining ensures high concentricity, durability, and perfect assembly compatibility. Combined with OEM/ODM capabilities, we provide fully customized shaft solutions that enhance transmission efficiency, reduce vibration, and meet complex application needs across various industries.
  • stepper motor company
    Pulleys
  • stepper motor company
    Gears
  • stepper motor company
    Shaft Pins
  • stepper motor company
    Screw Shafts
  • stepper motor company
    Cross Drilled Shafts
  • stepper motor company
    Flats
  • stepper motor company
    Keys
  • stepper motor company
    Knurlings
  • stepper motor company
    Hobbing Shafts
  • 12、空心轴
    Drivers
A diverse range of products and bespoke services to match the optimal solution for your project.
  • Motors passed CE Rohs ISO Reach certifications
  • Rigorous inspection procedures ensure consistent quality for every motor.
  • Through high-quality products and superior service, jkongmotor have secured a solid foothold in both domestic and international markets.

Why Choose Jkongmotor to Get A Professional Geared BLDC Motion Solution?

Jkongmotor's  OEM ODM customized bldc motor solutions cover planetary, worm, eccentric geared BLDC motors, and integrated DC servo motors with gearbox. Jkongmotor's brushless dc motors provide high efficiency, flexible customization, and reliable performance, meeting diverse industrial automation needs with compact design and precise motion control capabilities.
Geared brushless motor supplier

Custom Planetary Geared BLDC Motor for Robotics High Torque Compact Drive Solutions

Jkongmotor  OEM ODM customized planetary geared BLDC motor delivers high torque density, smooth transmission, and compact structure. It is ideal for robotics and automation systems requiring precise control and low noise. Custom options include gear ratio, encoder integration, and built-in drivers, enabling flexible configurations. With excellent efficiency and thermal performance, it ensures stable operation and space-saving design for demanding motion control applications.

Leading Worm Geared BLDC Motor Solution for Low Speed High Torque Industrial Applications

Jkongmotor's  OEM ODM customized worm geared brushless motor provides stable low-speed performance with high torque output and self-locking capability. It is widely used in conveyors, lifting systems, and industrial automation. Customization includes voltage, gear ratio, and control interfaces to meet diverse needs. Its robust structure ensures durability, quiet operation, and reliable performance in harsh working environments.
Worm geared bldc motor supplier
Geared brushless motor supplier

OEM ODM Custom Eccentric Geared Brushless Motor for Compact Precision Motion Control Systems

Jkongmotr's  OEM ODM customized eccentric geared BLDC motor features compact size, smooth motion, and efficient torque transmission. Designed for precision applications, it minimizes vibration and enhances motion stability. Custom configurations support encoder, brake, and driver integration, making it suitable for medical devices and intelligent automation. It offers reliable performance and flexible design for high-precision compact systems.

OEM ODM Custom Integrated DC Servo Motor with Gearbox for Closed Loop Precision Automation

Jkongmotor's  OEM ODM customized integrated DC servo motor with gearbox combines motor, driver, and feedback system into one compact unit. It enables precise closed-loop control while reducing wiring complexity and installation time. Custom options include communication protocols, gear ratios, and feedback devices. Ideal for robotics and automation, it delivers high efficiency, accuracy, and stable performance in complex motion systems.
Integrated geared brushless motor supplier

Advanced Testing Systems for Planetary Geared Brushless DC Motor Quality Assurance and Reliability

Jkongmotor's planetary geared brushless DC motor production is supported by advanced testing equipment, including coordinate measuring machines, vibration testers, waterproof chambers, and salt spray test systems. These ensure strict quality control, durability, and performance stability. Each motor undergoes comprehensive inspection to meet international standards, delivering reliable, high-precision solutions for demanding industrial and automation applications.
  • Coordinate Measuring Machine
    Coordinate Measuring Machine
  • 2D Image Testing Machine
    2D Image Testing Machine
  • Constant Temperature and Humidity Chamber
    Vibration Testing Equipment
  • 防水试验箱
    Waterproof Test Chamber
  • Image measuring instrument
    Image Measuring Instrument
  • Salt Spray Corrosion Test Chamber
    Salt Spray Corrosion Test Chamber
  • High and Low Temperature Humidity Test Chamber
    Temperature Humidity Test Chamber
  • Comprehensive Tester
    Comprehensive Testing Machine

Automated Production Lines for OEM Planetary Geared Brushless DC Motor Manufacturing Efficiency

Jkongmotor utilize fully automated production equipment such as high-speed winding machines, rotor pressing systems, precision grinding, and automatic assembly lines for planetary geared brushless DC motors. This advanced manufacturing process improves consistency, efficiency, and scalability. Combined with OEM customization capabilities, we deliver high-performance motors with precise structure, stable output, and fast delivery for global industrial customers.

Why Choose Our OEM ODM Geared BLDC Motors?

—— OEM ODM Customized Intelligent BLDC / Stepper Motion Control Manufacturer / Solution Provider Since 2011 ——

High Efficiency and Precise Motion Control Performance

Geared BLDC motors provide high efficiency, low power loss, and precise speed control, making them suitable for applications requiring accurate motion and stable torque output. Integrated Hall sensors or encoders enable feedback control for speed and position regulation, ensuring consistent performance in high-precision automation systems. Their high torque-to-weight ratio also allows compact machine designs without sacrificing power.

Professional Motor Manufacturing and Industry-Specific Solutions

—— OEM ODM Customized Intelligent BLDC / Stepper Motion Control Manufacturer / Solution Provider Since 2011 ——
Experienced motor manufacturers combine advanced electromagnetic design, precision gearbox engineering, and strict quality control processes to deliver reliable geared BLDC motor solutions. With customizable parameters such as voltage, torque, gear ratio, shaft structure, and control interfaces, factories can provide industry-specific solutions for robotics, medical devices, AGV systems, and smart manufacturing equipment. This strong customization capability makes geared BLDC motors an ideal choice for OEM automation equipment manufacturers worldwide.

Get Updated Article And News

Backed by over 15 years of experience as a professional brushless dc motor manufacturing solutions provider, our blog shares up-to-date industry insights, proven best practices, advanced engineering strategies, and innovative concepts drawn from real manufacturing experience.
  • 2026 Top 16 DC Servo Motor Suppliers in India

    2026 Top 16 DC Servo Motor Suppliers in India
    Why Precise Motor Selection Is Critical for Industrial Success in IndiaIn India’s rapidly evolving manufacturing landscape, precise motor selection is no longer optional—it is a decisive factor for operational efficiency, cost control, and long-term competitiveness. With industries transitioning tow Read More
  • 2026 Top 15 Brushless DC Motor Manufacturers in India

    2026 Top 15 Brushless DC Motor Manufacturers in India
    The Indian industrial automation and electric mobility sectors are experiencing rapid transformation, driving the demand for high-efficiency brushless DC (BLDC) motors. As a result, numerous manufacturers across India are delivering advanced, reliable, and customizable BLDC motor solutions for diver Read More
  • How To Identify & Eliminate Motor Noise Sources？

    How To Identify & Eliminate Motor Noise Sources？
    Electric motors are essential components in modern industrial systems, automation equipment, and consumer devices. However, motor noise remains one of the most persistent challenges affecting performance, reliability, and user experience. In this comprehensive guide, we provide a deep technical appr Read More
  • 2026 Top 25 BLDC Motor Manufacturers in Germany

    2026 Top 25 BLDC Motor Manufacturers in Germany
    Brushless BLDC motors combine high efficiency, precision control, and long lifespan, while OEM ODM customized capabilities enable tailored solutions for diverse industrial and automation applications. BLDC Motors (Brushless DC Motors) are a type of electric motor that operates using direct current ( Read More
  • Top 15 Brushless BLDC Servo Motor Manufacturers in India

    Top 15 Brushless BLDC Servo Motor Manufacturers in India
    India’s brushless BLDC motor ecosystem includes a strong set of manufacturers producing high‑efficiency, OEM/ODM customized brushless BLDC motor and servo solutions for industrial automation, robotics, EV, packaging, and CNC applications. The market supports extensive customization options — includi Read More
  • Top 15 Brushless BLDC Servo Motor Manufacturers in Poland

    Top 15 Brushless BLDC Servo Motor Manufacturers in Poland
    Top brushless BLDC motor manufacturers in Poland supply a wide range of high-performance brushless BLDC motors and servo systems with strong OEM/ODM customized capabilities for tailored industrial automation, robotics, and motion control applications.Poland has rapidly become a strategic hub for ind Read More
  • Top 15 Brushless BLDC Servo Motor Manufacturers in United Kingdom

    Top 15 Brushless BLDC Servo Motor Manufacturers in United Kingdom
    Top UK brushless BLDC motor manufacturers deliver high-performance motors, servo systems, and motion solutions with strong OEM/ODM customized capabilities — including tailored torque, speed, integrated drives, encoders, gearbox options, and engineered solutions for automation, robotics, and industri Read More
  • Top 15 Brushless BLDC Servo Motor Manufacturers in France

    Top 15 Brushless BLDC Servo Motor Manufacturers in France
    French brushless BLDC motor manufacturers provide a wide range of high-performance brushless BLDC motors and servo solutions, with strong OEM/ODM customized capabilities including tailored windings, shafts, feedback systems, and integrated drive options — ideal for automation, robotics, aerospace, a Read More

Customized FAQs

—— OEM ODM Customized Intelligent BLDC / Stepper Motion Control Manufacturer / Solution Provider Since 2011 ——
Contact us
Choose File

    *Please upload only jpg, png, pdf, dxf, dwg files. Size limit is 25MB.

    Leading Stepper Motors & Brushless Motors Manufacturer
    whatsapp
    wechat-jkong
    Products
    Application
    Links

    © COPYRIGHT 2025 CHANGZHOU JKONGMOTOR CO.,LTD ALL RIGHTS RESERVED.
