How to Improve AGV Battery Life and Payload Capacity Using Low-Voltage DC Servo Motors?

For modern automated guided vehicles (AGVs) and autonomous mobile robots (AMRs), two performance metrics are always closely connected:

Battery runtime and payload capacity.

A vehicle that consumes too much energy needs a larger battery. But a larger battery also adds weight, reducing the amount of payload the vehicle can carry.

That is why the traction system deserves careful attention.

A properly designed low-voltage DC servo motor system can help AGV manufacturers improve:

• Energy efficiency

• Battery runtime

• Starting and climbing torque

• Payload-to-vehicle-weight ratio

• Motion accuracy

• Regenerative braking

• Thermal stability

• Overall drivetrain efficiency

For U.S. AGV projects, motor selection should also be considered within the broader machine-safety framework. Current references include ANSI/A3 R15.08-1-2020 (R2026), ANSI/A3 R15.08-2-2023, ANSI/A3 R15.08-3-2026, and ANSI/ITSDF B56.5-2024.

AGV DC Servo Motor Solutions

AGV drive systems need more than simple motor rotation. The drive motor must deliver controlled torque, accurate speed regulation, smooth acceleration, and reliable feedback while working from a low-voltage DC battery system. For this reason, DC servo motors, integrated DC servo motors, geared DC servo motors, STO servo motors, and AGV hub motors are commonly used in AGV and AMR drive architectures.

JKONGMOTOR provides several DC servo motor configurations that can be matched to different AGV load, speed, space, protection, and safety requirements.

AGV DC Servo Motor Product Range

Jkongmotor Customized Servo Motor Motions

One-Stop Integrated DC Servo Motor Solution Provider

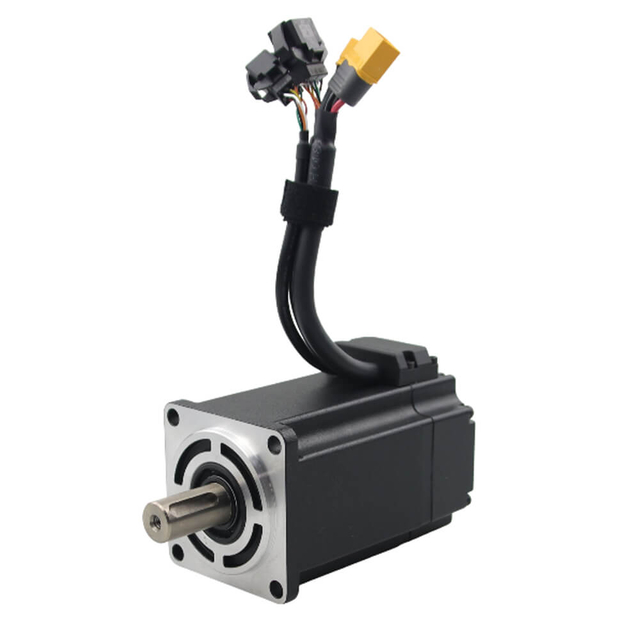

1. Integrated DC Servo Motor

The Integrated DC Servo Motor combines the motor, servo drive, and encoder in one compact housing. This architecture reduces external wiring and saves installation space, making it particularly useful for compact AGV and AMR chassis.

It supports closed-loop motion control for speed, position, and torque, while the integrated electronics simplify connection between the motor and the vehicle controller. Integrated servo architectures are widely used where chassis space and wiring efficiency are important design considerations.

Typical AGV applications:

• Warehouse AGVs

• AMR drive wheels

• Autonomous material-handling robots

• Sorting robots

• Compact mobile robots

2. Planetary Geared DC Servo Motor

A Planetary Geared DC Servo Motor combines a DC servo motor with a planetary gearbox to increase output torque while maintaining a compact drivetrain.

This configuration is suitable when the AGV requires stronger wheel torque for starting, acceleration, climbing ramps, or carrying heavier payloads. The gearbox also allows the motor to operate at a higher speed while providing a lower-speed output at the wheel.

Typical applications:

• Heavy-duty AGVs

• Warehouse transport vehicles

• Pallet handling robots

• Mobile material-handling equipment

• AGV drive wheels requiring high torque

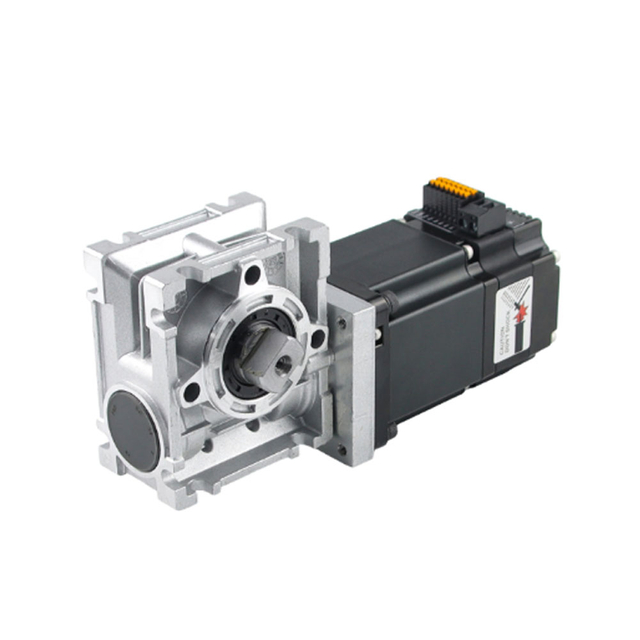

3. Worm Geared DC Servo Motor

The Worm Geared DC Servo Motor integrates a worm gearbox with the DC servo motor. Its high reduction ratio makes it suitable for applications requiring high output torque and controlled low-speed movement.

The worm gearbox can also provide useful load-holding characteristics, depending on the gearbox design and operating conditions. This makes it applicable to AGV mechanisms where controlled movement and mechanical holding are important.

Typical applications:

• Heavy-load AGV drive systems

• Lifting and positioning mechanisms

• Conveyor transfer equipment

• Industrial mobile robots

• Automated handling systems

4. Brake Integrated DC Servo Motor

A Brake Integrated DC Servo Motor combines the servo motor, encoder, drive, and electromagnetic brake into one assembly.

The brake is particularly useful when an AGV mechanism must hold its position after motor power is removed. It can be considered for lifting axes, vertical mechanisms, inclined equipment, and applications where uncontrolled mechanical movement must be prevented.

Typical applications:

• AGV lifting mechanisms

• Vertical transfer systems

• Automated handling equipment

• Inclined-drive mechanisms

• Mobile robots with holding requirements

5. IP65 Integrated DC Servo Motor

The IP65 Integrated DC Servo Motor is designed for AGV applications where the motor may encounter dust, splashing water, or demanding industrial conditions.

Its integrated motor-and-drive architecture combines compact installation with enhanced enclosure protection. This makes it useful for warehouse logistics, mobile machinery, outdoor-capable equipment, and industrial AGVs where environmental protection is an important specification. JKONGMOTOR lists IP65 protection as an available configuration for its integrated servo motor platform.

Typical applications:

• Outdoor-capable AGVs

• Logistics robots

• Factory transport vehicles

• Mobile material-handling equipment

• Dust-prone industrial environments

6. AGV STO DC Servo Motor

The AGV STO DC Servo Motor is designed for AGV and AMR systems where Safe Torque Off (STO) is part of the motion-control safety architecture.

STO disables the drive's ability to generate motor torque when the safety function is activated. It is therefore different from a normal motion command: STO prevents torque generation rather than simply commanding the vehicle to decelerate.

Typical applications:

• Autonomous mobile robots

• Human-accessible warehouse areas

• Intelligent logistics systems

• Automated material handling

• AGVs requiring safety-related drive functions

7. AGV Hub Motor

An AGV Hub Motor integrates the drive motor into the wheel or hub assembly, creating a compact wheel-drive solution.

Compared with a conventional motor-plus-gearbox arrangement, a hub motor can reduce mechanical transmission components and make better use of limited chassis space. It is especially relevant to compact AGVs, AMRs, autonomous transport robots, and low-floor mobile platforms. The hub-motor architecture should be selected according to wheel diameter, vehicle load, required torque, speed, and thermal conditions.

Why Choose an Integrated DC Servo Motor for AGVs?

The main advantage is system-level integration rather than simply motor performance.

Compact installation

The motor, encoder, and drive electronics can be combined into one assembly, reducing the need for a separate servo-drive mounting position.

Simplified wiring

Integrated servo architecture can reduce motor and encoder cable routing between the motor and external drive, which helps simplify AGV electrical design.

Closed-loop motion control

Encoder feedback enables accurate control of wheel speed and position, which is important for AGV navigation and synchronized wheel operation.

Flexible communication

Depending on the configuration, AGV servo systems can support communication methods such as CANopen, RS485/Modbus, and EtherCAT. These interfaces are commonly used for integrating servo axes with AGV controllers.

Multiple mechanical configurations

Planetary gearboxes, worm gearboxes, brakes, waterproof housings, and hub-drive structures allow the motor to be matched to different AGV architectures.

One Platform for Different AGV Drive Designs

JKONGMOTOR's integrated servo platform covers multiple mechanical and control configurations, including 24V/48V DC systems, gearbox options, brake configurations, encoder feedback, IP-rated housings, and Pulse, RS485, CANopen, and EtherCAT interfaces. The company's AGV solution page lists IDC60 and IDC80 series configurations and a power range extending from 26W to 1000W.

This allows AGV manufacturers to select the motor architecture according to the actual vehicle design rather than using one motor configuration for every application.

For OEM AGV projects, motor torque, wheel size, vehicle weight, speed, battery voltage, gearbox ratio, encoder type, communication protocol, protection rating, and safety requirements can be evaluated together to develop a suitable DC servo drive solution.

Why Are Low-Voltage DC Servo Motors Critical for AGV Battery Life and Payload Capacity?

The traction motor converts battery energy into the wheel torque that actually moves the AGV.

For this reason, motor efficiency has a direct effect on how much energy the vehicle consumes during each transport cycle.

Unlike a simple open-loop drive, a closed-loop DC servo system continuously monitors motor position and speed through feedback and adjusts output according to the actual operating condition.

That is particularly valuable because AGVs rarely operate at one constant load.

Typical AGV operating conditions

An AGV may repeatedly need to:

Start → Accelerate → Cruise → Decelerate → Stop → Turn → Reverse → Restart

The required torque can change significantly between each stage.

A properly selected servo system can respond quickly to these changing requirements instead of operating at a fixed output.

Battery efficiency and vehicle weight are connected

A basic relationship is:

Electrical Energy = Battery Voltage × Current × Operating Time

Reducing unnecessary current can reduce total energy consumption while preserving the required wheel torque.

At the same time, the drivetrain itself contributes to vehicle mass.

The basic payload relationship is:

Net Payload = Permitted Gross Vehicle Weight − Vehicle Curb Weight

This creates an important design opportunity.

A more compact motor, integrated drive, or optimized gearbox may reduce system weight and free up additional capacity for cargo.

Why integration matters

A modern integrated servo motor may combine:

Motor + Encoder + Servo Drive + Control Electronics

into one compact assembly.

This can reduce:

• Wiring complexity

• Cabinet space

• External drive components

• Installation time

• Overall drivetrain footprint

For space-constrained AGV chassis designs, these details can have a meaningful effect on the final vehicle architecture.

How Do Low-Voltage DC Servo Motors Extend AGV Battery Runtime via High Efficiency and Regenerative Braking?

Battery runtime should not be estimated from motor nameplate power alone.

The more useful measurement is energy consumed during the real AGV duty cycle.

A practical approximation is:

Battery Energy Used ≈ Average DC Input Power × Operating Time

Because AGVs constantly accelerate and decelerate, average power can differ significantly from rated motor power.

High-efficiency operation

A servo-controlled motor can adjust torque according to the actual demand.

During steady travel, the required torque may be relatively low.

During acceleration, the system may temporarily need much higher torque.

This dynamic control allows the drivetrain to better match electrical input with mechanical demand.

Regenerative braking

Regenerative braking provides another potential energy-saving mechanism.

During deceleration, the motor can operate as a generator. Instead of converting all kinetic energy into heat through friction or a braking resistor, part of that energy can be returned to the DC bus.

The recovered energy may then be:

Returned to the battery

or

Used elsewhere on the DC bus

depending on the system architecture.

However, regenerative braking must be designed correctly.

During deceleration, the DC-bus voltage can rise rapidly. The system therefore needs a suitable method of handling regenerated energy, taking into account battery acceptance, state of charge, controller limits, temperature, and braking frequency.

Where regenerative braking provides the most value

Regenerative braking is especially relevant to AGVs with frequent:

• Stops

• Starts

• Direction changes

• Deceleration events

• Short transport cycles

• Vertical or downhill movement

For these applications, Wh per completed cycle is often a more useful KPI than theoretical motor efficiency.

How Does the High-Power-Density Design of DC Servos Directly Increase AGV Net Payload?

Payload capacity is primarily a drivetrain and vehicle-mass problem.

The AGV must generate enough tractive force to overcome:

Rolling resistance + Grade resistance + Acceleration force + Other mechanical losses

A simplified relationship is:

Wheel Torque = Tractive Force × Wheel Radius

This is why motor selection cannot be separated from wheel diameter, gearbox ratio, vehicle weight, or acceleration requirements.

Torque density matters more than motor size alone

A larger motor can provide more torque, but it also adds:

• Weight

• Volume

• Cost

• Thermal load

• Battery demand

The better design objective is usually higher usable torque density.

In other words:

More practical wheel performance from less motor mass and volume

A compact servo system can help achieve that balance.

Starting torque is especially important

An AGV carrying its maximum payload may require substantial torque at very low speed.

This is particularly true when the vehicle:

• Starts from rest

• Carries heavy loads

• Climbs ramps

• Accelerates rapidly

• Operates on higher-resistance flooring

For this reason, the motor should be evaluated using its continuous torque and peak torque, not simply its rated wattage.

Key drivetrain parameters

The goal is not simply to install the largest possible motor.

The goal is to achieve the required speed, torque, acceleration, climbing ability, and thermal margin with the lowest practical system weight.

How to Select the Right Low-Voltage DC Servo System to Meet US AGV Safety and Industry Standards?

Choosing a motor only because its nominal voltage matches the battery is not enough.

A U.S. AGV project should evaluate the complete vehicle and its safety architecture.

Current industry references include the ANSI/A3 R15.08 series for industrial mobile robots and ANSI/ITSDF B56.5-2024 for driverless and automatic guided industrial vehicles.

Depending on the product and application, other standards and requirements may also apply.

Important selection factors

Electrical compatibility

Verify the nominal battery voltage as well as the minimum and maximum operating voltage.

A nominal 24 VDC or 48 VDC battery system can experience substantial voltage variation during charging and discharge.

Peak current

Acceleration and heavy payload conditions may produce significantly higher current than normal cruising.

The battery, wiring, controller, and protection devices must all tolerate the expected current.

Feedback

The encoder should provide the resolution, feedback type, and communication interface required by the control architecture.

Safety functions

Emergency stop, fault response, braking behavior, torque removal, and safety-related controls should be evaluated as part of the complete AGV system.

Environmental protection

The motor should match the real environment, including:

• Dust

• Moisture

• Temperature

• Shock

• Vibration

• Ingress exposure

Mechanical integration

Check:

• Mounting dimensions

• Shaft configuration

• Gearbox interface

• Wheel connection

• Cable routing

• Available chassis space

A critical distinction

Motor compliance is not the same as AGV system compliance.

The complete machine must be engineered, risk assessed, safeguarded, and validated according to the requirements applicable to its intended use.

How Can OEMs and Fleet Operators Upgrade Legacy AGV Drives to Low-Voltage DC Servo Systems?

Upgrading an existing AGV from a legacy drive to a servo architecture should begin with operating data, not assumptions.

A practical retrofit assessment should record:

Typical retrofit architecture

A modernized traction system may look like this:

Battery → DC Protection → Servo Drive → DC Servo Motor → Gearbox → Drive Wheel

The encoder feeds operating information back to the controller.

The AGV control system then manages commands such as:

Speed → Direction → Acceleration → Deceleration → Fault Response

Industrial communication can also be integrated through interfaces such as CANopen, EtherCAT, RS-485/Modbus, or another supported protocol.

A staged retrofit can reduce risk

A practical approach is to validate one traction module first.

The prototype can then be evaluated for:

Current consumption

Acceleration

Braking

Thermal performance

Full-payload operation

Battery runtime

Communication reliability

Fault behavior

Once measured results meet the design target, the same architecture can be rolled out across additional vehicles.

How Does Superior Thermal Management in DC Servos Prevent Premature AGV Battery Degradation?

Thermal management is often underestimated when comparing AGV motors.

A motor that repeatedly approaches its thermal limit can produce higher electrical losses and transfer additional heat into the surrounding drivetrain.

The result can be a chain reaction:

Higher losses → More heat → Higher temperature → Greater stress on components

Battery temperature also matters.

Lithium-ion battery aging is influenced by temperature, state of charge, charging conditions, and operating profile. Elevated temperatures can accelerate degradation under many operating conditions.

This means that drivetrain efficiency is not only about saving electricity.

It can also help control the thermal environment surrounding the battery and electronics.

Major heat sources in an AGV drivetrain

The overall thermal load can come from:

• Copper losses

• Iron losses

• Bearing friction

• Controller switching losses

• Gearbox losses

• Tire and rolling losses

A properly sized motor should therefore be selected according to continuous duty requirements, not only short-term peak performance.

Thermal design should consider the entire system

Important variables include:

Ambient temperature

Duty cycle

Peak-load frequency

Continuous torque

Motor mounting

Enclosure design

Airflow

Heat transfer to the chassis

The target is a stable operating temperature across the whole traction system.

What Is the Measurable ROI and TCO Reduction of Deploying Low-Voltage DC Servos in US Warehouses?

The financial value of a servo upgrade should be measured from actual fleet data.

A simple motor purchase price does not represent the true cost of ownership.

A practical AGV TCO model

TCO = Hardware + Energy + Maintenance + Downtime + Battery + Replacement + Charging Infrastructure

A low-voltage DC servo system can potentially affect several of these variables simultaneously.

Energy consumption

Measure:

kWh per operating hour

But an even stronger operational KPI is:

Wh per completed transport cycle

This allows different drive technologies to be compared under the same route and payload conditions.

Battery utilization

Lower energy consumption can increase usable operating time between charging cycles, depending on:

• Battery chemistry

• Charging strategy

• Payload

• Travel distance

• Operating environment

• Duty cycle

Maintenance

Closed-loop drives can provide additional diagnostic data.

Depending on the system, maintenance teams may monitor:

Encoder faults

Overcurrent

Overtemperature

Communication faults

Motor status

Drive alarms

Better diagnostics can help reduce troubleshooting time.

Downtime

For automated warehouses, downtime can have a greater financial impact than the motor purchase price itself.

A traction system that is easier to diagnose, replace, and maintain may provide value beyond its initial hardware cost.

Payload productivity

Payload should be measured alongside energy consumption.

Instead of only asking:

“How many kilograms can the AGV carry?”

A more useful operational metric may be:

“How many kilograms can the AGV transport per battery charge?”

Other useful KPIs include:

kg transported per operating hour

completed missions per charge

Wh per ton-kilometer

charging events per shift

These metrics give fleet operators a clearer picture of the real productivity of the drivetrain.

How to Improve AGV Battery Life and Payload Capacity Using Low-Voltage DC Servo Motors: A 1.5-Ton AMR Redesign Case Study

This redesign project focused on a 1.5-ton heavy-duty latent AGV / submersible AMR developed by a European intralogistics automation manufacturer.

The customer faced three practical problems:

Heavy chassis weight was reducing effective payload capacity.

Battery runtime was below the desired 8-hour operating target.

Limited chassis space and excessive wiring were making electrical integration increasingly difficult.

The solution was to replace the conventional split motor-and-drive architecture with dual 48V low-voltage integrated DC servo motors, combining the motor and drive electronics into compact wheel-drive modules with CANopen/EtherCAT communication.

Redesign Results

Key Result: The redesigned AGV reduced drivetrain mass by 7.3 kg, increased operating endurance from 7.5 to 10.2 hours, and raised effective payload from 1,000 kg to 1,250 kg using the same 48V/100Ah lithium battery pack.

The Original AGV Design and Its Limitations

The original vehicle used a conventional split motor-driver architecture.

The motors were mounted near the drive wheels, while the servo drives were installed separately inside the main electrical compartment.

This architecture created several challenges in a compact heavy-duty AMR.

1. Excessive drivetrain weight

The combined weight of the two motors, external servo drives, cable harnesses, connectors, shielding, and mounting components reached approximately 18.5 kg.

For a vehicle with a fixed gross-weight limit, this additional mass directly reduced the amount of cargo the AGV could legally and mechanically carry.

2. Long high-current cable runs

The separate drive architecture required high-current motor cables to travel between the central electrical enclosure and the wheel-drive assemblies.

In a compact AMR, these cables consume valuable installation space and complicate routing.

They can also introduce additional electrical losses through cable resistance.

3. Limited internal space

Two external servo drives required dedicated cabinet and DIN-rail mounting space.

This reduced the room available for:

Battery components

PLC and I/O

Safety hardware

Communication equipment

Thermal management components

Service access

4. Battery runtime below the target

The original system achieved approximately 7.5 hours of operation using a 48V/100Ah lithium battery pack.

For a heavy-duty vehicle expected to support extended warehouse operations, this left little operating margin.

The Integrated 48V DC Servo Solution

To address the three problems simultaneously, the customer replaced the split drive system with two 48V low-voltage integrated DC servo motors.

The new architecture integrates the motor and drive electronics directly into the wheel-drive module.

New drivetrain architecture

48V Battery

↓

Main AGV Controller / PLC

↓

CANopen / EtherCAT Communication Bus

↓

Dual 48V Integrated DC Servo Motors

↓

Drive Wheels

This significantly reduces the amount of equipment installed in the central electrical cabinet.

The new solution also supports high peak overload torque, closed-loop control, and bus-based communication.

How the Integrated DC Servo System Increased Battery Life

The battery-runtime improvement came from several engineering changes rather than from battery enlargement.

Reduced Cable Losses

In the original system, high-current motor cables connected the central drive electronics to the traction motors.

Electrical power loss in a conductor can be approximated using:

P = I⊃2;R

where:

• P = power loss

• I = current

• R = cable resistance

By moving the drive electronics directly onto the motor assembly, the high-current connection becomes extremely short.

In this project, the driver-to-motor phase-wire distance was reduced to under 5 cm.

The result was a substantial reduction in cable-related losses and a cleaner power architecture.

48V Operation Reduced Current Demand

The redesign also migrated the AGV power architecture from 24V to 48V DC.

For the same mechanical output power:

I = P / U

Increasing system voltage reduces the current required for a given power level.

Lower current can allow:

Smaller cable cross-sections

Lower resistive losses

Reduced cable heating

More compact wiring

This is particularly useful in high-power mobile equipment where long cable runs can become a significant part of the electrical design.

Regenerative Braking

The integrated servo controllers also optimized regenerative braking.

During deceleration or downhill movement, the traction motors can operate as generators.

Instead of dissipating all available kinetic energy as heat, the system redirects recoverable energy back toward the 48V DC bus and battery system, subject to battery acceptance and controller limits.

This becomes particularly valuable in heavy-duty AGVs because a 1.5-ton vehicle carries substantial kinetic energy during movement.

The more frequently the vehicle accelerates and decelerates, the more relevant regenerative energy recovery becomes.

FOC Vector Control

The integrated servo system uses Field-Oriented Control (FOC) to regulate motor current and torque.

By controlling the motor's magnetic field and torque-producing current more precisely, the system can operate closer to the required load point.

The practical objectives are:

Stable torque production

Efficient current utilization

Lower unnecessary heating

Smooth acceleration and deceleration

Improved low-speed control

For a heavy-duty AMR operating continuously over multiple shifts, these characteristics can affect both energy consumption and thermal stability.

Key Technical Improvements & ROI Data

Engineering Deep-Dive: How Integrated DC Servos Solve the Dual Challenge

1. Increasing Battery Life

• Elimination of Cable Copper Loss: Traditional AGV designs route high-current phase cables from central control boxes down to drive wheels. Low-voltage integrated DC servos merge the driver directly onto the motor encoder rear-end, shortening phase wire distance to under 5 cm.
• Regenerative Braking Optimization: Integrated controllers capture kinetic energy during deceleration and slope downhill movements, feeding DC current directly back into the 48V battery pack.
• High-Efficiency FOC Vector Control: Optimized Field-Oriented Control algorithms keep operating temperatures low under continuous load, maintaining current draw at optimal duty cycles.

2. Increasing Payload Capacity

• Chassis Weight Reduction: Eliminating external driver enclosures, heavy shielding cables, and DIN-rail mountings frees up nearly 7.3 kg of dead weight. Every kilogram saved on chassis mass translates directly into higher payload rating.
• High Overload Torque Capacity: Integrated low-voltage DC servos handle up to 3X rated torque during initial heavy-load acceleration and ramp climbing (up to 5° slopes), preventing stall errors without needing oversized motors.

3. Implementation Steps

1. Power System Migration: Upgrade system bus from 24V to 48V DC. Higher voltage reduces overall operating current (I = P/U), lowering cable cross-section requirements and thermal dissipation.

2. Drive Module Mechanical Modularization: Mount dual 48V integrated DC servos directly to differential drive wheels or steering castor assemblies.

3. Communication Bus Topology: Loop a single shielded CANopen/EtherCAT daisy-chain cable between the main AGV PLC controller and both integrated motors, replacing 16+ discrete control wires.

Measured Before-and-After Results

The redesign produced measurable improvements across the key AGV performance indicators, including drivetrain weight, internal space, efficiency, battery endurance, and payload capacity.

Overall Result: By integrating the DC servo drives directly into the wheel modules, the AGV achieved lower drivetrain weight, reduced internal space requirements, higher system efficiency, longer battery endurance, and greater effective payload capacity.

These results show that the redesign improved battery performance and payload capability simultaneously through a combination of drivetrain integration, reduced wiring losses, improved motor control, and lower vehicle mass.

Customer Feedback

"By switching to 48V integrated low-voltage DC servo motors, we cut our AGV assembly time by 40% due to simplified harness routing. More importantly, our customers achieved full 3-shift operational coverage (24 hours) with just two short opportunity charges per day."

— Head of R&D, Industrial AMR Solutions

What This 1.5-Ton AMR Redesign Demonstrates

This project highlights several important lessons for heavy-duty AGV and AMR manufacturers.

Battery life is a drivetrain-system issue

Increasing battery capacity is not the only way to achieve longer operating time.

Reducing electrical losses, improving motor control, recovering braking energy, and reducing vehicle mass can all contribute to greater usable endurance.

Payload is influenced by every kilogram of vehicle mass

Motor, drive, cabinet, mounting hardware, and cable weight all consume part of the vehicle's total weight budget.

A more integrated traction architecture can therefore create additional payload capacity without simply increasing motor size.

48V architecture becomes increasingly attractive as power rises

Higher system voltage can reduce current for a given power requirement, helping AGV manufacturers manage cable size, resistive losses, and thermal loading.

Integrated servo architecture simplifies compact AMRs

Combining the motor and drive into one module can eliminate external drive cabinets and shorten high-current wiring.

This can improve both mechanical packaging and assembly efficiency.

Peak torque is critical for heavy-duty vehicles

A 1.5-ton AGV needs more than enough torque to cruise.

It must also accelerate from rest, carry maximum payload, climb ramps, and handle short-duration overloads.

That makes peak torque capability and overload performance important selection criteria.

Final Results Summary

For heavy-duty AGVs and AMRs, an integrated low-voltage DC servo architecture can provide a practical path toward higher payload, longer operating time, cleaner wiring, and more compact traction-system integration when the motor is correctly matched to the vehicle's real duty cycle.

How We Approach Low-Voltage DC Servo Motor Design for AGVs

For OEM AGV manufacturers, a standard motor is not always enough.

Different AGVs may have completely different requirements for:

Payload

Wheel diameter

Vehicle weight

Travel speed

Acceleration

Slope

Battery voltage

Duty cycle

Control protocol

Environmental conditions

The motor, gearbox, encoder, controller, and wheel therefore need to be considered as one integrated traction system.

Final Takeaway for AGV OEMs

Improving AGV battery life and payload capacity is not simply a matter of installing a larger battery or a higher-power motor.

The most effective approach is to optimize the entire traction system.

A properly engineered low-voltage DC servo motor can contribute through:

High-efficiency operation

Closed-loop torque and speed control

Regenerative braking

High torque density

Compact integration

Improved thermal performance

Better diagnostics

When these characteristics are matched correctly with the gearbox, wheel, battery, controller, and AGV duty cycle, the result can be measurable improvements in:

Battery runtime + Payload utilization + Energy efficiency + Thermal stability + Fleet productivity

For OEMs and warehouse operators, the most meaningful question is therefore not simply “Which motor has more power?”

A better question is:

“Which drivetrain can deliver the required wheel torque and motion performance while using the least practical energy, weight, space, and maintenance?”

That system-level approach provides a stronger foundation for designing efficient, reliable, and scalable AGV traction platforms.
