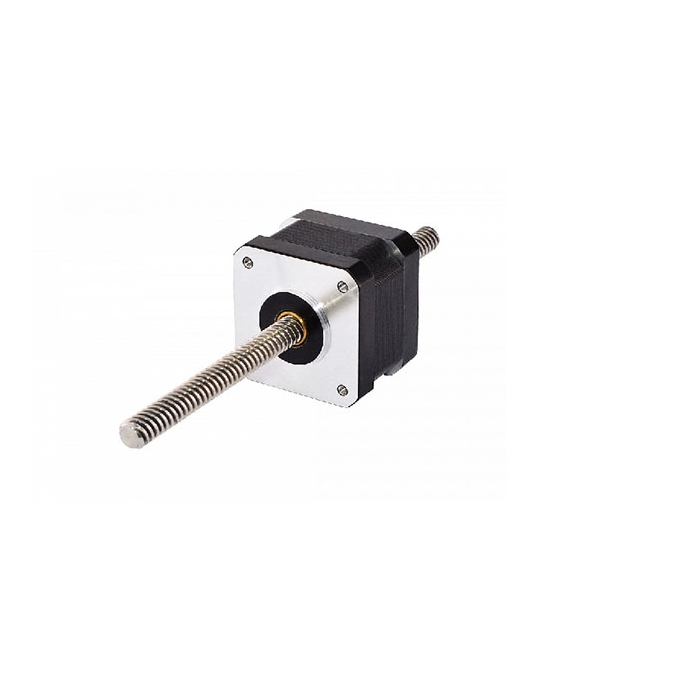

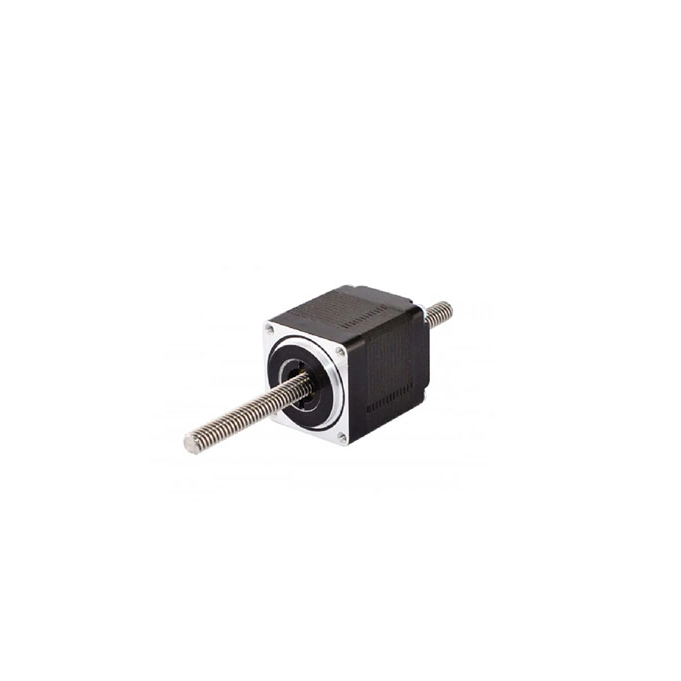

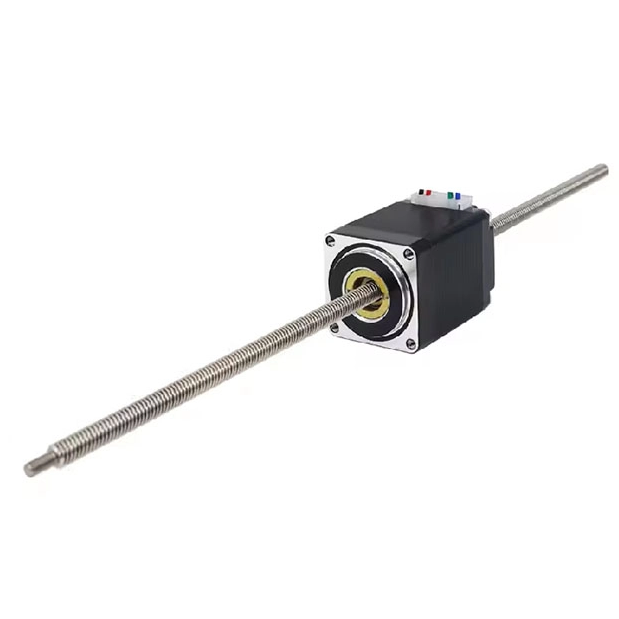

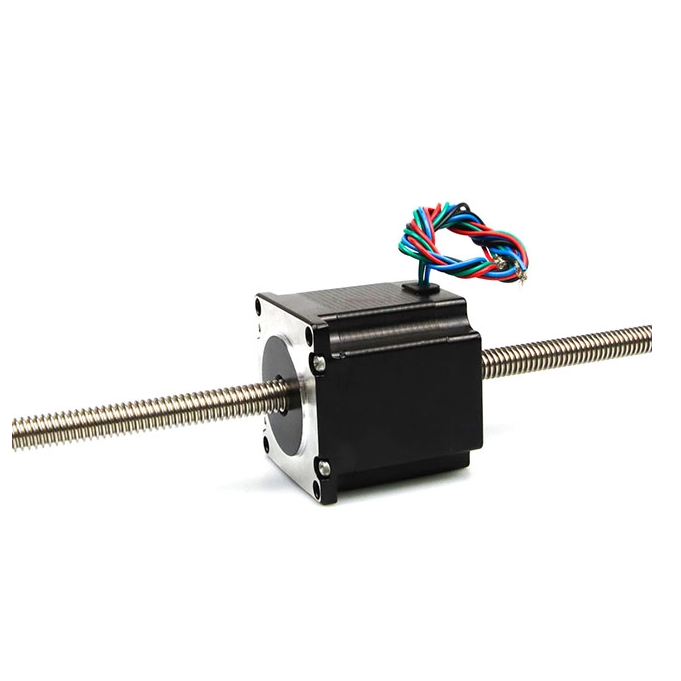

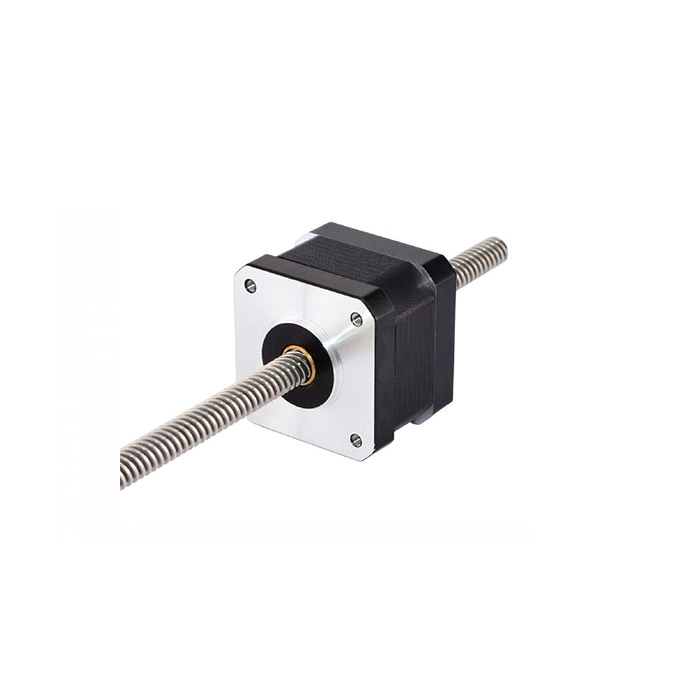

Non-Captive Linear Stepper Motor

How Does a Non-Captive Linear Stepper Motor Work?

The operation of a non-captive linear stepper motor is similar to other stepper motors, but with distinct features:

Electrical Pulse Activation:

The motor receives electrical pulses from a controller, sequentially energizing its coils. This generates a magnetic field that attracts or repels the rotor, causing it to rotate in small increments (typically between 0.9° and 1.8° per step, depending on the motor type).

Movement of the Nut:

The motor's rotational motion is transferred to a lead screw, a threaded shaft that engages with the nut. In a non-captive linear stepper motor, the nut is free to move along the lead screw without being fixed in place.

Linear Displacement:

As the motor turns, the nut shifts incrementally along the lead screw, creating linear motion. The amount of linear displacement corresponds to the number of steps the motor takes, with each step contributing to the total distance traveled by the nut.

Free Nut Design:

In a non-captive setup, the nut can move freely along the lead screw, allowing it to cover longer distances unimpeded. This provides smoother movement and enhances flexibility in various applications.

Why Choose a Non-Captive Linear Stepper Motor?

Selecting a non-captive linear stepper motor presents several advantages, particularly for applications that require precision, flexibility, and cost-effectiveness. The ability to allow the nut to move freely along the lead screw enables longer travel distances, smoother motion, and reduced friction. The straightforward design also makes it a more affordable and reliable choice compared to captive systems. Additionally, non-captive motors typically exhibit reduced backlash and high efficiency, making them ideal for industries that prioritize accurate movement.

Advantages of Non-Captive Linear Stepper Motors

In modern automation and precision motion systems, non-captive linear stepper motors are revolutionizing the way linear motion is achieved. These motors transform the rotary motion of a stepper motor into precise linear displacement without the need for external mechanical components like belts, pulleys, or lead screws.

Compact, efficient, and highly accurate, non-captive linear stepper motors are ideal for a wide range of industrial, medical, and laboratory applications where precision and space-saving design are crucial.

1. Integrated Linear Motion Without External Components

One of the most significant advantages of non-captive linear stepper motors is that they generate linear motion internally — without requiring additional mechanical assemblies.

• Built-In Lead Screw: Instead of a rotating shaft, a threaded nut or lead screw passes through the motor’s rotor. As the rotor turns, the screw moves linearly through it.
• No Need for Couplers or External Bearings: This eliminates the complexity of using extra mechanical parts to convert rotary to linear motion.

The result is a compact and simplified motion system, reducing both design time and installation costs.

2. High Precision and Repeatable Positioning

Non-captive linear stepper motors deliver exceptional positional accuracy due to the step-by-step control nature of stepper technology. Each pulse from the driver corresponds to a precise linear increment, allowing for micrometer-level motion resolution.

• Consistent Step Size: Ensures predictable linear travel with every input pulse.
• Repeatable Performance: Returns to the same position consistently without the need for feedback sensors in open-loop systems.
• Accurate Position Control: Ideal for tasks such as micro-positioning, dosing, and alignment in high-precision applications.

This precision makes non-captive linear stepper motors perfect for applications requiring exact linear displacement and repeatable positioning.

3. Compact and Space-Saving Design

The integrated structure of non-captive linear stepper motors offers a minimal footprint, making them ideal for applications where space is limited.

• No External Mechanisms: The linear motion is generated within the motor, eliminating bulky external assemblies.
• Easy Mounting Options: Their compact cylindrical design simplifies integration into tight enclosures or compact machines.
• Lightweight and Efficient: Perfect for portable, handheld, or miniature automation systems.

This space-efficient design allows engineers to create smaller, lighter, and more efficient motion systems without compromising performance.

4. Smooth and Controlled Linear Motion

Thanks to microstepping control technology, non-captive linear stepper motors can achieve smooth, vibration-free movement even at low speeds.

• Microstepping Drivers: Divide each step into smaller increments for near-continuous motion.
• Reduced Resonance: The motor operates quietly and smoothly, minimizing mechanical vibrations.
• Consistent Linear Speed: Ideal for applications requiring steady and precise feed rates.

The smooth motion and low vibration make these motors suitable for optical instruments, medical automation, and scientific research equipment where stability is crucial.

5. Simplified Mechanical Design and Integration

Because the linear motion is produced directly within the motor, the overall system design becomes much simpler.

• Direct Linear Output: Eliminates the need for external motion conversion mechanisms such as belts, gears, or cams.
• Easy Integration: The motor can be mounted directly to the moving load or structure.
• Reduced Assembly Time: Fewer components mean faster installation and less maintenance.

This simplicity not only reduces system cost but also increases reliability, as there are fewer parts subject to wear or misalignment.

6. High Reliability and Long Service Life

Non-captive linear stepper motors are designed for durability and consistent performance over long operational cycles.

• Fewer Mechanical Parts: Fewer components mean lower mechanical wear and less maintenance.
• Reliable Stepper Operation: The absence of feedback loops or encoders minimizes potential failure points.
• Stable Over Time: Maintains accuracy and torque consistency even after millions of cycles.

The robust construction and simple mechanical design ensure long-term reliability, making them ideal for 24/7 automation environments.

7. Flexible Stroke Length and Design Options

Non-captive linear stepper motors offer high design flexibility, allowing customization for different stroke lengths and motion ranges.

• Customizable Lead Screws: Engineers can select different screw pitches to achieve the desired speed and resolution.
• Unlimited Travel Distance: By using an extended screw length, the motion range can be adjusted to suit specific applications.
• Versatile Mounting Styles: Adaptable to vertical, horizontal, or inclined setups.

This flexibility allows these motors to be easily integrated into diverse automation systems, from compact laboratory devices to large-scale industrial machinery.

8. Excellent Force and Torque Characteristics

Despite their compact size, non-captive linear stepper motors provide strong linear thrust and consistent torque output.

• High Linear Force: Ideal for applications that require pushing, pulling, or precise positioning of loads.
• Constant Torque at Low Speed: Stepper technology ensures full torque delivery even at low speeds.
• Stable Load Handling: Can maintain holding force without drift when the motor is energized.

These performance characteristics make them suitable for applications involving precise load control, such as dispensing, clamping, and positioning systems.

9. Cost-Effective Motion Solution

Non-captive linear stepper motors provide a cost-efficient alternative to more complex linear motion systems like servos or hydraulic actuators.

• No Feedback Required: Operates efficiently in open-loop mode, reducing electronic complexity.
• Lower Maintenance Costs: Simple design and fewer moving parts reduce downtime and maintenance expenses.
• Affordable Precision: Offers high accuracy at a fraction of the cost of traditional linear actuators.

This combination of performance, simplicity, and affordability makes non-captive linear stepper motors an economical solution for precision motion control.

10. Wide Range of Industrial and Commercial Applications

Thanks to their versatility and performance, non-captive linear stepper motors are used across multiple industries, including:

• Medical Devices: Syringe pumps, dosing systems, and imaging equipment.
• Laboratory Automation: Sample handling, pipetting, and testing instruments.
• Industrial Automation: Material feeders, pick-and-place systems, and inspection machinery.
• Optical and Measurement Systems: Lens adjustment, sensor alignment, and focus mechanisms.
• Semiconductor and Electronics: Component positioning, wafer handling, and assembly automation.

Their ability to provide precise linear motion in a compact, self-contained unit makes them indispensable in both high-tech and industrial environments.

Conclusion

The advantages of non-captive linear stepper motors extend far beyond their compact size and integrated design. They offer high precision, smooth motion, long-term reliability, and cost-effective performance — all in a single, efficient package.

By eliminating the need for external motion conversion mechanisms, these motors simplify design, reduce maintenance, and enhance overall system efficiency.

Whether used in medical devices, automation systems, or precision laboratory equipment, non-captive linear stepper motors represent a smart, space-saving, and high-performance solution for achieving accurate linear motion control in today’s technology-driven world.

Applications of Non-Captive Linear Stepper Motors

Non-captive linear stepper motors are innovative motion control devices that convert rotary motion directly into linear movement without external mechanical conversion systems. By combining a traditional stepper motor with an integrated lead screw, they provide precise, repeatable, and efficient linear motion within a compact form factor.

Their versatility and precision make them indispensable in various industries where space, accuracy, and reliability are essential.

1. Medical and Healthcare Equipment

Non-captive linear stepper motors are extensively used in medical devices that require precise linear positioning, fluid control, and dosage accuracy. Their compact design and reliable step-based movement make them ideal for sensitive medical applications.

Common Uses Include:

• Syringe Pumps and Infusion Devices: Provide accurate fluid dispensing and controlled drug delivery.
• Laboratory Analyzers: Ensure precise positioning of test samples or reagents.
• Imaging and Diagnostic Equipment: Enable smooth, quiet motion for focus or lens adjustments.
• Automated Medical Instruments: Support the movement of slides, cartridges, or sample trays.

Their low vibration, silent operation, and precision control ensure reliability and safety, which are critical in medical and clinical settings.

2. Laboratory and Scientific Automation

In laboratory automation, accuracy and repeatability are essential for consistent experimental results. Non-captive linear stepper motors provide precise linear movement required in high-throughput and analytical equipment.

Typical Applications Include:

• Sample Handling Systems: Move test tubes, plates, and reagents with accuracy.
• Pipetting and Dosing Machines: Deliver controlled volumes of liquids.
• Spectroscopy and Chromatography Instruments: Adjust optical elements or flow paths with fine precision.
• Automated Testing Stations: Control precise positioning of sensors or probes.

Because of their compact structure and integrated design, non-captive linear stepper motors are easily incorporated into compact, multi-axis laboratory devices.

3. Industrial Automation and Robotics

In modern industrial automation, space-efficient and precise motion control components are crucial. Non-captive linear stepper motors offer direct linear actuation, simplifying machine design and improving motion accuracy.

Key Industrial Applications:

• Pick-and-Place Systems: Perform accurate object placement with repeatable positioning.
• Material Feeders: Move raw materials or components with precise control.
• Labeling and Packaging Machines: Drive linear movement for accurate label placement and product handling.
• Robotic End-Effectors: Provide smooth linear motion for gripping or lifting mechanisms.

Their high reliability, controlled force output, and cost-effectiveness make them a top choice for robotic and automation engineers.

4. Semiconductor and Electronics Manufacturing

The electronics and semiconductor industries demand micron-level accuracy and clean, precise motion control — areas where non-captive linear stepper motors excel.

Typical Uses Include:

• Wafer Handling Systems: Move delicate semiconductor wafers safely and accurately.
• PCB Assembly Equipment: Position components and solder heads with high precision.
• Optical Inspection Machines: Adjust lenses or sensors for fine alignment.
• Component Testing Systems: Provide linear actuation for device insertion or connection testing.

These motors’ compactness and smooth operation make them ideal for cleanroom environments and high-precision electronics assembly processes.

5. Optical and Photonics Equipment

In optical applications, accuracy and vibration-free movement are essential for achieving stable and high-quality results. Non-captive linear stepper motors are perfect for fine-tuning and alignment of optical systems.

Common Optical Applications:

• Lens Adjustment Mechanisms: Enable precise focusing or zoom control.
• Laser Alignment Systems: Provide incremental adjustments for beam calibration.
• Microscope Stages: Allow accurate sample movement for imaging and analysis.
• Spectrometer Modules: Adjust slit width or optical paths with sub-micron resolution.

Their smooth, incremental motion and quiet performance ensure excellent control in delicate optical and photonic instruments.

6. 3D Printing and Additive Manufacturing

In the field of 3D printing and additive manufacturing, non-captive linear stepper motors are used to achieve controlled layer deposition and accurate print head positioning.

Applications Include:

• Print Head Positioning: Provide smooth, consistent motion along Z-axis stages.
• Filament Feeding Systems: Regulate extrusion rates with precision.
• Platform Leveling: Control build platform elevation with repeatable accuracy.

The combination of high resolution, smooth operation, and reliable performance ensures superior print quality and repeatability.

7. Aerospace and Defense Applications

The aerospace and defense industries require motion systems that offer precision, reliability, and durability in demanding conditions. Non-captive linear stepper motors meet these standards while minimizing weight and complexity.

Typical Uses Include:

• Actuator Systems: Provide linear actuation in compact avionics or control panels.
• Guidance and Positioning Systems: Enable fine adjustment in optical targeting devices.
• Instrumentation Control: Facilitate the precise movement of sensors and gauges.

These motors’ rugged design and repeatable precision make them well-suited for mission-critical aerospace applications.

8. Consumer Electronics and Office Equipment

Beyond industrial and scientific fields, non-captive linear stepper motors are also used in consumer and commercial devices requiring compact, accurate motion control.

Examples Include:

• Printers and Scanners: Move print heads or scanning sensors smoothly.
• Vending Machines: Control dispensing mechanisms with precision.
• Cameras and Projectors: Adjust lenses or zoom mechanisms automatically.
• Smart Home Devices: Operate locks, curtains, or adjustable components.

Their silent operation, small footprint, and low power consumption make them an excellent fit for consumer-level automation systems.

9. Automotive and Transportation Systems

In the automotive industry, precise motion control is vital for safety, comfort, and performance. Non-captive linear stepper motors provide accurate actuation for both interior and mechanical systems.

Automotive Applications Include:

• Throttle and Valve Control: Regulate airflow and fuel injection systems.
• Headlight Positioning: Adjust beam levels and directions automatically.
• Dashboard Instrumentation: Move indicators or gauges with accuracy.
• Electric Seat and Mirror Adjustment: Provide linear positioning for comfort and safety.

These motors enhance vehicle automation, energy efficiency, and user comfort, while offering long-term durability.

10. Research, Testing, and Educational Equipment

Non-captive linear stepper motors are also popular in research laboratories, educational tools, and testing setups, where controlled and measurable motion is required.

Common Uses:

• Prototype Development: Create precise test rigs or automation prototypes.
• Material Testing Systems: Apply controlled linear force for tensile or compression tests.
• Educational Demonstrations: Teach motion control principles and automation systems.

Their programmable, accurate, and versatile operation makes them ideal for training, testing, and R&D environments.

Conclusion

The applications of non-captive linear stepper motors span across industries — from medical and laboratory automation to robotics, electronics, optics, and aerospace. Their compact design, precision, and cost-effectiveness make them an essential component wherever controlled linear motion is required.

With advantages such as integrated linear motion, low maintenance, and high reliability, these motors provide a powerful and efficient alternative to traditional linear actuators and servo systems.

As industries continue to advance toward miniaturized and intelligent automation, the role of non-captive linear stepper motors will only continue to grow, driving innovation and performance across countless applications.
