S1 Series AC Servo Motors

An AC servo motor operates using a closed-loop control system. In this setup, the motor receives signals from a servo controller, which determines the required motion parameters based on input commands. A feedback device continuously monitors the motor's performance, sending data back to the controller. This allows for instant corrections in speed or position, ensuring high accuracy.

1、Controller sends input signals for speed or position.

2、Drive unit converts these signals into electrical power for the motor.

3、Rotor movement occurs as the stator generates a rotating magnetic field.

4、Feedback system (encoder/resolver) measures performance.

5、Controller adjusts output to match the desired setpoint.

Jkongmotor's S1 Series AC Series Motors include 40ST, 60CST, 80ST, 90ST, 100ST, 110ST, 130ST, 150ST, 180ST.

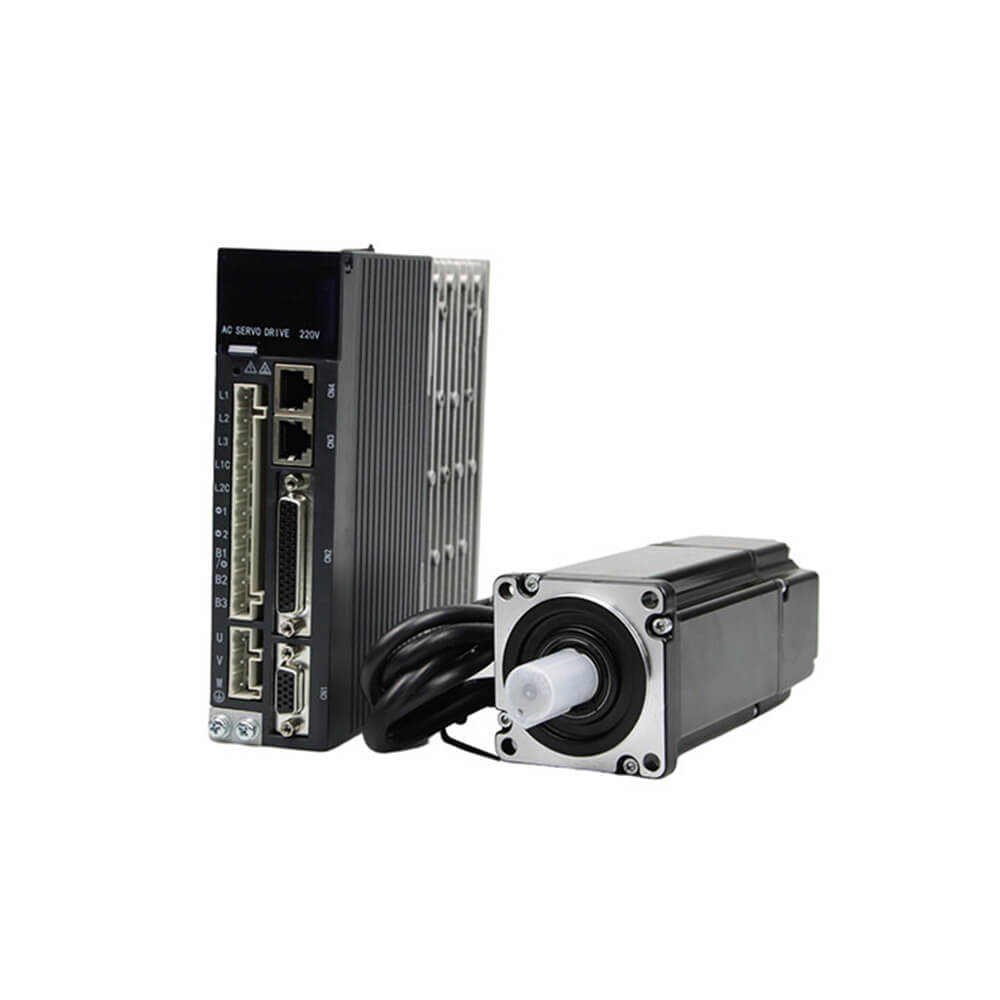

40ST Series AC Servo Motors

Ac Servo motor, small size, high precision, fast response, quiet operation, high efficieny, long service life, versatility.

Optional: Brakes, Drivers /Controllers...

Motor Model	Unit	40ST-M00130								40ST-M00330
Rated power	W	50				50				100				100
Rated voltage	V	48				220				48				220
Rated current	A	1.1				0.4				2.5				0.6
Rated speed	Rpm	3000				3000				3000				3000
Holding torque	N.m	0.16				0.16				0.32				0.32
Peak torque	N.m	0.48				0.32				0.95				0.64
Voltage constant	V/1000r/min	9.2				36.8				8.2				32.8
Torque coefficient	N.m/A	0.145				0.4				0.128				0.53
Rotor inertia	Kg.m²	0.025x10^-4				0.025x10^-4				0.051x10^-4				0.051x10^-4
Line-Line Resistance	Ω	6.75				108				2.2				34
Line-Line Inductance	mH	7.5				108				3				40
Mechanical time-constant	Ms	1.11				1				1.36				0.18
Weight	Kg	0.32				0.32				0.47				0.47
Encoder line number	PPR	2500
Insulation class	Class	Class B
Safety class	IP	IP65
Environmental Conditions Temperature	℃	Temperature -20℃ ~ +40℃ Humidity Below 90%RH No dewing
Motor winding plue	/	Winding lead wire	U (red)			V (yellow)				W (blue)				PE (yellow/ green/black)
		Plug serial number	1			2				3				4
Encoder plug	/	Signal lead wire	5V	0V	B+	Z-	U+	Z+	U-	A+	V+	W+	V-	A-	B-	W-	PE
		Plug serial number	2	3	4	5	6	7	8	9	10	11	12	13	14	15	1

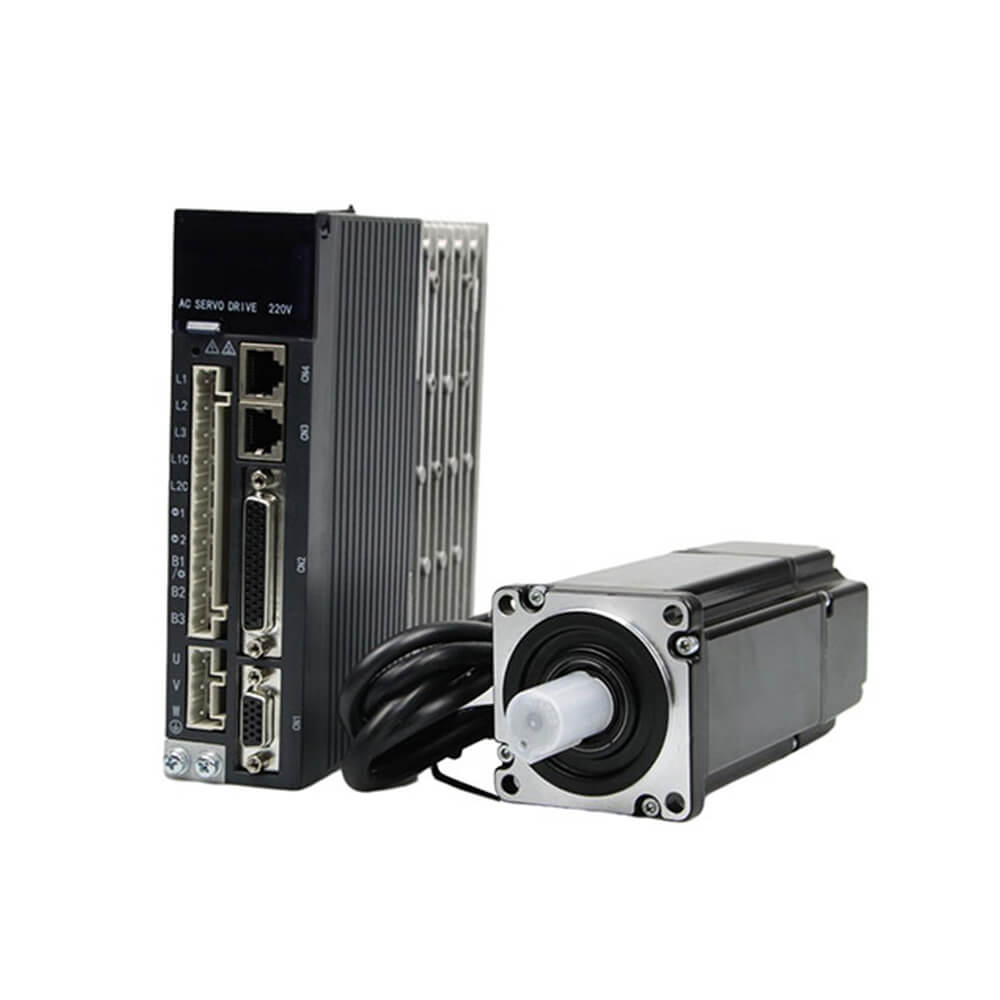

60CST Series AC Servo Motors

Ac Servo motor, small size, high precision, fast response, quiet operation, high efficieny, long service life, versatility.

Optional: Brakes, Drivers /Controllers...

Motor Model	Unit	60CST-M00630					60CST-M01330					60CST-M01930
Rated power	W	200					400					600
Rated voltage	V	220					220					220
Rated current	A	1.2					2.8					3.5
Rated speed	Rpm	3000					3000					3000
Holding torque	N.m	0.637					1.27					1.91
Peak torque	N.m	1.91					3.9					5.73
Voltage constant	V/1000r/min	30.9					29.6					34
Torque coefficient	N.m/A	0.53					0.45					0.55
Rotor inertia	Kg.m2	0.175x10^-4					0.29x10^-4					0.39x10^-4
Line-Line Resistance	Ω	6.18					2.35					1.93
Line-Line Inductance	mH	29.3					14.5					10.7
Mechanical time-constant	Ms	4.74					6.17					5.5
Weight	Kg	1.16					1.6					2.07
Encoder line number	PPR	2500
Insulation class	Class	Class B
Safety class	IP	IP65
Environmental Conditions Temperature	℃	Temperature -20℃ ~ +40℃ Humidity Below 90%RH No dewing
Motor winding plue	/	Winding lead wire	U (red)			V (yellow)				W (blue)				PE (yellow/ green/black)
		Plug serial number	1			2				3				4
Encoder plug	/	Signal lead wire	5V	0V	B+	Z-	U+	Z+	U-	A+	V+	W+	V-	A-	B-	W-	PE
		Plug serial number	2	3	4	5	6	7	8	9	10	11	12	13	14	15	1
Absolute Encoder Socket (7 pin)	/	Signal lead wire	E-		E+		SD-		0V		SD+		+5V		PE
		Plug serial number	2		3		4		5		6		7		1

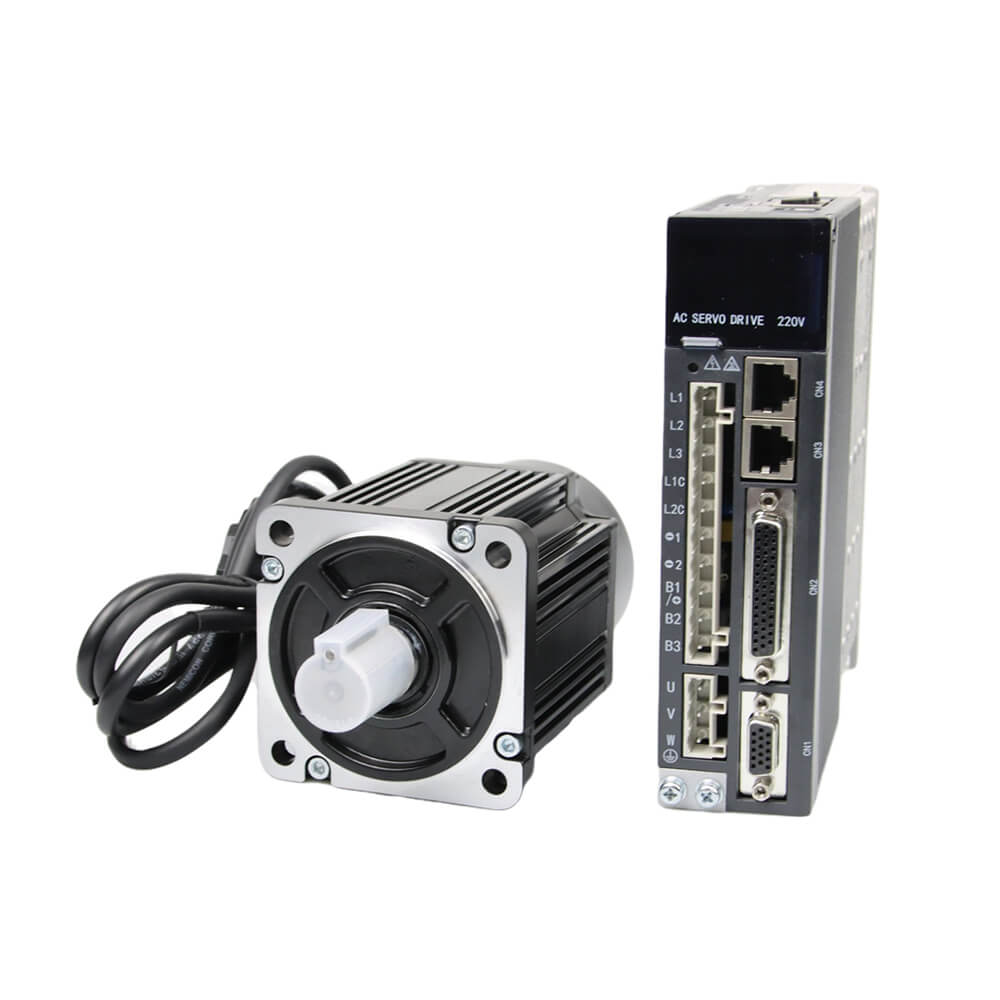

80ST Series AC Servo Motors

Ac Servo motor, small size, high precision, fast response, quiet operation, high efficieny, long service life, versatility.

Optional: Brakes, Drivers /Controllers...

Motor Model	Unit	80ST-M01330				80ST-M02430				80ST-M03520				80ST-M04025
Rated power	KW	0.4				0.75				0.73				1
Rated voltage	V	220				220				220				220
Rated current	A	2				3				3				4.4
Rated speed	Rpm	3000				3000				2000				2500
Holding torque	N.m	1.27				2.39				3.5				4
Peak torque	N.m	3.8				7.1				10.5				12
Peak Current	A	6				9				9				13.2
Voltage constant	V/1000r/min	40				48				71				56
Torque coefficient	N.m/A	0.64				0.8				1.17				0.9
Rotor inertia	Kg.m2	1.05x10^-4				1.85x10^-4				2.63x10^-4				2.97x10^-4
Line-Line Resistance	Ω	4.44				2.88				3.65				1.83
Line-Line Inductance	mH	7.93				6.4				8.8				4.72
Mechanical time-constant	Ms	1.66				2.22				2.4				2.58
Weight	Kg	1.78				2.9				3.9				4.1
Encoder line number	PPR	2500
Insulation class	Class	Class B
Safety class	IP	IP65
Environmental Conditions Temperature	℃	Temperature -20℃ ~ +40℃ Humidity Below 90%RH No dewing
Motor winding plue	/	Winding lead wire	U (red)			V (yellow)				W (blue)				PE (yellow/ green/black)
		Plug serial number	1			2				3				4
Photoelectric Encoder Socket (15 Pin)	/	Signal lead wire	5V	0V	B+	Z-	U+	Z+	U-	A+	V+	W+	V-	A-	B-	W-	PE
		Plug serial number	2	3	4	5	6	7	8	9	10	11	12	13	14	15	1
Absolute Encoder Socket (7 pin)	/	Signal lead wire	E-		E+		SD-		0V		SD+		+5V		PE
		Plug serial number	2		3		4		5		6		7		1

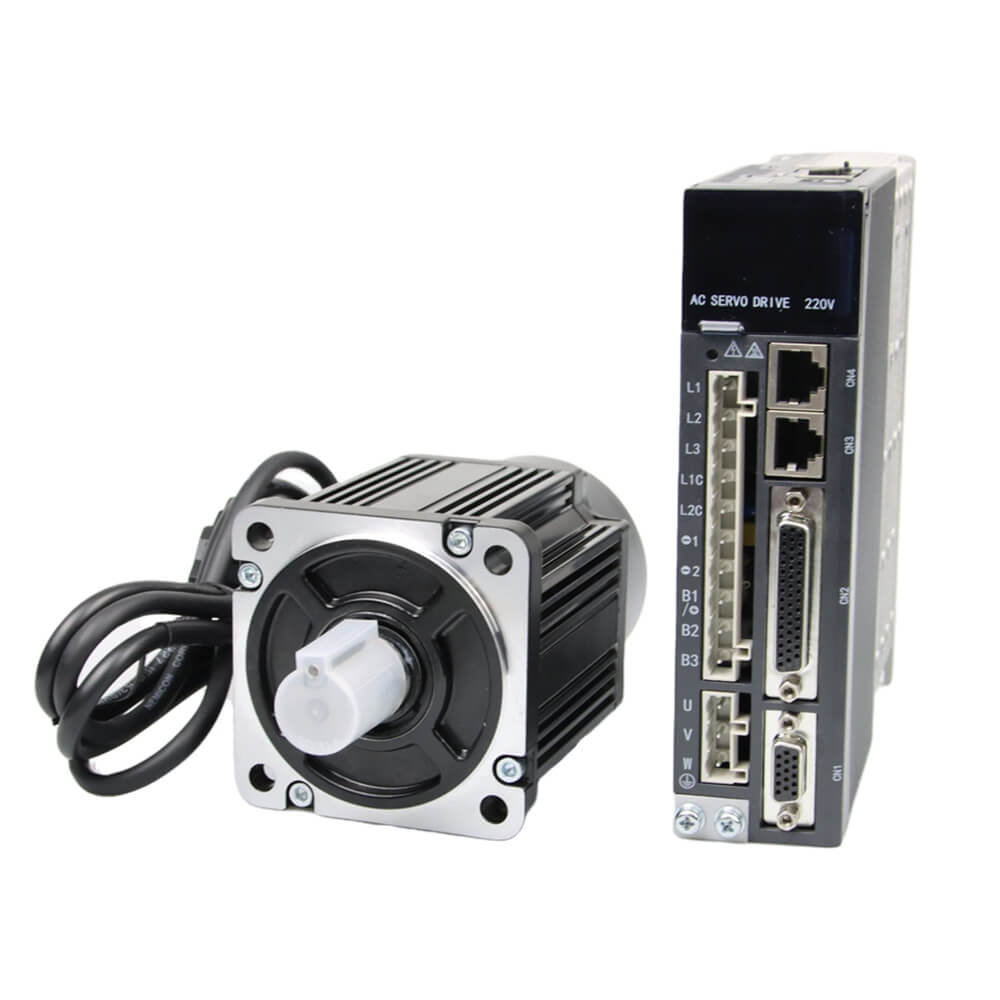

90ST Series AC Servo Motors

Ac Servo motor, small size, high precision, fast response, quiet operation, high efficieny, long service life, versatility.

Optional: Brakes, Drivers /Controllers...

Motor Model	Unit	90ST-M02430					90ST-M03520					90ST-M04025
Rated power	KW	0.75					0.73					1
Rated voltage	V	220					220					220
Rated current	A	3					3					4
Rated speed	Rpm	3000					2000					2500
Holding torque	N.m	2.4					3.5					4
Peak torque	N.m	7.1					10.5					12
Peak Current	A	9					9					12
Voltage constant	V/1000r/min	51					67					60
Torque coefficient	N.m/A	0.8					1.2					1
Rotor inertia	Kg.m2	2.45x10^-4					3.4x10^-4					3.7x10^-4
Line-Line Resistance	Ω	3.2					4.06					2.69
Line-Line Inductance	mH	7					9.7					6.21
Mechanical time-constant	Ms	2.2					2.39					2.3
Weight	Kg	3.1					3.9					4.2
Encoder line number	PPR	2500
Insulation class	Class	Class B
Safety class	IP	IP65
Environmental Conditions Temperature	℃	Temperature -20℃ ~ +40℃ Humidity Below 90%RH No dewing
Motor winding plue	/	Winding lead wire	U (red)			V (yellow)				W (blue)				PE (yellow/ green/black)
		Plug serial number	1			2				3				4
Photoelectric Encoder Socket (15 Pin)	/	Signal lead wire	5V	0V	B+	Z-	U+	Z+	U-	A+	V+	W+	V-	A-	B-	W-	PE
		Plug serial number	2	3	4	5	6	7	8	9	10	11	12	13	14	15	1
Absolute Encoder Socket (7 pin)	/	Signal lead wire	E-		E+		SD-		0V		SD+		+5V		PE
		Plug serial number	2		3		4		5		6		7		1

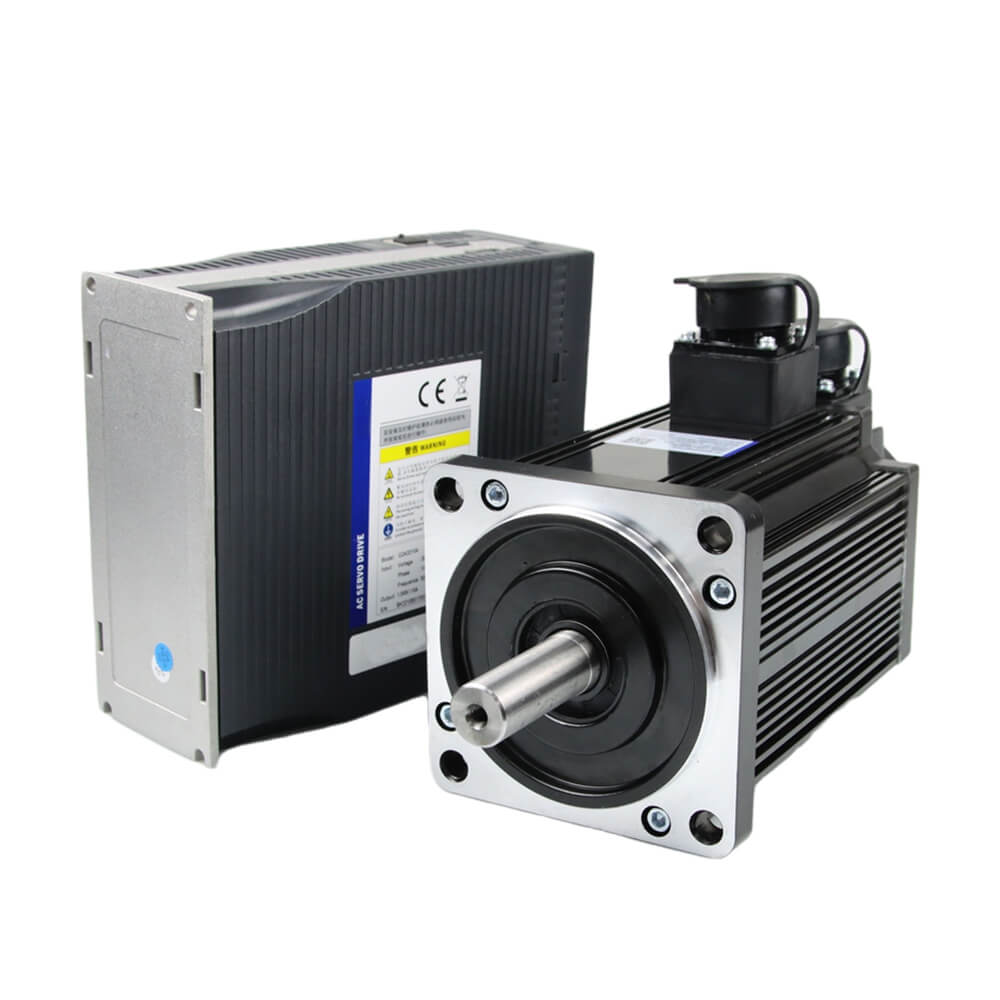

100ST Series AC Servo Motors

Ac Servo motor, small size, high precision, fast response, quiet operation, high efficieny, long service life, versatility.

Optional: Brakes, Drivers /Controllers...

Motor Model

Unit

100ST-M03230

100ST-M06430

Rated power

Rated voltage

220

Rated current

9.9

Rated speed

Rpm

3000

Holding torque

N.m

3.2

6.4

Peak torque

N.m

9.6

19.2

Voltage constant

V/1000r/min

39.5

Torque coefficient

N.m/A

0.64

0.65

Rotor inertia

Kg.m2

2.458X10^-4

4.422X10^-4

Line-Line Resistance

0.98

0.41

Line-Line Inductance

8.91

3.92

Mechanical time-constant

9.09

9.56

Weight

4.04

7.12

Encoder line number

PPR

2500

Insulation class

Class

Class B

Safety class

IP65

Environmental Conditions Temperature

℃

Temperature -20℃ ~ +40℃ Humidity Below 90%RH No dewing

Motor winding plue

Winding lead wire

Plug serial number

Photoelectric Encoder Socket (15 Pin)

Signal lead wire

B+

Z-

U+

Z+

U-

A+

V+

W+

V-

A-

B-

W-

Plug serial number

Absolute Encoder Socket (7 pin)

Signal lead wire

E-

E+

SD-

SD+

+5V

Plug serial number

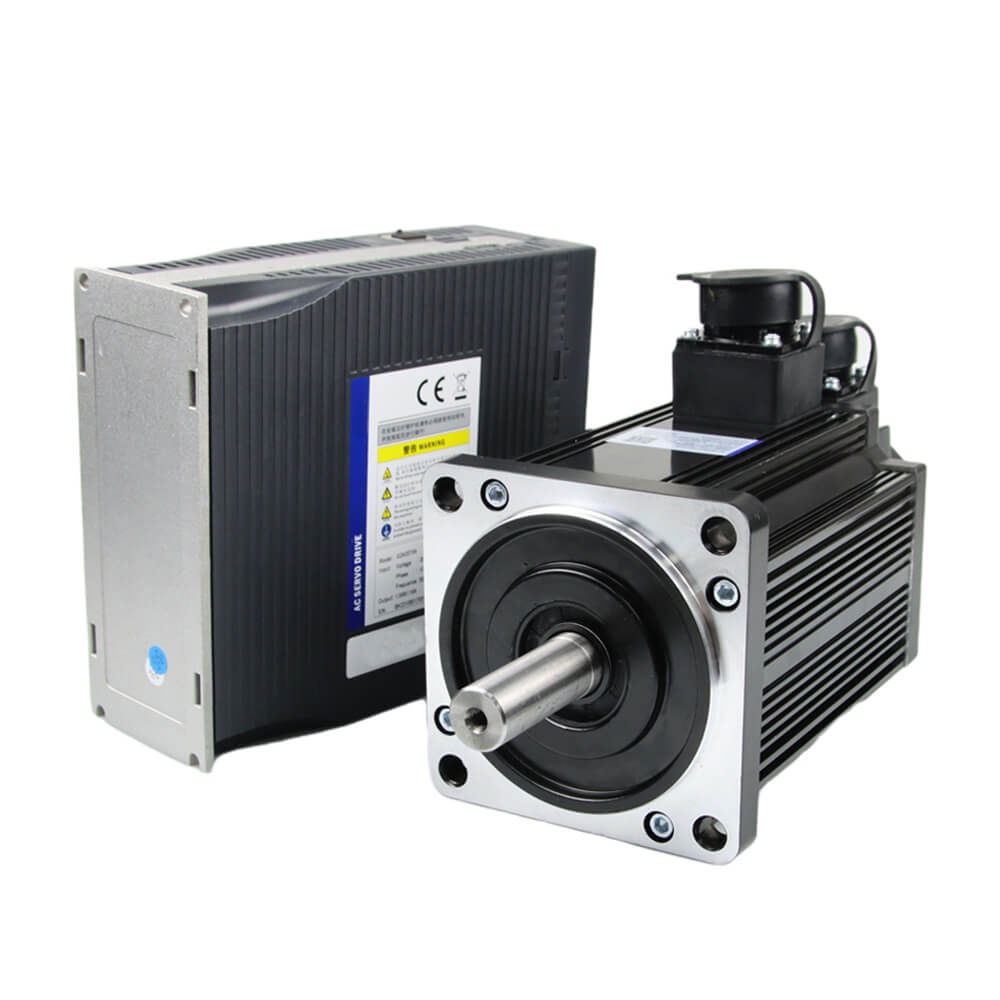

110ST Series AC Servo Motors

Ac Servo motor, small size, high precision, fast response, quiet operation, high efficieny, long service life, versatility.

Optional: Brakes, Drivers /Controllers...

Motor Model	Unit	110ST-M02030	110ST-M04020			110ST-M04030			110ST-M05030			110ST-M06020			110ST-M06030
Rated power	KW	0.6	0.8			1.2			1.5			1.2			1.8
Rated voltage	V	220	220			220			220			220			220
Rated current	A	2.5	3.5			5			6			4.5			6
Rated speed	Rpm	3000	2000			3000			3000			2000			3000
Holding torque	N.m	2	4			4			5			6			6
Peak torque	N.m	6	12			12			15			12			18
Voltage constant	V/1000r/min	56	79			54			62			83			60
Torque coefficient	N.m/A	0.8	1.14			0.8			0.83			1.3			1
Rotor inertia	Kg.m2	0.31x10^-3	0.54x10^-3			0.54x10^-3			0.63x10^-3			0.76x10^-3			0.76x10^-3
Line-Line Resistance	Ω	3.6	2.41			1.09			1.03			1.46			0.81
Line-Line Inductance	mH	8.32	7.3			3.3			3.43			4.7			2.59
Mechanical time-constant	Ms	2.3	3			3			3.33			3.2			3.2
Weight	Kg	4.5	6			6			6.8			7.9			7.9
Encoder line number	PPR	2500
Insulation class	Class	Class B
Safety class	IP	IP65
Environmental Conditions Temperature	℃	Temperature -20℃ ~ +40℃ Humidity Below 90%RH No dewing
Motor winding plue	/	Winding lead wire	U			V				W				PE
		Plug serial number	2			3				4				1
Photoelectric Encoder Socket (15 Pin)	/	Signal lead wire	5V	0V	B+	Z-	U+	Z+	U-	A+	V+	W+	V-	A-	B-	W-	PE
		Plug serial number	2	3	4	5	6	7	8	9	10	11	12	13	14	15	1
Absolute Encoder Socket (7 pin)	/	Signal lead wire	E-		E+		SD-		0V		SD+		+5V		PE
		Plug serial number	2		3		4		5		6		7		1

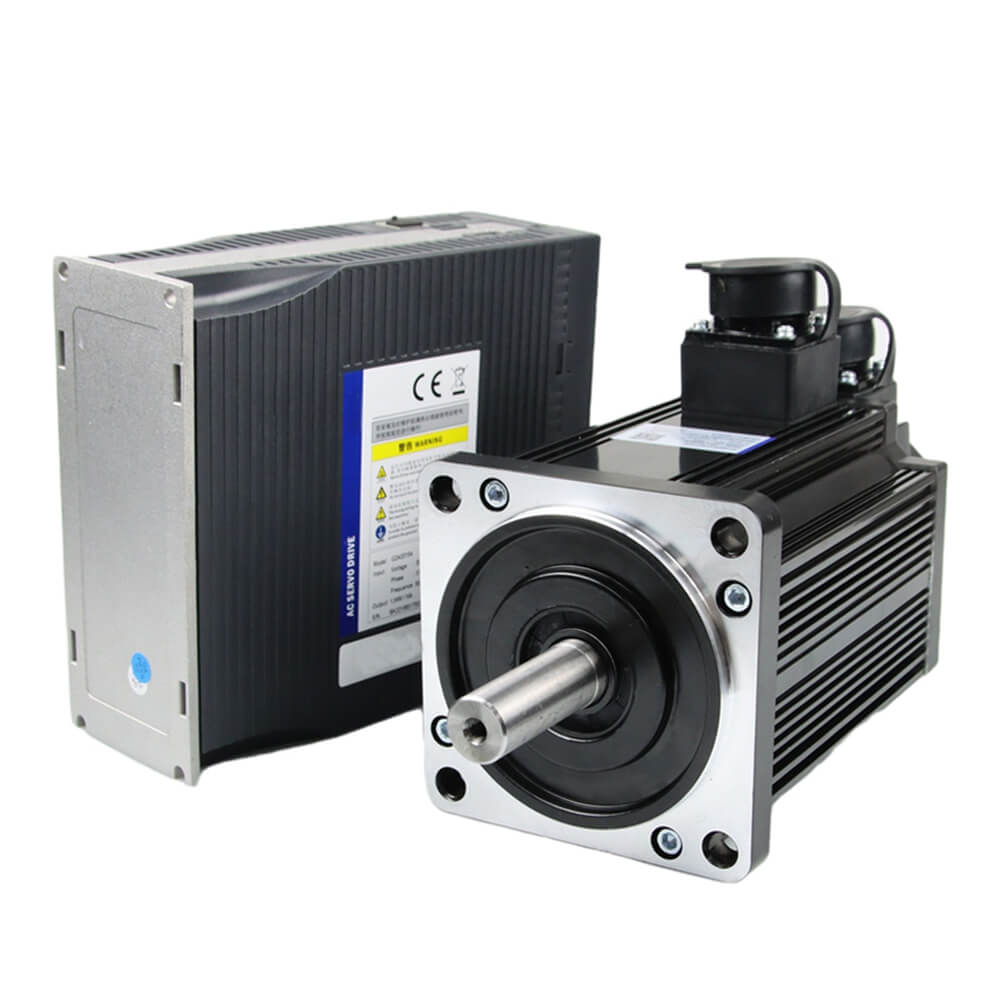

130ST Series AC Servo Motors

Ac Servo motor, small size, high precision, fast response, quiet operation, high efficieny, long service life, versatility.

Optional: Brakes, Drivers /Controllers...

Motor Model	Unit	130ST-M04025	130ST-M05025		130ST-M06025		130ST-M07725		130ST-M10010		130ST-M10015		130ST-M10025		130ST-M15015		130ST-M15025
Rated power	KW	1	1.3		1.5		2		1		1.5		2.6		2.3		3.8
Rated voltage	V	220	220		220		220		220		220		220		220		220
Rated current	A	4	5		6		7.5		4.5		6		10		9.5		13.5
Rated speed	Rpm	2500	2500		2500		2500		1000		1500		2500		1500		2500
Holding torque	N.m	4	5		6		7.7		10		10		10		15		15
Peak torque	N.m	12	15		18		22		20		25		25		30		30
Voltage constant	V/1000r/min	72	68		65		68		140		103		70		114		67
Torque coefficient	N.m/A	1	1		1		1.03		2.2		1.67		1		1.58		1.11
Rotor inertia	Kg.m2	0.85X10^-3	1.06X10^-3		1.26X10^-3		1.53X10^-3		1.94X10^-3		1.94X10^-3		1.94X10^-3		2.77X10^-3		2.77X10^-3
Line-Line Resistance	Ω	2.76	1.84		1.21		1.01		2.7		1.5		0.73		1.1		0.49
Line-Line Inductance	mH	6.42	4.9		3.87		2.94		8.8		4.37		2.45		4.45		1.68
Mechanical time-constant	Ms	2.32	2.66		3.26		3.8		3.26		2.91		3.36		4.05		3.43
Weight	Kg	6.2	6.6		7.4		8.3		10.2		10.2		9.8		12.6		11.7
Encoder line number	PPR	2500
Insulation class	Class	Class B
Safety class	IP	IP65
Environmental Conditions Temperature	℃	Temperature -20℃ ~ +40℃ Humidity Below 90%RH No dewing
Motor winding plue	/	Winding lead wire	U			V				W				PE
		Plug serial number	2			3				4				1
Photoelectric Encoder Socket (15 Pin)	/	Signal lead wire	5V	0V	A+	B+	Z+	A-	B-	Z-	U+	V+	W+	U-	V-	W-	PE
		Plug serial number	2	3	4	5	6	7	8	9	10	11	12	13	14	15	1
Absolute Encoder Socket (7 pin)	/	Signal lead wire	E-		E+		SD-		0V		SD+		+5V		PE
		Plug serial number	2		3		4		5		6		7		1

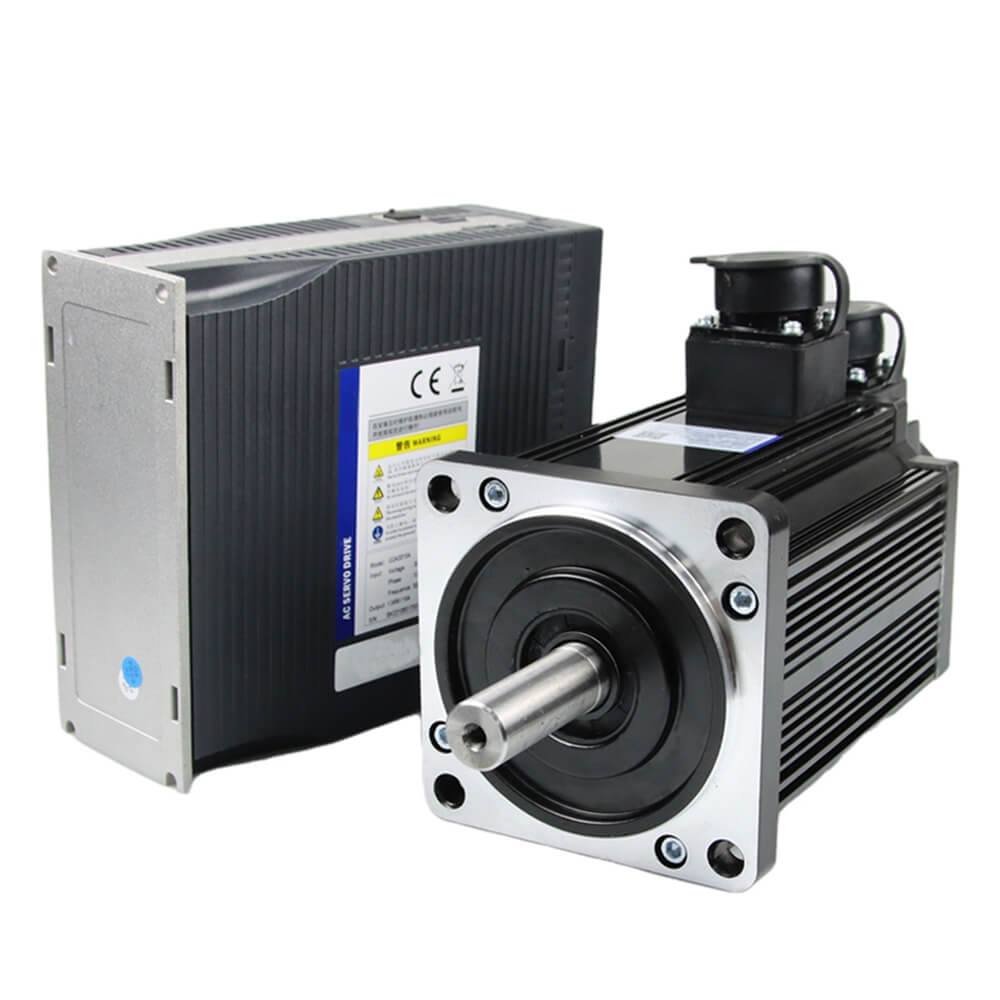

150ST Series AC Servo Motors

Ac Servo motor, small size, high precision, fast response, quiet operation, high efficieny, long service life, versatility.

Optional: Brakes, Drivers /Controllers...

Motor Model	Unit	150ST-M15025			150ST-M15020			150ST-M18020			150ST-M23020			150ST-M27020
Rated power	KW	3.8			3			3.6			4.7			5.5
Rated voltage	V	220			220			220			220			220
Rated current	A	17			14			17			21			24
Rated speed	Rpm	2500			2000			2000			2000			2000
Holding torque	N.m	15			15			18			23			27
Peak torque	N.m	30			30			36			46			54
Voltage constant	V/1000r/min	59			70			71			72			64
Torque coefficient	N.m/A	0.88			10.7			1.05			1.09			1.1
Rotor inertia	Kg.m2	3.88X10^-3			3.88X10^-3			4.6X10^-3			5.8X10^-3			6.5X10^-3
Line-Line Resistance	Ω	0.23			0.34			0.255			0.2			0.125
Line-Line Inductance	mH	1.08			1.55			1.3			1.06			0.7
Mechanical time-constant	Ms	4.7			4.56			5.1			5.3			5.6
Weight	Kg	15			15			17			20.4			22.7
Encoder line number	PPR	2500
Insulation class	Class	Class B
Safety class	IP	IP65
Environmental Conditions Temperature	℃	Temperature -20℃ ~ +40℃ Humidity Below 90%RH No dewing
Motor winding plue	/	Winding lead wire	U			V				W				PE
		Plug serial number	2			3				4				1
Photoelectric Encoder Socket (15 Pin)	/	Signal lead wire	5V	0V	A+	B+	Z+	A-	B-	Z-	U+	V+	W+	U-	V-	W-	PE
		Plug serial number	2	3	4	5	6	7	8	9	10	11	12	13	14	15	1
Absolute Encoder Socket (7 pin)	/	Signal lead wire	E-		E+		SD-		0V		SD+		+5V		PE
		Plug serial number	2		3		4		5		6		7		1

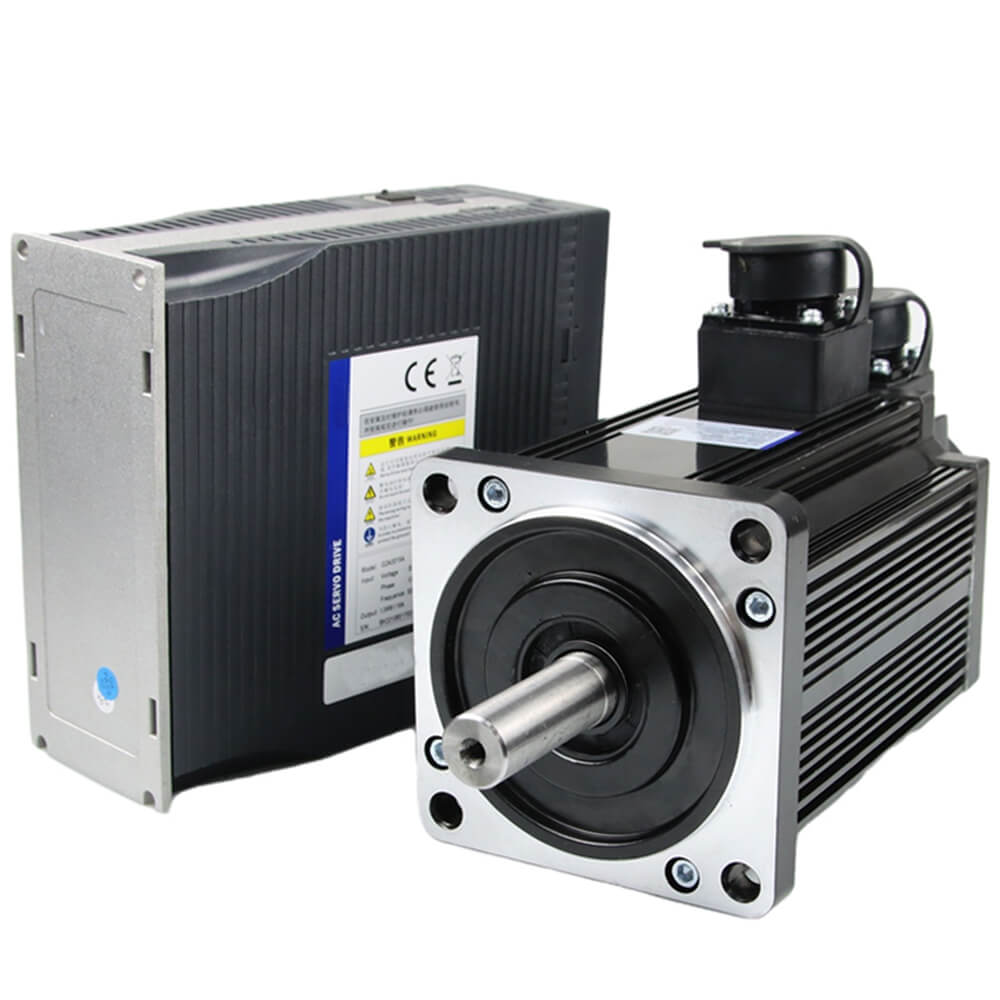

180ST Series AC Servo Motors

Ac Servo motor, small size, high precision, fast response, quiet operation, high efficieny, long service life, versatility.

Optional: Brakes, Drivers /Controllers...

Motor Model	Unit	180ST-M17215		180ST-M19015		180ST-M21520		180ST-M27010		180ST-M27015		180ST-M35010		180ST-M35015		180ST-M48015
Rated power	KW	2.7		3		4.5		2.9		4.3		3.7		5.5		7.5
Rated voltage	V	220	380	220	380	220	380	220	380	220	380	220	380	220	380	220	380
Rated current	A	10.5	6.5	12	7.5	16	9.5	12	7.5	16	10	16	10	24	12	32	20
Rated speed	Rpm	1500		1500		2000		1000		1500		1000		1500		1500
Holding torque	N.m	17.2		19		21.5		27		27		35		35		48
Peak torque	N.m	43		47		63		67		67		70		70		96
Voltage constant	V/1000r/min	112	167	97	170	84	140	138	224	103	172	134	223	90	181	94	156
Torque coefficient	N.m/A	1.64	2.65	1.58	2.5	1.34	2.26	2.25	3.6	1.69	2.7	2.2	3.5	1.48	2.9	1.5	2.4
Rotor inertia	Kg.m2	3.4x10^-3		3.8x10^-3		4.7x10^-3		6.1x10^-3		6.1x10^-3		8.6x10^-3		8.6x10^-3		9.5x10^-3
Line-Line Resistance	Ω	0.7	1.47	0.4	1.23	0.24	0.71	0.48	1.37	0.28	0.796	0.31	0.93	0.14	0.62	0.104	0.273
Line-Line Inductance	mH	3.5	7.8	2.42	7.3	1.45	4	3.26	8.6	1.74	4.83	3.28	9.1	1	4	0.77	2.14
Mechanical time-constant	Ms	5	5.3	6	5.93	6	5.6	6.79	6.27	6.2	6	10.58	9.78	7.14	6.45	7.4	7.8
Weight	Kg	19.5		20.5		22.2		25.5		25.5		30.5		30.5		40
Encoder line number	PPR	2500
Insulation class	Class	Class B
Safety class	IP	IP65
Environmental Conditions Temperature	℃	Temperature -20℃ ~ +40℃ Humidity Below 90%RH No dewing
Motor winding plue	/	Winding lead wire	U			V				W				PE
		Plug serial number	2			3				4				1
Photoelectric Encoder Socket (15 Pin)	/	Signal lead wire	5V	0V	A+	B+	Z+	A-	B-	Z-	U+	V+	W+	U-	V-	W-	PE
		Plug serial number	2	3	4	5	6	7	8	9	10	11	12	13	14	15	1
Absolute Encoder Socket (7 pin)	/	Signal lead wire	E-		E+		SD-		0V		SD+		+5V		PE
		Plug serial number	2		3		4		5		6		7		1
