BLDC Motor Driver

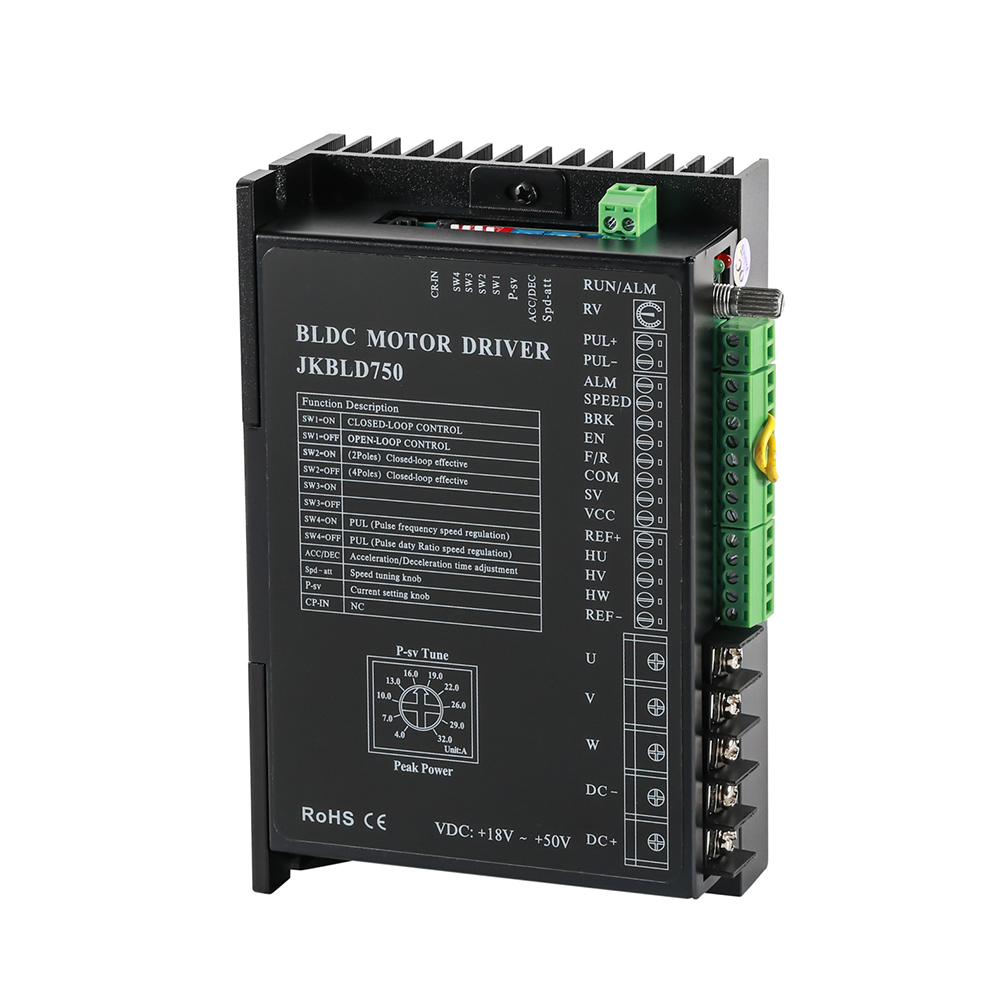

Brushless DC Motor Driver

Supports external potentiometer speed regulation, external analog voltage speed regulation, host computer (PLC, microcontroller, etc.) PWM speed regulation and other functions. The speed control range can reach 0-20000rpm, and the driving power can reach up to 2200W. It supports speed loop and current loop dual Closed-loop control achieves low temperature rise, low noise, low vibration, low positioning torque and twice the overload torque output. Some drives support RS-232 and RS-485 communication control.

• High Efficiency and Power Saving
• Electronic Commutation Control
• Multiple Feedback and Control Methods
• Programmable Speed and Acceleration Profiles
• Direction and Braking Control
• Overcurrent and Short Circuit Protection
• Overvoltage and Undervoltage Lockout
• Thermal Protection
• Built-in Microcontroller or DSP
• Plug-and-Play Configuration
• Wide Voltage and Current Ranges
• Environmental and Safety Compliance

How Does a BLDC Motor Driver Work?

A BLDC (Brushless DC) motor driver is a sophisticated electronic system designed to control the motion of a brushless DC motor. Unlike traditional brushed motors, BLDC motors rely on an external controller to manage power distribution to the motor windings. This is where the BLDC motor driver plays a critical role.



Understanding the BLDC Motor Structure

To understand how the driver works, it’s important to first understand the basic structure of a BLDC motor:

Stator:

Contains three-phase windings (coils) arranged in a circular pattern.



Rotor:

Equipped with permanent magnets that rotate when the stator windings are energized in sequence.

Since BLDC motors have no brushes or mechanical commutators, electronic commutation must be performed by the motor driver.





Step-by-Step Working of a BLDC Motor Driver

1. Rotor Position Detection

Before the driver can energize the correct stator winding, it must know the rotor's position. This is done in two ways:



Sensor-based detection:

Using Hall effect sensors inside the motor.



Sensorless detection:

By analyzing the back-EMF (electromotive force) from the motor windings.

The rotor position determines which motor windings should be energized at any given moment.



2. Commutation Logic Execution

The motor driver applies a commutation algorithm based on rotor position. There are typically two main methods:



Trapezoidal (6-step) Commutation:

Energizes two of the three motor phases at any given time.



Sinusoidal Commutation or FOC (Field-Oriented Control):

Provides smoother operation and higher efficiency by applying sinusoidal currents.



The driver selects the correct pairs of windings to energize, generating a rotating magnetic field that causes the rotor to follow.



3. Power Switching via Inverter Circuit

The driver uses high-speed electronic switches like MOSFETs or IGBTs, configured in a three-phase inverter layout. The microcontroller or control unit sends signals to gate drivers, which in turn activate the power switches.

These switches connect the motor windings to the power supply in the correct sequence and timing, allowing the rotor to spin.



4. Speed and Torque Control

Motor speed is typically controlled using PWM (Pulse Width Modulation). By adjusting the duty cycle of the PWM signal:

• Higher duty cycle = more power = higher speed/torque
• Lower duty cycle = less power = lower speed/torque

The driver continuously adjusts this signal based on user input or sensor feedback, allowing for precise speed regulation.



5. Current Sensing and Feedback

The driver constantly monitors current flowing through the motor. This data is used to:

• Prevent overcurrent conditions
• Optimize torque output
• Improve system efficiency

Current sensing is performed using shunt resistors, Hall sensors, or current transformers.



6. Protection and Safety Mechanisms

Modern BLDC motor drivers include built-in protections to prevent damage to the motor and electronics. These include:

• Overvoltage/Undervoltage Protection
• Overtemperature Shutdown
• Short Circuit and Overcurrent Protection
• Locked Rotor Detection

These safeguards automatically shut down or limit the motor's operation during abnormal conditions.



7. Communication and Control Interface

Most BLDC motor drivers offer external control through:

• PWM signals
• Analog voltage inputs
• Serial protocols (UART, SPI, I2C, CAN)

These interfaces allow the driver to receive commands from a microcontroller, PLC, or remote controller, making them suitable for integration into complex systems.





Summary of the BLDC Driver Operation Process:

1. Detect rotor position via sensors or back-EMF.
2. Determine commutation sequence based on position.
3. Generate gate signals for MOSFETs/IGBTs.
4. Switch power transistors to energize windings.
5. Monitor feedback for speed, current, and faults.
6. Adjust outputs dynamically based on control input.

In essence, a BLDC motor driver transforms input commands into controlled three-phase power, ensuring smooth, precise, and reliable motor operation. Whether in electric vehicles, industrial machinery, or home appliances, the driver's role is central to extracting peak performance from BLDC motors.





Types of BLDC Motor Drivers

BLDC motor drivers come in different types based on how they detect rotor position and how they manage commutation. The two main categories are sensor-based drivers and sensorless drivers, each with its own working principle, benefits, and ideal use cases. Understanding the differences is essential when selecting the right driver for a specific application.



1. Sensor-Based BLDC Motor Drivers

Sensor-based BLDC drivers rely on position sensors—typically Hall effect sensors—mounted inside the motor to determine the exact position of the rotor. These sensors provide real-time feedback to the motor driver, allowing it to switch the motor phases accurately.



Key Features:

• Uses three Hall effect sensors placed 120° apart electrically.
• Provides precise commutation timing, even at very low speeds.
• Ensures smooth startup and stable low-speed performance.

Advantages:

• Excellent performance at low RPMs.
• Simplified control logic—ideal for basic applications.
• Reliable and predictable motor behavior.

Disadvantages:

• Slightly higher cost due to added sensor components.
• Potential for sensor failure in harsh environments.
• Adds complexity to motor design and wiring.

Typical Applications:

• Electric vehicles
• Robotics
• Printers and scanners
• Industrial automation

2. Sensorless BLDC Motor Drivers

Sensorless BLDC drivers eliminate the need for physical sensors by estimating rotor position using the back-EMF (electromotive force) generated in the unpowered motor phases. This estimation is performed through advanced software algorithms built into the driver’s control unit.



Key Features:

• Relies on voltage measurements of non-energized windings.
• Uses mathematical models to predict rotor position and speed.
• Minimizes hardware requirements.

Advantages:

• Lower cost due to no sensors.
• Increased reliability—fewer components to fail.
• Compact and lightweight system design.

Disadvantages:

• Less accurate at low speeds or during startup.
• Requires more complex control algorithms.
• Performance can degrade under variable load conditions.

Typical Applications:

• Cooling fans
• Drones and UAVs
• Appliances (washing machines, refrigerators)
• Pumps and blowers

3. Integrated BLDC Motor Driver ICs

Many modern BLDC motor driver solutions come as integrated circuits (ICs) that combine the microcontroller, gate driver, and power stage in a single chip.

Features:

• Compact size
• Simplified design and reduced PCB footprint
• Optimized for low to medium power applications

Popular Use Cases:

• Computer cooling fans
• Portable tools
• Battery-operated appliances

4. External Driver + Controller Systems

In higher-end or industrial applications, the motor driver is often paired with an external microcontroller or DSP. These setups offer:

• Customizable firmware
• Advanced features like FOC (Field-Oriented Control) or sensor fusion
• Compatibility with sophisticated control systems

Best Suited For:

• Electric vehicles
• Industrial robotics
• High-performance drones

Conclusion

Choosing the right type of BLDC motor driver depends on your application requirements, such as control precision, speed range, environmental conditions, and cost. Sensor-based drivers offer superior low-speed performance and reliable startups, while sensorless drivers provide a compact, cost-effective solution ideal for high-speed and low-maintenance applications.
