Jkongmotor Integrated Linear Stepper Motors:

1. Determine Load Requirements

• Light Loads: Lead screws provide an economical solution.
• Heavy Loads: Ball screws offer higher efficiency and load capacity.

2. Precision and Resolution Considerations

• High-Precision Needs (<5μm): Microstepping controllers and ball screw integration are recommended.
• Standard Precision (50-100μm): Lead screws can be sufficient.

3. Speed and Acceleration Requirements

• High-Speed Motion (>500mm/s): Belt-driven systems provide rapid travel.
• Low-Speed Precision (<100mm/s): Microstepping technology enhances accuracy.

4. Environmental Factors

• Cleanroom Conditions: Low-dust, sealed designs are required.
• Harsh Environments: Motors with IP65-rated protection resist moisture and contaminants.

1. Medical Devices

• Syringe Pumps: Ensures precise fluid delivery for medical treatments.
• Imaging Equipment: Used in MRI and CT scanners for accurate positioning.

2. Semiconductor Manufacturing

• Wafer Handling Systems: High-precision linear motion ensures accurate chip placement.
• Lithography Machines: Requires sub-micron movement accuracy.

3. Industrial Automation

• XYZ Motion Stages: Found in robotic arms, assembly lines, and laser cutting machines.
• Pick-and-Place Systems: Enhances efficiency in automated manufacturing.

4. CNC Machines & 3D Printers

• 3D Printing Heads: Provides precise XYZ-axis control for detailed prints.
• CNC Milling Machines: Ensures high-speed, accurate cutting and engraving

1. Compact and Space-Saving Design

Unlike traditional stepper motors that require additional external linear actuators, integrated models provide an all-in-one solution, reducing system complexity and installation space.

2. High Precision and Accuracy

Stepper motors inherently offer high-precision movement due to their discrete step angles. When combined with microstepping controllers and precision lead screws, they achieve sub-micron positioning accuracy.

3. Low Maintenance and Long Service Life

Because no additional transmission mechanisms (like gears or belts) are needed, integrated linear stepper motors experience less wear and tear, leading to extended operational life with minimal maintenance.

4. Easy Control and Integration

• Compatible with standard stepper motor drivers.
• Can be controlled via PLC, microcontrollers (Arduino, Raspberry Pi), or motion control systems.
• Supports open-loop and closed-loop control for improved precision.

Linear stepper motors operate on the same fundamental principles as rotary stepper motors, utilizing electromagnetic forces to create motion. Below is a breakdown of their operation:

1. Electromagnetic Coils:

2. Stepper Design:

3. Incremental Steps:

1. Stepper Motor Unit

The stepper motor serves as the driving force for linear motion. It has the following characteristics:

• High positional accuracy: Operates in precise step increments.
• No brushes: Ensures long lifespan with minimal maintenance.
• Quick response: Supports rapid acceleration and deceleration, making it ideal for dynamic applications.

2. Linear Transmission Mechanism

The conversion of rotary motion to linear motion is achieved using:

• Lead Screws: Common in standard linear stepper motors for moderate precision and cost-effective applications.
• Ball Screws: Used in high-precision applications due to their low friction and high efficiency.
• Belt Drives: Suitable for long-travel and high-speed applications but with slightly lower precision.

3. Driver and Controller

The stepper motor driver determines motion smoothness and precision. Advanced digital controllers enable microstepping technology, which minimizes noise and vibrations. Some integrated systems also include closed-loop control, ensuring accurate positioning without losing steps.

Intelligent linear stepper motors merge integrated stepper servo technology with high precision screws, offering accuracy and convenience in compact actuators designed for linear positioning applications.

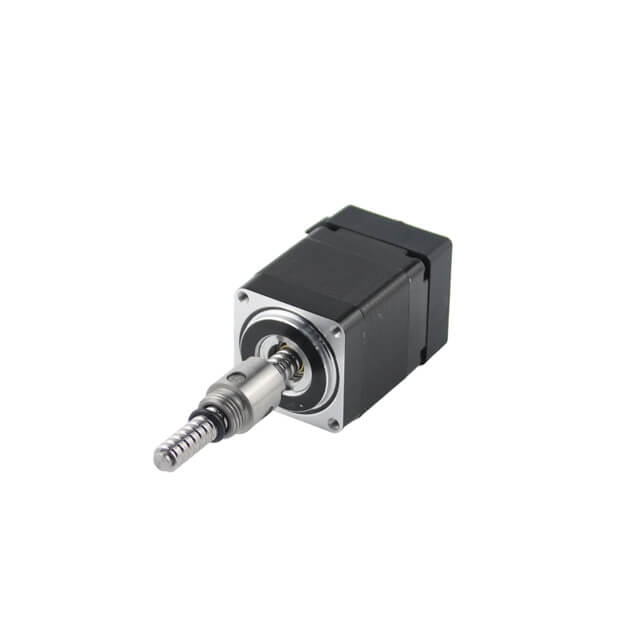

An integrated linear stepper motor is a sophisticated electromechanical device that seamlessly combines a traditional stepper motor with a linear motion mechanism. Unlike standard stepper motors, which generate rotational motion, this innovative system directly transforms rotary motion into precise linear movement. This design eliminates the need for additional transmission components such as lead screws or belts, streamlining installation and operation.

These motors find extensive application in various fields, including automation, medical devices, semiconductor manufacturing, and CNC machinery, where they provide the high-precision linear motion essential for optimal performance.
