There are three main types of stepper motors used in industrial automation:

1. Permanent Magnet (PM) Stepper Motor

• Simple structure

• Low cost

• Moderate precision

2. Variable Reluctance (VR) Stepper Motor

• No permanent magnet

• High stepping rate

• Lower torque output

3. Hybrid Stepper Motor (Most Popular)

• Combines PM and VR technology

• High torque

• High precision (0.9° and 1.8° step angle)

• Widely used in CNC machines, robotics, medical devices, and AGV equipment

In modern industrial applications, hybrid stepper motors are the most widely used type due to their performance and reliability.

A stepper motor’s speed depends on driver frequency, load conditions, and motor design.

Typical RPM range:

• 0–300 RPM → High torque and stable positioning

• 300–1000 RPM → Standard industrial operation

• Up to 2000 RPM or higher → With high-voltage driver and light load

Most stepper motors perform best between 100–600 RPM, where torque and stability are balanced.

Unlike servo motors, stepper motors are optimized for:

• Precise positioning

• Low to medium speed applications

• High holding torque at zero speed

A stepper motor typically requires 2V to 5V rated voltage per phase, but in real industrial applications, the driver supply voltage is usually 12V, 24V, or 48V DC.

It is important to understand:

• The rated voltage printed on the motor is based on coil resistance.

• The actual operating voltage depends on the stepper driver.

• Higher supply voltage (such as 24V or 48V) improves:

  • High-speed performance

  • Torque output at higher RPM

  • Acceleration capability

For CNC machines, 3D printers, robotics, and AGV systems, 24V and 48V stepper motor systems are the most common.

There is no absolute “better” option—it depends on the application:

• Stepper motors are better for low-cost, moderate-speed, high-precision positioning without feedback.

• Servo motors are better for high-speed, high-efficiency, and closed-loop applications requiring dynamic performance.

For simple positioning systems, stepper motors are often more economical. For demanding automation systems, servo motors provide superior performance.

Advantages:

• High positioning accuracy

• Simple open-loop control

• Good low-speed torque

• Cost-effective

• High reliability

Disadvantages:

• Lower efficiency compared to servo motors

• Can lose steps under overload

• Not ideal for high-speed continuous operation

• Generates heat at standstill

Here are 10 common stepper motor applications:

1. CNC machines

2. 3D printers

3. Laser cutting machines

4. Robotics

5. Medical pumps

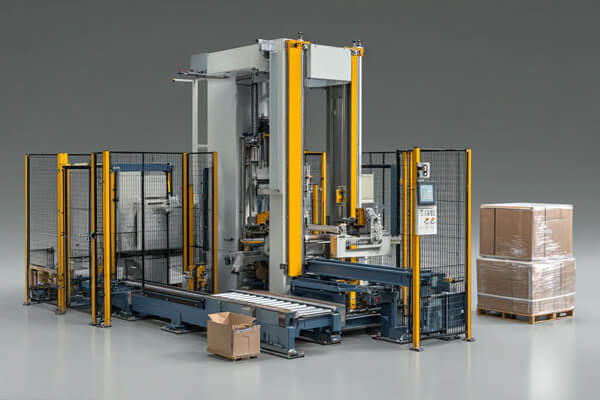

6. Packaging machines

7. Textile machinery

8. Printers and scanners

9. Camera pan-tilt systems

10. Automated inspection systems

These applications require precise motion control and repeatability.

A stepper motor is powered by:

• A DC power supply

• A stepper motor driver

• A controller (such as PLC or microcontroller)

The controller sends pulse signals to the driver, and the driver regulates current to the motor windings.

Stepper motors are best used for:

• Precise positioning

• Low-speed torque applications

• Repeatable motion control

• Open-loop control systems

They are commonly used in CNC machines, 3D printers, robotics, and automation equipment.

The main difference between a stepper motor and a regular motor (such as an induction or brushed DC motor) is control and movement style:

• Stepper motor: Moves in discrete steps with precise position control.

• Regular motor: Rotates continuously when powered.

• Stepper motors are ideal for positioning tasks.

• Regular motors are better for continuous high-speed rotation.

Stepper motors do not always require feedback systems, while regular motors often need encoders for precision control.
