Planetary Gearbox

Planetary gearboxes are among the most efficient and compact gear systems used in mechanical power transmission. Known for their high torque density, compact structure, and precise motion control, they are widely used across multiple industries — from robotics and automation to aerospace and heavy machinery.

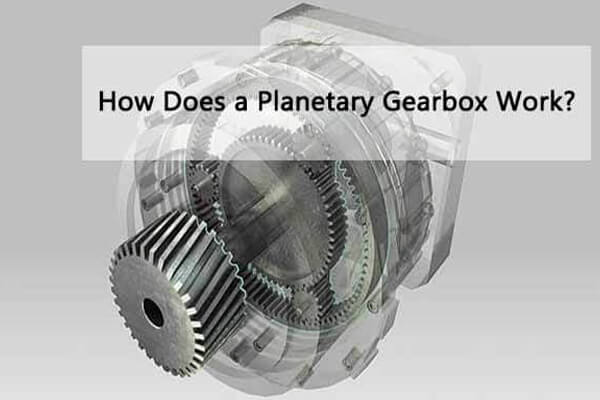

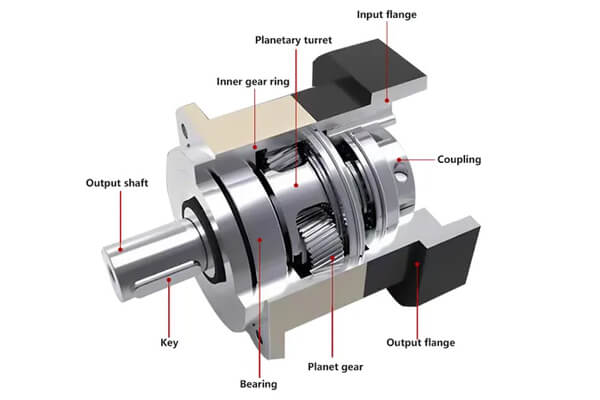

Their unique design — consisting of a central sun gear, orbiting planet gears, and an outer ring gear — enables smooth power distribution, high torque output, and excellent load-bearing capacity within a small footprint. This makes planetary gearboxes ideal wherever high performance and efficiency are required.

1. Industrial Automation and Robotics

In industrial automation and robotic systems, planetary gearboxes play a crucial role in achieving precision motion control and high torque in compact spaces.

Applications Include:

Robotic Arms and Manipulators:

• Planetary gearboxes ensure accurate positioning, smooth motion, and consistent torque output at each robotic joint.

Automated Guided Vehicles (AGVs) and AMRs:

• Used in wheel drives for precise speed control and high load-carrying capability.

Pick-and-Place Systems:

• Require fast acceleration, deceleration, and zero backlash — all easily achieved with planetary gear reducers.

CNC Machinery and Servo Systems:

Provide smooth rotational motion and stability for axis drives, improving cutting precision and repeatability.

Their low backlash, high stiffness, and compact dimensions make planetary gearboxes the backbone of advanced robotic and automation applications.

2. Electric Vehicles and Automotive Systems

Planetary gearboxes are extensively used in automotive transmissions, especially in electric vehicles (EVs) and hybrid powertrains, due to their efficiency and torque distribution capabilities.

Key Automotive Uses:

Automatic Transmissions (AT):

• The planetary gear set is the heart of automatic transmissions, enabling multiple gear ratios within a compact design.

Electric and Hybrid Vehicles:

• Used to optimize torque and speed balance between the electric motor and the wheels, improving overall drivetrain performance.

Differential Gear Systems:

• Allow smooth torque transfer between drive wheels while maintaining stability during turns.

Power Steering Systems:

• Provide controlled assistance and precise torque transmission in compact units.

Planetary gearboxes enable automotive engineers to design lightweight, high-performance, and energy-efficient drivetrains capable of handling varying speed and load conditions.

3. Aerospace and Aviation Industry

In the aerospace sector, where precision, reliability, and weight efficiency are paramount, planetary gear systems are indispensable. Their balanced load distribution and smooth torque transmission make them ideal for high-performance aerospace applications.

Common Uses:

Helicopter Transmissions:

• Planetary gearboxes transmit engine power to the rotor system, providing torque multiplication while maintaining compactness and reliability.

Aircraft Turbine Engines:

• Used in accessory drives and starter generators for efficient power management.

Landing Gear Actuation Systems:

• Deliver controlled motion for deploying and retracting landing gears.

Spacecraft and Satellites:

• Operate solar panel drives, antenna positioning systems, and robotic arms where precision and zero backlash are critical.

Their lightweight design, durability, and high torque capacity make planetary gearboxes perfectly suited for the demanding conditions of aerospace environments.

4. Renewable Energy Systems

Planetary gearboxes are a vital part of wind and solar energy generation systems, where efficient torque conversion and high reliability are required for continuous operation.

Typical Applications:

Wind Turbines:

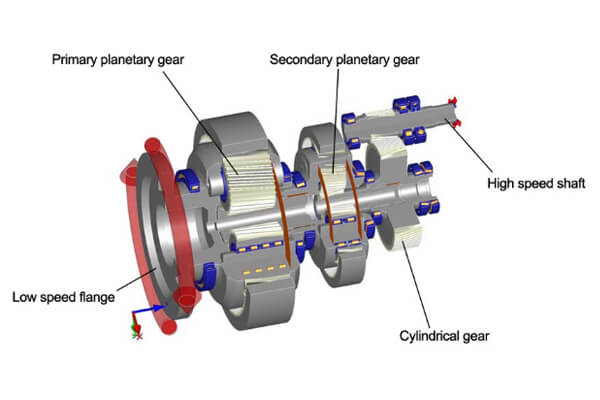

• Planetary gearboxes step up the low-speed rotation of the turbine blades to high-speed input for electricity generation, ensuring maximum efficiency and minimal mechanical loss.

Solar Tracking Systems:

• Enable precise movement of solar panels to follow the sun’s path, optimizing energy capture throughout the day.

Their robust construction and long service life allow planetary gearboxes to perform reliably in outdoor and variable weather conditions, ensuring sustainable and efficient energy production.

5. Material Handling and Conveying Systems

In material handling industries, planetary gear reducers are used in equipment that requires high torque and compact integration.

Applications Include:

Conveyor Drives:

• Provide smooth, controlled movement for heavy-duty conveyors used in manufacturing, mining, and logistics.

Cranes and Hoists:

• Offer excellent torque multiplication for lifting and lowering heavy loads with precision.

Winches and Elevators:

• Deliver steady power transmission and braking control to ensure safe, efficient operation.

With their high load-bearing capacity and shock resistance, planetary gearboxes are well-suited for industrial lifting and transport systems operating under heavy stress and dynamic load changes.

6. Machine Tools and Precision Equipment

In the field of precision engineering and machine tools, planetary gearboxes provide stability, accuracy, and vibration-free motion, which are essential for high-performance machining.

Typical Uses:

CNC Lathes and Milling Machines:

• Planetary reducers control spindle speed and torque, ensuring precise cutting and surface finish.

Printing and Packaging Machines:

• Enable synchronized movements and precise alignment during high-speed operations.

Textile Machinery:

• Maintain consistent fabric tension and motion accuracy during weaving and winding.

Their low noise, minimal backlash, and excellent transmission efficiency make planetary gearboxes indispensable in manufacturing equipment that demands high precision and reliability.

7. Medical and Laboratory Equipment

In medical and scientific instruments, planetary gearboxes are used wherever quiet operation, compact design, and precise motion are required.

Common Applications:

Medical Imaging Devices (MRI/CT):

• Control rotation and positioning mechanisms with extreme precision.

Surgical Robots:

• Use miniature planetary gearboxes for smooth, accurate tool manipulation.

Laboratory Automation Systems:

• Handle small, repetitive movements such as pipetting or sample rotation.

Electric Hospital Beds and Wheelchairs:

• Provide stable, controlled movement for patient positioning and mobility.

The compact and efficient design of planetary gearboxes makes them ideal for medical devices where silent and accurate operation is essential.

8. Construction and Heavy Machinery

In construction and mining equipment, planetary gearboxes are chosen for their ability to handle high shock loads and extreme torque conditions.

Typical Uses:

Excavators and Bulldozers:

• Drive the swing, travel, and arm functions, offering high torque within limited space.

Drilling Rigs:

• Provide precise control over drilling speed and torque output.

Wheel Loaders and Crushers:

• Deliver consistent power transmission for rugged, continuous operation.

Cement Mixers:

• Ensure uniform mixing through reliable rotational control.

The durability and strength of planetary gearboxes allow them to thrive in harsh environments involving heavy loads, vibrations, and dust exposure.

9. Marine and Offshore Equipment

Planetary gearboxes are also essential in marine propulsion systems and offshore machinery, where reliability and corrosion resistance are key.

Applications Include:

Anchor Handling and Winch Systems:

• Enable powerful and controlled anchor operations.

Thruster Drives:

• Manage propulsion and directional control for vessels.

Offshore Cranes:

• Deliver high torque and safe load handling under variable sea conditions.

Designed for marine-grade durability, planetary gearboxes perform effectively in demanding environments where continuous operation and minimal downtime are required.

10. Agricultural and Forestry Equipment

In agriculture, planetary gearboxes are used in equipment that must provide reliable power transmission under variable terrain and load conditions.

Applications:

Tractors and Harvesters:

• Enhance torque transmission in drive axles and cutting mechanisms.

Seeders and Sprayers:

• Offer precise motion control for uniform seed distribution and spraying.

Forestry Machines:

• Drive saws and chippers requiring high torque and shock resistance.

Their high efficiency and robust build ensure dependable operation, even in dusty, wet, or high-vibration agricultural environments.

Conclusion

The applications of planetary gearboxes span across virtually every industry — from robotics and automation to automotive, aerospace, renewable energy, and heavy machinery. Their high torque density, compact size, efficiency, and durability make them one of the most versatile power transmission solutions available today.

Whether used in precision robotics or massive industrial systems, planetary gearboxes deliver reliability, performance, and efficiency that meet the highest engineering standards.
