How to Prevent Step Loss in AS/RS Storage Systems with Integrated Closed-Loop Stepper Motors?

Automated Storage and Retrieval Systems (AS/RS) are built around one basic requirement: move the right load to the right location and stop at the right position, repeatedly and reliably. In a modern warehouse, that sounds simple. In practice, the storage system may need to accelerate heavy loads, travel through long aisles, position pallets at multiple levels, and operate continuously with very little tolerance for positioning errors.

This is where motor selection becomes important.

A conventional open-loop stepper motor can provide accurate incremental motion under suitable operating conditions, but it does not inherently know whether the commanded position was actually reached. If the motor encounters excessive load, rapid acceleration, mechanical resistance, vibration, or insufficient torque, it can lose synchronization. In an AS/RS application, even a relatively small positioning error can create problems during pallet insertion, retrieval, vertical lifting, or shelf alignment.

An integrated closed-loop stepper motor addresses this issue by combining the stepper motor, feedback encoder, and motor control electronics into one motion unit. The controller can continuously compare the commanded motion with the motor's actual position and respond when a position deviation occurs.

For AS/RS equipment manufacturers and system integrators, this combination provides a practical way to improve positioning reliability, torque utilization, overload response, wiring simplicity, and overall motion control performance.

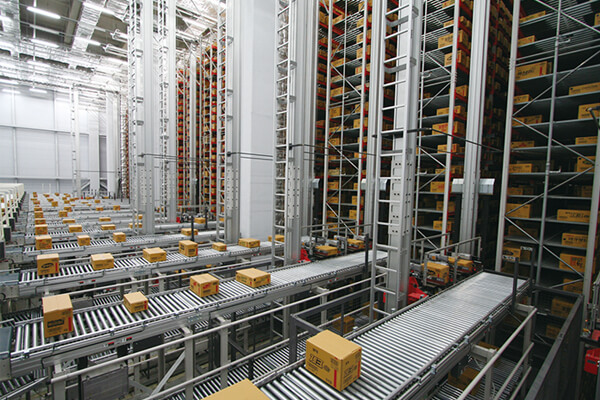

What Makes AS/RS Storage Systems Different?

AS/RS equipment is not simply a warehouse conveyor with a motor attached. The motion system often has to coordinate several mechanical operations within a compact and highly automated environment.

Typical AS/RS equipment can include:

• Stacker cranes

• Pallet storage and retrieval machines

• Mini-load AS/RS systems

• Shuttle storage systems

• Vertical lift modules

• Automated tote handling systems

• Warehouse conveyors

• Transfer units

• Telescopic forks

• Pallet positioning mechanisms

• Automated picking and storage equipment

Different mechanisms require different motor characteristics.

A horizontal travel axis may need high acceleration and stable speed control. A lifting axis needs sufficient torque to handle the load and may require a brake or additional holding mechanism. A telescopic fork needs precise positioning and repeatable extension. A shuttle mechanism may need compact dimensions and fast response.

Therefore, the question is not simply "How many watts does the motor have?"

A better purchasing question is:

Can the motor deliver the required torque and positioning performance throughout the complete operating cycle?

That means evaluating torque at acceleration, speed range, duty cycle, load inertia, mechanical transmission, positioning accuracy, encoder feedback, thermal performance, communication, and fault handling.

Types of Integrated Closed-Loop Stepper Motors from JKONGMOTOR

JKONGMOTOR offers a range of integrated closed-loop stepper motors designed to combine the stepper motor, encoder, and drive electronics into a compact motion-control solution. Different mechanical configurations are available to match the requirements of automation equipment, robotics, linear motion systems, packaging machinery, material handling, and other industrial applications.

Rather than choosing a motor only by frame size, OEMs can select the configuration based on torque, positioning requirements, transmission method, installation space, environmental conditions, and control architecture.

Jkongmotor Customized Servo Motor Motions

One-Stop Integrated DC Servo Motor Solution Provider

1. Integrated Stepper Servo Motor

The integrated stepper servo motor is the core configuration for applications requiring closed-loop positioning in a compact package. It combines a stepper motor with an encoder and integrated driver, allowing the control system to monitor actual motor movement and detect position deviation.

This type is suitable for industrial automation, robotics, packaging machines, CNC equipment, AGV systems, and automated machinery where repeatable positioning and simplified wiring are important.

Key features:

• Integrated motor, encoder, and driver

• Closed-loop position feedback

• High holding torque

• Compact installation

• Reduced external wiring

• Suitable for OEM/ODM customization

2. Integrated Planetary Geared Stepper Motor

An integrated planetary geared stepper motor combines a closed-loop stepper motor with a planetary gearbox. The gearbox provides a practical way to increase output torque and reduce output speed while maintaining a compact mechanical package.

The planetary gear structure can also offer low backlash and high transmission efficiency, making this configuration useful for applications where both torque and positioning performance matter.

Typical applications include robotics, automation equipment, AGV/AMR systems, material handling, packaging machinery, and precision positioning equipment.

Key features:

• Integrated closed-loop stepper motor

• Planetary gearbox

• Higher output torque

• Reduced output speed

• Compact transmission structure

• Low-backlash options for positioning applications

3. Integrated Worm Geared Stepper Motor

The integrated worm geared stepper motor combines a stepper motor, encoder/driver, and worm gearbox in one integrated drive unit.

Its worm gear transmission is useful when the application requires high reduction ratios, increased output torque, compact installation, and controlled low-speed movement.

This configuration can be considered for conveyors, lifting mechanisms, material handling equipment, automated machinery, and positioning systems.

Key features:

• Integrated stepper motor and drive

• Worm gear reduction

• High reduction ratios

• Increased output torque

• Compact mechanical design

• Suitable for low-speed applications

4. Integrated Worm Geared Stepper Servo Motor

For applications that require both worm gear transmission and closed-loop feedback, JKONGMOTOR provides the integrated worm geared stepper servo configuration.

Compared with a basic geared stepper configuration, the closed-loop version adds encoder feedback so the controller can monitor actual motor movement. This can be valuable for applications exposed to variable loads or requiring repeatable positioning.

Typical applications include automation systems, conveyors, lifting equipment, AGV mechanisms, packaging machinery, and industrial motion-control equipment.

Key features:

• Closed-loop stepper servo technology

• Integrated encoder and driver

• Worm gearbox

• High torque multiplication

• Position deviation monitoring

• Compact wiring and installation

5. Integrated Waterproof Stepper Motor

The integrated waterproof stepper motor is designed for applications where the motor may be exposed to moisture, dust, splashing, or demanding industrial environments.

For equipment such as outdoor automation, industrial machinery, cleaning equipment, food-processing machinery, and material-handling systems, environmental protection can be an important part of motor selection.

The required IP protection level should always be specified according to the actual operating environment and verified for the complete motor assembly.

Key features:

• Integrated stepper motion-control design

• Enhanced environmental protection options

• Encoder and driver integration

• Suitable for demanding operating environments

• OEM customization available

6. Integrated Linear Stepper Servo Motor

An integrated linear stepper servo motor converts rotary motor motion into controlled linear movement by integrating the stepper servo with a lead-screw or linear-drive mechanism.

This configuration eliminates the need for some external transmission components and provides a compact solution for applications requiring precise linear positioning.

Typical applications include laboratory automation, medical equipment, liquid handling, dispensing systems, inspection equipment, semiconductor machinery, and automated actuators.

Key features:

• Integrated stepper servo and linear mechanism

• Closed-loop position feedback

• Compact linear actuator design

• Repeatable linear positioning

• Reduced mechanical components

• OEM/ODM customization options

7. Integrated Linear Motion Systems

An integrated linear motion system combines the motor and linear mechanical structure into a ready-to-integrate motion module. Depending on the configuration, the system can incorporate a lead screw, ball screw, slider, guide mechanism, or other linear transmission components.

This approach is particularly useful for OEMs that want to integrate motor + drive + linear actuator into a single assembly instead of sourcing each component separately.

Applications include pick-and-place machines, automated inspection, dispensing equipment, laboratory automation, packaging machines, medical equipment, and industrial linear positioning systems.

Key features:

• Integrated motor and linear mechanism

• Compact actuator architecture

• Lead screw or ball screw configurations

• Closed-loop motion options

• Simplified machine integration

• Custom stroke, mounting, and interface options

How to Choose the Right Integrated Closed-Loop Stepper Motor

Different applications require different motor structures. A simple integrated stepper servo may be sufficient for a rotary positioning axis, while a geared or linear configuration may be more appropriate when the machine requires higher output torque or direct linear movement.

The final selection should consider load torque, speed, acceleration, inertia, positioning accuracy, duty cycle, encoder requirements, gearbox ratio, installation dimensions, communication method, and environmental conditions.

Why Step Loss Is a Serious Problem in AS/RS Applications

Step loss occurs when the motor does not physically follow the commanded position.

With an open-loop stepper system, the controller may send a specific number of pulses and assume that the motor has completed the corresponding movement. If the motor stalls or falls behind because of excessive load or insufficient torque, the controller may not automatically know that the actual position has changed.

For an AS/RS machine, this can lead to several practical problems.

Incorrect Positioning

A storage machine may stop several millimeters away from its intended position. That may be enough to prevent a fork from entering a pallet or cause a transfer mechanism to misalign.

Accumulated Position Errors

Repeated movements can make positioning problems more difficult to diagnose, especially when the system depends entirely on commanded step counts.

Mechanical Interference

Incorrect positioning can result in interference between pallets, forks, shelves, conveyors, or other mechanical components.

Production Downtime

A positioning fault may require the machine to stop, return to a reference position, or undergo manual inspection.

Reduced Throughput

If the system must operate conservatively to avoid losing steps, acceleration and travel speeds may need to be reduced.

For warehouse operators, the real cost is therefore not simply the motor itself. A small motion-control problem can become a system-level availability problem.

How an Integrated Closed-Loop Stepper Motor Prevents Step Loss？

An integrated closed-loop stepper motor prevents unnoticed step loss by using an encoder to continuously compare the motor’s actual position with the commanded position. This is especially useful in AS/RS storage systems, where repeated acceleration, changing payloads, and precise stopping can place significant demands on the drive motor.

The closed-loop process is straightforward:

Commanded Position → Motor Movement → Encoder Feedback → Position Comparison → Motion Correction

1. Encoder Feedback Tracks Actual Position

A built-in encoder continuously monitors the motor shaft position and sends feedback to the integrated driver.

Instead of assuming that the motor has completed every commanded step, the controller can determine whether the motor is actually following the motion command.

This is important when an AS/RS shuttle, stacker crane, or transfer mechanism experiences a sudden change in load or mechanical resistance.

2. The Controller Detects Position Deviation

Step loss can occur when the required torque exceeds the motor's available torque.

With encoder feedback, the controller can identify a difference between the target position and actual position. When the deviation reaches a defined threshold, the system can respond according to its control strategy, such as adjusting motor output or generating a fault signal.

This prevents a positioning error from remaining completely undetected.

3. Motor Output Can Respond to Load Changes

AS/RS equipment does not always operate under the same conditions. Payload weight, friction, acceleration, and mechanical resistance can change from one operating cycle to another.

A closed-loop stepper motor can use feedback information to adjust its drive response when the actual motion differs from the commanded motion.

This makes the system more tolerant of variable loads and dynamic operating conditions than a conventional open-loop stepper configuration.

4. Closed-Loop Control Improves Acceleration Performance

High acceleration places greater torque demand on the motor. If acceleration is too aggressive for the available torque, synchronization can be lost.

Encoder feedback allows the controller to monitor motor movement during acceleration, constant-speed travel, and deceleration.

For AS/RS applications, this can support more reliable motion on:

• Stacker crane travel axes

• Vertical lifting mechanisms

• AS/RS shuttle vehicles

• Telescopic forks

• Warehouse conveyors

• Automated transfer mechanisms

5. Position Errors Can Be Detected Before They Become System Problems

The main advantage of closed-loop control is not that step loss becomes physically impossible. Instead, the system can detect position deviation and take corrective or protective action.

For example, if an AS/RS shuttle encounters unexpected resistance, the encoder can report that the actual movement does not match the commanded movement. The controller can then respond according to the configured error limits.

This provides an additional layer of protection against unnoticed positioning errors.

6. Integrated Motor and Driver Simplify the Motion Architecture

An integrated closed-loop stepper motor combines the stepper motor, encoder, and driver into one compact unit.

This architecture can reduce external wiring and simplify installation compared with a conventional motor-plus-separate-driver arrangement.

For AS/RS equipment manufacturers, the benefits can include:

Less wiring → Smaller control cabinets → Easier installation → Simpler maintenance

The exact level of integration depends on the motor platform and communication configuration.

7. Why Closed-Loop Stepper Motors Fit AS/RS Applications

AS/RS systems need more than basic motor rotation. They require repeatable positioning, controlled acceleration, reliable load handling, and motion-status feedback.

An integrated closed-loop stepper motor addresses these requirements by combining:

Key Takeaway

An integrated closed-loop stepper motor prevents step loss from becoming an unnoticed positioning problem by continuously monitoring actual motor movement. When the commanded position and actual position differ, the integrated controller can respond according to its control algorithm and configured limits.

For AS/RS storage and retrieval systems, this combination of motor torque, encoder feedback, integrated drive electronics, and position-error monitoring provides a practical motion-control solution for applications where repeatable positioning and reliable operation are critical.

What Functions Should an AS/RS Closed-Loop Stepper Motor Have?

When purchasing an integrated closed-loop stepper motor for an AS/RS project, we recommend looking beyond basic motor specifications.

1. Encoder Feedback

Encoder feedback is the foundation of closed-loop operation.

Depending on the application, the encoder may be incremental or absolute. For systems requiring position retention or more sophisticated machine-level control, absolute encoder options can be worth considering.

The key point is that the feedback system should provide sufficient resolution for the required positioning performance.

2. High Starting and Holding Torque

AS/RS mechanisms frequently operate under changing loads.

A motor that performs well with an empty carriage may behave differently when carrying a full pallet or tote. The motor should therefore be selected according to the actual load torque and reflected inertia, rather than only its nominal rated torque.

3. Stable Acceleration and Deceleration

Fast motion is valuable only when the machine can maintain control.

Excessively aggressive acceleration can create high torque demand and increase the possibility of tracking errors. A suitable integrated closed-loop stepper motor should work effectively with the application's acceleration and deceleration profile.

4. Overload and Position Error Detection

A useful closed-loop system should be able to identify abnormal tracking conditions and communicate a fault or warning to the higher-level controller.

This allows the PLC or warehouse control system to respond before a small motor deviation becomes a larger mechanical problem.

5. Integrated Driver Electronics

Integrating the driver with the motor can reduce the amount of external hardware required in the control cabinet.

This can be particularly attractive for compact AS/RS machines where cabinet space, wiring, installation time, and maintenance accessibility all matter.

6. Industrial Communication Options

Depending on the system architecture, buyers may require interfaces such as:

• Pulse/Direction

• RS485

• Modbus RTU

• CANopen

• EtherCAT

The correct interface depends on the PLC, motion controller, network architecture, and synchronization requirements.

For OEM equipment manufacturers, communication flexibility can make the same motor platform easier to adapt to different customer projects.

7. Thermal Performance

AS/RS machines often operate for long periods with repeated acceleration and deceleration.

Motor temperature should therefore be evaluated under the real duty cycle, not just during a short laboratory test.

Continuous operation, high ambient temperature, high current, frequent acceleration, and restricted ventilation can all influence motor temperature.

Why Many AS/RS Buyers Consider Integrated Closed-Loop Stepper Motors

For many machine builders, the appeal of an integrated closed-loop stepper motor is not simply "closed-loop is better."

The real attraction is the combination of several functions in one unit.

Better Motion Confidence

Feedback provides the controller with information about actual motor movement. This gives the system a way to identify tracking errors instead of relying entirely on commanded steps.

Lower System Complexity

With the motor, encoder, and driver integrated, the machine builder can reduce the number of separate components.

That can simplify:

• Wiring

• Cabinet layout

• Installation

• Commissioning

• Maintenance

• Spare-parts management

More Efficient Use of Cabinet Space

Traditional architectures may require a separate stepper motor, driver, encoder connection, and associated wiring.

An integrated solution moves much of this hardware into the motor assembly, which can help create a cleaner machine architecture.

Easier OEM Integration

For an AS/RS manufacturer developing multiple machine models, a configurable integrated motor platform can simplify product development.

The same basic architecture may be adapted through different:

• Motor sizes

• Torque ratings

• Encoder configurations

• Gear ratios

• Communication interfaces

• Shaft designs

• Cable configurations

• Mounting dimensions

This is one reason OEM customization is important when selecting a motor supplier.

How to Size a Closed-Loop Stepper Motor for AS/RS

Choosing a motor by frame size alone is risky.

A proper selection should begin with the mechanical requirements.

Step 1: Determine the Load

Identify the maximum payload, carriage mass, moving components, and any additional mechanical load.

For a lifting axis, include the vertical load and transmission efficiency.

Step 2: Calculate Required Torque

For a rotating load, the basic relationship is:

Torque = Force × Radius

For acceleration, the required torque also depends on inertia:

T = J × α

where:

• T = acceleration torque

• J = reflected rotational inertia

• α = angular acceleration

For linear mechanisms driven by a lead screw, belt, rack-and-pinion, or other transmission, the calculation must also account for the transmission geometry and efficiency.

Step 3: Check Speed-Torque Performance

A stepper motor's available torque decreases as speed increases.

Therefore, the motor should not be selected based only on its holding torque.

The critical question is:

How much torque remains available at the actual operating speed?

Step 4: Evaluate the Duty Cycle

Consider:

• Continuous running time

• Start-stop frequency

• Acceleration frequency

• Maximum travel distance

• Standby periods

• Peak load

• Average load

A motor suitable for intermittent operation may not be suitable for continuous warehouse operation.

Step 5: Consider Safety Margin

The motor should have sufficient torque margin for real-world variations such as friction, load changes, temperature, mechanical wear, and unexpected resistance.

However, excessive oversizing is not automatically beneficial. A properly matched motor can provide a better balance between performance, efficiency, cost, and physical size.

Closed-Loop Stepper vs. Open-Loop Stepper for AS/RS

The difference becomes clearer when viewed from an application perspective.

An open-loop stepper can still be appropriate for certain low-risk mechanisms with predictable loads.

However, when the machine builder needs position feedback, error detection, compact integration, and improved control of variable loads, an integrated closed-loop stepper becomes a more attractive architecture.

Where Can Integrated Closed-Loop Stepper Motors Be Used in AS/RS?

Integrated closed-loop stepper motors are used in AS/RS (Automated Storage and Retrieval Systems) wherever equipment needs controlled movement, repeatable positioning, and reliable feedback. By combining the stepper motor, encoder, and driver into one compact unit, they can simplify motion control while helping the system detect position deviation during operation.

The most common applications include stacker cranes, shuttle systems, lifting mechanisms, telescopic forks, conveyors, and automated transfer units.

1. Stacker Crane Travel Systems

Stacker cranes move horizontally through warehouse aisles to reach designated storage locations. Their travel axes require controlled acceleration, stable running, and accurate stopping.

An integrated closed-loop stepper motor can provide:

• Accurate positioning

• Encoder-based motion feedback

• Controlled acceleration and deceleration

• Position-error detection

• Reliable start-stop operation

This makes the motor suitable for applications where the crane must repeatedly stop at predefined pallet or tote positions.

2. AS/RS Shuttle Vehicles

AS/RS shuttle systems use motorized vehicles to transport pallets, bins, or totes within storage lanes.

A shuttle may perform hundreds or thousands of repeated motion cycles, making position repeatability and motion reliability important.

Integrated closed-loop stepper motors can be used for shuttle travel and positioning mechanisms, particularly when the system requires compact drive units with integrated feedback.

The encoder allows the controller to monitor actual motor movement rather than relying exclusively on commanded pulses.

3. Vertical Lifting Mechanisms

Vertical movement is one of the more demanding applications in an AS/RS system because the motor must overcome gravity as well as the mechanical load.

For lifting applications, motor selection should consider:

• Maximum payload

• Carriage weight

• Required lifting speed

• Acceleration

• Gear ratio

• Transmission efficiency

• Duty cycle

• Holding requirements

An integrated closed-loop stepper motor can provide feedback on actual movement and help the control system identify abnormal position deviation.

For safety-critical lifting axes, additional mechanical or electrical safety measures may also be required. The motor should not be treated as the sole safety device.

4. Telescopic Fork Mechanisms

Telescopic forks extend into storage locations to pick up or place pallets. Their movement must be controlled carefully because the fork has to enter the correct position without interfering with the rack or load.

An integrated closed-loop stepper motor can provide the repeatable linear positioning required for fork extension and retraction.

Depending on the mechanical design, the motor can drive the fork through:

• Lead screws

• Ball screws

• Timing belts

• Chains

• Gear mechanisms

• Rack-and-pinion systems

The actual positioning accuracy depends on the complete transmission system, not only the motor.

5. Automated Warehouse Conveyors

Conveyors are commonly used to move pallets, cartons, totes, and bins between storage and retrieval stations.

Integrated closed-loop stepper motors can be applied to conveyor drive or positioning mechanisms where the system needs:

Start → Accelerate → Transport → Decelerate → Stop → Confirm Position

Encoder feedback can help monitor motor movement during these repeated cycles.

For systems with multiple conveyor sections, suitable communication interfaces can also help integrate distributed motor control with the main PLC or motion controller.

6. Pallet Transfer and Positioning Units

Pallet transfer mechanisms must place loads at predefined locations before another AS/RS operation begins.

A positioning error can affect the next step in the material-handling sequence. For example, a pallet that stops too far from the target position may not align correctly with a lifting, fork, or transfer mechanism.

Closed-loop feedback provides the control system with additional information about actual motor movement, helping identify abnormal positioning conditions.

7. Vertical Lift Modules

Vertical lift systems transport trays or products between different storage levels.

The drive system may need to handle:

• Frequent starts and stops

• Variable payloads

• Repeated vertical movement

• Precise tray positioning

• Long operating cycles

An integrated closed-loop stepper motor can be considered when the required torque, speed, duty cycle, and safety architecture are within the motor's capabilities.

For heavier vertical systems, gearbox selection and load-holding requirements should be evaluated together with the motor.

8. Tote and Bin Handling Mechanisms

Mini-load AS/RS equipment often handles smaller containers rather than full pallets.

Typical mechanisms include:

• Tote shuttles

• Bin conveyors

• Pick-and-place units

• Transfer modules

• Extraction mechanisms

• Sorting and positioning devices

These applications generally benefit from compact motion-control solutions. An integrated closed-loop stepper motor can reduce the number of external components while providing encoder feedback for repeated positioning.

9. Automated Transfer Cars

Transfer cars move pallets, bins, or other loads between storage aisles, conveyors, and workstations.

Because the vehicle must stop at specific transfer points, the drive system needs controlled acceleration and repeatable stopping.

An integrated closed-loop stepper motor can provide a compact drive solution for suitable transfer-car designs, particularly when position feedback and distributed motor control are important.

10. AS/RS Access and Auxiliary Mechanisms

Not every motor in an AS/RS system drives the main vehicle.

Smaller integrated closed-loop stepper motors can also be used for auxiliary motion, including:

• Door mechanisms

• Locking mechanisms

• Positioning actuators

• Guide adjustments

• Product alignment

• Inspection mechanisms

• Small lifting platforms

• Automated access mechanisms

These applications often benefit from the compact size and integrated electronics of the motor.

How to Choose the Right Motor for an AS/RS Application

Different AS/RS axes have different motor requirements. A motor suitable for a tote positioning mechanism may not be suitable for a loaded vertical lift.

Before selecting an integrated closed-loop stepper motor, we recommend evaluating the complete motion profile.

Key Parameters to Check

Load: What is the maximum moving mass or payload?

Torque: How much torque is required during acceleration and steady operation?

Speed: What are the minimum, nominal, and maximum operating speeds?

Acceleration: How quickly must the mechanism reach operating speed?

Positioning: What repeatability and accuracy does the mechanism require?

Duty cycle: How many motion cycles will occur per hour or per day?

Transmission: Is the motor connected to a screw, belt, gearbox, rack, or other mechanism?

Feedback: What encoder resolution and feedback type are required?

Communication: Does the system use Pulse/Direction, RS485, CANopen, EtherCAT, or another control method?

Environment: What temperature, vibration, dust, and protection requirements apply?

Why Integrated Closed-Loop Stepper Motors Are Attractive for AS/RS OEMs

For machine builders, the value of an integrated closed-loop stepper motor extends beyond step-loss detection.

The integrated design can reduce the number of separate components required in the motion-control system. It can also simplify wiring, reduce control-panel space, and make installation more straightforward.

For OEM applications, customization is another important consideration. Depending on the supplier, the motor platform may be configured with different:

• Motor sizes and torque ratings

• Encoder types

• Gearboxes

• Brakes

• Shafts

• Mounting interfaces

• Cable lengths

• Connectors

• Communication protocols

• Control parameters

This flexibility allows the motor to be matched more closely to the mechanical architecture of the AS/RS machine.

The Bottom Line

Integrated closed-loop stepper motors can be used across many AS/RS motion axes, from stacker crane travel and shuttle vehicles to lifting systems, telescopic forks, conveyors, transfer mechanisms, and auxiliary positioning equipment.

Their main value comes from combining motor power, encoder feedback, and integrated drive control in a single motion unit.

For AS/RS equipment manufacturers, the correct selection should always be based on the complete application: payload, torque, speed, acceleration, transmission, positioning requirements, duty cycle, encoder feedback, communication method, and environmental conditions.

When these factors are properly matched, an integrated closed-loop stepper motor can provide a compact and practical motion-control solution for modern automated storage and retrieval equipment.

How to Reduce Step Loss Beyond Choosing the Right Motor

Motor selection is only one part of the solution.

Even a closed-loop motor should be installed and configured correctly.

Use the Correct Acceleration Profile

Do not configure acceleration solely around the maximum speed.

The machine should be tested under the actual maximum payload.

Match the Gearbox to the Load

A gearbox can increase output torque and reduce the required motor torque, but the gear ratio must be selected according to speed, efficiency, backlash, and positioning requirements.

For precision AS/RS mechanisms, gearbox backlash should be considered alongside motor accuracy.

Minimize Mechanical Resistance

Misalignment, excessive bearing friction, belt tension, screw contamination, and mechanical interference can all increase load torque.

If the motor repeatedly reaches its torque limit, increasing motor size alone may not solve the underlying mechanical problem.

Monitor Temperature

High temperature can affect motor performance and long-term reliability.

Testing should include the worst-case operating cycle rather than only a short no-load test.

Test at Maximum Payload

A proper acceptance test should evaluate the motor at the application's maximum expected load.

Testing only an empty carriage does not provide enough information about real operating conditions.

Why OEM Customization Matters for AS/RS Motors

For an AS/RS (Automated Storage and Retrieval System), the motor is not an isolated component. It has to work with the machine's mechanical structure, transmission system, controller, encoder, gearbox, installation space, and operating cycle.

That is why OEM customization matters for AS/RS motors.

At JKONGMOTOR, we can customize integrated closed-loop stepper motors around the actual requirements of an AS/RS application rather than forcing the machine builder to redesign the equipment around a standard motor.

What Can Be Customized for AS/RS Motors?

AS/RS equipment varies considerably between pallet storage systems, mini-load systems, shuttle systems, stacker cranes, conveyors, and automated transfer mechanisms. A suitable motor may therefore require customization in several areas.

This level of customization is particularly valuable when an AS/RS OEM is developing a new machine platform or replacing an existing motor system.

1. Custom Torque for Different AS/RS Loads

A stacker crane, shuttle vehicle, and tote conveyor do not have the same torque requirements.

For example, a heavy pallet-handling system may require substantially more starting torque than a compact tote-positioning mechanism. Selecting a motor only by its frame size or nominal power can therefore lead to an unsuitable design.

JKONGMOTOR can customize the motor configuration around the actual load profile, including payload, acceleration, speed, transmission ratio, and duty cycle.

The objective is not simply to make the motor larger. It is to achieve a practical balance between torque, speed, motor size, thermal performance, and system cost.

2. Encoder Customization for Position Feedback

Position feedback is particularly important for AS/RS equipment because many mechanisms must stop at repeatable locations.

An integrated closed-loop stepper motor uses an encoder to monitor actual motor movement. Depending on the application, encoder configuration can be customized to meet the required feedback and positioning architecture.

This is useful for:

• Stacker crane positioning

• Shuttle travel

• Telescopic fork movement

• Conveyor positioning

• Pallet transfer

• Vertical lift mechanisms

For applications requiring more sophisticated position information, single-turn or multi-turn absolute encoder options may also be considered, depending on the motor platform.

3. Custom Control Methods and Communication

Different AS/RS manufacturers use different control architectures.

One machine may use Pulse/Direction, while another may require RS485, CANopen, or EtherCAT for distributed motion control.

Using the appropriate communication method can simplify integration between the motor and the PLC or motion controller.

For OEM projects, this is important because the motor should fit naturally into the existing automation architecture rather than require unnecessary external conversion hardware.

4. Gearbox Customization for Speed and Torque

Many AS/RS mechanisms require high output torque at a controlled speed.

A gearbox can help match the motor's operating characteristics to the mechanical load.

Depending on the application, JKONGMOTOR can configure different geared solutions to address requirements such as:

Higher output torque + Lower output speed + Compact mechanical integration

Gear ratio, gearbox type, backlash, efficiency, mounting dimensions, and output shaft configuration should all be evaluated together.

For precision positioning applications, gearbox backlash is especially important because motor feedback alone does not eliminate mechanical positioning errors introduced downstream of the motor.

5. Shaft and Mechanical Interface Customization

One common problem with standard motors is that the shaft or mounting interface may not match the customer's existing mechanism.

AS/RS equipment can use specialized mechanical structures, particularly around:

• Drive wheels

• Conveyor rollers

• Lead screws

• Belt drives

• Gear transmissions

• Lifting mechanisms

JKONGMOTOR can customize shaft dimensions, shaft length, mounting configuration, and other mechanical interfaces according to project requirements.

This allows the motor to be integrated into the machine with fewer mechanical modifications.

6. Custom Cable and Connector Configuration

In an automated warehouse, motor installation space can be limited. Cable routing may also be constrained by moving mechanisms.

A standard cable length or connector orientation may therefore be inconvenient for the final machine.

OEM customization can include:

• Cable length

• Connector type

• Connector position

• Cable exit direction

• Wiring configuration

These details may appear small, but they can make a significant difference during machine assembly and commissioning.

7. Custom Motor Dimensions for Compact AS/RS Equipment

Space is often limited inside automated storage equipment.

A motor that provides the required performance but cannot fit into the available installation envelope is not a practical solution.

For this reason, AS/RS OEMs may specify requirements for:

• Motor body length

• Frame size

• Mounting hole pattern

• Shaft length

• Connector position

• Overall motor diameter

An integrated motor design can already reduce the number of separate components. Further mechanical customization can help the motor fit more effectively into the machine structure.

Why Choose JKONGMOTOR for AS/RS OEM Projects?

For an AS/RS manufacturer, OEM customization should involve more than changing a motor label or modifying one mechanical dimension.

The motor supplier should understand how the motor interacts with the complete motion system.

JKONGMOTOR provides integrated motor solutions combining motor, driver, encoder, and optional transmission components, allowing the configuration to be developed around the customer's application.

The typical OEM development process can include:

Application Requirements → Motor Selection → Mechanical/Electrical Design → Prototype → Testing → Optimization → Mass Production

During development, key parameters such as torque, speed, acceleration, encoder feedback, temperature, communication, and mechanical compatibility can be evaluated before the motor enters volume production.

Customization for Different AS/RS Axes

A single AS/RS machine may use several different motor configurations.

Travel axis: Requires appropriate speed, acceleration, and positioning performance.

Lift axis: Requires sufficient torque and consideration of load holding and safety requirements.

Fork axis: Prioritizes repeatable extension and retraction.

Conveyor axis: Requires reliable start-stop operation and suitable speed control.

Shuttle axis: Requires compact integration, acceleration performance, and position feedback.

Instead of using one identical motor everywhere, the OEM can select or customize the motor according to the requirements of each axis.

OEM Customization Can Reduce Integration Work

A standard motor may require additional adapters, external drivers, custom wiring, or mechanical modifications before it can be installed.

A customized integrated closed-loop stepper motor can be designed to match more of the original machine architecture.

This can help reduce:

• Control cabinet components

• External wiring

• Mechanical adaptation

• Installation work

• Commissioning time

• Integration complexity

For equipment manufacturers producing multiple AS/RS models, a customized motor platform can also make it easier to standardize components across different machine configurations.

The Key Point: Customize the Motor Around the Machine

For AS/RS applications, the question should not simply be "Which standard stepper motor should we buy?"

A better engineering approach is:

What motor configuration fits our payload, motion profile, mechanical structure, control system, and installation environment?

That is where OEM customization becomes valuable.

With JKONGMOTOR, AS/RS manufacturers can develop integrated closed-loop stepper motor solutions around specific requirements for torque, speed, encoder feedback, communication, gearbox, shaft, mounting, cable, and overall dimensions.

The result is a motor solution designed to become part of the AS/RS machine—not simply a standard motor added to it.

Practical AS/RS Motor Selection Checklist

Before placing a purchase order, we recommend confirming the following:

Mechanical

• Maximum payload

• Moving mass

• Transmission type

• Gear ratio

• Travel distance

• Required positioning accuracy

• Maximum speed

• Acceleration and deceleration

Electrical

• Supply voltage

• Rated current

• Peak current

• Power requirement

• Driver configuration

• Control interface

Feedback

• Encoder type

• Encoder resolution

• Position monitoring

• Error detection

• Homing requirements

Environmental

• Ambient temperature

• Duty cycle

• Dust exposure

• Vibration

• Installation orientation

• Required IP protection

Integration

• Mounting dimensions

• Shaft dimensions

• Connector type

• Cable length

• Communication protocol

• PLC compatibility

Testing

• No-load testing

• Maximum-load testing

• Repeated positioning tests

• Thermal testing

• Overload testing

• Communication testing

• Fault-response testing

Final Considerations: Preventing Step Loss Starts with the Complete Motion System

Preventing step loss in an AS/RS machine is not simply a matter of selecting a larger stepper motor.

The better approach is to build a motion system around accurate load calculations, sufficient torque margin, encoder feedback, appropriate acceleration profiles, reliable mechanical transmission, thermal management, and suitable control architecture.

An integrated closed-loop stepper motor brings several of these functions together. By combining the motor, encoder, and driver into one compact unit, it can provide a practical solution for AS/RS applications that require repeatable positioning and real-time motion feedback.

For AS/RS OEMs, the biggest advantage is often the ability to move from a basic command-and-assume architecture toward a command-feedback-correction architecture.

When the application involves repeated positioning, variable loads, compact machine layouts, and continuous automated operation, that difference can have a meaningful impact on the overall machine design.

The most suitable motor should ultimately be selected from the complete application requirements—not from a single catalog specification. Load, speed, torque, inertia, encoder feedback, control protocol, duty cycle, mechanical transmission, and environmental conditions should all be evaluated together.

For equipment manufacturers developing new AS/RS machines, working with an experienced integrated closed-loop stepper motor OEM/ODM supplier can also make it easier to move from initial torque calculations and prototype testing to a production-ready motor solution tailored to the actual storage and retrieval mechanism.
