Medical syringe pumps and automated liquid handling systems depend on accurate, repeatable, and controlled fluid movement. Whether a device delivers medication at a precisely controlled rate, transfers microliter volumes between laboratory containers, or automates sample preparation, its motion control system directly affects dispensing accuracy, operational reliability, and overall equipment performance.
For medical device manufacturers, laboratory automation companies, and OEM engineering teams, selecting the right motor is an important part of product development. Traditional stepper motors offer simple positioning control, while servo motors provide closed-loop feedback and dynamic performance. An integrated closed loop stepper motor combines the positioning characteristics of a stepper motor with encoder feedback and integrated drive electronics, creating a compact motion control solution for applications where precision, space efficiency, and reliable operation matter.
At JKONGMOTOR, we recognize that medical syringe pumps and liquid handling equipment require more than basic motor rotation. Engineers need predictable motion, repeatable positioning, smooth low-speed operation, flexible control interfaces, and a design that can be integrated into compact instruments.
This article explains how integrated closed loop stepper motors work, why they are suitable for medical syringe pumps and liquid handling systems, which technical specifications matter during selection, and how OEM customization can help equipment manufacturers develop more competitive products.
Before selecting a motor, we need to understand how these devices operate and why their motion requirements differ from those of general industrial automation equipment.
A syringe pump typically uses a motor-driven lead screw, linear actuator, or similar transmission mechanism to move a syringe plunger. The plunger's movement displaces fluid through the syringe outlet, allowing the system to control flow over a defined period.
Depending on the application, syringe pumps may be used in laboratory instruments, analytical equipment, infusion-related devices, drug delivery research, and automated fluid dispensing systems.
Their performance requirements often include:
Precise linear positioning: Small changes in plunger displacement can affect the delivered volume.
Stable flow rates: The motor must maintain consistent movement at low speeds without unwanted fluctuations.
Repeatable dispensing: The system should deliver comparable volumes under the same operating conditions.
Compact mechanical design: Medical and laboratory instruments often have strict space limitations.
Low vibration and noise: Excessive mechanical vibration can interfere with sensitive instruments and user experience.
Reliable operation: Repeated starts, stops, and positioning cycles must not lead to unacceptable performance degradation.
Integration flexibility: The motor must work with the equipment's controller, transmission mechanism, power supply, and communication architecture.
The actual accuracy of a syringe pump depends on the complete fluid delivery system, not just the motor. Syringe dimensions, plunger friction, lead screw pitch, backlash, tubing compliance, fluid viscosity, pressure, and calibration can all affect delivered volume.
For this reason, choosing a motor with encoder feedback is useful, but it must be combined with appropriate mechanical design and system-level validation.
Automated liquid handling systems transfer, mix, dispense, or aspirate liquids in applications such as pharmaceutical research, clinical laboratory workflows, biotechnology, and chemical analysis.
These systems may use motors to control syringe plungers, pipetting mechanisms, dispensing heads, positioning stages, sample handling modules, and other moving components.
Accurate movement over short distances
Repeatable aspiration and dispensing cycles
Smooth acceleration and deceleration
Consistent low-speed motion
Fast response during frequent positioning changes
Minimal vibration during sensitive operations
Compact installation within automated instruments
Compatibility with centralized or distributed control systems
A liquid handling instrument may need to perform thousands of repetitive movements during a working day. Small positioning errors, inconsistent motion, or intermittent motor faults can affect throughput and increase maintenance requirements.
An integrated closed loop stepper motor helps address these challenges by combining stepper motor positioning with feedback-based motion monitoring in a compact assembly.
However, motor feedback alone does not measure the actual volume of liquid transferred. Where volume accuracy is critical, the complete system may also require calibration, liquid-level detection, pressure monitoring, or direct fluid measurement.
An integrated closed loop stepper motor combines a stepper motor, encoder, and motor driver in one compact assembly. Depending on the model, the unit may also incorporate a controller, communication interface, or additional monitoring functions.
A conventional open-loop stepper motor generally moves according to commanded step pulses without directly confirming whether the rotor has followed the commanded position. Under excessive load, unsuitable acceleration settings, or mechanical interference, the motor may lose synchronism without the controller immediately recognizing the problem.
A closed-loop stepper system uses encoder feedback to monitor motor movement and compare actual position with the commanded motion. The drive can respond to detected position errors according to its control strategy and configured operating limits.
An integrated design brings these components together, reducing the need for separate drive modules and simplifying installation.
The basic operating process involves four stages.
The equipment controller sends a motion command through a supported interface, such as pulse and direction signals or a compatible communication protocol.
The integrated driver energizes the stepper motor windings according to the requested movement, causing the rotor to turn.
An encoder measures rotor position or movement and provides feedback to the drive.
The drive evaluates the difference between commanded and measured movement. Depending on the design, it may adjust motor current, modify its response, or report an error when the deviation exceeds a configured threshold.
This feedback mechanism improves motion supervision compared with a conventional open-loop arrangement.
It is important to understand that closed-loop operation does not automatically guarantee zero positioning error or prevent every stall. Performance depends on the encoder, drive algorithm, motor torque, acceleration profile, mechanical load, and available control functions.
A traditional motion control assembly may require a stepper motor, external driver, encoder wiring, mounting hardware, and additional cabinet space.
An integrated closed loop stepper motor consolidates key components into a single unit.
For medical and laboratory equipment manufacturers, this can offer several practical benefits:
Reduced component count
Less external motor-driver wiring
More compact equipment architecture
Simplified mechanical installation
Fewer separate components to source and manage
Potentially easier assembly and maintenance
More convenient integration into modular equipment designs
The actual savings depend on the motor model, cabling, cooling requirements, communication architecture, and enclosure design. Integrated electronics also need to be evaluated for thermal performance, electromagnetic compatibility, and serviceability.
For OEMs developing compact syringe pumps or automated dispensing instruments, these trade-offs should be assessed during the early design stage rather than after the mechanical structure has been finalized.
|
|
|
|
|
|
|
Integrated Dc Servo Motor with Brake |
|
|
|
|
|
|
|
|
|
|
Shaft |
Lead Screw |
Module |
Linear Motion |
Brake |
Gearbox |
Worm Gearbox |
Wires |
Protect Level |
Protect Level |
Choosing the right integrated closed loop stepper motor for medical syringe pumps and liquid handling equipment requires more than comparing motor sizes or torque ratings. Different instruments have different requirements for plunger force, dispensing volume, positioning repeatability, operating speed, installation space, and controller compatibility.
For example, a compact syringe pump may prioritize precise low-speed movement and a small installation footprint. An automated liquid handling platform may need several independently controlled axes, while a high-pressure dispensing mechanism may require greater torque and a carefully selected linear transmission.
At JKONGMOTOR, we recommend evaluating the complete motion system before selecting a motor configuration. The following guide explains the main motor types, control options, and mechanical configurations that medical device manufacturers, laboratory automation companies, and OEM engineering teams should consider.
Pulse-controlled integrated closed loop stepper motors are suitable for equipment in which a central controller generates motion commands through pulse and direction signals.
The controller determines the commanded movement by sending a defined number of pulses. The integrated driver controls the motor, while the encoder monitors actual motor movement. Depending on the drive design, the system can detect position deviations, respond to errors, or report faults.
For syringe pumps, this configuration can control the rotation of a motor connected to a lead screw. The lead screw converts rotary movement into linear plunger displacement, allowing the equipment controller to calculate the movement required for a target dispensing operation.
Straightforward integration with compatible pulse-based controllers.
Flexible control of incremental movement and direction.
Encoder-based monitoring of motor position.
Reduced need for a separately installed motor driver.
Convenient integration into compact OEM equipment.
Pulse-controlled motors are particularly useful when the equipment already has a motion controller that manages positioning, acceleration, and dispensing sequences.
Best applications: Syringe pumps, compact liquid dispensers, motorized pipetting mechanisms, and laboratory instruments using pulse-based motion control.
When selecting this configuration, verify the maximum pulse frequency, supported positioning modes, encoder feedback functions, and fault output behavior.
RS485 integrated closed loop stepper motors are worth considering when a liquid handling instrument requires serial communication for motor control, parameter configuration, or status monitoring.
RS485 defines the electrical characteristics of a communication interface. It does not, by itself, define the commands used to operate the motor. The actual communication protocol and available functions depend on the selected drive.
In a compatible system, the main controller may communicate with the motor to configure operating parameters, issue movement commands, and retrieve supported status information.
For example, an automated reagent dispensing instrument may use a central controller to manage several dispensing mechanisms. A serial communication architecture can simplify certain wiring arrangements and make parameter management more convenient.
Serial communication with a compatible equipment controller.
Centralized configuration of supported motor parameters.
Access to status information and alarms when implemented.
Flexible integration into modular automation systems.
Reduced dependence on individual pulse-generation channels.
Before choosing an RS485 model, confirm its communication protocol, addressing method, supported commands, wiring requirements, and ability to provide the feedback information required by the application.
Best applications: Automated reagent dispensers, multi-axis laboratory instruments, and liquid handling systems requiring serial motor communication.
CANopen integrated closed loop stepper motors can be suitable for laboratory automation equipment that uses a CAN-based communication network.
CANopen provides a communication framework for compatible devices to exchange commands, parameters, and status information. Its suitability depends on the equipment controller, the drive's implementation, and the motion functions required by the application.
In a multi-axis liquid handling system, CANopen-compatible motors may be used for different mechanisms, such as dispensing, sample positioning, and vertical movement.
A compatible network architecture can simplify communication between the controller and individual motor drives. Depending on the implementation, it may also support standardized parameter access and diagnostic reporting.
However, CANopen compatibility alone does not guarantee synchronized motion, deterministic performance, or support for every motion-control function. Engineers must verify the specific drive capabilities and the requirements of the complete system.
Compatibility with the equipment's CANopen controller.
Supported operating modes and configuration parameters.
Communication cycle and response requirements.
Availability of diagnostic and fault information.
Network wiring, addressing, and termination.
Coordination requirements for multiple axes.
Best applications: Modular laboratory automation systems, multi-axis liquid handling platforms, and instruments that already use CANopen-compatible control architectures.
Compact integrated closed loop stepper motors are designed for mechanisms where installation space is limited.
A smaller motor assembly may be useful in portable instruments, compact syringe pumps, and laboratory devices that need to accommodate multiple mechanical and electronic components within a restricted enclosure.
NEMA 11 and similar compact frame sizes are potential starting points for these applications. NEMA 11 motors typically have a nominal mounting-face dimension of approximately 28 mm, although the dimensions of the complete integrated assembly vary by model.
Miniature syringe pump mechanisms.
Compact reagent dispensing instruments.
Small laboratory positioning stages.
Portable analytical equipment.
Space-constrained pipetting mechanisms.
The main selection challenge is balancing motor size against the required torque, speed, thermal performance, and mechanical rigidity.
A smaller frame does not automatically mean lower system cost or better performance. If the motor cannot provide sufficient torque at the required speed, the equipment may need a different transmission ratio or a larger motor.
Best applications: Compact fluid handling devices with limited installation space and manageable mechanical loads.
NEMA 17 integrated closed loop stepper motors have a nominal mounting-face dimension of approximately 42 mm. They are commonly considered for compact automation mechanisms that need a balance between installation size and torque capability.
Depending on the motor length, winding design, driver, and operating conditions, this frame size may be suitable for a range of syringe pump and liquid handling applications.
Benchtop syringe pumps.
Automated liquid dispensing mechanisms.
Motorized pipetting axes.
Sample preparation instruments.
Compact linear positioning systems.
When comparing NEMA 17 models, engineers should evaluate the complete motor assembly rather than relying on the frame designation alone.
The most relevant specifications include available torque at the intended operating speed, encoder characteristics, driver current limits, overall motor length, and thermal behavior.
Best applications: Laboratory instruments that require moderate torque, controlled incremental movement, and compact motor-driver integration.
For syringe pumps, the motor usually needs to convert rotary motion into linear movement. A lead screw is one of the common mechanisms used to move a syringe plunger.
An integrated closed loop stepper motor can be coupled to a lead screw or supplied as part of a customized linear motion assembly, depending on the product configuration.
The theoretical linear travel is calculated as:
x=N X L
x is the linear travel.
N is the number of screw revolutions.
L is the lead screw lead per revolution.
This relationship helps engineers determine how much motor rotation is needed to achieve a target plunger displacement.
For example, a lead screw with a lead of 2 mm per revolution produces a theoretical linear travel of 0.1 mm for every 0.05 revolution, assuming a direct connection without transmission losses or slip.
In a syringe pump, the corresponding theoretical displaced volume can be estimated from the syringe barrel's internal cross-sectional area and the plunger travel.
However, actual dispensing performance also depends on mechanical backlash, plunger friction, fluid pressure, syringe tolerances, and fluid-path compliance.
Required plunger travel and stroke length.
Axial force and transmission efficiency.
Positioning repeatability and backlash.
Minimum practical displacement.
Screw speed and mechanical limitations.
Alignment, rigidity, and mounting requirements.
Lubrication and maintenance considerations.
Best applications: Syringe pumps, precision dispensing mechanisms, and laboratory equipment requiring controlled linear displacement.
Some syringe pump mechanisms require greater axial force because of high plunger friction, increased fluid pressure, a larger syringe diameter, or the characteristics of the transmission system.
In these situations, a higher-torque motor may be appropriate.
However, the required motor torque should be calculated from the actual axial load and transmission design. A high holding-torque rating does not necessarily mean that the motor can maintain the required force at the intended operating speed.
For a lead screw, a simplified torque estimate is:
T=FL / 2πη
T is the approximate screw-driving torque.
F is the required axial force.
L is the lead screw lead per revolution.
η is the effective transmission efficiency.
The final design should also account for acceleration, friction, coupling losses, and an appropriate engineering margin.
Before choosing a higher-torque configuration, engineers should confirm:
Maximum and continuous axial force.
Torque availability throughout the operating-speed range.
Acceleration and deceleration requirements.
Driver current and power supply limitations.
Thermal performance under the expected duty cycle.
Lead screw strength and allowable operating speed.
Best applications: Syringe pumps with higher mechanical resistance and dispensing mechanisms requiring substantial linear thrust.
The objective is not simply to select the largest available motor. It is to achieve the required force and positioning performance without introducing unnecessary size, heat, or power consumption.
Automated liquid handling platforms often combine several independently controlled mechanisms. These may include pipetting movement, dispensing, sample positioning, and vertical or horizontal travel.
For these systems, motor selection must account for both individual axis requirements and overall system coordination.
An integrated motor-driver assembly can simplify the installation of each axis, but the equipment controller must still manage motion sequences, operating limits, communication, and fault recovery.
Consistent control architecture across multiple axes.
Compatibility with the central motion controller.
Communication timing and command response.
Coordinated acceleration and deceleration.
Fault detection and recovery procedures.
Thermal performance when several motors operate simultaneously.
Wiring, connectors, and maintenance access.
For applications that require precise coordination, verify whether the selected motor and controller support the necessary synchronization method. A shared communication interface does not automatically provide coordinated or simultaneous movement.
Best applications: Multi-channel liquid handling platforms, automated laboratory workstations, and modular sample preparation equipment.
The most suitable motor depends on the required motion performance, available installation space, mechanical transmission, and control architecture.
Application requirement |
Motor type or configuration to evaluate |
|---|---|
Centralized pulse-based positioning |
Pulse and direction integrated closed loop stepper motor |
Serial parameter configuration and status monitoring |
RS485-compatible integrated motor |
Distributed control through a CAN-based network |
CANopen-compatible integrated motor |
Very limited installation space |
Compact frame size, such as NEMA 11 |
General-purpose compact laboratory automation |
NEMA 17 or another appropriately sized motor |
Controlled syringe plunger movement |
Integrated motor with a suitable lead screw |
High axial force |
Higher-torque motor sized for the actual load |
Multiple independently controlled axes |
Compatible motors and a suitable multi-axis controller |
Before requesting a quotation, we recommend preparing the required travel, minimum and maximum speed, estimated axial force, duty cycle, installation dimensions, control interface, and positioning requirements.
For syringe pumps and liquid handling systems, engineers should also distinguish between motor positioning performance and actual fluid delivery accuracy. Encoder feedback helps monitor motor movement, but it cannot independently verify the volume dispensed.
A complete evaluation should therefore include the motor, driver, transmission mechanism, syringe or dispensing assembly, controller, and fluid path.
At JKONGMOTOR, we recommend selecting the integrated closed loop stepper motor according to the equipment's real operating conditions and validating the design through prototype testing. This approach helps OEMs identify the right balance of positioning performance, mechanical integration, reliability, and cost before moving into volume production.
Liquid handling automation requires accurate positioning, repeatable dispensing movements, reliable operation, and efficient coordination between mechanical and electronic components. Whether an instrument transfers reagents, prepares laboratory samples, operates a pipetting mechanism, or controls a syringe pump, its motion system must perform consistently under the conditions for which the equipment is designed.
For medical device manufacturers, laboratory automation companies, and OEM engineering teams, the main advantages are not limited to positioning. Compact integration, flexible control options, motion error detection, and simplified equipment assembly can also influence the overall design.
Repeatability is an important consideration in automated liquid handling. Instruments may need to perform the same aspiration, dispensing, or positioning sequence hundreds or thousands of times.
An open-loop stepper motor follows commanded step signals without inherently confirming that the rotor has completed the requested movement. If the mechanical load becomes excessive, the motor may lose synchronism without the controller immediately detecting the problem.
An integrated closed loop stepper motor uses encoder feedback to monitor actual motor movement. The drive can compare the measured position with the commanded position and respond to deviations according to its control algorithm.
For liquid handling equipment, this capability can help identify certain motion errors caused by excessive load, unexpected resistance, or unsuitable acceleration settings.
Better visibility into motor positioning errors.
Detection of certain movement deviations.
More informative fault monitoring when supported by the drive.
Improved supervision of repetitive positioning cycles.
A useful feedback mechanism for equipment-level error handling.
However, encoder feedback does not guarantee perfect positioning or eliminate every possible motor fault. The results depend on encoder performance, drive configuration, motor torque, and the mechanical transmission.
For OEMs, the key advantage is the ability to monitor motor movement rather than relying entirely on commanded steps.
Many liquid handling applications require the motor to move slowly and consistently. This is particularly important when a motor drives a syringe plunger or another mechanism that determines the amount of liquid displaced.
Abrupt movement, inconsistent positioning, or excessive mechanical vibration may affect the fluid delivery process.
Integrated closed loop stepper motors can provide controlled incremental movement with encoder-based position monitoring. When correctly sized and configured, they can be suitable for applications that require stable low-speed operation.
Torque available at the required operating speed.
Encoder resolution and feedback behavior.
Acceleration and deceleration settings.
Mechanical friction and backlash.
Lead screw characteristics.
Vibration and noise under the actual load.
A high encoder resolution alone does not guarantee smooth fluid delivery. Mechanical friction, fluid pressure, tubing compliance, valve behavior, and syringe tolerances can all influence the final result.
For this reason, we recommend validating low-speed performance using the actual dispensing mechanism rather than relying exclusively on the motor's rated specifications.
Laboratory instruments often contain multiple motion axes, sensors, valves, fluid channels, and electronic control components within a relatively small enclosure.
A conventional motion control arrangement may require separate motors and drivers, along with additional mounting hardware and external wiring.
An integrated closed loop stepper motor combines key motion control components in one assembly, potentially reducing the space required for installation.
A more compact motion control layout.
Fewer separately installed electronic components.
Simplified motor-driver wiring.
Greater flexibility in equipment packaging.
Potentially more straightforward assembly.
These advantages can be especially useful in benchtop analyzers, compact syringe pumps, automated reagent dispensers, and modular laboratory instruments.
However, the complete assembly still requires sufficient space for connectors, cable routing, heat dissipation, and maintenance access. Engineers should compare the overall dimensions of the integrated motor rather than considering the motor frame size alone.
Liquid handling equipment can encounter changing mechanical loads during operation. For example, syringe plunger friction may vary, or a positioning mechanism may experience unexpected resistance.
If an open-loop stepper motor loses synchronism, the controller may continue executing its programmed sequence without knowing that the actual motor movement differs from the command.
A closed loop stepper motor can monitor this discrepancy through encoder feedback. Depending on the drive's capabilities, it may adjust its response within operating limits or generate a fault when the position error exceeds a configured threshold.
This can help equipment designers develop more effective fault-handling procedures.
For example, a liquid dispensing instrument may be programmed to stop a sequence, record a motor fault, or notify the operator when the drive reports an unacceptable position deviation.
The actual response must be implemented by the equipment control system and verified during testing.
Important: Motor position monitoring does not directly detect every fluid handling problem. An empty syringe, leaking valve, blocked tube, or incorrect liquid volume may require separate sensors or fluid-level and pressure monitoring functions.
Liquid handling systems vary in complexity. A simple dispensing mechanism may use pulse and direction signals, while a multi-axis instrument may use serial communication or a fieldbus to manage several motors.
Depending on the selected model, an integrated closed loop stepper motor may support interfaces such as pulse and direction, RS485, or CANopen.
Each option serves a different integration requirement.
Pulse and direction: Suitable for systems in which a central motion controller generates positioning commands.
RS485: Useful when the selected motor supports a compatible serial protocol for configuration, commands, and status monitoring.
CANopen: Worth considering for equipment that uses a compatible CAN-based network and requires communication between multiple devices.
The availability of these interfaces varies by motor model. Engineers should confirm the exact protocol, supported motion commands, communication timing, and diagnostic functions before finalizing the control architecture.
Selecting the appropriate interface early in the design process can help reduce integration work and improve compatibility between the motor and the equipment controller.
Automated liquid handling instruments frequently repeat predefined movement sequences. These may include moving to a dispensing position, operating a plunger, retracting the mechanism, and returning to a starting position.
A properly configured integrated closed loop stepper motor can help monitor motor movement throughout these cycles.
Combined with suitable torque sizing, a stable mechanical transmission, and appropriate motion profiles, this can support repeatable positioning and more effective fault detection.
For continuous or high-frequency operation, engineers should also evaluate the motor's thermal performance, driver current, acceleration settings, and mechanical wear.
A motor that performs well during a short demonstration may behave differently after extended operation under a higher load.
We therefore recommend testing the motor using the expected operating cycle, including repeated starts and stops, direction changes, and representative loading conditions.
Not every liquid handling instrument requires a high-performance servo system.
For applications involving moderate speeds, incremental positioning, and manageable loads, an integrated closed loop stepper motor may provide a practical balance between motion control capability and system complexity.
Compared with an open-loop stepper arrangement, encoder feedback provides additional position monitoring. Compared with some separate motor-driver configurations, an integrated design may reduce installation requirements and simplify wiring.
The overall cost advantage depends on the complete system, including the motor, controller, wiring, mounting hardware, engineering time, and maintenance requirements.
A servo motor may still be preferable when an application demands particularly high acceleration, rapid settling, advanced dynamic performance, or specific control functions that a candidate closed loop stepper motor cannot provide.
The best solution is the one that meets the actual application requirements without introducing unnecessary cost or complexity.
Many laboratory automation products use modular designs. Manufacturers may develop a common equipment platform and adapt it for different syringe sizes, dispensing volumes, travel distances, or numbers of operating axes.
An integrated closed loop stepper motor can simplify the motion control portion of this design when a compatible motor configuration can be reused across multiple modules.
Depending on the product platform, OEM customization may involve:
Motor dimensions and mounting interfaces.
Shaft configuration and mechanical transmission.
Connector orientation and cable length.
Control interface and supported parameters.
Torque and speed requirements.
Integration with a lead screw or linear motion module.
These details should be confirmed with the manufacturer because not every model supports every customization option.
For OEMs, defining the mechanical and electrical requirements before prototype development can reduce redesign work and help establish a more consistent production process.
Noise and vibration can influence the user experience and, in some instruments, the stability of nearby measurement processes.
Stepper motor performance depends on the motor's electromagnetic design, driver current control, microstepping implementation, mechanical mounting, and operating conditions.
An integrated closed loop stepper motor may help support smooth motion when appropriately selected and tuned, but integration alone does not guarantee low noise or vibration.
For noise-sensitive equipment, engineers should test the complete assembly and consider:
Motor vibration at the required speed.
Mechanical resonance.
Lead screw and coupling alignment.
Mounting rigidity.
Acceleration profiles.
Acoustic noise under realistic loading conditions.
These checks are particularly useful for compact laboratory instruments where the motor is installed close to sensors, fluid channels, or the equipment housing.
An integrated closed loop stepper motor can improve motor movement monitoring, but liquid handling accuracy depends on the complete fluid delivery system.
For syringe pumps, the theoretical displaced volume can be estimated using:
V=A X x
Where V is the theoretical displaced volume, A is the effective internal cross-sectional area of the syringe barrel, and x is the plunger displacement.
In practice, the delivered volume can also be affected by syringe tolerances, plunger friction, pressure changes, tubing compliance, leakage, valve timing, and calibration.
For this reason, OEM engineering teams should evaluate the complete instrument under representative conditions.
Checking motor positioning repeatability.
Measuring performance across the required speed range.
Evaluating torque margins under expected loads.
Monitoring temperature during extended operation.
Testing communication and fault reporting.
Measuring actual dispensing or aspiration performance.
Repeating tests across representative operating conditions.
For medical devices, additional risk management, verification, and validation activities may be required according to the device's intended use and applicable regulatory requirements.
Integrated closed loop stepper motors offer several advantages for medical syringe pumps and automated liquid handling systems. By combining a stepper motor, driver, and encoder feedback in one compact unit, they help equipment manufacturers simplify motion control, improve positioning reliability, and reduce integration work.
For applications that require controlled fluid delivery, repeated dispensing cycles, and compact equipment design, these motors provide a practical balance between motion accuracy, system complexity, and cost.
Positioning reliability is essential in syringe pumps and liquid handling equipment because the motor must move the syringe plunger or dispensing mechanism to a specified position repeatedly.
An integrated closed loop stepper motor uses an encoder to monitor motor movement and compare it with the commanded motion. Depending on the motor and controller design, the system can detect certain position deviations and respond to them.
This feedback helps reduce the risk of undetected lost steps that can occur in open loop stepper motor systems under excessive loads or unsuitable operating conditions.
For equipment manufacturers, closed loop control is particularly useful when developing automated analyzers, laboratory dispensing systems, and syringe pumps that perform frequent positioning cycles.
However, encoder feedback monitors motor motion rather than the actual volume of liquid dispensed. Fluid delivery accuracy must still be verified at the system level.
Medical syringe pumps often operate at low speeds to deliver small quantities of liquid in a controlled manner. In these applications, smooth and predictable motion is important for reducing fluctuations during plunger movement.
Integrated closed loop stepper motors can provide controlled low-speed operation when the motor, driver, encoder, and mechanical transmission are properly matched.
More consistent motor positioning during slow movements.
Better monitoring of motion under changing mechanical loads.
Reduced risk of undetected step loss compared with open loop control.
Greater flexibility when configuring acceleration and deceleration profiles.
Actual performance depends on motor sizing, driver settings, encoder resolution, transmission design, and the characteristics of the fluid delivery system.
Medical devices and laboratory automation instruments often have limited installation space. Integrating the motor, driver, and encoder into one assembly can reduce the number of separate components required.
Compared with a solution using a separate motor and external driver, an integrated closed loop stepper motor may offer:
A smaller overall control architecture.
Fewer separate components to mount.
Shorter motor-to-driver wiring.
Simplified equipment layout and assembly.
Greater flexibility for modular instrument designs.
These advantages are valuable for benchtop analyzers, compact syringe pumps, portable medical instruments, and multi-channel liquid handling systems.
The actual space savings depend on the dimensions of the integrated motor and the external driver that would otherwise be used.
The mechanical load in a syringe pump can change during operation. Plunger friction, syringe size, fluid viscosity, back pressure, and transmission resistance can all affect the force required to move the mechanism.
An open loop stepper motor operates without direct feedback on motor position. If the load exceeds the available torque, the motor may lose steps without immediately identifying the positioning error.
An integrated closed loop stepper motor can monitor movement through its encoder. Depending on the control strategy, it may detect following errors, adjust motor operation, or report a fault.
This capability helps equipment designers develop more robust motion systems, especially where operating conditions vary between dispensing cycles.
Nevertheless, closed loop control cannot compensate for inadequate motor torque, excessive friction, mechanical jamming, or an improperly designed transmission. Correct sizing remains essential.
Automated liquid handling systems may perform thousands of aspiration, dispensing, and positioning operations over their service life. Repeated motion must remain consistent to support reliable equipment operation.
Integrated closed loop stepper motors can support these repetitive tasks by combining commanded step movement with encoder-based monitoring.
Automated pipetting and sample preparation.
Reagent dispensing systems.
Clinical diagnostic analyzers.
Laboratory automation platforms.
Repeated aspiration and dispensing in syringe pumps.
For high-cycle equipment, engineers should also evaluate bearing life, thermal performance, lubrication requirements, mechanical wear, and the expected duty cycle. Encoder feedback improves motion monitoring, but it does not eliminate mechanical wear or guarantee identical fluid volumes in every cycle.
Using a separate motor, driver, and encoder can increase wiring complexity and require additional installation and commissioning work.
An integrated closed loop stepper motor consolidates these components into one assembly. Depending on the selected model, it may also support pulse-and-direction control or communication interfaces such as RS485 or CANopen.
This can simplify the equipment control architecture and help reduce assembly time.
Available control modes and communication protocols.
Supply voltage and rated current.
Encoder specifications and feedback functions.
Fault outputs and diagnostic capabilities.
Connector types and cable requirements.
Compatibility with the equipment's main controller.
Communication features vary by model. RS485 is an electrical interface, while the supported communication protocol and command set must be confirmed separately.
A syringe pump relies on the relationship between motor rotation and linear plunger displacement. If the motor loses steps, the plunger may not reach its intended position, potentially affecting the delivered volume.
Closed loop stepper motors provide encoder feedback that can help identify certain motion errors before they remain unnoticed throughout a dispensing sequence.
For example, if excessive plunger resistance causes the motor to deviate from its commanded movement, the control system may detect the deviation and trigger an appropriate response.
Depending on the controller, the response could include correcting the motion, generating an alarm, or stopping the operation.
This does not replace fluid-level monitoring, pressure sensing, calibration, or other application-specific safeguards. For medical equipment, the complete system must be validated according to its intended use and applicable requirements.
Not every liquid handling application requires a high-performance servo system. Some equipment needs better motion monitoring than open loop stepper control can provide but does not require the full performance or complexity of a conventional servo architecture.
Integrated closed loop stepper motors can be a suitable middle-ground option for applications with moderate speed, torque, and positioning requirements.
Integrated drive electronics and feedback components.
Reduced external wiring and component count.
Convenient control for repetitive positioning tasks.
A practical balance between performance and integration cost.
The best choice depends on the required speed, acceleration, load variation, positioning tolerance, noise level, and total system cost. High-speed applications, demanding dynamic response, or stringent motion requirements may justify evaluating a servo motor solution instead.
Many syringe pumps convert motor rotation into linear movement through a lead screw, ball screw, or other transmission mechanism. Integrated closed loop stepper motors can be paired with suitable transmission systems to drive the plunger or dispensing mechanism.
Actual displacement accuracy also depends on the transmission's backlash, lead error, stiffness, alignment, and mechanical compliance. If the application requires precise volume control, engineers must convert the required fluid volume into plunger displacement based on the syringe's effective internal diameter and validate the result through testing.
Medical equipment manufacturers often need to customize the motor dimensions, transmission, mounting structure, electrical connections, and control method to fit their product design.
An integrated closed loop stepper motor can provide a flexible motion-control platform for such development work. Depending on the manufacturer's capabilities and the selected model, customization may include:
Motor size and torque selection.
Driver and encoder configuration.
Lead screw or linear mechanism matching.
Mounting and connector customization.
Control interface selection.
Prototype testing and production planning.
For OEM projects, evaluating these requirements early helps reduce redesign risk and improves compatibility between the motor, mechanical assembly, and control system.
Key advantage |
Value for syringe pumps and liquid handling |
|---|---|
Encoder feedback |
Helps detect certain motor positioning errors |
Controlled low-speed movement |
Supports gradual and repeatable plunger motion |
Integrated design |
Reduces separate components and installation work |
Load monitoring |
Helps identify motion deviations under changing loads |
High-cycle operation |
Supports repetitive automated dispensing tasks |
Flexible control options |
Can simplify integration with equipment controllers |
Linear mechanism compatibility |
Supports screw-driven plunger positioning |
OEM customization |
Helps match the motor to specific equipment designs |
For manufacturers developing syringe pumps, diagnostic analyzers, and automated liquid handling instruments, integrated closed loop stepper motors offer a combination of compact construction, encoder-based motion monitoring, and practical integration flexibility.
JKONGMOTOR provides integrated motion-control products for OEM applications. When selecting a motor for medical syringe pumps or liquid handling equipment, engineers should evaluate torque requirements, linear travel, dispensing speed, control interfaces, thermal performance, and the complete fluid delivery mechanism. The selected model's specifications and suitability for the intended medical application should be confirmed during technical evaluation.
Different motion technologies suit different equipment requirements. Understanding their practical differences helps OEMs avoid paying for unnecessary functionality or selecting a system that lacks the required performance.
Selection factor |
Open-loop stepper motor |
Servo motor system |
|
|---|---|---|---|
Position feedback |
Generally no encoder feedback to the controller |
Encoder feedback monitors motor movement |
Feedback-based control is standard |
Motion error monitoring |
Limited unless external monitoring is added |
Available, depending on drive functions |
Generally comprehensive, depending on system design |
Integration |
Often requires a separate driver |
Motor and driver are combined |
Varies by integrated or separate architecture |
Low-speed positioning |
Often suitable |
Often suitable, with feedback supervision |
Suitable, depending on the servo design |
Dynamic response |
Depends on motor and driver |
Depends on motor, drive, and feedback algorithm |
Often advantageous for demanding dynamic applications |
Cost and complexity |
Often lowest |
Intermediate in many applications |
Varies with performance and system requirements |
Typical fit |
Cost-sensitive, moderate-load mechanisms |
Compact systems needing monitored stepper motion |
Applications requiring advanced dynamic control or broader servo capabilities |
An open-loop stepper motor may be appropriate when the load is predictable, the torque margin is sufficient, positioning demands are moderate, and the consequences of an undetected position error are acceptable.
It can be a cost-effective choice for simpler mechanisms that operate within a well-established load and speed range.
However, if unexpected mechanical resistance or position loss is a significant concern, a feedback-based solution may be worth the additional cost.
We would consider an integrated closed loop stepper motor when the application requires:
Compact motor and driver integration
Encoder-based position monitoring
Repeatable incremental movement
Controlled low-speed operation
Reduced external wiring
Straightforward integration into an OEM motion control platform
This combination can be particularly attractive for syringe pumps, laboratory dispensing equipment, and other precision mechanisms with moderate power and positioning requirements.
A servo motor may be preferable when the equipment requires high acceleration, demanding speed regulation, rapid settling, broad operating-speed flexibility, or advanced motion coordination.
The decision should be based on measured application requirements rather than assuming one technology is universally superior.
For some medical instruments, an integrated servo motor may deliver the required performance in a compact assembly. For others, an integrated closed loop stepper motor may meet the requirements with a simpler overall system.
Integrated closed loop stepper motors are widely used in precision automation equipment that requires repeatable positioning, controlled movement, compact installation, and encoder-based feedback. By integrating the stepper motor, driver, and encoder into one unit, they simplify system integration and help equipment manufacturers reduce wiring complexity.
Compared with open loop stepper motors, integrated closed loop stepper motors can monitor motor movement and detect certain positioning errors. Depending on the control system, they may respond to motion deviations or report faults, helping improve operational reliability in demanding applications.
For medical syringe pumps, liquid handling systems, laboratory instruments, and industrial automation equipment, the appropriate motor depends on torque, speed, positioning requirements, duty cycle, mechanical transmission, and control interface.

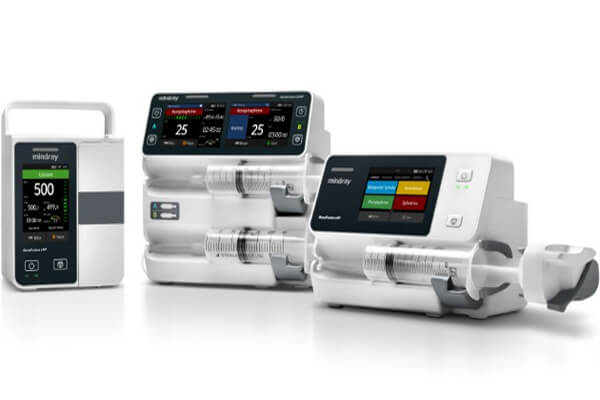

Medical syringe pumps use controlled linear movement to push a syringe plunger and deliver fluid at a specified rate. An integrated closed loop stepper motor can drive a lead screw or linear actuator to move the plunger in a controlled manner.
Its compact design and encoder feedback make it suitable for applications requiring repeatable positioning and controlled low-speed operation.
Medical infusion and drug delivery equipment.
Laboratory syringe pumps.
Research instruments.
Precision reagent dispensing systems.
Automated fluid transfer equipment.
When selecting a motor for a syringe pump, engineers should consider syringe diameter, plunger force, required flow rate, screw lead, motor torque, and operating duration.
Important consideration: Encoder feedback monitors motor movement rather than directly measuring delivered fluid volume. Dispensing accuracy must be validated using the complete fluid delivery system, including the syringe, tubing, valves, fluid properties, and mechanical transmission.
Automated liquid handling systems perform aspiration, dispensing, sample preparation, and reagent transfer. These systems often require precise movement across multiple axes, including pipetting-head positioning, vertical movement, and sample-platform positioning.
Integrated closed loop stepper motors can drive linear stages, screw-driven actuators, and other motion mechanisms in these systems.
Automated pipetting systems.
Laboratory sample preparation.
Reagent dispensing equipment.
Microplate handling systems.
Clinical diagnostic instruments.
Life science research automation.
For these applications, engineers should evaluate positioning repeatability, backlash, vibration, acceleration, and dispensing cycle time. Multi-axis equipment may also require coordinated motion control through a compatible controller.
Diagnostic analyzers combine sample handling, reagent delivery, measurement, and automated positioning in compact instruments. Integrated closed loop stepper motors can provide motion for mechanisms that require repeatable travel and position monitoring.
Clinical chemistry analyzers.
Immunoassay analyzers.
Blood analysis equipment.
Sample loading and unloading mechanisms.
Reagent cartridge positioning.
Automated testing instruments.
The integrated motor-and-driver design can reduce the number of separately installed components. For diagnostic equipment, however, engineers should also consider noise, heat generation, service life, vibration, and mechanical reliability.
Laboratory automation systems move tubes, trays, microplates, and sample containers through repeated processing steps. Consistent positioning helps ensure that samples reach the correct locations during automated workflows.
Sample transport mechanisms.
Tube handling systems.
Laboratory dispensing modules.
Automated extraction equipment.
Linear positioning stages.
Compact robotic mechanisms.
For equipment that operates continuously or processes large numbers of samples, motor selection should account for acceleration, moving mass, friction, duty cycle, and the expected number of operating cycles.
Many automated machines convert rotary motor movement into linear travel using a lead screw, ball screw, or linear actuator. Integrated closed loop stepper motors can drive these mechanisms when the motor's torque and speed match the application requirements.
Syringe plunger actuators.
Pipetting-axis drives.
Laboratory positioning platforms.
Automated adjustment mechanisms.
Precision dispensing modules.
Instrument positioning stages.
Actual positioning accuracy also depends on screw lead error, backlash, coupling stiffness, alignment, and mechanical compliance. If precise linear positioning is required, these factors must be evaluated alongside encoder resolution.
Integrated closed loop stepper motors can be used in selected 3D printers and desktop manufacturing systems where compact construction and motion monitoring are beneficial.
X-, Y-, and Z-axis movement.
Extruder mechanisms.
Automatic material handling.
Precision adjustment stages.
Compact CNC and engraving equipment.
Closed loop feedback can help detect certain motion deviations caused by excessive loads or unsuitable operating conditions. However, final printing or machining accuracy also depends on frame rigidity, mechanical backlash, motion planning, and thermal stability.
Electronics manufacturing equipment often requires compact motion-control components for positioning, adjustment, feeding, and inspection operations.
PCB inspection equipment.
Component positioning systems.
Automated dispensing machines.
Electronic assembly equipment.
Compact inspection stages.
Precision material feeding systems.
Engineers should assess positioning repeatability, vibration, settling time, electromagnetic compatibility, thermal behavior, and compatibility with the machine controller. Applications requiring exceptionally high precision or demanding dynamic performance may need additional load-side feedback or a servo motor system.
Packaging and labeling equipment uses repeated movements to position products, feed materials, and control dispensing operations. Integrated closed loop stepper motors can provide compact drive solutions for mechanisms with moderate torque and speed requirements.
Label feeding and positioning.
Small product dispensers.
Metering mechanisms.
Packaging adjustment axes.
Automated marking equipment.
Compact conveyor accessories.
The motor should be selected according to cycle time, acceleration, load inertia, required repeatability, and operating environment. Applications involving frequent rapid reversals should also be evaluated for vibration, motor temperature, and settling time.
Some textile, printing, and optical instruments require controlled movement to position components or adjust process parameters. Integrated closed loop stepper motors can support these operations when their motion characteristics match the application.
Print-head positioning.
Material feed systems.
Optical adjustment stages.
Lens positioning mechanisms.
Small tension-control actuators.
Precision adjustment assemblies.
Key selection factors include motion smoothness, low-speed performance, repeatability, noise, and control interface. For optical applications requiring very high accuracy, feedback from the moving component itself may be necessary because motor encoder feedback alone cannot account for all mechanical errors.
Compact robotic mechanisms and inspection equipment often have limited space for motors, drivers, and wiring. Integrating these components into one unit can simplify mechanical packaging and electrical installation.
Small robotic positioning axes.
Automated inspection fixtures.
Sample-handling mechanisms.
Camera adjustment systems.
Compact pick-and-place equipment.
Automated alignment platforms.
For these applications, engineers should verify torque across the operating speed range, acceleration requirements, controller compatibility, and whether the control system supports the necessary multi-axis coordination.
Automated reagent and chemical dispensing equipment requires controlled movement to transfer liquids between containers or dispense predetermined quantities. Integrated closed loop stepper motors can drive syringe mechanisms, metering actuators, and linear positioning systems.
Chemical reagent dispensers.
Automated titration equipment.
Laboratory liquid dosing systems.
Sample dilution equipment.
Small-scale fluid processing systems.
Motor selection should consider the required flow rate, dispensing volume, fluid viscosity, plunger force, and repeatability. Chemical compatibility and environmental protection must also be evaluated for the complete assembly.
Automated inspection systems often move cameras, sensors, samples, or workpieces into predefined positions. Integrated closed loop stepper motors provide a practical option when repeatable movement and compact integration are important.
Machine vision positioning.
Optical inspection systems.
Sensor adjustment mechanisms.
Automated measurement platforms.
Precision sample positioning.
Small testing fixtures.
The required positioning tolerance, settling time, payload, and vibration sensitivity should be established before selecting the motor. Where accuracy must be maintained at the workpiece rather than inferred from motor rotation, an external linear encoder or other load-side measurement may be appropriate.
The most suitable motor depends on the actual mechanical load and motion profile, rather than the application name alone.
Application |
Main selection priorities |
Potential configuration |
|---|---|---|
Medical syringe pumps |
Plunger force, flow rate, low-speed stability |
Integrated motor with a suitable lead screw |
Liquid handling systems |
Repeatability, travel, cycle time |
Integrated motor with a linear actuator |
Diagnostic analyzers |
Compact size, noise, thermal performance |
Compact integrated motor |
Laboratory automation |
Duty cycle, moving mass, repeatability |
Motor matched to the linear stage |
Packaging equipment |
Speed, acceleration, cycle frequency |
Integrated motor with sufficient torque margin |
Electronics manufacturing |
Positioning, vibration, settling time |
Integrated motor with a compatible control interface |
Compact robotics |
Torque, dynamic response, controller compatibility |
Integrated motor matched to the axis load |
Reagent dispensing |
Plunger force, fluid properties, volume validation |
Integrated motor with a suitable dispensing mechanism |
Optical inspection |
Positioning tolerance, vibration, settling time |
Integrated motor, with external feedback if required |
Before finalizing a motor selection, engineers should verify the mechanical load, required travel, operating speed, acceleration, positioning tolerance, power supply, encoder specifications, control interface, environmental conditions, and expected service life.
For OEMs developing syringe pumps, liquid handling systems, laboratory automation equipment, and other precision instruments, JKONGMOTOR can help evaluate suitable integrated motion-control configurations according to project requirements.
Depending on the selected product and application, the evaluation may cover motor frame size, torque, encoder feedback, driver integration, control interface, lead screw compatibility, wiring, and mounting arrangements.
A practical development process begins with defining the motion profile, calculating the required torque and linear travel, selecting a suitable motor configuration, and validating positioning performance under actual operating conditions.
Integrated closed loop stepper motors can support several types of precision fluid handling mechanisms, provided that their specifications match the application.
The motor drives a lead screw or linear transmission to move a syringe plunger.
Typical selection priorities include controlled low-speed movement, adequate axial force, repeatable positioning, compact installation, and reliable fault monitoring.
For devices used in regulated medical applications, the motor must also be incorporated into the equipment's risk management, verification, and validation processes.
Reagent dispensing systems may need to deliver defined quantities of liquid into test tubes, microplates, cartridges, or other containers.
An integrated closed loop stepper motor can drive the dispensing mechanism while encoder feedback helps monitor the movement.
Dispensing accuracy must still be verified using the actual reagent, fluid path, dispensing method, and operating conditions.
Automated sample preparation systems often combine liquid transfer, positioning, mixing, and repeated mechanical movements.
Integrated motor assemblies can simplify the design of compact axes and modular mechanisms.
Where several motors operate simultaneously, controller compatibility, communication timing, synchronization, and recovery from motion faults become important design considerations.
Some automated pipetting systems use motorized mechanisms to control aspiration and dispensing, while other designs rely on pressure-based or alternative fluid control architectures.
An integrated closed loop stepper motor may be suitable for driving a pipetting or dispensing axis when its torque, travel, speed, and feedback functions meet the mechanical requirements.
The motor should be selected according to the actual mechanism rather than assuming that every pipetting system uses the same drive architecture.
Analytical instruments may require small positioning mechanisms to move samples, adjust components, or control fluid delivery.
In these applications, reduced wiring, compact dimensions, and repeatable movement can make an integrated motor attractive.
Engineers should also evaluate electromagnetic compatibility, acoustic noise, temperature rise, and the effect of vibration on measurement stability.
Even a technically capable motor can underperform if the application requirements are poorly defined.
Holding torque is not the same as available torque at the required operating speed.
A motor may have adequate static holding torque but insufficient dynamic torque to overcome plunger friction and accelerate the mechanism.
We recommend calculating the actual load and reviewing the torque-speed characteristics before finalizing the motor.
An encoder measures motor movement, not the volume of liquid delivered.
Backlash, coupling errors, fluid pressure, tubing compliance, syringe tolerances, and valve leakage can all affect fluid delivery.
For applications requiring verified dispensing accuracy, the entire fluid handling system must be calibrated and tested.
Backlash can create lost movement when the direction changes.
This is particularly important when the mechanism alternates between aspiration, dispensing, and repositioning.
A suitable lead screw, properly aligned transmission, appropriate preload where applicable, and a validated reversal strategy can help reduce the impact of backlash.
Integrated electronics can generate heat inside the motor assembly.
If the equipment has a small enclosure or operates continuously, thermal performance should be evaluated under realistic conditions.
The selection process should consider ambient temperature, mounting orientation, duty cycle, available airflow, and allowable surface temperature.
A motor that uses an incompatible communication protocol can increase development time and require additional control hardware.
Before placing an order, verify the exact model's supported interface, command format, feedback information, alarm outputs, and parameter configuration method.
Motor specifications alone cannot establish the performance of a finished syringe pump or liquid handling instrument.
Validation should include the actual syringe, fluid, mechanical transmission, control software, and expected operating conditions.
Where applicable, test the system at minimum and maximum flow rates, across representative fluid viscosities, and under realistic duty cycles.
Selecting a motor supplier involves more than confirming the rated torque and unit price.
For OEM projects, the supplier's ability to support mechanical integration, electrical compatibility, customization, and production consistency can have a significant effect on development efficiency.
We recommend discussing the following questions before selecting an integrated closed loop stepper motor.
Provide the intended lead screw lead, required travel, target speed, syringe dimensions, and estimated load. This information allows the motor supplier to assess the required torque and operating range.
Confirm encoder resolution, position-error monitoring, overload behavior, stall detection, and alarm reporting for the specific model.
Clarify whether the application requires pulse and direction, RS485, CANopen, or another supported interface.
Discuss shaft dimensions, mounting holes, motor length, connectors, cable routing, and transmission compatibility.
Ask for the relevant operating specifications and determine whether the motor can support the intended continuous or intermittent duty cycle.
Useful documentation may include dimensional drawings, wiring diagrams, control manuals, performance curves, test information, and model-specific technical specifications.
For custom instruments, development support may include design review, sample evaluation, prototype testing, and adjustments to the motor assembly.
Discuss incoming material controls, assembly procedures, functional testing, traceability where required, and the supplier's approach to handling nonconforming products.
These questions help engineering teams assess whether a motor supplier can support both initial development and subsequent production.
At JKONGMOTOR, we focus on integrated motor and motion control solutions for equipment manufacturers that need to coordinate mechanical performance, electrical integration, and production requirements.
For medical syringe pumps and liquid handling equipment, motor selection should begin with the mechanism and its operating requirements rather than a standard motor model alone.
We recommend defining the required travel, operating speed, axial force, acceleration, positioning resolution, duty cycle, and installation dimensions before selecting a motor.
These parameters help determine whether an integrated closed loop stepper motor is suitable or whether another motion control architecture should be considered.
A clear set of application requirements also makes it easier to compare candidate models and identify potential design limitations early.
Different syringe pump and laboratory instrument designs can require different motor lengths, shaft configurations, mounting arrangements, connectors, and transmission interfaces.
OEM/ODM discussions can focus on the mechanical and electrical requirements of the target device, helping equipment manufacturers evaluate whether a standard configuration or customized assembly is more appropriate.
Customization should be based on the actual design requirements and confirmed against the manufacturer's available engineering capabilities.
Integrating the motor and driver can simplify the motion control architecture and reduce the number of separately installed components.
Depending on the selected model, engineers can evaluate available feedback functions, control interfaces, and configuration options against the requirements of the equipment controller.
The objective is to establish a practical, compatible motion control solution that supports the instrument's performance targets without adding unnecessary complexity.
Before moving into batch production, we recommend evaluating representative samples in the intended mechanism.
A structured test plan may include:
Positioning repeatability
Minimum and maximum operating speeds
Axial force and torque margins
Noise and vibration
Temperature rise
Repeated cycling
Communication reliability
Fault detection and recovery behavior
For liquid handling equipment, testing should also evaluate the actual dispensing or aspiration performance using the intended fluid path and operating conditions.
These tests help identify integration issues before the design is released for production.
Before requesting a quotation or finalizing a motor specification, we recommend preparing the following information.
Design parameter |
Information to prepare |
Why it matters |
|---|---|---|
Application |
Syringe pump, reagent dispenser, pipetting axis, or other mechanism |
Defines the motion requirements |
Required displacement |
Minimum movement and total travel |
Determines transmission and positioning needs |
Syringe dimensions |
Internal diameter and usable stroke, where applicable |
Connects plunger travel to theoretical volume |
Required speed |
Minimum, normal, and maximum speed |
Determines the operating torque range |
Axial load |
Estimated friction and pressure-related force |
Supports torque sizing |
Transmission |
Lead screw lead, efficiency, coupling, and backlash |
Determines linear movement and torque demand |
Feedback |
Encoder resolution and required monitoring functions |
Defines position supervision requirements |
Control interface |
Pulse and direction, RS485, CANopen, or another compatible option |
Ensures controller compatibility |
Installation |
Available space, mounting pattern, shaft, and connector orientation |
Prevents mechanical integration problems |
Duty cycle |
Operating duration, cycle frequency, and rest periods |
Supports thermal and lifetime evaluation |
Environment |
Ambient temperature, cleaning exposure, and enclosure conditions |
Determines environmental requirements |
Verification |
Positioning, dispensing, thermal, and reliability tests |
Confirms actual system performance |
The more accurately these requirements are defined, the easier it becomes to select a motor that meets the intended operating conditions.
For OEM projects, we recommend involving the motor supplier during the mechanical design stage. Early collaboration can help avoid unnecessary redesigns, incompatible mounting dimensions, and unsuitable electrical interfaces.
An integrated closed loop stepper motor combines a stepper motor, driver, and encoder into one unit. The encoder monitors motor movement, allowing the control system to detect certain positioning errors and respond according to its capabilities. This integrated design simplifies wiring and installation while providing feedback for applications such as syringe pumps, liquid handling systems, laboratory automation, and precision positioning equipment.
The main advantages include encoder-based position monitoring, reduced wiring complexity, compact installation, improved detection of certain motion errors, and convenient integration with automation controllers. Compared with open loop stepper motors, closed loop models can monitor motor movement and may respond to positioning deviations. Actual performance depends on the motor, driver, encoder, controller, and mechanical system.
Integrated closed loop stepper motors are suitable for syringe pumps because they can provide controlled motor movement, repeatable positioning, and encoder-based motion monitoring in a compact assembly. They can drive lead screws or linear actuators that move syringe plungers. However, encoder feedback does not directly measure delivered fluid volume, so dispensing accuracy must be verified through system-level calibration and testing.
Yes. They can drive pipetting axes, syringe mechanisms, linear stages, sample positioning systems, and reagent dispensing mechanisms. Their integrated construction can simplify equipment design, while encoder feedback helps monitor motor movement during repetitive operations. The appropriate configuration depends on positioning requirements, travel distance, cycle time, mechanical load, and controller compatibility.
An open loop stepper motor operates primarily according to commanded step pulses without encoder feedback on motor position. A closed loop stepper motor uses an encoder to monitor movement and can detect certain deviations between commanded and actual motor motion. Closed loop control can improve motion monitoring under changing loads, but it does not eliminate the need for correct motor sizing and mechanical design.
Start by determining the required dispensing rate, syringe diameter, plunger force, linear travel, screw lead, acceleration, and operating duty cycle. Then calculate the required motor torque and speed, allowing for friction and transmission losses. Check encoder specifications, driver functions, control interfaces, installation dimensions, and thermal performance. Finally, validate the complete fluid delivery system to confirm actual dispensing accuracy.
Yes. They can be combined with suitable lead screws, ball screws, and other linear transmission mechanisms to convert rotary motion into linear movement. The correct configuration depends on the required thrust, travel, speed, positioning repeatability, and mechanical load. Backlash, screw lead error, coupling stiffness, and alignment must also be considered when evaluating linear positioning accuracy.
Common applications include medical equipment, laboratory automation, clinical diagnostic analyzers, liquid handling systems, semiconductor and electronics manufacturing, packaging machinery, printing equipment, optical positioning systems, and compact robotics. They are particularly useful when an application benefits from encoder-based motion monitoring, compact integration, and repeatable positioning without requiring every axis to use a conventional servo system.
Some integrated closed loop stepper motors support RS485, CANopen, pulse-and-direction control, or other interfaces, depending on the model. RS485 describes an electrical communication interface, whereas CANopen is a communication protocol built on CAN. Before selecting a motor, verify the supported protocol, command functions, electrical specifications, controller compatibility, and available diagnostic features.
JKONGMOTOR can be considered for evaluating integrated motion-control products for OEM equipment, including laboratory instruments, syringe pumps, liquid handling systems, and precision automation machinery. Project evaluation may cover motor size, torque, encoder feedback, driver integration, control interfaces, mounting, wiring, and compatible linear mechanisms, depending on the selected product. Engineers should confirm technical specifications and validate the proposed configuration under actual operating conditions.
An integrated closed loop stepper motor for medical syringe pumps and liquid handling systems can provide a practical combination of encoder-based position monitoring, controlled incremental movement, compact installation, and simplified motor-driver integration.
For medical device manufacturers and laboratory automation OEMs, the main benefits include improved visibility into motor movement, reduced external wiring, flexible integration options, and a potentially cost-effective alternative to more complex servo systems.
However, the right motor must be selected according to the real requirements of the application. Torque at operating speed, encoder performance, lead screw characteristics, plunger force, thermal limits, communication compatibility, and mechanical backlash all influence the final result.
Most importantly, accurate motor positioning does not automatically guarantee accurate liquid delivery. The complete system must be designed and tested to verify the required dispensing performance.
At JKONGMOTOR, we encourage OEM engineering teams to define their application requirements early and evaluate motor solutions through engineering review and prototype testing. With the right combination of motor technology, mechanical transmission, and control strategy, equipment manufacturers can develop compact, reliable, and repeatable motion systems for medical and laboratory fluid handling applications.
