How to Choose a 400W 48V Integrated Servo Motor with CANopen and Holding Brake for High-Cycle Automatic Industrial Doors?

High-cycle automatic industrial doors operate under demanding conditions. In logistics centers, manufacturing plants, distribution warehouses, cold storage facilities, and commercial buildings, these doors may open and close hundreds or even thousands of times per day. Every operating cycle affects productivity, energy consumption, equipment wear, and workplace safety.

Choosing the right drive system is therefore more important than simply selecting a motor with sufficient power. The motor must provide reliable acceleration, precise positioning, controlled stopping, and consistent performance during repeated operation. It must also integrate smoothly with the door controller, safety devices, and the wider automation system.

For many applications, a 400W 48V integrated servo motor with CANopen communication and a holding brake offers an attractive combination of compact design, motion control, communication flexibility, and dependable position holding.

However, not every 400W servo motor is suitable for every industrial door. Before selecting a model, we need to evaluate the door's mechanical characteristics, operating frequency, load requirements, control architecture, installation environment, and safety functions.

In this guide, we explain how to choose an integrated servo motor for high-cycle automatic industrial doors, which specifications deserve the most attention, and how to evaluate potential suppliers for long-term industrial use.

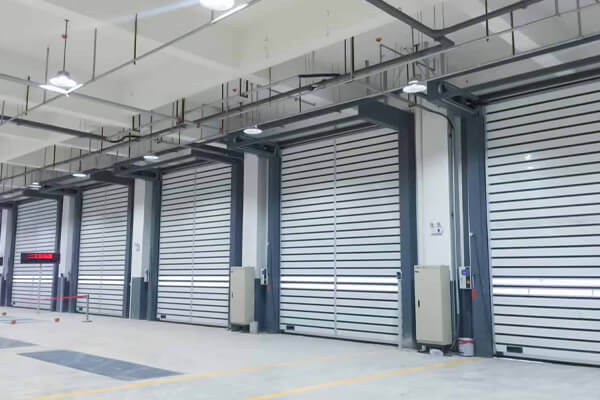

1. Understanding the Operating Requirements of High-Cycle Automatic Industrial Doors

High-cycle industrial doors are designed for environments where frequent access is essential to daily operations. Unlike conventional building doors, they often form part of a larger material-handling, environmental-control, or production workflow.

Typical applications include:

  • Logistics and distribution centers, where forklifts and pallet trucks pass through doors throughout the day.

  • Manufacturing facilities, where production lines depend on reliable movement between work areas.

  • Warehouses, where rapid access improves picking, loading, and transportation efficiency.

  • Cold storage facilities, where minimizing door-open time helps maintain temperature stability.

  • Automotive plants, where doors coordinate with automated equipment and production processes.

  • Food and pharmaceutical facilities, where environmental separation and controlled access are important.

  • Commercial parking facilities, where frequent opening and closing must be combined with dependable operation.

These applications place several demands on the door drive system.

1.1 High Operating Frequency

A high-cycle door may perform hundreds or thousands of opening and closing movements in a single day, depending on the application.

Frequent operation creates repeated acceleration, deceleration, starting, stopping, and load changes. These conditions can increase motor heating and mechanical wear, particularly when the drive system is incorrectly sized.

A suitable servo motor must therefore be selected according to its continuous and intermittent operating requirements, not simply its rated power.

We should evaluate the number of operating cycles per hour, the average movement duration, the acceleration profile, the dwell time, and the expected service life.

1.2 Precise Opening and Closing Positions

Industrial doors often need to stop at repeatable positions to avoid mechanical impact, incomplete closure, or interference with surrounding equipment.

A door that stops too early may restrict vehicle clearance. A door that travels too far may place unnecessary stress on its mechanical structure.

A servo system with suitable feedback and positioning capability can improve movement repeatability and support controlled acceleration and deceleration.

The required accuracy depends on the door design. A high-speed fabric door, a sectional industrial door, and a heavy vertical lifting door may have very different positioning requirements.

1.3 Reliable Performance Under Changing Loads

Door loads are not always constant.

A lifting door may experience changes in effective load due to its mechanical balance, cable arrangement, counterweights, spring system, or transmission design. Friction can also change as guide rails, bearings, and mechanical components wear.

The selected motor must provide sufficient torque throughout the complete movement, including startup and acceleration.

For vertical doors, gravity introduces an additional consideration: the drive must manage the load during both upward and downward movement.

1.4 Controlled Stopping and Position Holding

Stopping a door safely involves more than removing electrical power from the motor.

The drive must decelerate the moving system appropriately and prevent unwanted movement when the door reaches its intended position.

For doors that can move under gravity or external forces, a holding brake may provide an additional means of preventing unintended shaft rotation when correctly integrated into the control and safety system.

This requirement is one reason why industrial door manufacturers may prefer an integrated servo motor with a brake over a basic motor without a dedicated holding function.

Jkongmotor Customized Servo Motor Motions

One-Stop Integrated DC Servo Motor Solution Provider

Integrated Servo Motor for AGVs
Integrated Servo Motor for medical
Integrated Servo Motor for AMR
Integrated Servo Motors
Integrated Servo Motor with brake
geared Integrated Servo Motor
integrated servo motor with worm gearbox
Waterproof Integrated Servo Motor
IP65 Integrated Servo Motor for
IP65 Integrated Servo Motor

Shaft

Lead Screw

Module

Linear Motion

Brake

Gearbox

Worm Gearbox

Wires

Protect Level

Protect Level

2. What Is a 400W 48V Integrated Servo Motor?

A 400W 48V integrated servo motor combines a servo motor and its associated drive electronics within a single assembly or housing.

Depending on the product design, the assembly may incorporate the motor, servo drive, position feedback device, communication interface, and brake-control connections.

Traditional servo systems typically use a separate motor and servo drive. This arrangement offers flexibility, but it also requires additional wiring, cabinet space, mounting work, and coordination between components.

An integrated servo motor brings several of these elements together, simplifying the overall motion-control architecture.

2.1 Why Choose an Integrated Design?

For industrial door manufacturers, installation efficiency and product standardization are important commercial considerations.

An integrated design can offer several practical benefits:

  • Reduced installation complexity: Fewer separately mounted components can simplify mechanical and electrical integration.

  • Reduced control-cabinet requirements: When the drive electronics are incorporated into the motor assembly, less cabinet space may be required.

  • Simplified wiring: Motor-to-drive power wiring may be eliminated, although power supply, communication, I/O, and safety connections are still required.

  • Fewer component-matching decisions: The motor and drive are designed to operate together as a system.

  • Easier equipment standardization: Manufacturers can develop a consistent door-drive architecture around a defined motor platform.

  • Potentially lower assembly costs: Fewer external components and simpler installation may reduce total system cost.

These advantages are particularly relevant for OEMs producing multiple industrial door models or integrating the same drive platform into different machine configurations.

However, integration does not automatically guarantee lower total cost or better reliability. Thermal management, environmental protection, serviceability, cable access, and replacement procedures must also be considered.

2.2 What Does 400W Mean for Industrial Door Applications?

A rated power of 400W indicates the motor's nominal mechanical output under its specified operating conditions. It does not, by itself, determine whether the motor can lift a particular door.

The required torque depends on the load, transmission ratio, drum or pulley diameter, acceleration, friction, and mechanical efficiency.

For a rotating shaft, mechanical power is related to torque and angular velocity:

P = T × ω

Where:

  • P is mechanical power in watts.

  • T is torque in newton-metres.

  • ω is angular velocity in radians per second.

For example, if a motor delivers 1.27 N·m at approximately 3,000 rpm, its mechanical output is approximately 400W.

This illustrates why rated power and torque must be evaluated together. A motor may provide sufficient power at high speed but insufficient torque for startup or low-speed operation without appropriate gearing.

For industrial doors, we should check the complete torque-speed curve rather than relying on the 400W rating alone.

2.3 What Does 48V Mean?

A 48V system operates at a relatively low nominal DC voltage compared with many industrial AC servo systems.

This can be useful in compact machinery, mobile equipment, battery-supported installations, and applications where a DC power architecture is preferred.

However, a 48V rating does not necessarily mean the motor can connect directly to every 48V power supply.

We must confirm:

  • The permitted DC bus voltage range.

  • The required power supply capacity.

  • Peak current during acceleration.

  • Regenerative energy handling during deceleration.

  • Voltage drop across the supply cables.

  • Protection against overcurrent and overvoltage.

  • Compatibility with the motor's integrated drive electronics.

For a nominal 400W output, the ideal current calculated at 48V is approximately 8.33A. Actual input current will be higher when electrical losses are included, and peak current may be considerably higher during acceleration or transient loading.

The power supply should therefore be sized according to the manufacturer's electrical specifications and the application's actual duty cycle.

2.4 Different Types of Integrated Servo Motors for High-Cycle Automatic Industrial Doors

Not all high-cycle automatic industrial doors require the same type of drive system. A high-speed fabric door in a distribution center has different motion requirements from a heavy sectional door in a manufacturing plant or a rolling shutter in a commercial warehouse. Door weight, opening speed, operating frequency, installation space, control architecture, and safety requirements all influence the choice of motor.

When selecting an integrated servo motor for high-cycle automatic industrial doors, we should consider more than rated power. The motor's torque characteristics, feedback system, communication interface, braking capability, and ability to operate under repeated acceleration and deceleration are equally important.

Integrated servo motors combine the motor and drive electronics in a compact assembly, with some models also incorporating position feedback, communication interfaces, and holding-brake options. This design can simplify installation and help industrial door manufacturers standardize their drive systems across different product models.

Below, we examine the main types of integrated servo motors used in industrial door automation and explain how to determine which configuration best matches the application.

2.4.1 Integrated Servo Motors With a Holding Brake

An integrated servo motor with a holding brake is particularly suitable for door mechanisms that must remain stationary when the motor stops. This is especially relevant to vertical lifting doors, where gravity can cause unwanted movement if the transmission cannot hold the load independently.

Many brake-equipped servo motors use a spring-applied, electrically released brake. When release power is removed, the brake applies its holding force, subject to the manufacturer's specifications and the condition of the brake assembly.

For high-cycle industrial doors, this configuration offers several practical advantages:

  • Reliable stationary holding: Helps prevent unintended shaft rotation when the motor is stopped.

  • Compact mechanical integration: Combines the motor, drive electronics, and brake within one assembly when supported by the product design.

  • Simplified system design: Can reduce the need for a separately mounted motor-brake assembly.

  • Controlled movement: Allows the drive and brake to work together through an appropriately configured operating sequence.

  • OEM design flexibility: Supports the development of compact door-drive systems for different lifting mechanisms.

However, we must distinguish between a holding brake and a dynamic braking system. A holding brake is not automatically designed to absorb the energy of a moving door during repeated emergency stops. Its holding torque, response time, release voltage, operating frequency, and permissible braking energy must be verified before purchase.

For vertical sectional doors and rolling shutters, we should calculate the required holding torque at the motor shaft, taking the transmission ratio and efficiency into account. We should also verify that the brake remains suitable under the actual operating temperature and duty cycle.

Best suited for: Vertical lifting doors, rolling shutters, sectional industrial doors, and other mechanisms where stationary holding is required.

2.4.2 Integrated Servo Motors With CANopen Communication

For industrial doors connected to PLCs or centralized automation systems, an integrated servo motor with CANopen can simplify communication between the drive and the main controller.

CANopen is a communication protocol based on Controller Area Network technology. Depending on the implemented profile and firmware, a compatible servo drive may exchange motion commands, operating parameters, status information, and diagnostic data with the control system.

This is useful in automated warehouses, manufacturing facilities, and logistics centers where door movement must coordinate with conveyors, vehicles, production equipment, or access-control systems.

The main benefits include:

  • Standardized communication: Provides a defined framework for exchanging data between compatible devices.

  • Simplified PLC integration: Can reduce the need for application-specific point-to-point control wiring, depending on the system architecture.

  • Drive-status monitoring: Allows the controller to access supported operating states and diagnostic information.

  • Flexible automation: Helps integrate door movement into broader machine sequences.

  • Easier troubleshooting: Available fault information can help maintenance teams identify drive or communication problems.

Nevertheless, CANopen support alone does not guarantee compatibility with every PLC. Different products may implement different communication profiles, operating modes, process data objects, and manufacturer-specific parameters.

Before purchasing, we should request the manufacturer's Electronic Data Sheet (EDS), confirm the supported operating modes, and verify compatibility with the intended controller.

We should also establish how the drive responds to communication loss and how faults are reported and reset. Standard CANopen communication should not be treated as a substitute for a safety-rated control system.

Best suited for: Automated industrial doors integrated into PLC-based production lines, warehouse automation systems, and centralized industrial control networks.

2.4.3 48V DC Integrated Servo Motors

A 48V DC integrated servo motor is an attractive option for compact industrial door systems that use a low-voltage DC power architecture.

Compared with some conventional industrial AC servo systems, a 48V solution may simplify electrical integration in applications where DC power is already available or preferred. The integrated design can also reduce the number of separately mounted components.

For a high-cycle automatic door, the main selection considerations include the available power supply, peak current, rated torque, maximum speed, thermal performance, and the drive's ability to handle regenerative energy during deceleration.

A nominal 400W output at 48V corresponds to an ideal current of approximately 8.33A before accounting for electrical losses. Actual current demand will be higher, and acceleration may require substantially more current than steady-state operation.

We should therefore confirm that the power supply and wiring can accommodate the motor's specified continuous and peak current requirements.

Other factors to consider include:

  • The permitted DC bus voltage range.

  • Voltage drop across supply cables.

  • Overcurrent and overvoltage protection.

  • Thermal derating at elevated ambient temperatures.

  • Regenerative energy management.

  • Electrical compatibility with the door controller.

A 48V rating does not automatically make a motor suitable for battery operation or every nominal 48V supply. The manufacturer's electrical specifications must determine compatibility.

Best suited for: Compact industrial door systems, DC-powered automation equipment, and applications where a low-voltage integrated drive architecture offers practical installation benefits.

2.4.4 Position-Controlled Integrated Servo Motors

Some industrial door applications require accurate, repeatable opening and closing positions. In these cases, a position-controlled integrated servo motor can provide useful advantages over a basic motor with simple on/off control.

A servo drive uses feedback and a control loop to regulate movement according to its supported operating modes. Depending on the system, it may control position, speed, or torque.

For industrial doors, position control can help the mechanism approach its target smoothly and stop consistently. This is important when the door must align with a defined opening, coordinate with another machine, or avoid unnecessary impact at the travel limits.

The actual positioning performance depends on several factors:

  • Feedback-device type and resolution.

  • Drive-control performance.

  • Mechanical backlash.

  • Transmission stiffness.

  • Load inertia.

  • Encoder installation and configuration.

  • Motion-profile settings.

A high-resolution encoder cannot compensate for excessive mechanical backlash or an unsuitable transmission. The motor, gearbox, door mechanism, and controller must work together as a complete motion-control system.

When comparing products, we should confirm whether the motor supports the required positioning functions through its local inputs, communication interface, or both.

We should also distinguish between encoder resolution and guaranteed system-level positioning accuracy. These are related but different specifications.

Best suited for: High-speed fabric doors, automated access systems, industrial doors requiring repeatable stopping positions, and doors coordinated with other automated equipment.

2.4.5 High-Torque Integrated Servo Motors With Gearboxes

For heavier industrial doors, the motor may need a gearbox to deliver sufficient torque at the required output speed.

A gearbox reduces rotational speed and increases output torque according to its reduction ratio and mechanical efficiency. This allows a relatively compact motor to drive a mechanism that requires more torque than the motor can deliver directly.

For example, a reduction gearbox can help adapt a high-speed servo motor to a door shaft that must rotate more slowly while producing greater torque.

However, gearbox selection must account for more than the nominal reduction ratio. We should evaluate:

  • Required output torque.

  • Output speed.

  • Gearbox efficiency.

  • Backlash.

  • Mechanical stiffness.

  • Permitted radial and axial loads.

  • Lubrication and maintenance requirements.

  • Expected service life under repeated operation.

A gearbox may also increase inertia reflected to the motor, affect acceleration performance, and introduce additional mechanical losses.

For high-cycle doors, the gearbox must be rated for the actual operating frequency and dynamic load profile. The motor's peak torque should not exceed the gearbox's permitted input torque, and the output shaft must remain within its mechanical load limits.

We should also determine whether the integrated servo motor is supplied with a gearbox or requires a separate transmission component.

Best suited for: Doors requiring higher output torque, compact drive installations, and lifting or rolling mechanisms where direct-drive torque is insufficient.

2.4.6 Compact Integrated Servo Motors for Space-Constrained Installations

Some industrial door systems have limited room for the drive assembly, particularly when the motor is installed close to the door shaft, inside a compact housing, or within an existing machine structure.

A compact integrated servo motor can reduce the number of separately mounted components and simplify the overall layout.

For OEMs, this can make it easier to standardize the drive assembly across different door models while keeping installation dimensions under control.

However, a compact design must still provide sufficient space for heat dissipation, connectors, cable routing, and maintenance access.

We should compare the motor's overall dimensions, mounting pattern, shaft configuration, connector orientation, and environmental protection rating before confirming the mechanical design.

A smaller motor is not automatically better. If the housing cannot dissipate heat effectively under high-cycle operation, the motor may require derating or additional cooling.

Best suited for: Compact high-speed doors, space-constrained OEM designs, and industrial door systems where reducing installation complexity is a priority.

2.4.7 How to Choose the Right Integrated Servo Motor Type

The best integrated servo motor depends on the door's mechanical design and control requirements. Instead of choosing a motor based on one feature, we should identify the application's essential functions first.

Industrial door requirement

Recommended motor configuration

Key selection considerations

Vertical lifting and stationary holding

Integrated servo motor with holding brake

Holding torque, brake timing, transmission ratio, and load behavior

PLC-based automation

Integrated servo motor with CANopen

Device profile, EDS file, controller compatibility, and diagnostics

Low-voltage DC power architecture

48V DC integrated servo motor

Supply capacity, peak current, voltage range, and regenerative energy

Repeatable opening and closing positions

Position-controlled integrated servo motor

Feedback resolution, positioning performance, backlash, and tuning

High output torque at reduced speed

Integrated servo motor with gearbox

Reduction ratio, efficiency, output torque, and mechanical limits

Limited installation space

Compact integrated servo motor

Dimensions, cooling, cable access, and serviceability

Frequent operation throughout the working day

High-cycle-rated integrated servo motor

Thermal performance, duty cycle, peak torque, and expected service life

These configurations are not necessarily mutually exclusive. A single motor may combine several features, such as 400W rated power, 48V DC operation, CANopen communication, position feedback, and a holding brake.

For this reason, we should evaluate the complete product specification rather than treating each feature as a separate motor category.

2.4.8 Why a 400W 48V Integrated Servo Motor With CANopen and a Holding Brake Can Be a Practical Choice

For certain high-cycle industrial door applications, a 400W 48V integrated servo motor with CANopen and a holding brake combines several functions that would otherwise require careful coordination between separate components.

Its integrated construction can simplify mounting and wiring. The CANopen interface can support communication with a compatible controller, while servo feedback enables controlled movement and repeatable positioning. The holding brake can provide stationary holding capability when the application requires it.

These features can be particularly useful for OEMs developing compact door-drive systems for logistics facilities, manufacturing plants, and automated warehouses.

However, the configuration should be selected only after confirming that the motor can meet the door's torque, speed, acceleration, and thermal requirements. We must also verify the brake's holding capacity, the CANopen functions required by the controller, and the suitability of the complete safety architecture.

Our recommendation is to begin with the door's actual operating conditions, calculate the required mechanical performance, and then select the integrated servo motor configuration that satisfies those requirements. This approach helps reduce integration problems and supports reliable operation throughout the door system's intended service life.

3. Why CANopen Matters for High-Cycle Automatic Industrial Doors

High-cycle automatic industrial doors are widely used in logistics centers, warehouses, manufacturing facilities, cold storage areas, cleanrooms, and other industrial environments where fast, reliable, and frequent opening and closing are essential. In these applications, the motion control system must do more than simply start and stop a motor. It must coordinate speed, position, acceleration, deceleration, braking, and fault handling while communicating reliably with the door controller and other automation equipment.

This is where CANopen communication becomes particularly valuable. CANopen is a communication protocol based on the Controller Area Network (CAN) that enables compatible devices, including integrated servo motors, PLCs, motion controllers, and industrial control systems, to exchange commands and status information through a standardized interface.

For industrial door OEMs, choosing an integrated servo motor with CANopen can simplify system integration, improve motion control coordination, and provide better access to operating data. When combined with a suitable motor rating, a 48V DC power supply, and a holding brake, CANopen communication can help create a more flexible and maintainable automatic door system.

3.1 What Is CANopen in an Integrated Servo Motor?

CANopen is a higher-layer communication protocol designed for embedded and industrial automation systems. It defines how devices communicate over a CAN network, including how control commands, configuration parameters, operating states, and diagnostic information are exchanged.

In an integrated servo motor, the motor, drive electronics, and communication interface are combined into one unit. Instead of relying on separate motor and servo-drive components connected through multiple interfaces, the door manufacturer can integrate a motor that receives commands and reports operating information through CANopen.

Depending on the product's implementation, the CANopen interface may support functions such as:

  • Motion commands: Receiving target positions, velocity commands, or other supported motion references.

  • Operating status: Reporting whether the motor is enabled, moving, stopped, or in a fault state.

  • Parameter configuration: Allowing authorized controllers to configure supported operating parameters.

  • Diagnostic information: Reporting communication errors, drive faults, and other available diagnostic data.

  • Position and velocity feedback: Transmitting feedback values when these functions are supported by the motor and drive.

  • Control coordination: Helping the door controller coordinate motor operation with sensors, interlocks, and other automation devices.

The available functions depend on the motor's firmware, CANopen implementation, supported device profile, and configuration. Therefore, OEMs should verify the communication specification rather than assume that every CANopen servo motor supports the same features.

3.2 More Precise Motion Control for Frequent Door Cycles

High-cycle industrial doors may operate hundreds or thousands of times per day, depending on the facility and application. Repeated movement places demands on the motor, mechanical transmission, door structure, and control system.

A door that opens too slowly can interrupt material flow, while abrupt acceleration or deceleration can increase mechanical stress, vibration, and wear. Consistent motion control is therefore important for maintaining throughput and reducing unnecessary loads on the door mechanism.

CANopen can provide a standardized way for the door controller to send motion commands to a compatible integrated servo motor. Depending on the supported control modes, the system may coordinate target position, velocity, acceleration, and deceleration.

For example, a high-speed industrial door may require the following operating sequence:

  1. Receive an opening request from the control system.

  2. Check relevant interlocks and safety conditions.

  3. Release the holding brake when appropriate.

  4. Accelerate the motor according to the configured motion profile.

  5. Move the door toward the open position.

  6. Decelerate as the door approaches the target position.

  7. Confirm the final position through the available feedback or limit-detection system.

  8. Apply the holding brake when required by the system design.

CANopen can support communication between the controller and motor throughout this sequence. However, the actual motion profile, position control, brake timing, and safety logic must be implemented and validated in the system. CANopen itself does not automatically guarantee accurate positioning or safe operation.

For industrial door manufacturers, the main advantage is the ability to coordinate motor behavior through a defined communication interface rather than relying entirely on basic start-and-stop signals.

3.3 Simplified Integration with PLCs and Industrial Controllers

Many industrial facilities use programmable logic controllers (PLCs) to coordinate automatic doors with conveyors, production lines, warehouse management equipment, access control systems, and other machinery.

When an integrated servo motor supports CANopen, it can communicate with a compatible CANopen master or controller. This can make it easier to incorporate motor operation into a broader automation system.

For door OEMs, this offers several potential benefits:

  • Standardized communication: A common protocol can reduce the need for proprietary communication interfaces.

  • Reduced integration complexity: Motion commands and operating data can be exchanged through a defined network structure.

  • Centralized coordination: A compatible controller can coordinate door movement with other equipment.

  • Easier product development: A common communication approach may simplify the design of multiple door models using similar control architectures.

  • Greater flexibility: Supported motor parameters and control functions can be configured through the communication interface.

However, CANopen compatibility must be checked at the device level. A PLC with a CANopen interface does not necessarily support every motor's communication profile or configuration requirements. OEMs should confirm supported device profiles, operating modes, Electronic Data Sheet (EDS) availability, baud rates, node addressing, and parameter access before selecting a motor.

Where a facility uses an industrial Ethernet protocol rather than CANopen, an appropriate gateway or a different motor communication option may be required.

3.4 Real-Time Status Monitoring and Fault Diagnostics

In a high-cycle industrial door system, a motor fault can interrupt logistics operations, restrict access between production areas, or disrupt environmental control. Fast fault identification is therefore important for maintenance teams and equipment operators.

A CANopen-enabled integrated servo motor can provide access to supported status and diagnostic information. Depending on the implementation, this may include operating state, drive faults, communication status, position feedback, velocity feedback, and other available parameters.

This information can help the door controller distinguish between different operating conditions. For example, the controller may be able to identify whether the motor is ready, actively moving, disabled, or reporting a drive fault.

A well-designed control system can use this information to improve fault handling:

  • Display a fault or warning on the operator interface.

  • Record fault events for maintenance analysis.

  • Prevent further motion when a required operating condition is not satisfied.

  • Alert maintenance personnel when communication with the motor is interrupted.

  • Support troubleshooting by providing more information than a simple motor-running signal.

These capabilities depend on the motor's supported diagnostic objects and the application software. CANopen does not automatically provide predictive maintenance, nor does it guarantee that every mechanical problem will be detected.

For example, a worn bearing, damaged belt, misaligned guide rail, or obstructed door may not generate a unique motor fault. More advanced condition monitoring may require additional sensors, current or torque analysis, event logging, and application-specific diagnostic logic.

Nevertheless, the availability of standardized operating data can make maintenance more systematic and reduce the time needed to investigate certain electrical, communication, and drive-related faults.

3.5 Better Coordination with Sensors and Door Safety Systems

Automatic industrial doors rely on multiple components to operate correctly. These may include photoelectric sensors, presence detectors, limit switches, safety edges, emergency-stop circuits, interlocks, and the main door controller.

CANopen can help coordinate motor commands and status information with the control system. For example, the controller may issue a closing command only when the required operating conditions are satisfied and may stop or reverse the door when a sensor detects an obstruction, according to the validated application logic.

A typical control sequence may include:

  • Receiving an opening or closing request.

  • Checking the state of relevant sensors and interlocks.

  • Issuing a motion command to the integrated servo motor.

  • Monitoring motor status during movement.

  • Responding to sensor events and abnormal operating conditions.

  • Confirming that the door has reached the required position.

It is important to distinguish standard CANopen communication from safety-rated communication. Ordinary CANopen is not, by itself, a functional safety system. Where a risk assessment requires safety-rated functions, the door design must use suitable safety components and an appropriately designed safety architecture. This may include safety relays, safety PLCs, monitored contactors, or certified safety communication and drive functions where applicable.

The motor's CANopen interface should not be treated as a substitute for required protective devices or validated safety circuits.

For OEMs, the best approach is to define the responsibilities of the standard motion-control network and the safety system separately, then verify that both operate correctly together.

3.6 Why CANopen Works Well with a 400W 48V Integrated Servo Motor

A 400W 48V integrated servo motor with CANopen can be a practical option for certain high-cycle automatic industrial doors, particularly where compact construction, coordinated motion control, and standardized communication are important.

The three main elements serve different purposes.

400W rated power

A 400W motor may suit a door mechanism whose torque, speed, acceleration, duty cycle, and mechanical transmission requirements fall within the motor's capabilities. However, rated power alone is not sufficient for motor selection. The OEM must also evaluate peak torque, continuous torque, acceleration requirements, reflected inertia, transmission efficiency, thermal performance, and the expected operating cycle.

48V DC power supply

A 48V DC system may simplify power distribution in equipment designed around low-voltage DC components. The power supply must still provide sufficient current for continuous operation and peak acceleration demands. Cable length, voltage drop, protection, grounding, and electromagnetic compatibility must also be considered.

CANopen communication

CANopen provides the communication link between the motor and the compatible control system. It allows supported commands, operating states, and diagnostic information to be exchanged through a standardized protocol.

Together, these features can help OEMs build a compact motion-control solution with fewer separate components and a clear communication interface. Nevertheless, suitability depends on the door's actual mechanical load, required speed, cycle frequency, environmental conditions, and safety requirements.

3.7 CANopen and the Holding Brake: How They Work Together

A holding brake is often important in vertical or mechanically loaded industrial door systems because it helps prevent unintended movement when the motor is disabled or when the system is designed to hold the door at rest.

The brake and CANopen communication perform different functions:

  • CANopen exchanges supported motion commands, status information, and diagnostic data.

  • The servo drive controls motor current and executes the configured motion functions.

  • The holding brake provides mechanical holding force when correctly applied.

  • The door controller and safety system coordinate operating sequences and protective responses.

For example, before opening a vertical door, the control system may enable the motor and release the brake according to the manufacturer's specified sequence. When the door reaches its target position, the system may bring the motor to a controlled stop and apply the brake when the required conditions are met.

The exact timing and sequence must follow the motor manufacturer's documentation and the door system's validated design. A holding brake is generally intended for holding rather than repeated dynamic stopping, unless the manufacturer explicitly rates it for that purpose.

OEMs should also confirm whether the brake is spring-applied and electrically released, its holding torque, release voltage, allowable duty, wear characteristics, and behavior during power loss. A brake must not be assumed to provide a complete safety function without evaluating the entire system.

3.8 What OEMs Should Check Before Choosing a CANopen Servo Motor

Not every motor advertised as CANopen-compatible will offer the same integration experience. Before purchasing an integrated servo motor for a high-cycle automatic industrial door, we recommend checking the following specifications.

Evaluation item

What to verify

Why it matters

CANopen implementation

Supported protocol features and communication specification

Confirms compatibility with the control system

Device profile

Supported profile and operating modes

Determines which motion functions can be used

EDS file

Availability and completeness

Helps configure the motor in compatible engineering tools

Communication speed

Supported CAN bit rates

Must match the network configuration

Node addressing

Configuration method and available address range

Prevents address conflicts

Motion control

Position, velocity, or other supported modes

Determines whether the motor meets application requirements

Feedback data

Available position, velocity, current, or status information

Supports control and diagnostics

Fault handling

Supported error reporting and recovery procedures

Helps improve troubleshooting

Holding brake

Brake rating and control requirements

Helps ensure appropriate holding performance

Electrical supply

48V DC requirements and peak current

Ensures sufficient power delivery

Environmental rating

Temperature, ingress protection, and vibration limits

Confirms suitability for the installation environment

Documentation and support

Wiring diagrams, parameter lists, and integration guidance

Reduces commissioning and maintenance effort

We also recommend requesting a sample motor or evaluation unit when the application involves demanding cycle rates, complex motion profiles, or integration with an existing PLC platform. Testing the actual communication behavior and motion sequence can reveal compatibility issues before volume production.

3.9 Common CANopen Integration Mistakes to Avoid

Even when the motor and controller both support CANopen, integration problems can occur if network and application requirements are not defined clearly.

Common mistakes include:

Assuming that protocol compatibility guarantees full compatibility. Two CANopen devices may support different device profiles, objects, or operating modes. Confirm the specific functions required by the application.

Ignoring network configuration. Incorrect baud rates, node IDs, termination, wiring, or grounding can cause communication failures. Follow the network and device manufacturers' recommendations.

Treating communication as a substitute for safety. Standard CANopen commands must not replace the safety functions required by the door's risk assessment.

Overlooking brake sequencing. The motor, brake, and controller must operate in the correct sequence to avoid unwanted movement or excessive mechanical stress.

Selecting a motor based only on rated power. A 400W rating does not automatically mean that the motor can handle every high-cycle door. Torque, speed, inertia, thermal limits, and cycle profile must all be evaluated.

Failing to test fault recovery. OEMs should verify the system's response to communication loss, drive faults, power interruption, sensor activation, and other relevant fault conditions.

Addressing these points early can reduce commissioning delays and help create a more reliable industrial door control system.

3.10 Why CANopen Matters for Industrial Door OEMs

For industrial door manufacturers, CANopen is valuable because it provides a standardized communication method for integrating compatible servo motors into automated equipment. It can simplify the exchange of motion commands, operating status, configuration parameters, and diagnostic information while supporting coordination with a compatible PLC or motion controller.

When combined with an appropriately sized 400W motor, a 48V DC supply, and a suitable holding brake, CANopen can form part of a compact and flexible motion-control solution for high-cycle automatic industrial doors.

The most important consideration is to evaluate the complete system rather than the communication protocol alone. Motor torque, speed, duty cycle, mechanical transmission, brake performance, sensor integration, network compatibility, and safety architecture all influence the final result.

For OEM buyers, the best CANopen integrated servo motor is not simply the motor with the most communication features. It is the motor whose supported functions, mechanical performance, electrical requirements, and documentation match the actual demands of the door application.

4. Why Choose an Integrated Servo Motor With a Holding Brake?

High-cycle automatic industrial doors must operate reliably under frequent opening and closing cycles, varying loads, and demanding working conditions. In many applications, especially vertical-lifting doors, the motor must not only drive the door smoothly but also help maintain a stable position when movement stops or power is interrupted.

This is why an integrated servo motor with a holding brake is an important option for industrial door manufacturers and OEM buyers. By combining the motor, servo drive, and braking mechanism in a compact assembly, this solution can simplify installation while providing controlled motion and mechanical holding capability.

For applications such as high-speed PVC doors, warehouse access doors, logistics entrances, and industrial partition systems, a suitable holding brake can help prevent unintended movement when the motor is not actively driving the load. When combined with an appropriate control strategy, position feedback, and safety devices, it can contribute to a more reliable and manageable door system.

However, a holding brake should not be considered a complete safety solution by itself. Its suitability depends on the door's mechanical design, load characteristics, brake specifications, and the safety requirements of the complete installation.

4.1 What Is a Holding Brake in an Integrated Servo Motor?

A holding brake is a mechanical braking device designed to hold a motor shaft in position when the motor is stopped or when the system enters a defined holding state.

In many integrated servo motors, the brake is an electromagnetic, spring-applied design. Under normal operating conditions, electrical power releases the brake, allowing the motor shaft to rotate. When the release power is removed, springs apply the brake to hold the shaft.

The exact design varies by manufacturer, so OEMs should always confirm the brake's operating principle and electrical requirements.

A typical integrated servo motor with a holding brake combines three main components:

  • Servo motor: Generates the torque required to move the industrial door.

  • Servo drive: Controls motor operation, including supported speed, position, and acceleration functions.

  • Holding brake: Provides mechanical holding torque when engaged.

The integrated design can reduce the number of separate components that must be installed and connected. It may also simplify wiring and mechanical packaging compared with a system that uses a separate motor, servo drive, and external brake assembly.

For industrial door applications, the primary purpose of the holding brake is to maintain the required holding condition when the motor is not moving the load. It is generally not intended to replace the servo drive's controlled deceleration function.

4.2 Preventing Unintended Movement When the Door Stops

One of the main reasons to choose a servo motor with a holding brake is to help prevent unintended movement when the motor stops driving the door.

This is particularly important for vertical-lifting industrial doors, where gravity can act on the moving door panel. Depending on the mechanical design, a door may move downward if the motor is disabled and no effective holding mechanism is present.

A properly selected holding brake can provide resistance to this movement by mechanically holding the motor shaft. The effectiveness of this arrangement depends on the transmission system, brake torque, mechanical condition, and whether the entire load path is adequately secured.

For example, when a vertical industrial door reaches its fully open position, the control system may bring the motor to a controlled stop and engage the holding brake. The brake then helps maintain the position without requiring the motor to continuously produce holding torque.

This can be useful in applications where the door must remain open while forklifts, pallets, or production materials pass through the opening.

However, a motor-mounted brake does not automatically guarantee that the door will remain stationary under every failure condition. Gearboxes, belts, chains, couplings, shafts, and other transmission components must also be considered. Where required by the risk assessment, additional mechanical safeguards may be necessary.

4.3 Improved Holding Performance During Power Loss

Power interruption is an important consideration in industrial door design. A door may need to remain in a defined position when the main power supply fails, when the control system is disabled, or when an emergency-stop condition occurs.

A spring-applied, electrically released holding brake is often selected for applications where the brake should engage when its release power is removed.

Under the appropriate design conditions, this arrangement can provide a mechanical holding function without requiring continuous electrical power to maintain brake engagement.

For example, a typical operating sequence may work as follows:

  1. The controller receives an opening request.

  2. The servo drive enables the motor and establishes the required operating conditions.

  3. The brake is released according to the manufacturer's specified sequence.

  4. The motor moves the door using the configured motion profile.

  5. The motor decelerates and stops at the target position.

  6. The brake engages when the required conditions are satisfied.

If power is interrupted, the brake may engage as its release power disappears. However, the actual response depends on the brake design, wiring, drive behavior, mechanical load, and timing characteristics.

OEMs should therefore verify the brake's engagement time, holding torque, allowable load, and performance during power interruption. The system must also account for the possibility that the door could move before the brake fully engages.

A holding brake should not be treated as a substitute for an emergency-stop system, a safety-rated drive function, or other protective measures required by the application's risk assessment.

4.4 Reducing Continuous Motor Holding Torque

In some applications, the servo motor must maintain a stationary position against an external load. If the motor alone provides the holding force, it may need to generate continuous torque while the door remains open or stopped under load.

Depending on the motor, drive, load, and control strategy, sustained holding torque can contribute to motor heating and electrical energy consumption.

A suitable mechanical holding brake can hold the shaft after the motor has stopped and the brake has engaged. This may reduce the need for continuous motor torque during stationary periods.

Potential benefits include:

  • Reduced continuous torque demand while the brake is engaged.

  • Lower motor heating under suitable operating conditions.

  • Reduced electrical demand during stationary holding periods.

  • Improved ability to maintain a defined position when the motor is disabled.

These benefits are application-dependent. A brake does not automatically reduce energy consumption in every system, particularly when the door's mechanical design already provides effective self-locking or counterbalancing.

The brake also consumes electrical power when released if it is an electrically released design. Its coil power, operating frequency, and thermal limits should therefore be included in the system evaluation.

4.5 Supporting High-Cycle Operation

High-cycle automatic industrial doors may perform many opening and closing operations throughout the working day. Repeated movement places demands on the motor, transmission, door guides, and braking system.

A suitable integrated servo motor with a holding brake can help coordinate movement and stationary holding, provided that the motor and brake are correctly sized for the application's operating profile.

For example, a high-speed industrial door may use controlled acceleration to start moving, a defined velocity during travel, and controlled deceleration near the target position. Once the motor has stopped, the holding brake can engage to maintain the required position.

Separating the functions of motion control and mechanical holding is important:

  • The servo drive controls acceleration, velocity, and deceleration.

  • The motor generates the torque needed to move the door.

  • The holding brake holds the shaft when engaged.

  • The door controller coordinates operating sequences and monitors relevant system conditions.

The holding brake should not normally be used to stop the door dynamically at every opening or closing cycle unless the manufacturer explicitly specifies that it is suitable for such duty. Repeatedly using a holding brake for dynamic stopping can increase wear and reduce service life.

For high-cycle applications, OEMs should evaluate the brake's expected engagement frequency, rated holding torque, wear characteristics, operating temperature, and maintenance requirements.

4.6 Better Integration and a More Compact System Design

An integrated servo motor with a holding brake can offer packaging and installation advantages compared with a system assembled from separate motor, drive, and brake components.

For industrial door manufacturers, potential benefits include:

Reduced component count

Combining the motor, drive, and brake in one assembly may reduce the number of separate devices mounted inside the door's control cabinet or mechanical enclosure.

Simplified wiring

An integrated design may reduce some motor-to-drive wiring and simplify the overall electrical layout. The brake may still require dedicated power and control wiring, depending on the product.

Space savings

A compact motor-drive assembly can be helpful when the door's side frame, motor enclosure, or control cabinet has limited installation space.

Simplified commissioning

If the motor includes a documented communication interface and configurable operating parameters, commissioning may be easier than integrating multiple independently selected components. Actual commissioning effort depends on software tools, documentation, and compatibility with the door controller.

Consistent component selection

Using a motor, drive, and brake designed as one assembly can reduce some compatibility uncertainties. However, the OEM must still confirm that the integrated unit meets the application's electrical, mechanical, thermal, and safety requirements.

These advantages make integrated servo motors with holding brakes worth evaluating for compact high-speed doors, vertical-lifting doors, and other applications where space and installation efficiency are important.

4.7 How to Choose the Right Holding Brake Torque

Brake torque is one of the most important specifications when selecting an integrated servo motor for an industrial door.

A brake that is too small may not provide sufficient holding capacity. A brake that is unnecessarily large may increase cost, size, or power requirements without improving the overall system appropriately.

The required brake torque depends on several factors:

  • Door mass and load distribution.

  • Transmission ratio and mechanical efficiency.

  • Drum, pulley, or sprocket dimensions.

  • Gearbox configuration.

  • External forces acting on the door.

  • Required holding conditions.

  • Potential wear and service-life considerations.

  • The safety requirements of the complete system.

For a simplified vertical-lifting system, the gravitational force can be expressed as:

F = m × g

Where:
  • F is the gravitational force in newtons (N).

  • m is the effective moving mass in kilograms (kg).

  • g is gravitational acceleration, approximately 9.81 m/s².

If the door load acts through a drum with an effective radius, the corresponding ideal load torque can be estimated as:

T = F × r

Where:
  • T is torque in newton-metres (N·m).

  • F is the effective force in newtons (N).

  • r is the effective drum radius in metres (m).

For example, if an effective vertical load of 40 kg acts directly on a drum with a radius of 0.08 m, the ideal gravitational torque at the drum is approximately:

40 × 9.81 × 0.08 = 31.4 N·m

This is only a simplified illustration. It is not a brake selection recommendation.

If a gearbox or other transmission is present, the required motor-shaft torque depends on the transmission ratio, direction of power flow, and mechanical efficiency. Counterbalances, springs, friction, door geometry, and other forces can also change the actual load.

The holding brake must be selected using the manufacturer's rated brake torque and the complete mechanical system design. Appropriate safety factors and any applicable standards must be considered by the responsible engineer.

4.8 Brake Engagement and Release Timing

Brake timing is another critical factor in an integrated servo motor system.

If the brake engages before the motor has sufficiently decelerated, the brake may experience unnecessary mechanical stress. If the brake releases too late during startup, the motor may work against the engaged brake. Incorrect sequencing can increase wear, generate faults, or cause unwanted movement.

A typical control strategy may involve the following steps:

During startup

  1. Confirm that the required operating and safety conditions are satisfied.

  2. Enable the servo drive.

  3. Establish the required motor holding torque or operating state.

  4. Release the brake according to the manufacturer's recommended sequence.

  5. Begin the commanded movement.

During stopping

  1. Decelerate the door using the configured motion profile.

  2. Confirm that the motor has reached the required stopped condition.

  3. Apply the brake according to the manufacturer's specified timing.

  4. Remove or reduce motor torque as appropriate for the drive and brake design.

The exact sequence varies by product and application. Some integrated servo motors include brake-control functions, while others require the machine controller to coordinate brake operation.

OEMs should verify the brake-control interface, release voltage, engagement timing, maximum switching frequency, and recommended control sequence in the manufacturer's documentation.

4.9 Holding Brake vs. Dynamic Braking

It is important to distinguish a holding brake from the methods used to slow a moving door.

A holding brake is primarily designed to hold a stationary shaft. A servo drive's controlled deceleration function reduces motor speed by controlling the motor's operation. Depending on the drive and system design, electrical braking may also involve regenerative energy handling or dissipation through an appropriate circuit.

These functions are not interchangeable.

Feature

Holding brake

Servo-controlled deceleration

Primary purpose

Hold the shaft when engaged

Reduce motor speed in a controlled manner

Typical operation

Engages when the motor is stopped or under defined holding conditions

Operates while the motor is moving

Main mechanism

Mechanical braking force

Controlled motor torque

Dynamic stopping suitability

Only if explicitly rated for the required duty

Generally used for normal motion stopping, within drive limits

Power-loss behavior

Depends on brake design; spring-applied brakes typically engage when release power is removed

Depends on the drive, power supply, and braking architecture

Selection considerations

Holding torque, wear, release voltage, engagement timing

Deceleration profile, motor torque, drive limits, and energy handling

For high-cycle industrial doors, normal stopping should generally be handled by the appropriate motion-control strategy, while the holding brake provides stationary holding when required.

If the application requires emergency stopping or a safety-related stopping function, the complete design must meet the relevant risk assessment and applicable standards. Neither an ordinary holding brake nor a standard servo-control command should automatically be assumed to satisfy those requirements.

4.10 What OEM Buyers Should Check Before Purchasing

Before selecting an integrated servo motor with a holding brake, industrial door manufacturers should evaluate the following items.

Specification

What to confirm

Why it matters

Rated motor power

Whether the motor meets continuous load requirements

Helps establish basic motor suitability

Continuous and peak torque

Torque capability across the operating cycle

Supports acceleration and load requirements

Rated speed

Required door travel speed and transmission ratio

Determines whether the motor can achieve the target motion

Brake holding torque

Rated torque at the specified shaft

Helps ensure adequate holding capacity

Brake type

Spring-applied, electrically released, or another design

Determines the brake's operating behavior

Brake release voltage

Required electrical supply and tolerance

Ensures correct brake operation

Engagement time

Time required for the brake to engage

Helps define stopping and holding sequences

Release time

Time required for the brake to release

Supports correct startup sequencing

Switching frequency

Permitted number of brake operations

Important for high-cycle applications

Mechanical transmission

Gearbox, drum, pulley, chain, or belt arrangement

Affects the torque required at the motor shaft

Environmental rating

Temperature, dust, moisture, and vibration limits

Helps establish installation suitability

Communication interface

CANopen or another supported protocol

Confirms compatibility with the controller

Documentation

Wiring, brake control, installation, and maintenance instructions

Reduces commissioning and service uncertainty

For a 400W 48V integrated servo motor, OEMs should evaluate the motor's torque-speed characteristics, continuous and peak current requirements, thermal limits, brake torque, and communication functions together. The combination of a 400W rating, 48V supply, and holding brake does not by itself guarantee suitability for every high-cycle door.

4.11 Why a Holding Brake Can Be a Valuable Feature for Industrial Door Manufacturers

For industrial door OEMs, a holding brake can provide an important mechanical holding function, especially where gravity or external loads may cause movement when the motor is not actively driving the door.

When correctly selected and integrated, it can help maintain a defined position, support operation during certain power-loss conditions, and reduce the need for continuous motor torque during stationary periods. An integrated motor-drive-brake assembly may also simplify packaging and component selection.

However, the final decision should be based on the door's actual mechanical configuration and operating requirements. Brake torque, transmission design, duty cycle, control sequence, power-loss behavior, and safety requirements must all be considered.

For high-cycle automatic industrial doors, an integrated servo motor with a holding brake is most valuable when its motion-control capabilities and mechanical holding performance are designed to work together as part of a complete, properly validated door system.

5. How to Size a 400W Servo Motor for an Industrial Door

Correct sizing is one of the most important steps in the selection process.

An undersized motor may struggle during startup, overheat during repeated operation, or trigger overload faults. An unnecessarily oversized motor may increase cost, power requirements, and mechanical integration complexity.

We recommend starting with the door's mechanical requirements and then working backward toward the motor specifications.

5.1 Calculate the Required Door Torque

For a simplified vertical lifting mechanism, the torque required at the lifting drum can be estimated from:

T = F × r

Where:

  • T is the required drum torque in N·m.

  • F is the effective lifting force in newtons.

  • r is the effective drum radius in metres.

If a door has an effective lifting force of 500N and a drum radius of 0.10m, the static torque at the drum is:

T = 500 × 0.10 = 50 N·m

This is the simplified static requirement before accounting for acceleration, friction, transmission losses, and other dynamic effects.

If the motor drives the drum through a gearbox, the motor-side torque requirement will be different.

For a reduction ratio defined as motor speed divided by output speed, an approximate relationship is:

T_motor = T_output ÷ (i × η)

Where:

  • T_motor is the required motor torque.

  • T_output is the required output torque.

  • i is the reduction ratio.

  • η is the transmission efficiency.

For example, with a 20:1 reduction ratio and an assumed efficiency of 90%, the motor torque needed to produce 50 N·m at the output is approximately:

T_motor = 50 ÷ (20 × 0.90) = 2.78 N·m

This simplified example illustrates the effect of gearing. It does not establish that a particular 400W motor is suitable; actual selection must also account for motor speed, acceleration, peak torque, thermal loading, and the gearbox's mechanical limits.

5.2 Evaluate Acceleration and Deceleration

High-cycle doors repeatedly accelerate from rest and decelerate toward the target position.

The motor must therefore produce more than the torque required to overcome the steady load.

The total torque demand may include:

  • Torque needed to overcome gravity or external forces.

  • Torque required to overcome friction.

  • Torque required to accelerate the rotating components.

  • Torque needed to accelerate the moving door mass.

  • Additional demand caused by transmission losses.

Aggressive acceleration profiles can increase peak current and mechanical stress.

A well-designed motion profile can help balance operating speed, stopping accuracy, cycle time, and component life.

5.3 Check the Torque-Speed Curve

A motor's rated power does not tell us how much torque it can deliver at every speed.

We should review the manufacturer's torque-speed curve and distinguish between:

  • Continuous rated torque.

  • Peak torque.

  • Permitted peak-torque duration.

  • Maximum speed.

  • Continuous operating region.

  • Thermal derating conditions.

Peak torque can be valuable during acceleration, but it should not be treated as continuously available torque.

If the application frequently demands high torque, the thermal performance of the complete integrated motor and drive assembly becomes especially important.

5.4 Calculate the Actual Duty Cycle

Duty cycle is a major consideration for high-cycle automatic doors.

A motor that performs well during occasional operation may not be suitable for continuous repetitive movement.

We should estimate:

  • Opening time.

  • Closing time.

  • Acceleration and deceleration periods.

  • Dwell time between movements.

  • Number of cycles per hour.

  • Average load.

  • Peak load.

  • Ambient temperature.

  • Cooling conditions.

The supplier should then confirm whether the motor can meet the required duty without exceeding its thermal limits.

For high-cycle applications, thermal performance under the actual operating profile is more useful than a power rating considered in isolation.

6. Key Specifications to Compare Before Purchasing

Once the mechanical requirements have been established, we can compare candidate motors against a consistent technical checklist.

Specification

Why it matters

What we should confirm

Rated power

Indicates nominal mechanical output

Whether 400W is adequate for the calculated load

Rated torque

Determines available continuous shaft torque

Continuous torque at the intended operating speed

Peak torque

Supports acceleration and transient loading

Peak value and permitted duration

Rated voltage

Determines electrical compatibility

Supported DC bus voltage range

Rated speed

Affects cycle time and transmission selection

Speed at rated operating conditions

Encoder or feedback

Enables servo motion control

Feedback type, resolution, and supported functions

CANopen

Enables controller communication

Implemented profile, EDS file, and supported operating modes

Holding brake

Helps hold the shaft when stationary

Rated holding torque, voltage, current, and response time

Protection rating

Affects environmental suitability

Verified ingress-protection rating

Thermal design

Determines performance during repeated operation

Continuous-duty limits and derating requirements

Mechanical interface

Affects installation and alignment

Shaft dimensions, flange, mounting pattern, and allowable loads

Cabling

Affects installation and serviceability

Power, communication, I/O, and brake connections

Diagnostics

Supports maintenance

Available fault codes and status information

This checklist helps prevent a common purchasing mistake: comparing products only by wattage and price.

Two motors with the same nominal power may differ significantly in brake capability, communication implementation, peak torque, cooling, and mechanical compatibility.

7. Why Many Industrial Door Manufacturers Prefer Integrated Servo Motors

As industrial automation continues to develop, more industrial door manufacturers are looking for motion-control solutions that offer reliable performance, simplified installation, and flexible system integration. High-cycle automatic industrial doors, including high-speed PVC doors, warehouse doors, logistics access doors, and cleanroom doors, require motors that can handle frequent operation while maintaining consistent motion and dependable control.

Traditional motor systems often use separate components, such as a motor, servo drive, encoder, and external communication interface. Although this configuration can offer flexibility, it may also increase wiring complexity, cabinet space requirements, installation time, and system integration effort.

An integrated servo motor combines the motor and servo drive into a single assembly and may also incorporate an encoder, communication interface, and holding brake. By integrating these functions, manufacturers can simplify certain aspects of machine design and develop more compact, standardized automatic door systems.

For industrial door OEMs, choosing an integrated servo motor is not simply about reducing the number of components. It is about finding a motion-control solution that meets the application's torque, speed, positioning, duty-cycle, communication, and safety requirements while supporting efficient manufacturing and long-term maintenance.

7.1 Simplified System Design and Fewer Separate Components

One of the main reasons industrial door manufacturers prefer integrated servo motors is their compact system architecture.

In a conventional servo system, the motor and drive are installed separately. The system may also require additional encoder cables, motor power cables, communication wiring, and mounting arrangements. Depending on the design, the manufacturer may need to accommodate these components inside a control cabinet or distribute them across the machine.

An integrated servo motor combines the motor and drive electronics into one unit, reducing the need for a separate servo-drive installation.

Potential advantages include:

  • Fewer separately mounted components.

  • Reduced motor-to-drive wiring.

  • A more compact electrical and mechanical layout.

  • Simplified component selection.

  • Potentially shorter installation and assembly time.

  • Easier standardization across multiple door models.

For example, an OEM developing several models of high-speed industrial doors may use a common integrated servo motor platform across different product configurations. The manufacturer can then standardize selected electrical connections, communication settings, and commissioning procedures, provided that each configuration meets the relevant mechanical and performance requirements.

However, integration does not eliminate every external component. A complete door system may still require a PLC or door controller, safety devices, power supplies, protective circuits, and external sensors.

7.2 Reduced Wiring Complexity and Easier Installation

Wiring is an important consideration in automatic industrial door manufacturing. A system with separate motor and drive components may require multiple cables for motor power, encoder feedback, communication, and brake control.

An integrated servo motor can reduce some of these connections because the motor and drive are already combined. Depending on the product, it may also provide integrated feedback and communication interfaces.

For industrial door manufacturers, a simpler wiring arrangement can offer several benefits:

Faster assembly: Fewer separate motor-drive connections may reduce assembly work and the possibility of wiring mistakes.

Simplified installation: Technicians may find it easier to mount and connect a compact integrated unit than to install several separate components.

Cleaner machine layout: Reduced cable routing can help improve the organization of the door's electrical and mechanical systems.

More repeatable production: Standardized wiring and connector arrangements can make it easier to reproduce the same design across multiple units.

These benefits depend on the motor's actual connector design, brake wiring, communication interface, and installation requirements. OEMs should review the wiring diagram and connector specifications before assuming that an integrated motor will eliminate a particular cable or connection.

7.3 Space Savings for Compact Industrial Door Systems

Industrial doors are often installed in locations where space is limited. Side frames, overhead enclosures, drive housings, and control cabinets must accommodate the motor, transmission, wiring, and other components without interfering with the door's movement.

An integrated servo motor can reduce the space required for separate motor and drive installations. This can be especially useful for:

  • High-speed PVC roll-up doors.

  • Compact warehouse access doors.

  • Cleanroom doors with limited equipment space.

  • Internal industrial partition doors.

  • Automated doors installed near conveyors or production machinery.

  • Retrofit projects where existing installation space is restricted.

A smaller overall system footprint may give designers greater freedom when arranging mechanical components and cable routes.

Nevertheless, OEMs should evaluate the complete installation envelope rather than the motor dimensions alone. The design must account for mounting clearance, heat dissipation, connector access, cable bending radius, environmental protection, and maintenance access.

An integrated servo motor must also be installed within its specified temperature and environmental limits. Compact packaging should not come at the expense of thermal performance or serviceability.

7.4 Easier Integration with CANopen and Industrial Automation Systems

Modern industrial doors increasingly operate as part of larger automated environments. In warehouses, distribution centers, and manufacturing facilities, doors may need to coordinate with conveyors, access-control systems, production equipment, and warehouse automation systems.

An integrated servo motor with CANopen communication can help simplify this coordination when the motor and controller support compatible CANopen functions.

Depending on the implementation, the communication interface may support:

  • Motion commands.

  • Operating-state information.

  • Position or velocity feedback.

  • Drive configuration.

  • Fault and diagnostic reporting.

  • Coordination with compatible PLCs or motion controllers.

For OEMs, a standardized communication interface can reduce reliance on proprietary control methods and support the development of a consistent automation architecture.

For example, a logistics facility may need a high-speed door to open when a conveyor approaches and close after the required passage conditions have been met. A compatible controller can coordinate the door's motor commands with conveyor signals and relevant sensors.

The actual behavior depends on the PLC program, motor functions, sensor arrangement, and system configuration. CANopen does not automatically provide complete door sequencing or safety logic.

Before purchasing an integrated servo motor, manufacturers should verify its supported CANopen profile, operating modes, EDS file, communication speed, diagnostic functions, and compatibility with the intended controller.

7.5 More Consistent Motion Control

High-cycle automatic industrial doors must repeatedly accelerate, travel, decelerate, and stop. Poorly controlled motion can increase vibration, create mechanical shock, reduce positioning consistency, and place unnecessary stress on belts, chains, gearboxes, and door panels.

An integrated servo motor combines the motor and drive, allowing the drive to control the motor according to its supported operating modes and configured motion parameters.

Depending on the application and system configuration, this may support:

  • Controlled acceleration and deceleration.

  • Repeatable positioning.

  • Adjustable motion profiles.

  • More consistent operating speed.

  • Improved coordination with door sensors and control logic.

  • Better management of stopping behavior.

For example, a high-speed industrial door may need to accelerate quickly to reduce waiting time, maintain a suitable travel speed, and decelerate smoothly before reaching its fully open or closed position.

A suitable servo system can execute this motion profile when its torque, speed, feedback, and control capabilities match the mechanical requirements.

It is important to note that integration alone does not guarantee superior motion performance. Actual results depend on motor sizing, drive quality, feedback resolution, mechanical transmission, control tuning, and door construction.

7.6 Integrated Holding Brake Options for Better Mechanical Holding

Some integrated servo motors include a holding brake, making them suitable for applications where the motor shaft must be held when movement stops.

This feature can be particularly important for vertical-lifting industrial doors or other mechanisms affected by gravity or external loads.

A suitable holding brake can help prevent unintended shaft movement when engaged. In a correctly designed system, the motor and brake can work together to provide controlled motion followed by mechanical holding.

For industrial door manufacturers, potential advantages include:

  • A compact motor-drive-brake assembly.

  • Reduced need to select and mount a separate brake.

  • A more standardized mechanical design.

  • Simplified coordination when brake-control functions are properly documented.

  • A potential reduction in continuous motor torque demand during stationary holding periods.

The brake must be selected according to its rated holding torque, engagement and release timing, operating frequency, electrical requirements, and expected service life.

A holding brake is generally intended to hold a stationary shaft rather than perform repeated dynamic stops unless the manufacturer explicitly rates it for that duty. It must not be treated as a complete safety system without evaluating the entire door mechanism and applicable safety requirements.

7.7 Potentially Lower Installation and Integration Costs

Although integrated servo motors may have a higher unit purchase price than some basic motor solutions, the total cost of ownership depends on more than the motor's purchase price.

Industrial door manufacturers should evaluate the cost of the complete motion-control system, including:

  • Motor and drive components.

  • External feedback devices, where required.

  • Communication interfaces and associated hardware.

  • Wiring and connectors.

  • Mounting brackets and enclosures.

  • Electrical cabinet space.

  • Assembly labor.

  • Commissioning and parameter configuration.

  • Maintenance and replacement procedures.

By combining several functions into one assembly, an integrated servo motor may reduce some component, wiring, and installation costs.

For OEMs producing multiple door models, standardizing on a suitable integrated motor platform may also reduce engineering duplication and simplify procurement.

However, cost savings are not automatic. The motor must be correctly sized, compatible with the control architecture, and suitable for the environmental conditions. A lower-cost integrated motor that cannot meet the required duty cycle or communication requirements may create additional expenses later.

The most effective comparison is therefore a total system cost analysis, rather than a direct comparison of motor prices alone.

7.8 Easier Product Standardization for OEM Manufacturers

Industrial door manufacturers often offer several product configurations for different opening sizes, operating speeds, installation environments, and customer requirements.

A standardized integrated servo motor platform can help simplify product development when the same motor family supports the required performance range.

For example, an OEM may develop a common control architecture for several high-speed door models using integrated servo motors with the same communication interface and similar configuration procedures.

Potential benefits include:

  • Reuse of validated electrical designs.

  • More consistent wiring diagrams.

  • Standardized commissioning procedures.

  • Simplified spare-parts management.

  • Reduced training requirements for service technicians.

  • More consistent documentation across product models.

Standardization can also help purchasing teams consolidate suppliers and manage spare-parts inventory.

However, the same motor should not automatically be used across all door sizes. Different models may require different torque, speed, gearbox ratios, brake ratings, or thermal capabilities. Each configuration must be validated against its specific load and duty cycle.

7.9 Improved Maintenance and Troubleshooting

Maintenance efficiency is an important consideration for high-cycle industrial doors because unexpected downtime can interrupt warehouse traffic, production processes, and material handling.

An integrated servo motor with a documented communication and diagnostic interface may provide useful information about its operating state and certain fault conditions.

Depending on the available features, maintenance personnel may be able to access:

  • Drive fault information.

  • Operating-state data.

  • Communication status.

  • Supported position and velocity feedback.

  • Configured motor parameters.

  • Fault history, if the product provides it.

This information can help technicians identify some electrical, communication, and drive-related problems more efficiently.

An integrated design may also reduce the number of separate motor-drive components that must be inspected during troubleshooting.

Nevertheless, not all faults originate in the motor. Mechanical problems such as worn bearings, damaged belts, misaligned guides, obstructed door panels, and gearbox wear may require separate inspection or additional sensors.

OEMs should therefore evaluate the manufacturer's diagnostic tools, parameter backup procedures, replacement instructions, firmware support, and availability of spare parts before selecting a motor platform.

7.10 Suitable for High-Cycle Automatic Industrial Door Applications

Integrated servo motors can be used in various industrial door applications, provided that the motor's specifications match the mechanical and operational requirements.

Industrial door application

Potential advantages of an integrated servo motor

Important selection considerations

High-speed PVC roll-up doors

Compact installation and configurable motion control

Acceleration, travel speed, cycle frequency, and transmission ratio

Warehouse access doors

Communication with compatible automation controllers

Load requirements, opening frequency, and fault handling

Logistics center doors

Coordination with conveyors and material-handling equipment

CANopen compatibility and application sequencing

Cleanroom doors

Compact installation and controlled movement

Environmental rating, cleanliness requirements, and maintenance access

Vertical-lifting doors

Controlled motion with an optional holding brake

Gravity load, brake torque, and mechanical safeguards

Internal industrial partition doors

Compact motion-control architecture

Door mass, positioning needs, and operating environment

Automated production-line doors

Integration with PLC-based automation

Communication profile, cycle time, and system coordination

The suitability of a particular motor depends on the door's dimensions, mass, mechanical structure, required speed, acceleration profile, daily cycle count, and environmental conditions.

For high-cycle applications, manufacturers should also consider the motor's continuous and peak torque, thermal limits, feedback capabilities, and expected service life.

7.11 Why a 400W 48V Integrated Servo Motor May Be a Practical Choice

For certain high-cycle automatic industrial doors, a 400W 48V integrated servo motor with CANopen communication and a holding brake may offer a useful combination of compact packaging, controlled motion, communication flexibility, and mechanical holding capability.

Each specification serves a different purpose:

400W rated power: Provides a starting point for evaluating the motor's power capability. Actual suitability depends on the torque-speed curve, continuous and peak torque, duty cycle, and mechanical load.

48V DC supply: May suit systems designed around low-voltage DC power distribution. The power supply and wiring must still accommodate peak current, voltage drop, protection, and thermal requirements.

CANopen communication: Provides a standardized interface for exchanging supported commands, status information, and diagnostic data with a compatible controller.

Integrated holding brake: Can provide mechanical holding when engaged, subject to the brake's rated torque and the complete system design.

Together, these features may help manufacturers reduce component separation and develop a compact, coordinated motion-control solution.

However, 400W is not a universal power rating for high-cycle industrial doors. Smaller doors may require less power, while larger or heavier doors may need higher torque, a different gear ratio, or a more powerful motor. OEMs should calculate the required load torque and speed before choosing the final motor configuration.

7.12 Integrated Servo Motors vs. Traditional Separate Motor and Drive Systems

Both integrated servo motors and traditional separate motor-drive systems can be suitable for industrial door applications. The right choice depends on the product architecture, installation conditions, performance requirements, and maintenance strategy.

Comparison factor

Integrated servo motor

Separate motor and servo drive

Physical layout

Motor and drive combined in one assembly

Motor and drive installed separately

Installation

May simplify mounting and wiring

Requires separate mounting and additional connections

Control cabinet space

May reduce the need for a separate drive in the cabinet

Requires space for the drive and associated wiring

Cable arrangement

May reduce some motor-to-drive cabling

Usually requires dedicated motor and feedback connections

Thermal management

Heat from the integrated electronics must be managed near the motor

Drive and motor heat can be managed in separate locations

Maintenance

May simplify system layout but require replacement of the integrated unit

May allow independent replacement of the motor or drive

System flexibility

Depends on available integrated motor models and interfaces

May offer more freedom to combine different motors and drives

Communication

Depends on the integrated motor's supported interfaces

Depends on the selected drive

Cost evaluation

Compare the cost of the complete integrated solution

Compare the cost of the complete separate-component solution

Integrated designs are often attractive when compactness, reduced wiring, and standardized installation are priorities. Separate motor and drive systems may be preferable when the application requires a specialized motor, a remote drive location, or greater flexibility in component selection.

The decision should be based on total system cost, technical compatibility, environmental requirements, and long-term serviceability.

7.13 What Industrial Door Manufacturers Should Check Before Purchasing

Before choosing an integrated servo motor, OEM buyers should verify the following specifications and supporting information:

  1. Rated power and torque: Confirm continuous and peak torque across the required speed range.

  2. Operating speed: Check whether the motor and transmission can achieve the required door travel speed.

  3. Duty cycle: Verify that the motor can handle the expected number of opening and closing operations.

  4. Feedback and positioning: Confirm the feedback device and supported control modes.

  5. Communication compatibility: Verify CANopen support, device profile, EDS file, and compatibility with the intended controller.

  6. Holding brake: Check rated holding torque, release voltage, engagement timing, and operating frequency.

  7. Power supply: Confirm voltage range, continuous current, peak current, and protection requirements.

  8. Environmental suitability: Evaluate temperature, dust, moisture, vibration, and ingress protection.

  9. Mechanical compatibility: Check shaft dimensions, mounting arrangements, gearbox options, and transmission requirements.

  10. Documentation and service: Request wiring diagrams, configuration instructions, troubleshooting guidance, and spare-parts information.

For OEM projects, we recommend evaluating a sample motor under representative operating conditions before committing to volume production. Testing can help confirm communication compatibility, motion performance, brake sequencing, thermal behavior, and the suitability of the complete mechanical system.

7.14 Conclusion: Why Integrated Servo Motors Are Becoming an Attractive Option

Many industrial door manufacturers prefer integrated servo motors because they can combine motor and drive functions in a compact assembly, potentially simplifying installation, reducing wiring complexity, and supporting standardized product designs.

When the motor also provides suitable communication options, feedback, and a holding brake, it can offer additional flexibility for high-cycle automatic industrial doors used in warehouses, logistics centers, manufacturing plants, and other industrial environments.

However, integration alone does not guarantee better performance, lower cost, or longer service life. These outcomes depend on motor sizing, thermal management, mechanical design, control configuration, environmental suitability, and maintenance support.

For industrial door OEMs, the best integrated servo motor is the one that meets the actual motion-control requirements while simplifying the complete door system without compromising reliability or safety.

8. How to Select the Right CANopen Servo Motor for Different Door Types

Different door mechanisms place different demands on their drive systems.

A suitable motor for a lightweight, high-speed fabric door may not be the best choice for a heavy vertical sectional door.

8.1 High-Speed Fabric Doors

High-speed fabric doors are commonly used where frequent passage and rapid environmental separation are important.

Their drive systems must support repeated acceleration and deceleration, reliable positioning, and the required operating speed.

When selecting a servo motor, we should prioritize:

  • Appropriate speed and torque.

  • Smooth acceleration and deceleration.

  • Sufficient continuous-duty capability.

  • Reliable feedback and positioning.

  • Compatibility with the door controller.

  • Suitable protection against dust and other environmental conditions.

A 400W integrated servo motor may be appropriate for some smaller or lighter designs, but suitability must be confirmed using the actual curtain mass, transmission arrangement, cycle time, and mechanical specifications.

8.2 Vertical Sectional Industrial Doors

Sectional doors typically use a lifting mechanism involving tracks, rollers, cables, springs, or related mechanical components.

The effective load depends on the door's design and balance system.

For these applications, we should examine:

  • Starting torque.

  • Required lifting speed.

  • Gearbox ratio.

  • Brake holding torque.

  • Position feedback.

  • Mechanical load limits.

  • Behavior during power loss.

A holding brake can be particularly relevant when the transmission may be back-driven or the door requires a defined stationary holding condition.

8.3 Rolling Shutter Doors

Rolling shutters use a rotating shaft or drum to raise and lower the door curtain.

The drum radius, curtain mass, transmission ratio, and curtain winding characteristics influence the required torque and speed.

The motor must also accommodate changes in the effective load throughout the movement.

For this reason, the selection should be based on the full operating range rather than only the torque required at one door position.

8.4 Automated Doors in Cold Storage

Cold storage doors operate in environments where temperature differences, condensation, and frequent access can affect equipment performance.

The motor and its associated electronics should be selected for the actual ambient temperature, humidity, condensation risk, and installation location.

We should also verify connector sealing, cable materials, lubrication requirements, and thermal performance.

The door's control strategy may prioritize minimizing open time, but the selected motor must still remain within its rated operating limits.

8.5 Doors Integrated Into Production Lines

In automated manufacturing environments, doors may interact with PLCs, conveyors, robots, and other equipment.

CANopen can help establish structured communication between the servo drive and the supervisory controller.

For these installations, compatibility testing, fault reporting, startup sequencing, and recovery behavior are especially important.

The motor should be evaluated as one component of the complete automation system rather than as an independent device.

9. Important Safety Considerations for Automatic Industrial Doors

Safety must be evaluated at the complete system level.

An integrated servo motor with CANopen and a holding brake can provide useful motion-control capabilities, but these features do not automatically make the finished door system safe or compliant.

The applicable requirements depend on the installation location, intended use, door classification, and local regulations.

For projects in Europe and North America, we should identify the relevant standards and regulatory requirements during the design stage rather than waiting until commissioning.

Depending on the application, the assessment may need to consider:

  • Entrapment and crushing hazards.

  • Obstruction detection.

  • Photoelectric protective devices.

  • Safety edges.

  • Emergency stopping.

  • Mechanical failure.

  • Unintended movement under gravity.

  • Loss of electrical power.

  • Communication failure.

  • Restart behavior after a fault.

  • Maintenance and isolation procedures.

The door controller must respond appropriately to sensor inputs and faults.

For example, a communication timeout should not automatically result in uncontrolled movement. The system's response must be defined through the risk assessment and implemented using an appropriate control architecture.

Likewise, a holding brake should not be treated as a replacement for mechanical supports, maintenance locks, or other protective measures required during servicing.

Before deployment, we should validate the complete door assembly, including its sensors, control logic, mechanical components, and protective functions.

10. CANopen Integration: Questions to Ask Before Ordering

Communication problems can delay commissioning even when the motor's power and mechanical specifications are suitable.

To reduce integration risks, we recommend asking the supplier for detailed answers to the following questions.

Does the motor support the CANopen functions required by our controller?

A protocol label is not enough. We need to know which operating modes, process data, configuration objects, and diagnostic functions are implemented.

Can the supplier provide an EDS file?

An Electronic Data Sheet helps engineers configure a CANopen device in compatible engineering software. The file should correspond to the actual product and firmware version.

Which baud rates are supported?

The network must operate at a compatible communication speed, with appropriate network design and cable lengths.

How is the node ID configured?

The method may involve hardware switches, software parameters, or another manufacturer-defined procedure.

What happens if communication is interrupted?

The drive's response to communication loss must be understood and tested. It should be consistent with the application's safety and operating requirements.

How are drive faults reported and reset?

We should establish how the controller detects faults, determines whether a reset is permitted, and prevents unsafe automatic restarting.

Is brake control integrated into the drive?

If the motor includes a holding brake, we should clarify whether the drive provides dedicated brake-control functionality, what timing parameters are configurable, and which external circuits remain necessary.

These questions are particularly useful when comparing suppliers that offer similar nominal specifications but different levels of integration support.

11. Common Purchasing Mistakes to Avoid

Even technically experienced buyers can overlook details that later affect commissioning, performance, or maintenance.

Mistake 1: Selecting by Power Rating Alone

A 400W motor may be adequate for one door and unsuitable for another.

We should calculate the required torque and speed, evaluate acceleration, and verify continuous-duty capability before confirming the rating.

Mistake 2: Assuming All CANopen Products Are Interchangeable

CANopen is a standardized communication framework, but individual devices may implement different profiles, objects, operating modes, and manufacturer-specific functions.

We should compare the actual device documentation and test the intended controller integration.

Mistake 3: Treating the Holding Brake as a Complete Safety Solution

A holding brake can help prevent stationary movement, but it does not replace the door's complete safety system.

The brake's holding capacity, control sequence, wear characteristics, and failure behavior must be evaluated in the context of the complete mechanism.

Mistake 4: Ignoring Thermal Conditions

A motor that performs well during a short test may overheat under continuous high-cycle operation.

We should confirm the permissible duty cycle, cooling conditions, and any derating requirements.

Mistake 5: Overlooking Installation Details

Shaft dimensions, flange geometry, mounting orientation, cable access, connector protection, and allowable shaft loads can determine whether a motor is suitable for an existing door design.

These mechanical details should be confirmed before ordering.

Mistake 6: Comparing Purchase Prices Without Evaluating Lifecycle Costs

A lower-cost product may require additional wiring, a separate drive, more commissioning work, or more frequent maintenance.

We should compare the complete installed system and its expected operating costs.

Mistake 7: Failing to Request Technical Documentation

Without a datasheet, wiring diagram, CANopen documentation, brake specifications, and mechanical drawings, it is difficult to assess compatibility objectively.

We should treat documentation quality as part of the supplier evaluation process.

12. How to Evaluate an Integrated Servo Motor Supplier

Choosing the right motor is only part of the procurement decision. We also need a supplier capable of supporting the application from initial specification through installation and long-term operation.

12.1 Technical Documentation

A reliable supplier should provide documentation appropriate to the product, including:

  • Complete electrical specifications.

  • Torque-speed curves.

  • Mechanical drawings.

  • Wiring diagrams.

  • Brake specifications.

  • CANopen documentation.

  • EDS files, where applicable.

  • Installation instructions.

  • Operating and maintenance guidance.

  • Environmental ratings.

  • Applicable conformity documentation.

We should verify that these documents match the exact model being quoted.

12.2 Application Engineering Support

A supplier with relevant application experience should be able to discuss door mass, transmission ratio, drum diameter, movement speed, acceleration, cycle frequency, and holding requirements.

Rather than recommending a motor solely because it has a 400W rating, the supplier should help determine whether its torque, speed, brake, and thermal capabilities match the actual application.

For demanding installations, a sample evaluation or prototype test may be appropriate.

12.3 Customization and OEM Requirements

Industrial door manufacturers may require specific shaft dimensions, mounting arrangements, cable lengths, connectors, communication settings, or firmware configurations.

We should establish which parameters can be customized, which changes require engineering validation, and whether customized versions will remain available throughout the product lifecycle.

12.4 Quality and Traceability

For repeat production, consistency matters.

We should ask about production testing, quality-control procedures, product traceability, and change-management practices.

If the motor is part of a long-term OEM product, we should also discuss expected production continuity, spare-part availability, and notification procedures for design changes.

12.5 Warranty and After-Sales Support

A competitive quotation should be accompanied by clear information about warranty coverage, technical support, troubleshooting, and replacement procedures.

For equipment operating at high cycle rates, a predictable response to failures can be commercially important.

The most suitable supplier is not necessarily the one offering the lowest initial price. It is the one that can deliver a technically appropriate product with dependable documentation, consistent manufacturing, and support throughout the equipment's service life.

13. A Practical Pre-Purchase Checklist

Before placing an order for a 400W 48V integrated servo motor with CANopen and a holding brake, we recommend confirming the following points.

Mechanical requirements

  • Have we identified the door type and effective moving load?

  • Have we calculated the required torque and speed?

  • Is the transmission ratio appropriate?

  • Have we considered acceleration and deceleration?

  • Are the shaft, flange, and mounting dimensions compatible?

Electrical requirements

  • Is the 48V DC supply compatible with the drive's specified voltage range?

  • Can the supply deliver the required continuous and peak current?

  • Is regenerative energy handled appropriately?

  • Are the cable sizes and connectors suitable?

  • Are environmental and grounding requirements understood?

Servo performance

  • Is the continuous torque sufficient?

  • Is the peak torque sufficient for acceleration?

  • Is the motor speed appropriate for the required cycle time?

  • Is the feedback system suitable for the positioning requirements?

  • Can the motor meet the required duty cycle without excessive heating?

Brake requirements

  • Is the brake rated for the actual holding load?

  • Is the brake suitable for the installation orientation?

  • Is the release voltage correct?

  • Is the brake's operating frequency appropriate?

  • Is the brake-control sequence defined and validated?

Communication requirements

  • Does the motor support the required CANopen functions?

  • Is the EDS file available?

  • Are the supported baud rates and node-ID settings compatible?

  • Has communication-loss behavior been defined?

  • Has integration with the intended PLC or controller been tested?

Supplier requirements

  • Are the technical specifications complete?

  • Can the supplier support application sizing?

  • Are spare parts available?

  • Are warranty and service terms clear?

  • Is the product suitable for the intended operating environment?

Completing this checklist before ordering can reduce the risk of choosing a motor that meets the headline specifications but fails to satisfy the actual application requirements.

14. Jkongmotor Integrated Servo Motors Solutions for Industrial Doors

For industrial door manufacturers, selecting the right integrated servo motor is about more than rated power. The motor must deliver suitable torque and speed, support frequent opening and closing cycles, integrate with the door controller, and meet the mechanical and environmental requirements of the application.

JKONGMOTOR provides integrated motion-control solutions for OEMs and automation equipment manufacturers, helping customers evaluate motor configurations for automatic industrial doors, high-speed roll-up doors, warehouse access systems, and other industrial motion applications. Depending on project requirements and product configuration, an integrated servo motor solution may combine a motor, drive electronics, feedback device, communication interface, and holding brake in a compact assembly.

Our approach focuses on matching the motor configuration to the complete application rather than selecting a product based on rated power alone.

14.1 Integrated Servo Motors for Different Industrial Door Applications

Different industrial doors have different motion-control requirements. A compact internal door may prioritize installation space and cost, while a high-speed logistics door may require rapid acceleration, frequent cycling, and communication with a PLC-based automation system.

JKONGMOTOR can help OEMs evaluate suitable motor configurations according to their door design and operating conditions.

High-Speed PVC Roll-Up Doors

High-speed PVC doors are commonly used in warehouses, manufacturing facilities, and logistics centers where rapid access helps maintain material flow. Their drive systems need to support frequent operation, suitable travel speeds, and controlled acceleration and deceleration.

When selecting an integrated servo motor for this application, manufacturers should consider door mass, drum diameter, transmission ratio, required opening time, cycle frequency, and the mechanical loads generated during acceleration and stopping.

Warehouse and Logistics Access Doors

Warehouse doors often operate alongside conveyors, forklifts, automated guided vehicles (AGVs), and other material-handling equipment. A compatible integrated servo motor with an industrial communication interface can help coordinate door movement with the facility's control system.

For applications using CANopen, OEMs should verify the motor's supported communication functions, device profile, EDS file, and compatibility with the intended PLC or motion controller.

Vertical-Lifting Industrial Doors

Vertical-lifting doors may require a holding brake to help maintain position when the motor stops, particularly where gravity can cause the door to move. The required brake torque depends on the door's load, transmission arrangement, effective drum radius, and other mechanical factors.

JKONGMOTOR can help customers identify the motor and brake parameters that need to be evaluated. The final design should also consider brake timing, power-loss behavior, mechanical safeguards, and the door system's safety requirements.

Automated Production-Line Doors

Industrial doors integrated into production lines may need to respond to machine signals, access interlocks, sensors, and programmed operating sequences. In these applications, communication compatibility, fault reporting, repeatable motion, and commissioning support are important selection criteria.

14.2 Selecting a 400W 48V Integrated Servo Motor with CANopen and a Holding Brake

For projects that specify a 400W, 48V integrated servo motor with CANopen communication and a holding brake, several factors should be checked before confirming the motor configuration.

  • Rated power and torque: Confirm that continuous and peak torque meet the actual load and acceleration requirements.

  • Operating speed: Calculate the motor speed needed to achieve the required door travel speed through the selected transmission.

  • CANopen compatibility: Verify supported operating modes, communication parameters, diagnostic objects, and integration requirements.

  • Holding brake performance: Confirm rated holding torque, release voltage, engagement timing, and permitted switching frequency.

  • Electrical requirements: Check continuous and peak current, power-supply capacity, cable sizing, and electrical protection.

  • Thermal performance: Evaluate motor and drive temperatures under the expected cycle frequency and ambient conditions.

  • Mechanical configuration: Confirm shaft dimensions, mounting arrangements, gearbox requirements, and installation clearance.

A 400W rating does not automatically make a motor suitable for every industrial door. Heavy doors, high acceleration requirements, inefficient transmissions, and demanding duty cycles may require a different power rating, torque capacity, or gear ratio.

The final selection should be based on the actual load calculations and validated operating conditions.

14.3 OEM and ODM Customization for Industrial Door Projects

Industrial door manufacturers often have specific requirements for motor dimensions, mounting interfaces, communication protocols, cable connections, brake configurations, and control parameters. A standard motor may meet the basic power requirement but still need further evaluation to ensure compatibility with the customer's machine design.

JKONGMOTOR's OEM/ODM project approach can support the evaluation of customization requirements, subject to product feasibility and engineering confirmation.

Potential areas for project evaluation include:

  • Motor power, rated speed, and torque requirements.

  • Integrated drive and feedback configuration.

  • CANopen or other available communication options.

  • Holding brake requirements.

  • Gearbox and transmission compatibility.

  • Shaft dimensions and mounting interfaces.

  • Cable and connector arrangements.

  • Environmental protection requirements.

  • Parameter configuration and application testing.

Not every option is available for every motor model. Buyers should provide their technical requirements so that the appropriate configuration, available options, and development scope can be confirmed before ordering.

14.4 From Technical Inquiry to Sample Testing and Mass Production

For OEM projects, early technical communication can help reduce the risk of selecting an unsuitable motor or discovering integration problems late in development.

A structured project process may include the following stages.

Step 1: Application Requirements

Provide information about the door type, moving mass, drum or pulley dimensions, transmission arrangement, target travel speed, opening time, daily operating cycles, and installation environment.

Step 2: Motor Configuration Evaluation

Evaluate rated power, continuous and peak torque, speed, feedback, communication interface, brake requirements, and mechanical compatibility.

Step 3: Technical Confirmation

Review the proposed configuration, dimensional drawings, electrical specifications, wiring diagrams, communication documentation, and any relevant installation constraints.

Step 4: Sample Testing

Where appropriate, test a sample motor on the actual door mechanism or a representative test setup. Evaluate acceleration, deceleration, positioning, brake sequencing, temperature, communication stability, and fault handling.

Step 5: Design Validation

Confirm that the motor and door system meet the project's performance, reliability, and safety requirements. Any required design changes should be completed before production approval.

Step 6: Batch Production and Quality Requirements

Before mass production, agree on the final specification, inspection requirements, documentation, packaging, and order quantities.

This process helps OEMs assess both the motor's technical suitability and the supplier's ability to support the project from initial selection through production.

14.5 What Information Should You Provide for Motor Selection?

To help evaluate an integrated servo motor for an industrial door, prepare as much of the following information as possible:

Requirement

Information to provide

Door type

High-speed PVC, warehouse access, vertical-lifting, or another type

Door dimensions

Opening width, height, and relevant mechanical dimensions

Moving load

Door mass and any additional load acting on the drive

Transmission

Drum diameter, gearbox ratio, pulley, belt, chain, or other mechanism

Motion requirements

Target speed, opening time, acceleration, and deceleration

Operating cycle

Expected cycles per hour or day and required service life

Power supply

Available voltage and continuous or peak current limits

Communication

CANopen, another supported protocol, or required control interface

Holding brake

Required holding conditions and relevant mechanical calculations

Environment

Ambient temperature, dust, moisture, vibration, and installation location

Integration constraints

Mounting dimensions, shaft requirements, cable routing, and available space

Project stage

New development, existing product redesign, or replacement project

Even preliminary information is useful. If some values are not yet available, the project can begin with the known mechanical dimensions and operating targets, then identify which parameters require calculation or testing.

14.6 Why Work with JKONGMOTOR on an Industrial Door Project?

When evaluating a motor supplier, industrial door manufacturers should consider more than product availability. Technical documentation, communication support, configuration options, sample evaluation, and consistency between the approved sample and production units can all affect project outcomes.

JKONGMOTOR aims to support OEM and ODM customers through a project-oriented selection process that considers:

  • Application-specific motor selection.

  • Evaluation of torque, speed, and duty-cycle requirements.

  • Review of communication and control compatibility.

  • Assessment of brake and mechanical configuration requirements.

  • Technical documentation for integration and commissioning.

  • Sample testing and configuration confirmation where applicable.

  • Coordination of agreed specifications for batch production.

Specific product capabilities, customization options, testing procedures, certifications, and production arrangements should be confirmed for the selected model and project.

14.7 Request an Integrated Servo Motor Solution for Your Industrial Door

If you are developing a high-cycle automatic industrial door or upgrading an existing door drive, choosing the motor early can help simplify mechanical design, electrical integration, and performance validation.

JKONGMOTOR can work with your team to evaluate an integrated servo motor configuration based on your power supply, torque and speed requirements, communication interface, holding brake needs, installation constraints, and expected operating cycle.

Contact JKONGMOTOR to discuss your industrial door application. Share your door specifications, transmission details, required motion profile, and control-system requirements to begin a technical evaluation of a suitable integrated servo motor solution.

The goal is to identify a configuration that fits your actual application, supports reliable operation, and can be validated before moving into mass production.

15. Frequently Asked Questions About 400W 48V Integrated Servo Motors for Industrial Doors

1. What is an integrated servo motor for automatic industrial doors?

An integrated servo motor combines a servo motor and drive electronics in one compact assembly. Depending on the model, it may also include an encoder, communication interface, and holding brake. For automatic industrial doors, it can provide controlled motion, support positioning functions, and simplify installation by reducing the need for separate motor-drive components.

2. Why choose a 400W 48V integrated servo motor for a high-cycle industrial door?

A 400W 48V integrated servo motor may be suitable for industrial doors that require frequent operation, controlled acceleration and deceleration, and compact motion-control equipment. However, the correct motor depends on the door's mass, required speed, transmission ratio, peak torque, duty cycle, and thermal conditions. Rated power alone is not enough to determine suitability.

3. What are the benefits of CANopen in an integrated servo motor?

CANopen enables a compatible integrated servo motor to exchange supported motion commands, operating status, configuration parameters, and diagnostic information with a PLC or motion controller. This can simplify integration into industrial automation systems and help manufacturers coordinate door movement with conveyors, sensors, and other equipment. Actual functions depend on the motor's CANopen implementation.

4. Why does an industrial door servo motor need a holding brake?

A holding brake helps maintain the motor shaft's position when the brake is engaged. It is particularly useful in vertical-lifting door systems where gravity may cause unintended movement when the motor stops. Brake torque, engagement timing, power-loss behavior, and mechanical transmission requirements must be evaluated for the complete door system.

5. How do I calculate the required torque for an industrial door servo motor?

Motor torque depends on the door load, transmission arrangement, drum or pulley radius, gearbox ratio, mechanical efficiency, acceleration requirements, and friction. For a simplified direct-drive lifting mechanism, gravitational load torque can be estimated using T = m × g × r, where m is the effective moving mass, g is gravitational acceleration, and r is the effective drum radius. The final motor and brake selection must account for the actual mechanical design and appropriate engineering margins.

6. Can an integrated servo motor communicate with a PLC through CANopen?

Yes, if the integrated servo motor and PLC support compatible CANopen communication functions. Before purchasing, check the supported device profile, operating modes, EDS file, baud rate, node configuration, and available diagnostic objects. Protocol support alone does not guarantee compatibility with every PLC or motion-control application.

7. Are integrated servo motors suitable for high-speed PVC roll-up doors?

They can be suitable when their torque, speed, acceleration, thermal performance, and duty-cycle ratings match the door's requirements. A suitable integrated servo motor can support controlled motion and reduce the need for a separately installed servo drive. The complete system should be tested under representative operating conditions before mass production.

8. What is the difference between a holding brake and servo-controlled braking?

A holding brake is primarily designed to hold a stationary motor shaft. Servo-controlled deceleration uses the drive to reduce motor speed during normal movement. A holding brake should not be used for repeated dynamic stopping unless the manufacturer explicitly rates it for that duty. Emergency stopping and other safety-related functions require a suitable system design based on the application's risk assessment.

9. What should OEMs check before purchasing an integrated servo motor for industrial doors?

OEMs should evaluate rated and peak torque, motor speed, duty cycle, power-supply requirements, communication compatibility, feedback functions, holding brake specifications, environmental protection, mechanical dimensions, documentation, and technical support. Sample testing can help verify motion performance, communication stability, brake sequencing, and thermal behavior before volume production.

10. Can JKONGMOTOR provide customized integrated servo motors for industrial door manufacturers?

JKONGMOTOR supports OEM/ODM motion-control project evaluation. Depending on the selected motor platform and project feasibility, manufacturers can discuss power and torque requirements, communication interfaces, holding brakes, feedback options, mechanical dimensions, connectors, and other configuration needs. Buyers should provide their application specifications so the available options and technical requirements can be confirmed.

Conclusion: Choosing the Right 400W 48V Integrated Servo Motor for Long-Term Performance

Selecting a 400W 48V integrated servo motor with CANopen and a holding brake for a high-cycle automatic industrial door requires a complete evaluation of mechanical performance, electrical compatibility, communication capabilities, thermal behavior, and safety requirements.

The main advantages of this type of motor include a compact drive architecture, potential reductions in wiring and installation complexity, coordinated servo control, and communication options suitable for automated industrial systems.

The holding brake can provide an additional means of preventing unwanted movement when the motor is stationary, particularly in vertical lifting applications. CANopen can simplify communication with a compatible door controller, while servo feedback and motion control can support repeatable positioning and controlled movement.

Nevertheless, the motor's suitability cannot be established by its 400W power rating alone.

We should calculate the actual torque requirements, check the torque-speed curve, verify continuous-duty performance, confirm the brake's holding capacity, and ensure that the CANopen implementation matches the intended controller.

We should also assess the complete door safety system, including protective sensors, emergency-stop behavior, mechanical safeguards, and the response to power or communication failures.

For OEMs, system integrators, and industrial door manufacturers, the best purchasing decision combines correct motor sizing, verified technical compatibility, reliable supplier support, and long-term serviceability.

By evaluating these factors before placing an order, we can select a drive system that supports reliable high-cycle operation, simplifies integration, and meets the practical demands of modern industrial door automation.

Leading Stepper Motors & Brushless Motors Manufacturer
Products
Application
Links

© COPYRIGHT 2025 CHANGZHOU JKONGMOTOR CO.,LTD ALL RIGHTS RESERVED.
