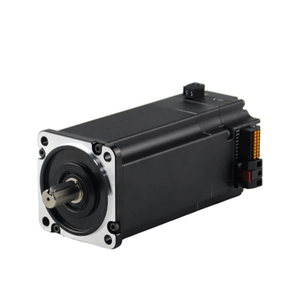

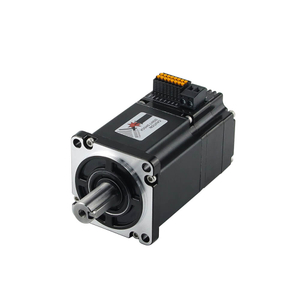

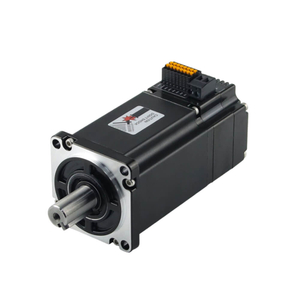

Nema 24 IP65 Waterproof Integrated Brushless Dc Servo Motor Pulse RS485 CANopen Control 200W 400W 24V 48V 3000Rpm 0.64N.m 1.27N.m with Integrated Driver

Jkongmotor nema 24 IP65 Waterproof 60x60mm integrated brushless dc servo motor with Pulse RS485 CANopen control 200W 24V or 400W 48V 3000Rpm 0.64N.m / 1.27N.m with 17bit integrated driver. For more different integrated servo motor requirements please contact us!!!

Electrical Specifications：

• Model Name: IDS60 IP65 Series Integrated Servo Motor

• Phase: 3

• Poles: 8

• Rated Power: 200W / 400W

• Rated Voltage: 24V / 48V

• Rated Speed: 3000±10%RPM

• Rated Current: 11A / 12A

• Rated Torque: 0.64Nm(90.63oz.in) / 1.27Nm (179.85oz.in)

• Encoder: 17Bit

• Control Method: Pulse, RS485, CANopen

Product Selection:

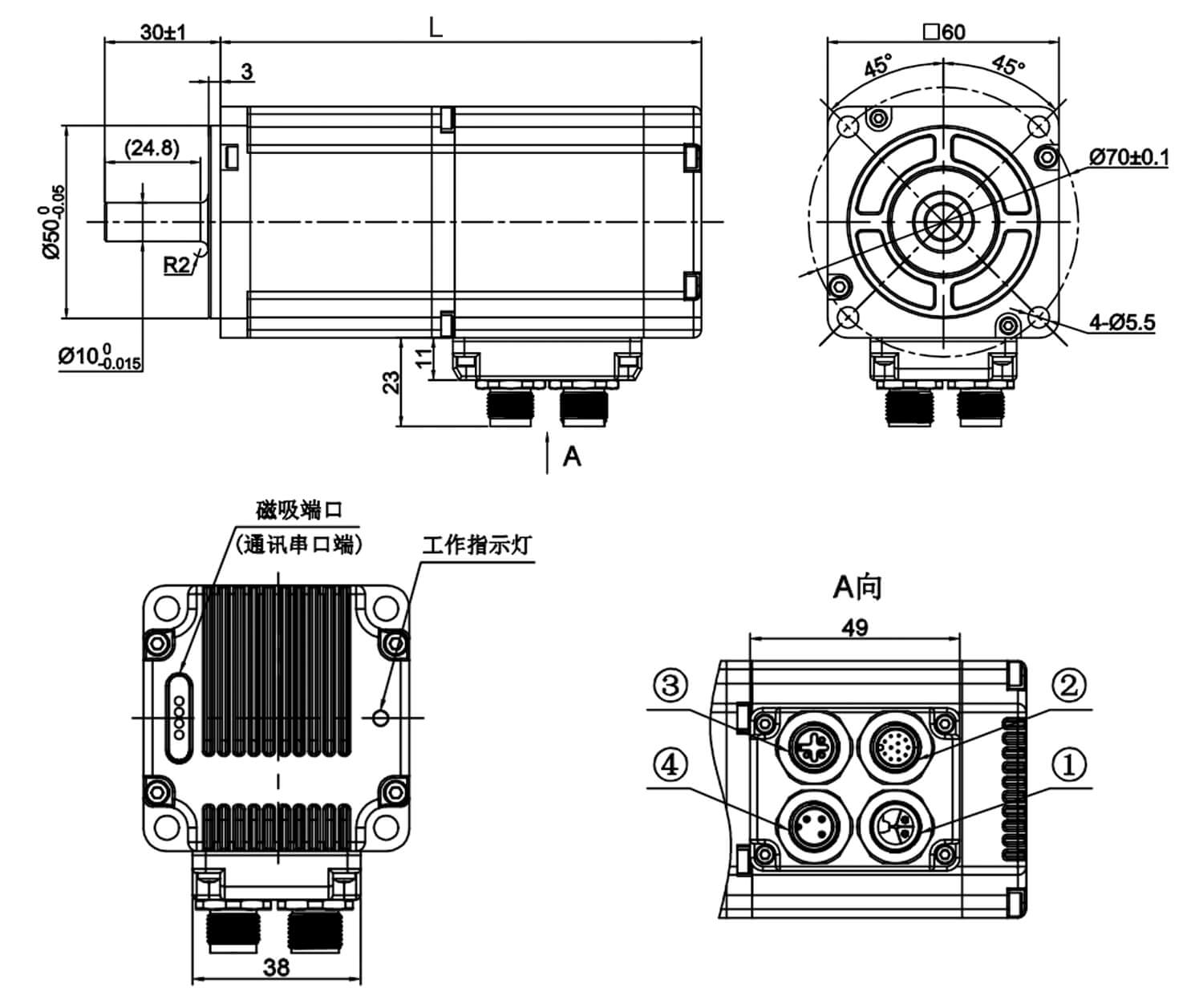

Physical Specifications:

• Frame Size: Nema 24 (60x60mm)

• Shaft Diameter: 10mm

• Shaft Length: 30mm





Nema24 Integrated Brushless Dc Servo Motors Features:

• Adopting a new 32-bit M4+core with 120M or 240M main frequency

• Stable torque characteristics from low to high speeds, with high speed and precision

• Equipped with brake resistor interface to prevent damage to the electromechanical braking system

• Wide speed range, low temperature rise, and high efficiency

• Integrated motor and drive, compact size, simple wiring, and drive Good compatibility with the motor

• Equipped with overcurrent, overvoltage, over temperature, and over differential protection functions

• Configure a 17 bit single turn absolute encoder




Communication method:

• Pulse type

• RS485 MOdbus RTU network type

• CANopen network type





Protection level:

Waterproof type: IP30, IP54, IP65, optional

60mm Integrated Brushless Dc Servo Motors Usage:

Medical equipment, logistics transportation, industrial automation, textile machinery, laser, drawing, traditional Chinese medicine ingredient industry, etc
