What Are the Advantages of Integrated Closed-Loop Stepper Motors in Variable Rate Application (VRA) Sprayers?

Variable Rate Application (VRA) technology is changing how modern agriculture manages fertilizers, pesticides, herbicides, and other crop inputs. Instead of applying the same amount of material across an entire field, VRA sprayers adjust application rates according to crop conditions, field variability, prescription maps, and real-time sensor data. This approach helps farmers use inputs more efficiently, improve application consistency, and make better use of precision agriculture equipment.

However, the performance of a VRA sprayer depends on more than its sensors, control software, and spray nozzles. The motion control system also plays a critical role. When a sprayer needs to adjust a metering valve, position an actuator, regulate a nozzle mechanism, or control another mechanical component, the motor must respond accurately and reliably to changing commands.

This is where integrated closed-loop stepper motors offer significant advantages.

By combining a stepper motor, encoder, and motor drive into one compact unit, these motors provide accurate positioning with feedback-based motion correction. Depending on the system architecture, they can also simplify wiring, reduce control cabinet space, improve fault detection, and make machine integration easier.

For agricultural equipment manufacturers developing precision spraying systems, selecting the right motor is not simply a matter of choosing sufficient torque. The motor must also meet the application's requirements for positioning accuracy, response time, vibration resistance, environmental protection, communication, and long-term reliability.

In this article, we examine how Variable Rate Application sprayers work, what their motion control systems require, and why integrated closed-loop stepper motors are an attractive solution for many precision agriculture applications.

What Is Variable Rate Application (VRA) in Precision Agriculture?

Variable Rate Application, commonly abbreviated as VRA, is an agricultural technology that adjusts the amount of an input applied to different areas of a field.

Traditional spraying systems generally operate at a relatively consistent application rate, with adjustments made by the operator or through basic flow-control mechanisms. Although this approach remains suitable for many agricultural operations, it cannot always account for differences in soil fertility, crop density, weed pressure, moisture levels, or plant development across a field.

VRA addresses this limitation by allowing application rates to change according to defined agronomic requirements.

For example, one section of a field may require a higher fertilizer application rate, while another section may need less. A weed-control system may apply herbicide only where weeds are detected, rather than treating every part of the field uniformly.

The objective is to deliver the appropriate input quantity to the appropriate location at the appropriate time.

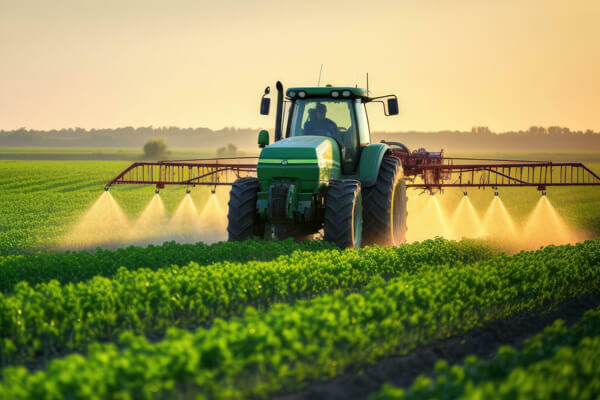

How Does a VRA Sprayer Work?

A typical VRA sprayer combines several technologies to translate agricultural data into controlled physical application.

1. GPS and positioning systems

GPS or GNSS receivers determine the sprayer's position in the field. The control system uses this information to identify the current location and determine which application rate should be used.

Higher-precision positioning may be required when the machine performs narrow-row operations, follows prescription boundaries, or applies inputs to specific crop zones.

2. Prescription maps and agricultural data

Prescription maps define how application rates should vary across a field. These maps may be developed from soil sampling, crop imagery, yield records, agronomic recommendations, or other field data.

The VRA controller uses the prescription to determine the target rate for each location.

3. Sensors and control software

Depending on the system, sensors may measure flow, pressure, crop characteristics, plant density, or other operating conditions.

The controller processes the available information and generates commands for the application equipment.

4. Flow-control valves and actuators

Valves, pumps, metering devices, and mechanical actuators regulate how much material is delivered.

Some systems use electronically controlled valves, while others employ motorized mechanisms to adjust valve openings or the positions of mechanical components.

5. Spray nozzles and application hardware

The final application stage distributes the liquid across the target area. The selected nozzle configuration, operating pressure, flow rate, droplet characteristics, and travel speed all influence application performance.

The motor is not responsible for every part of this process. Instead, it controls specific mechanical functions where precise and repeatable movement is required.

When these components work together, the sprayer can adjust application rates automatically as field conditions and operating requirements change.

Why Motion Control Matters in VRA Sprayers

In Variable Rate Application (VRA) sprayers, accurate application depends on more than GPS positioning, sensors, and control software. The system must also translate digital commands into precise mechanical movements. This is where motion control plays a critical role in precision agriculture.

When a sprayer enters a new field zone, the controller may need to adjust a motorized valve, change a metering mechanism's position, or activate a specific application function. The actuator must respond at the right time, move to the required position, and maintain consistent performance under changing operating conditions. If the movement is delayed or inaccurate, the sprayer may not deliver the intended application rate at the correct location.

For agricultural equipment manufacturers, choosing the right motion control solution helps improve actuator positioning, simplify system integration, and support more reliable machine operation.

Accurate Positioning for Consistent Application

Many VRA systems use electrically controlled valves or motorized mechanisms to regulate material delivery. These components must move to repeatable positions to support consistent operation.

For example, a motorized valve may need to adjust its opening when the target application rate changes. If the actuator does not reach the commanded position, the resulting flow may differ from the expected value. An integrated closed-loop stepper motor can help address this challenge by using encoder feedback to monitor motor movement and detect position errors.

However, motor positioning is only one part of application accuracy. Actual flow also depends on valve characteristics, fluid pressure, nozzle selection, and the control system's calibration. Combining reliable motion control with appropriate sensing and control algorithms helps manufacturers build a more predictable VRA system.

Fast Response to Changing Field Conditions

VRA sprayers often need to adjust application rates while moving across a field. These changes may be triggered by prescription maps, crop sensors, weed detection systems, or other agronomic inputs.

If an actuator responds too slowly, the sprayer may continue operating under the previous setting after entering a new field zone. The resulting delay can affect how accurately the application system follows its intended operating profile.

A suitable motion control system must therefore provide the required speed, acceleration, and positioning performance under the actual mechanical load. Integrated closed-loop stepper motors can offer a practical solution for applications that require repeatable positioning and feedback-based error detection without the complexity of a more advanced servo system.

The appropriate motor must still be selected according to the required movement distance, response time, torque, and duty cycle.

Reliable Operation Under Changing Mechanical Loads

Agricultural equipment operates in demanding environments where vibration, contamination, mechanical wear, and changing loads can affect actuator performance. Valve resistance may increase over time, and mechanical components may require different amounts of torque under different operating conditions.

In an open-loop stepper system, excessive load can cause the motor to lose steps without the controller immediately detecting the resulting position error. A closed-loop stepper motor uses encoder feedback to compare actual motor movement with the commanded position. Depending on the drive's capabilities, it can attempt to correct the error or report a fault.

This feedback improves the system's ability to identify motion problems, although it cannot overcome a jammed mechanism or a load that exceeds the motor's capabilities. Proper motor sizing, mechanical design, and fault-handling logic remain essential.

Simpler Integration for Agricultural Equipment Manufacturers

A VRA sprayer typically combines a controller, sensors, valves, actuators, and other electrical and mechanical components. Integrating these devices into a compact and reliable system can increase engineering complexity, particularly when multiple actuators must operate independently.

An integrated closed-loop stepper motor combines the motor, encoder, and drive into one assembly. This arrangement can reduce the number of separate components that need to be mounted and connected, simplify motor-to-drive wiring, and make component selection more straightforward.

For original equipment manufacturers (OEMs), these advantages can help streamline equipment design, assembly, and commissioning. When several actuators share a common motor platform, standardization may also simplify maintenance and spare-parts management.

Better Diagnostics and Maintenance

When a VRA actuator fails to reach its commanded position, the machine controller needs enough information to identify the problem. Without feedback, an open-loop system may know only that it issued a movement command.

Closed-loop stepper motors provide additional information about motor movement. Depending on the product, available features may include position-error detection, overload indications, temperature protection, and fault reporting.

These capabilities can help maintenance personnel identify motion-related problems and reduce unnecessary troubleshooting. However, motor feedback does not directly confirm liquid flow or guarantee that a downstream valve or linkage is functioning correctly. Additional sensors may be required when the application needs direct verification of flow, pressure, or output position.

Choosing the Right Motion Control Solution

Not every VRA sprayer requires a closed-loop stepper motor. Simple on/off valves may be better served by solenoids, while applications requiring demanding dynamic performance may benefit from servo systems.

For motorized valves, adjustable metering mechanisms, and other applications requiring repeatable positioning, integrated closed-loop stepper motors can provide a useful balance of accuracy, feedback, compact design, and cost.

Before selecting a motor, manufacturers should evaluate the required torque, operating speed, positioning accuracy, electrical interface, environmental protection, thermal performance, and expected service life. Testing the complete actuator under realistic operating conditions is equally important.

Ultimately, effective motion control helps connect the digital intelligence of a VRA sprayer with the physical performance of its application hardware. By selecting a motor that matches the actual operating requirements, equipment manufacturers can develop more responsive, reliable, and maintainable precision spraying systems.

Jkongmotor Customized Servo Motor Motions

One-Stop Integrated DC Servo Motor Solution Provider

What Is an Integrated Closed-Loop Stepper Motor?

An integrated closed-loop stepper motor is a motion control device that combines a stepper motor, an encoder, and a motor drive into a single compact assembly. Unlike a conventional open-loop stepper motor, which relies on the assumption that the motor follows every movement command, a closed-loop stepper motor uses feedback to monitor actual motor movement and identify position errors.

For agricultural equipment manufacturers developing Variable Rate Application (VRA) sprayers, this combination offers an effective way to achieve controlled positioning, improve motion monitoring, and simplify system integration. It is particularly useful for motorized valves, adjustable metering mechanisms, and other components that require repeatable movement under changing operating conditions.

How Does an Integrated Closed-Loop Stepper Motor Work?

An integrated closed-loop stepper motor typically consists of three main components that work together to control movement.

1. Stepper Motor

The stepper motor converts electrical pulses into mechanical rotation. Its structure allows the controller to command movement in defined increments, making it suitable for positioning applications that require repeatable motion.

In a VRA sprayer, the motor may drive a valve, rotate a metering component, or position a mechanical actuator. The required motor size and torque depend on the mechanism's resistance, travel range, operating speed, and duty cycle.

2. Encoder

The encoder monitors motor movement and provides feedback to the control system. Depending on the encoder design, it can report rotational position or movement relative to a reference point.

This feedback allows the system to compare the motor's actual position with its commanded position. If the motor falls behind the target because of excessive load or another disturbance, the feedback system can identify the discrepancy.

It is important to understand that an encoder mounted on the motor generally measures motor movement, not the actual flow rate through a valve or the final position of every downstream mechanical component.

3. Integrated Motor Drive

The motor drive receives movement commands, controls the electrical power supplied to the motor, and processes encoder feedback.

Depending on the drive's design, it can adjust motor operation to reduce position error, monitor operating conditions, and report certain faults. These functions help the motor respond more consistently to changing loads, provided the application remains within the motor's operating limits.

By combining the motor, encoder, and drive into one assembly, manufacturers can reduce the number of separate motion control components that must be installed and connected.

What Is the Difference Between Open-Loop and Closed-Loop Stepper Motors?

The main difference is how the system handles feedback.

An open-loop stepper motor receives movement commands without directly checking its actual position through an encoder feedback loop. If the mechanical load becomes too high or the motor accelerates beyond its capabilities, it may lose steps without immediately informing the controller.

A closed-loop stepper motor uses encoder feedback to monitor movement. When the actual position differs from the commanded position, the drive can respond according to its control strategy. Depending on the product, it may attempt to correct the error or generate a fault signal.

An integrated closed-loop design adds another advantage by combining the motor and drive in one assembly, potentially reducing wiring and installation complexity.

For VRA sprayers, this distinction matters because motorized application components may need to move repeatedly between different positions as the required application rate changes. Feedback helps the control system identify motion errors that might otherwise remain undetected.

Why Are Integrated Closed-Loop Stepper Motors Suitable for VRA Sprayers?

Variable Rate Application systems adjust input delivery according to prescription maps, crop conditions, sensor readings, or other control inputs. To execute these adjustments, the system may use motorized mechanisms to change valve positions or regulate material delivery.

Integrated closed-loop stepper motors can support these applications in several ways.

• Repeatable positioning: Encoder feedback helps the drive monitor whether the motor reaches the commanded position.

• Improved motion monitoring: The system can identify certain positioning errors instead of relying entirely on assumed movement.

• Compact integration: Combining the motor, encoder, and drive can reduce separate mounting and motor-to-drive wiring requirements.

• Simplified installation: A coordinated assembly can make component selection and equipment integration more straightforward.

• Diagnostic capabilities: Depending on the product, the drive may provide position-error detection and other fault information.

• Flexible control: Available command interfaces vary by model, allowing manufacturers to select a motor compatible with their equipment's control architecture.

These benefits can be valuable when a VRA sprayer uses independently controlled actuators or requires repeatable mechanical adjustments throughout long operating periods.

However, motor feedback alone does not guarantee accurate application rates. Actual flow depends on the valve or metering mechanism, fluid pressure, nozzle characteristics, and the overall control strategy. Where direct application verification is necessary, additional flow, pressure, or output-position sensors may be required.

What Does the Integrated Design Change?

With a conventional setup, the motor, encoder, and drive may be installed as separate components. The machine manufacturer must account for the physical space, wiring, connectors, electrical compatibility, and commissioning requirements of each device.

An integrated closed-loop stepper motor places the motor and drive together, with the encoder incorporated into the feedback system.

This arrangement can reduce the number of separate components that must be mounted and connected.

For equipment manufacturers, the benefits may include:

• Less space required for distributed motion control hardware.

• Shorter motor-to-drive wiring.

• Fewer separate mounting interfaces.

• Simplified electrical assembly.

• Easier motor and drive matching.

• More convenient machine-level integration.

• Access to feedback-based positioning and drive diagnostics.

The exact benefits depend on the product design. Integrated construction does not automatically guarantee lower total cost, easier maintenance, or better environmental protection. Those outcomes depend on the quality of the motor, drive, connectors, enclosure, and system design.

Nevertheless, for many compact agricultural mechanisms, integration provides a practical way to reduce design complexity without giving up closed-loop position feedback.

Conclusion

An integrated closed-loop stepper motor combines a stepper motor, encoder, and drive into a compact motion control solution that provides both commanded movement and feedback-based monitoring.

For VRA sprayers, it can offer a practical balance of repeatable positioning, motion-error detection, compact integration, and diagnostic capability. These characteristics make it worth considering for motorized valves, adjustable metering mechanisms, and other applications that require controlled mechanical movement.

The best choice depends on the actual application requirements. By evaluating torque, speed, positioning performance, environmental protection, electrical compatibility, and total system cost, manufacturers can select an integrated closed-loop stepper motor that supports reliable operation and effective precision agriculture equipment design.

The Main Advantages of Integrated Closed-Loop Stepper Motors in VRA Sprayers

Variable Rate Application (VRA) sprayers must respond to changing field conditions while maintaining consistent and controlled application performance. Whether adjusting a motorized valve, positioning a metering mechanism, or controlling another mechanical component, the system needs reliable motion control to translate electronic commands into physical movement.

Integrated closed-loop stepper motors combine precise motion control, encoder feedback, and a built-in motor drive in one compact unit. For agricultural equipment manufacturers, this design can simplify system integration, improve position monitoring, and provide a practical balance between performance and cost.

Compared with conventional open-loop stepper motors, integrated closed-loop models can detect position errors and respond to changing mechanical loads within their operating limits. Their integrated design can also reduce wiring and mounting requirements, making them attractive for compact agricultural machinery.

1. Improved Positioning Accuracy and Repeatability

Accurate positioning is essential when a VRA sprayer uses motorized mechanisms to regulate application functions. For example, an electrically controlled valve may need to move between different positions to support changes in the target application rate.

If the actuator fails to reach the commanded position, the valve opening may differ from the intended setting. This can affect the resulting flow, depending on the valve's characteristics and operating conditions.

An integrated closed-loop stepper motor uses an encoder to monitor motor movement. The drive compares the actual position with the commanded position and can respond when a discrepancy occurs.

This feedback-based approach helps the actuator maintain more consistent positioning than an open-loop system that relies entirely on commanded step counts.

For agricultural equipment manufacturers, improved positioning repeatability can help create more predictable actuator behavior and reduce the risk of undetected motor-position errors.

It is important to distinguish positioning performance from application-rate accuracy. A motor can accurately position a valve without guaranteeing a specific flow rate. The final application rate also depends on fluid pressure, valve design, nozzle characteristics, calibration, and the overall control strategy.

2. Better Response to Changing Mechanical Loads

Agricultural machinery operates under changing conditions. Mechanical friction, seal resistance, vibration, and component wear can influence the torque required to move an actuator.

In an open-loop stepper system, an excessive load may cause the motor to lose steps. Because the controller does not necessarily receive position feedback, the resulting position error may go undetected.

A closed-loop stepper motor can identify differences between commanded and measured motor movement. Depending on the drive's capabilities, it may adjust motor operation to reduce the error or report a fault when the target position cannot be reached.

This capability is particularly useful for VRA sprayers that repeatedly adjust motorized valves or metering mechanisms during field operations.

However, feedback cannot compensate for every mechanical problem. A jammed valve, an undersized motor, or a load exceeding the motor's available torque can still prevent successful movement.

To achieve reliable performance, manufacturers should select a motor with sufficient torque at the required operating speed and test the complete actuator under realistic load conditions.

3. Reduced Risk of Undetected Position Errors

In precision agriculture equipment, the controller must know whether an actuator has followed its movement command closely enough to perform the intended function.

An open-loop system generally assumes that the motor has completed the commanded movement. If the motor stalls or loses steps, that assumption may no longer be correct.

An integrated closed-loop stepper motor provides feedback that allows the drive to monitor actual motor movement. When the difference between the commanded and measured position exceeds a configured threshold, the system may attempt correction or generate an error signal.

This helps equipment manufacturers build more transparent and diagnosable motion control systems.

For example, if a motorized metering mechanism repeatedly fails to reach its target position, the feedback information can help identify a potential motion problem before relying solely on indirect symptoms.

Nevertheless, motor-position feedback does not confirm that every downstream component is operating correctly. A loose coupling, damaged linkage, or malfunctioning valve may prevent the motor's movement from producing the expected mechanical result.

When the application requires direct verification, additional output-position, flow, or pressure sensors may be necessary.

4. Simplified System Integration and Wiring

A conventional motion control system may require separate installation of the motor, encoder, and drive. The manufacturer must then manage their mounting arrangements, electrical connections, signal compatibility, and commissioning procedures.

An integrated closed-loop stepper motor combines these primary motion control components into a single assembly.

This can reduce the number of separate mounting points and shorten the wiring between the motor and drive. It may also simplify component selection because the motor, encoder, and drive are designed to operate together.

For VRA sprayer manufacturers, these advantages can help streamline equipment assembly and reduce design complexity.

The benefits become particularly relevant when multiple actuators are installed across a machine. Standardizing on a suitable integrated motor family can make it easier to replicate actuator designs, document electrical connections, and establish consistent commissioning procedures.

The complete installation still requires careful consideration of power supply connections, communication interfaces, cable routing, connector protection, and heat dissipation.

5. More Efficient Use of Installation Space

Space is often limited in modern agricultural equipment. Valve assemblies, control modules, boom-mounted mechanisms, and compact actuator housings may not have room for a separately mounted motor drive.

An integrated closed-loop stepper motor combines the motor and drive in one unit, potentially reducing the space required for distributed motion control hardware.

This arrangement can simplify mechanical packaging and reduce the need for additional brackets or enclosures.

For equipment manufacturers developing compact VRA systems, the reduced component footprint may create more flexibility when arranging actuators and other equipment.

However, integration does not eliminate the need for adequate thermal management or service access. Buyers should evaluate the complete installed dimensions, including connectors, cables, mounting features, and the clearance required for heat dissipation.

6. Potentially Lower Total System Cost

The purchase price of a motor does not represent the entire cost of implementing motion control.

Manufacturers must also consider wiring, installation labor, mounting hardware, commissioning, troubleshooting, maintenance, and replacement parts.

An integrated closed-loop stepper motor may reduce some of these costs by combining multiple components into one assembly and providing feedback-based diagnostics.

For example, an OEM producing several sprayer models may benefit from using the same motor family across compatible actuator designs. Standardized components can simplify purchasing, assembly procedures, and spare-parts management.

The financial advantage depends on the application and production volume. A simple, low-load mechanism may operate effectively with an inexpensive open-loop stepper motor, making the additional feedback unnecessary.

For applications where position errors are more consequential or system integration is more complex, an integrated closed-loop solution may offer better overall value.

The most useful comparison is total installed cost, not motor purchase price alone.

7. Consistent Performance During Repeated Operating Cycles

VRA sprayers may repeatedly change actuator positions as the machine moves between field zones or responds to updated sensor information.

These movements place demands on acceleration, deceleration, positioning repeatability, and thermal performance.

An integrated closed-loop stepper motor monitors movement through encoder feedback and can respond to position errors according to its control strategy.

This can help maintain consistent motion when mechanical loads vary throughout the operating cycle.

However, the motor's achievable response time depends on several factors, including torque at operating speed, load inertia, transmission ratio, acceleration limits, drive configuration, and controller communication.

A motor with high holding torque may not necessarily provide enough torque at the speed required by the application.

Manufacturers should therefore evaluate the motor's torque-speed characteristics and test the complete actuator using realistic movement commands and loads.

8. Improved Fault Detection and Diagnostics

Troubleshooting agricultural equipment can be challenging when multiple actuators, valves, sensors, and controllers operate together.

Without position feedback, a controller may know that it issued a command but have limited information about whether the motor actually followed it.

An integrated closed-loop stepper motor can provide additional diagnostic information through its encoder and drive.

Depending on the product, available functions may include:

• Position-error detection.

• Following-error monitoring.

• Stall or overload indications.

• Motor and drive fault reporting.

• Overtemperature protection.

• Communication-status monitoring.

• Configurable alarm outputs.

These functions can help maintenance personnel identify certain motion-related problems more efficiently.

For example, a drive may report that an actuator cannot reach its commanded position. This information can direct troubleshooting toward excessive mechanical resistance, an obstruction, incorrect motor sizing, or another motion-related issue.

The exact diagnostic functions vary by manufacturer, so OEMs should confirm which errors are detected and how the information can be accessed by the machine controller.

Better diagnostics do not prevent every failure, but they can make system problems easier to identify and manage.

9. Flexible Integration with Different Control Systems

VRA sprayers may use embedded controllers, programmable logic controllers, agricultural displays, sensor networks, and application management software.

The motor's command interface must be compatible with the equipment's control architecture.

Depending on the model, integrated closed-loop stepper motors may support step-and-direction signals, digital inputs and outputs, analog commands, or industrial communication interfaces.

This flexibility allows manufacturers to choose a motor that fits their existing system rather than redesigning the entire control architecture around a particular actuator.

Before purchasing, OEMs should verify the available command interfaces, electrical requirements, communication protocols, diagnostic functions, and configuration tools.

They should also consider electromagnetic compatibility, cable requirements, and how the motor reports faults to the central controller.

Selecting the correct interface early in the development process can reduce integration problems and simplify future product development.

10. Greater Potential for Standardized Equipment Designs

Agricultural equipment manufacturers often build multiple products using common mechanical and electrical platforms.

Different VRA sprayers may share similar valve assemblies, metering mechanisms, and actuator requirements even when their working widths or application capacities differ.

A standardized integrated closed-loop stepper motor family can simplify engineering reuse across these product lines.

Using common motor models may help manufacturers standardize mounting arrangements, wiring, configuration procedures, and replacement parts.

This approach can also make production planning and technical documentation more manageable.

However, standardization should not replace application-specific motor sizing. Different mechanisms may require different torque, speed, positioning performance, and environmental protection.

Each application should be evaluated independently to ensure that the selected motor meets its operating requirements.

How to Get the Best Performance from an Integrated Closed-Loop Stepper Motor

Although integrated closed-loop stepper motors offer several advantages, their performance depends on selecting the correct model and integrating it properly.

Before making a purchasing decision, VRA sprayer manufacturers should evaluate the following factors:

• Torque requirements: Calculate the load torque, acceleration torque, friction, and transmission losses.

• Operating speed: Confirm that the motor can provide sufficient torque at the required speed.

• Positioning requirements: Evaluate encoder resolution alongside mechanical backlash, coupling stiffness, and actuator accuracy.

• Electrical compatibility: Verify supply voltage, current, command interfaces, and communication requirements.

• Environmental protection: Confirm suitability for dust, moisture, vibration, temperature changes, and expected chemical exposure.

• Thermal performance: Ensure that the motor and integrated drive can operate within their specified temperature limits.

• Diagnostics: Determine which position errors and operating faults the drive can detect and report.

• Serviceability: Consider product availability, technical support, replacement parts, and long-term maintenance requirements.

The complete actuator should then be tested under representative operating conditions. This helps verify positioning repeatability, response time, thermal performance, and reliable operation under realistic mechanical loads.

For systems where application accuracy is critical, testing should also include the valve or metering mechanism and any required flow or pressure feedback.

Conclusion

Integrated closed-loop stepper motors offer several practical advantages for VRA sprayers, including repeatable positioning, feedback-based error detection, simplified wiring, compact integration, diagnostic capabilities, and potential reductions in total system cost.

These benefits make them worth considering for motorized valves, adjustable metering mechanisms, and other agricultural applications that require controlled mechanical movement.

However, the right motor depends on the complete application. Manufacturers should evaluate torque, operating speed, positioning requirements, environmental conditions, communication interfaces, and serviceability before selecting a model.

When properly sized and integrated, an integrated closed-loop stepper motor can help OEMs develop more responsive, maintainable, and reliable motion control systems for precision agriculture equipment.

Which VRA Sprayer Components Can Use Integrated Closed-Loop Stepper Motors?

Variable Rate Application (VRA) sprayers rely on coordinated control of valves, metering mechanisms, sensors, and application hardware to deliver the required amount of agricultural chemicals or nutrients to different areas of a field. While not every component requires a motor, integrated closed-loop stepper motors can provide reliable positioning and feedback for VRA components that need controlled, repeatable mechanical movement.

By combining a stepper motor, encoder, and motor drive in one compact assembly, these motors can help agricultural equipment manufacturers simplify installation, monitor positioning errors, and develop more flexible actuator systems.

The most suitable applications depend on the required movement, mechanical load, response time, environmental conditions, and control architecture. Below are five VRA sprayer components where integrated closed-loop stepper motors may provide practical benefits.

1. Motorized Flow-Control Valves

Flow-control valves regulate the amount of liquid passing through a spraying system. In some VRA designs, the valve opening must change in response to prescription maps, crop sensors, or application-rate commands.

An integrated closed-loop stepper motor can drive a compatible valve mechanism to a specified position, allowing the controller to adjust the opening in a repeatable manner.

Potential benefits include:

• Repeatable valve positioning.

• Feedback-based detection of motor-position errors.

• Adjustable valve openings rather than simple on/off operation.

• Compact installation for distributed valve assemblies.

• Easier integration of motor control and diagnostics.

However, not every flow-control valve is designed for stepper-motor operation. The valve must have a compatible mechanical interface and suitable torque and travel requirements.

It is also important to distinguish valve position from actual liquid flow. Flow depends on factors such as pressure, fluid properties, valve characteristics, and nozzle configuration. Applications requiring accurate flow regulation may need a flow sensor or pressure feedback in addition to motor-position feedback.

2. Variable-Rate Metering Mechanisms

Some agricultural application systems use adjustable metering mechanisms to regulate the quantity of material delivered. Depending on the equipment design, these mechanisms may include rotary metering elements, adjustable openings, or other position-controlled components.

An integrated closed-loop stepper motor can provide controlled movement when the metering mechanism needs to move between defined positions or follow a sequence of adjustment commands.

For example, the motor may reposition a metering element when the target application rate changes between field zones. Encoder feedback allows the drive to monitor motor movement and identify certain positioning errors.

The main selection considerations include:

• Required output torque and operating speed.

• Metering mechanism travel and resolution.

• Mechanical backlash and transmission efficiency.

• Response time when application settings change.

• Operating frequency and thermal performance.

• The relationship between actuator position and material delivery.

For liquid spraying systems, the metering design must also account for pressure and flow characteristics. For granular fertilizer or other dry-input applications, material friction, blockage risk, and mechanical resistance may be more important.

The motor should be selected according to the actual metering mechanism rather than the application category alone.

3. Boom-Section Control Mechanisms

Modern sprayers often divide the boom into independently controlled sections. Section control allows the equipment to switch application zones on or off according to field boundaries, prescription maps, or other operating conditions.

Many conventional boom-section valves use solenoids or other actuators designed for straightforward on/off switching. In these applications, a stepper motor may add unnecessary complexity.

However, some specialized section-control mechanisms require adjustable positioning, controlled travel, or multiple operating positions. An integrated closed-loop stepper motor may be suitable for those designs.

Potential advantages include repeatable movement, motor-position monitoring, and integration of the drive with the actuator.

When evaluating a motor for boom-section control, manufacturers should consider switching speed, operating frequency, mechanical load, electrical architecture, and the required response when a fault occurs.

For simple on/off section valves, a solenoid is often the more appropriate choice. For mechanisms that require controlled positioning, a closed-loop stepper motor may be worth evaluating.

The actuator must also be coordinated with the sprayer's section-control logic to ensure that switching commands occur at the intended locations.

4. Adjustable Nozzle and Spray-Pattern Mechanisms

Some specialized spraying systems use adjustable nozzle assemblies or motorized mechanisms to change nozzle orientation, positioning, or other application characteristics.

Where a mechanism requires repeatable angular or linear movement, an integrated closed-loop stepper motor can provide a practical positioning solution.

The motor may drive the adjustment mechanism directly or through a gearbox, lead screw, or linkage, depending on the required output force and movement range.

Before selecting a motor, equipment manufacturers should evaluate the following factors:

• Required angular or linear travel.

• Positioning repeatability at the output.

• Torque or force requirements.

• Backlash and mechanical compliance.

• Response time and movement frequency.

• Exposure to spray chemicals, moisture, dust, and vibration.

The mechanical transmission is particularly important. An encoder on the motor measures motor movement, but it may not detect every downstream error caused by a slipping coupling, loose linkage, or damaged mechanism.

If accurate nozzle positioning is essential, the system may require additional output-position feedback.

The selected motor and actuator should also be tested under realistic vibration and environmental conditions to verify long-term performance.

5. Automated Calibration and Setup Mechanisms

Some VRA sprayers include adjustable components that require positioning during commissioning, calibration, cleaning, or maintenance.

Integrated closed-loop stepper motors can automate these adjustments when controlled movement is required. Instead of relying entirely on manual adjustment, the machine controller can command the actuator to move to a defined position or follow a programmed sequence.

Possible applications include:

• Positioning adjustable metering components during setup.

• Moving compatible mechanisms to predefined calibration positions.

• Automating selected mechanical adjustments.

• Returning an actuator to a known reference position through an appropriate homing procedure.

• Supporting repeatable positioning during maintenance routines.

These functions can reduce manual intervention in suitable machine designs, although the benefits depend on the complexity of the adjustment and the requirements of the equipment.

A motor encoder does not necessarily establish the machine's absolute position after power loss. The system may need a homing sensor, limit switch, absolute encoder, or another reference method, depending on the motor and controller.

Designers should also implement suitable travel limits and fault handling to prevent unexpected movement during setup or maintenance.

How to Choose the Right Motor for Each VRA Component

Different sprayer components place different demands on their actuators. A motor that performs well in a valve assembly may not be suitable for a larger metering mechanism or a vibration-exposed nozzle adjustment system.

Before selecting an integrated closed-loop stepper motor, manufacturers should assess five key factors.

1. Torque and speed requirements

Calculate the torque or force required by the mechanism, including friction, acceleration, transmission losses, and expected load variations. Confirm that the motor can deliver sufficient torque at the required operating speed.

2. Positioning requirements

Determine the required travel range, resolution, repeatability, and allowable position error. Consider backlash and compliance in the complete mechanical transmission, not just the encoder specification.

3. Control-system compatibility

Confirm the required command signals, supply voltage, communication interface, and diagnostic functions. The motor must work with the sprayer's controller and electrical architecture.

4. Environmental protection

Evaluate dust, moisture, vibration, temperature, and chemical exposure. Check the protection rating of the complete motor assembly, including connectors and cable interfaces.

5. Operating cycle and service life

Determine how frequently the actuator moves, how long it remains energized, and how much heat it generates. Test the complete mechanism under representative operating conditions before production release.

Conclusion

Integrated closed-loop stepper motors can be used in selected VRA sprayer components that require controlled and repeatable movement. The most promising applications include motorized flow-control valves, variable-rate metering mechanisms, specialized boom-section actuators, adjustable nozzle mechanisms, and automated calibration systems.

They are not a universal replacement for solenoid valves, DC motors, or servo systems. The right solution depends on the function being controlled and the performance requirements of the complete actuator.

For agricultural equipment OEMs, the best approach is to identify where positioning feedback provides a measurable benefit, calculate the required torque and response time, and test the selected motor with the actual mechanism. This helps ensure that the motion-control system supports reliable operation without adding unnecessary cost or complexity.

Why Do Many Equipment Manufacturers Choose Integrated Closed-Loop Stepper Motors?

Equipment manufacturers are under constant pressure to develop machines that are more compact, reliable, energy-efficient, and easier to maintain. Whether they are building agricultural sprayers, packaging machines, medical devices, laboratory instruments, or automated production equipment, they need motion control solutions that deliver consistent performance without adding unnecessary mechanical complexity.

This is one reason many manufacturers choose integrated closed-loop stepper motors. By combining a stepper motor, driver, encoder, and closed-loop control functions into a compact unit, these motors simplify system design while providing position feedback and improved motion reliability compared with traditional open-loop stepper systems.

1. Simplified Wiring and Faster Machine Integration

Traditional stepper motor systems typically require a separate motor, driver, power connections, and control wiring. Depending on the application, additional components may be needed for position feedback, protection, and system monitoring.

An integrated closed-loop stepper motor consolidates several of these components into one assembly. This can reduce the number of external connections and simplify the electrical architecture of a machine.

For equipment manufacturers, the practical benefits include:

• Fewer separate components to mount and connect.

• Reduced cabinet space requirements when the driver is moved to the motor assembly.

• Simplified wiring and cable routing.

• Faster installation and commissioning.

• Less effort required to coordinate the motor and driver during system design.

These advantages are particularly valuable in compact equipment, distributed motion-control systems, and machines with multiple independently controlled axes.

However, integration does not eliminate every external component. Power supplies, controllers, communication interfaces, and safety devices may still be required, depending on the motor configuration.

2. More Reliable Positioning Through Closed-Loop Feedback

Positioning accuracy is a critical requirement in many automated machines. A conventional open-loop stepper motor executes commanded steps without directly verifying that the shaft has followed the expected movement.

If the motor encounters excessive load, rapid acceleration, mechanical binding, or insufficient torque, it may lose steps. The controller may continue operating without immediately recognizing the resulting position error.

An integrated closed-loop stepper motor uses an encoder to monitor motor position and provide feedback to the control system. The controller can use this information to detect deviations and adjust motor operation within its supported control strategy.

This helps equipment manufacturers improve positioning reliability in applications such as:

• Adjustable flow-control mechanisms in variable rate application (VRA) sprayers.

• Automated dispensing and metering systems.

• Precision linear positioning modules.

• Packaging and labeling equipment.

• Laboratory sample handling and liquid dispensing systems.

Closed-loop feedback can reduce the risk of undetected positioning errors, but it does not guarantee that every commanded movement will be completed under all conditions. Actual performance depends on the control algorithm, encoder resolution, load, speed, acceleration, and mechanical design.

3. Better Use of Available Torque and Reduced Unnecessary Energy Consumption

Open-loop stepper systems may require conservative current settings to maintain a safety margin against missed steps. In some applications, the motor also consumes substantial current while holding a stationary position.

Closed-loop control can regulate motor current according to operating conditions and the feedback strategy. When correctly configured, this may reduce unnecessary current consumption, motor heating, and power demand during certain operating conditions.

For equipment manufacturers, potential benefits include:

• Lower motor temperature under suitable operating conditions.

• Improved energy efficiency in applications with variable loads.

• More effective use of available motor torque.

• Reduced thermal stress on nearby components.

• Greater flexibility when optimizing power consumption in battery-operated equipment.

Energy savings are not automatic. The actual improvement depends on the motor design, load profile, holding requirements, current-control method, and operating duty cycle. Manufacturers should compare measured power consumption and temperature under representative working conditions rather than relying on the closed-loop label alone.

4. Compact Design and Reduced Component Complexity

Space is often limited in modern equipment. Designers must fit motors, transmissions, sensors, wiring, and control electronics into a restricted installation area without compromising accessibility or performance.

Integrated closed-loop stepper motors can reduce the need for a separately mounted driver and associated wiring. This makes them attractive for compact machinery, modular equipment, and systems where several motion axes are distributed throughout the machine.

Depending on the product configuration, manufacturers may also select versions with an integrated gearbox, brake, communication interface, or linear-motion mechanism.

A compact integrated solution can help reduce assembly complexity and create a more standardized machine design. Nevertheless, the overall installation footprint should be evaluated using the motor's complete dimensions, connector clearance, heat-dissipation requirements, and service access—not just the motor body size.

5. Easier Troubleshooting and Machine Maintenance

Unexpected downtime can affect production schedules, labor costs, and customer satisfaction. For equipment manufacturers supplying machines to industrial or agricultural customers, serviceability is an important purchasing consideration.

An integrated closed-loop stepper motor may provide feedback or diagnostic functions that help technicians identify certain motion-related problems. Depending on the model, available functions may include position-error monitoring, overload-related feedback, alarm outputs, or communication-based status reporting.

These capabilities can help maintenance teams investigate issues such as:

• Excessive mechanical load.

• Blocked or jammed mechanisms.

• Incorrect motion parameters.

• Position-tracking errors.

• Wiring or communication problems.

The available diagnostic information varies by motor and controller. An encoder does not automatically identify the root cause of a mechanical failure, and it does not directly confirm the final position or output of every mechanism. For example, a motor encoder may report shaft position without confirming that a connected valve has delivered the expected fluid flow.

Manufacturers should therefore evaluate the available alarms, communication registers, and diagnostic functions before selecting a motor for equipment that requires remote monitoring or predictive maintenance.

6. Flexible Control Interfaces for Different Equipment Platforms

Modern equipment may use pulse-and-direction signals, digital inputs and outputs, or industrial communication networks to coordinate motion with a machine controller.

Integrated closed-loop stepper motors are available with different control interfaces, depending on the model and manufacturer. Common options may include pulse control, RS485, and CANopen. Some product families offer additional communication capabilities.

This flexibility allows equipment designers to select a motor interface that fits their existing control architecture.

For example:

• Pulse control can suit machines that use straightforward step-and-direction commands.

• RS485 can support serial communication and parameter configuration when the motor's protocol and controller are compatible.

• CANopen can be suitable for distributed control systems that use compatible CANopen devices and network configurations.

Protocol availability alone does not guarantee plug-and-play compatibility. Engineers should confirm the supported command modes, electrical interface, baud rate, device profile, configuration software, and communication behavior before integrating the motor into a production machine.

7. More Predictable Product Development and Customization

Equipment manufacturers often need to adapt motion-control components to specific mechanical dimensions, operating loads, installation conditions, and communication requirements.

An integrated closed-loop stepper motor platform can provide a convenient starting point for standardizing a machine design. Manufacturers may be able to choose among different frame sizes, torque ranges, shaft configurations, encoder options, communication interfaces, and gearbox ratios.

For OEM projects, additional customization may be required to match the motor to the equipment's mechanical and electrical requirements.

A practical motor-selection process should consider:

1. Required torque throughout the operating cycle.

2. Target speed, acceleration, and positioning time.

3. Load inertia and mechanical transmission ratio.

4. Available installation space and mounting dimensions.

5. Supply voltage and peak current requirements.

6. Feedback, communication, and controller compatibility.

7. Operating temperature, vibration, dust, moisture, and other environmental conditions.

8. Required protection, braking, and fault-handling functions.

Testing a prototype under realistic operating conditions is essential. It helps confirm whether the selected motor can meet the equipment's positioning, thermal, mechanical, and reliability requirements before mass production.

Why Integrated Closed-Loop Stepper Motors Appeal to OEMs

For many equipment manufacturers, the main advantage is not simply that the motor includes an encoder. It is the combination of integrated electronics, position feedback, compact installation, flexible control, and potentially simpler system development.

These features can be especially useful when a machine requires repeatable positioning but does not necessarily need the full performance or cost structure of a conventional high-performance servo system.

The final choice should still be based on application requirements. A well-sized open-loop stepper may be sufficient for a simple, lightly loaded mechanism, while a demanding high-speed axis may require a servo motor. Integrated closed-loop stepper motors offer a practical middle ground for many applications where positioning reliability, space efficiency, and manageable system complexity are priorities.

For OEMs developing agricultural sprayers, packaging machinery, dispensing equipment, or automated production systems, working with a motor manufacturer early in the design process can help verify torque margins, communication compatibility, environmental suitability, and customization options before the machine enters production.

Integrated Closed-Loop Stepper Motors vs. Open-Loop Stepper Motors vs. Servo Motors

Choosing the right motor requires an understanding of the alternatives.

No single motor technology is best for every VRA sprayer. The most appropriate option depends on how much positioning accuracy, dynamic performance, diagnostic capability, and system complexity the application requires.

This comparison describes common characteristics rather than universal rules. Specific products can differ substantially.

When Is an Open-Loop Stepper Motor Enough?

An open-loop stepper motor may be appropriate when the load is predictable, positioning requirements are moderate, and the consequences of an undetected position error are limited.

It can be an economical choice for simple adjustment mechanisms that operate within a well-defined load range.

If the actuator does not need feedback and the system has sufficient torque margin, paying for a closed-loop design may not provide enough additional value.

When Is an Integrated Closed-Loop Stepper Motor the Better Choice?

An integrated closed-loop stepper motor is worth considering when the application requires repeatable positioning, benefits from motor feedback, and would be easier to manufacture with a combined motor-and-drive assembly.

It can be particularly attractive for compact actuators, motorized valves, adjustable metering mechanisms, and other applications where controlled positioning matters more than extreme acceleration or continuous high-speed operation.

When Should a Servo Motor Be Considered?

A servo system may be more suitable when the application requires demanding dynamic response, high acceleration, precise motion over a wide speed range, or advanced torque and velocity control.

However, servo performance should be evaluated against the actual application rather than assumed from the motor category alone.

For a relatively simple valve-positioning mechanism, a servo system may add unnecessary cost and configuration complexity.

For a high-performance actuator with demanding speed and load requirements, a closed-loop stepper motor may not provide enough dynamic capability.

The best decision comes from matching the motor technology to the complete mechanical and control requirements.

How to Select the Right Integrated Closed-Loop Stepper Motor for a VRA Sprayer

Selecting a motor for agricultural machinery requires more than comparing frame sizes or rated torque.

A reliable selection process begins with the mechanism and its operating conditions.

1. Calculate the Required Torque

The motor must provide enough torque to move the mechanism throughout its operating cycle.

For a rotary mechanism, the total torque requirement may include:

• Load torque.

• Friction torque.

• Acceleration torque.

• Transmission losses.

• Additional resistance caused by seals, bearings, or other mechanical components.

For an actuator using a lead screw or gearbox, the transmission changes the relationship between motor torque and output force or torque.

The design should account for these effects before selecting the motor.

A suitable safety margin is also important because agricultural equipment may experience changing loads and wear over time.

Do not select a motor based only on holding torque. Holding torque describes the motor's ability to resist rotation under specified stationary conditions. Available torque during movement can be significantly different.

2. Evaluate the Required Speed and Response Time

VRA systems must sometimes change operating conditions while the sprayer is moving.

The actuator therefore needs to reach its target position within the available time.

To evaluate this requirement, determine:

• The required movement distance.

• The maximum permitted movement time.

• The expected acceleration and deceleration.

• The frequency of repeated movements.

• The mechanical load and inertia.

• The motor's available torque at the required speed.

A motor that can reach the required position under slow bench-test conditions may not meet the same requirement under a realistic operating cycle.

Testing should reproduce the expected commands and load changes as closely as possible.

3. Confirm Position Resolution and Mechanical Accuracy

Stepper motors are often selected because they can provide controlled incremental movement.

However, command resolution should not be confused with actual positioning accuracy.

The final position depends on several factors, including motor characteristics, encoder resolution, drive control, mechanical backlash, coupling stiffness, transmission design, and load.

For example, a gearbox may increase output torque and improve effective output resolution while introducing backlash and compliance.

When the actuator controls a valve, the valve's own mechanical characteristics also affect the final result.

The correct evaluation should therefore consider the position accuracy of the complete actuator, not only the number of commanded motor steps.

4. Select the Appropriate Encoder and Feedback Strategy

The encoder provides movement information to the drive.

Different products use different encoder technologies and resolutions, so buyers should verify what the selected motor actually provides.

Relevant questions include:

• What type of encoder is used?

• What is its resolution?

• Does the feedback measure motor rotation only?

• How does the drive respond to position error?

• Can following-error limits be configured?

• What happens if the encoder signal becomes invalid?

• Does the drive report position or overload faults to the controller?

The answers help determine whether the motor's feedback capabilities match the application.

Where downstream mechanical errors could have significant consequences, additional sensing may be required.

5. Check the Power Supply and Electrical Compatibility

The motor's voltage and current requirements must match the available electrical system.

Agricultural equipment may use different power architectures depending on its size, control platform, and electrical design.

Before purchasing, verify:

• Nominal and permitted supply voltage.

• Peak and continuous current requirements.

• Power consumption under the expected duty cycle.

• Startup and transient behavior.

• Grounding requirements.

• Electrical protection.

• Electromagnetic compatibility.

• Connector and cable specifications.

For mobile equipment, the design should also consider supply fluctuations, electrical transients, and interference from nearby motors, solenoids, pumps, and switching devices.

The motor should be evaluated as part of the complete electrical system.

6. Verify Environmental Protection

Agricultural equipment often operates in environments containing dust, water, fertilizer residue, chemical spray, vibration, and temperature variation.

The motor and drive must be suitable for the actual installation location.

Important considerations include:

Ingress protection: Confirm the specified IP rating for the complete assembly and the conditions under which that rating applies. The motor's rating may differ from the rating of its connectors or external cable interfaces.

Chemical compatibility: Determine whether exposed materials, seals, connectors, and cable jackets can tolerate the chemicals likely to contact them.

Temperature: Verify the permitted operating temperature and ensure the motor can dissipate heat under the expected duty cycle.

Vibration and shock: Check whether the assembly has been qualified for the vibration and mechanical shock expected on the equipment.

Corrosion resistance: Evaluate the housing, fasteners, connectors, and mounting hardware for the intended environment.

An integrated drive may reduce the amount of external wiring, but it can also place electronic components closer to heat sources and vibration.

Environmental suitability must be confirmed from product specifications and application testing rather than inferred from the integrated design.

7. Choose a Suitable Communication Interface

The motor's control interface must match the machine controller.

Some applications need only step-and-direction commands. Others benefit from a communication network that supports configuration, status monitoring, and fault reporting.

Before selecting a model, confirm:

• Supported command inputs.

• Available communication protocols.

• Electrical interface requirements.

• Maximum communication distance.

• Connector and cable requirements.

• Controller compatibility.

• Availability of configuration software.

• Access to diagnostic information.

If the machine uses multiple actuators, the interface may also affect network architecture and commissioning procedures.

Selecting the communication interface early can prevent unnecessary redesign later.

8. Consider the Duty Cycle and Thermal Performance

A motor used intermittently may experience a very different thermal load from one that operates continuously.

The duty cycle should account for movement frequency, holding periods, acceleration, deceleration, and the torque required throughout the operating cycle.

Holding a stepper motor at high current can generate substantial heat even when the shaft is stationary.

Some closed-loop drives can adjust motor current under appropriate conditions, but the available functions vary by product.

Manufacturers should verify the motor's thermal limits and evaluate temperature rise under realistic operating conditions.

This is particularly important when the motor and drive are installed inside a compact enclosure with limited airflow.

9. Evaluate Serviceability and Long-Term Support

Agricultural equipment is often expected to operate reliably throughout demanding working seasons.

A motion-control component should therefore be evaluated for more than its initial performance.

Consider:

• Product availability and expected service life.

• Availability of replacement motors and cables.

• Documentation and configuration tools.

• Technical support.

• Warranty terms.

• Spare-parts requirements.

• Firmware or software support, where applicable.

• Ease of replacing and recommissioning the component.

A motor that is slightly more expensive may offer better long-term value if it simplifies maintenance or provides the support needed for commercial equipment production.

These factors are particularly relevant to OEMs that must support machines after they leave the factory.

Common Mistakes When Choosing Closed-Loop Stepper Motors for Agricultural Equipment

Agricultural equipment operates in demanding conditions that differ significantly from those found in indoor industrial automation. Sprayers, seeders, fertilizer applicators, and other precision farming machines must handle vibration, dust, moisture, temperature changes, and continuously changing mechanical loads. At the same time, they need dependable positioning and consistent operation throughout long working cycles.

Integrated closed-loop stepper motors can provide a practical motion-control solution for many agricultural applications. However, choosing the wrong motor can lead to positioning errors, overheating, communication failures, premature wear, and costly equipment downtime.

For OEMs developing agricultural machinery, avoiding the following selection mistakes can improve system reliability and reduce problems during prototype testing and mass production.

1. Selecting a Motor Based Only on Holding Torque

One of the most common mistakes is choosing a closed-loop stepper motor based only on its rated holding torque.

Holding torque describes the motor's ability to resist rotation when stationary under specified conditions. It does not necessarily represent the torque available at the required operating speed. Stepper motor torque generally changes with speed, supply voltage, driver characteristics, and operating conditions.

In agricultural equipment, the required torque can also change significantly during operation. A valve may require additional torque when pressure increases, while a metering mechanism may experience higher resistance when handling granular fertilizer or other materials.

Before selecting a motor, engineers should evaluate:

• Required starting and running torque.

• Peak torque during acceleration and deceleration.

• Operating speed and motion-cycle duration.

• Load inertia and transmission efficiency.

• Friction, pressure, and mechanical resistance.

• Safety margin for variable field conditions.

For example, a motor that can hold a valve shaft in position may still struggle to move the valve quickly against a high differential pressure.

How to avoid this mistake:

Calculate the torque required throughout the complete motion cycle, then check the manufacturer's torque-speed characteristics at the intended voltage and current settings. Validate the selection under realistic load conditions instead of relying on holding torque alone.

2. Assuming Closed-Loop Control Eliminates Every Positioning Error

An encoder allows a closed-loop stepper motor to monitor motor position and identify certain deviations between commanded and actual movement. This improves motion supervision compared with a conventional open-loop stepper system.

However, closed-loop control does not make a motor immune to every positioning problem.

An undersized motor may still be unable to meet its required acceleration or speed. Excessive mechanical friction, a jammed transmission, poor control settings, or an unstable power supply can also affect performance. Depending on the controller, the system may compensate for a limited error, report a fault, or stop operation when a tracking threshold is exceeded.

Another important consideration is the difference between motor position and actual machine output. If a gearbox has backlash or a coupling slips, the motor encoder may not fully capture the resulting error at the driven component.

This distinction matters in agricultural sprayers. Knowing the motor shaft position does not necessarily confirm that a control valve has achieved the intended opening or that the spraying system is delivering the target flow rate.

How to avoid this mistake:

Confirm the encoder resolution, control strategy, allowable position error, fault-response behavior, and mechanical transmission accuracy. Where the final process output is critical, consider additional feedback such as valve-position sensing or flow measurement.

3. Ignoring Dust, Moisture, Chemicals, and Temperature

Agricultural machinery often operates outdoors and may be exposed to rain, mud, fertilizer dust, cleaning water, pesticides, and other potentially corrosive substances. Temperature can also vary considerably between cold starts and prolonged operation under direct sunlight.

Selecting a motor based only on torque, speed, and price can therefore create significant reliability risks.

Important environmental factors include:

• Dust and airborne particles entering the motor or connectors.

• Moisture entering through cable interfaces or seals.

• Chemical exposure that degrades housings, coatings, or seals.

• Vibration and shock from uneven terrain.

• High ambient temperatures that reduce thermal margin.

• Condensation during temperature transitions.

An IP rating indicates specified protection against solid-object ingress and water ingress under defined test conditions. It does not automatically establish resistance to chemical corrosion, prolonged immersion, pressure washing, or every agricultural cleaning procedure.

How to avoid this mistake:

Define the actual environmental exposure before choosing the motor. Verify the complete assembly's IP rating, connector sealing, cable-entry design, corrosion resistance, operating-temperature range, and vibration tolerance. If the equipment is regularly washed or exposed to aggressive chemicals, request application-specific compatibility information from the manufacturer.

4. Choosing the Wrong Control Interface

Agricultural equipment may use different control architectures depending on the machine design, controller, and level of automation. Some systems use pulse-and-direction signals, while others rely on serial communication or industrial networks.

Choosing a motor with an incompatible interface can delay commissioning and require additional hardware or software development.

For example, a motor with CANopen communication may not be directly compatible with a controller designed only for pulse-and-direction commands. Similarly, RS485 describes an electrical communication standard, not a universal communication protocol. The motor and controller must support compatible protocols, data formats, and configuration methods.

Engineers should check:

• Available control modes.

• Electrical signal requirements.

• Supported communication protocols.

• Command and feedback functions.

• Parameter configuration and diagnostic access.

• Alarm outputs and fault-recovery behavior.

• Cable and connector pin assignments.

How to avoid this mistake:

Confirm the complete communication specification before ordering. Test the motor with the intended controller, firmware, and network configuration during prototype development. For multi-axis equipment, also verify communication timing and behavior when multiple devices operate simultaneously.

5. Overlooking the Motor's Duty Cycle and Thermal Performance

A motor that performs well during a short bench test may overheat during continuous field operation.

Agricultural mechanisms can operate repeatedly for several hours, particularly in automated spraying, fertilizer dosing, and precision planting systems. Frequent acceleration, sustained holding torque, high ambient temperatures, and limited airflow can increase motor temperature.

Integrated motors require particular attention because the driver and control electronics are installed within or close to the motor assembly. Their thermal performance depends on the complete design, mounting arrangement, current settings, and operating environment.

Common selection mistakes include:

• Assuming the motor can operate continuously at its peak torque.

• Ignoring the difference between intermittent and continuous duty.

• Setting motor current without considering thermal limits.

• Installing the motor in a sealed enclosure with poor heat dissipation.

• Failing to evaluate the temperature of nearby agricultural components.

How to avoid this mistake:

Review the manufacturer's continuous and peak ratings, duty-cycle limits, and thermal protection specifications. Test the motor under the expected combination of load, speed, ambient temperature, mounting conditions, and operating duration. Confirm that thermal protection behaves appropriately if the motor approaches its limits.

6. Failing to Account for Gearbox Backlash and Mechanical Design

Motor selection is only one part of motion-system design. The gearbox, coupling, lead screw, linkage, bearings, and driven mechanism all affect final positioning performance.

For example, a closed-loop stepper motor connected to a high-backlash gearbox may achieve accurate motor-shaft positioning without delivering equally accurate movement at the output shaft. Loose couplings, worn bearings, misalignment, and excessive mechanical play can further reduce repeatability.

In agricultural sprayers, these problems may affect valve adjustment or other mechanisms that require repeatable movement. In fertilizer metering equipment, mechanical inconsistency can affect the relationship between commanded movement and material delivery.

How to avoid this mistake:

Evaluate the complete drive train rather than the motor alone. Consider gearbox backlash, transmission efficiency, stiffness, coupling alignment, bearing loads, mounting rigidity, and wear resistance. If output accuracy is critical, measure positioning at the driven mechanism during validation.

7. Underestimating Vibration and Mechanical Shock

Agricultural equipment frequently travels over uneven ground, works across rough fields, or operates alongside vibrating pumps and other machinery. These conditions can place repeated mechanical stress on motors, connectors, mounting brackets, and internal components.

A motor that performs reliably in a stationary laboratory may behave differently when installed on a moving sprayer or tractor-mounted implement.

Potential problems include loosened fasteners, damaged cables, intermittent electrical connections, connector fatigue, and increased wear in the mechanical transmission.

How to avoid this mistake:

Review the motor's vibration and shock specifications and compare them with the actual installation environment. Use suitable mounting hardware, strain relief, cable routing, and connector retention. Conduct vibration and operational tests on the assembled equipment, not just on the motor in isolation.

8. Neglecting Power Supply Variations and Electrical Noise

Agricultural equipment may be powered by a vehicle electrical system, a battery pack, or a dedicated DC supply. The available voltage can change with battery condition, other electrical loads, wiring resistance, and transient events.

A motor selected without considering these conditions may experience reduced high-speed performance, unexpected resets, communication interruptions, or fault alarms.

Electrical noise can also affect encoder signals, control inputs, and communication lines, especially when motor cables run alongside pump motors, solenoid valves, or other switching loads.

How to avoid this mistake:

Verify the motor's allowable supply-voltage range, current requirements, peak demand, and undervoltage behavior. Size the power supply and wiring appropriately, account for voltage drop, and follow the manufacturer's grounding, shielding, and cable-separation recommendations. Test the complete electrical system during simultaneous operation of other equipment loads.

9. Choosing a Motor Without Considering Maintenance and Serviceability

Agricultural equipment often works during time-sensitive planting, spraying, and harvesting periods. A failure in the field can be more disruptive than a comparable failure in a factory with immediate access to spare parts and technicians.

Choosing a motor solely on its initial purchase price may create higher lifecycle costs if replacement is difficult, diagnostics are limited, or spare parts are unavailable.

Before finalizing the design, consider:

• Accessibility for inspection and replacement.

• Availability of compatible replacement motors and cables.

• Parameter backup and configuration procedures.

• Diagnostic information available to service technicians.

• Connector durability and ease of maintenance.

• Manufacturer support for troubleshooting and customization.

How to avoid this mistake:

Evaluate service requirements during the design stage. Standardize motor models and connectors where practical, document commissioning parameters, and confirm the supplier's technical support and replacement-part arrangements.

10. Skipping Prototype Testing Before Mass Production

A motor's datasheet provides essential selection information, but it cannot reproduce every condition encountered in a finished agricultural machine.

A motor may meet its nominal torque and speed requirements yet fail to perform consistently when exposed to pressure changes, vibration, temperature extremes, electrical noise, or long operating cycles.

Moving directly from component selection to mass production increases the risk of expensive design changes and field failures.

A structured validation process should include:

1. Load testing: Verify starting, running, and peak torque under realistic mechanical loads.

2. Positioning testing: Measure repeatability and tracking performance across the intended motion range.

3. Thermal testing: Monitor motor and driver temperatures during representative operating cycles.

4. Environmental testing: Validate protection against the actual dust, moisture, temperature, and chemical exposure.

5. Vibration testing: Check mounting, wiring, and connector integrity under representative conditions.

6. Communication testing: Confirm commands, feedback, alarms, and recovery behavior with the target controller.

7. Endurance testing: Run repeated cycles to identify performance changes, overheating, and mechanical wear.

8. System-level testing: Confirm that motor movement produces the intended equipment output, such as valve position or metering performance.

Acceptance criteria should be defined before testing. Depending on the application, these may include positioning repeatability, maximum temperature, allowable fault rate, cycle time, and output consistency.

How to Choose the Right Closed-Loop Stepper Motor for Agricultural Equipment?

Avoiding these mistakes begins with a clear understanding of the application. Equipment manufacturers should define the required motion, load profile, environmental exposure, control interface, and expected service life before comparing motor models.

For variable rate application (VRA) sprayers, for example, the evaluation should consider valve operating torque, adjustment speed, positioning repeatability, pressure-related load changes, moisture protection, and compatibility with the machine's control system. If the goal is to maintain a target application rate, motor-position feedback should also be evaluated alongside the sprayer's flow-control and calibration strategy.

A practical selection checklist includes:

• Required torque at the actual operating speed.

• Acceleration, deceleration, and duty-cycle requirements.

• Encoder feedback and position-error handling.

• Power supply and electrical compatibility.

• Communication interface and controller integration.

• Environmental protection and thermal performance.

• Mechanical dimensions, mounting, and transmission accuracy.

• Diagnostic functions, maintenance access, and supplier support.

• Prototype testing and acceptance criteria.

How JKONGMOTOR Can Support Agricultural Equipment Manufacturers

Agricultural equipment manufacturers need motion-control solutions that can operate reliably under changing loads, outdoor exposure, vibration, and demanding working cycles. Whether they are developing variable rate application (VRA) sprayers, precision fertilizer applicators, automated seeding equipment, or other agricultural machinery, selecting the right motor involves more than comparing torque and speed ratings. Manufacturers must also consider mechanical integration, control compatibility, environmental protection, customization, and long-term serviceability.

As a motion-control manufacturer, JKONGMOTOR supports agricultural equipment OEMs by helping them evaluate integrated motor solutions according to their application requirements, from initial specification review and product selection to prototype validation and production planning.

1. Application-Based Integrated Motor Selection

Different agricultural mechanisms have different motion requirements. A motor that works well in a small positioning mechanism may not provide sufficient torque or thermal capacity for a heavily loaded actuator.

JKONGMOTOR can work with equipment manufacturers to review the key operating conditions before recommending a suitable motor configuration.

Important selection factors include:

• Torque and speed: Required starting torque, continuous operating torque, peak load, and target movement time.

• Positioning requirements: Required repeatability, encoder feedback, and allowable position error.

• Operating cycle: Acceleration, deceleration, holding periods, and continuous or intermittent duty.

• Mechanical design: Available installation space, shaft dimensions, gearbox requirements, and mounting interfaces.

• Electrical requirements: Supply voltage, current demand, and compatibility with the machine controller.

• Environmental conditions: Dust, moisture, vibration, temperature variation, and potential exposure to agricultural chemicals.

Evaluating these factors together helps OEMs avoid common selection mistakes, such as choosing a motor based only on holding torque or overlooking the thermal demands of prolonged field operation.

2. Integrated Closed-Loop Stepper Motors for Precision Motion

Integrated closed-loop stepper motors combine a stepper motor, driver, encoder, and closed-loop control functions in a compact assembly. This design can simplify equipment integration while providing feedback on motor position.

For agricultural machinery, potential applications include:

• Motorized flow-control valve positioning in VRA sprayers.

• Adjustable fertilizer and seed metering mechanisms.

• Automated dosing and dispensing systems.

• Positioning actuators for agricultural equipment.

• Compact linear-motion mechanisms used in specialized machinery.

The suitability of each application depends on the required torque, movement speed, positioning performance, and environmental conditions.

For example, a closed-loop stepper motor can help control the position of a motor-driven valve in a precision spraying system. However, motor feedback alone does not confirm actual liquid flow or application rate. Where these parameters are critical, the complete system may also require flow sensors, calibration procedures, and suitable control logic.

3. OEM and ODM Customization for Agricultural Machinery

Agricultural equipment manufacturers often have specific requirements that cannot be met by selecting a standard motor based on its frame size alone. Installation dimensions, shaft configurations, wiring arrangements, communication interfaces, and environmental requirements may all affect the final design.

Depending on the selected product platform and project feasibility, OEM/ODM discussions with JKONGMOTOR can cover requirements such as:

• Motor dimensions and mounting arrangements.

• Rated torque, operating speed, and supply voltage.

• Encoder and feedback configurations.

• Control interfaces and communication options.

• Shaft and gearbox configurations.

• Cable, connector, and wiring requirements.

• Protection and thermal requirements for the intended environment.

The objective is to match the motor configuration to the equipment's mechanical and electrical architecture rather than forcing the machine design to accommodate an unsuitable standard product.

Specific customization options, performance limits, and production feasibility should be confirmed with JKONGMOTOR during technical review.

4. Control System Compatibility and Integration Support

A motor's communication interface must match the equipment's control architecture. Otherwise, even a mechanically suitable motor can require additional development work before it can operate correctly.

Depending on the selected model, integrated motor platforms may support interfaces such as pulse-and-direction control, RS485, or CANopen. The available options vary by product.

During integration planning, equipment manufacturers should confirm:

• Electrical signal and supply requirements.

• Supported control modes and motion commands.

• Communication protocol and configuration procedures.

• Encoder feedback and diagnostic capabilities.

• Alarm outputs and fault-handling behavior.

• Connector pin assignments and cable requirements.

• Compatibility with the target controller and software.

For agricultural equipment operating alongside pumps, solenoid valves, and other electrical loads, it is also important to evaluate grounding, electromagnetic interference, cable routing, and power-supply stability.

Reviewing these factors early can reduce commissioning delays and make the final motion-control system easier to maintain.

5. Motor Solutions Designed Around Real Agricultural Conditions

Agricultural machinery operates in environments where dust, moisture, vibration, temperature changes, and chemical exposure can affect motor reliability.

JKONGMOTOR can work with OEMs to identify the environmental requirements that should guide product selection. These may include the required ingress protection, operating-temperature range, connector sealing, vibration tolerance, and corrosion resistance.

Manufacturers should pay particular attention to the difference between a motor's published protection rating and the actual conditions in which it will operate.

For example, an IP-rated motor is not automatically resistant to every fertilizer, pesticide, cleaning chemical, or high-pressure washing procedure. Cable entries, connectors, mounting interfaces, and installation orientation can also affect the protection of the complete assembly.

For demanding outdoor applications, environmental suitability should be confirmed through product documentation and, where necessary, application-specific testing.

6. Prototype Development and Pre-Production Validation

Before moving to mass production, agricultural equipment manufacturers should verify that the selected motor performs reliably in the actual mechanism.

JKONGMOTOR can be involved in the motor selection and prototype evaluation process, helping the OEM identify specifications and operating conditions that need to be verified before production release.

A practical validation plan may include:

1. Torque and speed testing: Confirm that the motor meets starting, running, and peak-load requirements.

2. Positioning testing: Measure repeatability and tracking performance across the intended operating range.

3. Thermal testing: Monitor motor and driver temperatures during representative operating cycles.

4. Communication testing: Verify commands, feedback, alarms, and recovery behavior with the target controller.

5. Environmental testing: Evaluate performance under relevant dust, moisture, temperature, and vibration conditions.

6. Endurance testing: Run repeated cycles to identify changes in performance or signs of mechanical wear.

7. System-level validation: Confirm that motor movement produces the intended output, such as valve positioning or consistent metering.

Acceptance criteria should be established before testing. For VRA sprayers, for example, motor positioning should be evaluated alongside valve behavior, flow measurement, and application-rate calibration when these functions are part of the system.

Testing before production helps identify integration issues early and reduces the risk of expensive modifications after the equipment enters the field.

7. Production Planning and Long-Term Supply Considerations

For agricultural machinery OEMs, motor selection is only the beginning of the supplier relationship. Once a design has been validated, manufacturers also need consistent product specifications, manageable lead times, technical documentation, and a reliable process for repeat orders.

During supplier evaluation, OEMs should discuss the following with JKONGMOTOR:

• Production capacity and expected order lead times.

• Product configuration and revision control.

• Inspection and testing requirements.

• Packaging and delivery arrangements.

• Availability of technical documentation.

• Spare-part and replacement-motor planning.

• Technical support for future equipment revisions.

These discussions are particularly important for manufacturers planning seasonal production or supplying machinery to customers across multiple markets.

Actual production schedules, quality documentation, and supply commitments should be confirmed for the specific project rather than assumed from the motor product category.

8. A Practical OEM/ODM Cooperation Process

A structured development process can help agricultural equipment manufacturers move from an application requirement to a validated motor solution.

Step 1: Define the application.

Share the mechanism's function, load conditions, motion profile, operating environment, and expected service life.

Step 2: Confirm the technical requirements.

Establish torque, speed, voltage, positioning, communication, dimensions, and protection requirements.

Step 3: Review the motor configuration.

Evaluate suitable product platforms and identify any customization needed for mechanical or electrical integration.

Step 4: Test a prototype.

Install the motor in the intended mechanism and evaluate performance under representative operating conditions.

Step 5: Validate the complete system.

Confirm positioning, thermal behavior, control compatibility, environmental suitability, and final equipment performance.

Step 6: Prepare for production.

Finalize the approved configuration, acceptance criteria, documentation, and supply arrangements.

This process gives engineering teams a clearer basis for technical decisions and helps purchasing teams evaluate the supplier beyond initial unit price.

Why Choose JKONGMOTOR for Agricultural Motion-Control Projects?

For agricultural equipment manufacturers, the value of a motor supplier lies in the ability to match product performance to real application requirements. JKONGMOTOR's integrated motor solutions provide a starting point for OEMs seeking compact motion control, position feedback, flexible configuration options, and support during product development.

When evaluating JKONGMOTOR for an agricultural project, manufacturers should provide the required torque and speed, supply voltage, installation dimensions, controller interface, operating cycle, and environmental exposure. These details help establish whether a standard configuration is appropriate or whether a customized solution should be considered.

The goal is to develop a motion-control solution that works reliably within the complete agricultural machine—not simply to select a motor with suitable headline specifications. By reviewing application requirements early, validating prototypes under realistic conditions, and confirming production needs before launch, OEMs can make more informed decisions about their agricultural equipment motor systems.

Frequently Asked Questions About Integrated Closed-Loop Stepper Motors in VRA Sprayers

1. What is an integrated closed-loop stepper motor for agricultural equipment?

An integrated closed-loop stepper motor combines a stepper motor, driver, encoder, and closed-loop control functions in one compact unit. It provides position feedback and helps detect motion errors, making it suitable for agricultural applications such as variable rate application (VRA) sprayers, fertilizer metering systems, and automated positioning mechanisms.

2. Why are closed-loop stepper motors suitable for agricultural machinery?

Closed-loop stepper motors offer position feedback, compact installation, simplified wiring, and flexible control options. These features can improve motion reliability in agricultural machinery exposed to changing loads and demanding operating conditions. The appropriate motor must still be selected according to torque, speed, duty cycle, environmental exposure, and control requirements.

3. How do I choose the right torque for an agricultural closed-loop stepper motor?

Determine the load torque throughout the complete operating cycle, including starting, acceleration, continuous operation, and peak-load conditions. Consider friction, transmission efficiency, gearbox ratio, and mechanical resistance. Then verify the motor's torque-speed characteristics at the intended supply voltage and operating current rather than selecting a motor based only on its holding torque.

4. Can a closed-loop stepper motor improve the accuracy of a VRA sprayer?

Yes. Encoder feedback helps the controller monitor motor position and identify certain deviations from commanded movement. This can improve the repeatability of motor-driven flow-control valves and metering mechanisms. However, motor-position feedback alone does not confirm actual spray flow or application rate; additional flow sensors, calibration, and system-level control may be required.

5. What environmental protection should agricultural equipment manufacturers consider?

Manufacturers should evaluate protection against dust, moisture, vibration, shock, temperature extremes, and exposure to fertilizers or agricultural chemicals. Check the motor's IP rating, operating-temperature range, connector sealing, corrosion resistance, and vibration specifications. An IP rating does not automatically guarantee resistance to chemical exposure or every high-pressure cleaning method.

6. Which control interfaces are commonly available for integrated closed-loop stepper motors?

Depending on the model, available interfaces may include pulse-and-direction control, RS485, and CANopen. The motor's electrical interface, communication protocol, command modes, configuration tools, and controller compatibility should be verified before integration. RS485 is an electrical standard and does not, by itself, guarantee protocol compatibility.

7. Do integrated closed-loop stepper motors prevent overheating and missed steps?

No. Closed-loop feedback can help detect position deviations and may allow the controller to compensate within its operating limits. However, an undersized motor, excessive load, unsuitable current settings, poor heat dissipation, or inadequate power supply can still cause faults or overheating. Proper sizing and thermal testing remain essential.

8. How can agricultural equipment manufacturers reduce motor failures in the field?

Manufacturers can reduce failure risks by selecting motors for the actual load and environment, securing mounting hardware, protecting cables and connectors, verifying power quality, and testing communication under realistic operating conditions. Prototype validation should include thermal, vibration, positioning, environmental, and endurance tests before mass production.

9. What should be tested before mass-producing agricultural equipment with closed-loop stepper motors?

Testing should cover starting and running torque, positioning repeatability, thermal performance, communication reliability, vibration resistance, environmental protection, and endurance. Manufacturers should also verify the final mechanism's output, such as valve position or metering consistency, because accurate motor-shaft positioning does not always guarantee accurate system-level performance.

10. Can JKONGMOTOR customize integrated closed-loop stepper motors for agricultural equipment?

JKONGMOTOR can work with equipment manufacturers to evaluate motor specifications and configuration requirements for agricultural applications. Depending on the product platform, project requirements may include torque and speed, mounting dimensions, encoder options, control interfaces, and environmental protection. OEMs should confirm the availability and feasibility of specific customizations with the manufacturer and validate prototypes before volume production.

Conclusion: Choosing the Right Integrated Closed-Loop Stepper Motor for VRA Sprayers

Variable Rate Application technology allows agricultural equipment to adjust input delivery according to field conditions, prescription maps, and real-time information. To make these adjustments reliably, the sprayer needs a motion-control system that can translate commands into consistent mechanical movement.

Integrated closed-loop stepper motors offer a practical combination of positioning feedback, compact construction, simplified installation, and diagnostic capability. These characteristics make them attractive for motorized valves, adjustable metering mechanisms, and other agricultural applications that benefit from repeatable positioning.

For equipment manufacturers, the main purchasing decision is not simply whether a motor is closed-loop or integrated. It is whether the complete motor-and-actuator system meets the required torque, speed, accuracy, environmental, electrical, and service-life requirements.

A careful selection process should begin with the mechanical load and operating cycle, followed by evaluation of the encoder, drive, communication interface, thermal limits, and environmental protection.

The motor should then be tested under realistic operating conditions to verify that its performance matches the needs of the application.

When these factors are considered together, integrated closed-loop stepper motors can help equipment manufacturers develop more compact, maintainable, and responsive motion-control systems for precision agriculture.

For OEMs sourcing motors for VRA sprayers, the most effective approach is to match the motor's verified capabilities to the actual actuator requirements, rather than paying for unnecessary features or compromising on essential performance. This creates a stronger technical foundation for reliable equipment, consistent motion control, and long-term product value.
