Introduction: Why Header Height Control Matters More Than Ever

Harvesting isn't just about getting crops off the field. It's about doing it efficiently, protecting valuable equipment, and collecting as much usable crop material as possible under changing field conditions.

For combine harvesters, the cutting header needs to follow the ground closely without digging into the soil or riding too high above the crop. Forage harvesters face similar challenges, especially when operating over uneven terrain or working with crops that require consistent cutting height.

That's where Integrated DC Servo Motors can make a meaningful difference.

Unlike conventional motor arrangements that require separate drive electronics and additional control components, integrated servo solutions combine motion-control functions into a compact package. Depending on the design, the motor may incorporate a drive, position feedback, communication interfaces, and protective features.

This integration can simplify the design of automatic header height control systems, reduce installation complexity, and help engineers build more responsive agricultural machinery.

However, choosing the right motor involves more than comparing power ratings or purchase prices. Buyers must also consider positioning accuracy, torque, environmental protection, vibration resistance, control interfaces, maintenance requirements, and long-term availability.

In this guide, we'll explore how combine harvester headers and forage harvesters operate, what their motion-control systems need, why integrated servo motors are worth considering, and how equipment manufacturers can select the right solution for demanding field applications.

1. Understanding Combine Harvester Headers and Their Control Requirements

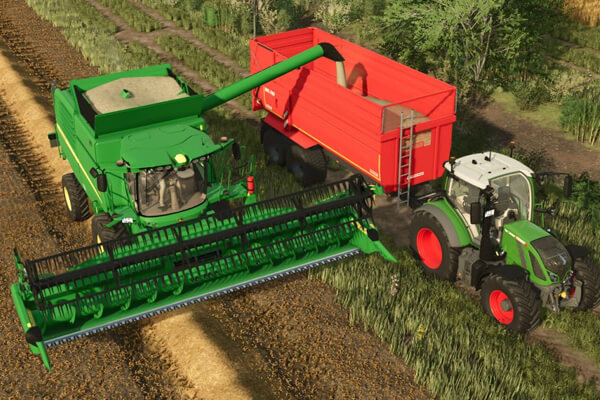

1.1 What Is a Combine Harvester Header?

A combine harvester header is the front-mounted assembly responsible for gathering and cutting crops before they enter the machine's threshing and separation systems.

Depending on the crop and machine configuration, the header may use a cutting mechanism, gathering components, and a feeding system to move harvested material into the combine.

Common header types include:

• Grain headers: Designed to harvest crops such as wheat, barley, oats, and soybeans.

• Corn headers: Built to gather corn stalks and separate ears from the plants.

• Flex headers: Designed to follow uneven ground while harvesting crops such as soybeans.

• Draper headers: Use belts to transport cut crops toward the center of the header.

• Rigid cutting headers: Maintain a fixed cutting platform for applications where terrain-following flexibility is less important.

Each design presents different requirements for header height adjustment.

For example, a grain header working across gently rolling farmland may need frequent small corrections to maintain a consistent cutting height. A flex header operating close to the ground may require especially responsive terrain-following behavior.

The control system must respond to changing field conditions without introducing excessive movement, vibration, or unnecessary mechanical wear.

1.2 Why Header Height Directly Affects Harvesting Performance

Header height is not simply a matter of convenience.

When the cutting platform runs too high, valuable crop material may be left behind. When it runs too low, the cutting mechanism can contact the soil, collect unwanted material, or suffer damage.

Incorrect header height may contribute to:

• Increased crop losses.

• Unwanted soil and debris entering the machine.

• Uneven crop feeding.

• Additional wear on cutting components.

• Reduced harvesting efficiency.

• More frequent operator intervention.

These effects vary with crop type, field conditions, header design, and operating speed. Still, the underlying requirement is consistent: the header must maintain an appropriate position as ground conditions change.

Traditional manual adjustment relies heavily on operator judgment. Automatic header height control adds sensors and control logic to help maintain a target position or ground-following behavior.

An integrated servo motor can support this process by converting electrical commands into controlled mechanical movement.

1.3 Where Do Integrated DC Servo Motors Fit?

An integrated DC servo motor can serve as a positioning actuator within a header adjustment mechanism, provided its torque, speed, duty cycle, and environmental ratings match the application.

Depending on the equipment design, it may operate a linkage, screw mechanism, or other mechanical transmission that adjusts header position.

A complete system may include:

1. A ground-contact sensor or non-contact distance sensor.

2. A controller that processes the sensor signal.

3. An integrated servo motor with a compatible drive.

4. A mechanical transmission connected to the adjustment mechanism.

5. Position feedback that helps the controller verify movement.

The motor does not independently determine the ideal cutting height unless the necessary sensing and control functions are also built into the overall system.

Instead, it performs the commanded movement accurately and repeatedly.

That distinction matters. A high-quality actuator cannot compensate for poorly positioned sensors, weak mechanical linkages, or unsuitable control logic.

1.4 What Buyers Should Evaluate First

For agricultural machinery OEMs, the initial question shouldn't be, "Which motor has the highest power rating?"

A better starting point is, "What movement must the motor perform, and under what conditions?"

Buyers should establish:

Answering these questions early helps engineers narrow the available motor options and avoid costly redesigns later.

Jkongmotor Customized Servo Motor Motions

One-Stop Integrated DC Servo Motor Solution Provider

2. Forage Harvesters: Different Crops, Different Motion-Control Needs

Forage harvesting is all about collecting crops efficiently while maintaining the cutting quality needed for animal feed, silage production, and other agricultural applications. Unlike combine harvesters, which separate grain from the rest of the plant, forage harvesters cut or collect plant material, chop it into smaller pieces, and deliver it to a trailer or transport vehicle.

That difference creates some unique challenges for header positioning and motion control.

Depending on the crop, a forage harvester may operate close to the ground, follow uneven terrain, collect previously cut grass, or harvest tall standing corn. Each situation places different demands on the header adjustment mechanism.

For agricultural machinery manufacturers, Integrated DC Servo Motors offer a potential solution for applications that require controlled movement, repeatable positioning, and convenient integration with electronic control systems. The key is to match the motor to the actual harvesting conditions rather than assuming that one actuator design will work equally well for every crop.

2.1 How Forage Harvesters Work

A forage harvester typically consists of a crop-gathering header, a feeding mechanism, a chopping system, and a discharge arrangement. Depending on the machine, it may be self-propelled, tractor-mounted, or tractor-towed.

The header collects the crop and directs it toward the feeding system. The crop is then transported to the cutting mechanism, where it is chopped into shorter pieces before being discharged into a trailer or truck.

The specific process depends on the header configuration and the crop being harvested.

Common forage harvester header types include:

• Row-crop headers: Designed to gather and cut standing crops, particularly corn, near ground level.

• Pickup headers: Collect previously cut crops arranged in windrows or swaths.

• Direct-cut headers: Cut standing crops across the working width and feed the harvested material directly into the machine.

• Grass and forage headers: Handle crops such as grass and legumes, depending on their design and intended application.

Each header type has different positioning requirements. A row-crop header may need to maintain a suitable cutting height across uneven soil, while a pickup header must collect crop material consistently without unnecessary contact with the ground.

For OEM engineers, understanding these differences is the first step toward selecting an appropriate motion-control solution.

2.2 Why Cutting Height Matters in Forage Harvesting

Cutting height affects more than the appearance of a harvested field. It can influence crop recovery, contamination, equipment wear, and the ability of certain forage crops to regrow.

When a header operates too high, some usable plant material may remain in the field. When it operates too low, the cutting mechanism may contact the soil or collect unwanted dirt and debris.

The ideal cutting height depends on the crop species, field conditions, harvesting objectives, and machine configuration.

For example, harvesting whole-plant corn for silage involves different considerations from cutting grass or collecting a windrow of previously cut forage. The header must be configured for the intended crop, and its height-control system must work within the mechanical limits of that design.

Automatic height adjustment can help reduce the need for constant manual corrections. However, the results depend on the quality of the sensors, the control algorithm, the mechanical linkage, and the actuator's response.

This is where an appropriately selected servo motor can contribute to a more responsive and consistent system.

2.3 The Motion-Control Challenges of Different Forage Crops

Not every forage crop creates the same operating conditions. Buyers should consider the specific demands of the crop and harvesting method before selecting an actuator.

These are general application considerations, not universal motor specifications. The actual torque, speed, and positioning requirements must be established for each machine.

For example, a motor designed for a lightweight adjustment linkage may not be suitable for a heavier header with greater inertia. Similarly, a system that performs well under steady conditions may struggle if it must make frequent corrections while traveling over rough ground.

A proper engineering assessment should account for both normal operation and foreseeable peak loads.

2.4 Why Terrain-Following Performance Is So Important

Fields rarely offer a perfectly level surface from one end to the other. Small depressions, ridges, slopes, and changes in soil conditions can affect the distance between the header and the ground.

If the header cannot follow these changes effectively, cutting height may become inconsistent.

Research into adaptive forage harvester headers has explored mechanisms that adjust header height and inclination to follow uneven terrain. These systems highlight an important point: effective terrain following may require more than simply raising or lowering the entire header.

Depending on the application, the mechanism may also need to compensate for side-to-side tilt or changes in the angle of the header.

An integrated DC servo motor can support these functions when the required motion is compatible with an electric actuator. For example, separate actuators may be used for height and tilt adjustment in a multi-axis positioning system.

However, a servo motor doesn't provide terrain awareness on its own. The system needs suitable sensors and a controller capable of interpreting the sensor signals and generating appropriate movement commands.

For demanding applications, engineers should evaluate the complete control loop, including sensor response, communication delays, actuator speed, mechanical backlash, and the time required for the header to settle into its new position.

2.5 What Integrated DC Servo Motors Need to Deliver

For forage harvester applications, choosing an integrated servo motor involves more than checking its rated power.

The motor must deliver the required motion while operating reliably in a demanding agricultural environment.

Several characteristics deserve particular attention.

1. Suitable torque and load capacity

The motor must overcome the resistance of the adjustment mechanism, including friction, linkage forces, and dynamic loads. Buyers should evaluate continuous torque and peak torque separately.

2. Repeatable positioning

The system should return to the required position consistently. Encoder feedback can support this objective, although overall positioning performance also depends on the mechanical transmission and control system.

3. Appropriate response speed

The motor must respond quickly enough to support the intended control strategy. At the same time, movement should remain smooth enough to avoid unnecessary vibration or mechanical stress.

4. Environmental protection

Dust, moisture, crop residue, vibration, and temperature changes can all affect service life. Buyers should verify the motor's ingress protection rating, temperature limits, connector sealing, and vibration specifications.

5. Electrical compatibility

The motor must match the machine's available DC power supply and electrical protection requirements. Rated voltage, peak current, transient conditions, and thermal limits should all be reviewed.

6. Compatible control interfaces

Depending on the system architecture, the motor may need PWM, analog control, CAN-based communication, or another interface. The exact protocol and supported control modes should be confirmed before purchase.

7. Practical maintenance and diagnostics

Integrated drives may provide fault codes or operating data that help technicians identify problems. These functions are particularly useful when the motor is difficult to access or the equipment operates far from a workshop.

Not every integrated servo motor includes all these capabilities. OEMs should request the product's technical documentation and verify each requirement against the intended application.

2.6 Why Agricultural OEMs Consider Integrated Servo Solutions

For equipment manufacturers, one of the biggest attractions of an integrated servo motor is the opportunity to simplify the complete motion-control system.

A conventional arrangement may require a separate motor, drive, encoder, and additional wiring. An integrated solution can combine several of these components into a single assembly.

Depending on the product, this may offer several practical benefits:

• Less space required for separate drive electronics.

• Fewer interconnecting cables.

• Simpler mechanical and electrical integration.

• Convenient access to feedback and diagnostic information.

• More consistent configuration between the motor and drive.

• Potentially shorter installation and commissioning time.

These advantages can be valuable when developing a new forage harvester platform or redesigning an existing header adjustment system.

However, integration isn't automatically the best choice for every application. Some machines already use hydraulic systems that can provide the necessary force efficiently. Others need only simple on/off movement, making a conventional DC motor a more economical option.

The right decision depends on the required precision, mechanical load, available power, control architecture, and total installed cost.

2.7 Electric Servo Motors vs. Hydraulic Header Actuators

Hydraulic actuators remain an important option in agricultural machinery, particularly when high forces are required or a suitable hydraulic system is already available.

Integrated DC servo motors may be attractive when electronic positioning, programmable movement, or motor-level diagnostics are priorities.

The following comparison provides a starting point for evaluating the alternatives.

Neither technology is universally superior. A machine with an existing hydraulic architecture may benefit from retaining hydraulic actuation, while a new electrically controlled platform may justify evaluating an integrated servo solution.

2.8 How to Choose the Right Motor for a Forage Harvester

Before requesting a quotation, agricultural machinery buyers should prepare a clear set of application requirements.

Start by defining the required movement. Does the actuator raise and lower the header, adjust its tilt, or operate another positioning mechanism? How far must it move, how quickly must it respond, and how often will it operate during a harvesting shift?

Next, evaluate the mechanical load. Include the header's mass where relevant, linkage geometry, friction, transmission efficiency, acceleration requirements, and foreseeable peak loads.

Then review the electrical and environmental requirements.

A practical supplier checklist includes:

• Nominal supply voltage and permitted voltage range.

• Continuous and peak torque requirements.

• Required travel, speed, and positioning performance.

• Encoder type and feedback interface.

• Supported control modes and communication protocols.

• Operating temperature and ingress protection ratings.

• Vibration and shock resistance.

• Mechanical mounting dimensions.

• Fault protection and diagnostic functions.

• Warranty, documentation, and replacement-part availability.

Finally, test the selected motor with a representative mechanical load. Bench testing can help verify movement, current consumption, temperature, and control response before the design moves to field trials.

Field testing should then evaluate performance under realistic crop and terrain conditions.

The objective isn't simply to find a motor that can move the header. It's to identify a complete motion-control solution that can deliver the required performance throughout the machine's intended service life.

For agricultural machinery OEMs, the bottom line is clear:

Integrated DC Servo Motors can be a practical option for forage harvester header positioning when their torque, response, environmental protection, and control interfaces match the application. A carefully engineered solution can simplify integration and support more consistent automated movement, but the final result depends on the entire system—not the motor alone.

3. What Are Integrated DC Servo Motors?

3.1 Understanding the Integrated Design

A DC servo motor is designed to provide controlled motion using a feedback-based control system.

In a typical servo arrangement, the controller compares a commanded position or speed with measured feedback. It then adjusts the motor output to reduce the difference.

An integrated DC servo motor combines the motor with some or all of the electronics needed to drive and control it.

Depending on the product, an integrated unit may contain:

• A DC motor.

• Motor-drive electronics.

• Position or speed feedback.

• Current sensing.

• Communication interfaces.

• Configurable control functions.

• Protective features.

• Diagnostic information.

The exact feature set varies by manufacturer. Some products include an encoder and a complete servo drive, while others provide a more limited integrated controller.

Therefore, buyers should verify the internal architecture rather than assuming that every product marketed as an integrated servo motor offers the same capabilities.

3.2 How Closed-Loop Motion Control Works

A closed-loop servo system uses feedback to determine whether the motor has reached the requested position or speed.

Consider a combine harvester operating across a field with a shallow depression.

A ground sensor detects a change in the terrain. The machine controller determines that the header position needs to change and sends a command to the actuator.

The servo drive then controls motor current and movement. Feedback allows the system to compare the actual movement with the requested movement.

If the position differs from the target, the controller can continue correcting the motion, subject to the system's control settings and mechanical limits.

This process can support repeatable movement and reduce the need for manual adjustments.

However, actual header-following performance depends on the entire control loop, including sensor accuracy, controller response, motor dynamics, mechanical backlash, and machine speed.

3.3 Integrated Servo Motors vs. Conventional DC Motors

A conventional DC motor can be an effective solution for simple movement.

However, when the application requires accurate positioning, a basic motor may need additional components, such as an external drive, encoder, controller, or limit switches.

An integrated servo motor can reduce the number of separate components.

Integrated servo motors are not automatically better for every machine.

For simple on/off movement, a standard DC motor may offer better value. For repeatable positioning, adjustable motion profiles, and electronic diagnostics, an integrated servo motor may provide a more complete solution.

3.4 Why Buyers Often Prefer Integrated Solutions

The biggest advantage is not necessarily the motor itself. It's the opportunity to simplify the complete motion-control system.

OEM engineers often need to manage wiring harnesses, control cabinets, connectors, mounting space, software interfaces, and maintenance access.

Combining components into one unit can help reduce integration work.

Potential benefits include:

• Fewer separate electronic components.

• Less space needed for external drive equipment.

• Shorter wiring paths in some designs.

• Easier system-level troubleshooting.

• More consistent motor and drive compatibility.

• Simplified installation and replacement.

These benefits depend on the specific product and machine architecture. An integrated unit may still require external controllers, safety devices, power protection, or communication modules.

For purchasing teams, the right comparison is the total installed solution rather than the motor's unit price alone.

4. Key Performance Requirements for Header Height Control

In modern agricultural machinery, reliable header height control depends on more than the ability to raise or lower a cutting platform. The system must respond to changing field conditions, maintain suitable positioning, withstand mechanical loads, and operate reliably throughout demanding harvesting seasons.

For combine harvesters and forage harvesters, these requirements directly influence the choice of actuator. An undersized motor may struggle with peak loads, while an actuator with insufficient response speed may fail to follow terrain changes effectively. A motor with excellent laboratory performance may also become unreliable if its environmental protection or electrical design doesn't match real field conditions.

This is why Integrated DC Servo Motors are worth evaluating for agricultural header positioning systems. By combining a motor with drive electronics and, in many designs, position feedback, an integrated solution can simplify motion control while supporting repeatable movement.

However, integration alone doesn't guarantee good performance. Engineers must evaluate torque, speed, positioning accuracy, environmental protection, electrical compatibility, and control-system behavior together.

4.1 Torque and Mechanical Load Capacity

Torque is one of the first specifications to evaluate when selecting a servo motor for header height control.

A motor must generate enough torque to move the adjustment mechanism under expected operating conditions. Depending on the machine design, this may involve driving a gearbox, rotating a linkage, or operating a screw mechanism connected to the header assembly.

The required torque depends on several factors:

• The load applied to the mechanism.

• The distance between the pivot point and the effective load.

• The mechanical transmission ratio.

• Friction and mechanical efficiency.

• Acceleration and deceleration requirements.

• External forces and foreseeable peak loads.

• The frequency and duration of movement.

For a simple rotating mechanism, the basic relationship is:

Torque = Force × Effective Lever Arm

For example, if a tangential force of 500 newtons acts at an effective radius of 0.2 meters, the resulting torque at that point is 100 N·m.

This is an illustrative mechanical calculation, not a recommended motor rating. If the motor drives the mechanism through a gearbox, the motor-side torque requirement will depend on the gear ratio and transmission efficiency.

Engineers must also distinguish between continuous torque and peak torque.

Continuous torque is the torque a motor can deliver under specified operating conditions without exceeding its thermal limits.

Peak torque is a higher torque level that may be available for a limited period, subject to the manufacturer's restrictions.

For header height control, peak torque may be needed during acceleration or when the mechanism encounters temporary resistance. Continuous torque becomes important when the actuator moves frequently or must sustain a demanding load profile.

Before choosing a motor, OEM engineers should estimate the actual load profile and compare it with the manufacturer's torque-speed curves.

A motor that meets the peak torque requirement but cannot handle the continuous thermal demand may overheat or require an unsuitable duty cycle.

4.2 Positioning Accuracy and Repeatability

Positioning accuracy is another important requirement for automatic header height control.

The system must move the header toward the intended position and maintain suitable clearance as ground conditions change. If positioning is inconsistent, the header may cut too high, approach the soil too closely, or require frequent manual correction.

Two terms are particularly important when reviewing motor specifications.

Positioning accuracy describes how close the actual position is to the commanded position.

Repeatability describes how consistently the system returns to the same position under comparable conditions.

An integrated DC servo motor with encoder feedback can help support accurate, repeatable positioning. The encoder provides information about motor movement, allowing the control system to compare actual motion with the target.

However, encoder resolution alone doesn't determine the accuracy of the complete header adjustment system.

Several other factors can affect the final result:

• Mechanical backlash in gears or linkages.

• Flexibility in the mounting structure.

• Sensor accuracy and calibration.

• Transmission wear.

• Controller tuning.

• Feedback resolution and signal quality.

• Variations in mechanical load.

For example, a motor may accurately report its shaft position while excessive gearbox backlash causes the header itself to move less predictably.

For this reason, buyers should ask suppliers about the complete positioning performance under defined conditions rather than focusing only on encoder counts.

When possible, evaluate the motor together with the intended gearbox, linkage, position sensor, and controller.

4.3 Response Speed and Dynamic Performance

Header height control is a dynamic application.

As a combine harvester or forage harvester moves across a field, the ground profile changes continuously. The control system must detect relevant changes and command the actuator to respond appropriately.

A motor that moves too slowly may struggle to follow the intended control strategy. On the other hand, excessive acceleration or aggressive correction can create vibration, overshoot, and additional mechanical stress.

The objective is to achieve a suitable balance between response speed and smooth movement.

Important specifications include:

These parameters should be evaluated together.

For example, a motor may achieve high speed without a load but operate much more slowly when driving a heavy header mechanism.

Similarly, the motor's rated speed doesn't automatically determine how quickly the complete header can move. Gear ratios, mechanical travel, controller settings, and the header's inertia also influence response time.

For practical applications, engineers should test the complete actuator assembly under representative loads and operating conditions.

4.4 Environmental Protection for Harsh Agricultural Conditions

Agricultural equipment operates in environments that can be particularly demanding for electrical components.

During harvesting, motors may be exposed to dust, crop residue, rain, mud, vibration, and temperature changes. Cleaning procedures can also introduce water or cleaning agents, depending on the machine and maintenance practices.

An integrated servo motor must therefore be suitable for its intended installation location.

Important environmental factors include:

Ingress protection:

The motor housing and connectors must provide suitable protection against dust and water. The required IP rating depends on the actual exposure conditions.

Operating temperature:

The motor and drive electronics must function within the expected ambient temperature range. Internal heating caused by electrical losses must also be considered.

Vibration and shock:

Agricultural machinery can generate significant mechanical vibration. Mounting points, connectors, circuit boards, and feedback devices must tolerate the specified conditions.

Corrosion resistance:

Exposed metal surfaces, fasteners, and connectors may require appropriate materials or protective finishes.

Cable durability:

Power and signal cables must withstand movement, abrasion, vibration, and repeated exposure to the operating environment.

Thermal management:

Integrated drive electronics generate heat. The mounting arrangement and available cooling must allow the unit to remain within its specified temperature limits.

An IP rating should not be treated as proof of complete agricultural suitability. It doesn't automatically establish resistance to every cleaning method, chemical exposure, vibration level, or temperature cycle.

Buyers should request the manufacturer's environmental specifications and test information, particularly when the motor will be installed close to the header or another area exposed to crop debris and moisture.

4.5 Electrical Compatibility and Power Requirements

An integrated DC servo motor must match the machine's electrical architecture.

Many mobile agricultural machines use nominal 12 V or 24 V DC systems, but the actual supply voltage and transient conditions vary by machine design. The motor's permitted operating range must therefore be checked before selection.

Voltage compatibility is only the starting point.

Engineers should also consider:

• Continuous current consumption.

• Peak current during acceleration.

• Current demand under high mechanical loads.

• Fuse and circuit-breaker requirements.

• Voltage drops across cables and connectors.

• Electrical transients.

• Reverse-polarity protection.

• Grounding and shielding.

• Electromagnetic compatibility.

• Regenerative energy during deceleration, where applicable.

Peak current deserves particular attention.

A servo motor may draw substantially more current during acceleration or when producing high torque than it does under light-load conditions. If the machine's electrical supply cannot support this demand, the drive may experience voltage drops or trigger protective shutdowns.

Cable sizing is also important. Long cables or undersized conductors can create voltage losses that affect performance.

In addition, engineers should evaluate the behavior of the drive during startup, rapid deceleration, and fault conditions.

A well-matched electrical design helps support reliable operation and reduces the risk of nuisance faults during harvesting.

4.6 Communication Interfaces and Control Compatibility

Modern agricultural machinery often relies on electronic controllers to coordinate sensors, actuators, and other machine functions.

An integrated servo motor must be able to receive commands and, where required, return feedback information through a compatible interface.

Depending on the product, available interfaces may include:

• PWM control.

• Analog voltage or current inputs.

• Digital input and output signals.

• CAN-based communication.

• Serial communication interfaces.

• Other manufacturer-specific control protocols.

The correct interface depends on the machine's existing control architecture.

For example, a motor with a CAN interface may appear suitable for a machine that already uses a CAN network. However, the physical interface alone doesn't guarantee software compatibility.

The engineering team must verify the supported protocol, message definitions, communication speed, configuration process, and diagnostic behavior.

It should also determine how the system will respond if communication is interrupted.

For header height control, a communication failure must not leave the actuator operating unpredictably. The required response should be defined as part of the machine's fault-handling strategy.

Before purchasing, ask the supplier for interface documentation, supported operating modes, configuration tools, and relevant fault codes.

These details can make a substantial difference during integration and commissioning.

4.7 Closed-Loop Control and Feedback Quality

A closed-loop control system compares a desired result with measured feedback and adjusts the actuator to reduce the difference.

In a header height control application, the machine may use a ground sensor, position sensor, or another suitable measurement device to determine whether an adjustment is needed.

The controller then sends a command to the servo drive.

The drive operates the motor, while feedback helps the system determine whether the commanded movement has occurred.

A simplified control sequence looks like this:

1. A sensor detects a change in ground clearance or header position.

2. The controller compares the measurement with the target.

3. The controller calculates the required adjustment.

4. The servo drive commands the motor.

5. Feedback indicates the resulting movement.

6. The control system continues correcting the position as needed.

The quality of this process depends on the entire control loop.

A highly responsive motor cannot compensate for a poorly positioned sensor. Likewise, noisy feedback or excessive mechanical backlash can cause unstable or inconsistent movement.

Engineers should evaluate sensor response, filtering, control-loop timing, actuator dynamics, and mechanical behavior together.

They should also define suitable control limits to prevent unnecessary movement when sensor readings fluctuate around the target.

The goal isn't to make the motor react to every tiny signal change. It's to achieve stable, useful positioning under real harvesting conditions.

4.8 Mechanical Compatibility and Installation Requirements

Even a technically capable motor can become a poor choice if it doesn't fit the machine's mechanical design.

The motor must connect to the adjustment mechanism through an appropriate mounting arrangement, shaft, coupling, gearbox, or other transmission component.

Before purchasing, confirm the following:

The allowable shaft loads deserve particular attention.

Some motors are designed to transmit torque but aren't intended to support substantial external radial or axial forces. In those cases, the mechanical design may require separate bearings or a suitable gearbox.

The mounting structure must also remain sufficiently rigid. Excessive deflection can affect positioning, increase mechanical stress, and reduce the expected service life.

Whenever possible, evaluate the motor together with the actual mounting hardware and transmission rather than treating each component as an isolated item.

4.9 Reliability, Duty Cycle, and Service Life

Harvesting equipment may operate for long hours during a relatively short seasonal window.

When a machine stops unexpectedly during this period, the consequences can extend beyond the cost of replacing a motor. Delays may affect harvesting schedules, labor utilization, and the operation of associated equipment.

Reliability should therefore be part of the initial motor selection process.

Start by determining the expected duty cycle.

Will the motor make occasional adjustments, move repeatedly throughout the day, or operate under sustained load? Each pattern creates different thermal and mechanical demands.

Then evaluate the supplier's documentation for:

• Continuous and peak operating limits.

• Thermal protection.

• Permitted acceleration and deceleration.

• Bearing and gearbox specifications.

• Environmental testing.

• Expected maintenance requirements.

• Warranty terms.

• Replacement-part availability.

• Technical support.

Integrated electronics can simplify installation, but they also make the drive and motor part of a combined assembly. Buyers should understand whether the complete unit is field-repairable, replaced as a module, or supported through another service arrangement.

For OEMs, long-term component availability is particularly important. A motor that performs well during prototype testing may still create problems if replacement units or compatible revisions are difficult to obtain several years later.

4.10 Safety and Fault Protection

Header height control systems must account for abnormal operating conditions.

Potential faults include sensor failure, actuator overload, loss of communication, unexpected mechanical obstruction, and electrical supply problems.

Depending on the machine design, appropriate protective measures may include:

• Mechanical travel limits.

• Electrical limit switches.

• Current monitoring.

• Thermal protection.

• Fault detection.

• Manual override.

• Controlled behavior after communication loss.

• Suitable emergency or shutdown functions.

The correct approach depends on the machine's risk assessment and applicable requirements.

An integrated servo motor may include internal protection against overcurrent or overheating, but these functions don't automatically make the complete header control system safe.

The machine manufacturer must evaluate the actuator, controller, sensors, mechanical structure, and operator interface as a complete system.

Fault responses should also be tested. For example, engineers should confirm that the machine behaves predictably when a sensor signal becomes invalid or communication with the motor is interrupted.

This testing helps identify weaknesses before the system is deployed in the field.

4.11 A Practical Motor Selection Checklist for OEM Buyers

When evaluating integrated DC servo motors for combine harvester or forage harvester header height control, buyers can use the following checklist to organize technical requirements.

A structured checklist makes it easier to compare suppliers and identify missing information before placing an order.

It also helps engineering and purchasing teams work from the same set of requirements instead of comparing motors based on different assumptions.

4.12 Final Considerations: Match the Motor to the Complete System

Selecting an integrated DC servo motor for header height control is ultimately a system-level engineering decision.

Torque determines whether the motor can move the mechanism. Speed and dynamic performance influence how quickly it can respond. Feedback supports positioning, while environmental protection and electrical compatibility help determine whether the unit can operate reliably in the field.

Mechanical integration, communication interfaces, diagnostics, and lifecycle support matter just as much.

For agricultural machinery OEMs, the most effective approach is to define the application requirements first, shortlist suitable motors, and then validate the preferred solution through bench testing and field trials.

The bottom line: A well-matched integrated DC servo motor can support responsive header positioning, simplify motion-control integration, and provide useful diagnostic capabilities. The best results come from evaluating the motor, sensors, controller, and mechanical transmission as one complete system.

5. How Integrated DC Servo Motors Improve Header Height Control

Header height control is an important function in modern combine harvesters because cutting height directly affects harvesting consistency, crop recovery, machine performance, and the risk of collecting unwanted soil or residue. As field conditions change, the header must respond to variations in ground level, crop density, and operating speed.

Integrated DC servo motors can help agricultural equipment manufacturers develop more responsive and repeatable electric header height control systems. By combining a DC motor with integrated drive electronics and, depending on the model, encoder feedback, these solutions can simplify motion-control integration while supporting accurate positioning.

However, the motor is only one part of the system. Sensors, mechanical linkages, control algorithms, and machine-level software must work together to achieve reliable automatic height adjustment.

5.1 Achieving More Accurate Header Positioning

One of the main advantages of an integrated DC servo motor is its ability to support closed-loop position control when equipped with suitable feedback and configured correctly.

In a basic open-loop system, the controller sends a movement command without continuously confirming the actual position. Changes in load, friction, or mechanical resistance may cause the mechanism to move differently than expected.

A closed-loop system compares the commanded position with the measured position and adjusts motor operation to reduce the difference.

For header height control, this process can help the actuator reach the required position more consistently.

Key benefits include:

• More repeatable movement between target positions.

• Reduced positioning errors caused by changing mechanical loads, within the system's operating limits.

• Better coordination between the motor and automatic height control logic.

• More consistent response to operator commands.

• Improved control over small adjustments when the mechanism and feedback resolution support them.

OEMs should distinguish motor-shaft accuracy from actual cutting-height accuracy. Gearbox backlash, linkage geometry, structural deflection, sensor resolution, and calibration all influence the final header position.

5.2 Responding to Changing Ground Conditions

Agricultural fields rarely provide a perfectly level surface. Slopes, ridges, wheel tracks, soil variations, and uneven terrain can require frequent header adjustments.

An integrated DC servo motor can provide controlled actuator movement in response to commands from the machine's height control system. When combined with suitable ground sensors or header-position sensors, the system can adjust the header to follow changing field conditions.

A typical automatic control sequence includes:

1. Sensors measure ground conditions or the header's current position.

2. The machine controller compares the measured information with the target height or control strategy.

3. The controller sends a movement command to the integrated servo motor.

4. The motor drives the lifting or positioning mechanism.

5. Feedback confirms movement, allowing the controller to correct position errors where supported.

6. The process repeats as operating conditions change.

The quality of this process depends on sensor placement, signal filtering, control-loop tuning, actuator response, and mechanical design.

A motor with excellent positioning capability cannot compensate for poor sensor data or an inadequately designed header linkage. OEMs should therefore validate the complete control loop under representative field conditions.

5.3 Improving Response Speed During Header Adjustment

Header height control often involves repeated adjustments rather than a single movement. When the machine crosses uneven ground or encounters changing crop conditions, the actuator must respond quickly enough to maintain the intended operating position.

An integrated DC servo motor can support controlled acceleration, deceleration, and position correction when its drive and control functions provide the required capabilities.

Response performance depends on several factors:

• Motor torque: The motor must produce sufficient torque to overcome the mechanical load and accelerate the mechanism.

• Operating speed: The actuator must move fast enough to complete the required adjustment within the available time.

• Load inertia: Heavy headers and transmission components require appropriate acceleration and deceleration planning.

• Control-loop tuning: Poor tuning may cause overshoot, oscillation, or sluggish movement.

• Mechanical transmission: Gear ratios, friction, backlash, and linkage geometry affect the speed and accuracy of the final movement.

• Power supply: Voltage drop or current limitations may reduce available dynamic performance.

For OEMs, the objective is not simply to select the fastest motor. The system must balance response speed with stability, positioning accuracy, mechanical stress, and safe operation.

5.4 Maintaining Consistent Cutting Height Across Different Crops

Different crops require different harvesting strategies. Some applications prioritize low cutting heights to recover more of the crop, while others require greater clearance to avoid excessive soil intake or collect the desired plant material.

An electrically actuated header can support repeatable height settings when the control system is configured for the specific crop and harvesting conditions.

Integrated DC servo motors can help by providing controlled movement between defined positions and supporting feedback-based adjustment. This is particularly relevant when an OEM wants to offer multiple operating modes or integrate header position control into a broader machine automation platform.

Examples include:

• Wheat and barley: Maintaining an appropriate cutting height while accounting for field unevenness and crop lodging.

• Soybeans: Supporting low cutting-height targets where crop recovery is important, subject to header design and ground conditions.

• Corn harvesting: Coordinating header position with crop geometry, residue management, and the requirements of the harvesting attachment.

• Forage harvesting: Supporting controlled header positioning where consistent crop intake and terrain following are important.

The appropriate cutting height depends on crop variety, crop condition, machine configuration, and local harvesting practices. The motor should be selected to meet the actuator's mechanical requirements, while crop-specific behavior should be handled by the machine's control strategy.

5.5 Reducing Operator Workload Through Automation

Manual header height adjustments can increase operator workload, especially during long harvesting shifts or when field conditions change frequently.

An automatic height control system can reduce the need for continuous manual corrections by using sensor inputs and controller logic to maintain a target position or follow the ground.

An integrated DC servo motor can support this automation by executing movement commands and providing feedback where the selected configuration includes suitable sensing capabilities.

Potential operational advantages include:

• Less frequent manual height correction.

• More repeatable adjustment behavior across operating shifts.

• Easier integration of preset height targets, if supported by the machine software.

• Improved coordination with other automatic harvesting functions.

• More consistent operator experience after proper calibration.

These benefits are not automatic. The system must be configured for the header, crop, and terrain, and operators must understand how automatic control behaves in different operating modes.

Manual override, clear fault indications, and appropriate travel limits should also be considered during system design.

5.6 Supporting Stable Motion Under Variable Loads

Header height mechanisms may experience changing resistance as the header moves, the machine crosses uneven terrain, or mechanical components encounter different loads.

A suitable integrated DC servo motor can use feedback and drive control to maintain the commanded movement more consistently within its torque, speed, and thermal limits.

To achieve reliable performance, OEMs should evaluate the following:

Continuous torque:

The motor must handle the normal operating load without exceeding its thermal limits.

Peak torque:

Short-duration torque requirements during startup, acceleration, or temporary load changes must remain within the motor and drive ratings.

Gearbox selection:

The transmission must provide sufficient output torque while meeting speed, efficiency, backlash, and mechanical life requirements.

Thermal management:

Repeated adjustments or sustained holding loads may cause temperature rise. The motor should be tested under the expected duty cycle.

Mechanical stiffness:

Excessive flex, backlash, or loose connections can reduce final positioning accuracy even when the motor control loop performs correctly.

Protection functions:

Overcurrent, overtemperature, undervoltage, and position-related fault monitoring may be relevant, depending on the selected motor and controller.

OEMs should assess the complete actuator assembly under realistic loads rather than relying solely on a motor's rated power or peak torque.

5.7 Simplifying Electrical Integration and System Architecture

Traditional motion-control designs may use a separate motor, driver, encoder, and additional control components. An integrated DC servo motor combines some of these elements into one assembly, potentially reducing the number of external components required.

For agricultural machinery manufacturers, this can offer several engineering advantages:

• Reduced external wiring between the motor and a separate drive.

• A more compact actuator arrangement where installation space is limited.

• Fewer separate components to mount and mechanically protect.

• Potentially simpler assembly and commissioning.

• Easier replication of a validated motor configuration across machine variants.

The actual benefits depend on the integrated motor's design. The machine may still require an external controller, sensors, power protection, communication wiring, and safety-related hardware.

Before choosing a model, OEM engineers should verify supply voltage, continuous and peak current, connector type, feedback signals, communication interface, electromagnetic compatibility, and mounting dimensions.

If the machine controller uses CANopen, Modbus, RS485, or another protocol, the exact motor configuration must support the required interface. Protocol compatibility should be confirmed rather than assumed.

5.8 Improving Diagnostics and Maintenance Planning

A header height control system should help technicians identify problems before they lead to extended downtime. Depending on the drive and controller configuration, an integrated DC servo motor may provide diagnostic information related to motor operation, position error, current, temperature, or fault conditions.

Such information can help OEMs and service teams investigate issues including:

• Excessive mechanical resistance.

• Repeated position errors.

• Overload or overtemperature events.

• Electrical supply problems.

• Communication interruptions.

• Incorrect parameter settings or calibration.

The availability of these functions varies by product. Some diagnostic information may require a compatible controller or communication interface.

For agricultural machinery, diagnostics are most useful when fault codes are documented clearly and can be accessed using practical service tools. OEMs should also consider how technicians can replace an actuator, restore configuration settings, and verify correct operation in the field.

5.9 Improving Reliability in Harsh Agricultural Environments

Combine harvesters operate in environments that can expose motors and electronics to dust, vibration, moisture, temperature variation, and mechanical shock. These conditions make environmental protection a major part of actuator selection.

An integrated DC servo motor intended for header height control should be evaluated for:

• Appropriate ingress protection for the installation location.

• Vibration resistance and secure mounting.

• Operating and storage temperature limits.

• Connector sealing and cable strain relief.

• Resistance to electrical interference.

• Thermal performance during repetitive movement.

• Mechanical durability under expected shock and load cycles.

An IP rating describes specified protection against ingress under defined test conditions; it does not guarantee resistance to every agricultural hazard. Installation, connector selection, cable routing, and maintenance practices also affect long-term reliability.

For OEMs selling machinery across different regions, field conditions may vary significantly. Testing should reflect the intended markets and operating environments rather than relying exclusively on laboratory specifications.

5.10 Integrating Header Height Control with the Main Machine Controller

In modern agricultural machinery, header height control may operate alongside other electronic functions, such as machine speed management, harvesting settings, steering assistance, and operator-interface controls.

An integrated DC servo motor can serve as the actuator within this architecture, while the main controller coordinates sensor inputs, target positions, and operating modes.

A typical system architecture includes:

• Ground or position sensors: Provide information about terrain or header position.

• Machine controller: Processes sensor signals and calculates the required adjustment.

• Integrated DC servo motor: Executes the commanded motion and provides supported feedback.

• Mechanical transmission: Converts motor rotation into the movement required by the header mechanism.

• Operator interface: Displays settings, operating status, and fault information where supported.

• Protection and limit functions: Help prevent operation beyond defined electrical or mechanical limits.

The communication architecture should be selected according to the machine's requirements. Some systems may use discrete control signals, while others may require a fieldbus or serial interface. The choice should consider response time, diagnostics, wiring complexity, software integration, and serviceability.

OEMs should also define fault behavior. If sensor feedback is lost, communication fails, or the actuator reaches a limit, the system must respond according to a documented operating and safety strategy.

5.11 How to Select an Integrated DC Servo Motor for Header Height Control

Selecting the correct motor requires both mechanical and electrical engineering analysis. A motor that appears suitable based on rated power may be inadequate if it cannot provide the required torque at operating speed or tolerate the expected duty cycle.

Before requesting a quotation, agricultural equipment manufacturers should define:

1. Required movement: Determine the travel range, adjustment frequency, and target movement time.

2. Mechanical load: Calculate the required output torque or linear force, accounting for linkage geometry and transmission efficiency.

3. Positioning requirements: Establish acceptable error and repeatability at the header, including mechanical backlash.

4. Power supply: Specify the available DC voltage and the continuous and peak current limits.

5. Feedback and control: Define encoder requirements, sensor inputs, controller compatibility, and communication protocols.

6. Environmental conditions: Specify dust, moisture, vibration, temperature, and expected service life.

7. Installation constraints: Confirm mounting dimensions, shaft configuration, gearbox requirements, cable routing, and available space.

8. Validation criteria: Set measurable acceptance limits for positioning, response, temperature, vibration, and fault handling.

A prototype should be tested on a representative header mechanism before mass production. Field trials should cover the intended crop types, operating speeds, terrain conditions, and adjustment cycles.

5.12 How JKONGMOTOR Can Support Header Height Control Projects

JKONGMOTOR provides integrated motor and motion-control solutions for OEM applications. For combine harvester header height control projects, manufacturers should begin by defining the required output torque, operating speed, supply voltage, movement profile, feedback accuracy, mounting configuration, and environmental conditions.

Depending on the project requirements and available product configuration, OEMs can evaluate integrated motor options with drive electronics, encoder feedback, and compatible communication interfaces.

During supplier evaluation, agricultural machinery manufacturers should confirm:

• Rated and peak torque under the intended operating conditions.

• Available voltage and current specifications.

• Encoder and positioning capabilities.

• Compatibility with the machine's controller and communication architecture.

• Thermal limits and environmental protection.

• Mechanical customization and gearbox options.

• Sample evaluation, technical documentation, and production consistency.

A successful integration requires more than choosing a motor with suitable specifications. The actuator, sensors, control software, mechanical structure, and fault-handling strategy must operate as a coordinated system.

By selecting and validating an appropriate integrated DC servo motor, combine harvester manufacturers can develop header height control systems that support repeatable positioning, responsive adjustment, and practical integration with modern agricultural electronics.

6. Integrated DC Servo Motors vs. Other Actuation Options

When designing a combine harvester header height control system, agricultural equipment manufacturers must choose an actuation solution that delivers the right balance of positioning accuracy, response speed, load capacity, durability, and cost. The actuator must move the header or its control linkage reliably while working under changing field conditions, including vibration, dust, moisture, and repeated load variations.

Integrated DC servo motors are becoming an option for electrically controlled agricultural machinery because they combine motor technology with drive electronics and feedback capabilities in a compact assembly. However, they are not automatically superior to conventional DC motors, stepper motors, linear actuators, or hydraulic systems. The best choice depends on the header mechanism, machine architecture, control requirements, and total cost of ownership.

6.1 Integrated DC Servo Motors vs. Conventional DC Motors

Conventional brushed or brushless DC motors are widely used in agricultural machinery because they offer straightforward speed control and can be economical for applications with relatively simple motion requirements.

A conventional DC motor, however, does not inherently provide precise closed-loop positioning. If the header must move to a specific position and maintain it under changing loads, the system may need additional encoders, external motor drivers, controllers, and control software.

An integrated DC servo motor combines the motor with drive electronics and, depending on the model, encoder feedback and other control functions. This can simplify system integration and support more consistent positioning.

Key differences include:

• Positioning accuracy: An integrated servo system can use feedback to correct position errors. A conventional DC motor needs an appropriate feedback and control arrangement to achieve similar performance.

• System wiring: Integrated designs may reduce separate components and interconnecting cables.

• Control complexity: Built-in drive functions can simplify some aspects of commissioning, although machine-level control and calibration are still required.

• Cost: Conventional DC motors may have a lower initial purchase price, while integrated servo motors may reduce additional hardware and integration costs.

• Maintenance: The maintenance requirements depend on motor construction. Brushed motors require brush inspection and eventual replacement, while brushless designs avoid brush wear but still require appropriate thermal and environmental protection.

For header height control that requires repeatable positioning and automatic correction, an integrated DC servo motor may be a suitable choice. For simple on/off movement or applications with loose positioning tolerances, a conventional DC motor may be sufficient.

6.2 Integrated DC Servo Motors vs. Stepper Motors

Stepper motors are commonly used where controlled incremental movement, compact construction, and relatively simple positioning are important. They can be attractive for low-to-moderate load applications with predictable motion profiles.

However, a conventional open-loop stepper system generally estimates position from commanded steps rather than continuously verifying actual shaft position. Under excessive load, rapid acceleration, or unfavorable operating conditions, the motor can lose synchronization.

A closed-loop stepper system adds position feedback and can correct certain positioning errors, making it more capable than an open-loop design. Its behavior under overload still depends on motor sizing, driver capability, feedback implementation, and control strategy.

An integrated DC servo motor may be preferable when the header adjustment mechanism requires responsive movement, changing torque demand, and continuous position correction.

For a combine header, the decision should be based on the required torque-speed curve, movement frequency, holding requirements, and consequences of positioning errors. A closed-loop stepper may be entirely appropriate for some systems, while a servo may offer advantages in applications with demanding dynamic performance.

6.3 Integrated DC Servo Motors vs. Hydraulic Actuators

Hydraulic actuators are widely used in agricultural machinery because they can generate substantial force and are compatible with established hydraulic architectures. Many combine harvesters already use hydraulic systems for major lifting functions, steering, or other high-load operations.

An electrically driven actuator offers a different set of trade-offs. An integrated DC servo motor can support feedback-based positioning and may reduce dependence on hydraulic valves and plumbing for a suitable electric mechanism. However, it must be paired with a mechanical transmission capable of delivering the required force and travel.

Advantages of integrated DC servo motors may include:

• More direct integration with electronic control systems.

• Position feedback for closed-loop adjustment.

• Reduced hydraulic plumbing for functions converted to electric actuation.

• Potentially simpler control integration for compact, electrically actuated mechanisms.

• Easier collection of motor and position-related diagnostic information when supported by the controller.

Advantages of hydraulic actuation may include:

• High force density for demanding lifting applications.

• Compatibility with existing hydraulic power systems.

• Established engineering practices and service infrastructure.

• Suitability for mechanisms that require large forces or long strokes.

Hydraulic systems also require consideration of fluid leakage, hose condition, valve performance, and hydraulic power losses. Electric systems have their own constraints, including current demand, motor heating, gearbox loading, electrical protection, and environmental sealing.

For OEMs, replacing a hydraulic actuator with an electric motor should involve a complete system assessment. The motor's rated torque alone does not establish whether it can lift or reposition the header safely. Gear ratio, linkage geometry, efficiency, duty cycle, and mechanical loads must also be considered.

6.4 Integrated DC Servo Motors vs. Electric Linear Actuators

Electric linear actuators convert rotary motion into linear movement, often through a lead screw, ball screw, or other transmission mechanism. They may be supplied as complete assemblies with a motor, transmission, and optional position feedback.

An integrated DC servo motor can drive a separate linear mechanism or be incorporated into a customized electric actuator. The distinction is important: an integrated motor is not necessarily a complete linear actuator, and additional mechanical components may be required.

A complete electric linear actuator may simplify installation when the header design needs a defined stroke and a straightforward mounting arrangement. A separate integrated servo motor may offer greater flexibility when the OEM needs to customize the gearbox, screw mechanism, linkage, or mounting geometry.

When comparing these options, evaluate linear force, stroke, speed, backlash, side loading, mechanical efficiency, and end-of-travel protection. A linear actuator should not be subjected to side loads or impact loads beyond its rated capabilities.

6.5 Integrated DC Servo Motors vs. Conventional Servo Systems with Separate Drives

A conventional servo system typically uses a separate servo motor, drive, feedback device, and controller. This architecture is common in industrial automation and can provide substantial flexibility in tuning, power sizing, communication, and system expansion.

An integrated DC servo motor combines some of these elements in one assembly. Depending on the product, the motor may include the drive electronics and encoder, while the machine controller remains separate.

The main difference is not that one architecture can provide precise control and the other cannot. Both can deliver closed-loop positioning when correctly engineered. The distinction lies in integration, flexibility, thermal management, wiring, serviceability, and system-level cost.

Choose an integrated solution when:

• Installation space is limited.

• Reducing external wiring and component count is a priority.

• The available motor ratings match the required load and speed.

• The supported feedback and communication options fit the machine architecture.

• A compact, repeatable design is desirable across multiple machine models.

Consider a separate-drive servo system when:

• The application requires specialized drive functions or extensive tuning.

• Higher power or performance requirements exceed the integrated product range.

• Centralized drive installation better suits thermal management or maintenance.

• The machine needs a specific feedback interface or communication feature that the integrated unit does not support.

For combine harvester OEMs, the decision should include the location of the drive electronics. Electronics mounted close to the actuator may simplify cabling but must be protected against local heat, vibration, dust, and moisture.

6.6 Which Actuation Solution Is Best for Combine Harvester Header Height Control?

There is no single actuator type that is best for every header height control system. The right choice depends on the machine's mechanical arrangement, target positioning performance, operating environment, and electrical or hydraulic architecture.

For systems requiring automatic ground-following, the actuator must work with suitable height sensors and the machine controller. The control system needs to detect the actual header position, compare it with the target, and command movement without excessive oscillation or delay.

The OEM should also define what happens if the position signal is lost, the motor overheats, the mechanism reaches a travel limit, or the power supply fails. Mechanical stops, fault detection, and a safe operating strategy should be designed at the system level.

6.7 Key Factors to Compare Before Purchasing

Before choosing an integrated DC servo motor or an alternative actuator, purchasing and engineering teams should assess the complete operating requirements rather than comparing products by rated power alone.

1. Torque and force requirements

Estimate the mechanical load throughout the full range of movement. Account for friction, linkage geometry, acceleration, shock loads, and the transmission's efficiency. Confirm both continuous and peak requirements where applicable.

2. Positioning accuracy and repeatability

Define the acceptable error at the header or cutting mechanism, not just at the motor shaft. Gearbox backlash, linkage compliance, mechanical wear, and sensor accuracy can all affect final positioning.

3. Operating speed and response

Determine how quickly the system must move and settle after a command. The motor must provide sufficient torque at the required speed, while the control loop must avoid unstable movement.

4. Environmental protection

Specify the expected dust, moisture, vibration, temperature, and impact conditions. Select an appropriate ingress protection rating based on the actual installation, and verify the rating for the complete assembly and its connectors.

5. Electrical and communication compatibility

Check supply voltage, peak current, controller inputs, feedback signals, and communication protocols. Do not assume every integrated servo motor supports CANopen, Modbus, or another specific interface; verify the exact model configuration.

6. Maintenance and lifecycle cost

Compare initial cost, installation effort, spare parts, expected maintenance, diagnostic capability, and replacement procedures. A solution with a higher purchase price may still be cost-effective if it reduces integration effort or improves serviceability.

7. Validation and supplier support

Confirm that the supplier can provide relevant technical documentation, sample evaluation, configuration support, and consistent production quality. Validate the selected actuator on a representative mechanism before releasing it for mass production.

6.8 Why Integrated DC Servo Motors Can Be a Practical Choice

For combine harvester manufacturers developing electronically controlled header systems, integrated DC servo motors offer a potential balance of compact construction, feedback-based positioning, and simplified component integration.

Their value is strongest when the application needs controlled electric movement and when the integrated motor's torque, speed, feedback, communication, and environmental ratings match the machine's requirements.

However, the complete system determines the final result. Sensor selection, control algorithms, mechanical transmission, wiring, fault handling, and field validation are just as important as the motor itself.

JKONGMOTOR can be considered as a potential supplier for OEMs evaluating integrated motor and motion-control solutions. Before selecting a model, manufacturers should provide the intended supply voltage, target movement speed, required torque or linear force, duty cycle, mounting dimensions, feedback needs, communication interface, and environmental conditions. These details help establish whether an integrated DC servo motor is appropriate or whether another actuation architecture would be a better fit.

7. How to Select the Right Integrated DC Servo Motor

7.1 Start With the Actual Application

Before requesting quotations, prepare a clear description of the movement.

Include the mechanism type, expected load, travel distance or rotation angle, target speed, operating frequency, and available mounting space.

If the motor will replace an existing actuator, document the existing system's performance and known problems.

This gives suppliers a useful starting point and makes quotations easier to compare.

7.2 Use a Structured Specification Checklist

The following checklist can help procurement teams and engineers evaluate different products.

7.3 Check Peak and Continuous Loads

One common selection mistake is choosing a motor based on peak torque alone.

A motor may deliver high torque briefly but overheat if it must sustain that load for extended periods.

For a cyclic application, engineers should estimate the load profile and calculate the effective thermal demand.

For example, a mechanism may spend most of its time holding position, with occasional short movements requiring higher torque.

That operating pattern differs from continuous repetitive movement under a heavy load.

The supplier should provide performance curves and thermal limitations so the engineering team can confirm that the motor is suitable for the intended duty cycle.

7.4 Evaluate the Complete Mechanical System

Motor performance depends on the transmission connected to it.

A gearbox can increase output torque while reducing output speed. A screw mechanism can convert rotation into linear motion. Linkages can change the effective force and travel throughout the movement.

Mechanical efficiency, backlash, stiffness, and friction also influence the result.

For this reason, a motor should never be selected independently of the mechanism it will drive.

Whenever possible, test the motor with a representative load and production-intent mechanical components.

7.5 Ask Suppliers the Right Questions

Before approving a motor, ask the supplier:

1. Is the drive fully integrated into the motor housing?

2. What position feedback device is included?

3. Which control modes are available?

4. What communication protocols are supported?

5. What are the continuous and peak torque ratings?

6. What environmental testing has been completed?

7. How does the unit handle overcurrent, overheating, and communication loss?

8. Are customized shafts, connectors, or mounting brackets available?

9. What documentation is provided for system integration?

10. What technical support is available during prototyping and production?

Clear answers help distinguish a suitable engineering partner from a supplier that can provide only a basic component quotation.

8. Integration, Installation, and Commissioning

8.1 Mechanical Installation

Mounting is an important part of reliable servo operation.

The mounting structure must withstand the expected loads without excessive deflection. Shaft alignment, coupling design, and mechanical clearances should also be checked.

If a gearbox or screw mechanism is used, the design should account for its efficiency, backlash, lubrication requirements, and service life.

Poor mechanical alignment can increase current consumption, generate heat, and accelerate wear.

Where practical, the motor should be installed in a location that allows inspection and replacement without removing unrelated machine components.

8.2 Electrical Installation

Electrical installation should follow the motor manufacturer's instructions and the machine's electrical design requirements.

Important considerations include:

• Correct power cable sizing.

• Appropriate fusing and circuit protection.

• Suitable grounding and shielding.

• Sealed connectors where required.

• Separation of sensitive signal wiring from noisy power circuits.

• Protection against voltage transients.

• Secure cable routing.

• Adequate strain relief.

Agricultural machinery may experience electrical disturbances caused by switching loads, long cable runs, and other electrical equipment.

The system should therefore be tested under realistic operating conditions rather than only on a clean laboratory power supply.

8.3 Sensor and Controller Integration

A servo motor can only respond appropriately to the information provided by the control system.

The engineering team must determine which sensors are needed, how their signals will be processed, and how commands will be communicated to the drive.

Sensor calibration is especially important when the system is expected to maintain a specific cutting height.

The controller should also define appropriate responses to abnormal conditions, such as an implausible sensor reading, actuator overload, or loss of communication.

8.4 Safety and Fault Handling

Header height control should be designed with suitable limits and failure responses.

Depending on the machine, these may include mechanical stops, travel limits, overload detection, manual override, and safe behavior when the controller loses a critical input.

The appropriate safety architecture depends on the machine's risk assessment and applicable standards.

An integrated motor's internal protection functions do not automatically make the complete harvesting machine safe.

The OEM remains responsible for evaluating the complete system, including mechanical hazards, electrical risks, operator controls, and foreseeable fault conditions.

8.5 Testing Before Field Deployment

A structured commissioning process should include:

1. Verifying wiring and connector pin assignments.

2. Confirming the correct motor configuration.

3. Testing movement at reduced speed.

4. Checking travel limits and feedback direction.

5. Measuring current and temperature under representative loads.

6. Testing communication loss and fault recovery.

7. Evaluating positioning repeatability.

8. Testing the system under simulated terrain changes.

9. Performing field trials under representative operating conditions.

10. Recording results and updating service documentation.

This approach helps identify problems before they affect production machines in the field.

9. Common Purchasing Mistakes to Avoid

9.1 Choosing Based on Price Alone

A low-cost motor may appear attractive at the quotation stage.

However, the complete cost also includes mounting hardware, wiring, controller integration, installation, commissioning, maintenance, and replacement.

A slightly more expensive integrated unit may provide better overall value if it reduces engineering time or simplifies service.

The reverse can also be true: a fully featured servo motor may be unnecessary for a simple application.

Buyers should compare complete solutions rather than assuming that more integration always means a lower total cost.

9.2 Ignoring Environmental Conditions

A motor designed for a clean indoor environment may not survive the dust, vibration, moisture, and temperature changes associated with harvesting.

Before purchasing, confirm the actual environmental rating and installation limitations.

Pay particular attention to connectors, cable entries, cooling arrangements, and exposure to cleaning fluids.

9.3 Overlooking Communication Compatibility

A motor can have excellent mechanical specifications and still be unsuitable if it cannot communicate with the machine controller.

Buyers should verify electrical signaling, protocol support, configuration tools, and diagnostic behavior.

If the application uses a CAN network, ask for the relevant protocol documentation rather than relying on the phrase "CAN compatible."

9.4 Underestimating Mechanical Loads

Unexpected loads can occur when the mechanism encounters resistance, reaches an end stop, or moves against an unfavorable linkage geometry.

The motor selection process should account for peak loads and abnormal but foreseeable operating conditions.

Where necessary, engineers should include mechanical protection, current limits, and appropriate fault detection.

9.5 Failing to Plan for Service

Agricultural equipment often operates under seasonal time pressure.

If a failed motor requires a long replacement lead time or specialized tools, downtime can become expensive.

Before approving a supplier, review spare-part availability, warranty terms, technical documentation, and repair or replacement procedures.

For OEM production programs, lifecycle support can be just as important as the initial performance specification.

10. Cost, Productivity, and Return on Investment

When selecting an integrated DC servo motor for combine harvester header height control, equipment manufacturers should look beyond the initial motor price. The total cost of ownership depends on installation requirements, control performance, maintenance needs, downtime risk, and the motor's service life.

For agricultural machinery OEMs, a well-designed header height control system can help improve harvesting consistency, reduce avoidable crop losses, and simplify machine integration. However, the actual return on investment (ROI) depends on crop conditions, harvesting speed, header design, operator practices, and the quality of the overall control system.

10.1 Initial Purchase Cost vs. Total Cost of Ownership

The purchase price is only one part of the cost of an electric header height control solution. A lower-cost motor may require additional drivers, encoders, wiring, mounting components, or control hardware. An integrated DC servo motor combines the motor with key control components in one assembly, potentially reducing the number of separate devices required.

When comparing solutions, OEM purchasing teams should evaluate the following cost factors:

• Motor and control hardware: The motor, driver, encoder, and any required controller or communication interface.

• Mechanical integration: Mounting brackets, couplings, gearboxes, linkages, and structural modifications.

• Electrical installation: Cables, connectors, power distribution, protective devices, and harness routing.

• Software development: Control algorithms, calibration procedures, communication integration, and fault-handling logic.

• Testing and validation: Load testing, environmental testing, vibration testing, and field trials.

• Maintenance and downtime: Inspection, replacement labor, spare parts, and losses caused by equipment failure.

An integrated solution can reduce component count and wiring complexity, but it is not automatically the least expensive option. Buyers should compare complete system costs under equivalent performance and environmental requirements.

10.2 How Automatic Header Height Control Can Improve Productivity

Combine harvesters operate under changing field conditions. Ground contours, crop density, residue, and harvesting speed can all affect the ideal header position. Manual adjustments may not respond quickly enough to every change, particularly when operators are working long hours or managing uneven fields.

An electric height control system using an integrated DC servo motor can support repeatable positioning and automated adjustment when properly designed and calibrated.

Potential productivity benefits include:

• More consistent cutting height: Helps maintain the intended cutting position across changing field conditions.

• Reduced operator workload: Allows the operator to focus more attention on machine performance, crop flow, and field conditions.

• Fewer unnecessary adjustments: Closed-loop positioning can reduce repeated manual corrections when the system is correctly tuned.

• Improved operating consistency: Repeatable motion can help maintain similar header behavior across different operating conditions.

• Better integration with automation: Position feedback can support automatic header control functions when compatible sensors and machine controllers are available.

These benefits depend on the complete control system. A servo motor alone cannot determine ground height or crop conditions; sensors, mechanical design, control logic, and calibration must work together.

10.3 Reducing Crop Losses and Improving Harvest Quality

Header height directly affects how a combine interacts with the crop and the ground. If the header operates too high, some crops may be left unharvested. If it operates too low, the system may collect excessive soil, stones, or residue, increase wear, or create blockages in unsuitable conditions.

A responsive electric actuator can help the header reach commanded positions accurately, supporting the performance of an automatic height control system.

For OEMs, the main considerations are:

• Positioning accuracy and repeatability under realistic loads.

• Response time when the header must adjust to changing conditions.

• Adequate torque throughout the required travel range.

• Stable operation despite vibration and changing mechanical resistance.

• Compatibility with ground-following sensors and the combine's main controller.

The financial impact of improved cutting performance varies by crop, field, header width, and harvesting method. Manufacturers should validate improvements through controlled field trials rather than assuming a fixed percentage reduction in crop loss.

10.4 Lower Maintenance Costs and Reduced Downtime

Agricultural equipment operates in demanding environments where dust, moisture, vibration, temperature changes, and shock loads can affect electrical and mechanical components. An unreliable height control actuator can lead to unscheduled maintenance during critical harvesting periods.

Integrated DC servo motors may simplify maintenance by consolidating the motor and drive electronics into one assembly. Depending on the design, this can reduce external wiring and the number of separate components that technicians must inspect.

To assess maintenance costs, OEMs should consider:

• The motor's rated duty cycle and expected operating hours.

• Protection against dust and moisture, based on the actual installation conditions.

• Thermal performance under continuous or repetitive loads.

• Connector durability and cable strain relief.

• Diagnostic functions and fault reporting.

• Availability of replacement motors, cables, and configuration support.

• Ease of access for inspection and replacement.

An integrated motor should not be selected solely because it has fewer components. Serviceability, environmental protection, thermal design, and the availability of replacement parts are equally important.

10.5 Estimating Return on Investment for Agricultural Equipment OEMs

A practical ROI calculation should compare the additional cost of the integrated servo solution with the annual financial benefits it can reasonably deliver.

One simplified formula is:

Annual Net Benefit = Annual Operating Savings − Annualized Additional Costs

For a project with measurable benefits, the simple payback period can be estimated as:

Payback Period = Additional Initial Investment ÷ Annual Net Benefit

If the annual net benefit is zero or negative, the project does not achieve a financial payback under those assumptions.

For example, suppose an OEM estimates that an upgraded header height control system adds $600 to the manufacturing cost of each machine. If the system produces a verified annual customer benefit of $900 through reduced operating losses and maintenance, the simple payback period for that customer would be approximately eight months.

This is only an illustrative calculation, not a guaranteed result. The actual benefit must be established using realistic field data, and the calculation should account for installation costs, maintenance, financing, and the expected service life.

For OEMs, ROI can also include commercial benefits that are more difficult to quantify, such as improved product differentiation, fewer warranty claims, easier system integration, and greater customer confidence.

10.6 Compare Integrated DC Servo Motors with Alternative Actuation Solutions

An integrated DC servo motor is not the best choice for every combine header. The appropriate technology depends on the required force, travel, response time, available space, existing hydraulic architecture, and target machine cost.

The comparison is general. Actual performance and cost depend on the specific products and system architecture. Hydraulic systems may remain preferable for high-force applications, while conventional DC motors may be adequate where positioning requirements are less demanding.

10.7 How OEMs Can Validate Productivity and ROI Before Mass Production

Before approving an integrated DC servo motor for a new combine harvester platform, equipment manufacturers should conduct engineering validation and field testing.

A useful evaluation process includes:

1. Define baseline performance: Record the existing system's cutting-height consistency, adjustment time, maintenance frequency, and failure history.

2. Establish measurable targets: Set acceptable limits for positioning error, response time, temperature, noise, and operating reliability.

3. Test under representative loads: Evaluate the motor and actuator across the expected load range, including startup and repeated movement.

4. Verify environmental suitability: Test the assembly against the expected dust, moisture, vibration, and temperature conditions.

5. Conduct field trials: Evaluate performance across representative crops, terrain, harvesting speeds, and operating conditions.

6. Calculate lifecycle cost: Include component cost, integration engineering, maintenance, replacement, and downtime.

7. Review results before production release: Confirm that the system meets technical requirements and produces a commercially meaningful benefit.

For agricultural OEMs, this process reduces the risk of selecting a motor based on catalog specifications alone. It also creates a stronger basis for supplier qualification and long-term production planning.

10.8 How JKONGMOTOR Can Support Cost-Effective Header Height Control

JKONGMOTOR supports OEM projects involving integrated motor and motion-control solutions. For combine harvester header height control, the selection process should begin with the required torque, speed, travel mechanism, supply voltage, feedback accuracy, installation space, and environmental conditions.

Depending on project requirements and product availability, OEMs can evaluate options involving integrated drive electronics, encoder feedback, communication interfaces, and customized mechanical configurations.

Before selecting a solution, manufacturers should confirm:

• Rated and peak torque under the intended load.

• Supply voltage and current requirements.

• Encoder resolution and positioning performance.

• Compatibility with the machine controller and communication protocol.

• Environmental protection and thermal limits.

• Mounting dimensions, shaft configuration, and gearbox requirements.

• Sample testing, validation support, and production consistency.

The most cost-effective solution is not necessarily the motor with the lowest unit price. It is the solution that meets the machine's performance requirements while controlling integration effort, operating risk, and lifecycle cost.

By evaluating technical performance and commercial value together, combine harvester manufacturers can make better-informed decisions about integrating DC servo motors into header height control systems.

11. Future Trends in Agricultural Motion Control

11.1 More Connected Agricultural Machinery

Modern agricultural machinery increasingly uses electronic controllers, sensor networks, and machine-level communication systems.

This creates opportunities for actuators to become more closely integrated with the rest of the equipment.

A servo motor that provides useful diagnostic data may help a machine controller monitor actuator performance and detect abnormal operating conditions.

The value of that information depends on whether the machine software can interpret it and present it in a useful way.

11.2 Smarter Terrain-Following Systems

Future header control systems may combine information from several sources, such as ground sensors, machine position, operating speed, and other available data.

This could allow the controller to adjust its behavior according to field conditions.

However, more sensors do not automatically produce better performance.

Sensor quality, placement, calibration, communication reliability, and control logic remain critical.

The actuator must also have enough torque, speed, and dynamic capability to follow the commanded movement.

11.3 Predictive Maintenance

Some integrated servo drives can monitor current, temperature, and other operating variables.

Over time, these signals may help identify changes in mechanical resistance or actuator behavior.

For example, a consistent increase in current under similar operating conditions could indicate additional friction or a developing mechanical problem.

Such monitoring can support maintenance planning, but it requires suitable thresholds, reliable data, and validation against actual failure modes.

11.4 Modular Designs for Agricultural OEMs

A modular actuator architecture can help equipment manufacturers use a consistent control platform across multiple machine models.

If a motor family offers several torque levels, compatible connectors, and a consistent software interface, it may reduce the effort required to develop related products.

Nevertheless, common hardware should not replace application-specific validation.

Different headers can have different mechanical loads, duty cycles, environmental exposures, and safety requirements.

11.5 The Importance of Lifecycle Support

As agricultural equipment becomes more electronically controlled, component availability and technical documentation become increasingly important.

OEMs should evaluate suppliers based on more than current performance.

Relevant factors include:

• Product lifecycle commitments.

• Availability of replacement units.

• Firmware and configuration support.

• Compatibility across product revisions.

• Technical response times.

• Long-term documentation access.

These considerations help protect production programs and reduce the risk of redesigning a machine because a component becomes unavailable.

12. Frequently Asked Questions

FAQ 1. What is an integrated DC servo motor for combine harvester header height control?

An integrated DC servo motor combines a DC motor with drive electronics and, depending on the model, encoder feedback in a compact assembly. In combine harvester header height control systems, it can drive a lifting or positioning mechanism to support accurate, repeatable movement and automatic height adjustment.

FAQ 2. How do integrated DC servo motors improve header height control?

Integrated DC servo motors can improve header height control by supporting closed-loop positioning, responsive movement, and correction of position errors. When connected to suitable sensors and a machine controller, they help the header maintain its target position as ground conditions and operating loads change.

FAQ 3. Why is header height control important for combine harvesters?

Header height control helps maintain an appropriate cutting height, improve harvesting consistency, and reduce the risk of leaving crop behind or collecting excessive soil and residue. Automatic control can also reduce the operator's need to make frequent manual adjustments.

FAQ 4. Are integrated DC servo motors better than hydraulic actuators for header height control?

Not in every application. Integrated DC servo motors can offer feedback-based electric positioning and may simplify integration with electronic control systems. Hydraulic actuators remain suitable for high-force applications and machines with established hydraulic infrastructure. The best choice depends on load requirements, positioning accuracy, response time, installation space, and total cost of ownership.

FAQ 5. What is the difference between an integrated DC servo motor and a conventional DC motor?

An integrated DC servo motor typically combines the motor with drive electronics and may include encoder feedback. A conventional DC motor may require a separate driver, encoder, and controller to achieve comparable closed-loop positioning. The integrated solution can reduce component count and wiring, depending on the system architecture.

FAQ 6. How do I select the right integrated DC servo motor for a combine harvester header?

Start by defining the required output torque, operating speed, movement range, duty cycle, supply voltage, positioning accuracy, and environmental conditions. Also verify the gearbox or transmission requirements, mounting dimensions, feedback signals, communication protocol, and compatibility with the machine controller.

FAQ 7. Can integrated DC servo motors support automatic ground-following systems?

Yes, when integrated with suitable ground or position sensors and a compatible machine controller. The sensors provide relevant measurements, the controller calculates the required adjustment, and the servo motor drives the mechanism. Overall performance depends on sensor accuracy, control-loop tuning, mechanical design, and actuator response.

FAQ 8. What environmental protection should an integrated DC servo motor have for agricultural machinery?

The required protection depends on where the motor is installed and the expected exposure to dust, moisture, vibration, temperature changes, and mechanical shock. OEMs should verify the motor's ingress protection rating, connector sealing, cable routing, thermal limits, and vibration resistance against actual operating conditions.

FAQ 9. Can integrated DC servo motors reduce the operating costs of combine harvesters?

They may reduce integration costs, simplify wiring, support more consistent positioning, and provide diagnostic information when the selected configuration includes these functions. Actual savings depend on the system design, field performance, maintenance requirements, and operating conditions. OEMs should use prototype tests and field data to calculate return on investment.

FAQ 10. Can JKONGMOTOR customize integrated DC servo motors for agricultural machinery?

JKONGMOTOR can be evaluated as a potential OEM supplier for integrated motor and motion-control applications. Agricultural equipment manufacturers should provide their required torque, speed, voltage, feedback, communication interface, mechanical dimensions, and environmental specifications to determine whether an available configuration or customized solution meets their project requirements.

Conclusion: Choose Integrated DC Servo Motors for the Right Engineering Reasons

Combine harvester headers and forage harvester headers operate in demanding environments where consistent positioning, reliable movement, and effective control can make a practical difference.

Integrated DC Servo Motors offer a useful option for OEMs seeking to simplify motion-control architecture while supporting repeatable positioning and electronic diagnostics.

Their strongest advantages may include reduced component complexity, easier integration, controlled acceleration, and access to feedback information. However, these benefits depend on selecting the correct motor and integrating it into a properly designed control system.

Before purchasing, evaluate torque, speed, positioning requirements, duty cycle, environmental protection, electrical compatibility, mechanical interfaces, and long-term service support.

Most importantly, assess the complete system rather than the motor alone.

A well-matched actuator, reliable sensing, sound mechanical design, and carefully tested control logic can provide a stronger foundation for automatic header height control than any individual component specification.

For agricultural machinery manufacturers, the goal isn't simply to install a more advanced motor. It's to build harvesting equipment that performs consistently, remains serviceable, and delivers dependable value throughout its working life.
