High-speed pick and place machines must move components quickly, reach precise coordinates, and repeat the same operations throughout long production cycles. Whether the equipment assembles printed circuit boards, handles semiconductor components, positions laboratory samples, or performs small-parts assembly, motion accuracy and cycle-time consistency directly affect production efficiency.
One challenge is step loss in conventional open-loop stepper motor systems. When the required torque exceeds the motor's available capability, the rotor may fail to follow the commanded motion. Because a conventional open-loop controller does not inherently measure actual rotor position, the system may continue operating without recognizing the positioning error.
An integrated closed loop stepper motor helps address this problem by combining a stepper motor, position encoder, and drive electronics in one assembly. The encoder measures rotor position, allowing the control system to compare actual movement with the commanded trajectory and respond when tracking errors occur.
For machine manufacturers, this technology offers a practical way to improve motion reliability while simplifying component integration. However, choosing the right motor requires more than checking holding torque or encoder resolution. Dynamic torque, acceleration, control response, mechanical transmission, thermal performance, and communication compatibility all influence the final result.
This guide explains how integrated closed loop stepper motors work, which configurations are available, how they help prevent step loss, and what OEMs should evaluate before purchasing a motor for high-speed pick and place equipment.

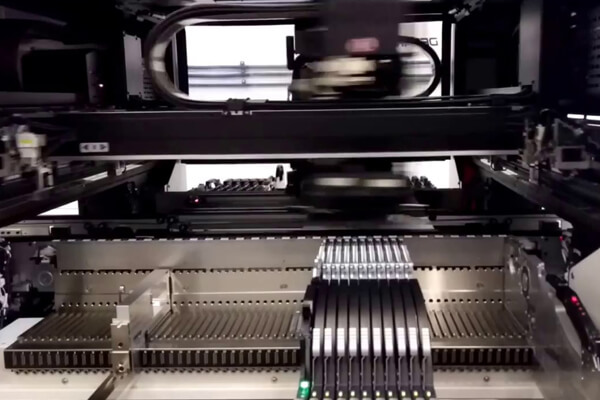

1. What Are High-Speed Pick and Place Machines?
High-speed pick and place machines are automated systems that transfer components from a pickup location to a specified placement position. They are widely used in electronics manufacturing, semiconductor assembly, laboratory automation, medical device production, packaging, and precision component handling.
A typical machine may use a gantry, linear slide, rotary axis, vacuum nozzle, or mechanical gripper to collect and position individual parts. The motion system must coordinate these movements while maintaining the required speed, repeatability, and placement accuracy.
In surface-mount technology (SMT) manufacturing, for example, a placement head picks up an electronic component, adjusts its orientation, moves to a programmed coordinate, and places the component onto a printed circuit board. Even a small positioning deviation can affect assembly quality or trigger downstream inspection and rework.
1.1 High Acceleration and Frequent Direction Changes
High-speed equipment often performs short movements with rapid acceleration and deceleration. The motor must generate sufficient torque to accelerate the moving assembly, overcome mechanical resistance, and settle at the target position within the required cycle time.
These operating conditions can be more demanding than continuous rotation at a constant speed.
A motor may provide adequate holding torque when stationary but lack sufficient dynamic torque during rapid movement. For this reason, we recommend evaluating the motor's torque-speed curve and acceleration capability, rather than selecting a model based on its holding torque rating alone.
1.2 Repetitive Positioning and Short Cycle Times
Pick and place machines repeat movement sequences throughout the production shift. A typical cycle includes moving to a pickup location, collecting a component, lifting it, traveling to the placement point, releasing the component, and preparing for the next operation.
When these movements occur thousands of times, even occasional positioning errors can cause production interruptions, rejected components, or time-consuming recovery procedures.
The motion system therefore needs to deliver consistent tracking, predictable deceleration, and repeatable positioning across the entire operating cycle.
1.3 Lightweight Moving Structures
To increase throughput, machine designers often reduce the mass of gantries, carriages, and positioning heads. Lower moving mass can improve acceleration and reduce the torque required for a given motion profile.
However, lightweight mechanisms may also introduce challenges involving belt elasticity, structural vibration, mechanical resonance, and rapid load changes.
The motor and drive must be matched to the actual mechanical structure, not simply to the nominal payload.
1.4 Continuous Operation and Production Reliability
Industrial pick and place machines are frequently expected to operate for extended periods with minimal unplanned downtime.
When a motion error occurs, the consequences may include:
Misplaced or damaged components.
Interrupted production cycles.
Additional inspection and rework.
Machine recalibration and troubleshooting.
Reduced overall equipment availability.
These costs explain why many manufacturers evaluate integrated closed loop stepper motors as an alternative to conventional open-loop systems. The objective is not simply to purchase a motor with more features, but to reduce the risk and operational impact of undetected positioning errors.
Integrated closed loop stepper motors are available in different configurations to accommodate various motion-control architectures and mechanical requirements.
The appropriate choice depends on the machine's control interface, available installation space, torque demand, operating speed, positioning requirements, and transmission design.
Pulse-and-direction models are suitable for pick and place machines controlled by compatible PLCs, motion controllers, or dedicated positioning systems.
The controller sends pulse signals to command movement and a direction signal to determine the direction of rotation. The integrated encoder and drive monitor actual rotor position and respond to tracking errors within the motor's operating limits.
Why manufacturers choose this type:
Straightforward integration with compatible motion controllers.
Simple command structure for point-to-point positioning.
Encoder feedback for monitoring rotor tracking.
Convenient upgrades for existing pulse-controlled stepper systems.
This configuration is particularly useful when an OEM wants to improve positioning reliability without redesigning the entire machine-control architecture.
Before purchasing, confirm the maximum command frequency, supported motion modes, input specifications, and fault-output functions.
2.2 RS485 Integrated Closed Loop Stepper Motors
RS485 integrated closed loop stepper motors support serial communication between the motor and a compatible controller. Depending on the product, the communication interface may provide access to motor parameters, motion commands, operating status, and fault information.
For machines with several positioning axes, this configuration may simplify wiring and centralized configuration.
Typical advantages include:
Serial communication with compatible controllers.
Convenient parameter configuration and status monitoring.
Support for centralized diagnostics.
Potentially simpler wiring in suitable machine architectures.
One important distinction is that RS485 defines an electrical communication interface, not a complete motion-control protocol. The supported protocol, command structure, communication speed, and multi-axis capabilities must be confirmed for the specific motor.
CANopen models are designed for automation systems that use CANopen communication between compatible devices.
Depending on the implementation, the network may support motor configuration, motion commands, operating-status monitoring, and fault reporting.
For multi-axis pick and place equipment, CANopen can provide a structured way to connect positioning devices and exchange control information.
When evaluating a CANopen motor, check:
Supported CANopen device profile and operating modes.
Communication speed and update requirements.
Synchronization capabilities.
Compatibility with the machine controller.
Availability of diagnostic and fault information.
For extremely short movement cycles or tightly coordinated axes, the complete control architecture must be evaluated to ensure that communication timing meets the application's requirements.
High-torque models are suitable for applications involving greater load inertia, heavier positioning stages, increased friction, or demanding acceleration requirements.
They may be used to drive larger handling mechanisms, heavier linear modules, and other axes that need additional torque capacity.
When selecting a high-torque model, we recommend checking the available torque at the actual operating speed, not just the rated or holding torque.
Other important factors include thermal performance, peak acceleration, transmission efficiency, mounting dimensions, and the expected production duty cycle.
A larger motor is not automatically the best choice. Excessive motor size can increase moving mass and inertia, potentially creating additional demands on the drive system.
2.5 Compact Integrated Closed Loop Stepper Motors
Compact integrated closed loop stepper motors combine the motor, encoder, and drive electronics in a space-saving assembly.
They are useful for compact automation equipment, small positioning stages, modular linear systems, and machines with limited installation space.
Their integration can reduce the number of separately mounted components and simplify some electrical connections.
When evaluating compact models, consider:
Available torque at the required speed.
Installation clearances and mounting dimensions.
Connector position and cable routing.
Thermal dissipation in confined spaces.
Feedback and diagnostic capabilities.
Compact dimensions are valuable only when the motor can still meet the application's torque, speed, and thermal requirements.
2.6 Integrated Closed Loop Stepper Motors with Gearboxes
Some pick and place applications require a lower output speed, increased output torque, or a specific mechanical transmission ratio. A compatible gearbox can help match the motor to these requirements.
Depending on the application, the motor may be combined with a planetary gearbox or another suitable reduction mechanism.
A gearbox can increase output torque while reducing output speed, although actual performance depends on the motor's operating point, reduction ratio, efficiency, and thermal limits.
Before selecting a geared configuration, evaluate:
Gear ratio and output speed.
Output torque and transmission efficiency.
Backlash and torsional stiffness.
Noise, lubrication, and service life.
Reflected inertia and dynamic response.
An additional consideration is feedback location. An encoder mounted on the motor normally measures rotor position, not the exact position of the gearbox output shaft or final machine mechanism. Backlash and mechanical compliance may still affect placement accuracy.
Integrated closed loop stepper motors can drive linear positioning systems that use lead screws, ball screws, belts, or other transmission mechanisms.
They are suitable for applications requiring controlled movement along the X, Y, or Z axis.
The motor may be installed directly on a linear module or connected through a coupling or gearbox, depending on the mechanical design.
Key selection factors include:
Required travel distance and linear speed.
Moving mass and payload.
Screw lead or belt transmission ratio.
Acceleration, deceleration, and settling time.
Backlash and positioning repeatability.
Available mounting space and overall module dimensions.
Vertical axes require particular attention because gravity continues to act on the load when the motor stops. Where a vertical mechanism could fall or create a hazard, an appropriately engineered braking or load-support solution may be required.
For applications with demanding linear accuracy, a motor-mounted encoder may need to be supplemented by a linear encoder or another independent position-measurement system.
2.8 How to Choose the Right Integrated Closed Loop Stepper Motor Type
The following table summarizes the primary considerations for common integrated closed loop stepper motor configurations.
Motor configuration
Main advantage
Typical selection priority
Pulse-and-direction
Simple command integration
PLC-controlled point-to-point positioning
RS485
Serial communication and configuration
Compatible networked automation systems
CANopen
Structured industrial communication
Multi-axis systems using compatible CANopen controllers
High-torque
Greater torque capacity when properly selected
Higher loads and demanding acceleration
Compact integrated
Space-saving assembly
Compact machines and positioning modules
Gearbox-equipped
Adapted output torque and speed
Applications requiring mechanical reduction
Linear-motion configuration
Integration with linear mechanisms
X, Y, and Z positioning axes
For OEM machine manufacturers, the best configuration should support both current performance requirements and future machine variants. Standardizing on a suitable motor platform may simplify purchasing, commissioning, spare-parts management, and maintenance.
The next step is to examine the motor functions that determine whether the selected configuration can deliver reliable high-speed positioning.
3. What Functions Does a Closed Loop Stepper Motor Need for High-Speed Pick and Place Applications?
Not every closed loop stepper motor is suitable for high-speed automation. The right model must combine effective position feedback, sufficient dynamic torque, responsive control, and compatible electrical and mechanical interfaces.
3.1 Real-Time Position Feedback
A position encoder measures rotor position and provides feedback to the control system. Depending on the motor design, the encoder may use magnetic, optical, or another sensing technology.
The controller compares the measured position with the commanded position. If the difference exceeds an acceptable threshold, the drive can respond according to its control strategy.
This feedback helps identify conditions that could otherwise result in undetected step loss.
However, encoder resolution should not be confused with overall machine positioning accuracy. Actual accuracy also depends on the control algorithm, transmission, backlash, mechanical compliance, encoder installation, and machine structure.
3.2 Closed Loop Position Correction
The primary advantage of closed loop control is its ability to respond to differences between commanded and actual movement.
Suppose a placement head must move to a programmed coordinate. If the motor experiences an unexpected load increase and the rotor begins to lag, the encoder detects the position deviation.
The drive can then adjust current or torque-producing effort, within its configured limits, to improve tracking.
Feedback helps the system detect and correct position errors, but it does not make step loss physically impossible. If the motor reaches its torque limit, overheats, or operates outside its control bandwidth, it may still fail to follow the commanded motion.
A suitable drive should provide appropriate fault detection and reporting when tracking cannot be maintained.
3.3 Sufficient Dynamic Torque at High Speed
Stepper motor torque generally decreases as rotational speed increases. Available torque depends on factors such as winding inductance, supply voltage, drive current, motor construction, and operating conditions.
For high-speed pick and place equipment, we need to confirm that the motor can provide enough torque throughout the required motion profile.
This includes accelerating the motor and connected mechanism, overcoming friction, handling changes in payload, managing rapid direction changes, and decelerating within the required cycle time.
A motor with high holding torque but insufficient dynamic torque may be unsuitable for a demanding placement cycle.
3.4 High-Speed Positioning and Stable Control
A suitable integrated closed loop stepper motor should support the required command rate, speed range, acceleration profile, and feedback response.
The drive must respond quickly enough to relevant position errors without introducing excessive oscillation or instability.
Smooth acceleration and deceleration profiles can reduce mechanical shock and improve settling behavior.
The required interface may be pulse-and-direction, RS485, CANopen, or another supported option. The correct choice depends on the machine controller, synchronization requirements, diagnostic needs, and network architecture.
3.5 Compact Integration and Simplified Wiring
An integrated closed loop stepper motor combines the motor with selected control components in one assembly.
Depending on the model, the unit may include:
Stepper motor.
Position encoder.
Motor drive.
Closed loop control functions.
Communication or pulse-command interfaces.
Fault and status outputs.
This arrangement can reduce separately mounted components, shorten some wiring connections, and simplify machine assembly.
The precise integration level varies by product, so buyers should verify which functions are included in the selected model.
4. How Does an Integrated Closed Loop Stepper Motor Prevent Step Loss?
An integrated closed loop stepper motor reduces the risk of undetected step loss by measuring actual rotor position and using that information to adjust motor operation.
The process can be understood in five stages.
4.1 Step 1: Receive the Motion Command
The machine controller sends a position or motion command to the motor.
Depending on the interface, the command may use pulse signals or a supported communication protocol. The motion profile defines the requested movement and determines how quickly the motor should accelerate, travel, and decelerate.
For example, an SMT placement machine may command a positioning axis to move from a component pickup coordinate to a target location on a circuit board.
4.2 Step 2: Measure the Actual Rotor Position
As the motor moves, the encoder measures actual rotor position.
The feedback allows the drive to determine whether the rotor is following the commanded motion. If actual position differs from expected position, the control system evaluates the tracking error.
A simplified expression is:
Position error=Commanded position-Actual position
Real control systems may also use speed estimates, current measurements, configured error thresholds, and other control variables.
4.3 Step 3: Identify Position Deviation
Position deviation may occur when acceleration exceeds available torque, the load changes unexpectedly, mechanical friction increases, or the motion profile excites resonance.
Insufficient supply voltage, unsuitable drive configuration, and excessive commanded speed can also affect tracking.
An open-loop system may not recognize that the rotor has fallen behind. A closed loop system can identify relevant deviations through encoder feedback.
4.4 Step 4: Adjust Motor Current or Torque-Producing Effort
When the drive detects a tracking error, its control algorithm can adjust motor current or other control outputs.
For example, a temporary increase in load during acceleration may cause the drive to increase current within its configured limits, producing additional torque to improve tracking.
This correction can help the rotor follow the commanded trajectory.
However, correction is possible only within the motor's electrical, thermal, mechanical, and control limits. If the load is too large or the motion demand is too aggressive, the system may be unable to recover without reducing speed or stopping.
4.5 Step 5: Report a Fault When Tracking Cannot Be Maintained
A suitably configured drive can monitor position error and other operating conditions. If the deviation exceeds a permitted threshold, the drive may issue an alarm, fault output, or communication status.
The machine controller can use this information to stop the current sequence, reject a potentially misplaced component, or request operator intervention.
The actual response depends on the machine's control logic. An encoder and closed loop drive do not automatically guarantee that a placement error will be detected at the tool tip or that the entire machine will stop safely.
Position feedback helps prevent and detect motor tracking errors, while system-level verification determines whether the final placement operation meets the required accuracy.
5. Why Do Manufacturers Choose Integrated Closed Loop Stepper Motors Instead of Open Loop Stepper Motors?
Open-loop stepper motors remain useful for cost-sensitive applications that require straightforward control and simple incremental movement.
However, their limitations become more significant when a machine operates at high acceleration, handles changing loads, or needs reliable detection of positioning errors.
Integrated closed loop stepper motors address several of these concerns.
5.1 Reduced Risk of Undetected Step Loss
A conventional open-loop controller calculates expected position from the number of commanded steps. Without additional feedback, it cannot directly confirm actual rotor position.
A closed loop stepper motor uses encoder feedback to monitor tracking, reducing dependence on the assumption that every commanded step has been completed.
For pick and place machines, this can reduce the risk of unnoticed motion errors that lead to rejected components, recovery procedures, or wasted production time.
5.2 Better Response to Changing Loads
The load on a placement mechanism can change with tooling, payload, friction, cable routing, and acceleration requirements.
A closed loop drive can respond to measured tracking error and adjust its control output within available limits.
This can improve motion reliability under varying operating conditions, although the actual performance advantage depends on the specific motor, drive, and motion profile.
5.3 More Efficient Use of Motor Capability
Some closed loop stepper drives regulate current according to operating conditions and torque demand. In suitable applications, this can reduce unnecessary current compared with an open-loop drive that maintains a relatively high current setting regardless of load.
Potential benefits include reduced motor heating and lower energy consumption.
These benefits depend on the motor and drive design and should be verified using manufacturer specifications and measurements under representative operating conditions.
5.4 Easier Fault Diagnosis
Encoder feedback and drive monitoring can help identify excessive tracking error, abnormal loading, and certain electrical faults.
This information makes troubleshooting more systematic than diagnosing a basic open-loop motor that fails to reach its expected position without providing feedback.
For equipment manufacturers, useful diagnostic information can simplify commissioning, maintenance, and machine-level fault handling.
5.5 Less Integration Work
An integrated closed loop stepper motor can combine functions that would otherwise require a separate motor, encoder, drive, and associated interconnections.
This may reduce cabinet space, simplify cable management, shorten installation time, and reduce the number of separately sourced components.
For OEMs producing multiple machine models, using a consistent motor platform can also simplify design standardization and spare-parts management.
6. Integrated Closed Loop Stepper Motor vs. Open Loop Stepper Motor vs. Servo Motor
The right motion technology depends on the required positioning performance, dynamic response, integration complexity, and total system cost.
Evaluation factor
Open-loop stepper motor
Integrated closed loop stepper motor
Servo motor system
Position feedback
Not inherent in a conventional open-loop configuration
Encoder feedback included in the integrated system
Feedback is generally central to the servo system
Step-loss monitoring
Limited without additional feedback
Can monitor rotor tracking error
Can monitor following error and other servo variables
Dynamic torque
Depends on motor and drive
Depends on motor, drive, and feedback control
Often suited to demanding dynamic motion
Control complexity
Relatively simple
Moderate, depending on interface and tuning
Varies with servo platform and application
Integration
May require separate driver and additional components
Motor, encoder, and drive functions integrated in one assembly
May use separate motor and servo drive
Fault diagnostics
Limited in basic configurations
Available according to drive features
Often offers extensive diagnostics
Typical purchasing priority
Low initial cost and simple motion
Cost-effective closed loop positioning
High-performance dynamic control and demanding synchronization
An integrated closed loop stepper motor can be a strong option when a machine needs more reliable positioning than a basic open-loop system but does not require the full performance or cost structure of a servo system.
A servo motor may be more appropriate when the application demands very high control bandwidth, continuous speed regulation, tightly coordinated multi-axis motion, or stringent settling-time performance.
The decision should be based on measured machine requirements rather than the assumption that one technology is always superior.
Selecting a motor based only on frame size or rated torque can lead to performance problems. We recommend evaluating the motor and the complete motion system against the machine's real operating conditions.
7.1 Required Torque Across the Motion Profile
Calculate the torque needed to accelerate the motor and connected mechanism, overcome friction, and handle external loads.
For rotary motion, a simplified model is: Trequired=Jtotalｘα+Tload
Where:
Trequired is the required motor torque.
Jtotal is the combined rotational inertia referred to the motor shaft.
α is angular acceleration.
Tload is the resisting torque, including relevant friction and external loads.
This equation provides a starting point. Real designs may require additional terms for transmission losses, gravity, varying loads, and coupling effects.
For a linear axis driven by a lead screw, belt, or rack-and-pinion mechanism, convert the linear load into the corresponding motor torque using the transmission geometry and efficiency.
The calculated torque demand must then be compared with the motor's available torque at the actual operating speed.
7.2 Maximum Speed and Acceleration
Determine the required peak speed, acceleration, deceleration, and direction-change frequency.
A motor may reach the desired steady-state speed but still fail during rapid acceleration because its available torque is insufficient.
Evaluate the full motion profile, including the shortest and most demanding movement cycles.
7.3 Encoder Resolution and Positioning Accuracy
Encoder resolution determines the granularity of rotor-position measurement, but higher resolution alone does not guarantee better placement accuracy.
The complete positioning chain includes the encoder, motor, drive, coupling, transmission, linear guide, structural stiffness, and machine calibration.
For applications involving very small components, consider whether linear encoders, vision correction, or tool-position verification are also required.
7.4 Inertia Matching and Mechanical Resonance
High-speed positioning can become difficult when motor and load inertia are poorly matched or the motion profile excites mechanical resonance.
Evaluate the inertia of the motor, transmission, carriage, payload, and other moving components.
Belt elasticity, lead-screw characteristics, coupling stiffness, and structural vibration should also be considered. Appropriate acceleration profiles and mechanical design can be as important as the motor itself.
7.5 Power Supply and Drive Current
The motor must operate with a suitable supply voltage and current configuration.
Insufficient voltage can limit high-speed current rise in the windings and reduce available torque. Incorrect current settings can lead to inadequate torque, excessive heating, or unnecessary energy consumption.
Confirm the manufacturer's recommended voltage range, phase current, peak-current behavior, and thermal limitations.
7.6 Communication and Machine Controller Compatibility
The motor's command interface must match the machine's control architecture.
Common options include pulse-and-direction commands and industrial communication interfaces such as RS485 or CANopen. Other protocols may be available on specific products.
Before purchasing, verify command timing, supported modes, communication parameters, alarm handling, synchronization requirements, and the availability of suitable configuration tools.
7.7 Thermal Performance and Duty Cycle
High-speed pick and place machines can generate repeated bursts of motor heating during acceleration and deceleration.
Evaluate motor temperature under the intended duty cycle, ambient temperature, mounting arrangement, ventilation conditions, and enclosure configuration.
A motor that performs well during a short bench test may behave differently during continuous production.
7.8 Mechanical Dimensions and Mounting Options
Check the frame size, shaft dimensions, mounting-hole pattern, connector position, cable exit, and available installation space.
The integrated electronics must also have suitable thermal conditions and protection for the machine environment.
For compact linear modules and multi-axis placement equipment, connector accessibility and cable routing can affect assembly time and long-term serviceability.
8. Common Causes of Step Loss in High-Speed Pick and Place Machines
Even when a closed loop motor is installed, the surrounding motion system must be properly designed. Many positioning problems originate from the mechanical assembly, electrical configuration, or motion-control strategy rather than the motor alone.
8.1 Insufficient Torque at Operating Speed
A motor may have sufficient holding torque but insufficient torque during rapid movement.
Review the torque-speed curve, increase available torque where appropriate, reduce acceleration, select a more suitable motor, or revise the transmission.
8.2 Excessive Acceleration and Abrupt Direction Changes
Aggressive acceleration profiles increase torque demand and can excite structural vibration.
Adjusting acceleration and deceleration limits, introducing suitable motion ramps, and optimizing the trajectory can improve tracking stability without necessarily increasing motor size.
8.3 Mechanical Binding or Excessive Friction
Misaligned rails, damaged bearings, overtightened belts, poorly installed lead screws, and cable drag can increase the load unexpectedly.
These problems may trigger following errors even when the selected motor is otherwise adequate. Mechanical inspection should therefore be part of the commissioning process.
8.4 Incorrect Motor and Drive Configuration
Incorrect phase-current settings, unsuitable control parameters, incorrect encoder configuration, or an inappropriate motion profile can compromise performance.
Follow the manufacturer's configuration procedure and verify motor behavior under realistic load conditions.
8.5 Electrical Noise and Unstable Connections
High-frequency switching, poor grounding, unsuitable cable routing, and loose connectors can interfere with command or feedback signals.
Use appropriate industrial wiring practices, separate sensitive feedback and communication cables from high-noise power wiring where required, and verify connector specifications.
The correct grounding and shielding method depends on the motor and machine design.
8.6 Excessive Temperature
Sustained high current, poor heat dissipation, excessive ambient temperature, and demanding duty cycles can push the motor or drive beyond its intended thermal limits.
Temperature monitoring, appropriate mounting, correct current settings, and sufficient torque margin help maintain reliable operation.
8.7 Problems in the Transmission or Final Positioning System
The encoder in an integrated motor typically measures rotor position, not necessarily the exact position of the placement nozzle or carriage.
Backlash, belt stretch, coupling slip, screw errors, and structural deformation can cause the final mechanism to deviate even when the motor's rotor follows its command.
For applications with demanding placement tolerances, consider direct linear feedback, calibration routines, and machine-vision verification as part of the overall system design.
Integrated closed loop stepper motors are widely used in high-speed automation systems that require accurate positioning, repeatable motion, and reliable operation under changing loads. By combining the stepper motor, encoder, and drive into one compact unit, these motors simplify machine integration while providing feedback to detect position errors and help maintain motion accuracy.
For equipment manufacturers, the main advantage is not simply achieving higher speed. It is maintaining consistent positioning during frequent acceleration, deceleration, direction changes, and repetitive production cycles.
High-speed pick and place machines repeatedly move components between predefined positions. These movements often involve rapid acceleration, short travel distances, and frequent changes in direction.
Integrated closed loop stepper motors help these systems by:
Monitoring rotor position through encoder feedback.
Detecting deviations between commanded and actual motor position.
Helping the drive correct tracking errors within its current, torque, and speed limits.
Reducing the risk of undetected positioning errors during repetitive operation.
Simplifying wiring and installation through an integrated motor-and-drive design.
For high-speed pick and place equipment, motor selection should consider dynamic torque at the required speed, acceleration time, load inertia, positioning repeatability, and the mechanical stiffness of the transmission system.
9.2 Automated Packaging Machines
Packaging equipment often performs repetitive movements such as feeding film, positioning containers, cutting materials, sealing packages, and indexing products between stations.
Integrated closed loop stepper motors are suitable for these applications because they can provide controlled incremental motion while using feedback to monitor positioning performance.
Common applications include:
Packaging film feeding and cutting.
Carton forming and indexing.
Label dispensing and positioning.
Filling-machine indexing mechanisms.
Product sorting and transfer units.
In these systems, the motor must maintain stable operation under changing loads and production speeds. For film feeding or cutting, synchronization with sensors and the machine controller is also important. Encoder feedback at the motor does not automatically guarantee the final position of the packaging material, so belt slip, backlash, and other mechanical errors must be considered.
9.3 Electronics Manufacturing and PCB Assembly
Electronic manufacturing equipment requires precise movement when handling circuit boards, electronic components, connectors, and small mechanical parts.
Integrated closed loop stepper motors can be used in:
PCB transfer and positioning mechanisms.
Component feeders.
Automated screw-driving equipment.
Connector insertion machines.
Small-part assembly stations.
Inspection equipment with motorized positioning axes.
These applications benefit from compact installation, repeatable motion, and feedback-based error monitoring. However, the required accuracy depends on the entire motion system, including the encoder, coupling, lead screw or belt drive, machine frame, and external sensing equipment.
For very high-speed placement applications, engineers should verify that the motor's available torque remains sufficient throughout the acceleration and operating-speed range.
9.4 Sorting, Conveying, and Material Handling Systems
High-speed sorting and conveying systems move products through multiple processing or distribution stages. Motorized mechanisms may need to index trays, position packages, actuate diverters, or transfer products between conveyor sections.
Integrated closed loop stepper motors can support:
Conveyor indexing.
Package positioning.
Sorting gates and diverter mechanisms.
Automated tray transfer.
Small-load material handling.
Position-controlled feed mechanisms.
The integrated design can reduce the number of separate drive components and simplify cabinet layout, particularly where many independent motion axes are installed.
For systems with high inertia, heavy loads, or continuous high-speed operation, engineers should check the motor's thermal performance, peak and continuous torque requirements, braking needs, and the suitability of the gearbox or mechanical transmission.
9.5 Medical and Laboratory Automation
Medical and laboratory equipment often requires controlled, repeatable movement in a compact installation space. Integrated closed loop stepper motors may be used in applications such as:
Liquid handling and sample preparation.
Automated pipetting mechanisms.
Syringe pump drive systems.
Sample tray positioning.
Laboratory consumable handling.
Automated diagnostic equipment.
Encoder feedback helps the drive monitor motor movement, while the integrated design can reduce installation complexity. For fluid-handling equipment, however, motor position alone does not establish dispensing accuracy. Syringe dimensions, lead-screw pitch, fluid properties, mechanical compliance, backlash, and calibration also affect the delivered volume.
Medical equipment manufacturers should additionally evaluate applicable electrical safety, electromagnetic compatibility, cleaning, noise, reliability, and regulatory requirements for the finished device.
9.6 CNC Auxiliary Axes and Precision Motion Equipment
Integrated closed loop stepper motors can also drive auxiliary axes and positioning mechanisms in compact CNC machines, engraving systems, inspection equipment, and automated fixtures.
Typical uses include:
Tool adjustment mechanisms.
Workpiece positioning stages.
Camera and sensor positioning.
Automated clamping systems.
Compact linear-motion modules.
Auxiliary feed axes.
For these applications, the motor should be matched to the required travel speed, acceleration, load, and positioning repeatability. A lead-screw or belt-driven axis may require additional attention to backlash, rigidity, resonance, and the relationship between motor feedback and actual carriage position.
When the application demands exceptionally high bandwidth, high dynamic torque, or very tight closed-loop contour control, a servo system may be more appropriate.
9.7 How to Match the Motor to the Application
Different automation applications impose different demands on speed, torque, accuracy, and control integration. The following table provides an initial selection guide.
Before finalizing a motor, equipment manufacturers should define the actual load, travel distance, motion profile, operating speed, acceleration, cycle rate, control interface, and installation constraints. Testing a prototype under representative operating conditions is the best way to verify whether the selected integrated closed loop stepper motor can meet the machine's performance requirements.
10. How to Test an Integrated Closed Loop Stepper Motor Before Mass Production
Before mass production, testing an integrated closed loop stepper motor is essential to verify that it can meet the machine's speed, positioning, torque, thermal, and reliability requirements under real operating conditions.
For OEM equipment manufacturers, a motor that performs well during a short bench test may still experience positioning errors, overheating, vibration, or communication problems after installation in the complete machine. A structured validation process helps identify these issues before they affect production schedules, product quality, or field reliability.
The following testing procedure can help manufacturers evaluate an integrated closed loop stepper motor for high-speed pick and place machines and other automated equipment.
10.1 Verify the Motor Specifications and Configuration
Before testing begins, confirm that the motor configuration matches the machine design and technical requirements.
Check the following parameters:
Rated voltage and operating voltage range.
Rated current and maximum drive current.
Holding torque and dynamic torque-speed characteristics.
Encoder type and feedback resolution.
Maximum operating speed.
Supported control modes and communication interfaces.
Motor dimensions, mounting holes, shaft size, and connector positions.
Available protection functions and operating temperature range.
The motor, drive, encoder, and controller must be compatible with the intended application. For example, a machine using pulse-and-direction control requires a compatible command interface, while a network-controlled machine may require an appropriate RS485-based protocol, CANopen, or EtherCAT implementation.
It is also important to distinguish between an electrical interface and a communication protocol. RS485 defines the electrical signaling standard; the actual communication protocol and supported functions depend on the product configuration.
10.2 Test Positioning Accuracy and Repeatability
Positioning performance is one of the most important factors for high-speed automation. A motor may follow commands correctly at low speed but show greater tracking errors when acceleration increases or the mechanical load changes.
A typical test procedure is:
Command the motor to move between several predefined positions.
Measure the actual position using a suitable reference instrument, such as an external linear encoder, laser displacement sensor, or precision measurement system.
Repeat the same movement over multiple cycles.
Compare the commanded position with the measured position.
Repeat the test at different speeds, accelerations, and load conditions.
Two measurements should be distinguished:
Positioning accuracy: How close the measured position is to the target position.
Repeatability: How consistently the system returns to the same position under the same conditions.
The motor's internal encoder provides feedback about rotor movement. It does not necessarily measure the final position of the machine's tool, gripper, or linear carriage. If the application requires high mechanical positioning accuracy, external measurement may be necessary to evaluate the complete motion system.
10.3 Test High-Speed Acceleration and Deceleration
High-speed pick and place machines frequently accelerate, decelerate, and reverse direction within short periods. These operating conditions can reveal problems that do not appear during steady-speed testing.
During validation, test:
Maximum required operating speed.
Acceleration and deceleration time.
Frequent start-stop cycles.
Rapid direction changes.
Short-distance positioning movements.
Repeated movements at the intended production cycle rate.
Monitor the motor's following error, alarms, vibration, acoustic noise, and ability to complete each commanded movement.
The objective is not simply to determine the highest speed the motor can reach. It is to verify that the motor can achieve the required production cycle time while maintaining acceptable positioning performance and sufficient torque margin.
If the motor exhibits excessive tracking error or vibration, review the acceleration profile, load inertia, current settings, mechanical resonance, and transmission design before increasing the operating speed further.
10.4 Test Torque and Load Capacity
A closed loop stepper motor should be tested with the actual or representative mechanical load rather than under no-load conditions alone.
The validation process should include:
Testing at the expected continuous operating load.
Evaluating peak torque requirements during acceleration.
Checking performance when the load changes.
Verifying the effect of gearboxes, couplings, belts, or lead screws.
Confirming that the motor can complete repeated motion cycles without unacceptable tracking errors or alarms.
Dynamic torque is particularly important because a motor's holding torque does not represent the torque available at every operating speed.
For high-speed applications, compare the required torque-speed profile with the manufacturer's dynamic torque curve. Include the effects of friction, transmission efficiency, load inertia, and acceleration.
A motor that operates close to its torque limit may have insufficient margin to handle normal variations in friction, payload, or operating conditions.
10.5 Conduct Thermal Testing
Temperature testing helps determine whether the motor and integrated drive can operate reliably over the intended production cycle.
Run the motor under representative conditions, including the expected load, speed, acceleration profile, ambient temperature, and duty cycle. Continue testing until the temperature stabilizes or the planned test duration is reached.
Record:
Motor housing temperature.
Drive temperature, where measurable.
Ambient temperature.
Operating current and load conditions.
Temperature-related warnings or protection events.
Changes in positioning performance during extended operation.
Confirm that measured temperatures remain within the manufacturer's specified limits.
Thermal performance can be affected by installation orientation, airflow, mounting surface, enclosure design, ambient temperature, and the heat generated by nearby equipment. A motor that passes an open-bench test may run hotter when installed inside a compact machine enclosure.
10.6 Evaluate Vibration, Noise, and Motion Smoothness
Vibration and noise can affect positioning quality, machine life, and the working environment. They may also indicate resonance, mechanical misalignment, loose mounting hardware, or unsuitable control settings.
Test the motor across its intended speed range and observe:
Vibration during acceleration and deceleration.
Noise at low, medium, and high speeds.
Smoothness during low-speed movement.
Stability during repeated positioning.
Mechanical resonance at particular operating speeds.
Vibration transmitted to the machine frame.
If vibration is excessive, inspect the mounting structure, coupling alignment, transmission stiffness, load inertia, and control parameters. Microstepping and closed-loop feedback can help improve motion behavior, but they cannot compensate for every mechanical design problem.
10.7 Verify Encoder Feedback and Alarm Functions
The encoder and feedback-control system are central to an integrated closed loop stepper motor. Testing should confirm that the drive responds appropriately when actual motor movement differs from the commanded movement.
Where supported by the product, verify:
Encoder feedback is detected correctly.
Position tracking remains stable during normal operation.
Following-error thresholds behave as configured.
Overload or position-error alarms activate as specified.
Fault outputs and diagnostic information reach the controller.
Recovery procedures work correctly after a fault.
Protection functions do not trigger unexpectedly during normal operation.
Fault simulation must follow the manufacturer's instructions. Do not deliberately disconnect encoder wiring or create overload conditions unless the test procedure explicitly permits it and the equipment can be operated safely.
The purpose is to verify both normal feedback operation and the system's response to abnormal conditions.
10.8 Test Communication and Controller Compatibility
For integrated motors using pulse-and-direction, RS485, CANopen, or EtherCAT, communication testing should be completed before mass production.
Check the following:
Command reception and execution.
Communication stability during continuous operation.
Correct parameter configuration.
Alarm and status feedback.
Controller compatibility.
Startup and shutdown behavior.
Recovery after a communication interruption, where supported.
Behavior when multiple motors operate simultaneously.
For network-controlled systems, test the complete communication architecture rather than a single motor in isolation. Cable length, grounding, shielding, network topology, electrical noise, and controller configuration can all affect communication reliability.
For high-speed machines, verify that communication timing and motion-command updates can support the intended cycle rate.
10.9 Run an Endurance Test Under Representative Conditions
A short functional test confirms that the motor operates, but it does not establish long-term reliability. An endurance test helps identify issues that appear after repeated operation.
Run the motor using a representative production motion profile, including realistic acceleration, deceleration, load changes, pauses, and direction reversals.
During the test, record:
Total operating time or cycle count.
Positioning errors and fault frequency.
Motor and drive temperatures.
Changes in vibration or noise.
Communication interruptions.
Connector, cable, and mounting stability.
Any changes in performance over time.
Define the test duration and acceptance criteria before testing begins. The required duration depends on the application, production cycle, expected service life, and risk level. A successful endurance test reduces uncertainty but does not, by itself, guarantee a specific field service life.
10.10 Validate the Motor in the Complete Machine
The final validation should take place on the actual machine or a representative prototype. This is particularly important for high-speed pick and place equipment, where motor performance interacts with mechanical design, motion planning, sensors, and controller behavior.
Test the complete system for:
Required production cycle time.
Positioning accuracy and repeatability.
Performance at minimum and maximum expected payloads.
Stability during continuous production.
Coordination between multiple axes.
Recovery from defined faults.
Temperature and vibration under normal installation conditions.
For example, a pick and place axis may perform well during isolated movements but lose repeatability when several axes accelerate simultaneously. Full-machine testing can reveal these interactions before they become production problems.
10.11 Establish Clear Acceptance Criteria
Before testing, document the requirements that the motor must satisfy. Acceptance criteria should be measurable and related to the actual machine specification.
Test item
Example acceptance criterion
Positioning
Meets the machine's specified accuracy and repeatability
Speed
Achieves the required operating speed under the specified load
Acceleration
Completes the required motion profile without unacceptable tracking errors
Torque
Maintains sufficient torque margin throughout the operating cycle
Temperature
Remains within the manufacturer's specified limits
Vibration and noise
Meets the equipment's defined operating limits
Feedback and alarms
Functions according to the motor's documented specifications
Communication
Meets the required stability and controller compatibility criteria
Endurance
Completes the defined cycle count or test duration without unacceptable failures
These criteria should be adapted to the specific application. Avoid relying on vague requirements such as “runs smoothly” or “has no problems.” Measurable limits make it easier for engineering, quality assurance, procurement, and the motor supplier to evaluate the results consistently.
10.12 Prepare for Mass Production with JKONGMOTOR
For OEM equipment manufacturers, pre-production validation is also an opportunity to confirm that the selected motor configuration can be reproduced consistently in future batches.
JKONGMOTOR can support integrated closed loop stepper motor selection and customization according to project requirements, including motor sizing, drive configuration, encoder options, communication interfaces, mechanical dimensions, and application-specific integration needs, subject to product availability and technical feasibility.
A practical process includes:
Requirement review: Define the load, speed, acceleration, positioning target, duty cycle, and controller interface.
Motor selection: Match the motor and drive configuration to the application's operating conditions.
Prototype evaluation: Test the motor on a bench and in the intended mechanical assembly.
Production confirmation: Document the approved configuration and acceptance criteria before placing the mass-production order.
The key is to validate the motor as part of the complete motion system, not simply as an individual component. This approach helps reduce integration risks, improve production consistency, and identify performance limitations before they affect a larger batch of machines.
11. Why Integrated Closed Loop Stepper Motors Are Valuable for OEM Machine Manufacturers
For original equipment manufacturers, motor selection affects more than the motion axis itself. It also influences electrical design, machine assembly, software development, commissioning, servicing, and product standardization.
An integrated closed loop stepper motor can reduce the number of separately installed components and simplify the interface between the motor and machine controller.
When the same motor platform can be used across several machine models, OEMs may benefit from standardized mounting arrangements, common configuration procedures, and a more consistent spare-parts strategy.
However, integration must be evaluated in the context of the complete application.
The motor must meet the machine's torque-speed requirements, positioning tolerance, duty cycle, thermal limits, and communication needs. A compact integrated unit is not automatically the best solution if the application requires specialized cooling, a separate high-performance drive, or a different feedback architecture.
We recommend discussing actual operating conditions with the motor manufacturer before finalizing the design.
12. How JKONGMOTOR Can Support Integrated Closed Loop Stepper Motor Selection
Selecting an integrated closed loop stepper motor for high-speed automation involves more than matching a motor frame size or checking its holding torque. Equipment manufacturers need to consider dynamic torque, acceleration, positioning repeatability, encoder feedback, communication compatibility, thermal performance, installation space, and long-term production requirements.
JKONGMOTOR supports OEMs, machine builders, and automation equipment manufacturers in evaluating integrated closed loop stepper motor solutions for applications such as high-speed pick and place machines, packaging equipment, electronic assembly systems, laboratory automation, and precision linear-motion mechanisms.
As a motion-control manufacturer offering OEM/ODM customization, JKONGMOTOR can help customers evaluate motor configurations and integration options according to their application requirements.
12.1 Application-Based Motor Selection
Different automation applications require different combinations of speed, torque, positioning performance, and control functionality. JKONGMOTOR can help customers identify the key operating parameters before choosing a suitable motor configuration.
The selection process typically considers:
Load and torque requirements: Payload, friction, transmission efficiency, and the torque required during acceleration.
Operating speed: Required running speed and available dynamic torque at that speed.
Motion profile: Travel distance, acceleration, deceleration, direction changes, and production cycle time.
Positioning requirements: Target accuracy, repeatability, and the need for external position measurement.
Installation constraints: Motor dimensions, mounting arrangements, shaft configuration, and available space.
Operating environment: Ambient temperature, ventilation, duty cycle, and other application-specific conditions.
This application-based approach helps prevent common selection mistakes, such as choosing a motor based only on holding torque or assuming that a larger frame size will automatically deliver better high-speed performance.
12.2 Integrated Motor and Drive Configuration
An integrated closed loop stepper motor combines the motor, encoder, and drive in one unit. This design can reduce the number of separate components, simplify wiring, and make machine integration more convenient.
Depending on the selected product configuration, customers can evaluate options such as:
Integrated motor and drive architecture.
Encoder feedback and position-monitoring functions.
Pulse-and-direction control.
Supported serial or industrial communication interfaces.
Configurable operating parameters and protection functions.
Connector, cable, and mounting arrangements.
The available functions depend on the specific model. Before ordering, customers should confirm the supported control modes, communication protocols, electrical ratings, feedback specifications, and alarm outputs.
For example, RS485 is an electrical interface rather than a complete communication protocol. If a machine requires Modbus RTU or another protocol, the selected motor and controller must explicitly support the required implementation.
12.3 Communication Compatibility for Automation Equipment
Modern automation systems may use different control architectures depending on the machine design, controller platform, and required coordination between axes.
JKONGMOTOR can help customers evaluate suitable control interfaces for their application, subject to the capabilities of the selected model.
Common considerations include:
Pulse-and-direction: Suitable for controllers that generate step and direction commands.
RS485-based communication: Useful when the motor supports the required serial protocol and command functions.
CANopen: An option for systems requiring compatible network communication and drive control.
EtherCAT: Relevant to applications requiring real-time industrial networking, provided the selected motor and controller support compatible EtherCAT functions.
When selecting a communication interface, machine builders should also evaluate command update rates, synchronization requirements, network topology, cable routing, electromagnetic compatibility, and diagnostic capabilities.
For multi-axis pick and place equipment, these factors can be as important as the motor's mechanical specifications.
12.4 OEM/ODM Customization for Machine Builders
Standard motor configurations may not meet every equipment manufacturer's mechanical, electrical, or integration requirements. OEM/ODM customization can help align the motor with the machine's design and production needs.
Depending on technical feasibility and the selected product platform, customization discussions may cover:
Motor dimensions and mounting interfaces.
Shaft or mechanical transmission requirements.
Encoder and control configurations.
Cable lengths, connectors, and wiring arrangements.
Communication interfaces and parameter settings.
Integration with lead screws, linear modules, or gearboxes.
Application-specific testing and production requirements.
For example, a compact pick and place machine may prioritize a small installation footprint and low moving mass. A packaging machine may place greater emphasis on continuous operation, rapid indexing, and thermal performance. A linear positioning system may require a compatible lead-screw mechanism and careful evaluation of carriage accuracy.
The objective is to identify a practical configuration that fits the complete machine rather than selecting a motor in isolation.
12.5 Prototype Testing Before Mass Production
Prototype validation is an important step in reducing integration risks before a production order is released.
JKONGMOTOR customers can define the application requirements and evaluate the proposed motor configuration through an agreed testing process. Depending on the project, validation may include:
Reviewing the application parameters and technical specifications.
Confirming motor, drive, encoder, and controller compatibility.
Testing the motor under representative load and speed conditions.
Evaluating positioning repeatability, acceleration, and dynamic torque.
Monitoring temperature, vibration, alarms, and communication stability.
Testing the motor in the actual machine or a representative prototype.
Documenting the approved configuration and acceptance criteria.
For high-speed pick and place machines, testing should reproduce the intended motion profile as closely as practical. Repeated acceleration, deceleration, short-distance movements, and rapid direction changes can reveal limitations that may not appear during steady-speed operation.
Testing should also distinguish motor-shaft feedback from the final position of the tool or carriage. If the application requires tight mechanical positioning tolerances, the complete transmission system may need additional measurement.
12.6 Support for Different High-Speed Automation Applications
JKONGMOTOR integrated closed loop stepper motor solutions can be evaluated for a range of automation applications, depending on the required specifications and available product configurations.
Application
Main selection priorities
High-speed pick and place machines
Dynamic torque, acceleration, repeatability, cycle time
Electronic assembly equipment
Compact design, stable positioning, vibration control
This application-oriented selection process helps equipment manufacturers compare solutions based on actual operating requirements rather than relying on general product descriptions.
12.7 A Practical Process from Inquiry to Mass Production
For OEM projects, motor selection is most effective when the technical requirements are established early and confirmed through testing.
A typical workflow is:
Step 1: Application inquiry
Provide the application type, payload, operating speed, acceleration, travel distance, duty cycle, and required positioning performance.
Step 2: Technical evaluation
Review the load conditions, torque-speed requirements, mechanical arrangement, control architecture, and installation constraints.
Step 3: Configuration and customization
Confirm the motor model, encoder, drive functions, communication interface, mechanical dimensions, and other project-specific requirements.
Step 4: Prototype testing
Evaluate performance under representative operating conditions and identify any necessary adjustments.
Step 5: Production confirmation
Approve the technical configuration, inspection requirements, and acceptance criteria before mass production.
This process gives engineering, procurement, and quality teams a clearer basis for evaluating the motor and managing project risks.
12.8 Why Work with JKONGMOTOR?
When choosing an integrated closed loop stepper motor supplier, OEMs should evaluate more than the unit price. Technical communication, configuration consistency, customization capability, and the ability to support prototype validation can all influence the total cost of machine development.
JKONGMOTOR focuses on motion-control products and OEM/ODM solutions for equipment manufacturers. By reviewing the application, motor configuration, and integration requirements together, customers can work toward a solution that balances performance, installation complexity, and production needs.
For a project-specific evaluation, prepare the following information before contacting the engineering team:
Required voltage and available power supply.
Load, transmission type, and estimated torque requirement.
Target speed, acceleration, and cycle time.
Positioning accuracy and repeatability requirements.
Preferred controller and communication interface.
Available motor dimensions and mounting space.
Expected production quantity and customization requirements.
Contact JKONGMOTOR to discuss your integrated closed loop stepper motor requirements. Providing the machine's operating parameters and control specifications will help the team evaluate suitable configurations and identify the next steps for prototype testing and OEM/ODM development.
13. Frequently Asked Questions About Integrated Closed Loop Stepper Motors for Pick and Place Machines
1. What is an integrated closed loop stepper motor?
An integrated closed loop stepper motor combines a stepper motor, encoder, and drive in one unit. The encoder provides position feedback, allowing the drive to monitor motor movement and respond to tracking errors within its operating limits. This integrated design can simplify wiring, reduce component count, and support reliable positioning in automated machinery.
2. How does an integrated closed loop stepper motor prevent step loss?
The encoder monitors the motor's actual position and provides feedback to the drive. When the motor's movement deviates from the commanded position, the drive can respond according to its control strategy and configured limits. This helps reduce undetected positioning errors, although step loss or tracking errors can still occur if the load exceeds the motor's capabilities or other system limitations arise.
3. Are integrated closed loop stepper motors suitable for high-speed pick and place machines?
Yes. They can be suitable for pick and place machines that require rapid acceleration, frequent direction changes, and repeatable positioning. Selection should be based on dynamic torque at the required speed, load inertia, acceleration time, positioning requirements, and production cycle rate. Applications with exceptionally demanding dynamic performance may benefit from a servo system instead.
4. What types of integrated closed loop stepper motors are available for automation?
Common configurations include pulse-and-direction models, models with supported serial communication, CANopen-compatible models, compact integrated units, higher-torque configurations, and motors designed for linear-motion mechanisms. Gearbox-equipped options may also be available. The appropriate type depends on the application's torque, speed, mechanical arrangement, controller compatibility, and installation requirements.
5. How do I choose the right integrated closed loop stepper motor?
Start by defining the load, travel distance, required speed, acceleration, cycle time, and positioning repeatability. Then evaluate the motor's dynamic torque-speed curve, encoder specifications, voltage and current requirements, duty cycle, thermal limits, and control interface. Prototype testing under representative operating conditions helps confirm whether the selected motor meets the machine's requirements.
6. What is the difference between an integrated closed loop stepper motor and an open loop stepper motor?
An open loop stepper motor typically executes motion commands without encoder-based position feedback. An integrated closed loop stepper motor uses encoder feedback to monitor actual motor movement and detect tracking errors. Closed loop operation can improve error detection and motion reliability, but it generally involves additional feedback components and does not eliminate every possible positioning error.
7. Which communication interfaces should I choose for an integrated closed loop stepper motor?
Pulse-and-direction control may suit machines using conventional motion controllers. RS485-based communication can be appropriate when the required protocol is supported. CANopen and EtherCAT may suit systems with compatible industrial communication architectures. The decision should account for controller compatibility, synchronization requirements, command timing, network topology, and diagnostic needs.
8. How can I test an integrated closed loop stepper motor before mass production?
Test positioning accuracy, repeatability, acceleration, dynamic torque, temperature, vibration, encoder feedback, communication stability, and endurance. Evaluate the motor under representative loads and motion profiles, then validate it in the complete machine. Define measurable acceptance criteria before testing and document the approved motor configuration before mass production.
9. Can an integrated closed loop stepper motor be customized for OEM automation equipment?
Depending on the product platform and technical feasibility, OEM/ODM customization may include motor dimensions, mounting interfaces, shaft configurations, encoder options, communication interfaces, cables, connectors, and integration with gearboxes or linear modules. Equipment manufacturers should provide their application parameters and controller requirements to help the supplier assess suitable configurations.
10. How can JKONGMOTOR help select an integrated closed loop stepper motor?
JKONGMOTOR can support OEMs and automation equipment manufacturers in evaluating motor configurations according to load, speed, acceleration, positioning requirements, control interfaces, and installation constraints. Depending on the project, support may include technical evaluation, configuration selection, customization discussions, and prototype validation before mass production.
14. Conclusion: Improving Pick and Place Reliability with Integrated Closed Loop Stepper Motors
An integrated closed loop stepper motor helps prevent step loss in high-speed pick and place machines by measuring actual rotor position, comparing it with the commanded motion, and adjusting motor control when tracking errors occur.
This feedback provides an important advantage over conventional open-loop stepper systems, particularly when equipment operates with rapid acceleration, repetitive positioning, changing loads, and limited tolerance for undetected motion errors.
However, reliable high-speed positioning requires more than an encoder. The motor must provide sufficient torque at the required speed, the drive must respond appropriately to tracking errors, and the mechanical transmission must maintain the required accuracy.
For machine manufacturers, the most effective approach is to evaluate the complete motion profile, select a suitable integrated motor configuration, and validate performance through prototype testing under real operating conditions.
When these factors are addressed together, integrated closed loop stepper motors can provide a practical balance of positioning reliability, compact integration, and cost-effective motion control for demanding industrial automation applications.
Choosing the right motor is therefore not simply a matter of preventing missed steps. It is about building a motion system that delivers repeatable positioning, predictable operation, easier troubleshooting, and dependable production performance throughout the machine's service life.
