Integrated Linear Stepper Motor

Jkongmotor Integrated Linear Stepper Motors:

Jkongmotor offers a variety of linear stepper motors, each tailored for specific applications:

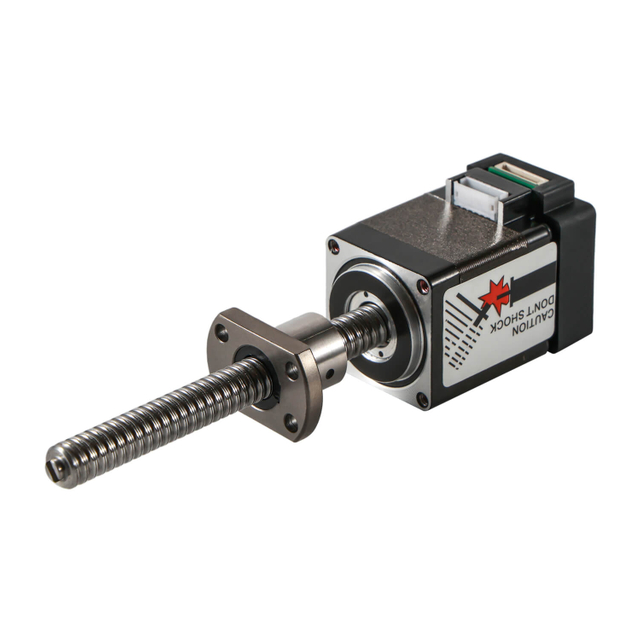

Integrated External Linear Stepper Motor (T-type and Ball Screw):

This design features an external threaded shaft, allowing the motor to convert rotary motion into linear movement. It is particularly effective in applications that demand high-speed operation and long-stroke capabilities.



Integrated Captive Linear Stepper Motor:

Captive motors come with an integrated shaft and nut assembly that confines motion to linear travel only. They are well-suited for applications that require precise guided movement.

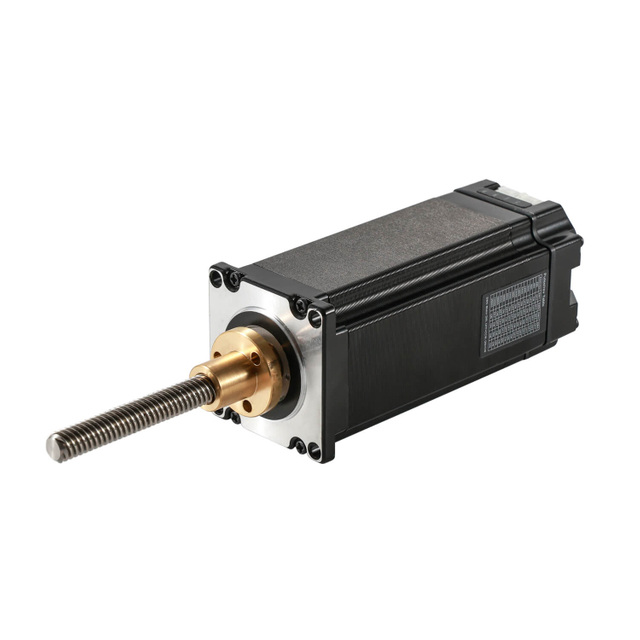

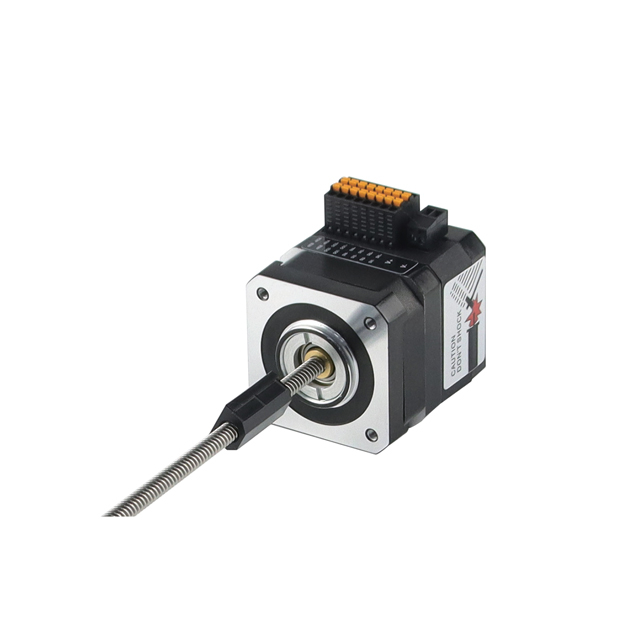

Integrated Non-Captive Linear Stepper Motor:

In this design, the shaft can move freely while the nut remains stationary, providing versatility for applications where custom mounting solutions are necessary.

In addition to their high-performance hybrid stepper linear motors, Jkongmotor also supplies high-quality leadscrews and nuts. This assortment opens up new possibilities for equipment designers looking for high performance and exceptional durability. Notably, Jkongmotor actuators are capable of generating greater force than comparable models, thanks to their unique stator geometry and optimized magnetic materials.

What Is Integrated Linear Stepper Motor?

Intelligent linear stepper motors merge integrated stepper servo technology with high precision screws, offering accuracy and convenience in compact actuators designed for linear positioning applications.



An integrated linear stepper motor is a sophisticated electromechanical device that seamlessly combines a traditional stepper motor with a linear motion mechanism. Unlike standard stepper motors, which generate rotational motion, this innovative system directly transforms rotary motion into precise linear movement. This design eliminates the need for additional transmission components such as lead screws or belts, streamlining installation and operation.



These motors find extensive application in various fields, including automation, medical devices, semiconductor manufacturing, and CNC machinery, where they provide the high-precision linear motion essential for optimal performance.



Key Components of a Integrated Linear Stepper Motor

1. Stepper Motor Unit

The stepper motor serves as the driving force for linear motion. It has the following characteristics:

  • High positional accuracy: Operates in precise step increments.
  • No brushes: Ensures long lifespan with minimal maintenance.
  • Quick response: Supports rapid acceleration and deceleration, making it ideal for dynamic applications.


2. Linear Transmission Mechanism

The conversion of rotary motion to linear motion is achieved using:

  • Lead Screws: Common in standard linear stepper motors for moderate precision and cost-effective applications.
  • Ball Screws: Used in high-precision applications due to their low friction and high efficiency.
  • Belt Drives: Suitable for long-travel and high-speed applications but with slightly lower precision.


3. Driver and Controller

The stepper motor driver determines motion smoothness and precision. Advanced digital controllers enable microstepping technology, which minimizes noise and vibrations. Some integrated systems also include closed-loop control, ensuring accurate positioning without losing steps.





How Does a Integrated Linear Stepper Motor Work?

Linear stepper motors operate on the same fundamental principles as rotary stepper motors, utilizing electromagnetic forces to create motion. Below is a breakdown of their operation:



1. Electromagnetic Coils:

The motor consists of electromagnetic coils arranged in a sequence. When these coils are energized in a controlled pattern, they generate a magnetic field that interacts with the motor's permanent magnets.


2. Stepper Design:

Linear stepper motors use a threaded rod or a toothed belt to convert the rotational steps into linear steps. The precision of the movement depends on the design of the thread or belt.


3. Incremental Steps:

The motor moves in discrete steps, offering precise control over positioning. By controlling the sequence and frequency of electrical pulses sent to the coils, the motor can achieve exact movements.





Advantages of Integrated Linear Stepper Motors

1. Compact and Space-Saving Design

Unlike traditional stepper motors that require additional external linear actuators, integrated models provide an all-in-one solution, reducing system complexity and installation space.



2. High Precision and Accuracy

Stepper motors inherently offer high-precision movement due to their discrete step angles. When combined with microstepping controllers and precision lead screws, they achieve sub-micron positioning accuracy.



3. Low Maintenance and Long Service Life

Because no additional transmission mechanisms (like gears or belts) are needed, integrated linear stepper motors experience less wear and tear, leading to extended operational life with minimal maintenance.



4. Easy Control and Integration

  • Compatible with standard stepper motor drivers.
  • Can be controlled via PLC, microcontrollers (Arduino, Raspberry Pi), or motion control systems.
  • Supports open-loop and closed-loop control for improved precision.



Applications of Integrated Linear Stepper Motors

1. Medical Devices

  • Syringe Pumps: Ensures precise fluid delivery for medical treatments.
  • Imaging Equipment: Used in MRI and CT scanners for accurate positioning.


2. Semiconductor Manufacturing

  • Wafer Handling Systems: High-precision linear motion ensures accurate chip placement.
  • Lithography Machines: Requires sub-micron movement accuracy.


3. Industrial Automation

  • XYZ Motion Stages: Found in robotic arms, assembly lines, and laser cutting machines.
  • Pick-and-Place Systems: Enhances efficiency in automated manufacturing.


4. CNC Machines & 3D Printers

  • 3D Printing Heads: Provides precise XYZ-axis control for detailed prints.
  • CNC Milling Machines: Ensures high-speed, accurate cutting and engraving



How to Choose the Right Integrated Linear Stepper Motor?

1. Determine Load Requirements

  • Light Loads: Lead screws provide an economical solution.
  • Heavy Loads: Ball screws offer higher efficiency and load capacity.


2. Precision and Resolution Considerations

  • High-Precision Needs (<5μm): Microstepping controllers and ball screw integration are recommended.
  • Standard Precision (50-100μm): Lead screws can be sufficient.


3. Speed and Acceleration Requirements

  • High-Speed Motion (>500mm/s): Belt-driven systems provide rapid travel.
  • Low-Speed Precision (<100mm/s): Microstepping technology enhances accuracy.


4. Environmental Factors

  • Cleanroom Conditions: Low-dust, sealed designs are required.
  • Harsh Environments: Motors with IP65-rated protection resist moisture and contaminants.

Customized FAQs

—— OEM ODM Customized Intelligent BLDC / Steper Motion Control Manufacturer / Solution Provider Since 2011  ——

  • Q Does Jkongmotor offer OEM/ODM services for integrated linear motor solutions?

    A Yes — full OEM/ODM support is available for custom designs, including unique mechanical, electrical, and control requirements.

  • Q What is the lead time for customized integrated linear motors?

    A Sample orders can ship in   7–15 days , and bulk orders in   15–25 days , typically.

  • Q Can Jkongmotor modify motors for special environmental conditions?

    A Yes — environmental customization like sealing and protection can be arranged based on application needs.

  • Q What voltage range do these integrated motors support?

    A Typical voltage range is  DC 12V–36V , depending on the model.

  • Q Can communication interfaces like RS485 or CANopen be integrated?

    A Yes — advanced control options such as  pulse, RS485-Modbus-RTU, and CANopen  are supported.

  • Q Does Jkongmotor offer encoder or feedback customization?

    A Yes — closed-loop feedback options, including encoders for precise control, can be provided.

  • Q Is it possible to integrate the motor driver into the motor body?

    A Yes — Jkongmotor can supply  integrated drive + motor units  that reduce wiring and footprint.

  • Q Can I choose a specific protection level (e.g., IP rating)?

    A Yes — optional IP30, IP54, and IP65 protection levels can be selected for your motor.

  • Q Are different frame sizes available for integrated linear motors?

    A Yes — motors are available in various NEMA sizes such as  NEMA 8, 11, 17, 23, 24, and 34 .

  • Q Can I customize the screw type and size for my application?

    A Yes — Jkongmotor offers customization of lead screw or ball screw size, lead, and stroke based on your motion needs.

  • Q Are these linear motors suitable for high-speed applications?

    A Yes — belt-driven versions are ideal for high-speed, long-stroke motions.

  • Q What kind of linear transmission mechanisms are available?

    A Options include  lead screws  for cost-effective precision,  ball screws  for high efficiency and load, and  belt drives  for high-speed long travel.

  • Q Can I use these motors with standard stepper controllers?

    A Yes — they are compatible with common pulse-based stepper drivers and motion controllers.

  • Q What benefits do integrated linear stepper motors provide over traditional solutions?

    A They eliminate external actuators, reduce mechanical complexity, save space, and improve reliability and maintenance.

  • Q Do these motors support closed-loop control?

    A Yes — integrated systems can support closed-loop feedback for higher precision if required.

  • Q What are common applications for integrated linear stepper motors?

    A They’re widely used in  medical devices, semiconductor equipment, CNC and 3D printers, automation systems, and robotics .

  • Q What motion accuracy can I expect from these motors?

    A With precision lead or ball screws and microstepping control, sub-micron level positioning accuracy is achievable.

  • Q What types of integrated linear stepper motors does Jkongmotor offer?

    A Jkongmotor offers  Integrated External Linear ,  Integrated Captive , and  Integrated Non-Captive  designs tailored for different motion needs.
