How to Achieve High-Precision Faceting Control in Diamond Polishing Machines Using a NEMA 17 Stepper Motor?

Diamond polishing requires precise angular positioning, repeatable indexing, and stable mechanical movement. Even a small positioning deviation can affect facet symmetry, polishing consistency, and the quality of the finished stone. For diamond polishing machine manufacturers in India, selecting the right motion control components is essential for building equipment that delivers consistent results while maintaining competitive manufacturing costs.

A NEMA 17 stepper motor offers a practical solution for many diamond polishing machine applications, particularly those involving diamond holder indexing, faceting angle adjustment, and compact positioning mechanisms. Its standardized mounting dimensions, programmable movement, and compatibility with widely available stepper drivers make it attractive to manufacturers developing cost-effective automated and semi-automated polishing equipment.

However, high-precision faceting cannot be achieved by choosing a motor based on frame size alone. Motor torque, transmission backlash, microstepping configuration, vibration, mechanical rigidity, and control strategy all influence the final positioning performance.

In this guide, we explain how to select and integrate a NEMA 17 stepper motor for diamond polishing machines, how to improve faceting accuracy, and which technical factors Indian machine manufacturers should evaluate before purchasing motors for production.

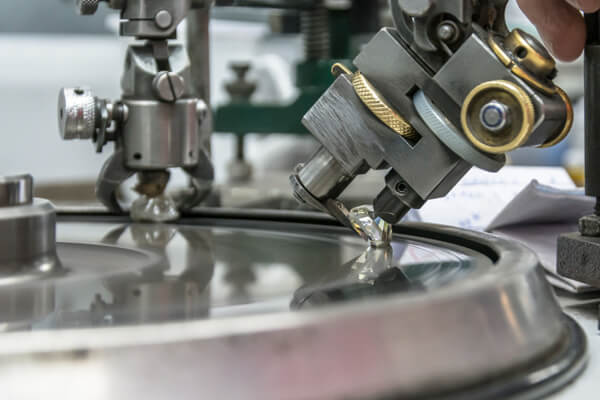

1. Understanding Diamond Polishing Machines and Their Precision Requirements

Diamond polishing machines are designed to shape and refine diamond surfaces through controlled contact with a polishing lap. Depending on the equipment design and processing stage, the machine may perform facet indexing, angular adjustment, stone positioning, controlled feeding, or other precision movements.

India has a well-established diamond processing industry, particularly in Surat, Gujarat. Manufacturers serving this market need equipment that balances positioning accuracy, production efficiency, ease of operation, maintenance requirements, and overall cost.

For machine builders, the challenge is not simply to make a motor rotate. It is to ensure that the diamond holder or positioning mechanism reaches the intended position consistently and remains stable throughout the required operation.

1.1 What Makes Diamond Faceting a Precision Application?

Unlike general polishing equipment, a diamond faceting machine must maintain a controlled relationship between the diamond's orientation and the polishing surface.

The equipment may require several types of movement:

• Angular indexing: Rotating the diamond holder to position successive facets.

• Faceting angle adjustment: Setting the required angle between the stone and the polishing plane.

• Fine positioning: Making small mechanical adjustments during setup or calibration.

• Controlled feeding: Moving the stone holder toward or away from the polishing lap.

• Repeatable repositioning: Returning to previously defined positions during a programmed sequence.

Each axis has different torque, speed, and accuracy requirements. A NEMA 17 stepper motor may be suitable for a compact indexing or adjustment mechanism, while a larger motor or a different drive technology may be more appropriate for a heavily loaded or continuously rotating polishing spindle.

The first step toward accurate faceting is identifying exactly which movement the motor must control.

1.2 Why Positioning Repeatability Matters

A positioning mechanism must do more than reach a target angle once. It should return to that position consistently across repeated operating cycles.

Poor repeatability can lead to additional operator adjustments, inconsistent facet geometry, longer setup times, and difficulties when automating established polishing procedures.

For diamond polishing machine manufacturers, the main objectives are:

• Consistent angular indexing.

• Predictable low-speed movement.

• Minimal lost motion during direction changes.

• Stable positioning under the intended mechanical load.

• Repeatable homing and calibration.

• Reliable operation throughout the machine's expected duty cycle.

A properly selected NEMA 17 stepper motor can support these objectives when the motor, driver, transmission, and control system are designed as a complete motion control solution.

2. What Is a NEMA 17 Stepper Motor?

A NEMA 17 stepper motor is a stepper motor with a nominal mounting-face size of approximately 1.7 inches, or 42 mm. The NEMA designation describes the mounting-frame category; it does not guarantee a specific torque rating, motor length, shaft diameter, or electrical specification.

This distinction is important when comparing stepper motors from different manufacturers. Two motors with the same NEMA 17 mounting dimensions may have significantly different torque capabilities, winding characteristics, current requirements, and thermal performance.

2.1 How a NEMA 17 Stepper Motor Controls Position

A stepper motor converts electrical pulse commands into discrete increments of rotation. Its driver energizes the motor windings in a controlled sequence, allowing the controller to command a specific number of steps.

A common two-phase hybrid stepper motor has a basic step angle of 1.8 degrees, equivalent to 200 full steps per revolution.

When a compatible driver uses microstepping, it divides each full step into smaller commanded increments. For example, 16-microstep operation provides 3,200 commanded microsteps per revolution for a 200-step motor.

This capability is useful for diamond polishing machine mechanisms that require fine incremental positioning.

However, command resolution is not the same as actual positioning accuracy. Mechanical friction, external loads, torque variation, transmission backlash, and the limitations of the motor and driver can prevent the output from following every commanded microstep precisely.

2.2 Important NEMA 17 Stepper Motor Specifications

When evaluating a motor for diamond polishing equipment, machine manufacturers should review the following parameters.

For most applications, the correct selection process begins with the required output movement and load rather than with a preferred motor model.

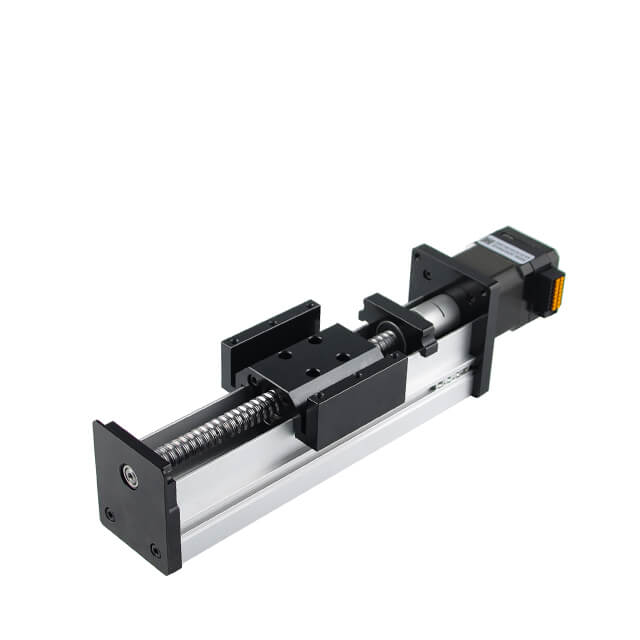

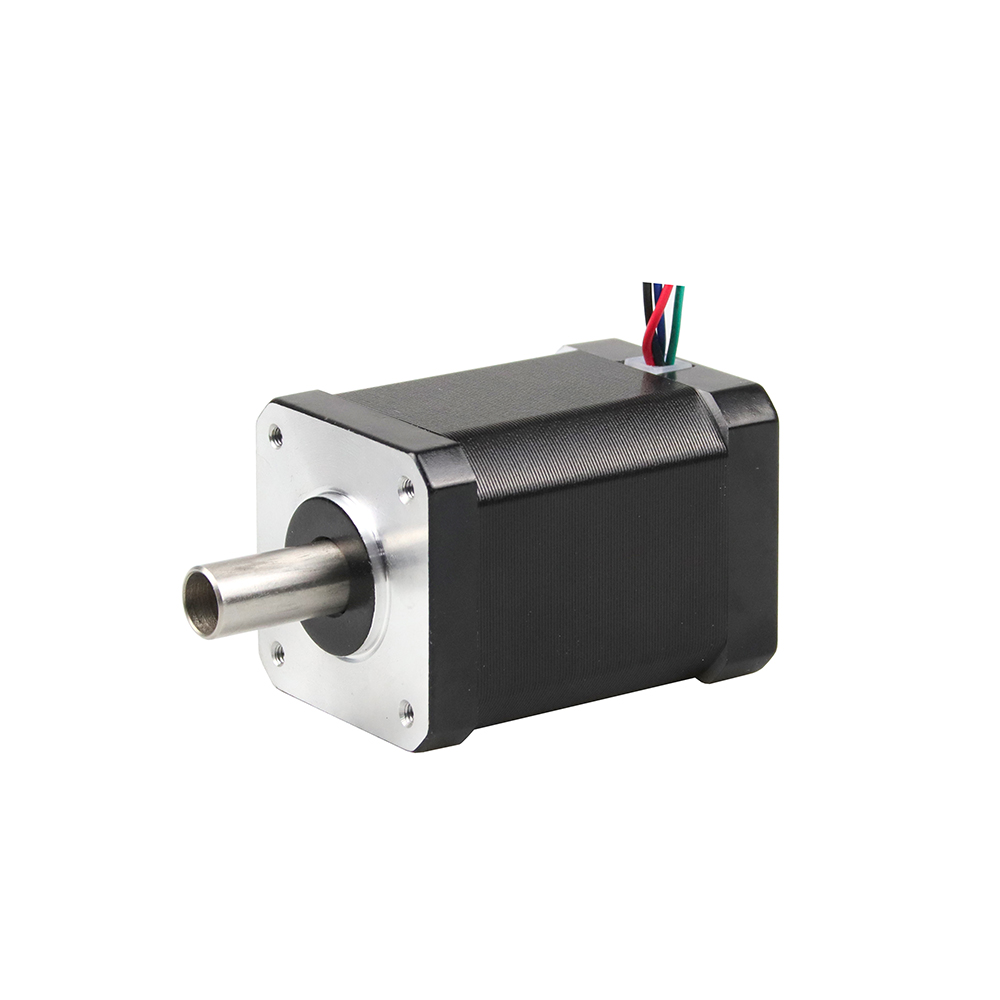

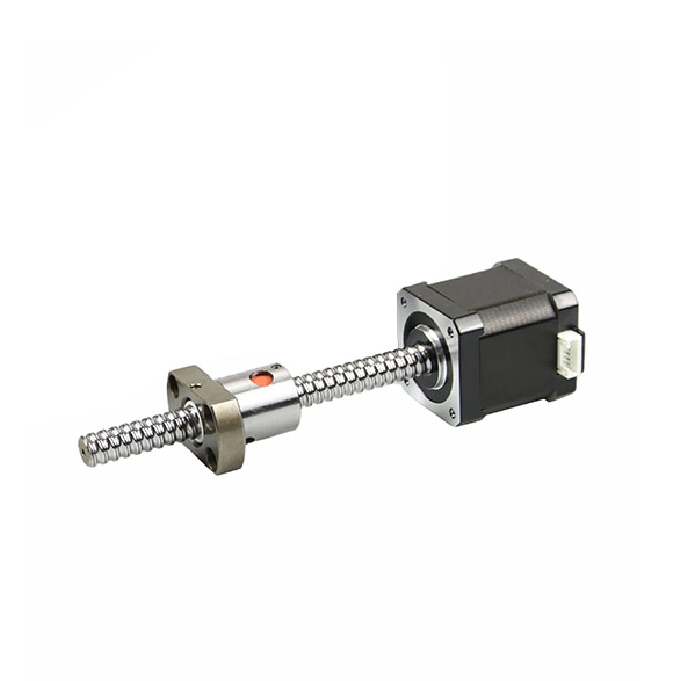

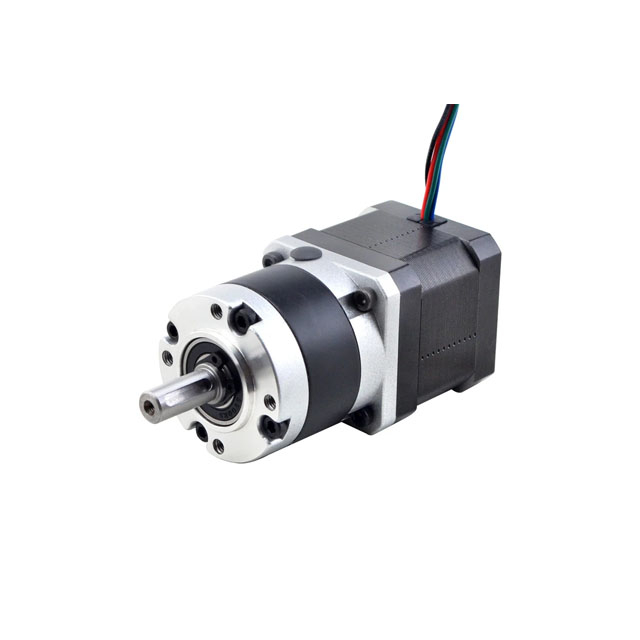

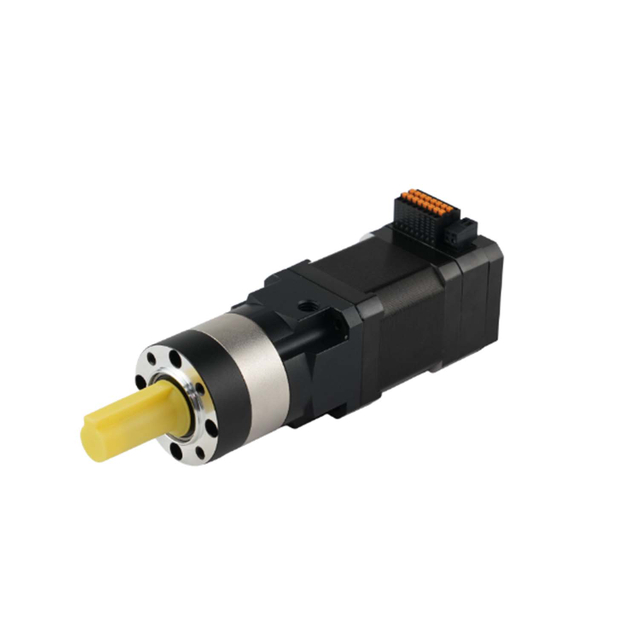

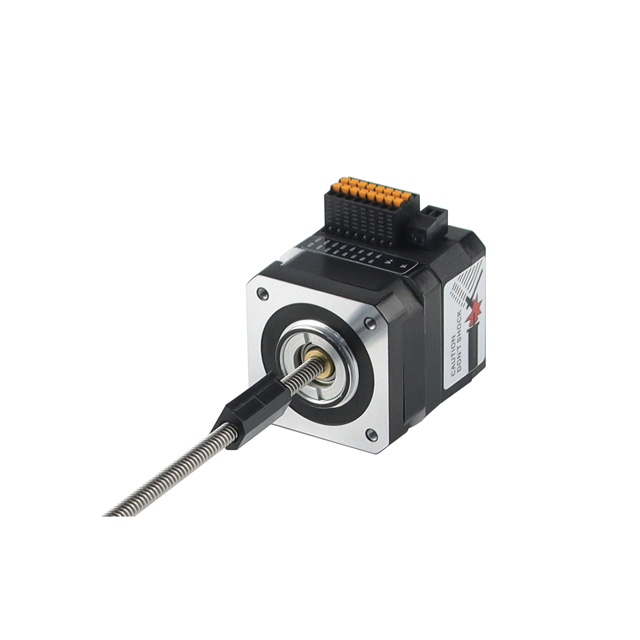

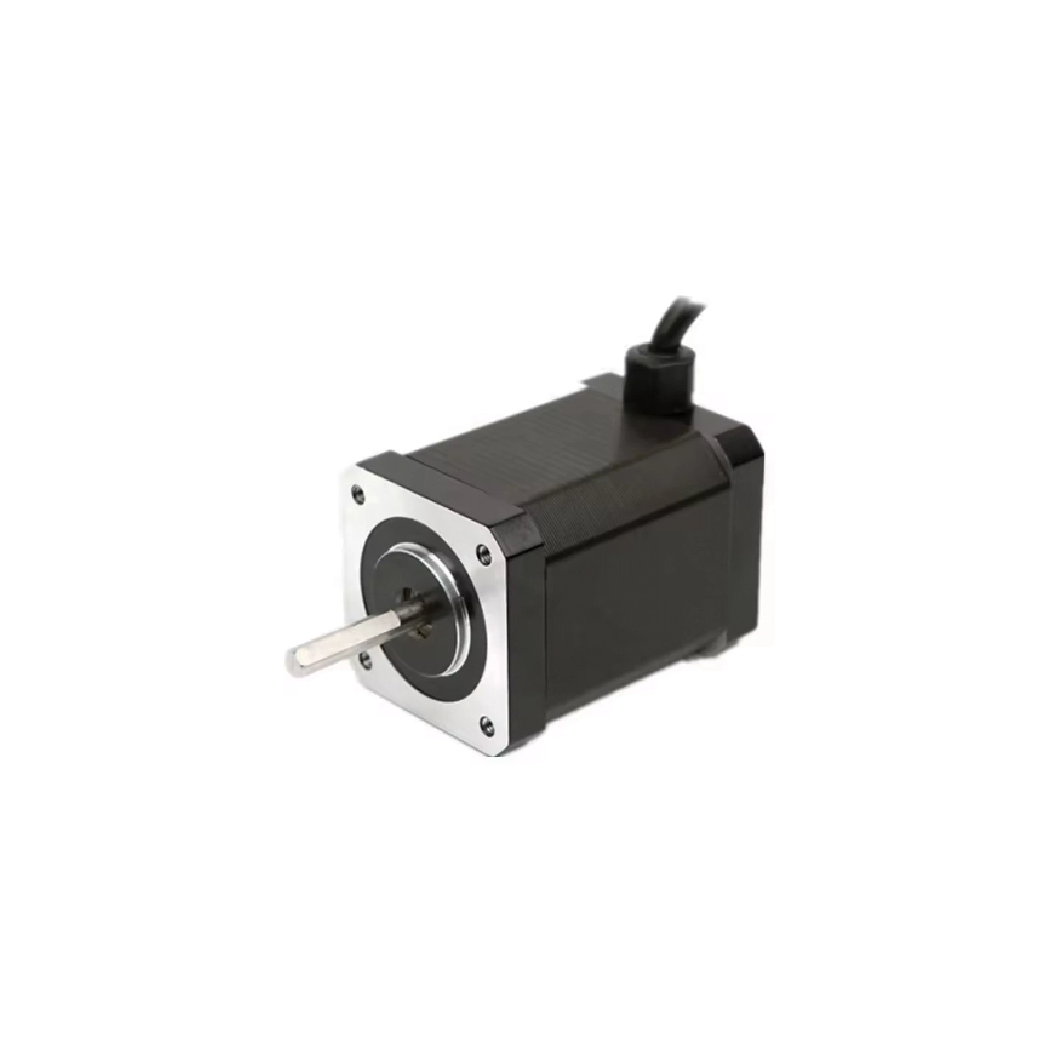

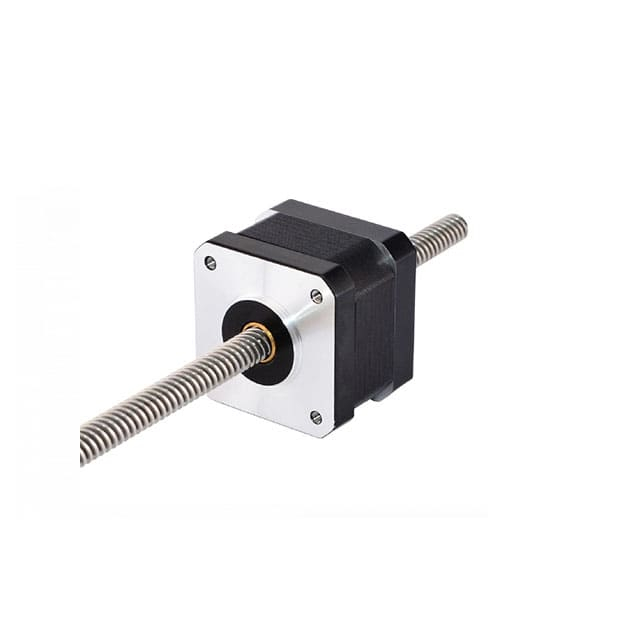

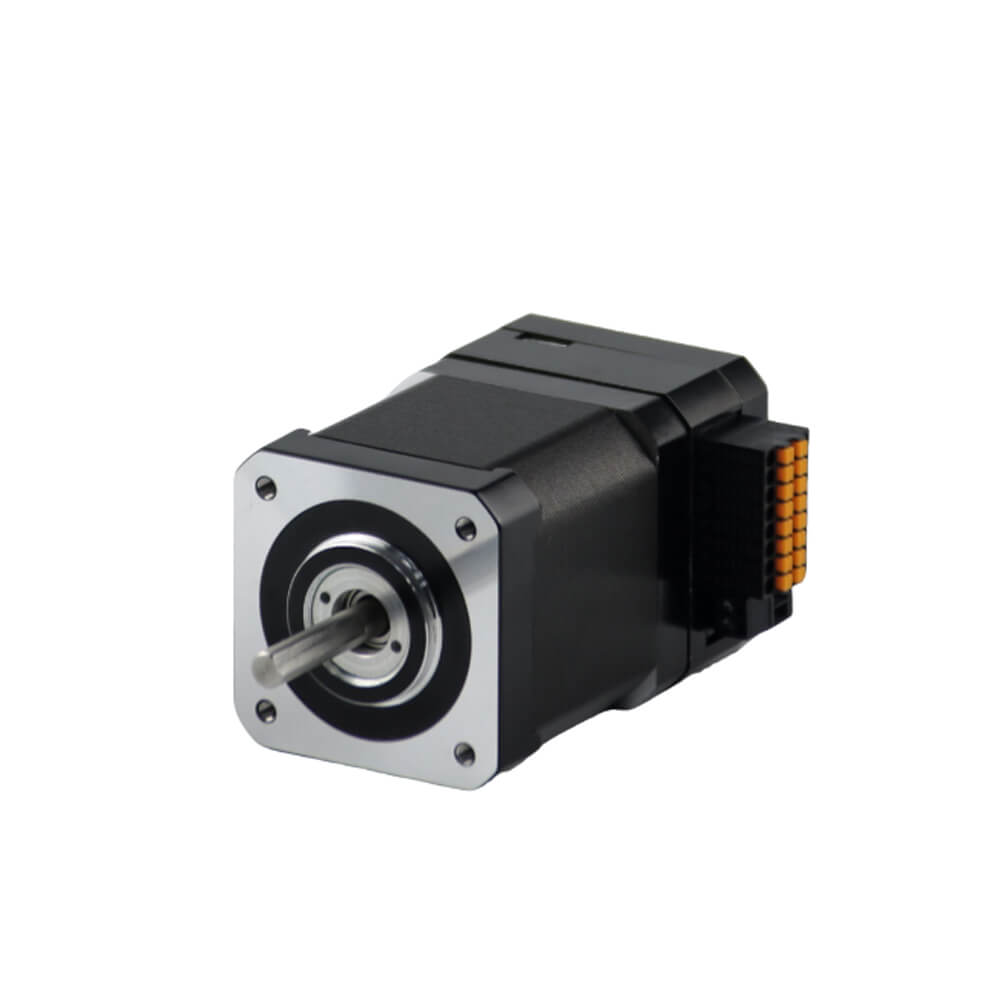

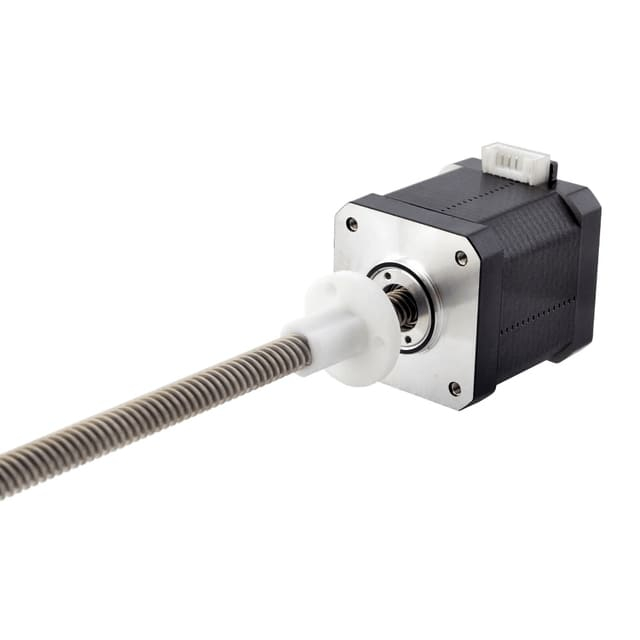

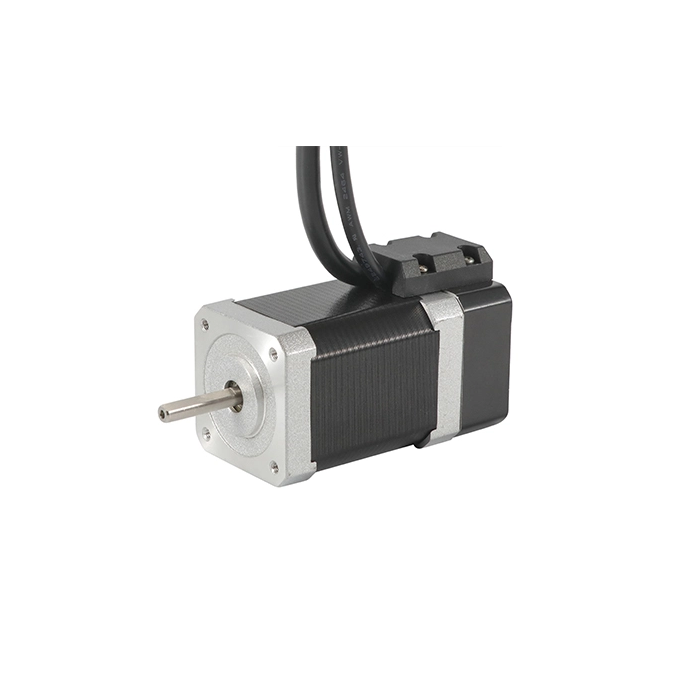

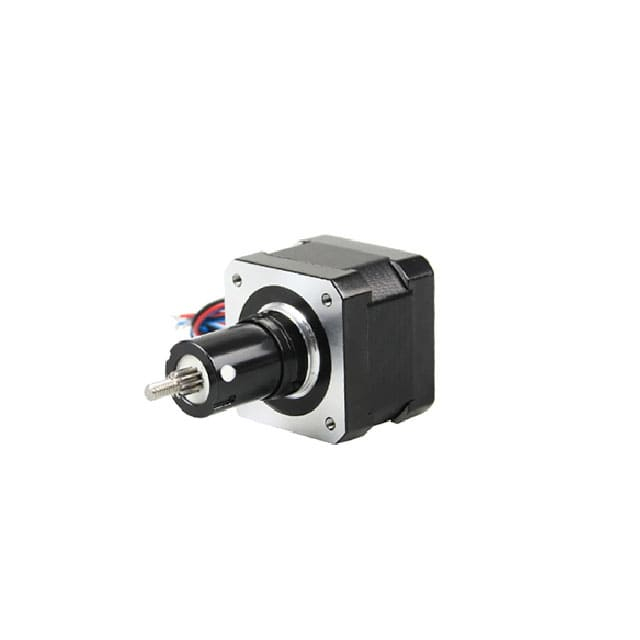

Jkongmotor OEM ODM Stepper Motor Types

Stepper Motor Customized Service

Motor Shaft Customized Service

3. Why Diamond Polishing Machine Manufacturers Choose NEMA 17 Stepper Motors

For diamond polishing machine manufacturers, choosing a motor involves balancing positioning accuracy, torque, machine size, production efficiency, and overall cost. The motor must deliver predictable movement while fitting into the machine's mechanical structure and working reliably throughout repeated polishing cycles.

A NEMA 17 stepper motor is a practical option for compact faceting mechanisms, diamond holder indexing systems, and precision adjustment axes. Its standardized mounting dimensions, programmable incremental movement, and compatibility with different stepper drivers make it suitable for many automated and semi-automated diamond polishing machines.

However, the real advantage comes from matching the motor to the application. When the required torque, transmission, and control method are properly selected, a NEMA 17 stepper motor can help machine manufacturers achieve repeatable positioning without unnecessarily increasing system complexity.

3.1 Compact Motor Design for Space-Constrained Polishing Machines

Diamond polishing machines often combine a diamond holder, angular adjustment mechanism, polishing lap, bearings, and supporting structures within a limited installation space. A large motor can complicate machine layout, increase mounting requirements, and restrict access to components that require regular maintenance.

The NEMA 17 stepper motor features a nominal 42 mm mounting-face size, making it suitable for many compact positioning mechanisms. Its standardized mounting format also gives machine designers greater flexibility when developing new equipment or adapting an existing design.

For manufacturers, a compact motor can offer several practical benefits:

• Simplifies integration into diamond holder indexing assemblies.

• Reduces the space required for selected positioning mechanisms.

• Supports compact machine layouts and modular mechanical designs.

• Makes motor replacement easier when the mounting interface is standardized.

• Provides flexibility when developing different machine models.

The motor's body length, shaft dimensions, connector clearance, and mounting arrangement must still be checked before selection. The available space should also accommodate the coupling, transmission, and any additional components required for accurate positioning.

3.2 Precise Angular Indexing for Consistent Diamond Faceting

Angular indexing is one of the most important applications for a stepper motor in a diamond polishing machine. The mechanism must rotate the diamond holder to predefined positions so that successive facets can be presented to the polishing surface at the intended orientation.

A stepper motor moves in controlled increments according to the pulse commands received from its driver. By adjusting the pulse count, the controller can command the holder to move through defined angular positions.

For example, a common 1.8° stepper motor provides 200 full steps per revolution. With a driver configured for 16 microsteps per full step, the system provides 3,200 commanded microsteps per motor revolution.

When combined with a suitable reduction gearbox, the mechanism can achieve finer nominal output increments. This can be useful when designing programmable indexing and adjustment functions for diamond faceting equipment.

However, command resolution does not guarantee actual positioning accuracy. Gearbox backlash, mechanical friction, shaft alignment, load variation, and motor torque limitations can all influence the final position. Manufacturers should evaluate the complete mechanism to confirm that it meets the required angular tolerance.

3.3 Cost-Effective Motion Control for Diamond Polishing Equipment

Machine manufacturers must consider not only the motor's purchase price but also the cost of the driver, controller, mechanical transmission, wiring, installation, and maintenance.

For applications with predictable loads and moderate positioning requirements, a conventional NEMA 17 stepper motor and compatible driver can provide a cost-effective motion control solution.

Compared with a more complex servo system, an open-loop stepper configuration may require fewer components and simpler commissioning. This can be advantageous for compact adjustment axes that do not require continuous position feedback.

The suitability of this approach depends on the consequences of a positioning error. Where missed steps could damage the workpiece, interrupt production, or compromise process consistency, encoder feedback or an alternative closed-loop solution may provide better overall value.

For diamond polishing machine manufacturers serving India's price-sensitive equipment market, the goal should be to achieve the required performance without adding unnecessary system complexity.

3.4 Reliable Holding Torque for Stable Positioning

During faceting operations, certain mechanisms must maintain their position while the polishing process continues. A stepper motor can provide holding torque when energized, helping prevent unwanted movement in a properly designed positioning assembly.

This characteristic can be useful for diamond holder indexing mechanisms and compact angular adjustment systems where the motor must remain at a commanded position between movements.

Nevertheless, holding torque is a stationary specification. The torque available during rotation generally decreases as speed increases, and actual performance depends on the motor's electrical characteristics, driver settings, and operating conditions.

Machine manufacturers should therefore verify that the selected motor can handle both the required acceleration torque and the expected operating load.

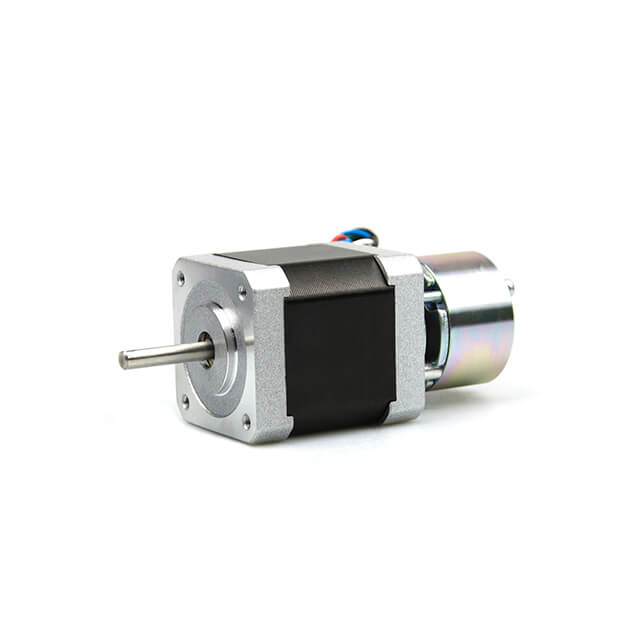

If a mechanism must maintain its position when power is removed, a suitable mechanical brake or another appropriate holding arrangement may be necessary. A stepper motor's energized holding torque should not be treated as a substitute for a safety-rated holding system.

3.5 Smooth Low-Speed Movement for Fine Adjustments

Diamond polishing equipment may require slow, controlled movement during setup, angular adjustment, or positioning. Sudden movement, vibration, or inconsistent response can make these operations harder to control.

A compatible microstepping driver can divide each full step into smaller commanded increments, helping improve motion smoothness under suitable operating conditions.

For example, a controller can use a higher microstep setting for fine positioning and apply an appropriate acceleration profile to reduce sudden changes in movement.

The resulting performance depends on several factors:

• Motor torque at the selected operating speed.

• Driver current regulation and microstepping capability.

• Mechanical stiffness and transmission quality.

• Friction and external loading.

• Acceleration and deceleration settings.

Microstepping can improve smoothness, but it cannot eliminate mechanical backlash or guarantee equal physical movement for every commanded increment. Actual performance should be verified using the completed mechanism.

3.6 Flexible Integration With Automated Control Systems

Modern diamond polishing machines may incorporate programmable controllers, operator interfaces, reference sensors, and automated movement sequences. A NEMA 17 stepper motor can integrate into these systems through a compatible driver, often using step-and-direction control signals.

This arrangement allows the machine controller to manage movement increments, positioning sequences, acceleration, deceleration, and homing procedures.

For example, a programmed sequence may move an indexing mechanism to a predefined position, confirm the reference conditions, and then permit the next stage of the operating cycle.

Depending on the machine architecture, limit switches or other sensors can establish reference positions. Encoder-equipped stepper systems can provide additional feedback when the application requires monitoring of actual motor movement.

For OEMs, standardized interfaces can also simplify the development of different machine configurations and reduce the effort required to maintain compatible components across a product range.

3.7 Practical Selection for Indian Diamond Polishing Machine Manufacturers

When sourcing NEMA 17 stepper motors for diamond polishing equipment in India, manufacturers should look beyond the frame designation and compare the specifications that directly affect machine performance.

Before placing a bulk order, we recommend testing the selected motor in a representative machine assembly. This helps confirm that the motor, driver, and transmission work together under realistic operating conditions.

Ultimately, NEMA 17 stepper motors are attractive because they combine compact dimensions, programmable positioning, flexible integration, and cost-effective motion control. When correctly selected and validated, they can provide a practical foundation for improving the repeatability and control of diamond polishing machine mechanisms.

4. How to Achieve High-Precision Faceting Control With a NEMA 17 Stepper Motor

Achieving high-precision faceting control in a diamond polishing machine requires more than selecting a stepper motor with a small step angle. The motor must work together with a suitable driver, a mechanically stable transmission, accurate reference positioning, and a well-configured motion controller.

For diamond polishing machine manufacturers in India, the objective is to achieve repeatable angular positioning, stable low-speed movement, minimal mechanical backlash, and reliable performance over repeated operating cycles. These factors help maintain consistent positioning between facets and reduce the need for repeated manual adjustments.

A NEMA 17 stepper motor can support these requirements when its torque, speed, and positioning capabilities match the application. The following engineering practices explain how to build a more precise and reliable faceting control system.

4.1 Select the Right NEMA 17 Stepper Motor for the Faceting Axis

The first step is to identify the exact movement that the motor must control. In a diamond polishing machine, a NEMA 17 stepper motor may drive a diamond holder indexing mechanism, a faceting angle adjustment assembly, or a compact linear positioning stage.

Each application places different demands on the motor.

For example, an indexing axis may require frequent small movements followed by periods of stationary holding. A lead-screw adjustment mechanism may require higher output torque at relatively low speeds. A continuously rotating polishing spindle may need a different motor solution depending on its speed, load, and operating duty cycle.

Before selecting a motor, we recommend evaluating the following parameters:

• Required output torque: The torque needed to overcome friction and external resistance.

• Operating speed: The rotational speed or linear travel rate required by the mechanism.

• Acceleration and deceleration: The time available to reach or stop at a target position.

• Moving inertia: The rotational or linear inertia of the driven assembly.

• Positioning tolerance: The maximum permitted error at the actual output.

• Duty cycle: How frequently and how long the motor operates.

• Installation dimensions: The available space for the motor, coupling, and transmission.

The NEMA 17 designation describes the mounting-frame category, not a guaranteed torque rating. Two motors with the same mounting dimensions may perform very differently under the same operating conditions.

The correct motor is the one that meets the machine's actual torque and positioning requirements—not simply the one with the highest advertised holding torque.

4.2 Calculate the Required Torque Before Finalizing the Motor

Insufficient torque is a common cause of positioning problems in stepper motor applications. If the motor cannot accelerate the mechanism or overcome its operating resistance, it may lose synchronism and fail to reach the commanded position.

For a rotary faceting axis, a simplified torque calculation is:
T_required=Jα+T_friction+T_external

Where:

• T_required is the estimated motor-side torque requirement.

• J is the total rotational inertia referred to the motor shaft.

• α is the required angular acceleration.

• T_friction is the torque needed to overcome mechanical friction.

• T_external represents other resisting torques.

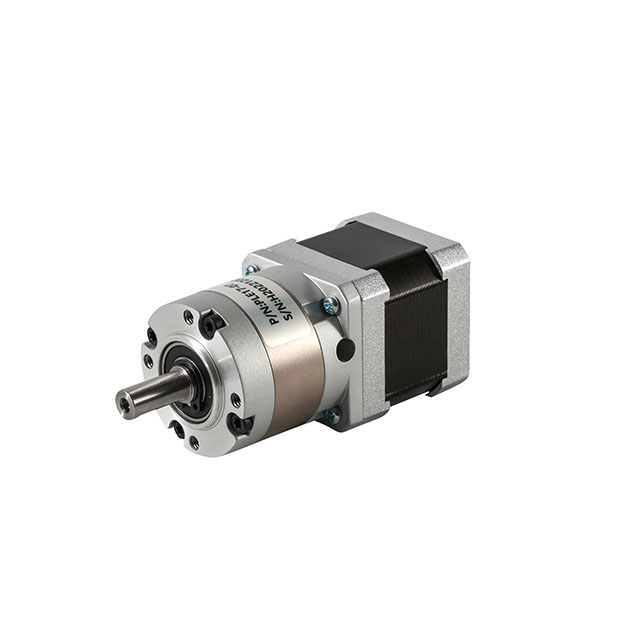

When a reduction gearbox is installed between the motor and the output shaft, the approximate output torque is:
T_output≈ T_motoriη

Here, i is the gearbox reduction ratio and η is the transmission efficiency.

A reduction gearbox can increase available output torque, but its backlash, stiffness, and efficiency must also be considered.

For practical motor selection, we recommend comparing the calculated torque requirement with the motor's available torque at the intended operating speed. Holding torque alone is not sufficient because a stepper motor's available torque generally decreases as its speed increases.

Allowing an appropriate torque margin also helps accommodate variations in friction, acceleration, and operating load.

4.3 Improve Angular Resolution With Microstepping

Microstepping allows a compatible stepper driver to divide each full motor step into smaller commanded increments. This provides finer command resolution and can improve motion smoothness during small positioning movements.

A common NEMA 17 hybrid stepper motor has a basic step angle of 1.8 degrees, equivalent to 200 full steps per revolution.

With a driver configured for 16 microsteps per full step, the nominal microstep angle is:
θmicrostep=1.8°/16=0.1125°

This means the controller can command nominal increments of 0.1125 degrees at the motor shaft.

If the motor drives the output through a 5:1 reduction gearbox, the nominal output increment becomes:
θoutput=0.1125°/5=0.0225°

This calculation illustrates how microstepping and mechanical reduction can improve the resolution of commanded angular movement.

However, nominal command resolution is not the same as actual positioning accuracy. Friction, motor torque variation, gearbox backlash, shaft deflection, and mechanical compliance can all affect the physical output.

For diamond faceting equipment, the required angular tolerance should therefore be defined first. The motor and transmission can then be selected and tested to determine whether the complete system meets that requirement.

4.4 Minimize Backlash in the Mechanical Transmission

Backlash is the lost motion that occurs when a mechanism reverses direction before the output responds as expected. It can be introduced by gears, couplings, screw drives, bearings, and other mechanical interfaces.

In a diamond polishing machine, backlash may cause the diamond holder to reach slightly different positions depending on the direction from which the target is approached.

To improve repeatability, manufacturers should pay close attention to the mechanical transmission.

Recommended design practices include:

• Select a gearbox with backlash specifications appropriate to the required output accuracy.

• Use suitable couplings and maintain proper shaft alignment.

• Provide rigid motor mounting and adequate bearing support.

• Minimize unnecessary joints between the motor and driven mechanism.

• Measure reversal error during prototype testing.

• Use a consistent approach direction when the operating sequence permits it.

• Apply backlash compensation only when the error is stable and can be measured reliably.

A direct-drive configuration eliminates gearbox backlash, but it may not provide sufficient torque or the required output resolution for every application.

The best configuration balances output torque, mechanical stiffness, positioning accuracy, installation space, and total system cost.

4.5 Choose a Suitable Stepper Motor Driver

The driver controls the current supplied to the motor windings and influences motion smoothness, torque performance, and heat generation.

For a precision faceting axis, the driver should be compatible with the motor's electrical specifications and the machine controller.

Important selection criteria include:

• Adjustable phase-current settings.

• Suitable microstepping modes.

• Compatible supply-voltage range.

• Effective current regulation.

• Appropriate low-speed operating characteristics.

• Overcurrent and thermal protection.

• Compatible step-and-direction or other supported control interfaces.

The current setting should follow the motor manufacturer's specifications. Excessive current can increase motor temperature without delivering a proportional improvement in useful performance.

A higher driver supply voltage may improve current rise and torque retention at higher speeds when the motor and driver support that configuration. It does not permit the motor to exceed its specified current or thermal limits.

For machine manufacturers, testing different driver settings under realistic load conditions is more useful than selecting a driver based on its maximum advertised current alone.

4.6 Reduce Vibration and Resonance During Fine Positioning

Stepper motors can experience resonance at certain speeds, particularly when the motor, transmission, and mounting structure interact unfavorably.

In a diamond faceting mechanism, excessive vibration may affect positioning stability, increase noise, and introduce unwanted movement into the assembly.

Several measures can help reduce these effects:

1. Select sufficient motor torque. Avoid operating continuously near the motor's practical torque limit.

2. Use appropriate microstepping. A suitable driver configuration can improve movement smoothness.

3. Optimize acceleration profiles. Avoid sudden changes in step frequency.

4. Improve structural rigidity. Use a sufficiently stiff mounting bracket and suitable bearing support.

5. Correct shaft alignment. Misalignment can introduce additional loads and vibration.

6. Test the operating-speed range. Identify speeds at which resonance or unstable movement occurs.

7. Validate under load. Test the complete mechanism rather than the motor alone.

Microstepping can improve smoothness, but it does not eliminate every resonance condition or guarantee equal physical displacement for every commanded microstep.

For applications requiring particularly stable movement, manufacturers should evaluate vibration and settling behavior during prototype testing.

4.7 Optimize Acceleration and Deceleration Profiles

A stepper motor may lose synchronism when the controller demands an abrupt speed change that exceeds the motor's available torque.

This is especially relevant when a faceting mechanism has significant inertia or must repeatedly move between indexed positions.

A properly configured motion controller should accelerate the motor progressively, maintain the required movement speed, and decelerate smoothly before reaching the target.

For example, a diamond holder indexing sequence may include:

1. Accelerating from a stationary position.

2. Moving toward the next programmed angular position.

3. Reducing speed as the target approaches.

4. Stopping at the commanded position.

5. Allowing the mechanism to settle before the next operation.

The exact profile depends on the motor's torque-speed characteristics, the transmission ratio, the driven inertia, and the required cycle time.

A well-tuned motion profile can reduce mechanical shock, improve movement consistency, and help prevent missed steps.

4.8 Use Homing Sensors to Establish a Repeatable Reference

A stepper motor controller needs a known reference position if the machine must return to defined coordinates after startup.

A homing sensor provides that reference. Depending on the machine design, manufacturers may use a limit switch, proximity sensor, optical sensor, or another suitable sensing device.

A carefully designed homing sequence typically approaches the reference point at a controlled speed and may perform a slower final approach to improve repeatability.

When designing a homing system, consider:

• Sensor repeatability.

• Sensor mounting rigidity.

• Electrical noise immunity.

• Mechanical stopping distance.

• Protection against contamination.

• The required frequency of homing.

• The consequences of a failed or incorrectly triggered sensor.

Homing establishes a reference coordinate, but it does not automatically eliminate backlash or compensate for mechanical errors elsewhere in the transmission.

For higher-accuracy applications, the homing system should be validated as part of the complete positioning assembly.

4.9 Consider Closed-Loop Feedback When Position Errors Matter

A conventional open-loop stepper motor system issues movement commands without directly measuring the motor's actual position. If the motor stalls or loses synchronism, the controller may not recognize the error.

For applications where missed steps could compromise the polishing process, an encoder-equipped closed-loop stepper motor may be worth considering.

Depending on the system architecture, encoder feedback can help the driver or controller detect position deviations, respond to certain disturbances, and report faults.

However, motor-side feedback does not necessarily detect every error in the downstream mechanism. If a gearbox introduces backlash, for example, an encoder mounted on the motor shaft may report correct motor movement even when the output position differs from the target.

Where output accuracy is critical, manufacturers should evaluate whether a separate output-position sensor is necessary.

The decision between open-loop and closed-loop control should reflect the required accuracy, operating risk, system cost, and diagnostic requirements.

4.10 Validate Positioning Accuracy Under Real Operating Conditions

The final step is to verify the performance of the complete machine assembly. A motor's specifications alone cannot establish the positioning accuracy of the finished diamond polishing mechanism.

We recommend carrying out the following tests before approving a design for mass production.

Repeatability testing: Command the mechanism to reach the same position repeatedly and measure the variation between actual output positions.

Reversal testing: Approach the target from opposite directions to determine whether backlash affects the result.

Loaded positioning testing: Repeat the measurements with the actual transmission and representative mechanical load installed.

Thermal testing: Operate the machine through its intended duty cycle and monitor motor and driver temperatures.

Homing testing: Repeat the homing sequence to determine whether the reference position remains consistent.

Operating-speed testing: Evaluate positioning behavior at different movement speeds and acceleration settings.

The results should be compared with documented acceptance criteria, including maximum angular error, repeatability, reversal error, temperature limits, and settling time.

The numerical limits must be determined by the machine's design requirements rather than assumed from the motor's nominal microstep resolution.

Conclusion

Achieving high-precision faceting control with a NEMA 17 stepper motor requires a coordinated approach to motor sizing, driver configuration, mechanical transmission, motion programming, and calibration.

For diamond polishing machine manufacturers in India, the most effective strategy is to define the required output accuracy first, calculate the torque requirements, minimize backlash, configure appropriate microstepping and acceleration profiles, and verify the complete assembly under realistic operating conditions.

A NEMA 17 stepper motor can provide compact, programmable, and repeatable motion control for suitable diamond holder indexing and adjustment mechanisms. Its actual performance, however, depends on the entire system rather than the motor alone.

By combining sound mechanical design with appropriate electronics and systematic testing, manufacturers can develop diamond polishing machines that offer more consistent positioning, dependable operation, and better control over precision faceting processes.

5. Open-Loop vs. Closed-Loop Stepper Motors for Diamond Polishing Machines

When selecting a NEMA 17 stepper motor for a diamond polishing machine, manufacturers need to decide whether an open-loop stepper motor or a closed-loop stepper motor is more suitable for their faceting control system. This decision affects positioning reliability, machining consistency, system cost, and maintenance requirements.

Diamond polishing requires controlled angular movement, repeatable facet positioning, and stable operation under changing loads. Even a small positioning deviation can affect the symmetry and quality of a polished diamond. For machine manufacturers in India, the right motor configuration depends on the machine's precision requirements, operating speed, mechanical design, and target production volume.

5.1 What Is an Open-Loop Stepper Motor?

An open-loop stepper motor operates by receiving pulse signals from a controller. Each pulse commands the motor to move a specified step, while the controller estimates the motor's position by counting the pulses sent.

A conventional NEMA 17 stepper motor commonly has a step angle of 1.8°, equivalent to 200 full steps per revolution. With a suitable driver, microstepping can divide each full step into smaller commanded increments.

For example, at 16 microsteps per full step, the driver receives 3,200 microstep commands per revolution. However, this does not mean the motor achieves an actual positioning accuracy of 0.1125° under every operating condition. Load, friction, motor characteristics, resonance, and driver performance can all affect the final position.

Advantages of open-loop stepper motors include:

• Lower system cost: No encoder is required, reducing component and integration costs.

• Simple control architecture: Pulse-and-direction control is straightforward to implement.

• Compact installation: NEMA 17 motors are suitable for space-constrained faceting mechanisms.

• Easy maintenance: Fewer feedback components can simplify troubleshooting and replacement.

• Good low-speed positioning capability: When correctly sized and tuned, an open-loop stepper motor can provide repeatable indexing for many diamond polishing applications.

These advantages make open-loop NEMA 17 stepper motors attractive for entry-level diamond polishing machines, compact faceting equipment, and applications with relatively predictable loads.

However, an open-loop system does not directly verify whether the motor has reached the commanded position. If the motor loses synchronism because of excessive load, sudden acceleration, mechanical binding, or insufficient torque, the controller may continue operating with an incorrect position estimate.

For a diamond polishing machine, this can result in inconsistent facet angles, inaccurate indexing, or the need to recalibrate the workpiece.

5.2 What Is a Closed-Loop Stepper Motor?

A closed-loop stepper motor combines a stepper motor with an encoder and a controller or driver capable of using feedback. The encoder measures motor position, allowing the control system to compare the actual position with the commanded position.

If a position error develops, the system can respond according to its control strategy. Depending on the product, it may adjust motor current, correct the position, issue an alarm, or stop operation when the error exceeds a configured limit.

This feedback is especially useful when a diamond polishing machine must maintain repeatable angular indexing over extended production runs.

Key advantages of closed-loop stepper motors include:

• Position feedback: The system can detect deviations between commanded and measured motor position.

• Improved operating reliability: Feedback helps identify positioning errors caused by changing loads or disturbances.

• Better fault monitoring: Supported systems can report following errors or other abnormal operating conditions.

• More efficient current management: Some closed-loop drivers adjust current according to load, potentially reducing motor heating during lighter-load operation.

• Greater process visibility: Position feedback and alarm signals can help machine builders diagnose problems and improve maintenance procedures.

Closed-loop control does not automatically guarantee higher mechanical accuracy. Encoder resolution, control tuning, coupling rigidity, bearing quality, transmission backlash, and the location of the encoder all influence the final positioning result.

For example, an encoder mounted directly on the motor shaft cannot independently measure backlash between the motor and a downstream gearbox. If the faceting axis requires highly accurate output positioning, the entire transmission and mechanical assembly must be evaluated.

5.3 Key Differences Between Open-Loop and Closed-Loop Stepper Motors

The actual performance difference depends on the selected motor, driver, encoder, and machine mechanics. A properly designed open-loop system can outperform a poorly configured closed-loop system, so manufacturers should compare complete motion-control solutions rather than motor labels alone.

5.4 Which Stepper Motor Is Better for Diamond Faceting Control?

The best choice depends on the required positioning performance and the consequences of an indexing error.

Open-loop NEMA 17 stepper motors may be suitable when:

• The machine uses a relatively simple faceting mechanism.

• The rotating axis has low and predictable inertia.

• Operating speeds and acceleration rates are moderate.

• Mechanical friction and transmission backlash are well controlled.

• The machine can periodically home or recalibrate its axis.

• The target selling price makes cost control a priority.

For these applications, a correctly sized open-loop motor with a suitable driver, rigid coupling, and reliable homing procedure may provide sufficient repeatability without the added cost of feedback.

Closed-loop NEMA 17 stepper motors may be preferable when:

• Facet indexing errors can lead to significant material waste.

• The machine operates for long periods with limited operator intervention.

• The load changes during polishing or the mechanism experiences variable resistance.

• The control system needs to detect positioning deviations.

• The manufacturer requires more detailed fault monitoring.

• Consistent operation across repeated production cycles is a major purchasing requirement.

For automated diamond polishing equipment, closed-loop control can help reduce the risk of undetected position loss. Nevertheless, the motor must still have sufficient torque and speed capability for the application.

5.5 How Feedback Affects Facet Angle Accuracy

Facet angle accuracy depends on more than the number of motor steps. The motion-control system must translate the commanded motor movement into accurate movement at the polishing machine's working axis.

Consider a machine using a NEMA 17 stepper motor connected to a faceting axis through a reduction gearbox. The motor rotates to a commanded position, and the gearbox transfers this movement to the output shaft.

Several factors can introduce errors:

• Gearbox backlash during direction changes

• Shaft or coupling misalignment

• Bearing clearance and mechanical deflection

• Encoder resolution and measurement limitations

• Motor torque variation and load disturbances

• Incorrect homing or zero-position calibration

• Poorly configured acceleration and deceleration profiles

A closed-loop motor can detect and respond to motor-shaft position errors, but it cannot necessarily detect errors occurring downstream of the encoder. Where output-axis accuracy is critical, machine builders should evaluate the complete transmission and consider output-side measurement when justified by the application.

For this reason, mechanical rigidity, low backlash, accurate calibration, and appropriate feedback design are as important as motor selection.

5.6 How to Choose the Right Solution for Indian Diamond Polishing Machine Manufacturers

Indian machine manufacturers often need to balance accuracy, production efficiency, equipment cost, and ease of servicing. A practical selection process should begin with the requirements of the faceting mechanism rather than automatically choosing the more advanced motor.

Before placing a bulk order, evaluate the following factors:

1. Required facet positioning accuracy: Define the allowable angular error at the working axis, not just the motor shaft.

2. Torque and speed requirements: Calculate the torque needed to accelerate the axis and overcome friction, while accounting for the motor's torque reduction at higher speeds.

3. Transmission design: Check gearbox ratio, backlash, coupling stiffness, and bearing support.

4. Control compatibility: Confirm pulse-and-direction, encoder, alarm, and communication requirements with the intended controller.

5. Thermal performance: Test the motor and driver under realistic duty cycles and ambient temperatures.

6. Repeatability testing: Measure actual output-axis positioning across repeated indexing cycles and after direction changes.

7. Total cost of ownership: Consider initial purchase price, commissioning time, maintenance, scrap risk, and potential production interruptions.

Manufacturers should also test the system using representative workpieces and actual polishing loads. A motor that performs well during unloaded bench testing may behave differently when connected to the complete faceting mechanism.

5.7 Can an Integrated Closed-Loop Stepper Motor Simplify Machine Design?

An integrated closed-loop stepper motor combines the motor with feedback and drive electronics in one assembly. Depending on the model, it may also provide configurable control interfaces and alarm outputs.

For diamond polishing machine manufacturers, this arrangement can reduce the number of separately mounted components and simplify wiring. It may also help standardize the motion-control architecture across different machine models.

When evaluating an integrated solution, confirm:

• Whether the encoder and driver are included in the supplied assembly

• Supported supply voltage, current, speed, and torque

• Available control interfaces and pulse-input specifications

• Position-error detection and alarm functions

• Mounting dimensions and shaft compatibility

• Driver tuning options and thermal protection

• Availability of customization, samples, and technical support

An integrated design is not automatically the most suitable option for every machine. Manufacturers should verify that the selected model meets the required torque, speed, control, and accuracy specifications under actual operating conditions.

Conclusion

Both open-loop and closed-loop NEMA 17 stepper motors can be used in diamond polishing machines, but they serve different performance and cost requirements. Open-loop systems offer economical, straightforward motion control for predictable loads, while closed-loop systems add position feedback and better visibility into motion errors.

For machine builders in India, the final decision should be based on required facet accuracy, load variation, mechanical transmission quality, operating duty cycle, and the consequences of positioning errors. Testing the complete axis under realistic polishing conditions is the most reliable way to confirm whether an open-loop or closed-loop solution meets the machine's production requirements.

6. Mechanical and Electrical Integration of NEMA 17 Stepper Motors

Motor integration should be addressed during the initial machine design. Poor mounting, unsuitable couplings, or incorrect electrical configuration can compromise performance even when the selected motor is otherwise appropriate.

6.1 Mounting, Shaft Alignment, and Transmission

Before installing the motor, verify:

• Mounting-hole dimensions and screw engagement.

• Motor body length and clearance.

• Shaft diameter and usable shaft length.

• Coupling dimensions and alignment requirements.

• Permitted radial and axial shaft loads.

• Bearing support for the driven mechanism.

• Access for servicing and replacement.

The driven mechanism should be supported independently wherever necessary. The motor shaft should not carry loads beyond its specified limits.

A rigid mounting structure helps reduce unwanted movement between the motor and the machine frame, improving the consistency of commanded positioning.

6.2 Electrical Wiring and Protection

The motor, driver, controller, and sensors should be integrated according to their electrical specifications.

Important considerations include:

• Correct identification of the motor winding pairs.

• Suitable wiring and connectors.

• Secure cable routing and strain relief.

• Proper protective grounding.

• Appropriate separation of signal and power wiring.

• Electrical noise management.

• Driver overcurrent and thermal protection.

• Safe machine-level emergency-stop arrangements.

For Indian manufacturers exporting equipment, the electrical design should also account for the standards and regulatory requirements applicable to the destination market.

6.3 Homing and Reference Sensors

A homing sensor establishes a reference point from which the controller can define the machine coordinate system.

Depending on the mechanism, a limit switch, proximity sensor, optical sensor, or another suitable device may be used.

A repeatable homing sequence typically approaches the reference at a controlled speed and may use a slower final approach to improve consistency.

Sensor mounting, repeatability, mechanical stopping distance, and resistance to contamination should be evaluated under actual operating conditions.

Homing establishes the reference position; it does not automatically correct transmission backlash or compensate for every mechanical error.

7. How to Test Faceting Accuracy Before Mass Production

A motor datasheet cannot establish the accuracy of the finished machine. Manufacturers should validate the complete mechanism under realistic operating conditions before approving a design for mass production.

7.1 Repeatability Testing

Command the mechanism to move to the same target position repeatedly and measure the actual output position using a suitable calibrated angular measurement device or encoder.

Repeat the test at multiple positions and, where relevant, approach the target from both directions.

Record the variation between measurements to determine whether the system meets the required repeatability specification.

7.2 Backlash and Reversal Testing

Move the axis in one direction, reverse the command, and measure the resulting output movement.

This test helps identify lost motion caused by the gearbox, coupling, bearings, or other mechanical components.

If the machine requires bidirectional positioning, evaluate reversal error against the defined output tolerance.

7.3 Thermal Stability Testing

Operate the machine through its intended duty cycle while monitoring motor and driver temperatures.

Thermal changes can influence motor performance, bearing clearances, lubricant behavior, and the dimensional stability of mechanical components.

The test should reflect realistic ambient temperatures, operating speeds, dwell periods, and loads.

7.4 Loaded Positioning Tests

An unloaded motor may perform differently from a motor installed in a working faceting mechanism.

Test the actual motor, driver, transmission, mounting assembly, and representative load together. Where practical, compare positioning results before and after sustained operation.

This can reveal problems that are not apparent during unloaded bench testing.

7.5 Define Measurable Acceptance Criteria

Before production testing, establish clear acceptance criteria for:

• Maximum angular positioning error.

• Repeatability over a specified number of cycles.

• Reversal error.

• Homing repeatability.

• Motor and driver temperature.

• Vibration and settling time.

• Performance across the intended speed range.

Acceptance limits should be based on the machine's actual design requirements rather than generic motor specifications.

8. Common Mistakes When Choosing a NEMA 17 Stepper Motor

Mistake 1: Selecting the Motor by Frame Size Alone

The NEMA 17 designation describes mounting dimensions, not a guaranteed torque rating. Compare torque-speed curves, electrical characteristics, and mechanical dimensions before selecting a model.

Mistake 2: Assuming More Microsteps Always Mean Better Accuracy

A higher microstep setting increases commanded resolution, but it does not automatically improve absolute positioning accuracy. Mechanical stiffness, load conditions, and transmission quality remain important.

Mistake 3: Ignoring Transmission Backlash

A reduction gearbox may improve torque and nominal resolution while introducing lost motion. Evaluate the complete transmission rather than considering the motor alone.

Mistake 4: Underestimating Operating Loads

A motor that works without a load may stall during acceleration or under changing mechanical resistance. Calculate the required torque and validate the selected motor in the actual mechanism.

Mistake 5: Overlooking Heat and Duty Cycle

Continuous energization can generate substantial heat. Current settings, mounting conditions, cooling, and operating duration should be evaluated together.

Mistake 6: Assuming Open-Loop Systems Detect Position Errors

A conventional open-loop stepper system cannot independently confirm every commanded movement. Where missed steps are unacceptable, consider encoder feedback, reference sensors, and appropriate fault-monitoring functions.

9. How to Choose a NEMA 17 Stepper Motor Supplier in India

For diamond polishing machine manufacturers in India, supplier selection should consider technical support, product consistency, customization capability, and long-term availability—not simply the lowest quoted price.

9.1 Request Complete Technical Documentation

Before placing an order, request:

• Dimensional drawings.

• Rated phase current.

• Winding resistance and inductance.

• Holding torque and torque-speed curves.

• Shaft specifications.

• Temperature limits.

• Compatible driver recommendations.

• Encoder specifications, where applicable.

These documents help the engineering team confirm that the selected motor can meet the application's mechanical and electrical requirements.

9.2 Evaluate OEM and ODM Customization

Depending on the supplier's capabilities, machine manufacturers may require customized shaft dimensions, cable assemblies, connectors, motor body lengths, encoder configurations, or integrated transmission components.

Confirm the available options, minimum order quantities, lead times, and validation requirements before finalizing a production design.

9.3 Test Samples Before Bulk Purchasing

Prototype testing allows manufacturers to identify installation conflicts, insufficient torque, vibration, thermal issues, and control compatibility problems before committing to production quantities.

Once the design has been validated, establish a documented production specification covering the approved model, electrical configuration, mechanical dimensions, driver settings, and acceptance criteria.

9.4 Compare Total Cost of Ownership

A lower purchase price does not necessarily result in a lower overall manufacturing cost.

Consider product consistency, technical support, delivery lead time, spare-parts availability, warranty conditions, customization services, and commissioning requirements.

For manufacturers supplying different customer segments or export markets, consistent product specifications and dependable technical support can be especially valuable.

10. How JKONGMOTOR Can Support Precision Motion Control Applications

For diamond polishing machine manufacturers, achieving consistent faceting accuracy requires more than selecting a stepper motor with the correct frame size. The motor, driver, controller, transmission mechanism, and feedback system must work together to deliver repeatable angular positioning under actual polishing conditions.

JKONGMOTOR supports OEM and ODM motion control projects by providing integrated motor solutions, customization options, and application-oriented technical support. For manufacturers developing diamond polishing machines, faceting equipment, and other precision machinery, the goal is to select a motion control configuration that balances positioning performance, mechanical compatibility, production efficiency, and total system cost.

10.1 NEMA 17 Stepper Motors for Compact Faceting Mechanisms

NEMA 17 stepper motors are widely used in compact automation equipment because their nominal 1.7-inch mounting-face size makes them suitable for applications with limited installation space. Depending on the required torque, speed, and control method, they can be considered for angular indexing, positioning axes, and other controlled movements in diamond polishing machines.

When evaluating a NEMA 17 motor for a faceting application, JKONGMOTOR can help manufacturers identify the specifications that need to be confirmed, including:

• Holding torque and operating torque: Ensure the motor can maintain position and deliver sufficient torque at the required operating speed.

• Step angle and driver compatibility: Match the motor's step characteristics with the controller and driver configuration.

• Supply voltage and current: Select an appropriate electrical configuration for the machine's power system.

• Shaft dimensions and mounting: Check compatibility with couplings, gearboxes, and the faceting mechanism.

• Thermal performance: Evaluate motor temperature under the expected operating duty cycle.

• Motion profile requirements: Consider acceleration, deceleration, indexing frequency, and vibration.

A NEMA 17 designation defines the motor's mounting dimensions, not its torque or accuracy. Manufacturers should therefore compare actual performance specifications rather than selecting a motor based on frame size alone.

10.2 Integrated Stepper Servo Solutions for Simplified Wiring

For equipment builders seeking a more compact control architecture, an integrated stepper servo motor can combine the motor, drive electronics, and encoder-based feedback in one assembly, depending on the model.

This configuration can reduce the number of separately installed components and simplify cabinet layout and wiring. It may also make it easier to standardize motion control across multiple machine models.

Potential benefits for diamond polishing equipment include:

• Reduced installation complexity

• More compact electrical and mechanical layouts

• Position feedback for supported closed-loop configurations

• Easier integration into automated machine-control systems

• Simplified equipment assembly and servicing

Before choosing an integrated motor, manufacturers should confirm the available control interfaces, encoder specifications, supply voltage, current rating, alarm functions, and operating limits. Integration alone does not guarantee better positioning accuracy; the complete motion system must still be designed and tested correctly.

10.3 Open-Loop and Closed-Loop Configurations

Different diamond polishing machines have different accuracy requirements and budgets. Some applications can operate reliably with a properly sized open-loop stepper motor, while others benefit from closed-loop feedback.

JKONGMOTOR can work with equipment manufacturers to evaluate the requirements of their intended motion-control architecture.

Open-loop configurations may suit applications with predictable loads, moderate speeds, adequate torque margins, and cost-sensitive designs.

Closed-loop configurations may be more appropriate when the machine needs position-error monitoring, operates under changing loads, or must reduce the risk of undetected lost motion.

The selection should account for more than motor cost. Manufacturers should also consider driver compatibility, encoder feedback, transmission backlash, commissioning time, maintenance requirements, and the potential cost of inaccurate positioning.

For applications requiring precise facet indexing, it is particularly important to distinguish between motor-shaft positioning and actual output-axis accuracy. A motor-mounted encoder cannot independently detect all errors introduced by a downstream gearbox, coupling, or flexible mechanical structure.

10.4 OEM and ODM Customization for Diamond Polishing Machines

Standard motor specifications may not fully meet the requirements of a specialized diamond polishing machine. Differences in installation space, shaft design, control architecture, and operating conditions can make customization an important part of the procurement process.

As an OEM/ODM motion control solution provider, JKONGMOTOR can discuss project-specific requirements with machine manufacturers and assess suitable configurations.

Depending on the selected product platform and engineering feasibility, customization requirements may include:

• Motor dimensions and mounting arrangements

• Shaft specifications and mechanical interfaces

• Motor and driver combinations

• Encoder and feedback configurations

• Communication and control interfaces

• Cable, connector, and wiring requirements

• Gearbox integration and output-speed requirements

• Application-specific electrical and mechanical specifications

Not every option is available on every motor model, so manufacturers should confirm feasibility, minimum order quantities, lead times, and validation requirements before finalizing the design.

A clear technical specification helps reduce unnecessary revisions during prototype development and supports a smoother transition to batch production.

10.5 Technical Support From Prototype to Mass Production

Selecting a motor based solely on a datasheet can leave important application questions unanswered. A more reliable approach is to validate the motor and drive system in the actual machine before committing to large production quantities.

JKONGMOTOR can support discussions around motor selection and integration throughout the development process.

Step 1: Define the application requirements

Provide the faceting axis's required angular range, positioning tolerance, operating speed, acceleration, load inertia, duty cycle, available installation space, and power supply.

Step 2: Evaluate the motor configuration

Compare available motor torque, speed characteristics, step angle, driver functions, and feedback options against the application requirements.

Step 3: Confirm mechanical and electrical compatibility

Check shaft and mounting dimensions, coupling arrangements, gearbox requirements, wiring, control signals, and controller compatibility.

Step 4: Test a prototype

Evaluate positioning repeatability, vibration, temperature rise, homing behavior, and performance under representative polishing loads.

Step 5: Optimize the motion-control settings

Adjust current settings, acceleration and deceleration profiles, microstepping, and control parameters as supported by the selected system.

Step 6: Validate the production configuration

Document the approved motor model, wiring, driver settings, mechanical interfaces, and test criteria to help maintain consistency across production batches.

This process helps manufacturers identify potential problems before mass production and reduces the risk of discovering integration issues after machines have been delivered to customers.

10.6 Testing Priorities for Precision Diamond Polishing Equipment

For diamond polishing machines, successful motor integration should be demonstrated through measurable results rather than theoretical resolution alone.

Machine manufacturers should consider the following validation checks:

Microstepping increases the number of commanded increments per revolution, but it does not automatically deliver equivalent mechanical accuracy. Actual performance must be measured at the working axis, especially when a gearbox or other transmission mechanism is installed.

These tests provide a stronger basis for comparing motor solutions and help machine manufacturers establish repeatable quality-control procedures.

10.7 Why Work With JKONGMOTOR for Motion Control Projects?

For OEMs developing diamond polishing machines and other precision automation equipment, supplier selection involves more than comparing unit prices. Engineering communication, customization feasibility, product consistency, and production support can all affect the final project outcome.

JKONGMOTOR's motor and motion-control product range provides a starting point for evaluating solutions for different positioning and automation requirements. Depending on the selected product and project scope, manufacturers can discuss:

• Application-oriented motor selection based on torque, speed, space, and control requirements

• Integrated motion-control configurations to simplify system design

• OEM/ODM customization for project-specific mechanical and electrical interfaces

• Prototype evaluation before committing to production quantities

• Technical coordination to confirm compatibility with the machine's controller and mechanical assembly

• Production planning based on approved specifications and forecast demand

Manufacturers should request the relevant datasheets, dimensional drawings, interface specifications, and available test documentation when evaluating a proposed solution.

10.8 Contact JKONGMOTOR About Your Diamond Polishing Machine Project

If you are developing a diamond polishing machine and need a suitable NEMA 17 stepper motor, integrated stepper servo motor, or customized motion-control solution, start by defining the required output-axis accuracy and operating conditions.

To help identify an appropriate configuration, prepare the following information:

• Required positioning accuracy and repeatability

• Motor speed, torque, and acceleration requirements

• Load inertia and transmission ratio

• Available installation space and shaft dimensions

• Supply voltage and controller type

• Whether open-loop or encoder-based closed-loop control is preferred

• Expected production quantity and customization requirements

With these details, JKONGMOTOR can assess the application requirements and discuss suitable motor configurations, subject to product availability and technical feasibility.

The right precision motion-control solution begins with a clear understanding of the machine's mechanical requirements, measurable accuracy targets, and real operating conditions. By combining appropriate motor selection with careful integration and prototype testing, diamond polishing machine manufacturers can develop more reliable faceting systems while controlling engineering and production costs.

11. Future Trends in Diamond Polishing Machine Motion Control

Diamond polishing machines are evolving as manufacturers seek higher faceting consistency, improved production efficiency, reduced material waste, and more automated operation. For diamond processing equipment manufacturers in India, these changes are creating new requirements for motor selection, position feedback, controller integration, and machine-level quality monitoring.

Traditional stepper motor systems remain a practical choice for many positioning applications. However, future machine designs are likely to place greater emphasis on closed-loop motion control, integrated motor-drive systems, intelligent diagnostics, and data-driven process optimization.

For manufacturers developing next-generation diamond polishing equipment, understanding these trends can help guide decisions about NEMA 17 stepper motors, integrated stepper servo motors, and other precision motion-control technologies.

11.1 Greater Adoption of Closed-Loop Positioning Systems

One important trend is the increasing use of feedback-based motion control in applications where positioning errors can affect product quality.

In a conventional open-loop stepper system, the controller estimates the motor position by counting the commanded steps. If the motor loses synchronism because of excessive load, rapid acceleration, or mechanical interference, the controller may not recognize the resulting position error.

A closed-loop stepper system uses an encoder to measure motor position and compare it with the commanded position. Depending on the driver design, the system can compensate for certain errors or trigger an alarm when a configured position-error limit is exceeded.

For diamond polishing machines, closed-loop positioning can be particularly useful when:

• The faceting axis must maintain repeatable angular indexing.

• The machine operates for extended periods.

• Mechanical loads vary during operation.

• Position errors could increase rework or material waste.

• Operators need better visibility into motion-related faults.

A closed-loop NEMA 17 stepper motor may be suitable for compact faceting mechanisms when its torque, speed, and thermal performance meet the application's requirements.

However, feedback alone does not guarantee accurate faceting. Gearbox backlash, coupling movement, shaft deflection, and mechanical wear can still introduce output-position errors. Future machine designs will need to combine suitable feedback with rigid mechanics and reliable calibration procedures.

11.2 More Compact Integrated Motor and Driver Designs

Another important development is the integration of motor, driver, and feedback electronics into a single assembly.

Traditional motion-control systems often use separate motors, drivers, and feedback components. While this arrangement offers flexibility, it can increase wiring complexity, cabinet space requirements, and installation time.

Integrated stepper servo motors can simplify the system by combining several motion-control components in one unit, depending on the product configuration.

For diamond polishing machine manufacturers, potential benefits include:

• Reduced control-panel space requirements

• Fewer separate components to install

• Simplified electrical wiring

• More standardized machine designs

• Easier replication of proven configurations across product models

Compact NEMA 17-based integrated solutions may be particularly attractive for small and medium-sized diamond polishing machines, where installation space is limited.

Nevertheless, machine builders should evaluate heat dissipation, driver accessibility, connector reliability, and serviceability before adopting an integrated design. A compact assembly is valuable only when it also satisfies the machine's electrical, mechanical, and maintenance requirements.

11.3 Smarter Microstepping and Motion Profile Optimization

Microstepping is already widely used in stepper motor applications, but future motion-control systems will increasingly focus on optimizing how the motor moves rather than simply increasing the number of commanded steps.

Microstepping divides each full motor step into smaller commanded increments. For a common 1.8° stepper motor, 16-microstep operation produces 3,200 commanded increments per revolution.

However, these increments do not represent guaranteed mechanical accuracy. Actual movement depends on motor construction, load, current regulation, friction, and the mechanical transmission.

For diamond polishing machines, motion profile optimization can be just as important as microstep resolution.

Potential improvements include:

• Smoother acceleration and deceleration

• Reduced mechanical shock during indexing

• Better management of low-speed vibration

• Optimized settling time before polishing begins

• More consistent movement between successive facet positions

For example, an aggressive acceleration profile may cause a motor to lose synchronism or excite mechanical resonance. A more carefully tuned profile can improve stability without necessarily requiring a larger motor.

Future controllers may offer more advanced tuning tools that help equipment manufacturers optimize motion profiles for different polishing cycles and mechanical configurations.

11.4 Increasing Demand for Compact, High-Performance Motors

Machine manufacturers continue to seek smaller equipment footprints without sacrificing the torque and positioning performance needed for their applications.

This creates opportunities for compact stepper motors, integrated stepper servo motors, and other space-efficient motion-control solutions.

NEMA 17 motors are attractive because of their compact mounting dimensions, but not every NEMA 17 model provides the same torque, speed, or thermal capability. Motor selection must be based on the actual load and operating conditions.

Future motor designs may place greater emphasis on:

• Improved torque utilization within compact dimensions

• Better thermal management

• More efficient driver electronics

• Lower vibration and acoustic noise

• Easier integration with gearboxes and mechanical assemblies

For diamond polishing equipment, the goal is not simply to install the smallest available motor. It is to achieve the required positioning performance within the available space while maintaining adequate torque margin and acceptable operating temperature.

11.5 More Connected Motion Control and Industrial Communication

As diamond polishing equipment becomes more automated, communication between the motor, controller, human-machine interface, and production-management system can become increasingly important.

Basic pulse-and-direction control remains suitable for many stepper motor applications. More complex equipment, however, may benefit from communication interfaces that provide additional configuration, diagnostic, or status information.

Depending on the equipment architecture and selected motor platform, relevant interfaces may include:

• RS485: Commonly used for industrial serial communication.

• CANopen: Used in distributed automation and motion-control systems.

• EtherCAT: Suitable for applications requiring coordinated, real-time communication across multiple devices.

• Pulse-and-direction: A straightforward option for many conventional stepper motor controllers.

The appropriate interface depends on the number of axes, synchronization requirements, controller capabilities, wiring architecture, and overall machine cost.

For a diamond polishing machine with several independently controlled axes, networked motion control may simplify system coordination and diagnostics. However, a single-axis machine with straightforward indexing may not need a more complex industrial network.

Manufacturers should confirm protocol support at both ends of the connection rather than assuming that all integrated motors support the same communication options.

11.6 Predictive Maintenance and Motion Fault Diagnostics

Future diamond polishing machines may increasingly use motion data to identify developing problems before they cause production interruptions.

Traditional maintenance often depends on scheduled inspections or operator observations. While these methods remain important, motion-control diagnostics can provide additional information about system behavior.

Depending on the motor and controller, useful monitoring parameters may include:

• Position error or following error

• Motor current

• Driver temperature

• Alarm and fault history

• Operating time and cycle count

• Changes in positioning repeatability

A sudden increase in position error, for example, may indicate an overloaded axis, mechanical obstruction, incorrect tuning, or another developing issue. It does not automatically identify the root cause, but it can help maintenance personnel investigate the problem more efficiently.

In the future, machine controllers may combine motion data with production records to identify recurring faults and improve maintenance planning.

It is important to distinguish between basic motor protection and genuine predictive maintenance. Overcurrent protection or a temperature alarm can prevent certain failures, but predictive maintenance generally requires historical data, suitable monitoring logic, and validated diagnostic methods.

11.7 Greater Use of Automated Calibration and Quality Monitoring

Manual calibration can be time-consuming, particularly when machines contain multiple positioning axes or require frequent setup changes.

Future diamond polishing equipment may increasingly use automated homing, reference-position verification, calibration routines, and software-assisted setup procedures.

These functions can help manufacturers standardize machine commissioning and reduce dependence on individual operator experience.

Potential developments include:

• Repeatable automatic homing routines

• Digital storage of axis calibration parameters

• Software-assisted positioning checks

• Automated verification of selected angular positions

• Integration of motion status with machine quality-control procedures

For higher-precision applications, machine builders may also consider measuring the actual output axis instead of relying exclusively on motor-shaft feedback.

This distinction matters when a gearbox, coupling, or mechanical linkage lies between the motor and the polishing mechanism. Accurate motor feedback cannot independently confirm that the final working axis has reached the intended angle.

Automated calibration should therefore verify the relevant mechanical reference points and be validated against the machine's specified tolerances.

11.8 Data-Driven Optimization of Polishing Cycles

Motion-control data can also support the optimization of polishing cycles.

For example, manufacturers may compare indexing time, settling time, vibration behavior, and fault frequency across different motion profiles. These measurements can help identify opportunities to improve throughput without compromising positioning consistency.

Potential optimization targets include:

• Reducing unnecessary travel between facet positions

• Adjusting acceleration and deceleration settings

• Shortening settling time where measurements support it

• Identifying operating speeds that cause excessive vibration

• Standardizing motion parameters across machine models

Any attempt to increase production speed must account for the polishing process itself. Faster motor movement does not necessarily mean shorter total processing time if the machine requires additional settling time or produces more positioning errors.

The most useful optimization approach measures both motion performance and the final quality of the polished workpiece.

11.9 How JKONGMOTOR Can Support Future Motion-Control Development

As diamond polishing machine manufacturers modernize their equipment, selecting a motor supplier that can support application-specific requirements becomes increasingly important.

JKONGMOTOR provides motor and motion-control product options for OEM and ODM projects. Depending on the selected product platform and technical feasibility, manufacturers can discuss configurations involving compact stepper motors, integrated stepper servo motors, feedback options, and different control interfaces.

For future diamond polishing machine designs, key evaluation areas include:

• Motor selection: Matching torque, speed, and mounting dimensions to the faceting mechanism.

• Feedback requirements: Determining whether open-loop or encoder-based closed-loop control is appropriate.

• System integration: Confirming compatibility with the machine controller, wiring, and mechanical transmission.

• Customization: Evaluating project-specific shaft, mounting, connector, and control requirements.

• Prototype testing: Verifying positioning repeatability, temperature, vibration, and operation under representative loads.

• Production readiness: Establishing approved specifications and repeatable testing procedures before batch manufacturing.

Machine manufacturers should provide the required output-axis accuracy, load inertia, operating speed, duty cycle, and controller specifications when requesting a motor recommendation.

This information allows the proposed solution to be evaluated against the real application instead of relying solely on nominal motor size or theoretical step resolution.

Conclusion

The future of diamond polishing machine motion control will likely involve wider use of feedback-based positioning, compact integrated motor systems, improved motion-profile optimization, connected diagnostics, and automated calibration.

For manufacturers in India, these developments offer opportunities to improve faceting consistency, simplify machine integration, and make production processes easier to monitor. However, the best solution will continue to depend on the specific machine design, accuracy requirements, operating conditions, and target cost.

A properly selected NEMA 17 stepper motor can remain an effective choice for compact faceting mechanisms. When greater position monitoring or more demanding motion performance is required, a closed-loop or integrated stepper servo configuration may be worth evaluating.

The key is to combine the right motor and control architecture with sound mechanical design, measurable output-axis accuracy, and realistic prototype testing. This approach helps diamond polishing machine manufacturers develop reliable equipment that is ready for changing production requirements.

12. Frequently Asked Questions

FAQ 1: What is the best stepper motor for a diamond polishing machine?

A NEMA 17 stepper motor can be suitable for compact diamond polishing machines that require precise angular indexing and repeatable positioning. The best motor depends on the required torque, operating speed, load inertia, installation space, and positioning tolerance. For applications requiring position feedback, a closed-loop stepper motor or integrated stepper servo motor may be a better option.

FAQ 2: Why are NEMA 17 stepper motors used in diamond polishing machines?

NEMA 17 stepper motors offer compact mounting dimensions, straightforward pulse-based control, and convenient integration into positioning mechanisms. They can provide repeatable angular movement when correctly sized and configured. Their suitability depends on the actual torque requirements, mechanical transmission, driver performance, and operating conditions.

FAQ 3: How can a NEMA 17 stepper motor improve diamond faceting accuracy?

A NEMA 17 stepper motor can support accurate faceting through controlled angular indexing, suitable microstepping, optimized acceleration and deceleration, reliable homing, and rigid mechanical construction. For higher accuracy requirements, manufacturers should also evaluate transmission backlash and measure positioning performance at the actual faceting axis.

FAQ 4: What is the difference between open-loop and closed-loop stepper motors for diamond polishing machines?

An open-loop stepper motor estimates its position by counting commanded steps and does not directly detect missed steps. A closed-loop stepper motor uses encoder feedback to compare actual motor position with the commanded position. Closed-loop systems can detect position deviations and may correct certain errors or trigger alarms, depending on the driver and control configuration.

FAQ 5: Does microstepping increase the positioning accuracy of a NEMA 17 stepper motor?

Microstepping divides each full motor step into smaller commanded increments, helping improve motion smoothness and reduce vibration in suitable applications. However, microstep resolution is not the same as actual positioning accuracy. Motor characteristics, load, friction, driver performance, mechanical backlash, and calibration all influence the final position.

FAQ 6: How much torque does a NEMA 17 stepper motor need for a diamond polishing machine?

The required torque depends on the rotating assembly's inertia, acceleration, friction, external loads, and operating speed. Engineers should calculate the torque required by the mechanism and provide an appropriate safety margin. If a gearbox is used, its ratio and efficiency must also be considered. The motor's available torque at the intended operating speed should be checked against the calculated requirement.

FAQ 7: Can an integrated stepper servo motor improve diamond polishing machine performance?

An integrated stepper servo motor combines the motor with drive electronics and, in closed-loop configurations, encoder feedback. It can reduce wiring complexity and simplify installation. Feedback can help detect position deviations, but actual faceting accuracy still depends on mechanical rigidity, transmission quality, control tuning, and system calibration.

FAQ 8: Which control interfaces are suitable for diamond polishing machine motors?

Pulse-and-direction control is suitable for many conventional stepper motor applications. RS485 and CANopen may be appropriate for systems requiring communication and configuration functions, while EtherCAT can support coordinated motion in suitable real-time automation architectures. The choice depends on the motor's supported interfaces, controller compatibility, synchronization requirements, and overall system design.

FAQ 9: How should manufacturers test stepper motors before mass production?

Manufacturers should test the complete motion-control system under representative operating conditions. Key checks include positioning repeatability, angular indexing accuracy, reversal error, torque under load, vibration, temperature rise, homing reliability, and long-duration operation. Testing should measure the actual output axis when the application requires precise faceting angles.

FAQ 10: Can JKONGMOTOR provide customized stepper motor solutions for diamond polishing machines?

JKONGMOTOR supports OEM and ODM motion-control projects and offers motor solutions for different industrial positioning requirements. Depending on the selected product platform and technical feasibility, manufacturers can discuss motor specifications, integrated drive configurations, feedback options, mounting dimensions, shaft requirements, and control interfaces. Machine builders should provide their torque, speed, accuracy, and installation requirements to evaluate a suitable configuration.

Conclusion: Selecting the Right NEMA 17 Stepper Motor for Diamond Faceting

Achieving high-precision faceting control in diamond polishing machines requires more than a motor with a small step angle. It depends on the combined performance of the motor, driver, mechanical transmission, mounting structure, control software, and calibration process.

A NEMA 17 stepper motor can be an effective choice for compact diamond holder indexing mechanisms, angle adjustment assemblies, and other positioning axes that require controlled incremental movement. Its suitability depends on the actual mechanical load, available torque at the operating speed, transmission characteristics, and required positioning tolerance.

For diamond polishing machine manufacturers in India, the most important considerations include torque margin, microstepping configuration, mechanical backlash, vibration, thermal stability, feedback requirements, and verified repeatability under realistic operating conditions.

By calculating torque requirements, selecting a compatible driver, minimizing mechanical lost motion, implementing controlled acceleration, and testing the completed assembly, manufacturers can develop more reliable and consistent faceting systems.

The best NEMA 17 stepper motor is not necessarily the one with the highest advertised torque or finest nominal microstep resolution. It is the motor that delivers the required positioning performance, reliability, and operating life in the finished diamond polishing machine.
