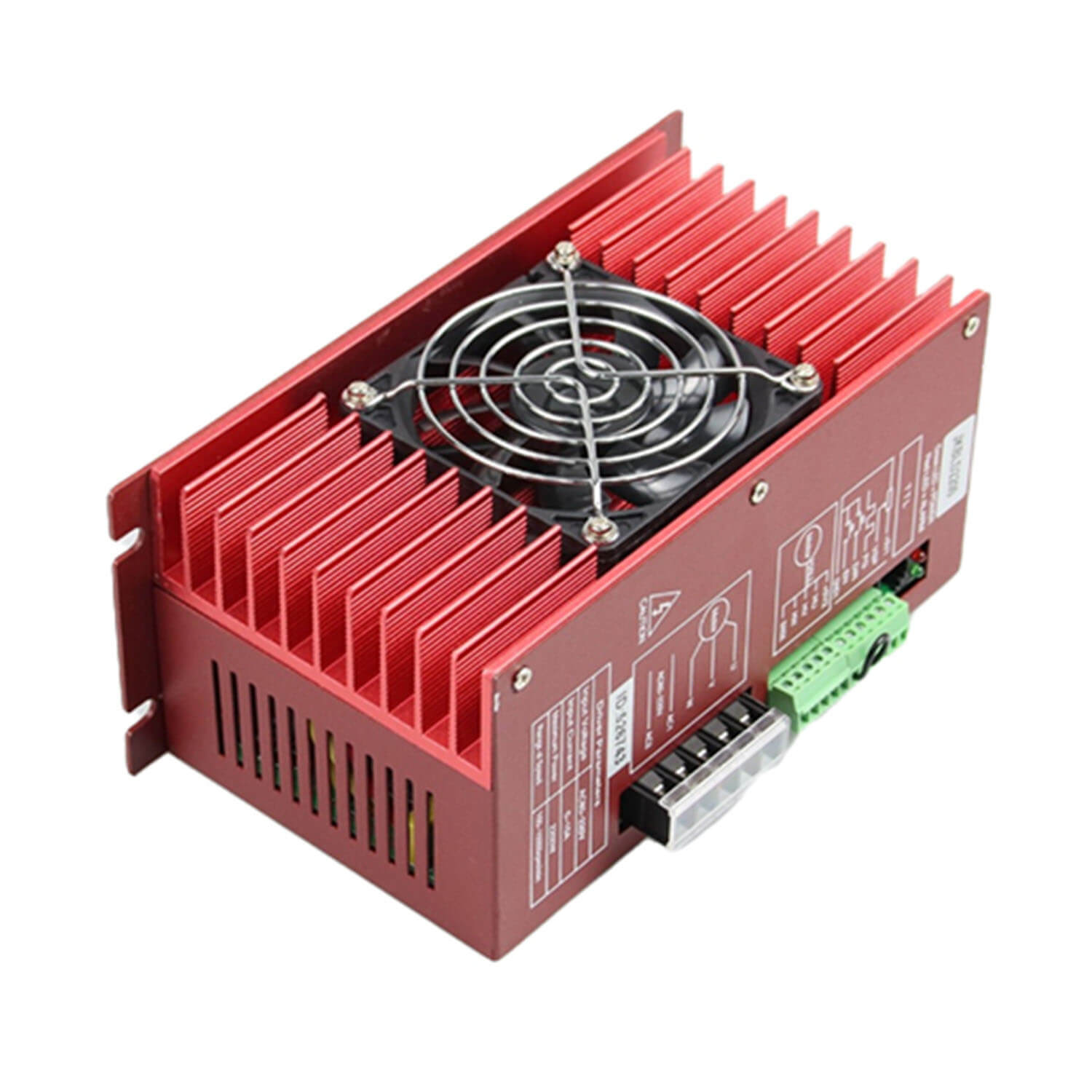

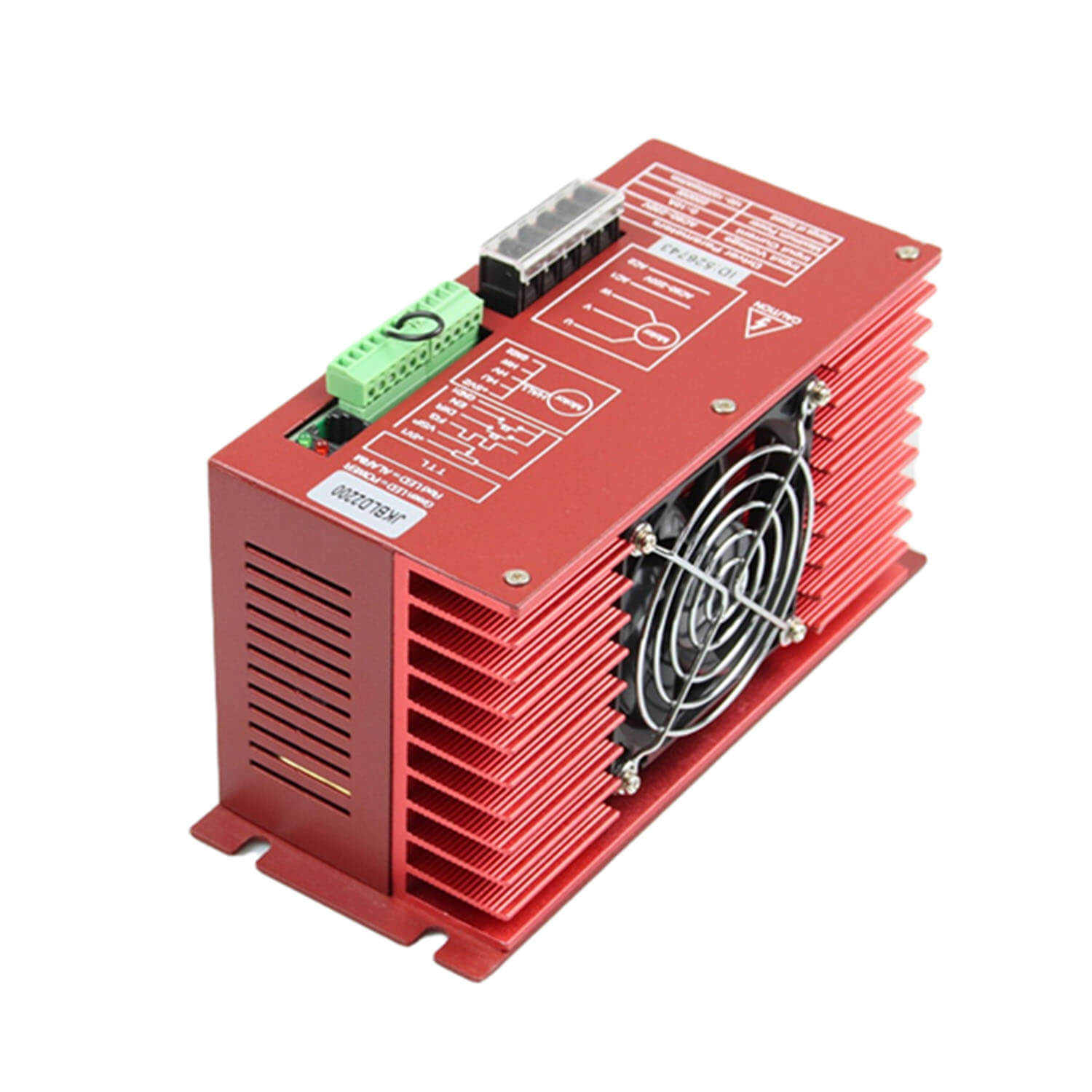

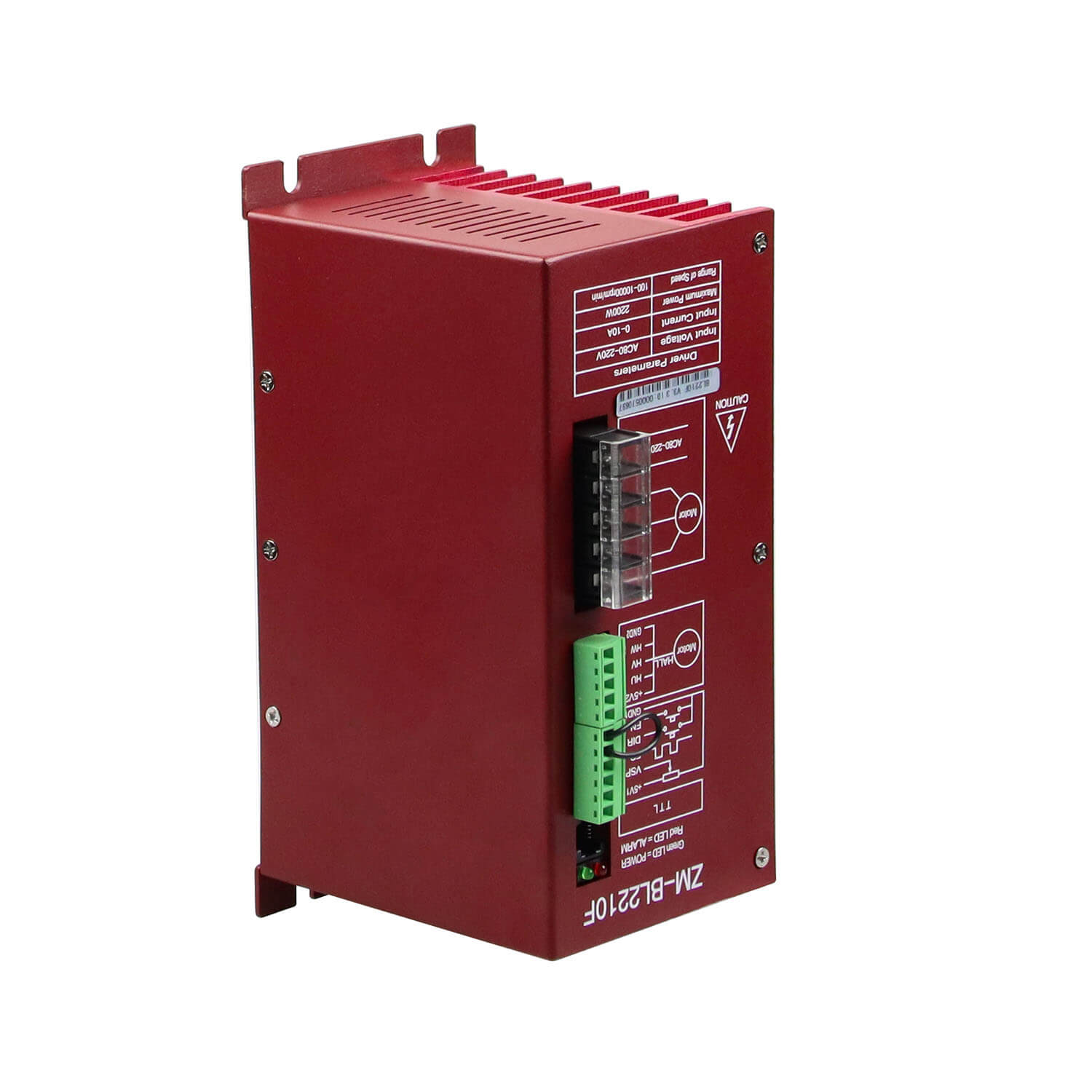

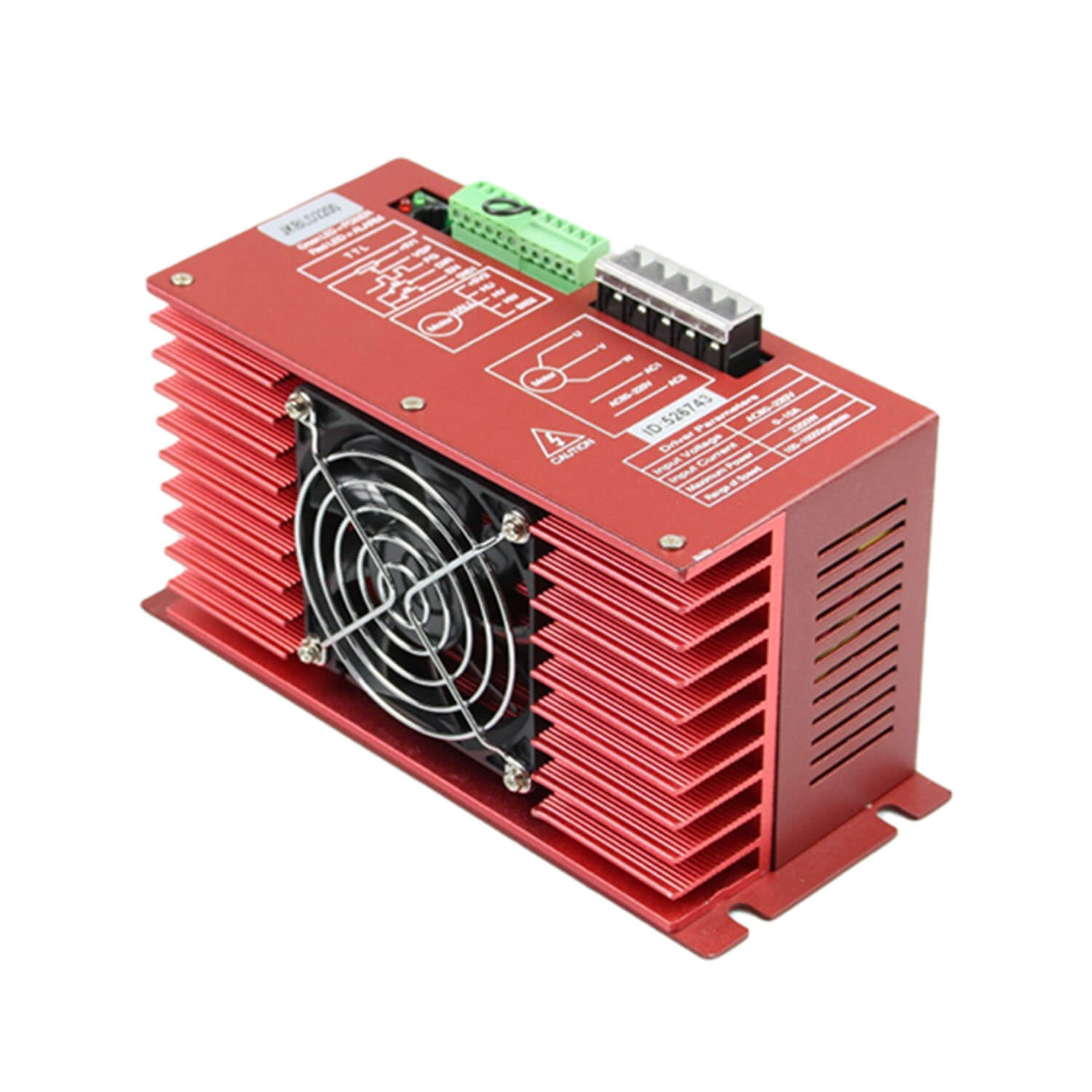

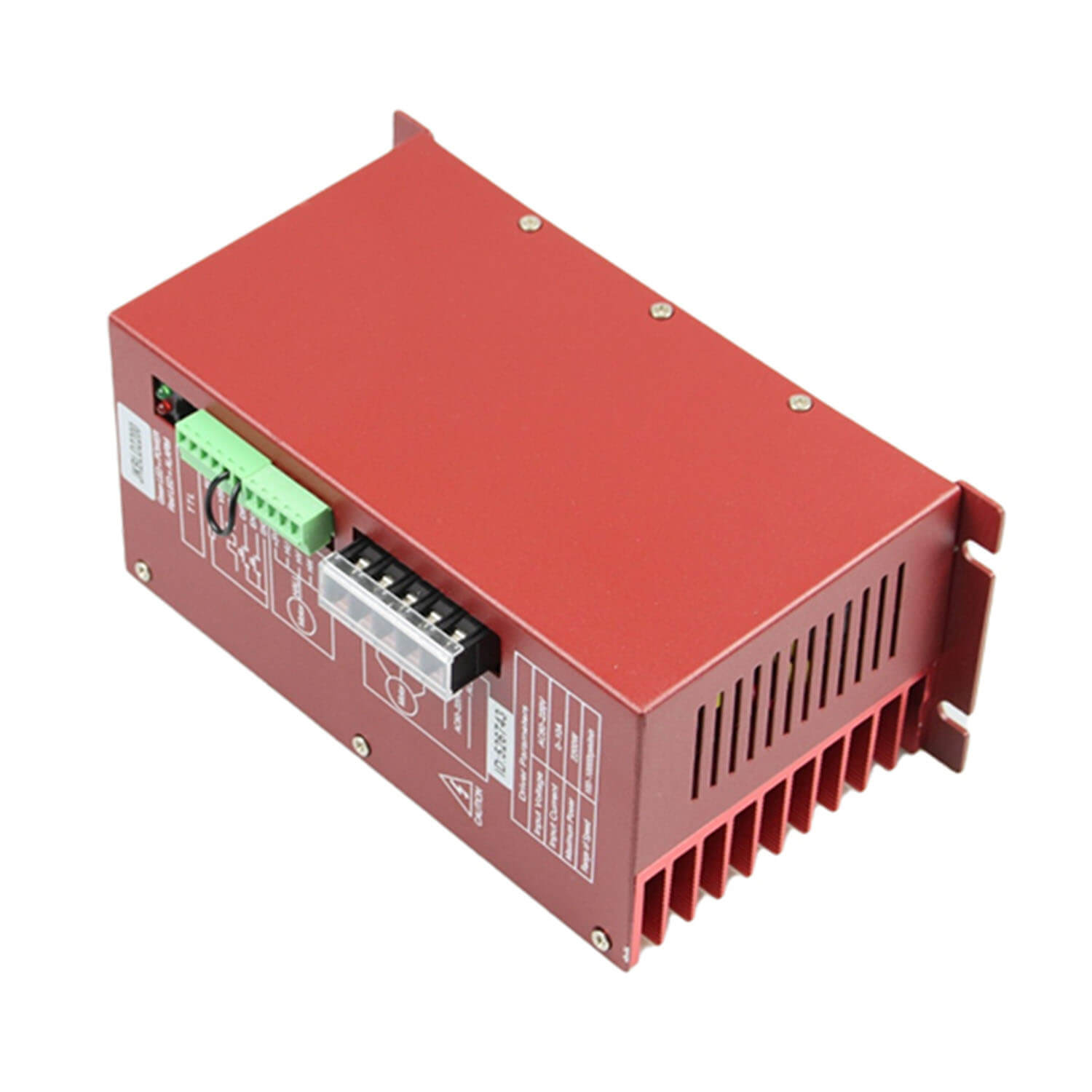

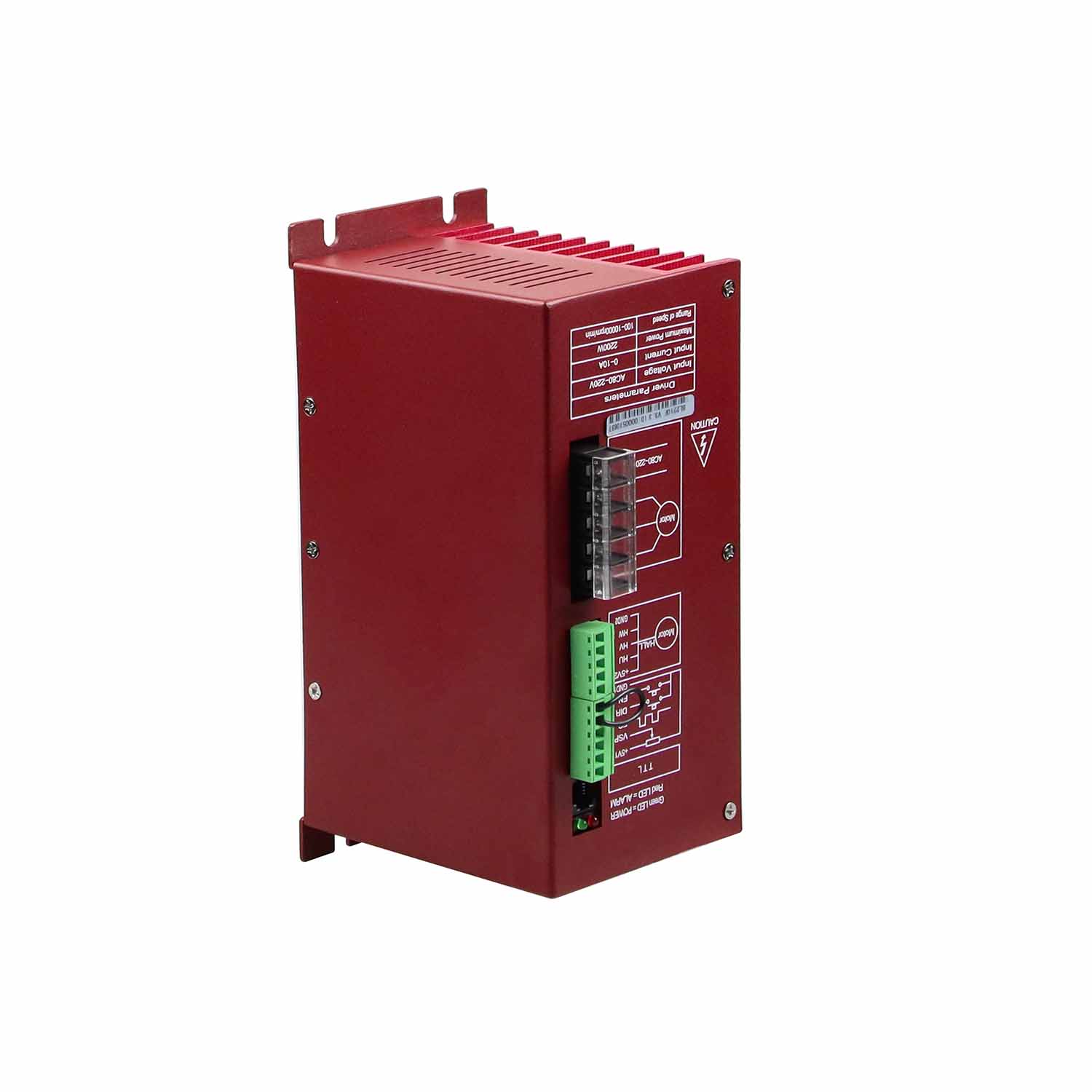

JKBLD2200 brushless DC motor driver is our company's latest high-tech product for the field of high power motor drive. This product uses a large-scale integrated circuit to replace the original hardware. It has higher anti-jamming and fast response ability. It is suitable for all the three-phase brushless DC motors with low voltage DC310V and current below 10A. Even if working with large current, it is still in low temperature.
● It has double speed closed current design with low speed torque and smooth operation;
● It has high speed output with the maximum speed of 10000rpm / min;
● Speed control mode : analog quantity 0-5V
● It has have EN, DIR signal control side;
● It can output tachometer pulse (optoelectronic isolation, gate output);
● It has over-current, overvoltage, under voltage , overheating, motor stalling and other protection functions
JKBLD2200 brushless DC motor driver is our company's latest high-tech product for the field of high power motor drive. This product uses a large-scale integrated circuit to replace the original hardware. It has higher anti-jamming and fast response ability. It is suitable for all the three-phase brushless DC motors with low voltage DC310V and current below 10A. Even if working with large current, it is still in low temperature.
● It has double speed closed current design with low speed torque and smooth operation;
● It has high speed output with the maximum speed of 10000rpm / min;
● Speed control mode : analog quantity 0-5V
● It has have EN, DIR signal control side;
● It can output tachometer pulse (optoelectronic isolation, gate output);
● It has over-current, overvoltage, under voltage , overheating, motor stalling and other protection functions
Brand | Jkongmotor |
Model | JKBLD2200 |
Driver Type | DC Brushless Motor Driver |
DC / AC | DC/AC |
Suitable Motor | 3-Phase DC Brushless motor |
Input Voltage | AC100V - AC250V |
Output Current | Max 10A |
Motor speed range | 0rpm - 10000rpm |
Power Supply | AC100V~250V direct current (Capacity according to motor power selection) |
The maximum input current | Not greater than 10 A (according to motor and rated load) |
The maximum power | The maximum is 2200W (over power motor is strictly prohibited) |
Insulation resistance | General temperature﹥500MΩ |
Insulation strength | General temperature and pressure 0.5KV,1minitute |
Cooling method | Natural air cooling& forced air cooling | |
Environment | Condition | Avoid dust, oil mist and corrosive gases |
Temperature | 0℃~+50℃ | |
Humidity | ﹤80% RH,no condensation, no frost | |
Vibration | 5.9m/s² max | |
Reserved temperature | -20℃~+65℃ | |
Size | 198mmX103mmX86mm | |
Weight | About 1Kg |
Note: Due to dramatic changes in the temperature of the storage environment, it is easy to form condensation or frost. In this case, the drive should be placed for 12 hours or more. Until the drive temperature and ambient temperature is consistent, it can be on power.

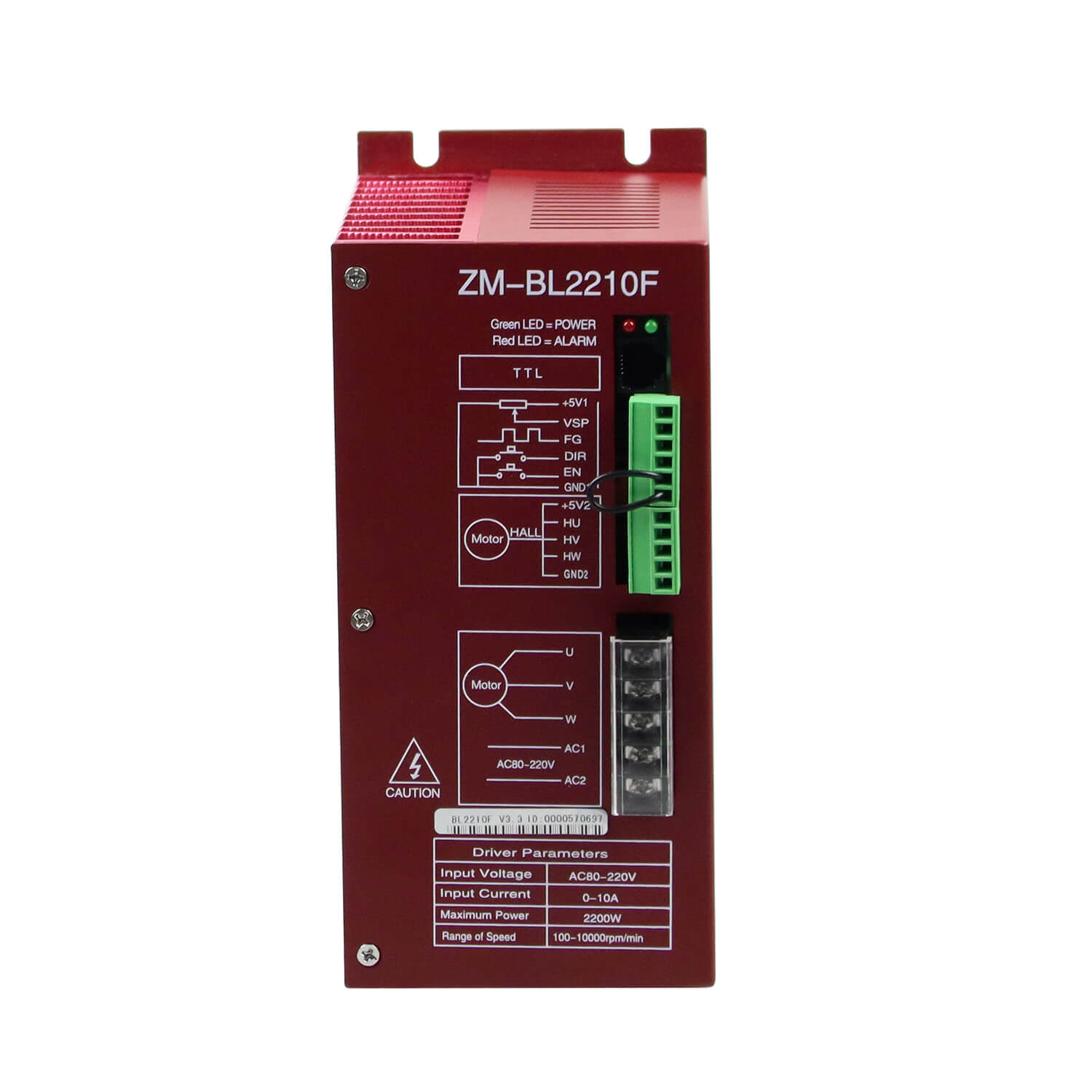

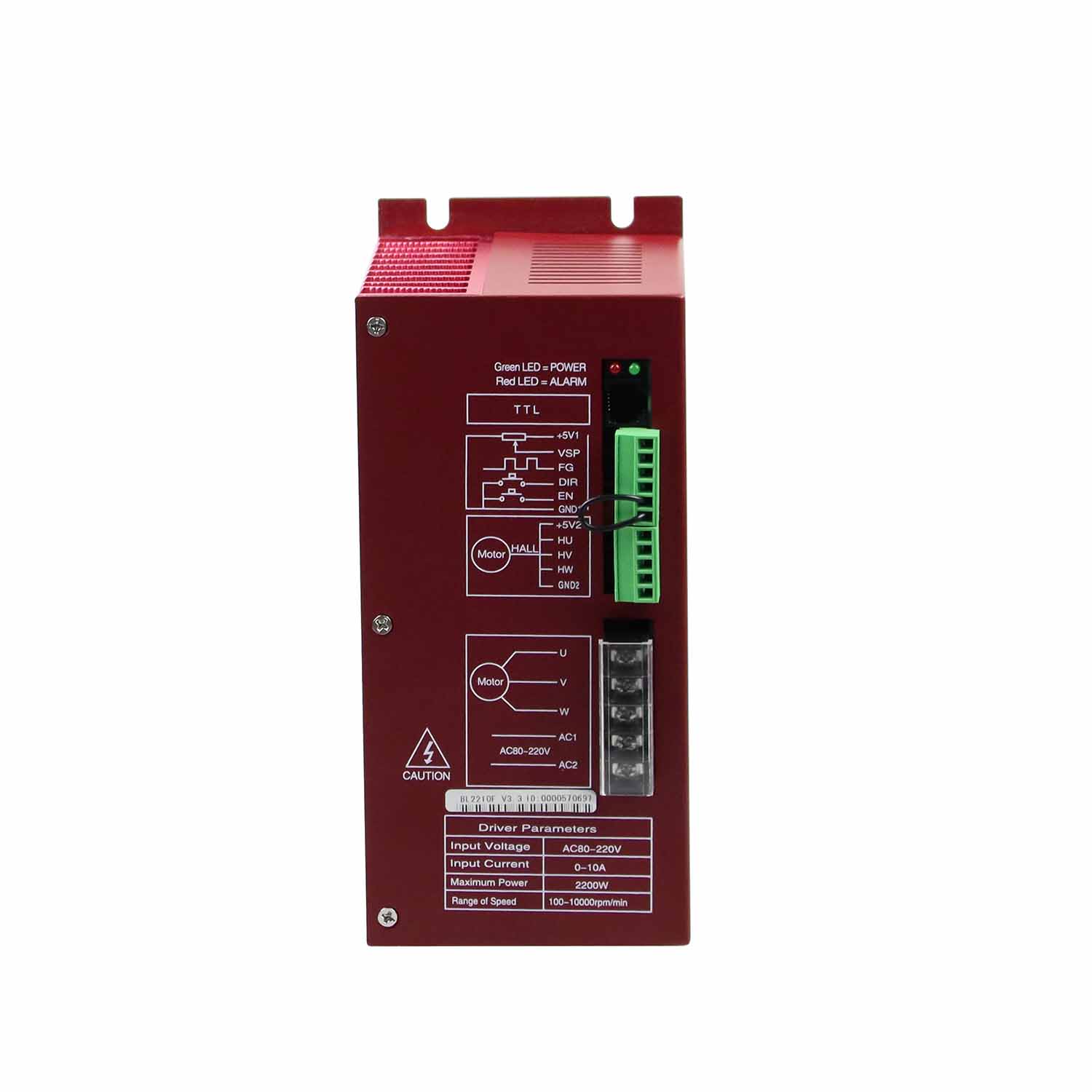

Signal category | Terminal | Functional Description |
Indicator light | POWER | If the green power indicator is lighten, it shows that power is normal. |
ALM | If the red status indicator is slow flash, it means waiting; Quick flash means operation; It always lights meaning faults or off-line; | |
Control signal port | +5V1 | Control signal power+( inner power output ) |
VSP | External speed control signal Control way: By connecting with a potentiometer to change VSP, then it can complete 0 ~ 100% speed adjustment. The range is 0-5V | |
FG | Motor speed pulse output is measuring the frequency of this signal. Then converts it into the actual motor speed. | |
DIR | Rotary direction is controlled by high and low electrical level, motor forward: connected with GND1, motor reversal (anticlockwise) ;without GND1 or connected with +5V, motor forward (clockwise) | |
EN | Connected EN with GND1, motor can work(online status);without connected or high electrical lever, motor can not work(offline status and the red light keep working) | |
Hall control port | +5V2 | + motor’s Hall power |
HU | Hall sensor signal U phase input | |
HV | Hall sensor signal V phase input | |
HW | Hall sensor signal W phase input | |
GND2 | The motor’s Hall power supply | |
The motor and power | U、V、W | The motor’s three-phase output signal |
AC1、AC2 | The input power is AC100V~250V. |
Speed mode (VSP/PWM) | 1. The external input speed: two external terminals of the external potentiometer(5K-10K) respectively connected to the driver's GND1 and +5 V1 terminal. If the regulator is connected to the VSP end, you can use an external potentiometer to adjust speed. It can also be made by the other control unit’s (such as PLC, microcontroller, etc.) input analog voltage to VSP side (relative to GND1). VSP port accepts the range of DC 0V ~ +5 V and the corresponding motor speed is 0 ~ rated speed; |
Speed signal output (FG) | The drive provides the motor speed pulse signal, which is positive proportion to the motor speed, pulse output way: light lotus root isolation, 1. the motor speed (RPM) = F ÷ N× 60 F = actually measured frequency current on the FG foot by frequency table N = 2 or 4, 2-pole motor, N = 2; 4-pole motor, N = 4 For example: the user selects a 4-level motor. When the output FG signal is 200Hz, the motor speed = 200 ÷ 4× 60 = 3000 r / min. 2.optoelectronic isolation, gate output |
The motor positive and negative signal(DIR) | By controlling high low-level of DIR to control the motor’s positive and reverse turn. Noticed: Swerved suddenly when motor is at high speed, to avoid the damage of motor and equipment , when DIR get the transform single , we must make motor stop running for 1s, then change the motor direction ,improve speed to the set value. |
Start/Stop signal(EN) | By controlling high low-level of EN to control the motor’s stop and run. When EN is low level, motor run; when EN is high level or non-connect ,motor stop working, red light keep working. When control motor stop by EN port, it is nature stop, and the run regular is related with overloading inertia. Power Consumption is less than or equal to 20mA. Fault Value: short circuit with EN and GND1 |
Brand | Jkongmotor |
Model | JKBLD2200 |
Driver Type | DC Brushless Motor Driver |
DC / AC | DC/AC |
Suitable Motor | 3-Phase DC Brushless motor |
Input Voltage | AC100V - AC250V |
Output Current | Max 10A |
Motor speed range | 0rpm - 10000rpm |
Power Supply | AC100V~250V direct current (Capacity according to motor power selection) |
The maximum input current | Not greater than 10 A (according to motor and rated load) |
The maximum power | The maximum is 2200W (over power motor is strictly prohibited) |
Insulation resistance | General temperature﹥500MΩ |
Insulation strength | General temperature and pressure 0.5KV,1minitute |
Cooling method | Natural air cooling& forced air cooling | |
Environment | Condition | Avoid dust, oil mist and corrosive gases |
Temperature | 0℃~+50℃ | |
Humidity | ﹤80% RH,no condensation, no frost | |
Vibration | 5.9m/s² max | |
Reserved temperature | -20℃~+65℃ | |
Size | 198mmX103mmX86mm | |
Weight | About 1Kg |
Note: Due to dramatic changes in the temperature of the storage environment, it is easy to form condensation or frost. In this case, the drive should be placed for 12 hours or more. Until the drive temperature and ambient temperature is consistent, it can be on power.
Signal category | Terminal | Functional Description |
Indicator light | POWER | If the green power indicator is lighten, it shows that power is normal. |
ALM | If the red status indicator is slow flash, it means waiting; Quick flash means operation; It always lights meaning faults or off-line; | |
Control signal port | +5V1 | Control signal power+( inner power output ) |
VSP | External speed control signal Control way: By connecting with a potentiometer to change VSP, then it can complete 0 ~ 100% speed adjustment. The range is 0-5V | |
FG | Motor speed pulse output is measuring the frequency of this signal. Then converts it into the actual motor speed. | |
DIR | Rotary direction is controlled by high and low electrical level, motor forward: connected with GND1, motor reversal (anticlockwise) ;without GND1 or connected with +5V, motor forward (clockwise) | |
EN | Connected EN with GND1, motor can work(online status);without connected or high electrical lever, motor can not work(offline status and the red light keep working) | |
Hall control port | +5V2 | + motor’s Hall power |
HU | Hall sensor signal U phase input | |
HV | Hall sensor signal V phase input | |
HW | Hall sensor signal W phase input | |
GND2 | The motor’s Hall power supply | |
The motor and power | U、V、W | The motor’s three-phase output signal |
AC1、AC2 | The input power is AC100V~250V. |
Speed mode (VSP/PWM) | 1. The external input speed: two external terminals of the external potentiometer(5K-10K) respectively connected to the driver's GND1 and +5 V1 terminal. If the regulator is connected to the VSP end, you can use an external potentiometer to adjust speed. It can also be made by the other control unit’s (such as PLC, microcontroller, etc.) input analog voltage to VSP side (relative to GND1). VSP port accepts the range of DC 0V ~ +5 V and the corresponding motor speed is 0 ~ rated speed; |
Speed signal output (FG) | The drive provides the motor speed pulse signal, which is positive proportion to the motor speed, pulse output way: light lotus root isolation, 1. the motor speed (RPM) = F ÷ N× 60 F = actually measured frequency current on the FG foot by frequency table N = 2 or 4, 2-pole motor, N = 2; 4-pole motor, N = 4 For example: the user selects a 4-level motor. When the output FG signal is 200Hz, the motor speed = 200 ÷ 4× 60 = 3000 r / min. 2.optoelectronic isolation, gate output |
The motor positive and negative signal(DIR) | By controlling high low-level of DIR to control the motor’s positive and reverse turn. Noticed: Swerved suddenly when motor is at high speed, to avoid the damage of motor and equipment , when DIR get the transform single , we must make motor stop running for 1s, then change the motor direction ,improve speed to the set value. |
Start/Stop signal(EN) | By controlling high low-level of EN to control the motor’s stop and run. When EN is low level, motor run; when EN is high level or non-connect ,motor stop working, red light keep working. When control motor stop by EN port, it is nature stop, and the run regular is related with overloading inertia. Power Consumption is less than or equal to 20mA. Fault Value: short circuit with EN and GND1 |
JKBLD2200 for 110/130 BLS Series Motor Driver Manual.pdf
JKBLD2200 for 110/130 BLS Series Motor Driver Manual.pdf
1, Q: The motor does not turn and no holding torque:
A: ① check whether the power line is connected to the wrong voltage is too low, need to increase the voltage or correct the power line
② check whether the motor wiring is correct, if not correct motor wiring. Check if the motor wiring is correct, if not, correct the motor wiring.
③ Whether the enable signal is valid, resulting in the motor does not work.
④ Is the subdividing parameter correct?
⑤ Is the current parameter correct?
2、Q:Motor does not rotate but has holding torque:
A: ① The phase sequence of motor wires is wrong, need to swap any two wires.
② Pulse signal input is wrong, need to check the pulse wiring.
3、Q: The motor torque is too small:
A: ① Phase current setting is too small, need to set the phase current corresponding to the motor.
② acceleration is too fast, reduce the acceleration value
③ motor blocking, need to rule out mechanical problems
④ drive and motor mismatch, need to replace the appropriate drive
4、Q:Motor steering error:
A: ① motor line phase sequence is wrong, need to swap any two wires
② motor line has a broken circuit, check and connect the right
5、Q:The alarm indicator light is on:
A: ① Is the motor wire connected incorrectly
② Whether there is over-voltage and under-voltage conditions
③ Motor or driver is damaged
6、Q:Motor acceleration blocking:
A: ① short acceleration time
② motor torque is too small
③ Low voltage or current
1, Q: The motor does not turn and no holding torque:
A: ① check whether the power line is connected to the wrong voltage is too low, need to increase the voltage or correct the power line
② check whether the motor wiring is correct, if not correct motor wiring. Check if the motor wiring is correct, if not, correct the motor wiring.
③ Whether the enable signal is valid, resulting in the motor does not work.
④ Is the subdividing parameter correct?
⑤ Is the current parameter correct?
2、Q:Motor does not rotate but has holding torque:
A: ① The phase sequence of motor wires is wrong, need to swap any two wires.
② Pulse signal input is wrong, need to check the pulse wiring.
3、Q: The motor torque is too small:
A: ① Phase current setting is too small, need to set the phase current corresponding to the motor.
② acceleration is too fast, reduce the acceleration value
③ motor blocking, need to rule out mechanical problems
④ drive and motor mismatch, need to replace the appropriate drive
4、Q:Motor steering error:
A: ① motor line phase sequence is wrong, need to swap any two wires
② motor line has a broken circuit, check and connect the right
5、Q:The alarm indicator light is on:
A: ① Is the motor wire connected incorrectly
② Whether there is over-voltage and under-voltage conditions
③ Motor or driver is damaged
6、Q:Motor acceleration blocking:
A: ① short acceleration time
② motor torque is too small
③ Low voltage or current
