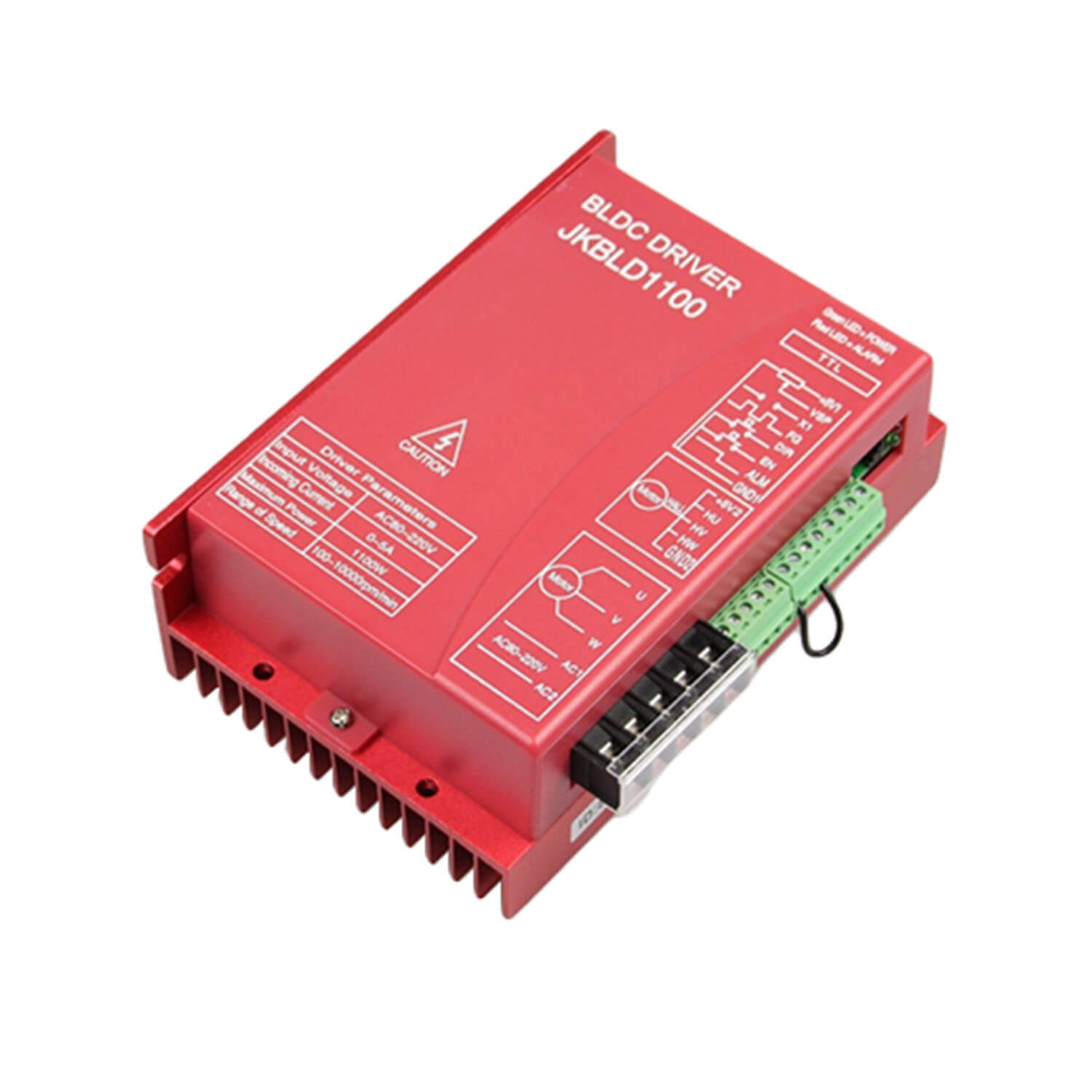

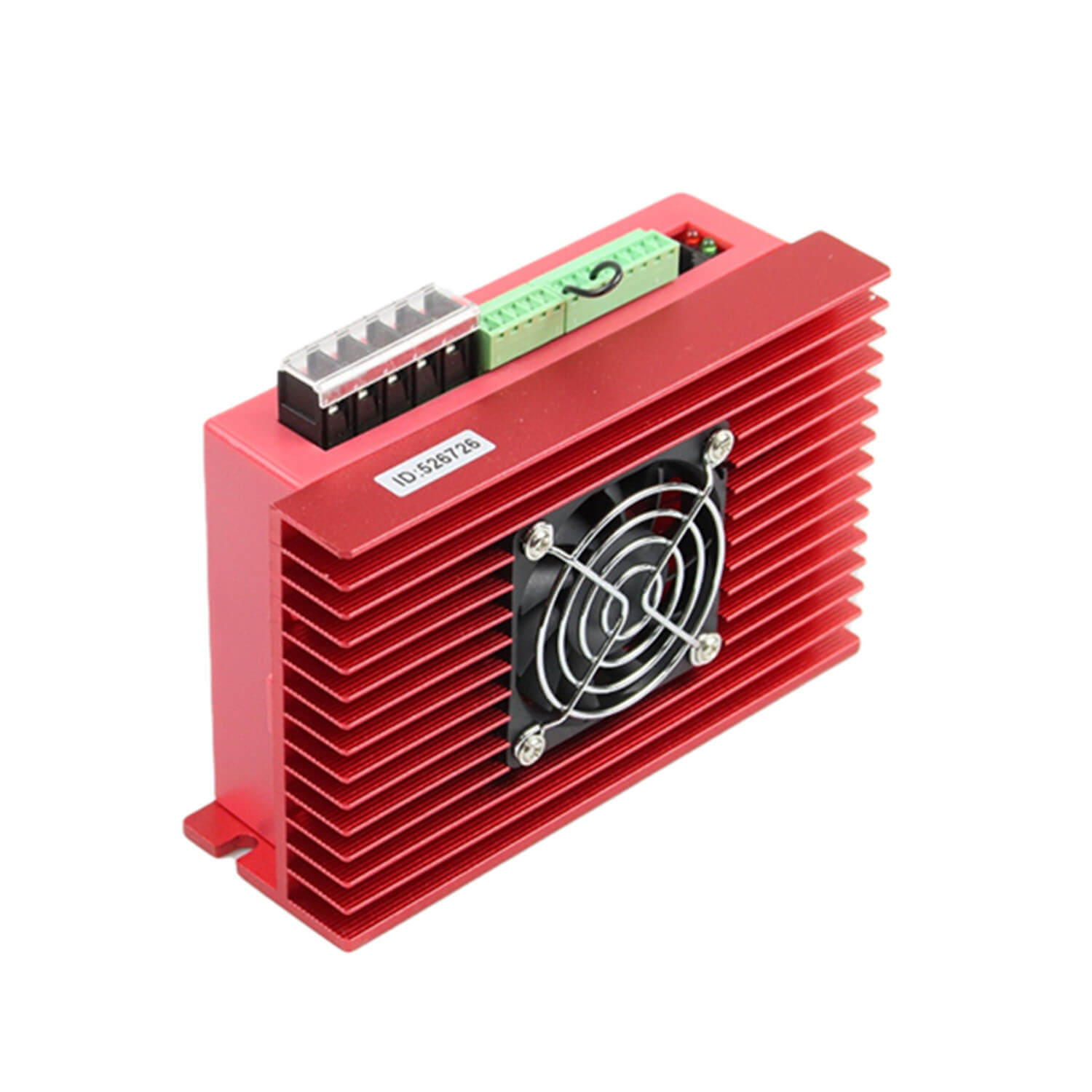

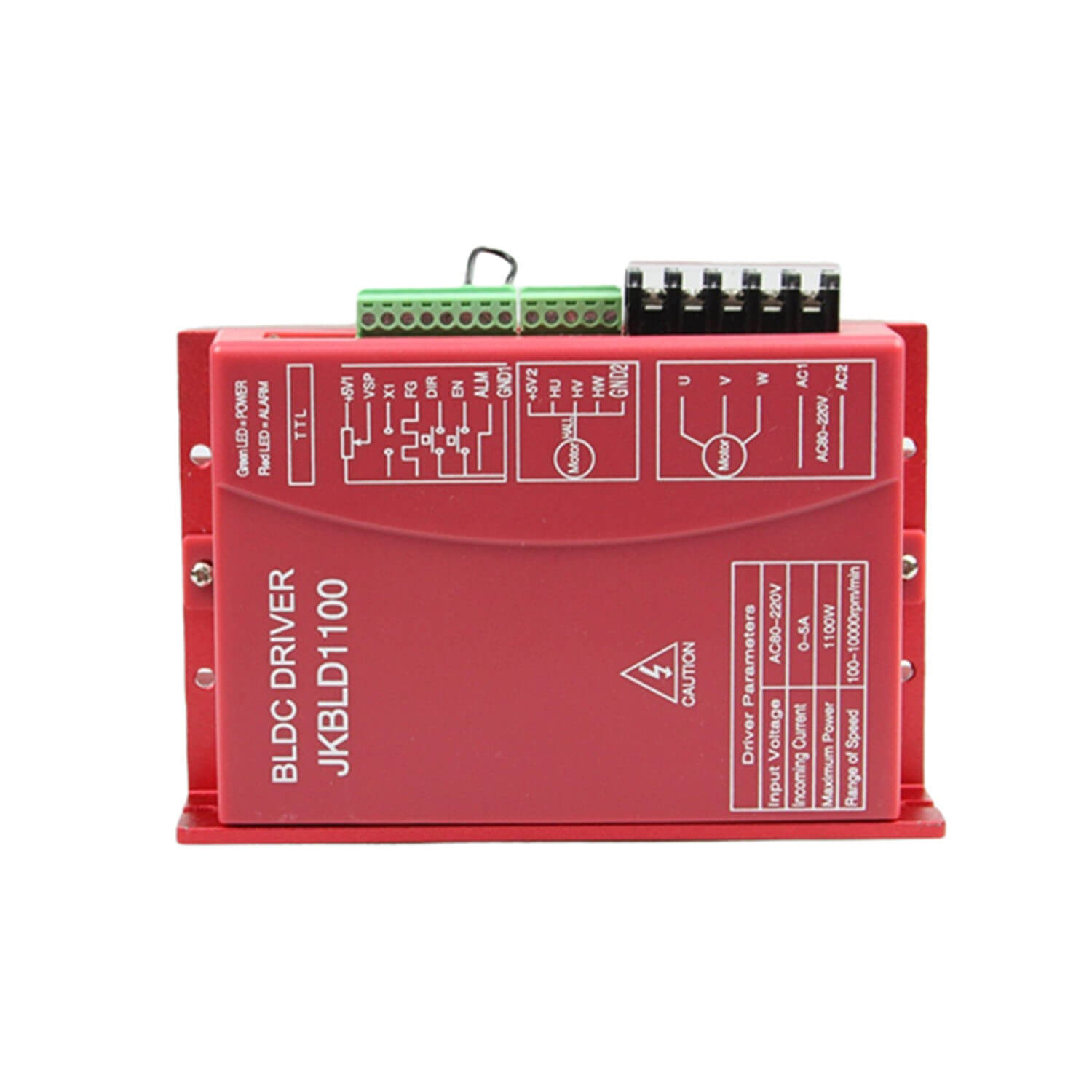

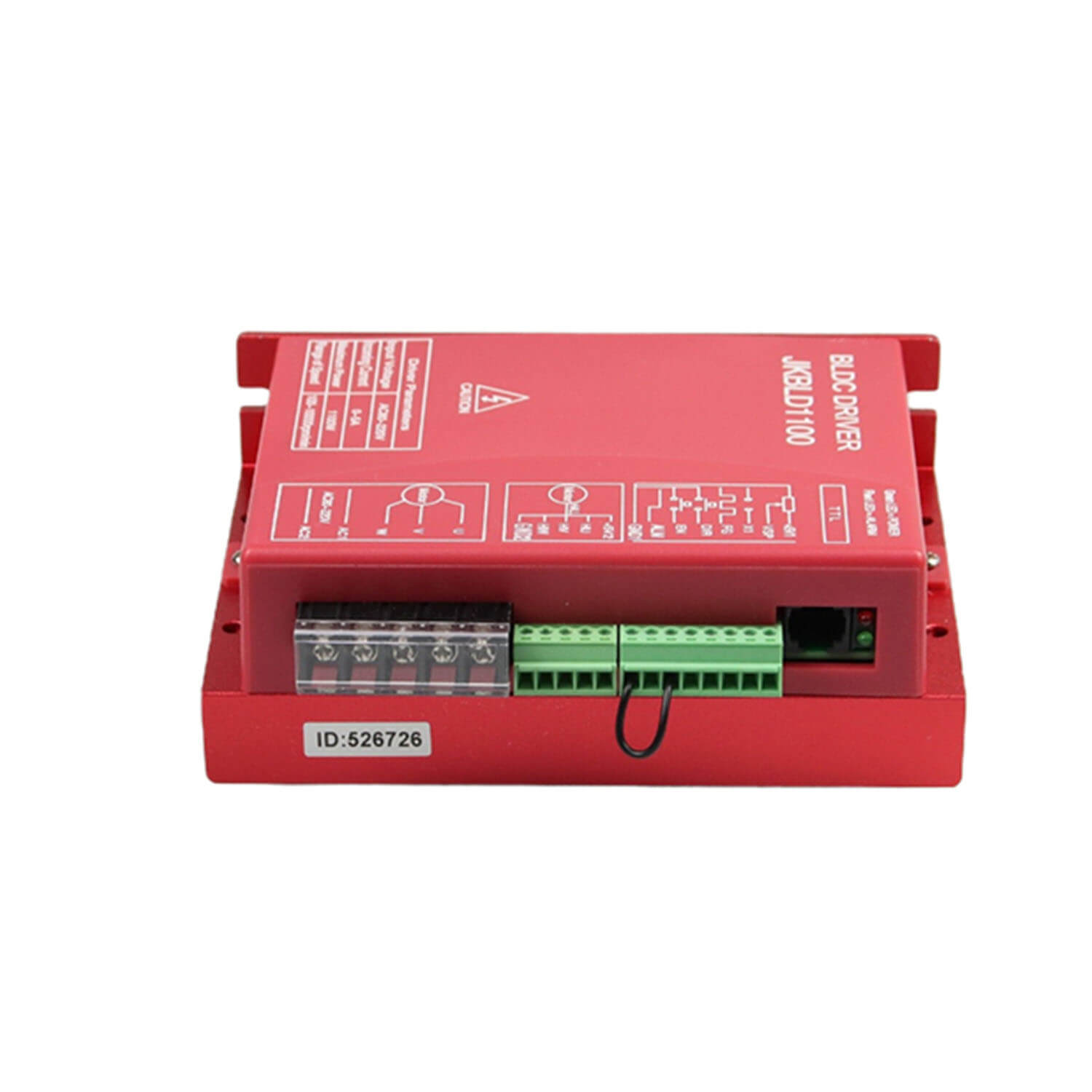

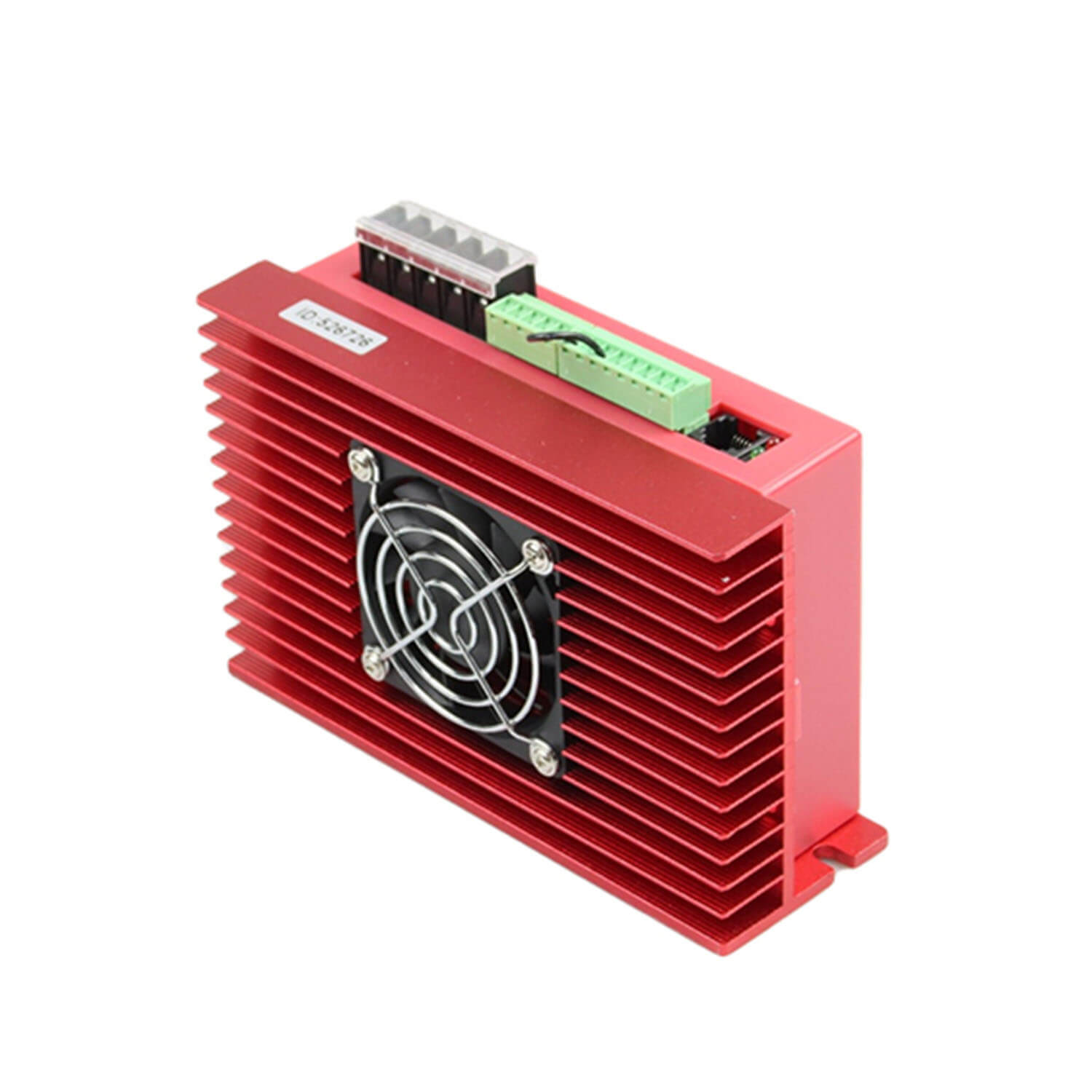

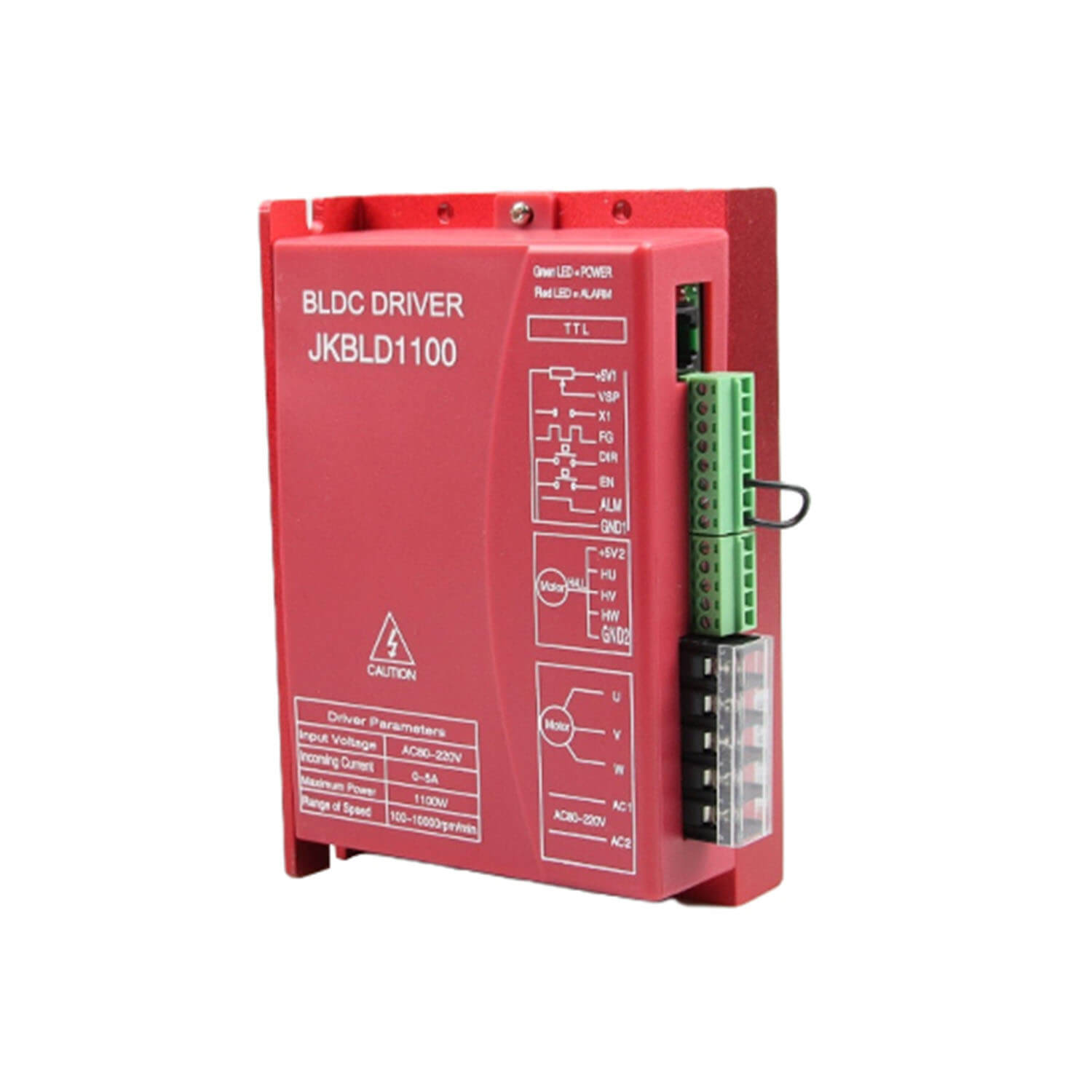

JKBLD1100 Brushless DC Motor Driver

● It can be connected with an external speed display board JKBL01, showing
the speed, set drive parameters;
● It has double speed closed current design with low speed torque and
smooth operation;
● It has high speed output with the maximum speed of 10000rpm / min;
● The speed control mode is an external PWM speed and
external potentiometer speed;
● It has have EN, DIR,X1 signal control side;
● It can output FG signals (optoelectronic isolation, gate output);
● It can output ALM signals for the user to detect (optoelectronic isolation, gate output);
● It has over-current, overvoltage, under voltage, fan control and Hall Sensor phase error, motor stalling and other protection functions;

Model:
JKBLD1100
Brand:
JKONGMOTOR
MOQ:
10 Pcs


Size:	JKBLD1100
Availability:



Inquire

Description:

JKBLD1100 is the latest high-tech product of our company, for the field of medium power motor drive. It uses a large-scale integrated circuit to replace the original hardware, so it has higher performance of anti-jamming and fast response ability. It is suitable for all the low voltage three-phase brushless DC motors with peak current below 5A and low voltage AC80V-250V(boards show AC80V-220V) ,whether the motor driver with Hall or not. It is widely used in knitting equipment, medical equipment, food packaging machinery, electric tools and a series of electrical automation control area .

Features:

● It can be connected with an external speed display board JKBL01, showing the speed, set drive parameters;
● It has double speed closed current design with low speed torque and smooth operation;
● It has high speed output with the maximum speed of 10000rpm / min;
● The speed control mode is an external PWM speed and external potentiometer speed;
● It has have EN, DIR,X1 signal control side;
● It can output FG signals (optoelectronic isolation, gate output);
● It can output ALM signals for the user to detect (optoelectronic isolation, gate output);
● It has over-current, overvoltage, under voltage, fan control and Hall Sensor phase error, motor stalling and other protection functions;

Brushless DC Motor Driver Description：

Brand	Jkongmotor
Model	JKBLD1100
Driver Type	DC Brushless Motor Driver
DC / AC	DC/AC
Suitable Motor	3-Phase DC Brushless motor
Input Voltage	AC80V - AC220V
Output Current	Max 5A
Motor speed range	0rpm - 10000rpm

Electrical Specifications:

(1）Environmental Temperature:25℃

Power Supply	AC80V～220V direct current (Capacity according to motor power selection)
The maximum input current	Not greater than 5 A (according to motor and rated load)
The maximum power	The maximum is 1100W (over power motor is strictly prohibited)
Adaptable motor	Adaptable output power ≤750W motor
Insulation resistance	General temperature﹥500MΩ
Insulation strength	General temperature and pressure 0.5KV，1minitute

(2）Environmental Parameter

Cooling method		Natural air cooling (forced air cooling is recommended)
Environment	Condition	Avoid dust, oil mist and corrosive gases
	Temperature	0℃～+50℃
	Humidity	﹤80% RH，no condensation, no frost
	Vibration	﹤0.5G（4.9m/s2 ）10Hz-60Hz (non-continuous operation)
Reserved temperature		-20℃～+65℃
Size		150mmX97.5mmX53mm
Weight		About 0.55Kg

Note: Due to dramatic changes in the temperature of the storage environment, it is easy to form condensation or frost. In this case, the drive should be placed for 12 hours or more. Until the drive temperature and ambient temperature is consistent, it can be on power.

Port Signal Description:

Signal category	Terminal	Functional Description
Indicator light	POWER	If the green power indicator is lighten, it shows that power is normal.
Indicator light	ALM	If the red status indicator is slow flash, it means waiting; Quick flash means operation; It always lights meaning faults or off-line;
RS232 communication port	TTL	It can be connected with an external speed display board ZM-BL01 to display speed. ZM-BL01 can also set the drive parameters. Details are shown in ZM-BL01 instructions
Control signal port	+5V1	Control signal power+( inner power output )
	VSP	External speed control signal Control way: By connecting with a potentiometer to change VSP, then it can complete 0 ~ 100% speed adjustment. The range is 0-5V
	X1	Input signal, brake on low level or to GND1, the red light keep off(Brake braking force can be adjusted by customer’s requirement),When X1 is connected with +5V1 or without any port , motor keeps running.
	FG	Motor speed pulse output is measuring the frequency of this signal. Then converts it into the actual motor speed.
	DIR	Rotary direction is controlled by high and low electrical level, motor forward: connected with GND1, motor reversal （anticlockwise） ;without GND1 or connected with +5V, motor forward (clockwise)
	EN	Connected EN with GND1, motor can work(online status);without connected or high electrical lever, motor can not work(offline status and the red light keep working)
	ALM	It is signal transfer output. When the power is in danger, the current flow is slow.
	GND1	Control signal’s power supply
Hall control port	+5V2	+ motor’s Hall power
	HU	Hall Sensor signal HU.
	HV	Hall Sensor signal HV.
	HW	Hall Sensor signal HW.
	GND2	The motor’s Hall power supply
The motor and power	U、V、W	The motor’s three-phase output signal
The motor and power	AC1、AC2	The input power is AC80V～250V.(boards show AC80V-220V)

Function and method:

Speed mode (VSP/PWM)

1. The external input speed: two external terminals of the external potentiometer(5K-10K) respectively connected to the driver's GND1 and +5 V1 terminal. If the regulator is connected to the VSP end, you can use an external potentiometer to adjust speed. It can also be made by the other control unit’s (such as PLC, microcontroller, etc.) input analog voltage to VSP side (relative to GND1). VSP port accepts the range of DC 0V ~ +5 V and the corresponding motor speed is 0 ~ rated speed;

2. PWM speed: the PWM’s positive end is connected to the VSP. The negative end connects with GND1. The frequency is 100Hz-100KHz, changing the duty cycle speed.

Brake

(X1)

By control the high and low electrical level between X1 to control the motor status. On low electrical level,X1 stop, when the brake working, the red light off; when X1 is on high electrical level status or without connecting, motor can be allowed to work(Brake braking force can be adjusted by customer’s requirement)

Speed signal output

（FG）

The drive provides the motor speed pulse signal, which is positive proportion to the motor speed, pulse output way: RPUP 4.7k, open collector output

1. the motor speed (RPM) = F ÷ N× 60

F = actually measured frequency current on the FG foot by frequency table

N = Pole logarithm , 2 pole motor, N = 2; 4 pole motor, N = 4

For example: the user selects a 4 pole motor. When the output FG signal is 200Hz, the motor speed = 200 ÷4× 60 = 3000 r / min.

2.optoelectronic isolation, gate output

The motor positive and negative signal（DIR）

By controlling high low-level of DIR to control the motor’s positive and reverse turn.

Noticed: Swerved suddenly when motor is at high speed, to avoid the damage of motor and equipment , when DIR get the transform single , we must make motor stop running for 1s, then change the motor direction ,improve speed to the set value.

Start/Stop signal（EN）

By controlling high low-level of EN to control the motor’s stop and run. When EN is low level, motor run; when EN is high level or non-connect ,motor stop working, red light keep working. When control motor stop by EN port, it is nature stop, and the run regular is related with overloading inertia. Power Consumption is less than or equal to 30mA.

Fault Value : short circuit with EN and GND1.

Alarm signal (ALM)

Normal output is 5V. When there is over-voltage, over-current, wrong Hall signal or the stop in the motor, the signal is 0V,the red light keep working.
