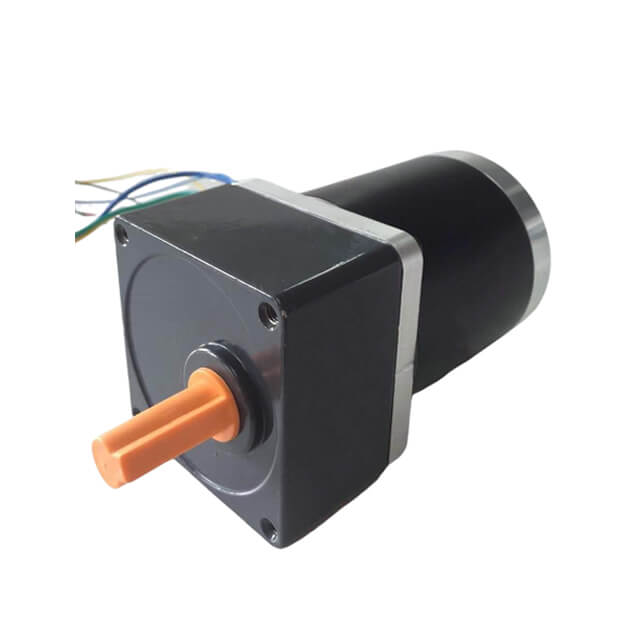

Nema23 57BLF Series Square Brushless DC motor with Spur Gearbox

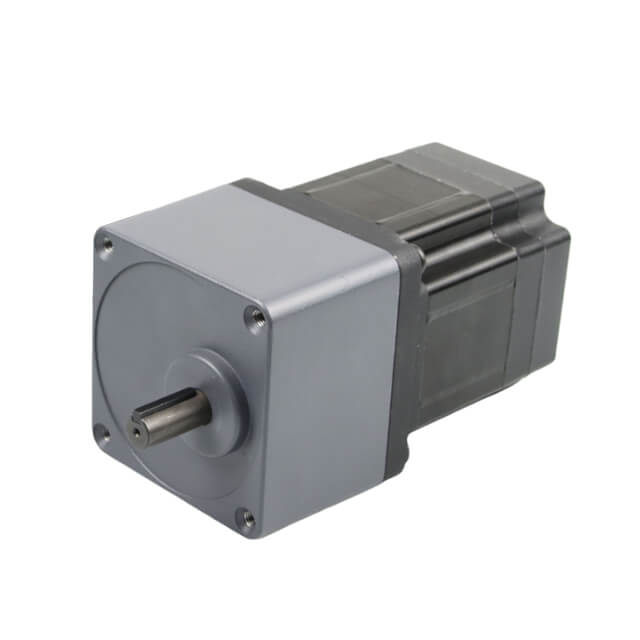

Nema24 60BLS Series Square Brushless DC Motor with Spur Gearbox

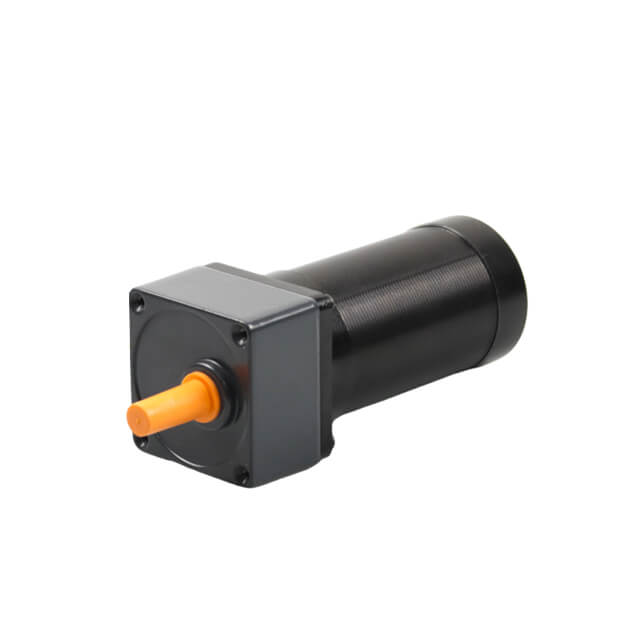

80BLS Series Round Brushless DC Motor with Spur Gearbox

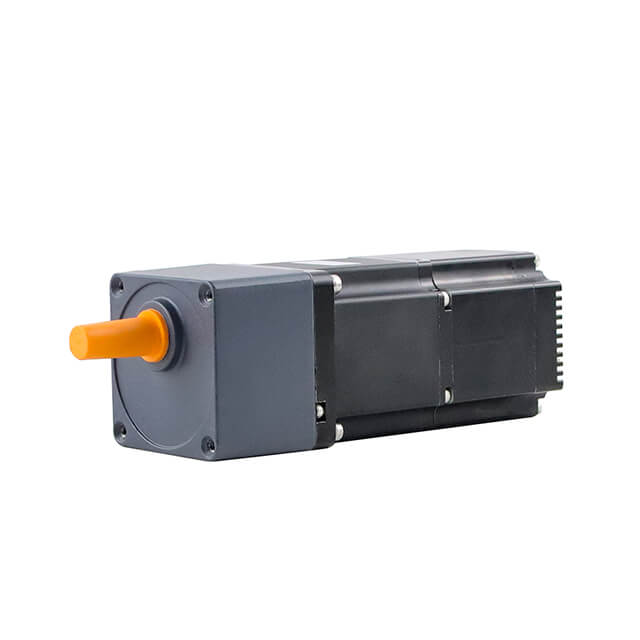

Nema34 86BLS Series Square Brushless DC Motor with Spur Gearbox

What Is a Spur Geared BLDC Motor?

A Spur Geared BLDC Motor is an advanced motion system that merges a Brushless DC motor with a spur gearhead to enhance torque while maintaining precise control and high efficiency.

Unlike brushed motors, BLDC motors utilize electronic commutation, eliminating brushes and commutators, which drastically reduces wear and improves longevity. When coupled with spur gears — known for their simplicity, efficiency, and direct tooth engagement — the resulting motor offers powerful torque multiplication without compromising speed control or precision.

How Spur Gears Enhance BLDC Motor Performance

1. Torque Amplification

The integration of spur gears allows the BLDC motor to deliver higher torque at lower speeds. This makes it ideal for load-bearing applications where direct-drive motors would otherwise struggle to maintain performance consistency.

2. Compact and Lightweight Design

Spur gears are simple in construction and lightweight, allowing manufacturers to design compact gearboxes without sacrificing power output. The reduced footprint of a spur geared BLDC motor makes it suitable for installations where space is at a premium.

3. High Efficiency and Low Noise

Spur gear configurations offer minimal energy loss due to their efficient tooth engagement. Combined with the smooth operation of BLDC motors, the system ensures quiet and energy-efficient performance, even under continuous duty cycles.

Key Features of Spur Geared BLDC Motors

High Torque Density

The most striking advantage of these motors lies in their impressive torque-to-size ratio. Spur gears multiply the torque output of the BLDC motor, enabling powerful mechanical drive from a compact housing.

Precise Speed and Position Control

Thanks to electronic commutation and sensor feedback, spur geared BLDC motors deliver accurate speed regulation and position control, vital in robotics, conveyors, and precision instruments.

Long Lifespan and Low Maintenance

Without brushes to wear out, BLDC motors exhibit minimal mechanical degradation. The spur gear system—composed of robust steel or alloy gears—ensures long-term durability and reduced maintenance cycles.

Superior Efficiency

BLDC motors already operate at efficiencies above 85–90%, and when paired with high-precision spur gears, the mechanical transmission maintains excellent energy conservation, ideal for battery-powered or energy-conscious applications.

Customization Flexibility

Manufacturers offer custom gear ratios, motor sizes, and control options to suit specific industrial or automation needs. This versatility ensures that spur geared BLDC motors can be seamlessly integrated into diverse systems.

Working Principle of a Spur Geared BLDC Motor

A BLDC motor functions through the interaction of a rotating magnetic field (generated by stator windings) and permanent magnets on the rotor. The electronic controller manages commutation by switching current in the windings based on rotor position feedback, ensuring smooth and precise rotation.

The spur gearhead is attached to the motor shaft, transmitting the motor’s rotational energy through gear meshing. The gear ratio determines the torque and speed output — for example, a 10:1 gear ratio multiplies torque tenfold while reducing speed by the same factor.

The synergy between electronic commutation and mechanical torque conversion ensures optimal performance, balancing speed, torque, and control accuracy.

Advantages of Spur Geared BLDC Motors

1. Enhanced Load Handling Capability

Spur geared BLDC motors excel in high-torque, low-speed applications such as conveyors, lifting equipment, and material handling systems. The gear reduction mechanism ensures steady torque delivery even under heavy load conditions.

2. Smooth and Stable Operation

The electronic control system ensures smooth acceleration and deceleration, while the gear train minimizes backlash, providing consistent motion quality—ideal for automation, robotics, and precision equipment.

3. Energy Savings and Reliability

With high operational efficiency, these motors consume less energy compared to traditional brushed or induction motors. The absence of brushes means less heat generation and greater reliability, especially in continuous-duty environments.

4. Compact Integration

Because spur gearboxes are axially compact, they enable space-saving designs that fit easily into compact automation systems, mobile robots, and smart devices.

5. Cost-Effective Performance

Despite their advanced capabilities, spur geared BLDC motors remain cost-effective due to their simple gear structure and long service life, reducing total cost of ownership.

Applications of Spur Geared BLDC Motors

1. Robotics

In robotic joints and actuators, spur geared BLDC motors provide precise positioning, smooth torque, and compact design, crucial for high-performance robotic motion systems.

2. Industrial Automation

From conveyor belts to packaging machines, these motors deliver stable torque output and energy-efficient performance, ensuring 24/7 operation with minimal maintenance.

3. Electric Vehicles and Mobility Systems

Used in e-bikes, AGVs, and personal mobility devices, spur geared BLDC motors offer optimized torque and long battery life, enhancing both range and control.

4. Medical Equipment

The quiet and vibration-free performance of spur geared BLDC motors makes them ideal for medical devices such as infusion pumps, prosthetic devices, and diagnostic instruments.

5. Consumer and Smart Devices

Applications like automated door systems, vending machines, and smart furniture benefit from the motor’s compact size, silent operation, and high reliability.

Design Considerations for Selecting Spur Geared BLDC Motor

When choosing a spur geared BLDC motor, key parameters include:

• Rated Voltage and Current: Ensures compatibility with control systems.
• Gear Ratio: Determines output torque and speed requirements.
• Torque Rating: Must match the load torque for optimal performance.
• Motor Speed: Impacts efficiency and system dynamics.
• Feedback Options: Such as Hall sensors or encoders for position control.
• Mounting and Housing: Compact, durable designs for harsh environments.

By balancing these specifications, engineers can achieve the ideal torque-speed-efficiency tradeoff for any application.

Future Trends in Spur Geared BLDC Motor Technology

1. Smart Motor Integration

The rise of IoT-enabled BLDC motors allows real-time monitoring, predictive maintenance, and cloud-based control systems for advanced automation networks.

2. Advanced Materials

New lightweight alloys and composite gears are reducing motor weight while increasing torque density and efficiency.

3. Miniaturization

Compact spur geared BLDC motors are increasingly used in portable medical devices, drones, and micro-robots, offering high precision in small form factors.

4. Enhanced Control Algorithms

Modern motor drivers incorporate AI-based adaptive control algorithms, improving torque consistency, efficiency, and fault tolerance under variable loads.

Conclusion

A Spur Geared BLDC Motor represents a harmonious blend of mechanical strength and electronic precision. With its high torque output, energy efficiency, and reliable performance, it stands as a superior choice for industrial, robotic, and mobility applications. As technology evolves, the integration of smart control systems and advanced materials will further elevate the performance of these motors, driving the next generation of automation and intelligent motion systems.
