Modern warehouses are under constant pressure to store more goods in less space, move pallets faster, reduce positioning errors, and maintain reliable operation around the clock. This is one reason automated storage and retrieval systems, or AS/RS, have become increasingly important in high-density warehousing, manufacturing logistics, distribution centers, and automated production facilities.
At the center of many pallet AS/RS systems is the stacker crane. It must travel horizontally through a narrow aisle, lift loads vertically to different rack levels, and operate a load-handling device to place or retrieve pallets. These movements must be coordinated accurately. A small positioning error can result in a pallet not being correctly inserted, a collision with the rack, unnecessary correction movements, or a longer storage and retrieval cycle.
For this reason, the motor used for the travel, lifting, and handling axes is not simply a source of rotary power. It is part of the machine's motion-control architecture.
For high-dynamic AS/RS applications, AC servo motors can provide the combination of torque, speed regulation, feedback, acceleration control, positioning response, and communication required to coordinate demanding motion profiles.

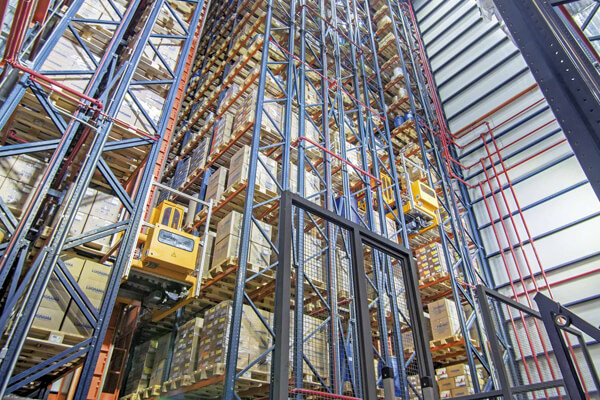

What Is an AS/RS Stacker Crane?
An AS/RS stacker crane, also called a stacker crane, storage and retrieval machine (SRM), or automated storage and retrieval crane, is an automated material-handling machine designed to move goods between storage locations and designated input/output stations.
A typical pallet stacker crane operates along three primary motion directions:
Horizontal travel along the warehouse aisle
Vertical lifting to reach different rack levels
Load handling through a telescopic fork, shuttle fork, or other extraction mechanism
The machine normally works together with a warehouse management system (WMS), warehouse control system (WCS), PLC, sensors, positioning devices, and motion drives.
Unlike a conventional forklift, the stacker crane is designed to operate within a defined aisle and repeat automated storage and retrieval commands with limited human intervention.
This creates a very different motor requirement.
The motor must repeatedly accelerate, decelerate, stop, reverse, and reposition the machine while handling changing load conditions. At the same time, the crane structure may be tall and relatively flexible, meaning that aggressive acceleration can create mast vibration that directly affects positioning accuracy.
Research on stacker-crane dynamics has specifically identified high dynamic loads and mast vibration as factors that can reduce machine stability and positioning accuracy.
Why Are AS/RS Stacker Cranes So Demanding?
The basic requirement sounds simple: move a pallet from Point A to Point B.
In practice, the motion profile is much more complicated.
A stacker crane may need to:
Accelerate rapidly from standstill.
Travel at high speed through a narrow aisle.
Decelerate before reaching the target location.
Stop within a small positioning window.
Lift or lower a heavy payload.
Control fork extension and retraction.
Compensate for load variation.
Repeat the same cycle thousands of times.
Coordinate several axes without excessive vibration.
Communicate continuously with the machine controller and warehouse automation system.
Commercial AS/RS specifications illustrate how demanding these systems can be. Depending on the machine design, stacker cranes can combine high travel speeds, significant lifting speeds, substantial payloads, and millimeter-level positioning requirements.
This is where high-dynamic servo motion control becomes important.
One-Stop Integrated DC Servo Motor Solution Provider
Shaft
Lead Screw
Module
Linear Motion
Brake
Gearbox
Worm Gearbox
Wires
Protect Level
Protect Level
What Does High-Dynamic Positioning Mean?
High-dynamic positioning does not simply mean "move faster."
For an AS/RS stacker crane, high-dynamic positioning means the motor and drive system can accelerate quickly, control speed precisely, decelerate smoothly, settle at the target position, and maintain repeatability under changing mechanical conditions.
A useful motion sequence can be represented as:
Acceleration → High-speed travel → Controlled deceleration → Fine positioning → Position confirmation
The difficult part is the transition between these stages.
If acceleration is too aggressive, the mast can vibrate.
If deceleration starts too late, the crane may overshoot.
If the motor has insufficient torque, the drive may struggle with a heavy pallet or changing load.
If the control response is too slow, the machine may require additional correction movements.
If the feedback resolution is inadequate, the controller has less information with which to determine the actual shaft position.
Therefore, the objective is not maximum speed by itself. The objective is high throughput with controlled motion and predictable positioning.
For demanding stacker-crane applications, AC servo motors offer several characteristics that match the requirements of automated motion.
1. Precise Position Feedback
A servo motor normally operates with feedback from an encoder or another position sensor.
The controller can compare the commanded position with the actual motor position and continuously adjust the motor response.
This closed-loop architecture is fundamentally different from simply applying a fixed voltage or frequency to a conventional motor.
For AS/RS equipment, feedback is particularly useful during:
Positioning
Acceleration
Deceleration
Low-speed operation
Reversal
Homing
Load variation
Fine positioning
Some industrial servo systems also support additional feedback channels for higher-accuracy closed-loop control and compensation of mechanical imperfections such as backlash and flexibility.
2. Fast Acceleration and Deceleration
An AS/RS system earns productivity from cycle time.
The faster the crane can complete a storage or retrieval cycle without compromising stability, the more transactions the warehouse can potentially process.
An AC servo system can be configured for controlled acceleration and deceleration rather than simply switching between full speed and stop.
This allows engineers to build a motion profile around the mechanical characteristics of the crane.
The exact values depend on crane structure, payload, gearbox, wheel diameter, lifting mechanism, rack geometry, and safety requirements.
3. High Torque During Dynamic Operation
A stacker crane does not always operate under the same mechanical load.
A travel axis may move:
An empty load carrier
A partially loaded carrier
A full pallet
A pallet with an off-center load
The lifting axis experiences even larger changes because the motor must overcome the gravitational load and the mechanical transmission system.
For this reason, motor selection should consider continuous torque, peak torque, acceleration torque, inertia, gearbox ratio, duty cycle, and braking requirements rather than relying only on rated motor power.
4. Stable Low-Speed Control
High-speed travel gets the crane close to the destination.
Low-speed control gets it into the correct position.
The final positioning stage is therefore extremely important.
A good servo system can maintain controlled motion at low speed and transition smoothly from high-speed travel to fine positioning.
This reduces the need for abrupt stopping and repeated corrective movements.
5. Vibration Suppression
A major challenge in high-rise stacker cranes is mechanical vibration.
A tall mast is not perfectly rigid. Rapid acceleration and deceleration can excite structural modes.
The resulting oscillation can increase settling time and make the final position less stable.
Servo systems can incorporate vibration suppression, resonance compensation, notch filtering, and carefully tuned acceleration profiles to reduce the excitation of mechanical resonances.
Modern servo platforms explicitly provide vibration and resonance suppression functions for motion-control applications.
However, servo tuning cannot compensate for an improperly designed mechanical structure. The motor, gearbox, wheel, mast, load carrier, encoder, and control algorithm must be considered as one system.
What Functions Should an AC Servo Motor Have for AS/RS?
When selecting an AC servo motor for an AS/RS stacker crane, we recommend evaluating the complete drive system rather than looking only at motor wattage.
High-Resolution Encoder Feedback
Encoder resolution directly affects the amount of positional information available to the controller.
For demanding applications, buyers should evaluate:
Encoder resolution
Absolute or incremental feedback
Single-turn or multi-turn capability
Communication protocol
Feedback response
Environmental resistance
Cable length and installation requirements
The correct encoder depends on the machine architecture and the positioning method.
High Peak Torque
Peak torque is important during:
Crane acceleration
Load lifting
Rapid reversal
Emergency controlled deceleration
Heavy-load starting
Dynamic load changes
The motor should not be selected based solely on nominal running conditions.
High-Speed Operation
The travel axis may require high rotational speed while maintaining stable torque and feedback.
A gearbox can be used to convert motor speed into the required wheel speed and torque.
The correct combination is therefore:
Servo motor + gearbox + wheel + mechanical load + control profile
rather than simply selecting a high-speed motor.
Accurate Speed Regulation
Stable speed is important because inconsistent velocity affects the timing of deceleration and positioning.
A servo drive can continuously regulate the motor according to the commanded speed and feedback signal.
Position Control
For automated storage systems, position control is central to the application.
The controller may command:
Absolute position
Relative movement
Homing movement
Speed profile
Acceleration
Deceleration
Position tolerance
The servo drive then translates these commands into motor torque and speed.
Communication Capability
An AS/RS crane usually communicates with a higher-level control architecture.
Depending on the system, engineers may evaluate communication interfaces such as:
EtherCAT
CANopen
PROFINET
Modbus
EtherNet/IP
Pulse and direction
The correct interface depends on the PLC, motion controller, safety architecture, and system integrator.
Braking Capability
Vertical lifting applications require special attention to braking.
A motor brake may be necessary to hold a suspended load when power is removed.
This is particularly important because Safe Torque Off (STO) does not itself mechanically hold a suspended load. STO prevents torque-producing energy from being supplied to the motor; depending on the system, an additional mechanical holding brake or other load-retention mechanism may be required.
This distinction should be considered during the mechanical and functional-safety design stage.
How to Achieve High-Dynamic Positioning Step by Step
Step 1: Calculate the Real Mechanical Load
Start with the actual application rather than the motor catalog.
Calculate:
Total moving mass
Maximum pallet mass
Wheel diameter
Gearbox ratio
Rolling resistance
Acceleration requirement
Inclination, if applicable
Transmission efficiency
Reflected inertia
Required duty cycle
For the lifting axis, include the gravitational component and lifting mechanism efficiency.
A simplified torque relationship can be expressed as:
T = F × r / η
where:
T = required output torque
F = required force
r = effective mechanical radius
η = transmission efficiency
The final motor selection should also include acceleration torque and an appropriate engineering margin.
Step 2: Match Motor Inertia to the Mechanical System
Motor inertia matters because the servo must accelerate both the load and its own rotor.
An excessively large inertia ratio can make the system difficult to tune.
An excessively small motor may lack sufficient torque reserve.
The target is a balanced combination of:
Motor inertia + gearbox ratio + reflected load inertia
For high-dynamic applications, inertia matching is often just as important as rated power.
Step 3: Select the Correct Gear Ratio
The gearbox changes the relationship between motor speed and output torque.
A higher reduction ratio generally provides greater output torque and lower output speed.
A lower reduction ratio can support higher output speed.
The correct ratio should therefore be determined from:
Required wheel speed + required travel speed + required acceleration + available motor speed + load torque
For lifting mechanisms, the gearbox and braking system must additionally be evaluated for load holding and safety.
Step 4: Build an S-Curve Motion Profile
A simple trapezoidal profile can create abrupt changes in acceleration.
An S-curve profile gradually changes acceleration and deceleration.
This can help reduce:
Mechanical shock
Pallet movement
Mast vibration
Wheel slip
Gearbox impact
Settling time
S-curve control is already used in stacker-crane motion systems to produce smoother acceleration and deceleration.
For tall stacker cranes, this can be particularly valuable because the mechanical structure may have a relatively low natural frequency.
Step 5: Separate Coarse and Fine Positioning
A practical positioning strategy can use two stages.
Coarse positioning:
The crane travels rapidly toward the target.
Fine positioning:
The servo reduces speed and approaches the final coordinate with greater control.
This prevents the machine from attempting to achieve maximum speed and maximum precision simultaneously.
The final approach can use a smaller velocity command and tighter position tolerance.
Step 6: Coordinate External Position Sensors
The servo encoder tells the drive what is happening at the motor shaft.
However, the motor shaft is not the same thing as the final physical position of the pallet.
Mechanical factors such as:
Gearbox backlash
Wheel slip
Belt elasticity
Chain stretch
Mast deflection
Structural vibration
Load movement
can introduce errors between motor position and actual machine position.
For this reason, AS/RS systems commonly combine encoder information with positioning technologies such as barcode positioning, laser distance measurement, photoelectric sensors, or other external reference systems. Examples of commercial AS/RS architectures use combinations of encoder and laser or barcode positioning for millimeter-level positioning.
Motor Positioning Alone Is Not Enough
One of the most important points in AS/RS motion design is that servo accuracy does not automatically equal machine accuracy.
Suppose an encoder provides highly precise feedback at the motor shaft.
If the gearbox has backlash, the wheel slips, or the mast bends under load, the actual pallet position may still differ from the calculated motor position.
Therefore, the positioning chain should be considered as:
How to Reduce Mast Vibration During High-Speed Operation
Mast vibration is one of the main challenges when increasing the travel speed of an AS/RS stacker crane. A stacker crane typically has a tall and relatively slender mast, so rapid acceleration, deceleration, sudden direction changes, and uneven load distribution can excite structural vibration. If the vibration is not controlled, the crane may require additional settling time before the load can be accurately stored or retrieved.
For this reason, high-speed AS/RS design is not simply about selecting a higher-RPM AC servo motor. The servo motor, drive, gearbox, mechanical structure, encoder, motion profile, and positioning system must work together.
1. Use Controlled Acceleration and Deceleration
One of the most effective ways to reduce mast vibration is to avoid abrupt changes in acceleration.
A conventional motion profile can apply relatively aggressive acceleration and deceleration. When a tall crane suddenly changes its acceleration, the resulting inertial force can excite the natural frequency of the mast.
Instead, an S-curve acceleration and deceleration profile gradually changes acceleration.
Rather than stopping the crane as quickly as mechanically possible, the objective is to achieve the shortest practical cycle time while keeping structural oscillation within an acceptable range.
This approach can reduce:
Mast oscillation
Mechanical shock
Pallet movement
Wheel slip
Gearbox impact
Position overshoot
Post-stop settling time
2. Optimize AC Servo Motor Tuning
The AC servo motor should be tuned according to the actual mechanical characteristics of the stacker crane.
A servo system with excessively aggressive gain settings may respond quickly to position errors, but the higher control response can also excite mechanical resonance.
Conversely, excessively conservative settings can make the crane feel slow and increase positioning time.
The servo tuning process should therefore consider:
Position-loop gain
Speed-loop gain
Torque response
Inertia ratio
Resonance frequency
Load characteristics
Acceleration and deceleration
Mechanical stiffness
The objective is to achieve a balance between fast response and stable motion.
3. Use Resonance Suppression and Notch Filters
Every mechanical structure has natural frequencies at which it is more likely to vibrate.
The mast, gearbox, wheel assembly, load platform, and other mechanical components can create different resonance characteristics.
Modern AC servo drives may provide functions such as notch filters, resonance suppression, vibration suppression, and adaptive tuning.
A notch filter can reduce the servo system's response around a problematic resonance frequency, helping prevent the control loop from continuously exciting the mechanical structure.
However, software filtering should not be treated as a substitute for mechanical engineering.
If the mast is insufficiently rigid, the load is poorly distributed, or the drivetrain contains excessive mechanical clearance, servo tuning alone cannot completely eliminate vibration.
4. Match the Servo Motor to the Load Inertia
The relationship between motor inertia and reflected load inertia has a direct influence on dynamic response.
If the load inertia is too large relative to the motor, the servo system may require more torque to achieve the desired acceleration. The response may become slower, and tuning can become more difficult.
The gearbox changes the inertia reflected back to the motor. Therefore, motor selection and gearbox selection should be performed together.
The engineering calculation should consider:
Motor inertia + gearbox ratio + reflected load inertia + acceleration requirement
For an AS/RS travel axis, the calculation should include the complete moving mass rather than only the pallet weight.
The moving mass can include:
Crane structure
Mast
Load carriage
Fork mechanism
Pallet
Product
Cable system
Wheel and transmission components
5. Avoid Excessive Acceleration Just to Increase Travel Speed
Higher acceleration can reduce the time required to reach maximum travel speed, but it can also increase mechanical vibration.
This creates an important distinction between maximum speed and useful speed.
For example, a crane may technically reach a very high travel speed, but if it requires a long time to settle after reaching the target position, the overall cycle time may not improve.
A better optimization target is:
High travel speed + controlled acceleration + smooth deceleration + short settling time
In other words, the fastest AS/RS crane is not necessarily the one with the highest maximum RPM. It is the one that can complete the entire storage or retrieval cycle efficiently.
6. Control the Deceleration Point
The deceleration phase is particularly important for mast vibration.
If deceleration starts too late, the crane may need to brake aggressively near the target location. This can generate a significant dynamic load on the mast.
If deceleration begins too early, the crane spends too much time traveling at low speed.
A well-tuned servo system can use the position feedback from the encoder and the motion controller to determine when to transition from high-speed travel to controlled deceleration.
The objective is to create a predictable approach:
Each component can introduce a small amount of error.
For high-accuracy AS/RS applications, the servo encoder can therefore be combined with external positioning technologies such as:
Laser positioning
Barcode positioning
Absolute positioning systems
Proximity sensors
Limit switches
Reference markers
This allows the control system to distinguish between motor position and actual machine position.
10. Minimize Settling Time Instead of Simply Increasing Motor Power
One of the most useful indicators for high-dynamic positioning is settling time.
Suppose two stacker cranes both travel at the same speed.
Crane A reaches the target but continues oscillating for 0.8 seconds.
Crane B reaches the target and settles within 0.2 seconds.
Even though their maximum travel speeds are identical, Crane B can potentially achieve a shorter overall cycle time.
This is why AS/RS engineers should evaluate:
Travel time
Acceleration time
Deceleration time
Positioning time
Settling time
Fork operation time
Load-transfer time
rather than focusing only on the motor's rated speed.
11. Use a Complete Motion-Control Strategy
The most effective solution is normally a combination of several measures rather than a single technology.
A practical high-speed AS/RS motion strategy can include:
High-performance AC servo motor
↓
High-resolution encoder feedback
↓
Correct gearbox and inertia matching
↓
S-curve acceleration/deceleration
↓
Servo gain optimization
↓
Resonance suppression
↓
External positioning feedback
↓
Fine positioning and settling control
This system-level approach helps the stacker crane achieve higher dynamic performance without unnecessarily increasing mechanical stress.
12. Mechanical Design Still Comes First
Servo technology can improve the dynamic response of an AS/RS stacker crane, but it cannot completely overcome fundamental mechanical problems.
Before increasing servo gain or acceleration, engineers should check:
Mast stiffness
Rail alignment
Wheel condition
Bearing condition
Gearbox backlash
Coupling alignment
Load distribution
Structural connections
Cable movement
Mechanical resonance
If vibration appears only at a specific speed, this can be a useful indication that the system is approaching a mechanical resonance.
In such cases, the correct solution may involve a combination of mechanical reinforcement, speed-profile adjustment, resonance filtering, and servo retuning.
A Practical Formula for Reducing AS/RS Mast Vibration
For high-speed stacker cranes, the goal is not to eliminate every physical movement. Instead, the objective is to control the dynamic response well enough that the crane reaches the target position quickly, safely, and repeatably.
When an AC servo motor is correctly matched to the crane's load, gearbox, encoder, and control system, the machine can achieve a better balance between high travel speed, smooth motion, positioning accuracy, and short settling time.
For AS/RS OEMs, this is ultimately the key to increasing dynamic performance without simply increasing motor power or forcing the crane to operate beyond its mechanical limits.
AC Servo Motor Selection Checklist for AS/RS
Before purchasing an AC servo motor for a stacker crane, we recommend checking the following parameters.
Standard catalog motors are not always the most efficient solution for a stacker crane.
An AS/RS manufacturer may require a motor with a specific:
Mounting flange
Shaft dimension
Gearbox interface
Brake configuration
Encoder
Cable outlet
Connector
Communication interface
Rated voltage
Torque range
Protection level
Installation orientation
The mechanical interface is particularly important.
A motor may have sufficient power but still be difficult to install because its mounting dimensions or shaft configuration do not match the existing drivetrain.
For OEM projects, motor customization can therefore reduce redesign work and make the servo system easier to integrate into the complete crane.
How to Improve AS/RS Throughput Without Simply Increasing Motor Speed
A common mistake is to think that higher speed automatically means higher productivity.
In a real AS/RS system, throughput depends on the complete cycle.
If the crane travels faster but requires a long settling time at the target location, the theoretical speed increase may provide little practical benefit.
A better strategy is to optimize:
Acceleration
Deceleration
Positioning
Settling time
Fork motion
Lift synchronization
Load transfer
Communication latency
Sensor response
Motion coordination
This is why high-performance servo control is valuable: it addresses the dynamic behavior of the entire motion cycle, not just maximum RPM.
AC Servo Motors for Horizontal Travel, Lifting, and Fork Axes
An AS/RS stacker crane does not perform just one movement. It must travel through the warehouse aisle, lift the load to different rack levels, and accurately extend or retract the fork to complete a storage or retrieval cycle.
Although these three movements are part of the same machine, their motor requirements are different. The horizontal travel axis prioritizes dynamic acceleration and precise stopping, the lifting axis requires high torque and reliable load holding, while the fork axis emphasizes compact integration and repeatable positioning.
For this reason, selecting one standard AC servo motor configuration for every axis is not always the most practical approach. The motor, gearbox, encoder, brake, drive, and motion profile should be matched to the specific requirements of each axis.
The horizontal travel axis moves the stacker crane along the storage aisle. In many high-speed AS/RS systems, this is one of the most demanding motion axes because the motor must accelerate a large moving mass and then bring the crane to an accurate stop at the target rack location.
The moving mass can include:
Crane mast
Load carriage
Fork mechanism
Pallet
Product
Cables and cable carriers
Wheels
Transmission components
The travel servo motor therefore needs sufficient continuous torque and peak torque to handle both normal operation and acceleration.
The objective is not simply to maximize travel speed. The crane must also minimize vibration and settling time.
Key Requirements for the Travel Servo Motor
A suitable AC servo motor for horizontal AS/RS travel may require:
High peak torque
High-speed operation
Fast torque response
Accurate encoder feedback
Smooth acceleration and deceleration
Low-speed positioning capability
High-cycle operation
Gearbox compatibility
Regenerative braking capability
Industrial communication compatibility
The gearbox ratio is particularly important. It determines the relationship between motor speed and wheel speed and influences the available output torque.
For example, increasing the reduction ratio can increase output torque while reducing wheel speed. The correct ratio should therefore be calculated from the required travel speed, wheel diameter, motor speed, acceleration, and total moving mass.
2. How Servo Motors Improve Horizontal Positioning
A stacker crane may need to stop at hundreds or thousands of storage locations. Reaching the correct aisle coordinate is therefore a fundamental part of AS/RS performance.
An encoder provides feedback to the servo drive, allowing the control system to compare commanded motion with actual motor movement.
However, motor position is not necessarily identical to crane position.
Mechanical factors such as:
Gearbox backlash
Wheel slip
Rail conditions
Coupling clearance
Structural deflection
Mechanical wear
can influence the final position.
For high-accuracy systems, servo feedback can therefore be combined with external positioning technologies such as laser measurement, barcode positioning, or reference sensors.
The result is a layered positioning strategy:
Servo Encoder → Motor Position → Mechanical Transmission → External Position Reference → Actual Crane Position
This is particularly useful when the crane operates at high speed but must slow down and accurately position itself before the fork enters the rack.
The lifting axis has a fundamentally different requirement from horizontal travel.
Instead of moving a large mass along a horizontal rail, the lifting motor must raise and lower a load against gravity.
This means torque and braking become especially important.
The lifting servo motor may need to handle:
Maximum pallet weight
Load carriage weight
Fork mechanism weight
Counterweight, if applicable
Lifting speed
Acceleration
Deceleration
Gearbox efficiency
Drum, pulley, or sprocket dimensions
Gravity load
Continuous duty
A simplified lifting torque relationship can be expressed as:
T = F × r / η
where:
T = required output torque
F = lifting force
r = effective mechanical radius
η = transmission efficiency
The actual calculation should also include acceleration torque, mechanical losses, inertia, and an appropriate engineering margin.
4. Why Braking Is Critical for the Lifting Axis
The lifting axis requires additional attention because the load can be suspended above the ground.
When the motor stops or power is removed, the system may need to mechanically hold the load.
For this reason, a lifting servo motor may be configured with a mechanical holding brake.
The brake should be evaluated according to:
Maximum load
Gearbox ratio
Lifting mechanism
Required holding torque
Stopping conditions
Brake response
Safety architecture
It is important to distinguish between STO and a mechanical brake.
Safe Torque Off prevents the motor from generating torque under the applicable safety conditions, but STO itself should not be treated as a mechanical load-holding mechanism for a suspended load.
The complete lifting system should therefore address motor control, mechanical braking, and machine safety together.
5. Lifting Speed and Position Accuracy
The lifting axis must not only reach the correct rack level; it must arrive there smoothly.
If the lifting motor decelerates too aggressively, it can create:
Load swing
Mast vibration
Mechanical shock
Pallet movement
Position overshoot
An S-curve acceleration and deceleration profile can help reduce abrupt changes in acceleration.
This comparison demonstrates why axis-specific servo configuration can be valuable for AS/RS equipment.
The same motor specification may not provide the best combination of torque, speed, dimensions, and control performance for all three mechanisms.
9. One Servo Platform, Multiple Configurations
For AS/RS manufacturers, using a common servo motor platform with different configurations can provide a practical balance between customization and standardization.
For example, a manufacturer may use different versions of the same servo platform for:
Travel Axis
Higher power
Higher peak torque
Gearbox
High-speed operation
Encoder feedback
Lifting Axis
Higher continuous torque
Mechanical brake
Gearbox
Controlled descent
High-resolution feedback
Fork Axis
Lower power
Compact dimensions
High positioning repeatability
Fast forward/reverse response
This approach can simplify product development while still adapting the motor to each axis.
10. Servo Motor and Gearbox Matching
The servo motor should never be evaluated separately from the transmission system.
For the travel axis, the gearbox must provide sufficient wheel torque while maintaining the required maximum travel speed.
For lifting, the gearbox must provide enough torque to raise the load and work with the braking system.
For the fork axis, the transmission should provide the required extension speed and positioning accuracy without excessive backlash.
Important gearbox parameters include:
Reduction ratio
Rated output torque
Peak output torque
Backlash
Efficiency
Mechanical stiffness
Service life
Installation dimensions
A low-backlash gearbox can be particularly useful when the application requires precise positioning and frequent direction changes.
11. Encoder Selection for AS/RS Servo Axes
Encoder selection should be based on the complete motion-control system.
Relevant parameters include:
Resolution
Incremental or absolute feedback
Single-turn or multi-turn capability
Feedback protocol
Maximum speed
Drive compatibility
Environmental resistance
For high-cycle AS/RS systems, the encoder should also be suitable for the operating environment and expected service life.
A high-resolution encoder can provide the servo drive with more detailed position information, but overall machine accuracy still depends on the mechanical transmission and external positioning system.
12. Communication Between Servo Drives and the AS/RS Controller
The three axes must operate as a coordinated system.
For example, the crane should not extend the fork until the travel and lifting axes have reached the correct positions.
The control architecture may therefore use industrial networks such as:
EtherCAT
PROFINET
CANopen
EtherNet/IP
Modbus
The specific protocol depends on the PLC, motion controller, servo drive, and system integrator.
Fast communication can help coordinate:
Travel Position + Lift Position + Fork Position
This coordination is essential for reliable automated pallet handling.
13. Reducing Vibration Across Travel and Lifting Axes
High-speed travel and lifting can create structural vibration.
The solution should combine:
Correct motor sizing
Appropriate gearbox selection
Inertia matching
S-curve motion profiles
Servo gain tuning
Resonance suppression
Controlled deceleration
Mechanical stiffness
Accurate positioning feedback
The objective is to reduce settling time, not simply to reduce the maximum speed.
A crane that travels quickly but requires significant time to stop oscillating may not provide a shorter overall cycle.
14. Why OEM Customization Matters for These Three Axes
AS/RS equipment manufacturers often have different requirements for travel, lifting, and fork mechanisms.
OEM customization can address:
Motor dimensions
Shaft size
Mounting flange
Encoder type
Brake configuration
Gearbox ratio
Cable length
Connector position
Rated voltage
Torque range
Communication requirements
For example, a lifting motor may require a brake while the travel motor does not. A fork motor may require a compact body, while the travel motor may prioritize peak torque.
Customization allows the motor configuration to follow the machine design instead of forcing the machine to follow a standard motor.
15. How to Select the Right AC Servo Motor for Each AS/RS Axis
Before selecting a motor, AS/RS manufacturers should prepare application data.
For the Horizontal Travel Axis
Determine:
Total moving mass
Maximum travel speed
Wheel diameter
Acceleration
Deceleration
Gearbox ratio
Rail resistance
Duty cycle
Required positioning accuracy
For the Lifting Axis
Determine:
Maximum payload
Load carriage weight
Lifting speed
Lifting height
Acceleration
Pulley or drum diameter
Gear ratio
Required holding torque
Brake requirements
Duty cycle
For the Fork Axis
Determine:
Fork mass
Maximum load
Extension distance
Required extension speed
Positioning accuracy
Cycle frequency
Available installation space
Transmission type
This information allows the motor supplier to evaluate the actual application rather than selecting a motor from rated power alone.
For AS/RS manufacturers, JKONGMOTOR can provide AC servo motor solutions designed around application-specific motion requirements.
The solution can be evaluated according to the requirements of the:
Travel axis
Lifting axis
Fork axis
OEM configuration can include considerations such as motor power, torque, dimensions, shaft configuration, encoder, brake, gearbox matching, cable arrangement, and control-system compatibility.
For new AS/RS platforms, the development process can follow:
Application Analysis → Motor Selection → Mechanical Interface Design → Prototype → Testing → Optimization → Batch Production
This approach allows the servo motor to be evaluated as part of the complete motion system rather than as an isolated catalog component.
Conclusion
An AS/RS stacker crane depends on several coordinated motion axes, and each axis presents different servo motor requirements.
The horizontal travel axis needs high dynamic response, high-speed operation, and precise stopping. The lifting axis requires high torque, controlled vertical motion, and reliable load holding. The fork axis requires compact integration, smooth movement, and highly repeatable positioning.
For this reason, effective AS/RS motion control is based on matching the AC servo motor to the actual mechanical function of each axis.
When motor power, torque, gearbox ratio, encoder, brake, motion profile, and control architecture are properly coordinated, the stacker crane can achieve a better balance between high speed, positioning accuracy, smooth operation, reliability, and overall storage-and-retrieval cycle time.
For AS/RS OEMs, the most practical approach is to work with a servo motor manufacturer that can support both standardized servo platforms and application-specific OEM customization, allowing travel, lifting, and fork axes to be engineered around the actual requirements of the crane.
AC Servo vs. Conventional Motor for AS/RS
A conventional induction motor with a variable-frequency drive can be suitable for many industrial applications.
However, demanding AS/RS applications may require more detailed motion control.
Requirement
Conventional Motor + VFD
AC Servo System
Speed control
Good
Excellent
Position feedback
Optional/external
Integrated feedback architecture
Dynamic response
Application dependent
High
Fine positioning
More difficult
Well suited
Rapid acceleration/deceleration
Possible
Strong capability
Torque response
Good
High dynamic response
Vibration compensation
Drive dependent
Commonly available
Precise motion profiles
Possible
Strong capability
High-cycle positioning
Application dependent
Well suited
Integration with motion control
Good
Excellent
The choice should ultimately be based on the complete machine design. Not every AS/RS axis requires the same motor technology.
Common Problems When Selecting the Wrong Servo Motor
A motor can have the correct rated power and still perform poorly in an AS/RS application.
Insufficient Peak Torque
The motor may run normally but struggle during acceleration with a fully loaded pallet.
Excessive Inertia
The servo may become difficult to tune, producing slow dynamic response or unstable behavior.
Incorrect Gear Ratio
The crane may achieve the desired speed but lack sufficient output torque, or produce excessive speed at the wheel.
Poor Encoder Selection
The system may not have sufficient feedback resolution for the required positioning performance.
Excessive Acceleration
The motor may be powerful enough, but the crane structure may vibrate excessively.
Inadequate Brake Design
A lifting axis requires special attention to load retention when power is removed.
Poor Cable Configuration
Long moving cables and repeated crane motion can create installation and reliability problems if the cable and connector system are not selected appropriately.
A Practical Formula for High-Dynamic AS/RS Motion
A useful way to think about the entire application is:
Positioning Performance = Motor Response + Feedback Quality + Mechanical Precision + Motion Profile + Control Tuning
This explains why simply purchasing a higher-power servo motor does not necessarily produce a faster AS/RS system.
The motor must be correctly matched to the mechanical system and control strategy.
Final Considerations for High-Dynamic AS/RS Positioning
Achieving high-dynamic positioning in an AS/RS stacker crane is not simply a matter of installing a high-speed motor.
The best-performing systems are designed around the interaction between servo motor, servo drive, encoder, gearbox, mechanical structure, external positioning sensors, motion profile, and warehouse control system.
An AC servo motor provides the dynamic control foundation. The encoder supplies feedback. The drive regulates torque and speed. The gearbox converts motor characteristics into usable mechanical output. The positioning system confirms the machine's physical location. Finally, the motion controller coordinates the complete cycle.
For high-speed AS/RS equipment, the most practical design target is therefore not maximum motor speed but maximum useful throughput with controlled acceleration, short settling time, reliable positioning, and repeatable operation.
For OEM stacker-crane manufacturers, this system-level approach can make the difference between a motor that simply moves the machine and a servo motion solution engineered for high-dynamic automated storage and retrieval.
FAQs
1. What type of AC servo motor is suitable for an AS/RS stacker crane?
The suitable AC servo motor depends on the crane axis, payload, speed, acceleration, gearbox ratio, duty cycle, and positioning requirements. Travel, lifting, and fork axes normally require different torque, speed, brake, and mechanical configurations.
2. Why are AC servo motors used for AS/RS horizontal travel?
AC servo motors provide high dynamic response, accurate speed control, encoder feedback, and controlled acceleration and deceleration. These characteristics help the stacker crane travel rapidly through the aisle while achieving accurate positioning at the target storage location.
3. What AC servo motor requirements are important for the AS/RS lifting axis?
The lifting axis generally requires high continuous and peak torque, accurate position feedback, controlled acceleration and deceleration, and suitable mechanical braking. Motor selection should consider maximum payload, lifting speed, lifting mechanism, gearbox ratio, duty cycle, and load-holding requirements.
4. Why does the AS/RS fork axis need precise servo control?
The fork must accurately extend into and retract from the rack without damaging the pallet, rack, or handling mechanism. A servo motor provides repeatable positioning, controlled low-speed movement, fast forward/reverse response, and accurate stopping, which are important for reliable pallet transfer.
5. Can one AC servo motor be used for all AS/RS axes?
It is technically possible in some machine designs, but the three axes often have different operating requirements. Travel, lifting, and fork mechanisms may require different power, torque, speed, gearbox, brake, encoder, and mounting configurations. A common servo platform with axis-specific configurations can provide a practical solution.
6. How does an AC servo motor improve AS/RS positioning accuracy?
An AC servo system uses encoder feedback to monitor motor movement and regulate position and speed. However, final crane accuracy also depends on the gearbox, transmission, wheel slip, mechanical stiffness, backlash, external positioning sensors, and control system. Servo feedback should therefore be considered part of the complete positioning architecture.
7. Does the AS/RS lifting servo motor need a brake?
A lifting axis may require a mechanical holding brake when the design needs to hold a vertically suspended load when motor torque is unavailable. The brake should be selected according to the load, transmission system, required holding torque, and machine safety design. STO and mechanical load holding should not be treated as the same function.
8. How can AC servo motors reduce vibration in high-speed AS/RS cranes?
Vibration can be addressed through appropriate motor and gearbox sizing, inertia matching, S-curve acceleration and deceleration, servo tuning, resonance suppression, mechanical stiffness, and accurate feedback. Increasing motor speed or acceleration alone does not necessarily improve overall AS/RS cycle time.
9. Can AC servo motors for AS/RS equipment be customized?
Yes. OEM customization can include motor dimensions, shaft and flange configuration, encoder, gearbox, brake, cable, connector, rated torque, speed, and other application-specific requirements. Customization is particularly useful when the servo motor must fit a dedicated stacker-crane drivetrain.
10. What information should an AS/RS manufacturer provide when selecting a servo motor?
The most useful information includes total moving mass, maximum payload, travel speed, lifting speed, acceleration, deceleration, wheel or transmission dimensions, gearbox ratio, duty cycle, positioning accuracy, mounting space, encoder requirements, brake requirements, and control protocol. Accurate application data allows the motor supplier to evaluate the complete motion system rather than selecting a motor based only on rated power.
