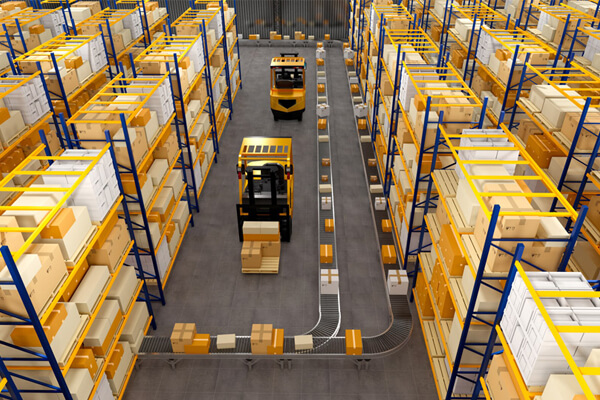

Modern warehouses are no longer designed around simple material movement. Smart warehousing connects conveyors, sorters, storage systems, scanners, sensors, warehouse management software, and automated material handling equipment into one coordinated system.
As order volumes increase and customers expect faster fulfillment, conveyor systems need to do more than move cartons from point A to point B. They must support variable speed, precise stopping, frequent starts and stops, zone control, real-time communication, energy efficiency, and reliable operation.
This is particularly important for roller conveyor systems.
Traditional conveyor roller drives often use a centralized motor connected to multiple rollers through chains, belts, shafts, or other mechanical transmission components. This architecture can work well for conventional conveyor lines, but it becomes less attractive when a warehouse requires independent zone control and flexible automation.
An integrated compact BLDC motor provides another approach. By combining the brushless DC motor with the drive electronics, control functions, and optional feedback or communication interfaces, the drive unit can be installed directly within or beside the conveyor roller system.
For smart warehouses, this can simplify the mechanical structure while making individual conveyor zones easier to control.
An integrated compact BLDC motor combines a brushless DC motor with electronic drive and control components in a compact package.
Depending on the application, an integrated motor can incorporate:
BLDC motor
Motor driver
Controller
Encoder or Hall feedback
Speed control
Position control
Overcurrent protection
Overtemperature protection
Communication interfaces
Gearbox
Brake
Customized connectors and wiring
Instead of installing a separate motor, external driver, controller, and additional wiring for every conveyor section, the integrated architecture can place many of these functions directly on the motor assembly.
For roller conveyor applications, compact dimensions are particularly important. Conveyor frames have limited installation space, and the motor must fit without interfering with rollers, belts, side frames, sensors, or maintenance access.
This makes compact integrated BLDC motors attractive for warehouse conveyors, accumulation conveyors, sortation systems, parcel handling equipment, automated storage systems, and distribution center material handling lines.
|
|
|
|
|
|
Integrated Dc Servo Motor with Brake |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Shaft |
Lead Screw |
Module |
Linear Motion |
Brake |
Gearbox |
Worm Gearbox |
Wires |
Protect Level |
Protect Level |
Roller conveyor systems have different load, speed, space, and control requirements, so one integrated BLDC motor cannot fit every conveyor application. For smart warehousing and automated material handling, motor selection should be based on roller diameter, conveyor speed, package weight, duty cycle, required torque, and control architecture.
Integrated geared BLDC motors combine a brushless DC motor, motor driver, and gearbox into one compact drive unit. The gearbox increases output torque while reducing the output speed, making this configuration suitable for roller conveyors transporting cartons, totes, and other relatively heavy loads.
Typical advantages include:
Higher output torque
Lower roller speed
Compact transmission structure
High efficiency
Stable speed control
Reduced external components
Different planetary, spur, or worm gearboxes can be selected according to the required torque, speed, efficiency, and installation conditions.
For conveyors with limited installation space, a compact integrated BLDC motor can combine the motor and controller in a small housing.
This design is suitable for:
Accumulation conveyors
Parcel conveyors
Warehouse transfer conveyors
Small carton conveyors
Automated sorting equipment
The compact structure can reduce the space required for external motor drivers and simplify electrical installation.
When a roller conveyor requires more accurate speed regulation or synchronization, an integrated BLDC motor with encoder feedback can be used.
The encoder provides real-time motor position or speed information to the controller. This allows the drive system to respond more accurately to changes in load and operating conditions.
Encoder-equipped integrated BLDC motors are particularly useful for applications requiring:
Precise speed control
Synchronized conveyor zones
Controlled acceleration and deceleration
Consistent product spacing
More accurate material positioning
Some conveyor applications require the roller to remain stationary when power is removed or when the conveyor is stopped.
An integrated BLDC motor with an electromagnetic brake can provide holding torque when the motor is not actively driving the roller.
This configuration can be considered for:
Inclined conveyors
Vertical transfer mechanisms
Position-holding applications
Heavy-load conveyor sections
Safety-related stopping requirements
The required brake torque should be calculated according to the actual conveyor load and mechanical transmission system.
Heavy cartons, pallets, or accumulated loads can require substantially higher starting torque than a lightly loaded conveyor.
High-torque integrated BLDC motors can be configured with an appropriate motor size and reduction gearbox to provide the required output torque.
When selecting a high-torque conveyor motor, we recommend evaluating:
Maximum load
Starting torque
Continuous torque
Peak torque
Conveyor incline
Roller diameter
Accumulation conditions
Required acceleration time
This prevents the motor from being selected solely according to rated wattage.
Smart warehouses increasingly require individual conveyor zones to communicate with PLCs, motion controllers, and warehouse automation systems.
Integrated BLDC motors can be configured with communication interfaces such as RS485, CANopen, Modbus, or EtherCAT, depending on the system architecture.
Communication-enabled motors can support functions such as:
Speed commands
Start/stop control
Direction control
Status monitoring
Alarm feedback
Parameter configuration
Networked zone control
This makes them suitable for intelligent roller conveyors and distributed conveyor control systems.
For battery-powered material handling equipment or systems operating from DC power supplies, low-voltage integrated BLDC motors can be an appropriate solution.
Common application requirements may involve DC power sources such as 24 VDC or 48 VDC, depending on the conveyor architecture.
Low-voltage BLDC solutions are particularly relevant to:
Mobile material-handling equipment
Autonomous warehouse systems
Battery-powered conveyors
Compact automation equipment
DC-powered conveyor modules
The exact voltage and motor power should be selected according to the available power supply and required conveyor performance.
For conveyor OEMs, a standard motor may not always match the required roller interface or installation space. OEM/ODM customization can therefore be important.
Customization can include:
Motor power
Rated voltage
Gear ratio
Output torque
Roller shaft dimensions
Mounting dimensions
Encoder
Brake
Communication protocol
Connector
Cable length
IP protection
Control parameters
A customized integrated BLDC motor allows the drive unit to be designed around the conveyor's mechanical and electrical requirements rather than adapting the entire conveyor around a standard motor.
For a roller conveyor project, the most important parameters are usually load, roller diameter, conveyor speed, starting torque, duty cycle, installation space, and control requirements.
A practical selection process is:
Load → Required torque → Roller speed → Gear ratio → Motor power → Control method → Communication → Mechanical interface
For simple conveying applications, a compact integrated BLDC motor may be sufficient. For heavier or more intelligent systems, a geared, encoder-equipped, communication-enabled integrated BLDC motor can provide additional control and integration capabilities.
For smart warehouse applications, the best motor architecture is therefore determined by the complete conveyor system rather than by motor power alone.
Modern smart warehouse conveyor systems need to move products quickly, accurately, and reliably while adapting to constantly changing material flow. Unlike conventional conveyors that often rely on centralized drives and extensive mechanical transmission, smart conveyor systems increasingly use distributed, independently controlled drive units.
This is where integrated BLDC motors become particularly valuable. By combining the brushless DC motor with integrated drive electronics, feedback options, and communication functions, these motors can provide a compact and controllable drive solution for roller conveyors, accumulation conveyors, sorting systems, and automated material handling equipment.
Warehouse conveyor frames often have limited installation space. Motors, gearboxes, cables, drivers, and control components must fit around rollers, side frames, sensors, and other mechanical structures.
An integrated BLDC motor combines several drive functions into one compact assembly. This can reduce the need for separate external motor drivers and simplify the overall conveyor layout.
For OEM conveyor manufacturers, a compact motor architecture can also provide greater flexibility when designing narrow conveyor sections or densely arranged material-handling equipment.
Smart warehouses rarely operate at a single constant conveyor speed. Different sections may require different speeds depending on package size, process requirements, accumulation conditions, and downstream equipment.
Integrated BLDC motors can provide controllable speed operation for applications such as:
Roller conveyors
Accumulation zones
Transfer conveyors
Parcel handling systems
Sortation conveyors
Packaging conveyors
Automated storage systems
With appropriate control and feedback, individual conveyor zones can accelerate, decelerate, or stop according to actual material flow.
One of the major advantages of distributed integrated motor technology is the ability to control conveyor zones independently.
Instead of running an entire conveyor line continuously, individual sections can operate only when material needs to move through them.
For example, when a carton reaches a sensor, the corresponding conveyor zone can start. Once the carton moves into the next zone, the previous zone can slow down or stop.
This operating strategy can improve energy utilization and conveyor flexibility, particularly in facilities where material flow varies throughout the day.
Conveyor motors frequently start while carrying a load. Accumulation zones can create even higher starting requirements because several packages may be positioned on adjacent rollers.
An integrated BLDC motor can be combined with a gearbox to provide the required output torque at the roller.
Motor selection should consider both continuous and peak operating conditions, including:
Maximum package weight
Number of accumulated packages
Roller diameter
Conveyor speed
Acceleration time
Incline angle
Mechanical friction
Gear reduction ratio
This is more reliable than selecting a motor based only on rated power.
Some warehouse conveyors only require basic speed control, while more demanding systems require accurate feedback.
An integrated BLDC motor with encoder feedback can continuously provide motor speed or position information to the control system.
This can be useful for:
Speed synchronization
Controlled acceleration
Consistent product spacing
Precise positioning
Closed-loop speed regulation
For high-throughput sorting and material-handling applications, stable and repeatable conveyor movement can help maintain predictable product flow.
Smart warehouse automation requires communication between motors, sensors, PLCs, controllers, and higher-level warehouse systems.
Depending on the application, integrated BLDC motors can support communication interfaces such as RS485, CANopen, Modbus, or EtherCAT.
A networked motor can provide operating information such as:
Speed
Direction
Motor status
Fault conditions
Temperature
Current
Control commands
This allows the conveyor control architecture to become more distributed and data-driven.
Traditional conveyor systems may require separate motors, drivers, control cabinets, cables, junction boxes, and mechanical transmission components.
Integrating the drive electronics into the motor can reduce the number of separate components required at the conveyor level.
For conveyor OEMs, this can simplify:
Design → Assembly → Wiring → Testing → Installation → Maintenance
The actual reduction depends on the system architecture, but integrating multiple functions into the drive unit can make the conveyor easier to standardize and modularize.
Modern warehouse conveyors are often designed as modular systems. Individual sections may be added, removed, or rearranged as warehouse requirements change.
Integrated BLDC motors support this modular approach because each conveyor zone can have its own drive unit.
A conveyor manufacturer can develop standardized modules using different motor configurations for different applications, such as:
Light-load carton transport
Heavy-load accumulation
High-speed parcel handling
Inclined conveying
Precision transfer
Sortation
The same basic motor platform can potentially be adapted through different gear ratios, power levels, feedback systems, and communication configurations.
Warehouse conveyor equipment can operate for extended periods, making motor protection an important consideration.
Integrated BLDC drive systems can incorporate protective functions such as:
Overcurrent protection
Overvoltage protection
Undervoltage protection
Overtemperature protection
Stall detection
Overload protection
Communication fault monitoring
These functions help protect the motor and electronics when operating conditions become abnormal.
Protection settings should still be matched to the actual conveyor application rather than treated as a substitute for correct motor sizing.
Every warehouse automation project has different mechanical and electrical requirements. A standard motor may not provide the correct shaft dimensions, gearbox ratio, cable configuration, or communication interface.
An OEM/ODM integrated BLDC motor can be customized according to the conveyor manufacturer's requirements.
Possible customization options include:
Rated voltage
Motor power
Output torque
Gear ratio
Motor dimensions
Roller shaft interface
Encoder
Brake
Communication protocol
Connector type
Cable length
Mounting configuration
IP protection
Control parameters
This approach allows the motor to become part of the conveyor platform instead of being treated as an isolated component.
Integrated BLDC motors can be applied across many smart warehouse conveyor systems, including:
Roller Conveyors: Individual drive zones can provide flexible speed control.
Accumulation Conveyors: Independent zones can help control package spacing and accumulation.
Parcel Conveyors: Compact, controllable drives support frequent starts and stops.
Sortation Systems: Speed and synchronization become important when products move through different sorting sections.
AS/RS Conveyors: Integrated drives can support the movement of totes, cartons, and pallets between storage and handling equipment.
Distribution Centers: Distributed motorized zones can provide flexible material-flow control across large conveyor networks.
The primary difference is the drive architecture.
A conventional system may depend heavily on a centralized motor and mechanical transmission, while an integrated BLDC approach can distribute drive functions across individual conveyor zones.
Requirement |
Conventional Drive |
Integrated BLDC Motor |
|---|---|---|
Zone control |
More centralized |
Distributed |
Installation |
More external components |
Compact integrated design |
Speed adjustment |
System-level |
Individual drive possible |
Feedback |
Usually centralized or external |
Encoder option |
Communication |
External control architecture |
Communication can be integrated |
Mechanical flexibility |
Depends on transmission |
Higher modularity |
OEM customization |
Depends on motor supplier |
Motor and drive can be customized |
The appropriate solution ultimately depends on the conveyor's load, speed, layout, control requirements, and total system architecture.
For smart warehouse applications, the motor is no longer simply a device that rotates a roller. It can become an intelligent drive module within the conveyor control system.
An integrated BLDC motor can combine:
Motor + Driver + Gearbox + Feedback + Communication + Protection
into a compact solution.
This architecture can help conveyor manufacturers develop equipment that is easier to modularize, control, and integrate with modern warehouse automation systems.
For applications where compact installation, variable speed, independent zone control, communication, energy-conscious operation, and OEM customization are important, integrated BLDC motors provide a practical drive architecture for next-generation smart warehouse conveyors.
Choosing a motor only according to rated power is rarely sufficient for a smart warehouse conveyor.
The complete drive system should be evaluated according to torque, speed, acceleration, control method, communication, protection, mechanical integration, and operating environment.
Conveyor rollers frequently start under load.
A carton may already be positioned on the roller when the motor receives a start command. Multiple cartons may also accumulate in the same zone.
The motor therefore needs sufficient starting torque and peak torque capability.
A motor with adequate continuous power but insufficient starting torque can cause:
Slow acceleration
Roller speed instability
Failure to start under heavy loads
Motor overheating
Conveyor jams
For this reason, conveyor motor selection should consider the actual load profile rather than simply matching the motor's rated wattage.
Stable speed is essential for automated material handling.
If adjacent conveyor zones operate at significantly different speeds, cartons can experience sudden acceleration or deceleration.
This can create problems with:
Barcode scanning
Product spacing
Sortation
Robotic picking
Packaging
Transfer operations
An integrated BLDC drive with closed-loop feedback can provide more consistent speed control when the application requires it.
Feedback becomes particularly useful when conveyor positioning or speed synchronization is important.
An encoder can provide information about:
Motor speed
Rotor position
Rotation direction
Conveyor movement
Position-related control
For basic transportation, sensorless BLDC control may be sufficient.
For more demanding applications, encoder-based closed-loop control can provide additional control accuracy.
Smart warehouses increasingly require motors to communicate with higher-level automation systems.
Depending on the system architecture, an integrated motor may support communication interfaces such as:
RS485
CANopen
Modbus
EtherCAT
The appropriate interface depends on the PLC, motion controller, conveyor controller, and overall automation architecture.
Communication allows the control system to exchange information such as speed commands, operating status, alarms, and diagnostic information.
Warehouse conveyors may operate continuously for long periods.
A motor installed in a compact conveyor frame may have limited natural cooling space. Thermal protection is therefore important.
An integrated BLDC motor can incorporate temperature monitoring and protective functions to help prevent damage caused by excessive operating temperature.
This is particularly valuable when conveyors experience repeated acceleration, high loads, or continuous-duty operation.
Unexpected jams can create high mechanical resistance.
If a package becomes trapped or the conveyor mechanism is blocked, the motor may experience a sudden increase in current.
Integrated protection functions can help manage conditions such as:
Overcurrent
Overload
Stall
Overtemperature
Abnormal voltage
Communication faults
These functions can improve system reliability and simplify troubleshooting.
A conventional conveyor drive may use a centralized motor connected to multiple mechanical transmission components.
An integrated architecture distributes the drive function across the conveyor.
Feature |
Traditional Central Drive |
Integrated Compact BLDC Motor |
|---|---|---|
Drive architecture |
Centralized |
Distributed |
Zone control |
More complex |
Easier to implement |
Installation |
More mechanical components |
Compact |
External wiring |
More extensive |
Potentially reduced |
Speed control |
Centralized |
Individual zone control |
Maintenance |
Mechanical transmission dependent |
Modular drive approach |
Smart communication |
Usually centralized |
Can be integrated at motor level |
Conveyor flexibility |
Limited by mechanical layout |
Higher design flexibility |
The right architecture depends on conveyor length, load, speed, zone configuration, control requirements, and equipment cost.
However, for modular smart conveyor systems, distributed integrated motors can simplify the overall design.
Upgrading a conveyor system does not always mean replacing the entire conveyor line.
A practical modernization project can begin with the drive architecture.
Start with the actual operating conditions.
Important parameters include:
Maximum package weight
Minimum package weight
Roller diameter
Roller spacing
Conveyor speed
Acceleration time
Incline angle
Number of driven rollers
Friction coefficient
Duty cycle
Required throughput
The required motor torque should then be calculated from the actual mechanical configuration.
Motor speed and roller speed are not necessarily the same.
If a gearbox is used, the required motor speed depends on the reduction ratio and roller diameter.
The relationship between roller speed and linear conveyor speed should be evaluated before selecting the motor.
For example, if the roller diameter is known, the required roller rotational speed can be estimated from the conveyor's linear velocity.
The gearbox ratio can then be selected to balance:
motor speed + output torque + conveyor speed + efficiency.
A simple conveyor may only need:
Start/stop
Direction control
Speed adjustment
A smart warehouse may require much more:
Individual zone control
Encoder feedback
PLC communication
Fault reporting
Speed synchronization
Acceleration profiles
Remote diagnostics
The motor should therefore be selected together with the intended control architecture.
Mechanical compatibility is just as important as electrical performance.
Check:
Motor dimensions
Shaft configuration
Mounting structure
Gearbox orientation
Roller connection
Cable outlet
Connector position
Protection rating
Maintenance access
A motor that meets the electrical specifications but cannot be mechanically integrated efficiently is not an effective conveyor solution.
For conveyor manufacturers, the value of an integrated motor extends beyond the motor itself.
An OEM can potentially simplify the conveyor's overall bill of materials by integrating several functions into one drive module.
This can reduce the number of separate components that need to be designed, installed, wired, tested, and maintained.
For equipment manufacturers producing different conveyor models, customized integrated BLDC motors can also help standardize the drive platform.
For example, an OEM may require different:
Voltage levels
Gear ratios
Output shafts
Mounting dimensions
Cable lengths
Connectors
Communication protocols
Encoder configurations
Braking functions
A motor manufacturer capable of OEM/ODM development can adapt the integrated motor to the conveyor rather than forcing the conveyor design to accommodate a standard motor.
Smart warehouse projects rarely have exactly the same mechanical requirements.
A parcel conveyor for a distribution center can have very different requirements from a conveyor used in an automated storage system.
Customization may include the motor, gearbox, driver, encoder, communication interface, connector, cable, housing, mounting structure, and control parameters.
A complete OEM development process can include:
Application requirement analysis
Load and torque calculation
Motor selection
Gear ratio selection
Electrical interface definition
Mechanical design
Prototype production
Performance testing
Conveyor integration
Pilot production
Mass production
This approach allows the motor to become part of the conveyor system architecture rather than simply being treated as an off-the-shelf component.
Integrated compact BLDC motors are increasingly used in automated material handling because they combine a brushless DC motor with integrated drive electronics and can be configured with gearboxes, encoders, brakes, and communication interfaces. Their compact structure makes them especially suitable for equipment where installation space, controllability, efficiency, and modular design are important.
In smart warehouse environments, these motors can be used across different conveyor and material-handling applications rather than being limited to one specific conveyor type.
Roller conveyors are one of the most common applications for integrated compact BLDC motors. A motor can drive an individual roller or a group of mechanically connected rollers, depending on the conveyor design.
They are suitable for transporting:
Cartons
Totes
Plastic bins
Parcels
Packages
Small pallets
For zone-controlled conveyors, individual integrated motors can allow different sections to start, stop, accelerate, or decelerate according to material flow.
Accumulation conveyors temporarily hold products before they move to the next process.
This application places additional demands on the drive because motors may need to start repeatedly while carrying accumulated loads.
An integrated BLDC motor with an appropriate gear reduction and torque rating can provide the starting torque required for these conditions.
With independent zone control, the conveyor can operate only when a package needs to move, helping create a more flexible material-flow system.
E-commerce and distribution centers process a large number of packages with different sizes and weights.
Parcel conveyor systems therefore require:
Reliable starting
Variable speed
Frequent start-stop operation
Compact installation
Stable speed control
Long operating life
Integrated BLDC motors can be configured for these requirements and integrated directly into modular conveyor sections.
Cross-belt sorters require coordinated movement between the main conveyor and individual sorting mechanisms.
Compact integrated motors can be used in drive modules where limited installation space and controlled movement are important.
Depending on the sorter architecture, different motor configurations can be selected for:
Conveyor movement
Belt movement
Transfer mechanisms
Auxiliary positioning systems
Feedback and communication options can be added when synchronized operation is required.
AS/RS conveyors move totes, cartons, bins, and pallets between storage locations and other warehouse processes.
Integrated BLDC motors can be used in conveyor sections associated with:
Storage aisles
Picking stations
Transfer stations
Inbound areas
Outbound areas
Buffer zones
Their compact architecture can be useful where conveyor equipment must fit into a densely arranged automated storage environment.
Large distribution centers often use extensive conveyor networks connecting receiving, storage, picking, sorting, packing, and shipping areas.
A distributed drive architecture using integrated BLDC motors can allow individual conveyor sections to be controlled independently.
This can simplify the development of modular conveyor zones and provide greater flexibility when conveyor layouts change.
Integrated compact BLDC motors are also suitable for packaging and end-of-line material handling.
Typical applications include moving finished cartons between:
Packaging → Inspection → Labeling → Palletizing → Shipping
These systems may require consistent speed and controlled acceleration to prevent products from shifting or colliding during transportation.
Transfer conveyors move products from one conveyor line to another.
Because transfer mechanisms often have limited space, a compact integrated motor can be advantageous.
Applications include:
90-degree transfers
Roller transfers
Cross transfers
Divert mechanisms
Conveyor intersections
The motor can be selected according to the transfer load, movement speed, required torque, and available installation space.
Inclined conveyors require additional torque because the motor must overcome the gravitational component of the transported load.
For these applications, integrated geared BLDC motors can provide higher output torque at the roller while maintaining a suitable conveyor speed.
If the conveyor needs to hold the load when stopped, a brake-equipped configuration may also be considered.
Compact BLDC motors can also be used in mobile or semi-mobile material-handling equipment operating inside automated warehouses.
Depending on the equipment architecture, applications may include:
Autonomous material-handling platforms
Mobile conveyor modules
Robotic transfer equipment
Automated tote handling systems
Compact transport platforms
Low-voltage configurations can be considered when the equipment operates from a DC battery system.
One particularly important application is smart zone conveyor control.
Instead of treating an entire conveyor as one mechanical system, the conveyor can be divided into multiple independently controlled zones.
Each zone can include:
Sensor + Controller + Integrated BLDC Motor + Roller Section
When a package enters a zone, the controller can command the motor to start. Once the package moves forward, the motor can slow down or stop.
This architecture can support more responsive material handling and make conveyor systems easier to expand.
Different applications require different motor configurations.
Application |
Important Motor Requirements |
|---|---|
Roller conveyor |
Compact size, stable speed, suitable torque |
Accumulation conveyor |
High starting torque, frequent start-stop capability |
Parcel conveyor |
Variable speed, reliability, compact design |
Cross-belt sorter |
Speed synchronization, compact integration |
AS/RS conveyor |
Torque, communication, modular installation |
Distribution conveyor |
Zone control, communication, reliability |
Inclined conveyor |
Higher output torque, optional brake |
Transfer conveyor |
Compact dimensions, controlled acceleration |
Packaging conveyor |
Stable speed, precise control |
Mobile conveyor equipment |
Low-voltage operation, compact design |
The motor should therefore be selected according to the complete mechanical and electrical requirements, rather than simply choosing the highest-power motor available.
Standard integrated BLDC motors may not always match the exact requirements of a conveyor OEM.
For customized projects, manufacturers may require different:
Motor power
Voltage
Output torque
Gear ratio
Shaft dimensions
Mounting dimensions
Encoder options
Brake options
Communication protocols
Connectors
Cable lengths
IP ratings
Control parameters
An OEM/ODM integrated BLDC motor can be developed around the conveyor's mechanical interface and control architecture.
This is particularly valuable for manufacturers developing standardized conveyor platforms for different warehouse automation projects.
Before purchasing, conveyor OEMs and warehouse automation integrators should evaluate more than motor power.
A practical specification checklist includes:
Electrical
Rated voltage
Rated power
Rated current
Peak current
Controller input range
Protection functions
Mechanical
Motor dimensions
Shaft diameter
Gear ratio
Output torque
Mounting method
Roller interface
Control
Speed range
Acceleration
Deceleration
Feedback method
Position control requirements
Communication
RS485
CANopen
Modbus
EtherCAT
Digital I/O
Environmental
IP rating
Operating temperature
Humidity
Continuous-duty capability
Vibration resistance
Customization
Cable length
Connector
Gearbox
Encoder
Brake
Housing
Firmware
Mounting structure
Upgrading a warehouse conveyor system is not simply a matter of replacing an old motor with a new one. Modern smart warehouse conveyor systems require a coordinated combination of motor performance, speed control, communication, mechanical integration, protection, and long-term reliability.
JKONGMOTOR supports conveyor OEMs and warehouse automation companies by providing integrated BLDC motor solutions that can be configured around the actual requirements of roller conveyors, accumulation systems, sortation equipment, transfer conveyors, and other automated material-handling applications.
Traditional conveyor systems may require a separate motor, external driver, gearbox, controller, and additional wiring.
JKONGMOTOR's integrated BLDC approach can combine key drive functions into one compact assembly, depending on the project requirements.
A customized solution can integrate:
BLDC motor
Motor driver
Gearbox
Encoder
Brake
Control electronics
Communication interface
Protection functions
This integrated structure can help conveyor manufacturers simplify equipment design and reduce the number of separate components that must be installed inside the conveyor system.
Every roller conveyor has different operating conditions.
A light-duty carton conveyor may require a compact, high-speed motor, while an accumulation conveyor handling heavier loads may require substantially higher output torque.
JKONGMOTOR can configure the integrated BLDC motor according to parameters such as:
Rated voltage
Motor power
Output torque
Motor speed
Gear ratio
Roller diameter
Shaft configuration
Mounting dimensions
Duty cycle
Operating environment
This allows the motor to be matched to the conveyor rather than forcing an existing conveyor design to accommodate a standard motor.
The gearbox plays an important role in conveyor motor selection.
A BLDC motor normally operates at a higher rotational speed than the conveyor roller requires. A suitable gearbox can reduce output speed while increasing available torque at the roller.
Depending on the application, JKONGMOTOR can provide different geared configurations for applications requiring:
Higher starting torque
Lower roller speed
Compact installation
Continuous operation
High transmission efficiency
The appropriate gear ratio should be determined from the required roller speed, motor operating range, load, and mechanical efficiency.
For applications requiring more consistent speed or synchronization, encoder feedback can be incorporated into the integrated motor solution.
This can provide the control system with real-time motor speed or position information.
Encoder-equipped configurations can be useful for:
Conveyor zone synchronization
Controlled acceleration and deceleration
Product spacing
Precise speed regulation
Sortation equipment
Automated transfer systems
The feedback configuration can be selected according to the required control accuracy and system architecture.
Smart warehouse conveyors increasingly operate as part of a connected automation network.
Rather than controlling every motor through basic start/stop signals, modern systems may require communication between the motor, PLC, conveyor controller, sensors, and higher-level automation equipment.
Depending on project requirements, integrated BLDC motor solutions can support interfaces such as:
RS485
CANopen
Modbus
EtherCAT
Communication capabilities can allow the system to exchange operating commands, status information, and fault signals.
This is particularly useful when conveyor zones need independent control and centralized monitoring.
Space is often one of the biggest challenges when upgrading an existing conveyor.
The available area around the roller may already contain:
Structural frames
Sensors
Cables
Bearings
Mechanical transmission components
Safety equipment
A compact integrated motor can help reduce the space required for separate drive electronics.
For conveyor OEMs, this can provide additional flexibility when designing narrow conveyor sections, dense warehouse layouts, and modular drive zones.
Warehouse conveyors may operate for long shifts with repeated acceleration, deceleration, and stopping.
The motor therefore needs to tolerate changing operating conditions.
Integrated BLDC drive solutions can incorporate protective functions such as:
Overcurrent protection
Overload protection
Overtemperature protection
Overvoltage protection
Undervoltage protection
Stall protection
Communication fault protection
These functions help protect the drive system during abnormal operating conditions.
Correct motor sizing remains essential because protection functions cannot compensate for a motor that is consistently undersized for the application.
For conveyor manufacturers developing their own equipment platforms, OEM/ODM customization can be particularly valuable.
Instead of selecting a motor from a fixed catalog, the drive system can be developed around the customer's requirements.
Customization may involve:
Mechanical customization
Motor dimensions
Mounting structure
Output shaft
Gearbox
Roller interface
Housing
Electrical customization
Voltage
Power
Current
Connector
Cable length
Brake
Control customization
Encoder
Speed range
Acceleration and deceleration
Communication protocol
Control parameters
This approach can help OEMs standardize their conveyor platform while maintaining flexibility for different warehouse projects.
A successful conveyor motor upgrade normally requires more than selecting a specification sheet.
JKONGMOTOR can support an OEM-oriented development process covering:
Application Analysis → Motor Selection → Mechanical Design → Electrical Configuration → Prototype → Testing → Conveyor Integration → Sample Validation → Mass Production
During the prototype stage, the motor can be evaluated under actual conveyor conditions.
Important tests may include:
Starting under load
Continuous operation
Speed stability
Temperature rise
Overload behavior
Acceleration and deceleration
Communication stability
Mechanical compatibility
Testing the complete drive solution helps identify potential problems before the system enters large-scale production.
JKONGMOTOR's integrated BLDC motor solutions can be considered for a range of warehouse automation applications, including:
Roller conveyors
Accumulation conveyors
Parcel conveyors
Cross-belt sorting systems
Transfer conveyors
Packaging conveyors
AS/RS conveyor systems
Distribution center conveyor networks
Automated material-handling equipment
Different applications can use different combinations of motor power, gearbox ratio, encoder, brake, communication, and mechanical configuration.
For an existing conveyor upgrade, the first step is to understand the current system.
Key information includes:
Maximum conveyed load
Roller diameter
Required conveyor speed
Required acceleration
Conveyor length
Number of driven zones
Duty cycle
Available installation space
Power supply
Required communication protocol
From these parameters, the appropriate motor torque, speed, gearbox ratio, control method, and mechanical interface can be determined.
This application-based approach helps prevent common problems such as insufficient starting torque, excessive motor temperature, unsuitable gear ratios, or incompatible mounting dimensions.
The modernization of warehouse conveyors is moving toward compact, distributed, intelligent drive systems.
For conveyor OEMs, an integrated BLDC motor can bring the motor, driver, feedback, gearbox, communication, and protection functions closer to the actual point of motion.
JKONGMOTOR supports this approach through integrated BLDC motor technology and OEM/ODM customization, helping customers develop drive solutions for specific conveyor loads, speeds, mechanical structures, and control architectures.
For a smart warehouse conveyor upgrade, the objective is not simply to install a smaller motor. It is to develop a complete drive module that fits the conveyor mechanically, performs reliably under the required load, communicates with the automation system, and supports the customer's long-term equipment strategy.
The transition from conventional conveyor drives to integrated compact BLDC motors is closely connected with the broader development of smart warehousing.
Modern conveyor systems increasingly need independent zone control, variable speed, reliable starting torque, compact installation, communication capability, and intelligent protection.
An integrated BLDC architecture addresses many of these requirements by combining multiple drive functions into a compact motorized unit.
For an upgrade project, the most important step is to evaluate the complete application: load, torque, speed, duty cycle, roller dimensions, control architecture, communication requirements, installation space, and environmental conditions.
When these factors are considered together, an integrated compact BLDC motor can become more than a replacement drive. It can serve as a modular building block for a more flexible and intelligent conveyor system.
For warehouse automation OEMs, the combination of compact BLDC technology, integrated electronics, feedback, communication, and OEM customization provides a practical path toward modern roller conveyor architectures designed for the demands of smart warehousing.
Integrated BLDC motors are used to drive roller conveyors, accumulation conveyors, parcel handling systems, transfer conveyors, sortation equipment, and other automated material-handling systems. They combine a brushless DC motor with integrated drive electronics and can be configured with gearboxes, encoders, brakes, and communication interfaces.
Integrated BLDC motors provide compact installation, controllable speed, efficient operation, and flexible drive configuration. When combined with a suitable gearbox, they can provide the output torque and roller speed required for different conveyor loads while reducing the need for separate external drive components.
Yes. An integrated BLDC motor can be assigned to an individual conveyor zone and controlled independently through a suitable controller or communication network. This allows different zones to start, stop, accelerate, or decelerate according to package movement and warehouse material flow.
Yes. JKONGMOTOR supports OEM/ODM customization for conveyor applications. Depending on project requirements, customization can include motor power, voltage, gearbox ratio, output shaft, mounting dimensions, encoder, brake, connector, cable length, communication interface, and control parameters.
Depending on the motor and control architecture, integrated BLDC motors can be configured with communication options such as RS485, CANopen, Modbus, or EtherCAT. The appropriate interface depends on the customer's PLC, motion controller, conveyor controller, and overall automation architecture.
Yes. An integrated BLDC motor with encoder feedback can provide real-time motor speed or position information to the control system. This can be useful for speed regulation, synchronization, controlled acceleration and deceleration, product spacing, and precision material handling.
Motor selection should consider the maximum conveyed load, roller diameter, conveyor speed, acceleration time, required output torque, duty cycle, gearbox ratio, available installation space, power supply, and control requirements. Selecting a motor based only on rated wattage may result in insufficient starting torque or excessive thermal loading.
Yes. Accumulation conveyors can benefit from integrated BLDC motors because each zone can potentially be controlled independently. The motor should be selected according to the accumulated load, starting torque, operating cycle, required speed, and frequency of acceleration and stopping.
Depending on the motor and driver configuration, protection functions may include overcurrent, overload, overtemperature, overvoltage, undervoltage, stall, and communication fault protection. These functions help protect the motor and electronics during abnormal operating conditions.
Yes. For OEM projects, JKONGMOTOR can support the development process from application analysis and motor selection through prototype development, testing, conveyor integration, sample validation, and mass production. The final configuration can be developed around the conveyor's mechanical, electrical, and control requirements.
