Food waste disposers operate in a demanding environment. Unlike many ordinary household or commercial appliances, a disposer motor needs to handle variable loads, wet food waste, repeated starts and stops, vibration, clogging risks, and continuous exposure to moisture. The motor must also deliver enough torque to break down and move food waste efficiently without consuming excessive power.
For equipment manufacturers and OEM buyers, choosing the right agitation DC motor for a food waste disposer is therefore not simply a matter of selecting a motor based on voltage or rated power. The motor's torque characteristics, speed, starting performance, thermal capacity, protection level, noise, lifetime, shaft design, and compatibility with the disposer mechanism all need to be considered together.
In most applications, a properly designed DC motor or geared DC motor provides an excellent balance between high starting torque, compact size, controllable speed, cost efficiency, and customization flexibility.
What Is a Food Waste Disposer and How Does Its Motor Work?
A food waste disposer is a compact appliance or waste-processing machine designed to break down food scraps into smaller particles so they can be discharged through a drainage system or processed more efficiently. These systems are widely used in residential kitchens, restaurants, hotels, commercial kitchens, cafeterias, and food-service facilities where food waste needs to be handled quickly and hygienically.
At the heart of the disposer is an electric motor. The motor provides the rotational power required to drive the grinding, cutting, or agitation mechanism inside the disposal chamber. Because food waste can create highly variable mechanical loads, the motor must deliver sufficient starting torque, continuous torque, speed stability, and overload capability.
How Does a Food Waste Disposer Work?
A typical food waste disposer contains several main components:
Electric motor
Rotating grinding or agitation mechanism
Grinding chamber
Impeller or rotating plate
Stationary grinding components
Drainage outlet
Motor controller or electrical protection system
When the disposer is switched on, the motor converts electrical energy into mechanical rotation. This rotation is transferred directly to the grinding mechanism or through a gearbox, depending on the design.
As food scraps enter the chamber, the rotating components generate mechanical forces that break the waste into smaller pieces. Water can then help carry the processed particles through the outlet and into the drainage or waste-treatment system.
The basic operating sequence is:
Electrical power → Motor rotation → Mechanical torque → Grinding/agitation mechanism → Food waste breakdown → Waste discharge
What Does the Motor Do Inside a Food Waste Disposer?
The motor is responsible for supplying the torque and rotational speed required by the disposer mechanism.
During normal operation, the motor must maintain stable rotation while the load changes according to the type and quantity of food waste.
For example, soft vegetable scraps may create relatively low resistance, while dense food waste, bones, fibrous materials, or accumulated waste can create much higher mechanical resistance.
This means the motor should not be selected simply according to its wattage. Torque, speed, duty cycle, starting performance, and overload capability are equally important.
Why Is Starting Torque Important?
One of the most demanding moments for a disposer motor is startup.
If food waste is already present in the grinding chamber, the rotating mechanism may need to overcome significant resistance before it can accelerate.
A motor with insufficient starting torque may experience:
Slow acceleration
Excessive current draw
Motor overheating
Stall conditions
Frequent protection shutdowns
Reduced operating reliability
For this reason, high starting torque is an important characteristic when selecting a DC motor for food waste disposal equipment.
Direct-Drive Motor or Geared DC Motor?
The motor can drive the disposer mechanism directly or through a gearbox.
A direct-drive DC motor is suitable when the required operating speed and torque are already close to the motor's natural operating characteristics. It can provide a relatively simple mechanical structure with fewer transmission components.
A geared DC motor, on the other hand, is useful when the application requires lower output speed and higher torque.
The gearbox reduces motor speed while multiplying output torque. This can be particularly useful for heavy-duty agitation or grinding mechanisms where high mechanical resistance must be overcome.
The appropriate choice depends on the required output RPM, torque, available installation space, noise requirements, and expected operating cycle.
How Does the Motor Handle Variable Food Waste Loads?
Food waste disposers rarely operate under a constant mechanical load.
The motor may experience low resistance during one part of a cycle and significantly higher resistance a few seconds later. A properly selected motor therefore needs adequate torque reserve.
For OEM applications, we normally recommend evaluating:
No-load speed
Normal operating torque
Starting torque
Peak load torque
Stall torque
Current consumption
Temperature rise
Expected duty cycle
This provides a much more realistic picture of motor performance than rated power alone.
What Types of Motors Are Used?
Several motor technologies can be considered for food waste disposers.
Brushed DC motors are attractive for cost-sensitive applications because they offer simple control, good starting torque, and relatively straightforward electrical integration.
BLDC motors eliminate mechanical brushes and can provide longer service life, higher efficiency, and lower maintenance. They are particularly attractive for commercial equipment that operates frequently.
Geared DC motors can be used when high output torque and controlled speed are required.
For a specific OEM disposer design, the best motor type depends on the required performance, target product cost, operating environment, and expected service life.
Why Environmental Protection Matters
Food waste disposal equipment normally operates around water, moisture, grease, food particles, and vibration. The motor therefore needs to be appropriately protected against the actual operating environment.
Depending on the equipment design, manufacturers may require:
Appropriate IP protection
Sealed bearings
Protected connectors
Moisture-resistant construction
Corrosion-resistant components
Suitable cable and terminal protection
The motor should be evaluated as part of the complete disposer assembly because the motor's environmental protection can also depend on the mounting structure, shaft seal, connector, and cable arrangement.
How Is the Motor Protected During a Jam?
A jam can occur when excessive food waste or a foreign object prevents the rotating mechanism from moving.
If the motor remains energized while stalled, it can draw high current and generate substantial heat. A properly designed system may therefore incorporate overcurrent protection, thermal protection, stall detection, current limiting, or automatic shutdown.
Some disposer designs may also use controlled reverse rotation to help release material from the grinding mechanism.
The protection strategy should be determined by the motor type, controller, mechanical design, and safety requirements of the finished equipment.
Why Motor Selection Matters for OEM Food Waste Disposers
For OEM manufacturers, the motor directly affects several aspects of the final product, including:
Grinding performance
Startup reliability
Energy consumption
Operating noise
Vibration
Thermal performance
Service life
Maintenance requirements
Overall product cost
A properly matched agitation DC motor can provide reliable torque while keeping the motor compact and cost-effective.
For demanding commercial applications, a customized BLDC or geared DC motor may provide additional benefits in efficiency, durability, and controllability.
Ultimately, the motor should be selected according to the actual mechanical requirements of the food waste disposer, rather than choosing a standard motor based only on voltage or power. Matching the motor's torque, speed, gearbox ratio, duty cycle, environmental protection, and control method to the disposer mechanism is the key to achieving reliable long-term performance.
As a professional brushless dc motor manufacturer with 13 years in china, Jkongmotor offer various bldc motors with customized requirements, including 33 42 57 60 80 86 110 130mm, additionally, gearboxes, brakes, encoders, brushless motor drivers and integrated drivers are optional.
Wires
Cover
Fan
Shaft
Integrated Driver
Brake
Gearbox
Out Rotor
Coreless Dc
Driver
Why DC Motors Are Widely Used in Food Waste Disposers
A DC motor is often attractive for food waste disposal equipment because its operating characteristics match the requirements of compact, variable-load machines.
1. High Starting Torque
Food waste may already be inside the grinding chamber when the disposer starts. This creates an initial mechanical resistance.
A suitable DC motor can provide strong starting torque, allowing the mechanism to accelerate reliably even under relatively heavy loads.
This is one of the main reasons OEM manufacturers choose DC motors for applications where high starting torque is more important than simply achieving high no-load speed.
2. Easy Speed Control
DC motors can be controlled relatively easily by adjusting the supply voltage or using a suitable motor controller.
This gives equipment manufacturers greater flexibility when designing different disposer models. For example, a lower-speed operating mode may be desirable for certain waste-processing mechanisms, while higher speed may improve throughput in another design.
3. Compact Construction
Space is often limited inside kitchen appliances and commercial food waste systems.
A compact DC motor can provide useful output power without requiring a large motor housing. When additional torque is needed, a DC gear motor can further increase output torque while reducing the required operating speed.
4. Cost-Effective System Design
For high-volume appliances, motor cost has a direct effect on the overall bill of materials.
A properly selected DC motor can offer an effective combination of performance, reliability, and manufacturing cost, particularly when the motor is customized for the exact disposer mechanism.
When selecting a motor for a food waste disposer, choosing between a standard DC motor and a geared DC motor can have a direct impact on grinding performance, startup reliability, noise, energy consumption, and service life.
The key difference is simple: a standard DC motor delivers its rotation directly, while a geared DC motor uses a gearbox to reduce speed and increase output torque. Neither option is universally better. The right choice depends on the disposer mechanism, required RPM, load characteristics, installation space, and operating cycle.

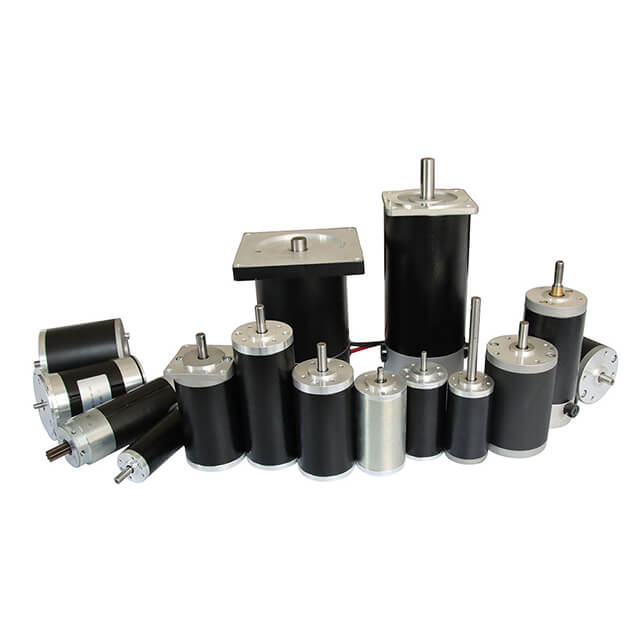

Standard DC Motor for Food Waste Disposers
A standard brushed DC motor is a practical option when the disposer mechanism requires relatively high rotational speed and does not need significant torque multiplication.
The motor can drive the grinding or agitation mechanism directly, resulting in a relatively simple mechanical structure.
Key advantages include:
Simple mechanical construction
Good starting torque
Easy speed control
Compact motor design
Competitive cost
Fewer mechanical transmission components
Straightforward integration with DC power supplies
A direct-drive configuration can also reduce potential gearbox losses and eliminate gearbox-related maintenance.
However, a standard DC motor may not be the best solution when the disposer requires very high output torque at relatively low speed.
Geared DC Motor for Food Waste Disposers
A geared DC motor combines a DC motor with a gearbox. The gearbox reduces the motor's rotational speed while increasing the torque available at the output shaft.
This configuration is particularly useful for food waste disposers that encounter substantial mechanical resistance during grinding or agitation.
For example, a motor may naturally operate at several thousand RPM, while the disposer mechanism may require a much lower output speed. Rather than forcing the motor to operate inefficiently at a low speed, a gearbox can convert the motor's high-speed rotation into a lower-speed, higher-torque output.
This makes geared DC motors attractive for applications involving:
Heavy food waste
High starting resistance
Low-speed agitation
High mechanical torque
Frequent load fluctuations
Compact high-torque mechanisms
DC Motor vs. Geared DC Motor: Key Differences
Factor
Standard DC Motor
Geared DC Motor
Output speed
Higher
Lower
Output torque
Moderate
Higher
Mechanical structure
Simpler
More complex
Torque multiplication
No
Yes
Installation
Usually easier
Requires gearbox space
Noise
Generally lower
Gearbox may add noise
Maintenance
Simpler
Depends on gearbox design
Cost
Usually lower
Usually higher
Heavy-load capability
Application dependent
Excellent for high-torque loads
Low-speed operation
Less suitable
Well suited
Food waste grinding
Suitable for lighter loads
Suitable for demanding loads
Customization
High
Very high
Which Motor Provides Better Starting Performance?
Starting performance is particularly important for food waste disposers because the grinding mechanism may already contain food waste when the motor starts.
A standard DC motor can provide good starting torque, but a geared DC motor can provide substantially higher output torque through its reduction ratio.
For example, if the motor itself produces high rotational speed but moderate torque, a suitable gearbox can transform that mechanical output into slower rotation with significantly greater torque at the disposer shaft.
This can help the disposer start more reliably under heavy loading.
However, gearbox efficiency must also be considered. The actual output torque depends on the motor torque, gear ratio, and transmission efficiency.
When Should We Choose a Standard DC Motor?
A standard DC motor is generally worth considering when:
The disposer requires relatively high RPM.
The mechanical load is moderate.
Direct drive is mechanically practical.
Compact construction is important.
Low system cost is a priority.
The required output torque is available directly from the motor.
The disposer operates primarily under intermittent duty.
A direct-drive system can be especially attractive when the motor's natural operating point closely matches the requirements of the rotating mechanism.
When Should We Choose a Geared DC Motor?
A geared DC motor is generally more appropriate when:
High output torque is required.
The disposer operates at relatively low RPM.
Starting resistance is high.
Food waste creates significant load fluctuations.
The mechanism requires controlled agitation.
The motor must remain compact while delivering substantial output torque.
The application requires frequent operation under demanding loads.
For commercial food waste equipment, the geared configuration can be particularly useful because the motor may need to handle substantially more mechanical resistance than a typical household disposer.
How Does Gear Ratio Affect Disposer Performance?
Gear ratio is one of the most important specifications when selecting a geared DC motor.
A higher reduction ratio generally provides:
Lower output speed + Higher output torque
A lower reduction ratio generally provides:
Higher output speed + Lower torque multiplication
For example, if the DC motor operates at high RPM but the disposer requires a slower grinding mechanism, a reduction gearbox can provide the required output speed while increasing available shaft torque.
However, selecting the highest possible gear ratio is not automatically the best solution. Excessive reduction can make the output unnecessarily slow and may reduce overall system efficiency.
The gearbox should therefore be selected according to the required output RPM and torque, not simply according to the maximum available torque.
What About Noise?
Noise is another consideration.
A standard DC motor can provide relatively quiet operation when properly balanced and mounted. A geared DC motor introduces additional mechanical components, and gear meshing can generate additional acoustic noise and vibration.
If the disposer is intended for:
Residential kitchens
Hotels
Restaurants
Office cafeterias
Healthcare facilities
then gearbox selection becomes particularly important.
Helical, planetary, spur, or other gearbox configurations can provide different combinations of torque density, efficiency, size, and noise characteristics.
Efficiency and Energy Consumption
A direct-drive DC motor has fewer mechanical transmission components, which can simplify the power path.
A geared DC motor introduces transmission losses, so gearbox efficiency needs to be included when calculating the overall system efficiency.
However, this does not mean a direct-drive motor is always more energy efficient in the real application.
If a disposer requires high torque at low speed, using a geared motor can allow the motor to operate closer to a more efficient operating region while the gearbox provides the required mechanical conversion.
Therefore, system-level efficiency is more important than motor-only efficiency.
What About Motor Lifetime?
For a standard brushed DC motor, brush and commutator wear are important lifetime considerations.
For a geared DC motor, the lifetime depends on both the motor and gearbox. Gear teeth, bearings, lubrication, seals, and output shaft loading can all affect durability.
For demanding food waste applications, we recommend evaluating:
Continuous operating temperature
Maximum output torque
Peak torque
Gearbox rated torque
Gearbox efficiency
Bearing load
Shaft radial load
Shaft axial load
Duty cycle
Required operating hours
A motor that meets the torque specification but exceeds its gearbox's allowable mechanical load may still experience premature failure.
How Environmental Conditions Affect the Choice
Food waste disposers commonly operate in environments containing moisture, water splashes, grease, food particles, and temperature fluctuations.
The motor and gearbox therefore need appropriate protection.
For a geared DC motor, we should evaluate not only the motor housing but also:
Gearbox sealing
Output shaft sealing
Bearings
Cable connections
Mounting interface
Corrosion resistance
The complete motor assembly should be validated under realistic operating conditions.
A Practical Selection Method
For OEM food waste disposer development, the selection process can be simplified into five steps:
Step 1: Determine the required output speed.
Identify the RPM required by the grinding or agitation mechanism.
Step 2: Determine continuous and peak torque.
Measure or calculate the torque required during normal operation and difficult load conditions.
Step 3: Evaluate startup conditions.
Determine the torque required to start the mechanism when food waste is already present.
Step 4: Select the motor architecture.
Choose direct-drive DC when the motor naturally matches the required speed and torque. Choose a geared DC motor when torque multiplication or speed reduction is required.
Step 5: Validate the complete system.
Test startup, maximum load, stall conditions, temperature rise, vibration, noise, and long-duration operation.
Which One Is Better for Food Waste Disposers?
There is no single answer for every disposer.
A standard DC motor is often the better choice for compact, cost-sensitive applications where the required speed and torque can be achieved directly.
A geared DC motor is generally the stronger option when the disposer requires high torque, lower output speed, strong startup performance, and stable operation under variable loads.
For OEM manufacturers, the most important principle is to match the motor to the actual mechanical requirements of the disposer. Instead of asking whether a DC motor or geared DC motor is inherently better, we should first determine the required output RPM, continuous torque, peak torque, startup torque, duty cycle, environmental conditions, and available installation space.
Once these parameters are established, the appropriate motor and gearbox combination can be selected with much greater confidence.
For demanding food waste disposal equipment, a customized geared DC motor can provide an especially effective combination of compact size, high torque, controllable speed, and reliable operation. For simpler mechanisms, a direct-drive DC motor may provide a more economical and mechanically straightforward solution.
Key Motor Requirements for Food Waste Disposers
When selecting an agitation DC motor, we recommend evaluating the complete operating environment rather than focusing on rated power alone.
1. Rated Torque and Starting Torque
Torque is one of the first specifications we should examine.
The motor must have sufficient torque to start the disposer and maintain rotation when food waste creates additional resistance.
We should distinguish between:
Rated torque: torque available during normal operating conditions
Starting torque: torque available when the motor begins rotating
Peak torque: short-duration torque available during temporary overloads
A motor with adequate rated power but insufficient starting torque may still perform poorly in an actual disposer.
2. Operating Speed
The required motor speed depends on the mechanical design of the disposer.
High-speed motors may be appropriate for certain grinding mechanisms, while slower output speeds may be preferable for agitation or high-torque mechanisms.
If the required output speed is relatively low, a gearbox can help achieve the desired combination of speed and torque.
3. Voltage
Common low-voltage DC systems may use 12V DC, 24V DC, or 48V DC, depending on the equipment architecture.
For OEM applications, the motor voltage should match the available power supply and controller.
24V DC is particularly practical for many compact industrial and appliance systems because it offers a useful balance between current requirements, safety considerations, and component availability.
4. Duty Cycle
Not every food waste disposer operates in the same way.
A household disposer may operate for relatively short periods, while a commercial or industrial system may run repeatedly throughout the day.
We should determine whether the motor needs to support:
Intermittent operation
Frequent start-stop cycles
Long-duration operation
Continuous-duty operation
A motor designed for short intermittent operation should not automatically be used in a continuous-duty application.
Environmental Protection Is Critical
Food waste disposers naturally operate around water, food particles, grease, condensation, and potentially corrosive substances.
The motor therefore needs appropriate environmental protection.
Depending on the equipment structure, OEM buyers may consider a motor with a suitable IP protection rating, sealed bearings, protected electrical connections, and corrosion-resistant materials.
However, the motor's IP rating should not be evaluated independently. The complete assembly—including connectors, cables, gearbox, shaft seals, and mounting interface—must provide the required environmental protection.
For demanding applications, we should also consider:
Moisture exposure
Splashing water
Condensation
Food particles
Grease contamination
Temperature fluctuations
Vibration
Mechanical shock
Thermal Performance and Overload Protection
Food waste is unpredictable. A disposer may encounter soft food waste during one cycle and much harder or more compact material during another.
This creates variable motor loading.
If the motor operates near its maximum load for extended periods, internal temperature can rise significantly. Excessive heat can shorten winding insulation life, degrade bearings, and reduce overall motor reliability.
A suitable motor should therefore have sufficient thermal capacity for the actual operating cycle.
Depending on the system design, additional protection may include:
Thermal protection
Current limiting
Overload detection
Electronic protection
Automatic shutdown
Controller-based stall protection
The motor and controller should be considered as one system rather than separate components.
How to Handle Jamming and Sudden Load Changes
Jamming and sudden load changes are two of the most important operating challenges in food waste disposers. Unlike applications with predictable loads, a disposer can suddenly encounter dense food waste, fibrous materials, hard particles, or foreign objects that significantly increase resistance against the rotating mechanism.
For OEM manufacturers, the motor system needs to do more than provide sufficient rated torque. It should also be able to detect abnormal loads, limit excessive current, manage temporary overloads, and recover safely from a jam.
A well-designed combination of DC motor, gearbox, controller, and protection system can greatly improve disposer reliability and prevent a temporary blockage from becoming a motor or mechanical failure.
Why Do Food Waste Disposers Experience Sudden Load Changes?
The mechanical load inside a food waste disposer is rarely constant.
During normal operation, the motor may experience relatively low resistance. However, the load can increase suddenly when the grinding or agitation mechanism encounters:
Large food particles
Fibrous food waste
Dense or compacted waste
Hard materials
Foreign objects
Excessive quantities of food waste
Material trapped between rotating and stationary components
These conditions can cause a rapid increase in motor torque demand.
If the motor cannot provide the required torque, its speed may drop sharply. If the rotating mechanism stops completely, the system enters a stall or jam condition.
What Happens to a DC Motor During a Jam?
A jammed DC motor behaves very differently from a normally operating motor.
When the rotor is rotating, the motor generates back EMF, which naturally limits current. When the rotor stops, back EMF falls dramatically. As a result, the motor can draw a much higher current from the power supply.
This creates a potentially dangerous chain reaction:
Mechanical jam → Motor speed decreases → Back EMF decreases → Current rises → Heat generation increases → Motor temperature rises
If the motor remains energized in this condition for too long, excessive heat can damage the winding insulation, brushes, commutator, bearings, or other components.
For this reason, stall protection is an essential part of the motor-control system.
1. Use Current Detection to Identify Abnormal Loads
One of the simplest ways to detect a potential jam is to monitor motor current.
As mechanical resistance increases, the motor generally requires more torque, which causes current to increase.
The controller can establish a current threshold. When the measured current exceeds that threshold for a defined period, the controller can interpret the condition as an overload or potential jam.
A basic protection strategy can be:
Normal current → Continue operation
High current for a short duration → Continue and monitor
Excessive current for a defined period → Reduce output or stop motor
This approach allows the system to tolerate short-duration load peaks without unnecessarily shutting down the disposer.
2. Avoid Setting the Current Limit Too Low
An overly aggressive current limit can create another problem: nuisance shutdowns.
Food waste naturally produces temporary changes in resistance. If the controller reacts to every short current spike, the disposer may stop even when there is no actual jam.
The protection algorithm should therefore consider both current magnitude and duration.
For example, a brief current peak may be acceptable, while sustained high current may indicate that the mechanism is genuinely blocked.
The ideal protection parameters should be established through testing under realistic food waste conditions.
3. Use Thermal Protection
Current protection is fast, but thermal protection provides another layer of safety.
If abnormal loading continues, the motor temperature can rise significantly. A thermal sensor or temperature monitoring system can detect excessive temperature and initiate a controlled shutdown.
Depending on the motor architecture, protection may involve:
Thermal switches
Thermistors
Temperature sensors
Controller-based temperature monitoring
Current-based thermal estimation
For high-duty commercial equipment, combining electrical overload protection with thermal monitoring can provide a more robust protection strategy.
4. Consider Automatic Reverse Rotation
For some food waste disposer designs, automatic reverse rotation can help release material that has become trapped in the grinding mechanism.
The reverse function can reduce mechanical resistance and potentially clear a temporary obstruction without requiring manual intervention.
However, reverse rotation should only be used when the mechanical system is designed to tolerate it. The grinding mechanism, gearbox, shaft, coupling, and bearings must all be capable of handling the reversed torque.
5. Use a Geared DC Motor With Appropriate Torque Capacity
A geared DC motor can be particularly useful when sudden load changes are common.
The gearbox increases output torque and allows the motor to operate at a suitable internal speed while providing controlled lower-speed rotation at the disposer shaft.
However, the gearbox should not simply be oversized to compensate for every possible jam.
The motor and gearbox should be selected according to:
Continuous output torque
Peak output torque
Starting torque
Maximum permissible torque
Gearbox service factor
Output speed
Duty cycle
Radial and axial shaft loads
The gearbox must be able to withstand the expected mechanical loads without excessive wear.
6. Leave Sufficient Torque Reserve
A motor should not normally operate continuously at its absolute maximum torque rating.
If the normal operating torque is already close to the motor's maximum capability, even a modest increase in food waste resistance can cause a significant speed drop or stall.
Providing appropriate torque reserve gives the system greater ability to handle short-term load changes.
For example, if normal operation requires substantial torque and the system occasionally encounters harder waste, the motor should have enough peak capability to overcome these temporary conditions without immediately entering a stall.
The exact torque margin should be determined through actual application testing rather than using an arbitrary percentage.
7. Monitor Motor Speed as Well as Current
Current monitoring alone may not always provide enough information.
A more advanced control system can monitor both motor current and rotational speed.
A typical jam condition may look like:
Current increases + Speed decreases significantly = Potential jam
This combination provides more useful information than either parameter alone.
For applications requiring precise control, an encoder can provide real-time speed feedback. The controller can then distinguish between normal load fluctuations and genuine stall conditions.
8. Protect the Gearbox and Mechanical Transmission
Motor protection is only part of the solution.
A sudden mechanical jam can create a large torque spike throughout the entire drivetrain.
The gearbox, coupling, shaft, grinding plate, bearings, and mounting structure can all experience excessive mechanical stress.
Depending on the design, mechanical protection may include:
Torque-limiting couplings
Mechanical clutches
Shear elements
Flexible couplings
Appropriately sized gearbox components
Reinforced mounting structures
The goal is to ensure that a temporary jam does not cause disproportionate damage to another component.
9. Use Soft Start and Controlled Acceleration
Sudden acceleration can itself create a high mechanical load.
A suitable DC motor controller can gradually increase motor output rather than applying maximum voltage immediately.
Controlled acceleration can help reduce:
Startup current
Mechanical shock
Gearbox stress
Shaft vibration
Coupling impact
This is particularly useful for large or high-inertia grinding mechanisms.
However, the acceleration profile should not be so slow that the motor remains in a high-current operating region for an unnecessarily long time.
10. Design a Recovery Strategy After a Jam
Detecting a jam is only half of the problem. The system also needs a defined recovery procedure.
Depending on the application, the controller may:
Detect excessive current.
Reduce motor output.
Stop the motor.
Wait for a short interval.
Reverse the motor if mechanically permitted.
Stop again.
Attempt forward operation.
Shut down permanently if the obstruction remains.
For commercial equipment, the system can also generate an error signal so that the operator or supervisory controller knows that a persistent obstruction has occurred.
How Should OEM Manufacturers Test Jam Conditions?
Jam protection should be tested using realistic operating scenarios rather than relying solely on theoretical calculations.
A practical test program can include:
Normal food waste loading
High food waste loading
Sudden hard-material loading
Repeated start-stop cycles
Partial blockage
Full mechanical blockage
Repeated jam-and-recovery cycles
Maximum ambient temperature
Minimum operating voltage
Maximum operating voltage
During testing, we should monitor:
Motor current
Motor speed
Motor temperature
Gearbox temperature
Output torque
Recovery time
Controller response
Mechanical vibration
Component damage
The objective is to verify that the motor system can tolerate realistic abnormal conditions without creating unacceptable safety or reliability risks.
Recommended Protection Architecture
For a demanding food waste disposer, a robust system can combine several protection layers:
Mechanical layer:
Gearbox, coupling, shaft, and grinding mechanism designed for expected torque loads.
Electrical layer:
Current limiting, overcurrent protection, and appropriate power-supply protection.
Thermal layer:
Motor temperature monitoring or thermal protection.
Control layer:
Speed/current monitoring, stall detection, controlled shutdown, and optional reverse operation.
System layer:
Error reporting and a defined recovery procedure.
Using multiple protection mechanisms provides greater reliability than depending on a single overload function.
Final Recommendations
Jamming and sudden load changes should be treated as normal design conditions for a food waste disposer rather than unusual failures.
The most reliable approach is to select the DC motor or geared DC motor according to the real torque and speed requirements, provide adequate torque reserve, and combine the motor with appropriate current, thermal, and stall protection.
For OEM applications, the ideal solution is usually not the motor with the highest possible power. Instead, it is the motor system that provides the right balance between starting torque, continuous torque, peak-load capability, thermal performance, gearbox strength, protection response, and cost.
By testing the complete motor-disposer system under realistic jam and overload conditions, manufacturers can identify the correct protection thresholds and ensure that temporary load changes do not turn into motor overheating, gearbox damage, or unexpected equipment downtime.
Noise and Vibration Considerations
Noise is another important purchasing factor, especially for residential kitchens, hotels, restaurants, and commercial environments where equipment may operate near people.
Motor noise is influenced by several factors, including:
Motor construction
Bearing quality
Rotor balance
Commutation
Gearbox design
Output speed
Mounting structure
Mechanical imbalance
Vibration transmission
If a geared DC motor is selected, gearbox noise should also be evaluated.
A low-noise motor does not automatically produce a quiet disposer if the grinding mechanism itself generates significant vibration. Therefore, the motor, gearbox, rotating assembly, and mounting structure should be evaluated as a complete system.
Brushed DC Motor vs. BLDC Motor
OEM buyers may also need to decide between a traditional brushed DC motor and a brushless DC motor (BLDC motor).
Brushed DC Motor
Advantages include:
Simple control
Competitive cost
High starting torque
Straightforward electrical architecture
Easy speed control
The main limitation is brush and commutator wear. If the disposer operates frequently or requires a particularly long service life, brush wear may become an important consideration.
BLDC Motor
Advantages include:
Longer operating life
No mechanical brushes
High efficiency
Lower maintenance
Good speed controllability
Suitable for frequent operating cycles
The main consideration is that BLDC motors require electronic commutation and therefore normally involve a more sophisticated controller.
For high-duty commercial equipment, BLDC technology may provide significant long-term benefits. For cost-sensitive appliances with moderate operating cycles, a brushed DC motor can remain an effective solution.
Off-the-shelf motors are convenient, but they may not match the exact mechanical and electrical requirements of a food waste disposer.
OEM customization can address specific requirements such as:
Custom output shaft
Special mounting dimensions
Customized cable length
Connector selection
Gearbox ratio
Encoder integration
Brake options
IP protection
Voltage
Rated speed
Rated torque
Thermal protection
Motor controller integration
A customized motor can also eliminate unnecessary performance specifications, helping manufacturers avoid paying for features that their application does not need.
For mass-production equipment, this can improve both system performance and total manufacturing cost.
How to Choose the Right Agitation DC Motor: A Practical Checklist
Before contacting a motor manufacturer, we recommend preparing the following information:
Parameter
What to Specify
Motor type
Brushed DC / BLDC / Geared DC
Rated voltage
12V / 24V / 48V or other
Rated power
Required continuous output
Rated speed
Output RPM
Rated torque
Continuous torque
Peak torque
Temporary overload requirement
Duty cycle
Intermittent or continuous
Load type
Grinding / agitation / pumping
Operating environment
Wet, dusty, greasy, etc.
IP requirement
Required protection level
Mounting
Flange and hole dimensions
Shaft
Diameter, length, keyway, custom profile
Control
PWM, voltage, controller, communication
Protection
Thermal, current, stall protection
Noise
Maximum acceptable noise level
Lifetime
Required operating cycles or hours
Providing these parameters allows a motor manufacturer to recommend a more accurate solution instead of simply matching the motor based on wattage.
Common Mistakes When Selecting a Food Waste Disposer Motor
Choosing Only by Power
A 100W motor is not necessarily better than a 60W motor. The correct choice depends on torque, speed, duty cycle, and mechanical efficiency.
Ignoring Starting Conditions
A disposer may have a much higher load during startup than during steady-state operation.
Underestimating Moisture Exposure
A motor that performs well in a dry laboratory environment may not be suitable for a wet food waste application.
Selecting an Oversized Motor
An unnecessarily large motor increases cost, weight, installation space, and potentially energy consumption.
Ignoring the Gearbox
The correct gearbox ratio can dramatically change the usable output torque and speed of the motor.
The right agitation DC motor for a food waste disposer should be selected according to the actual mechanical load, required torque, operating speed, duty cycle, environmental conditions, and expected service life.
For compact and cost-sensitive equipment, a brushed DC motor can provide an excellent combination of starting torque, simple control, and affordability. For demanding commercial applications with frequent operation and longer service-life requirements, a BLDC motor may be a better choice. When high torque at controlled speed is required, a geared DC motor is often the most practical solution.
For OEM manufacturers, the most reliable approach is to work backward from the disposer mechanism: determine the required output torque and speed first, define the operating environment and duty cycle, and then select the motor, gearbox, controller, and protection system as an integrated solution.
A well-matched custom DC motor for food waste disposers can improve starting reliability, reduce overheating and jamming problems, control operating noise, extend service life, and ultimately provide a more dependable finished product.
For OEM and ODM projects, supplying the motor manufacturer with detailed mechanical and electrical requirements at the beginning of development is one of the most effective ways to achieve a reliable, production-ready motor solution.
FAQs About DC Motors for Food Waste Disposers
1. What type of motor is best for a food waste disposer?
A DC motor or geared DC motor can be suitable for food waste disposers. The best choice depends on the required output speed, torque, starting performance, duty cycle, and operating environment.
2. Why is starting torque important for a food waste disposer motor?
Starting torque is important because food waste may already be inside the grinding chamber when the motor starts. Sufficient starting torque helps the motor accelerate reliably without stalling or excessive current draw.
3. When should we use a geared DC motor for a food waste disposer?
A geared DC motor is recommended when the disposer requires high output torque at relatively low speed. The gearbox reduces motor speed while increasing output torque, making it suitable for demanding grinding and agitation applications.
4. How does a DC motor handle sudden load changes?
A properly selected DC motor can handle temporary load changes through adequate torque reserve. A suitable controller can also monitor current and speed to detect overloads and prevent prolonged high-current operation.
5. What happens when a food waste disposer motor becomes jammed?
During a jam, motor speed can fall sharply while current increases. If the motor remains energized, excessive heat may develop. Current limiting, stall detection, thermal protection, or controlled shutdown can help protect the motor.
6. Can a food waste disposer motor automatically reverse after a jam?
Yes, some disposer systems can use automatic reverse rotation to help release trapped material. The motor, gearbox, shaft, and grinding mechanism must be designed to safely support reverse operation.
7. Is a BLDC motor better than a brushed DC motor for food waste disposers?
A BLDC motor can offer longer service life, higher efficiency, and lower maintenance because it has no mechanical brushes. A brushed DC motor may be preferable when simple control and lower cost are more important.
8. What motor voltage is suitable for a food waste disposer?
Common low-voltage DC motor systems include 12V, 24V, and 48V DC. The appropriate voltage depends on the disposer architecture, power requirements, controller, and available power supply.
9. Does a food waste disposer motor need moisture protection?
Yes. Food waste disposers can operate around water, moisture, grease, and food particles. The motor and complete drive assembly should have appropriate environmental protection for the actual application.
10. How do we choose the right DC motor for a food waste disposer?
Start with the required output speed, continuous torque, peak torque, starting torque, duty cycle, operating environment, shaft dimensions, and control method. Then select the motor and, if necessary, gearbox and protection system based on these requirements.
