A brushed DC motor is an electric motor that runs on direct current (DC) electricity and uses mechanical brushes to transfer current to the rotating armature. These motors are among the oldest and most commonly used electric motors due to their simple design, low cost, and ease of cont
Brushed DC motors have been a cornerstone of motion control technology for more than a century. Despite the rise of brushless and servo alternatives, the brushed DC motor continues to be widely used in industrial automation, automotive systems, robotics, and small household devices due to its simplicity, cost-effectiveness, and precise control capabilities.
A brushed DC motor converts electrical energy into mechanical energy through electromagnetic induction. It operates on the fundamental principle that when a current-carrying conductor is placed within a magnetic field, it experiences a mechanical force. This force is harnessed to produce rotational motion.
The term “brushed” refers to the carbon brushes used to deliver electric current to the rotating part (the armature) through a mechanical contact system.

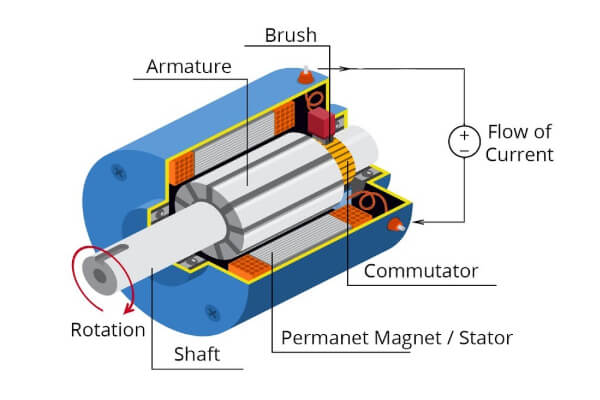

To understand how a brushed DC motor works, it’s essential to examine its key components:
The stator is the stationary part of the motor that generates the magnetic field. It can be made of either permanent magnets or electromagnetic windings, depending on the motor design. This magnetic field interacts with the armature to produce motion.
The armature, also known as the rotor, is the rotating part that carries the current-carrying coils. It is typically made of laminated steel sheets to minimize eddy current losses and improve magnetic efficiency.
The commutator is a mechanical rotary switch that periodically reverses the direction of current in the armature windings. This reversal ensures that the torque produced by the motor remains in a constant direction, maintaining continuous rotation.
Carbon brushes are spring-loaded components that maintain electrical contact between the power supply and the commutator. They transfer current to the armature windings through physical contact. Although they wear out over time, they are crucial for the functioning of the motor.
The motor shaft is connected to the armature and transmits the rotational motion to the load. It is supported by bearings to ensure smooth rotation.
The working of a brushed DC motor is based on Fleming’s Left-Hand Rule, which states that when a current-carrying conductor is placed in a magnetic field, it experiences a force perpendicular to both the current direction and the magnetic field.
Here’s a step-by-step explanation:
This continuous switching of current through the commutator and brushes ensures smooth and consistent motor operation.
Brushed DC motors have stood the test of time as one of the most reliable and widely used types of electric motors. Despite advances in brushless and stepper motor technology, the brushed DC motor continues to hold a strong position in the automation, automotive, and consumer electronics industries. Its simplicity, low cost, and ease of control make it an ideal choice for many applications where efficiency, responsiveness, and torque performance are key.
One of the greatest advantages of brushed DC motors is their mechanical simplicity. They consist of only a few key components — a stator, rotor (armature), commutator, and brushes — all of which are straightforward to manufacture, assemble, and maintain.
Because of this, brushed DC motors are commonly found in basic automation systems, power tools, and hobby electronics, where simplicity and cost efficiency are critical.
Compared to brushless DC (BLDC) or servo motors, brushed DC motors are significantly less expensive to produce. Their simple design and the absence of sophisticated control electronics allow for affordable manufacturing and replacement costs.
In short, when cost efficiency is a top priority, brushed DC motors deliver exceptional value without compromising basic performance.
Brushed DC motors are renowned for their excellent starting torque characteristics. The torque produced at startup is directly proportional to the armature current, which means that even at zero speed, they can generate substantial torque output.
This feature makes them particularly suitable for applications requiring instant acceleration or heavy load starting, such as:
In contrast, many AC or brushless motors require complex controllers or gear reductions to achieve similar torque levels.
Another major advantage of brushed DC motors is the ease of speed control. The motor speed can be precisely adjusted by simply varying the supply voltage or modulating the armature current. No complex electronic drive systems are required.
Due to their direct connection between the power source and armature, brushed DC motors provide instant torque response. The linear relationship between input voltage and output speed allows for highly responsive control, especially in applications requiring quick acceleration and deceleration.
This immediate response characteristic is why brushed DC motors are often preferred in servo mechanisms, robotics, and control systems where feedback and real-time adjustments are crucial.
Unlike many AC or brushless motors that lose efficiency or stability at low speeds, brushed DC motors maintain consistent torque even at low rotational speeds. This makes them ideal for applications requiring steady operation under heavy loads or precise low-speed movement.
Their ability to deliver strong torque at both low and high speeds provides unmatched versatility across a broad range of uses.
Reversing the direction of rotation in a brushed DC motor is as simple as reversing the polarity of the input voltage. No complex wiring or electronic inversion is necessary.
This bidirectional capability makes them well-suited for applications that require frequent changes in motion direction, such as:
The simplicity of directional control adds to the brushed DC motor’s flexibility and ease of integration into diverse motion control setups.
Brushed DC motors have been in industrial use for over a century. Their long history of reliability and proven performance gives engineers and designers confidence in their operation. Because their behavior under different electrical and mechanical conditions is well-understood, they can be easily modeled, tested, and optimized for specific applications.
Additionally, their mechanical commutation system provides built-in current switching, eliminating the need for complicated external electronics — a key factor in their robust and fail-safe design.
Unlike brushless DC or servo motors that require complex electronic controllers and feedback sensors, a brushed DC motor can operate directly from a simple DC power supply or battery. This makes them ideal for:
This simplicity in control not only reduces cost but also minimizes electronic interference and control lag, leading to more stable performance.
Although brushes and commutators wear out over time, they are inexpensive and easy to replace. Regular maintenance such as brush replacement and commutator cleaning can significantly extend the motor’s operational life. In fact, with proper care, brushed DC motors can operate efficiently for thousands of hours.
This makes them a preferred choice in remote or cost-sensitive environments where maintenance simplicity is essential.
Brushed DC motors can deliver a high power-to-weight ratio due to their efficient electromagnetic design. Their compact structure makes them suitable for portable devices and applications with limited space.
This combination of compactness and power capability offers excellent design flexibility for engineers.
Because the commutator continuously adjusts the current direction in synchronization with rotor position, brushed DC motors produce steady torque output without sudden jerks or vibrations. This results in smooth operation, which is vital in applications requiring stable and predictable motion, such as in medical devices, printing machinery, and conveyor drives.
The advantages of brushed DC motors make them an enduring and highly practical choice in countless applications. Their simple design, low cost, excellent torque performance, and ease of control continue to make them indispensable across various industries.
While modern alternatives like brushless DC motors offer improved efficiency and reduced maintenance, the brushed DC motor’s unmatched simplicity, responsiveness, and reliability ensure it remains a trusted solution wherever dependable, cost-effective motion control is required.
Brushed DC motors are among the most widely used electric motors in the world due to their simple design, high torque output, cost efficiency, and ease of control. From automotive systems to industrial machinery and household appliances, these motors power countless mechanical and electronic devices that we rely on daily.
Their ability to provide instant torque, smooth speed control, and reversible motion makes them an ideal choice for a wide variety of applications across industries.
One of the most extensive uses of brushed DC motors is in the automotive industry. Their reliability, compact design, and ease of control make them perfect for both low-power and high-torque vehicle systems.
Their rugged construction and low cost ensure dependable performance even in harsh automotive environments.
In industrial automation and machinery, brushed DC motors play a crucial role in linear motion systems, conveyors, and actuators where precision and torque control are essential.
Brushed DC motors offer excellent low-speed torque performance, making them suitable for industrial operations that require steady and reliable motion.
In robotics and automated control systems, brushed DC motors are used to provide precise movement, speed control, and bidirectional rotation.
Their immediate torque response and simple control interface make them highly suitable for embedded systems and low-cost automation designs.
Brushed DC motors are integral components in many everyday household devices due to their compact size, low voltage operation, and quiet performance.
These applications benefit from the simple voltage-based speed control of brushed DC motors, allowing manufacturers to produce efficient yet affordable consumer products.
Precision and reliability are crucial in medical and laboratory devices, and brushed DC motors provide both. Their smooth torque characteristics and compact design make them suitable for delicate and controlled movements.
Their reliability, smooth performance, and affordability make them a practical choice in healthcare equipment design.
In aerospace and defense, reliability, weight, and performance consistency are critical. Brushed DC motors are used in small actuators and motion control systems where simplicity and robustness are vital.
Their ability to operate reliably under varying voltage conditions and harsh environments makes them indispensable in mission-critical systems.
Brushed DC motors are the workhorse of battery-powered and handheld tools, offering high torque and rapid response under variable load conditions.
Their high torque-to-weight ratio and low-voltage operation make them ideal for portable, rechargeable tools used in industrial, construction, and home improvement settings.
Brushed DC motors are also common in marine and recreational equipment, where reliability, compactness, and reversibility are essential.
Their ability to run efficiently on DC battery systems makes them ideal for mobile and outdoor applications.
Due to their ease of operation and affordability, brushed DC motors are frequently used in STEM education, hobby robotics, and DIY electronics.
These motors allow learners and engineers to understand the fundamentals of electromechanical energy conversion, speed control, and torque production.
In smaller-scale renewable energy applications, brushed DC motors can also be used as generators when operated in reverse.
Their dual ability to act as both motor and generator increases their versatility in off-grid and experimental energy systems.
The applications of brushed DC motors span a vast range of industries — from automotive and industrial machinery to robotics, medical devices, and consumer products. Their enduring popularity lies in their simplicity, affordability, excellent torque characteristics, and ease of control.
While more advanced brushless motors offer higher efficiency and longer lifespans, brushed DC motors remain unmatched in their ability to deliver cost-effective and dependable performance in both simple and demanding environments.
They continue to power the modern world quietly and effectively — a testament to their proven design and engineering versatility.
The brushed DC motor continues to be a vital component in modern electromechanical systems. Its simple design, controllable speed, and robust performance make it a preferred option in numerous applications. While newer technologies like brushless DC motors offer longer lifespans and reduced maintenance, the brushed DC motor’s ease of use, affordability, and torque performance ensure its continued relevance.
By understanding how brushed DC motors work, engineers and hobbyists can better select and maintain the right motor for their specific needs.
