How to Choose IP67 Waterproof Integrated Servo Motors for Agricultural and Outdoor AGVs AMRs?

Agricultural and outdoor autonomous mobile robots (AMRs) and automated guided vehicles (AGVs) are increasingly used in farming, greenhouse operations, outdoor material handling, logistics yards, and industrial transportation. Unlike robots operating inside clean, temperature-controlled factories, these machines must work in environments where rain, mud, dust, water splashes, fertilizer residue, vibration, and temperature fluctuations are part of everyday operation.

For manufacturers developing these robots, choosing the right drive motor is essential to maintaining reliable movement, accurate positioning, and consistent performance throughout the machine's service life. An ordinary industrial servo motor may deliver excellent motion control in a factory, but it may not provide the environmental protection, compact installation, or integrated electronics required for outdoor applications.

This is where IP67 waterproof integrated servo motors become an important option. By combining the motor, drive electronics, feedback system, and other control components into a compact assembly, an integrated servo motor can simplify the mechanical and electrical design of agricultural and outdoor AGVs and AMRs.

However, an IP67 rating alone does not guarantee that a motor is suitable for every outdoor robot. Buyers must also evaluate torque, speed, control interfaces, thermal performance, cable sealing, corrosion resistance, braking requirements, and long-term operating conditions.

At JKONGMOTOR, we approach this selection process from a motion-control engineering perspective. Our goal is to help AGV and AMR manufacturers choose an integrated servo motor solution that meets their real operating requirements rather than simply selecting a motor based on its waterproof rating.

1. What Are Agricultural and Outdoor AGVs and AMRs?

Agricultural and outdoor AGVs and AMRs are mobile robotic systems designed to transport materials, equipment, agricultural products, or supplies in environments that extend beyond conventional indoor production facilities.

Although AGVs and AMRs are often discussed together, their navigation methods can differ. AGVs commonly follow predefined routes or guidance systems, while AMRs typically use onboard sensing and navigation to adapt their paths to changing surroundings. Both can benefit from reliable, precisely controlled electric drive systems.

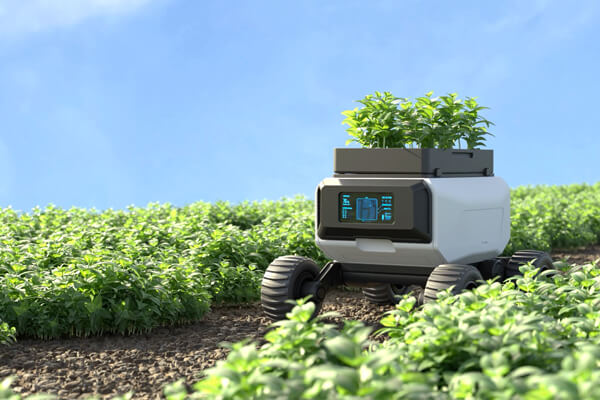

1.1 Agricultural AGVs and AMRs

Agricultural robots operate in environments such as greenhouses, orchards, livestock facilities, farms, and agricultural processing areas. Depending on the application, they may transport harvested crops, move planting materials, deliver feed, carry tools, or support autonomous field operations.

Their operating environments introduce several engineering challenges:

• Water exposure: Rain, irrigation systems, washing procedures, and wet vegetation can expose motors and electrical connections to moisture.

• Dust and soil contamination: Fine dust, loose soil, and plant debris can accumulate around wheels, housings, and cable connections.

• Chemical exposure: Fertilizers, cleaning agents, and agricultural chemicals may attack unsuitable housing materials, coatings, or seals.

• Uneven terrain: Soil, gravel, grass, slopes, and small obstacles create fluctuating wheel loads and changing traction conditions.

• Variable payloads: A robot transporting empty containers may require substantially less torque than the same machine carrying a full agricultural load.

• Long operating periods: Seasonal workloads and extended shifts make thermal stability and maintainability important considerations.

A drive motor for these applications must do more than rotate a wheel. It must provide predictable motion while tolerating the environmental and mechanical conditions encountered during normal operation.

1.2 Outdoor Industrial AGVs and AMRs

Outdoor mobile robots are also used in logistics yards, ports, construction sites, industrial campuses, distribution centers, and transportation facilities.

Typical applications include:

• Autonomous pallet and container transportation

• Outdoor warehouse-to-production logistics

• Yard tractors and unmanned material transporters

• Heavy-duty mobile platforms

• Autonomous inspection and maintenance robots

• Robotic delivery systems operating between buildings

Compared with indoor AGVs, outdoor platforms may encounter standing water, road debris, uneven surfaces, changing ambient temperatures, and greater variations in rolling resistance.

These conditions make environmental protection, starting torque, overload capability, feedback accuracy, and mechanical durability central considerations when selecting an integrated servo motor.

Jkongmotor Customized Servo Motor Motions

One-Stop Integrated DC Servo Motor Solution Provider

2. Types of Integrated Servo Motors for Agricultural and Outdoor AGVs and AMRs

Agricultural and outdoor AGVs (Automated Guided Vehicles) and AMRs (Autonomous Mobile Robots) operate in environments that place greater demands on drive systems than typical indoor automation applications. Rain, dust, mud, uneven terrain, temperature fluctuations, and continuous operation can all affect motor performance, reliability, and service life.

For manufacturers developing agricultural robots, greenhouse transport vehicles, orchard robots, and outdoor logistics platforms, selecting the right integrated servo motor is an important step in building a reliable motion-control system.

Integrated servo motors combine a motor with drive electronics and feedback components in a compact assembly. Depending on the model, they may also support communication interfaces, gearboxes, and electromagnetic brakes. This integration can simplify wiring, reduce installation space, and make it easier to develop compact mobile robot drive systems.

However, different integrated servo motor types serve different purposes. Some prioritize waterproof protection, others focus on high torque, compact wheel integration, precise positioning, or coordinated multi-axis control.

At JKONGMOTOR, we recommend evaluating motor architecture, environmental protection, torque requirements, operating speed, and controller compatibility together. The following guide explains the main types of integrated servo motors used in agricultural and outdoor AGVs and AMRs and how to choose the right configuration for each application.

2.1. IP67 Waterproof Integrated DC Servo Motors

IP67 waterproof integrated DC servo motors are designed for applications where dust and water exposure are major concerns. They combine a DC servo motor, drive electronics, and feedback components in a compact assembly, with an enclosure designed to meet the specified ingress protection requirements.

The IP67 rating indicates dust-tight protection and protection against temporary immersion under defined test conditions. It does not automatically guarantee suitability for continuous underwater operation, high-pressure washing, or exposure to aggressive agricultural chemicals.

Key Features

• Environmental protection: Suitable for applications requiring verified IP67 protection.

• Closed-loop motion control: Supports speed or position control, depending on the model.

• Compact installation: Integrates multiple drive components into one assembly.

• Battery-powered operation: Suitable for low-voltage mobile robots when the electrical specifications match.

• Simplified wiring: Can reduce the number of separate motor-to-drive and feedback connections.

Typical Applications

• Greenhouse transport AGVs

• Agricultural material-handling robots

• Outdoor inspection AMRs

• Autonomous crop transportation platforms

• Mobile robots operating in wet or dusty environments

When selecting an IP67 integrated DC servo motor, buyers should verify the protection rating of the complete installed assembly, including connectors, cable entries, seals, and any exposed interfaces. Continuous torque, operating temperature, and thermal performance must also match the application.

2.2. Integrated BLDC Servo Motors

Integrated brushless DC (BLDC) servo motors combine brushless motor technology with drive electronics and feedback control. Their brushless construction eliminates mechanical brush wear, making them attractive for mobile robots that operate frequently or require reduced routine maintenance.

Depending on the design, an integrated BLDC servo motor may support speed regulation, position control, and communication with the robot's main controller.

Key Features

• Brushless construction: Eliminates brush-related maintenance.

• Dynamic response: Suitable for applications involving frequent acceleration and deceleration.

• Compact architecture: Integrates motor and drive electronics.

• Flexible control options: Available interfaces and control modes depend on the selected model.

• Potential for reduced maintenance: Particularly beneficial in mobile robots operating for extended periods.

Typical Applications

• Agricultural transport robots

• Outdoor logistics AMRs

• Autonomous delivery robots

• Greenhouse mobile platforms

• Industrial yard transportation vehicles

For outdoor applications, environmental protection must be checked separately. A BLDC motor is not automatically waterproof or IP67-rated simply because it uses brushless technology.

Buyers should also evaluate continuous torque, peak torque, thermal limits, feedback accuracy, and the compatibility of the integrated drive with the robot controller.

2.3. Integrated Geared Servo Motors

Integrated geared servo motors combine servo motor technology with integrated drive electronics and a gearbox, either within one assembly or as a closely matched drive unit.

The gearbox reduces output speed and increases available output torque, making this configuration useful for robots that carry heavy payloads, climb slopes, or operate on surfaces with relatively high rolling resistance.

Common gearbox options include planetary and worm gearboxes, although the appropriate design depends on the application.

Key Features

• Higher output torque: Provides increased wheel torque through mechanical speed reduction.

• Flexible speed matching: Helps match motor speed to the required wheel speed.

• Compact drivetrain design: Can reduce the number of separately installed components.

• Application flexibility: Different reduction ratios support different load and speed requirements.

Typical Applications

• Heavy-duty agricultural AGVs

• Orchard transport robots

• Outdoor pallet transporters

• Autonomous material-handling vehicles

• Mobile platforms operating on slopes

When choosing an integrated geared servo motor, consider gearbox efficiency, backlash, output bearing loads, shock resistance, lubrication, and sealing.

A gearbox should not be selected based on reduction ratio alone. The output torque rating, allowable input speed, mechanical loading, and thermal limits must also meet the operating requirements.

2.4. Integrated Servo Hub Motors

Integrated servo hub motors place the drive motor within or around the wheel hub, reducing the need for a separate motor-to-wheel transmission.

This configuration is particularly useful for compact AGVs and AMRs where installation space is limited and a simplified wheel-drive arrangement is desirable.

Key Features

• Compact wheel-drive architecture: Integrates the motor with the wheel assembly.

• Reduced transmission complexity: May eliminate separate external transmission components.

• Space-efficient design: Helps free chassis space for batteries, sensors, and control equipment.

• Distributed drive capability: Can support coordinated wheel control when compatible electronics and communication interfaces are available.

Typical Applications

• Compact agricultural robots

• Greenhouse transport platforms

• Outdoor delivery AMRs

• Low-profile autonomous vehicles

• Mobile robots requiring integrated wheel modules

Hub motors require careful evaluation of wheel-load capacity, bearing durability, ground clearance, shock resistance, and heat dissipation. Their suitability for rough terrain depends on the specific mechanical design.

For wet outdoor environments, buyers should confirm the protection rating of the hub motor and all associated electrical connections rather than assuming that the complete wheel assembly is waterproof.

2.5. Planetary-Geared Integrated Servo Motors

Planetary-geared integrated servo motors are a specialized type of geared drive designed to provide high torque density in a relatively compact package.

A planetary gearbox distributes mechanical loads among multiple planet gears, allowing substantial speed reduction within a compact gearbox structure.

For agricultural and outdoor mobile robots, this arrangement can help achieve the balance between wheel torque, travel speed, and installation space.

Key Features

• High torque density: Suitable for compact drive systems requiring substantial output torque.

• Multiple reduction ratios: Supports different wheel-speed and load requirements.

• Positioning performance: Can provide precise motion when gearbox backlash and system compliance are appropriately controlled.

• Compact integration: Helps simplify the packaging of the motor and transmission.

Typical Applications

• Agricultural transport AGVs

• Compact outdoor AMRs

• Precision material-handling robots

• Autonomous mobile platforms with limited installation space

• Robots requiring controlled low-speed movement under load

When comparing planetary-geared integrated servo motors, evaluate rated output torque, peak output torque, backlash, efficiency, permitted radial and axial loads, and gearbox service life.

For applications requiring high positioning accuracy, remember that actual performance also depends on encoder feedback, wheel slip, mechanical compliance, and control-system tuning.

2.6. Integrated Servo Motors with Electromagnetic Brakes

Integrated servo motors with electromagnetic holding brakes are suitable for applications where a mechanical axis must remain stationary when the drive is disabled or power is removed, provided the brake is designed for that operating condition.

This option can be useful for outdoor AGVs carrying heavy loads or operating on slopes.

Key Features

• Holding capability: Helps prevent unwanted movement when correctly sized and applied.

• Compact integration: A brake may be incorporated into the motor assembly.

• Improved stationary load retention: Useful when a mobile platform must remain in position.

• Flexible system design: Can reduce the need for a separately installed holding mechanism.

Typical Applications

• Agricultural transport robots operating on slopes

• Outdoor material-handling AGVs

• Mobile platforms with lifting mechanisms

• Robots carrying loads that must remain stationary during stops

A holding brake is not automatically a service brake or a safety-rated stopping function. Buyers should verify brake torque, engagement and release behavior, permitted operating frequency, and the complete system's stopping requirements.

Where the application requires a safety function such as Safe Torque Off (STO), verify that the specific drive supports it and that the overall system meets the applicable safety requirements. Not all integrated servo motors provide STO.

2.7. Integrated Servo Motors with CANopen or EtherCAT

Communication compatibility is especially important for agricultural AGVs and outdoor AMRs with multiple drive wheels.

Integrated servo motors supporting CANopen or EtherCAT can communicate with compatible robot controllers and support coordinated motion across multiple drive axes.

The appropriate interface depends on the controller architecture, communication requirements, and supported motor functions.

Key Features

• Controller communication: Enables commands and feedback exchange with compatible control systems.

• Multi-axis coordination: Supports synchronized wheel motion when correctly configured.

• Distributed architecture: Can simplify control-system wiring in suitable designs.

• Diagnostics and monitoring: Provides access to supported status information and operating parameters.

Typical Applications

• Multi-wheel agricultural AMRs

• Autonomous outdoor transport vehicles

• Industrial yard robots

• Mobile platforms requiring coordinated wheel movement

• Automated material-handling systems

CANopen and EtherCAT serve different communication architectures and should not be treated as interchangeable. Before purchasing, confirm the supported protocol, device profile, control modes, controller compatibility, firmware requirements, and real-time performance needs.

For simpler applications, pulse-and-direction or RS485-based control may also be suitable, depending on the selected motor and controller.

2.8. Why Do AGV and AMR Manufacturers Choose Integrated Servo Motors?

Integrated servo motors offer several potential benefits for agricultural and outdoor mobile robot manufacturers.

Simplified wiring and installation: Combining the motor and drive electronics can reduce separate components and some of the wiring between them.

More efficient use of space: A compact drive assembly can free up chassis and electrical cabinet space for batteries, sensors, controllers, and payloads.

Closed-loop motion control: Feedback-based control helps regulate speed and position and supports coordinated movement when correctly implemented.

Flexible drive configurations: Depending on the product, manufacturers may select different gearboxes, communication interfaces, feedback options, or brakes.

Potentially lower system-level costs: Fewer separate components may reduce mounting hardware, installation labor, and commissioning effort. The actual savings depend on the complete system design.

These advantages do not eliminate the need for correct motor sizing, thermal management, environmental testing, and maintenance planning. The integrated design must still match the robot's operating requirements.

2.9. How JKONGMOTOR Supports Agricultural and Outdoor AGV/AMR Projects

At JKONGMOTOR, we focus on integrated motion-control solutions for OEMs, equipment manufacturers, and industrial automation projects.

For agricultural and outdoor mobile robots, we recommend starting with the application requirements and then identifying the appropriate motor architecture.

Our selection process considers five key areas:

1. Mechanical requirements: Total mass, payload, wheel diameter, gearbox ratio, slopes, acceleration, and available installation space.

2. Electrical requirements: Supply voltage, rated current, peak current, power consumption, and thermal limits.

3. Motion-control requirements: Speed regulation, positioning accuracy, encoder feedback, communication interfaces, and multi-axis synchronization.

4. Environmental requirements: Dust, rain, immersion exposure, temperature, vibration, corrosion, and cleaning procedures.

5. Project requirements: Customization, prototype testing, production quantity, lead time, and technical documentation.

Depending on the selected product platform, possible configurations may include integrated drive electronics, encoder feedback, communication interfaces, gearboxes, and braking options.

IP67 protection and optional functions must be confirmed for the specific model. Buyers should also verify the protection of the complete cable and connector assembly and establish acceptance criteria before mass production.

Our OEM/ODM approach supports technical evaluation, configuration selection, prototype validation, and production planning according to the project requirements and capabilities of the selected platform.

For additional information, visit the JKONGMOTOR Integrated Servo Motor page.

Conclusion

The main types of integrated servo motors used in agricultural and outdoor AGVs and AMRs include IP67 waterproof integrated DC servo motors, integrated BLDC servo motors, geared integrated servo motors, servo hub motors, planetary-geared servo motors, brake-equipped servo motors, and models with CANopen or EtherCAT communication.

Each type addresses different engineering priorities. Waterproof designs help manage dust and water exposure, geared motors provide higher wheel torque at reduced speed, hub motors simplify wheel integration, and compatible communication interfaces support coordinated control across multiple drive axes.

For the best result, evaluate environmental protection, continuous torque, peak torque, wheel speed, thermal performance, mechanical durability, and controller compatibility together.

JKONGMOTOR can help AGV and AMR manufacturers evaluate integrated servo motor configurations for their specific applications, including environmental requirements, motion-control needs, and OEM/ODM customization options.

The right motor is not simply the one with the highest torque or the highest IP rating. It is the one that delivers the required performance, fits the mechanical and electrical design, and operates reliably under the conditions the robot will actually encounter.

3. Why Do Agricultural and Outdoor AGVs Need IP67 Waterproof Integrated Servo Motors?

An outdoor robot's drive system is exposed to more than rain. Water can enter through cable connections, damaged seals, poorly designed joints, or pressure changes caused by temperature fluctuations. Dust and other contaminants can also compromise moving parts and electrical components.

An IP67-rated enclosure is designed to provide a defined level of protection against dust ingress and temporary immersion under specified test conditions.

The first digit, 6, indicates dust-tight protection. The second digit, 7, indicates protection against temporary immersion in water under the applicable standardized test conditions.

This makes IP67 a useful starting point for selecting motors for wet and dusty environments.

However, IP67 should not automatically be interpreted as protection against continuous underwater operation, high-pressure washing, aggressive chemicals, or every possible outdoor condition. Actual suitability depends on the motor's construction, installation, connectors, cable assemblies, and the environmental conditions specified by the manufacturer.

3.1 Protection Against Rain, Mud, and Water Splashes

Outdoor AGVs may operate during rain or pass through wet areas where water splashes onto the chassis and drive wheels.

If moisture reaches unprotected electronics, it can contribute to short circuits, corrosion, feedback errors, or intermittent communication failures. These problems can lead to unexpected downtime and costly field maintenance.

An IP67 integrated servo motor helps reduce the risk of dust and water entering the protected enclosure when the complete assembly is correctly designed and installed.

When evaluating a motor, we recommend confirming the protection level of the entire installed system, including connectors, cable glands, seals, and any exposed interfaces. A motor housing with an IP67 rating does not automatically make an externally connected cable assembly equally waterproof.

3.2 Reliable Operation in Dusty and Dirty Environments

Agricultural and outdoor robots frequently encounter dust, dried mud, crop residue, and other contaminants.

Dust entering an electronic enclosure can interfere with components, while contamination around mechanical seals may accelerate wear. An IP67-rated, dust-tight enclosure can reduce these risks.

For applications involving fine agricultural dust, however, buyers should also examine connector sealing, maintenance procedures, housing design, and whether cleaning practices could damage exposed components.

3.3 Reduced Maintenance and Lower Lifecycle Costs

Motor selection should account for more than the initial purchase price.

Replacing a failed motor can require technicians, spare parts, transport, diagnostic work, and temporary withdrawal of a robot from service. On a large agricultural operation or outdoor logistics fleet, repeated maintenance can quickly become expensive.

A properly specified waterproof integrated servo motor can help reduce maintenance associated with moisture and dust ingress while simplifying the drive system through component integration.

Nevertheless, waterproofing is only one factor in service life. Bearing quality, thermal design, mechanical loading, cable strain relief, corrosion resistance, and correct installation remain equally important.

4. What Is an IP67 Waterproof Integrated Servo Motor?

An integrated servo motor combines a servo motor with drive electronics and a feedback system in one assembly. Depending on the model, the unit may also include a controller, communication interface, brake, or other optional components.

Traditional servo systems generally distribute the motor, servo drive, encoder connections, and associated wiring across separate components. Integrated designs bring several of these functions together, reducing the number of separate devices required for a drive axis.

For outdoor AGVs and AMRs, this architecture can offer practical advantages.

4.1 Integrated Motor, Driver, and Encoder

The motor generates mechanical torque, the drive electronics regulate current and motion, and the feedback device supplies information about position or speed.

Combining these functions into a single unit can simplify wiring and reduce the space required in the robot's electrical cabinet.

It can also reduce the number of external signal and power connections that must be routed through the chassis, although the actual benefit depends on the system architecture.

For compact agricultural robots, this can free up space for batteries, navigation equipment, sensors, and payloads.

4.2 Closed-Loop Motion Control

Agricultural and outdoor robots often need to control wheel speed accurately, coordinate multiple drive wheels, and respond to changing loads.

A servo system uses feedback to compare the commanded motion with actual motor behavior and correct the difference within its supported control architecture.

Depending on the product, an integrated servo motor may support position, speed, and torque-related control modes.

For example, a greenhouse transport robot may need to maintain a steady travel speed while carrying different crop loads. A mobile platform navigating an outdoor yard may require controlled acceleration and deceleration to avoid wheel slip or sudden changes in payload movement.

Closed-loop control helps achieve these objectives, provided that the motor is correctly sized and the control system is properly tuned.

4.3 Compact Mechanical and Electrical Integration

Integrated servo motors can reduce the number of separate components, cables, and mounting interfaces required for each drive axis.

This can be especially valuable for small AGVs, compact AMRs, and agricultural robots with limited installation space.

However, integration also concentrates heat-generating components in a smaller assembly. Buyers should therefore evaluate continuous torque, thermal limits, mounting conditions, and ambient temperature rather than assuming that a smaller system will automatically deliver better performance.

5. Key Features to Look for in an IP67 Integrated Servo Motor

When selecting an IP67 integrated servo motor for agricultural and outdoor AGVs and AMRs, we recommend evaluating more than the motor's waterproof rating. The drive system must deliver sufficient wheel torque, maintain stable motion under changing loads, communicate reliably with the robot controller, and withstand the environmental conditions expected during daily operation.

For agricultural robots working in greenhouses, orchards, and open fields, as well as outdoor AMRs transporting materials across industrial yards, the right motor configuration can directly affect operating reliability, energy consumption, maintenance requirements, and overall vehicle performance.

At JKONGMOTOR, we recommend assessing the following eight features before choosing an integrated servo motor for an outdoor mobile robot.

5.1 Verified IP67 Protection for the Complete Motor Assembly

IP67 protection means that an enclosure is dust-tight and can withstand temporary immersion in water under specified test conditions. For outdoor AGVs and AMRs, this protection can help reduce the risk of dust and water entering sensitive motor and drive components.

However, an IP67 rating does not automatically guarantee resistance to high-pressure washing, continuous immersion, fertilizer chemicals, salt spray, or every type of outdoor exposure.

When evaluating an IP67 integrated servo motor, check these details:

• Whether the IP67 rating applies to the complete motor assembly or only a specific enclosure.

• Whether connectors, cable glands, and mating interfaces maintain the required protection.

• Whether the motor is suitable for the intended mounting orientation and cable routing.

• Whether seals and external materials are compatible with the cleaning agents or chemicals used in the application.

• Whether the manufacturer's environmental test conditions match the actual operating environment.

For example, a greenhouse AGV exposed to irrigation water may have different protection requirements from an orchard robot that regularly encounters wet soil, mud, and agricultural residue.

The key purchasing consideration is not simply whether a motor is labeled IP67, but whether the installed drive system provides the required protection throughout its intended operating conditions.

5.2 Sufficient Continuous Torque and Peak Torque

Torque determines whether an AGV or AMR can start moving, accelerate, climb slopes, and transport its maximum payload without exceeding the motor's operating limits.

Two specifications deserve particular attention:

• Continuous torque: The torque the motor can sustain within its specified thermal and operating limits.

• Peak torque: The higher torque available for a limited period under the manufacturer's specified conditions.

Agricultural robots often encounter changing loads as they transport harvested crops, planting materials, tools, or supplies. Outdoor logistics AMRs may also need additional torque when starting on a ramp or moving over surfaces with greater rolling resistance.

A motor selected only by its peak torque may perform well during short acceleration events but overheat if the application demands high torque continuously.

To determine the required torque, consider the total vehicle mass, payload, wheel radius, rolling resistance, maximum slope, acceleration, gearbox ratio, and drivetrain efficiency.

For geared drive systems, calculate the required torque at the wheel first, then determine the motor torque required to deliver it through the gearbox.

We also recommend checking the permitted peak-torque duration and recovery time. These limits matter when the robot repeatedly starts, stops, climbs, or changes direction during a working shift.

5.3 Appropriate Rated Speed and Gearbox Ratio

The motor's rated speed must match the robot's required travel speed and wheel dimensions. A motor that rotates quickly is not necessarily suitable if the application requires high wheel torque at low vehicle speeds.

For a direct-drive wheel, theoretical linear speed can be estimated using:

v=2πrn / 60

Where:

• v is the theoretical vehicle speed in meters per second.

• r is the effective wheel radius in meters.

• n is the wheel speed in revolutions per minute.

If the motor uses a gearbox, calculate wheel speed using the reduction ratio and account for the gearbox's operating limits.

For agricultural AGVs traveling along greenhouse aisles, low-speed stability and precise maneuvering may be more important than maximum travel speed. Outdoor logistics AMRs, by comparison, may require a higher travel speed while carrying heavy payloads over longer distances.

When selecting a gearbox-integrated servo motor, evaluate the reduction ratio, output torque, efficiency, backlash, and mechanical load capacity together.

The objective is to achieve the required travel speed without sacrificing the torque, control stability, or thermal performance needed for reliable operation.

5.4 Encoder Feedback and Motion-Control Accuracy

An integrated servo motor uses feedback to compare commanded motion with actual motor behavior. Depending on the model, the feedback system may support speed regulation, position control, or other closed-loop functions.

For outdoor AGVs and AMRs, encoder performance can affect wheel-speed consistency, maneuvering, docking, and coordination between multiple drive wheels.

Before choosing a motor, examine:

• Encoder type and resolution.

• Incremental or absolute feedback requirements.

• Low-speed stability.

• Positioning repeatability under load.

• Feedback reliability under vibration.

• Compatibility with the robot's motion controller.

For example, an agricultural transport robot may need to move slowly beside planting beds without sudden speed changes. A warehouse-yard AMR may require repeatable positioning when approaching a loading station.

It is important to distinguish encoder resolution from overall vehicle positioning accuracy. Wheel slip, tire deformation, gearbox backlash, mechanical compliance, and external localization systems can all influence the robot's actual position.

For this reason, encoder selection should be based on the complete motion-control system rather than one specification in isolation.

5.5 Communication Interfaces Compatible with the AGV Controller

Communication compatibility should be confirmed before purchasing an integrated servo motor, particularly when the robot uses several independently controlled drive wheels.

Depending on the model, available interfaces may include pulse and direction, RS485, CANopen, or EtherCAT.

For multi-wheel AGVs, the selected interface must support the required control modes and coordinate with the robot's controller and software architecture.

Buyers should confirm the exact protocol implementation, device profile, supported operating modes, firmware requirements, and diagnostic capabilities. Two products that advertise the same interface may not support identical functions.

For example, choosing a CANopen integrated servo motor does not automatically guarantee compatibility with every CANopen controller. The device configuration and supported communication objects must also match.

Selecting the communication interface early helps prevent integration delays and reduces the risk of discovering compatibility problems after the mechanical design is complete.

5.6 Thermal Management for Continuous Outdoor Operation

An integrated servo motor places the motor and drive electronics within one assembly. This can reduce installation space and wiring, but it also makes thermal design an important selection consideration.

Outdoor robots may operate for extended periods in direct sunlight, high ambient temperatures, or demanding duty cycles. High current, repeated acceleration, and sustained torque can increase heat generation inside the drive system.

Before purchasing, check:

• Continuous current and torque limits.

• Peak-current duration and recovery requirements.

• Permitted ambient operating temperature.

• Motor and drive overtemperature protection.

• Mounting and heat-dissipation requirements.

• Output derating at elevated temperatures.

For example, an orchard robot climbing slopes repeatedly may experience a different thermal load from a greenhouse AGV carrying the same payload on a flat floor.

An IP67 enclosure does not guarantee that a motor can dissipate heat adequately under every operating condition. The manufacturer should provide the applicable operating limits and any required derating information.

We recommend validating thermal performance using the intended payload, travel profile, ambient temperature, and operating duration before approving a motor for mass production.

5.7 Corrosion Resistance, Mechanical Durability, and Cable Reliability

Outdoor mobile robots encounter mechanical and environmental stresses that an IP rating does not fully describe.

Agricultural equipment may be exposed to fertilizer residue, cleaning agents, wet soil, and plant debris. Outdoor logistics vehicles may encounter vibration, road dust, water splashes, and repeated mechanical shocks.

When assessing durability, consider the following:

• Housing materials and protective coatings.

• Resistance of exposed fasteners to corrosion.

• Seal compatibility with expected contaminants.

• Bearing capacity and permissible mechanical loads.

• Vibration and shock resistance.

• Cable bending, strain relief, and connector retention.

• Accessibility for inspection and maintenance.

Cable routing is particularly important for mobile robots because cables may experience repeated movement, vibration, and contact with surrounding structures.

A properly sealed motor can still experience reliability problems if a cable is damaged, a connector is incorrectly installed, or a mounting arrangement places excessive stress on the housing.

For demanding agricultural applications, buyers should describe the actual cleaning procedures and chemical exposure to the supplier instead of assuming that IP67 protection covers these risks.

5.8 Braking Options and System-Level Safety Requirements

Some agricultural and outdoor AGVs need to remain stationary on ramps, hold a load in position, or stop in a controlled manner when operating conditions change.

Depending on the application, an integrated servo motor may be available with an electromagnetic holding brake. However, brake availability and performance vary by model.

When evaluating braking options, confirm:

• Rated holding torque.

• Brake engagement and release behavior.

• Whether the brake is designed for holding or dynamic stopping.

• Permitted operating frequency and duty cycle.

• Behavior during loss of electrical power.

• Compatibility with the vehicle's braking and safety architecture.

A holding brake should not automatically be treated as a service brake or a safety-rated stopping function.

Where a project requires Safe Torque Off (STO), verify that the specific drive supports the required safety function and that the complete machine-level implementation meets the applicable requirements. Not all integrated servo motors include STO.

For mobile robots operating on slopes or carrying heavy payloads, the braking strategy should be evaluated alongside wheel traction, vehicle inertia, stopping distance, and the consequences of power loss.

6. How to Calculate Motor Torque for an Agricultural or Outdoor AGV

Correct motor sizing begins with the robot's total moving mass and the forces that oppose its movement.

For a wheeled AGV moving on a slope, the required tractive force can be estimated as:

F=mg(Crrcos⁡θ+sin⁡θ)+ma

Where:

• F is the required tractive force in newtons.

• m is the total moving mass, including the robot and payload, in kilograms.

• g is gravitational acceleration, approximately 9.81 m/s⊃2;.

• Crr is the rolling resistance coefficient.

• θ is the slope angle.

• a is the required linear acceleration in meters per second squared.

This simplified equation accounts for rolling resistance, slope resistance, and linear acceleration. It does not fully capture wheel deformation, obstacle impacts, drivetrain losses, uneven load distribution, or other application-specific forces.

The corresponding wheel torque is approximately:

Tw=Fr / N

Where:

• Tw is the ideal tractive torque per driven wheel.

• r is the effective wheel radius.

• N is the number of equally loaded driven wheels.

This calculation assumes that the driven wheels share the tractive force equally. Real systems may require additional allowances for uneven load distribution, turning resistance, and traction limits.

6.1 Worked Example: A 500 kg Outdoor AGV

Consider an outdoor AGV with the following design conditions:

• Total vehicle mass, including payload: 500 kg

• Effective wheel radius: 0.10 m

• Rolling resistance coefficient: 0.05

• Maximum slope: 5 degrees

• Target acceleration: 0.20 m/s⊃2;

• Number of driven wheels: 2

Using the equation above, the estimated tractive force is approximately 1,156 N.

The ideal torque required at each driven wheel is:

Tw=(1156×0.10) / 2≈57.8 Nm

This is the estimated wheel torque under the stated assumptions, before accounting for additional drivetrain losses and application-specific margins.

If a gearbox is used, the required motor torque can be estimated by:

Tm=Tw / iη

Where:

• Tm is the required motor torque.

• i is the gearbox reduction ratio.

• η is the gearbox mechanical efficiency.

For a hypothetical 10:1 gearbox with an efficiency of 85%, the corresponding motor torque would be approximately 6.8 Nm per drive unit under the same assumptions.

This example illustrates why motor selection must be based on the complete drivetrain rather than the motor alone.

Before finalizing the design, we recommend checking continuous operating torque, acceleration frequency, peak-load duration, tire traction, gearbox limits, and actual terrain conditions. A prototype test under representative payload and slope conditions is an effective way to validate the calculations.

7. How to Select the Right IP67 Integrated Servo Motor for Different Outdoor Applications

Different outdoor robots have different priorities. A greenhouse carrier, an orchard robot, and a heavy-duty yard AMR may all require environmental protection, but their torque, speed, and mechanical requirements can differ substantially.

7.1 Greenhouse and Agricultural Transport Robots

Greenhouse robots often operate on relatively predictable routes but may encounter irrigation water, wet floors, plant debris, and frequent cleaning.

For these applications, we recommend prioritizing:

• Verified IP67 protection where required

• Stable low-speed operation

• Sufficient continuous torque for the maximum payload

• Compact installation dimensions

• Reliable feedback and communication

• Corrosion-resistant external components

• Sealed connectors suitable for the installation

Low-speed control is particularly important when transporting fragile crops or moving near people and equipment.

The motor should also be compatible with the robot's wheel arrangement and control architecture, especially when multiple drive wheels must maintain coordinated motion.

7.2 Orchard and Uneven-Terrain Agricultural Robots

Orchard robots may need to navigate between trees, travel over soil, and negotiate small slopes or surface irregularities.

These applications can place higher demands on traction and starting torque than robots operating on smooth indoor floors.

We recommend evaluating:

• Peak torque for starting and transient loads

• Continuous torque during long uphill runs

• Gearbox ratio and mechanical strength

• Wheel diameter and ground clearance

• Resistance to shock and vibration

• Protection against dust, moisture, and agricultural residue

For uneven terrain, a motor with a suitable gearbox may provide a better combination of wheel torque and travel speed than a direct-drive arrangement.

However, gearbox selection should consider backlash, efficiency, lubrication, output bearing loads, and sealing—not only the reduction ratio.

7.3 Outdoor Logistics and Yard AMRs

Outdoor logistics robots may travel longer distances and carry heavier payloads between storage areas, loading zones, and production buildings.

Their drive systems must balance travel speed, energy consumption, acceleration, and load handling.

Important considerations include:

• Continuous power and torque at the intended travel speed

• Acceleration and deceleration performance

• CANopen or EtherCAT compatibility, where required

• Thermal performance during extended operation

• Optional braking and safety functions

• Cable routing and environmental protection

For fleet applications, repeatability and serviceability also matter. A standardized integrated servo motor platform can simplify spare-parts management and reduce the engineering work required across multiple robot models.

7.4 Heavy-Duty Outdoor AGVs

Heavy-duty platforms may experience high starting loads, repeated acceleration, long operating hours, and frequent changes in payload.

In these cases, buyers should avoid selecting a motor based on nominal power alone.

The motor and gearbox should be checked against the full motion profile, including continuous torque, peak torque, peak duration, braking requirements, and thermal limits.

For demanding applications, it may be appropriate to use a higher-torque motor, a gearbox with a suitable reduction ratio, or multiple drive units to distribute the load.

The final choice depends on wheel geometry, chassis design, terrain, traction, and the required travel speed.

8. IP67 Integrated Servo Motor vs. Traditional Servo Motor Systems

Both integrated and conventional servo systems can be used in outdoor robots when appropriately specified. The difference lies mainly in their system architecture and installation requirements.

For compact agricultural AGVs and outdoor AMRs, integration can simplify mechanical packaging and wiring.

For systems with demanding thermal requirements or specialized drive configurations, a conventional servo system may also be a valid choice.

The best architecture is the one that meets the application's performance, environmental, serviceability, and cost requirements.

9. Why Do Many AGV and AMR Manufacturers Choose Integrated Servo Motors?

AGV and AMR manufacturers increasingly choose integrated servo motors because they simplify drivetrain design, reduce installation complexity, and provide precise motion control in a compact package. For agricultural robots and outdoor autonomous mobile robots, these benefits become even more valuable when equipment must operate reliably across uneven terrain, changing weather conditions, and demanding duty cycles.

Unlike conventional motion-control systems that use separate motors, drives, encoders, and extensive interconnecting cables, an integrated servo motor combines several key components into one assembly. Depending on the model, it may incorporate the motor, servo drive, encoder, and communication interface, reducing the number of components that OEMs need to integrate into the vehicle.

However, integration alone does not guarantee better performance. The right solution must match the robot's payload, wheel configuration, operating environment, control architecture, and safety requirements.

9.1 Reduced Wiring and Simplified Electrical Integration

A conventional servo system may require separate motor-to-drive wiring, encoder feedback cables, and additional control connections. An integrated servo motor consolidates multiple functions, helping reduce cable routing, cabinet space, connector count, and assembly work.

For AGV and AMR manufacturers, this can simplify vehicle development and make the electrical architecture easier to maintain.

This advantage is particularly relevant to:

• Compact AMRs with limited space for electrical enclosures.

• Agricultural robots exposed to mud, moisture, dust, and vibration.

• Outdoor logistics vehicles with long operating hours.

• OEMs developing multiple vehicle platforms from a common drivetrain design.

Fewer external connections can reduce potential failure points, but the quality of connectors, cable glands, sealing interfaces, and installation practices remains essential in outdoor applications.

9.2 More Precise Speed and Position Control

AGVs and AMRs must regulate wheel speed to travel along planned paths, approach loading stations, align with conveyors, and coordinate with other mobile equipment. Integrated servo motors can combine closed-loop feedback with motor control to support accurate speed regulation and repeatable positioning.

The actual performance depends on the encoder, control algorithm, motor characteristics, communication interface, and mechanical drivetrain.

For example, a warehouse AMR may prioritize repeatable docking and smooth low-speed movement. An agricultural robot may place greater emphasis on maintaining wheel speed across changing ground resistance. In both cases, encoder feedback can help the controller respond to variations in load, although wheel slip and uneven terrain can still affect vehicle-level positioning.

When evaluating a motor, manufacturers should compare its rated speed, continuous torque, peak torque, feedback resolution, low-speed stability, and supported control modes rather than relying on positioning accuracy claims alone.

9.3 Smaller Installation Footprint and Greater Design Flexibility

Vehicle designers often need to accommodate batteries, safety sensors, lifting mechanisms, communication equipment, and payload structures within a limited chassis. Integrating the servo drive with the motor can free space that would otherwise be occupied by separately mounted electronics.

This can help OEMs develop:

• Low-profile and compact AMRs.

• Narrow-aisle warehouse vehicles.

• Agricultural robots with restricted installation space.

• Modular drive units that can be reused across different vehicle platforms.

Before selecting a model, engineers should check the complete motor dimensions, mounting interface, connector orientation, cable-bending clearance, heat dissipation requirements, and access needed for service. A smaller nominal motor body does not necessarily mean the complete installation will occupy less space.

9.4 Better Adaptation to Outdoor and Agricultural Conditions

Outdoor AGVs and agricultural AMRs may encounter rain, dust, mud, washdown procedures, temperature fluctuations, vibration, and occasional water exposure. These conditions make environmental protection a major purchasing consideration.

An integrated servo motor with a verified IP67 rating can provide dust-tight protection and protection against temporary immersion under the conditions defined by the applicable test standard. This can be useful for mobile equipment operating in wet or dusty environments.

However, IP67 does not automatically mean that a motor is suitable for every outdoor environment. Buyers should confirm whether the rating covers the complete assembled motor, including connectors and cable interfaces. They should also evaluate corrosion resistance, chemical compatibility, operating temperature, condensation risk, and resistance to vibration.

For agricultural applications, compatibility with fertilizers, cleaning agents, and other chemicals should be confirmed separately. Continuous immersion and high-pressure washing also require additional verification.

9.5 Easier Communication with the Vehicle Control System

Modern AGVs and AMRs coordinate motor commands with navigation software, onboard controllers, battery management systems, sensors, and fleet-management platforms. The motor's communication interface therefore affects both system architecture and commissioning effort.

Depending on the model, integrated servo motors may support pulse-and-direction control, RS485, CANopen, or EtherCAT.

Manufacturers should verify the exact protocol, supported commands, feedback data, communication timing, network topology, and compatibility with their controller. The presence of a particular physical interface does not guarantee support for every protocol or control function.

9.6 Improved System-Level Cost Efficiency

Integrated servo motors may reduce the number of separately purchased components, wiring operations, mounting steps, and commissioning tasks. For OEMs producing vehicles in volume, these reductions can contribute to a more repeatable manufacturing process.

The financial benefit should be evaluated across the complete drivetrain rather than by comparing motor purchase prices alone.

A practical cost assessment should include:

• Motor, drive, encoder, and accessory costs.

• Wiring, connectors, brackets, and enclosure requirements.

• Installation and commissioning labor.

• Maintenance accessibility and replacement procedures.

• Expected operating life and downtime-related costs.

• Customization and compatibility costs during product development.

An integrated motor is not automatically the lowest-cost option for every vehicle. Its value is strongest when the integration reduces meaningful engineering or manufacturing work without compromising performance, serviceability, or safety.

9.7 Easier Standardization Across Multiple Vehicle Models

AGV and AMR manufacturers often develop several vehicle variants with different payload capacities, wheel sizes, chassis dimensions, and operating environments. A consistent integrated servo motor platform can simplify design reuse, procurement, testing, and spare-parts management.

For example, an OEM may use one motor family for a compact indoor AMR and a higher-torque variant for an outdoor vehicle. Standardizing the control interface and mounting approach can reduce development effort, provided that each model is correctly sized for its application.

OEMs should assess whether the supplier can offer suitable power ratings, gear ratios, encoder options, communication interfaces, connector configurations, and environmental protection levels within a compatible product family.

9.8 More Flexible OEM/ODM Customization

Off-the-shelf motors do not always match the mechanical and electrical requirements of a specific AGV or agricultural robot. Customization may be needed to accommodate chassis dimensions, wheel mounting, target speed, torque requirements, cable routing, or the vehicle's control system.

A capable motion-control manufacturer should be able to evaluate the complete application rather than simply recommend a motor based on rated power.

Depending on its engineering capabilities, the supplier may support customization of:

• Motor dimensions and mounting interfaces.

• Gearbox type and reduction ratio.

• Rated voltage, torque, and speed.

• Encoder and communication options.

• Cable length, connector type, and pin assignment.

• Environmental sealing and corrosion-resistant details.

For JKONGMOTOR, the evaluation process should begin with the vehicle's operating requirements and proceed through model selection, engineering review, prototype validation, and production planning. Any requested protection rating, communication protocol, or safety function should be confirmed for the specific proposed model before design approval.

9.9 How to Decide Whether an Integrated Servo Motor Is the Right Choice

Integrated servo motors are particularly attractive when an AGV or AMR needs compact installation, closed-loop motion control, simplified wiring, and a coordinated motor-and-drive solution. Nevertheless, the final decision should be based on measurable operating requirements.

For outdoor and agricultural applications, engineers should also validate performance under representative conditions. Testing should reflect the expected payload, terrain, operating duration, moisture exposure, vibration, and ambient temperature wherever practical.

Conclusion

Many AGV and AMR manufacturers choose integrated servo motors because they can simplify system integration while providing the closed-loop motion control required for automated mobility. The strongest advantages are reduced wiring complexity, compact installation, flexible communication options, and the potential to standardize drivetrain designs across vehicle platforms.

For agricultural and outdoor robots, the selection process must go further. Environmental protection, connector sealing, thermal performance, corrosion resistance, torque capacity, and control compatibility all need to be assessed against the real operating environment.

JKONGMOTOR supports OEM/ODM motion-control projects with integrated motor solutions and application-oriented customization. By defining the vehicle's mechanical, electrical, communication, and environmental requirements early, manufacturers can select a motor configuration that is better suited to their AGV or AMR design and more practical to validate before mass production.

10. How to Evaluate an IP67 Integrated Servo Motor Supplier

Choosing the supplier is as important as choosing the motor.

A suitable manufacturer should be able to explain the product's technical limitations, provide clear specifications, and support the integration process.

10.1 Review Technical Documentation

Request the following information for the exact model under consideration:

• Rated voltage, power, speed, and continuous torque

• Peak torque and allowable peak duration

• Torque-speed curves

• Motor and drive current limits

• Encoder specifications

• Communication protocols and control modes

• IP rating and applicable test conditions

• Operating temperature and derating information

• Connector and cable specifications

• Brake and safety-function options

• Mechanical drawings and mounting dimensions

Complete documentation makes it easier to compare products accurately and identify compatibility issues before prototype construction.

10.2 Confirm Customization Capabilities

Different AGV platforms may require different motor dimensions, shaft configurations, connectors, communication interfaces, gear ratios, or braking options.

An OEM/ODM-capable manufacturer may be able to customize these features to match the robot's mechanical and electrical architecture.

At JKONGMOTOR, the value of a customization project lies in matching the motion-control configuration to the application rather than adding features that do not improve the final system.

Before confirming an order, buyers should clarify which modifications are standard options, which require engineering development, and which may affect waterproofing, lead time, cost, or certification.

10.3 Evaluate Sample Testing and Production Consistency

A successful prototype is an important milestone, but production units must also meet consistent specifications.

Discuss the supplier's quality-control procedures, inspection records, production testing, traceability, and handling of design changes.

For IP67 products, it is particularly important to understand how sealing features and cable interfaces are controlled during manufacturing and final assembly.

If the application has strict reliability requirements, agree on acceptance criteria before mass production begins.

11. How JKONGMOTOR Can Support Agricultural and Outdoor AGV/AMR Projects

Developing an agricultural or outdoor AGV/AMR requires more than selecting a motor with sufficient power. Manufacturers must balance traction, torque, vehicle dimensions, environmental protection, communication compatibility, thermal performance, and long-term reliability. When these requirements are not considered together, a motor that performs well in a laboratory may not deliver the same results on wet farmland, uneven outdoor paths, or demanding industrial sites.

JKONGMOTOR supports AGV and AMR development by providing integrated motor solutions and OEM/ODM customization for different motion-control requirements. By evaluating the motor, drive, feedback system, gearbox, and installation environment as parts of one solution, vehicle manufacturers can reduce integration complexity and make more informed design decisions.

11.1 Application-Based Integrated Servo Motor Selection

Different mobile robots place different demands on their drive systems. A compact agricultural robot may require low-speed control and sufficient wheel torque, while an outdoor logistics AMR may prioritize continuous operation, smooth acceleration, and reliable communication with its vehicle controller.

JKONGMOTOR can help customers evaluate the key requirements of their projects, including:

• Vehicle weight, payload, wheel diameter, and drive-wheel configuration.

• Required travel speed, acceleration, and climbing capability.

• Continuous torque, peak torque, and expected operating duty cycle.

• Supply voltage and battery-system compatibility.

• Encoder feedback and motion-control requirements.

• Communication interfaces and controller compatibility.

• Installation space, mounting structure, and environmental exposure.

These parameters provide a more reliable basis for motor selection than rated power alone. For example, a robot that frequently starts on a slope may need a different torque and gearbox configuration from a vehicle operating mainly on flat, paved surfaces.

11.2 Integrated Motor, Drive, and Feedback Solutions

Conventional servo systems may require separate motors, drives, encoders, and multiple cable connections. Depending on the selected configuration, an integrated servo motor can combine several of these functions into a single assembly.

For AGV and AMR manufacturers, this approach can help simplify electrical design, reduce installation work, and make the drivetrain easier to integrate into a compact chassis.

JKONGMOTOR's integrated motor solutions can be evaluated according to the requirements of the application, including:

• Motor and drive integration: to reduce the need for separately mounted components where the selected model supports this configuration.

• Encoder feedback: for closed-loop speed or position control, depending on the motor and controller.

• Communication options: such as pulse control, RS485, CANopen, or EtherCAT, where supported by the specific model.

• Gearbox configurations: to match the required output speed and torque.

• Mechanical customization: to address mounting dimensions and drivetrain installation constraints.

The exact functions available depend on the product series. OEMs should confirm electrical specifications, communication protocols, feedback options, and mechanical interfaces before finalizing their vehicle design.

11.3 IP67 Waterproof Solutions for Outdoor Operating Conditions

Agricultural and outdoor mobile robots may encounter rain, dust, splashing water, muddy ground, and frequent changes in operating temperature. In these applications, environmental protection should be considered during the initial drivetrain design rather than added as an afterthought.

When evaluating an IP67 integrated servo motor for an outdoor AGV or AMR, JKONGMOTOR can work with the customer to identify the required protection level and verify whether the proposed configuration meets the application's needs.

Important evaluation points include:

• Protection of the complete assembled motor and its electrical interfaces.

• Connector type, cable entry, and sealing arrangements.

• Resistance to vibration, mechanical shock, and environmental exposure.

• Operating temperature and heat dissipation.

• Corrosion resistance and compatibility with cleaning agents.

• Maintenance requirements and accessibility for inspection.

An IP67 rating indicates dust-tight protection and protection against temporary immersion under specified test conditions. It does not automatically establish suitability for continuous immersion, high-pressure washing, aggressive chemicals, or every outdoor environment.

For this reason, the protection rating and environmental limits should be verified for the exact model and installation configuration. Where necessary, the design should also account for additional enclosure protection, cable routing, drainage, and corrosion-resistant materials.

11.4 Torque, Speed, and Gearbox Matching

Selecting the correct drivetrain is essential for mobile robots that carry heavy payloads, operate on slopes, or travel across uneven terrain. An undersized motor may struggle during acceleration or continuous climbing, while an unsuitable gearbox ratio can limit travel speed or reduce overall system efficiency.

JKONGMOTOR can evaluate motor and gearbox requirements using the vehicle's mechanical parameters.

For a wheeled AGV or AMR, engineers typically consider:

• Total vehicle mass, including the maximum payload.

• Wheel radius and the number of driven wheels.

• Rolling resistance on the intended surface.

• Maximum gradient and acceleration requirements.

• Target travel speed and operating cycle.

• Transmission efficiency and mechanical losses.

A basic relationship between wheel torque and tractive force is:

F=Tw / r

where FFF is the tractive force at the wheel, Tw is wheel output torque, and r is the effective wheel radius.

The required driving force must account for rolling resistance, slope resistance, acceleration, and other relevant loads. Engineers can then estimate the required wheel torque and determine a suitable motor and gearbox combination.

The final selection should distinguish between continuous operating torque and short-duration peak torque. For robots that climb slopes frequently or run for extended periods, thermal performance and duty cycle are just as important as maximum torque.

11.5 Communication Compatibility with AGV and AMR Control Systems

A motor must communicate reliably with the vehicle's control architecture. Depending on the system design, the controller may need to command wheel speed, monitor motor status, receive feedback, and respond to fault conditions.

JKONGMOTOR motor configurations can be assessed against the customer's required control interface, subject to model availability.

The physical communication interface alone is not enough to establish compatibility. OEMs should confirm the supported protocol and functions in the relevant product documentation and test communication under representative operating conditions.

11.6 OEM/ODM Customization for Different Vehicle Platforms

Standard motors do not always fit the mechanical and electrical requirements of a customer's vehicle. Agricultural robots, outdoor logistics AMRs, and industrial AGVs may have different chassis dimensions, wheel structures, installation positions, and control-system requirements.

As an OEM/ODM motion-control supplier, JKONGMOTOR can evaluate project-specific requirements and determine which customization options are technically feasible.

Depending on the selected product platform, customization may involve:

• Motor size and mounting dimensions.

• Rated voltage, speed, and torque.

• Gearbox type and reduction ratio.

• Encoder and communication configuration.

• Cable length, connector type, and pin assignment.

• Installation structure and mechanical interfaces.

• Environmental protection requirements.

Customization should begin with a clear technical specification. This helps both parties identify potential limitations early, avoid incompatible component selections, and establish practical acceptance criteria for prototype testing.

11.7 Prototype Testing and Engineering Validation

A motor specification sheet cannot fully predict how a drivetrain will behave in a finished vehicle. Wheel slip, chassis vibration, mechanical tolerances, cable routing, and heat accumulation can all influence system performance.

Before mass production, AGV and AMR manufacturers should validate the selected configuration under conditions representative of the intended application.

A practical validation plan may include:

1. Mechanical fit testing: Confirm mounting dimensions, clearances, shaft or wheel interfaces, and cable routing.

2. Electrical testing: Verify supply voltage, current consumption, wiring, connectors, and controller compatibility.

3. Motion testing: Measure acceleration, speed regulation, stopping behavior, and low-speed stability.

4. Load testing: Evaluate performance at expected payloads and under representative climbing or starting conditions.

5. Thermal testing: Monitor motor and drive temperatures during the expected operating cycle.

6. Environmental verification: Confirm the protection level and assess relevant moisture, dust, vibration, and corrosion risks.

7. Communication and fault testing: Check status feedback, communication stability, and recovery behavior.

For safety-related functions such as Safe Torque Off (STO), emergency stopping, or holding brakes, the vehicle manufacturer must verify the specific hardware capabilities and validate the complete safety architecture. These functions should not be assumed to exist unless they are explicitly supported by the selected model.

11.8 Support from Initial Inquiry to Batch Production

A structured development process helps OEMs move from an initial motor requirement to a validated production configuration.

Stage 1: Requirement review

Define payload, travel speed, wheel dimensions, supply voltage, environmental conditions, communication needs, and installation limits.

Stage 2: Technical selection and customization

Evaluate suitable motor and gearbox combinations, feedback options, interfaces, and feasible mechanical or electrical modifications.

Stage 3: Prototype evaluation

Test the proposed configuration in the target vehicle and review any performance or integration issues before design approval.

Stage 4: Validation and production planning

Confirm the approved specifications, testing criteria, configuration control, and production requirements for the intended order volume.

This process helps reduce avoidable redesign and gives the manufacturer a clearer basis for evaluating the motor's suitability before committing to larger production quantities.

11.9 Why Work with JKONGMOTOR on Agricultural and Outdoor AGVs/AMRs?

For an AGV or AMR manufacturer, a suitable motion-control partner should provide more than a product catalogue. The supplier should be able to understand the vehicle's operating conditions, review technical requirements, clarify product limitations, and support the evaluation of a suitable configuration.

JKONGMOTOR's integrated motor and OEM/ODM approach is relevant to projects that require a coordinated solution for motor performance, drive integration, feedback, communication, gearbox selection, or mechanical customization.

When assessing JKONGMOTOR for a project, buyers should confirm the following for the specific proposed model:

• Whether the required IP rating is documented for the intended assembly.

• Whether continuous and peak torque meet the actual duty cycle.

• Whether the communication interface works with the vehicle controller.

• Whether the mechanical dimensions fit the chassis.

• Whether the required customization and testing can be supported.

• Whether documentation, spare parts, and technical support meet the project's production needs.

These checks help establish a practical basis for supplier evaluation and reduce the risk of choosing a motor that meets the headline specifications but falls short in the finished vehicle.

Conclusion: Building a More Suitable Motion-Control Solution

Agricultural and outdoor AGV/AMR projects require motion-control systems that match real operating conditions—not simply a motor with a high power rating or an IP67 label. Torque and speed, environmental protection, thermal behavior, communication compatibility, mechanical fit, and serviceability must be considered together.

JKONGMOTOR provides integrated motor solutions and OEM/ODM support for manufacturers developing AGVs, AMRs, agricultural robots, and other automated mobile equipment. By sharing the vehicle's key technical parameters early, customers can work toward a motor configuration that fits their design requirements and can be evaluated through prototype testing before production.

To request a project assessment, prepare the vehicle's total mass and payload, wheel diameter, target speed, maximum gradient, supply voltage, expected operating environment, and preferred communication interface. These details provide a useful starting point for selecting and validating an appropriate integrated servo motor solution.

12. Practical Checklist Before Purchasing an IP67 Integrated Servo Motor

Before requesting a quotation, prepare a concise technical specification for the intended AGV or AMR.

Providing these details helps the supplier recommend a suitable motor configuration and identify potential design issues early.

It also makes quotations easier to compare because different suppliers can evaluate the same operating conditions.

Conclusion: Choose an IP67 Integrated Servo Motor Based on the Complete Application

Selecting an IP67 waterproof integrated servo motor for an agricultural or outdoor AGV/AMR requires more than confirming a waterproof rating.

The right solution must balance environmental protection, continuous torque, peak torque, wheel speed, encoder feedback, communication compatibility, thermal performance, and mechanical durability. Buyers should also verify the sealing of connectors and cable entries, evaluate corrosion resistance, and test the system under realistic operating conditions.

For compact mobile robots, integrated servo motors can simplify wiring, reduce installation space, and support coordinated motion control. When correctly specified, they can also help reduce maintenance associated with environmental ingress and improve the overall practicality of the drive system.

At JKONGMOTOR, we encourage AGV and AMR manufacturers to define their operating conditions first and then select a motor configuration that matches their real engineering needs. A well-matched drive system can help create a more reliable outdoor robot, simplify production, and support long-term operation in demanding agricultural and industrial environments.

Looking for an integrated servo motor solution for your agricultural AGV, outdoor AMR, or autonomous mobile platform? Visit JKONGMOTOR to explore integrated servo motor options and discuss your application's torque, control, environmental protection, and OEM/ODM requirements.

Frequently Asked Questions (FAQs)

1. What is an IP67 integrated servo motor for agricultural and outdoor AGVs and AMRs?

An IP67 integrated servo motor combines a motor with integrated drive electronics and, depending on the model, encoder feedback and communication functions. The IP67 rating indicates dust-tight protection and protection against temporary immersion under specified test conditions. For agricultural and outdoor AGVs and AMRs, it can be a suitable option when the motor must operate in dusty or wet environments, provided the complete assembly and installation meet the application's requirements.

2. Why do outdoor AGVs and AMRs need IP67 integrated servo motors?

Outdoor AGVs and AMRs may encounter rain, mud, dust, splashing water, and changing temperatures. An appropriately specified IP67 integrated servo motor can help protect internal components against dust ingress and temporary immersion. Buyers should also verify connector sealing, cable entries, corrosion resistance, thermal performance, and compatibility with cleaning agents because an IP67 rating alone does not guarantee suitability for every outdoor condition.

3. Are IP67 integrated servo motors suitable for agricultural robots?

They can be suitable for agricultural robots operating in dusty fields, damp environments, and other challenging outdoor conditions. The correct motor depends on payload, wheel torque, travel speed, terrain, operating duration, and environmental exposure. If the robot encounters fertilizers, pesticides, aggressive cleaning chemicals, high-pressure washing, or continuous immersion, these conditions require separate compatibility and protection checks.

4. What should I consider when choosing an integrated servo motor for an outdoor AGV or AMR?

Evaluate continuous torque, peak torque, rated speed, gearbox ratio, supply voltage, encoder feedback, communication interface, thermal performance, installation dimensions, and environmental protection. Also consider the vehicle's total mass, wheel radius, maximum gradient, acceleration, duty cycle, and maintenance requirements. Selecting a motor based on rated power alone may result in inadequate starting torque, overheating, or unsuitable travel speed.

5. Which communication interfaces are commonly used in integrated servo motors for AGVs and AMRs?

Common options include pulse-and-direction control, RS485, CANopen, and EtherCAT. The appropriate interface depends on the vehicle controller, control architecture, feedback requirements, and communication timing. Buyers should confirm the exact protocol implementation and supported functions for the selected motor rather than assuming that every model supports all interfaces.

6. How do I calculate the required torque for an AGV or AMR drive motor?

Start with the vehicle's total mass, payload, wheel radius, rolling resistance, maximum slope, acceleration, and drivetrain efficiency. Estimate the tractive force required under the most demanding operating conditions, then calculate wheel torque using the relationship T=F×rT=F\times rT=F×r. Account for gearbox ratio and losses when estimating motor-side torque. Check both continuous and peak torque, and validate the result under representative operating conditions.

7. Do integrated servo motors require a separate servo drive?

Not always. An integrated servo motor typically combines the motor with drive electronics in the same assembly, potentially reducing the need for a separately mounted drive. The exact level of integration varies by model. Buyers should confirm whether the selected product includes the required drive functions, encoder, communication interface, and control modes, as well as whether an external controller or other components are still necessary.

8. Can JKONGMOTOR provide customized integrated servo motors for agricultural and outdoor AGVs?

JKONGMOTOR offers integrated motor solutions and OEM/ODM support for motion-control projects. Depending on the selected product platform and technical feasibility, project requirements may include motor dimensions, mounting interfaces, torque and speed, gearbox configuration, encoder options, communication interfaces, and cable or connector arrangements. Customers should submit their specifications so the available options can be reviewed and confirmed for the intended application.

9. How can I verify whether an IP67 integrated servo motor will perform reliably outdoors?

Review the manufacturer's documentation for the exact model and assembled configuration. Confirm the scope of the IP67 rating, connector and cable-entry protection, operating temperature, thermal limits, corrosion resistance, vibration tolerance, and maintenance requirements. Prototype testing should reproduce relevant loads, duty cycles, and environmental conditions. Do not assume IP67 automatically covers high-pressure washing, continuous immersion, or exposure to aggressive chemicals.

10. What information should I provide when requesting an integrated servo motor solution from JKONGMOTOR?

Provide the vehicle's total mass and payload, wheel diameter, target travel speed, maximum gradient, acceleration requirements, supply voltage, expected operating hours, environmental conditions, communication interface, and available installation space. Include the preferred gearbox arrangement, encoder requirements, connector details, and any braking or safety-function requirements. These details help JKONGMOTOR evaluate a suitable configuration and determine what needs to be verified during prototype testing.
