Top Precision Planetary Geared Stepper Motor Solution Provider In China

OEM ODM Customized Geared Stepper Motor Control Manufacturer / Solution Provider Since 2011

A planetary gear system, also known as an epicyclic gear system, consists of spur gears arranged in a specific configuration. In this setup, a central gear, referred to as the sun gear, functions as the primary input and driving gear. Surrounding the sun gear are three or more planet gears, which rotate around it as part of the planetary gearbox. These planet gears engage with an inner ring gear, forming an internal spur gear design.



The design of planetary gear trains allows for a very robust and durable system, as the planet gears are evenly spaced around the sun gear. This arrangement distributes the load effectively, enhancing strength and reliability. Additionally, a notable advantage of planetary gearsets is their adaptability; modifying the gear ratio is straightforward and can be accomplished by simply swapping the carrier and sun gears.



Professional OEM/ODM Geared Stepper Motor Manufacturing

By integrating a high-precision planetary gearbox directly with a stepper motor, we achieve significantly higher torque output within a minimal footprint. Unlike standard motors, our planetary system distributes the load over multiple gears, ensuring durability and power density.



Geared Stepper Motor OEM/ODM Customized Solutions for Precision Motion Control Systems

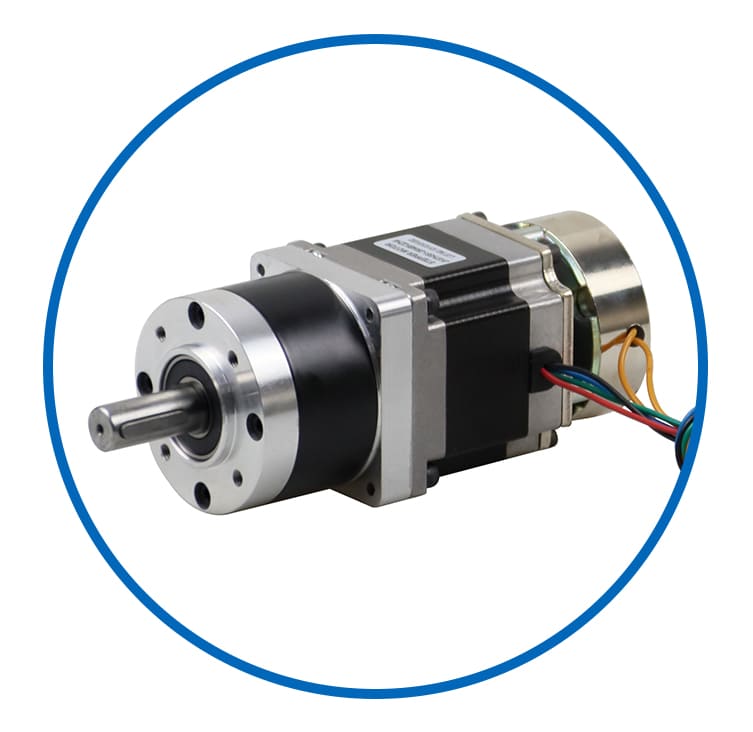

planetary geared stepper motor manufacturer
Gearbox + Brake

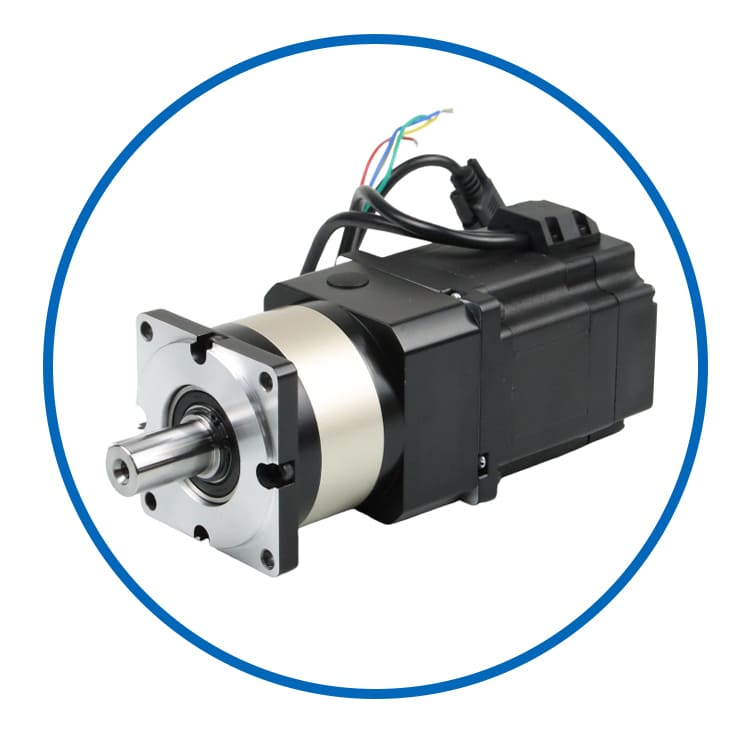

stepper motor with gearbox
Gearbox + Encoder

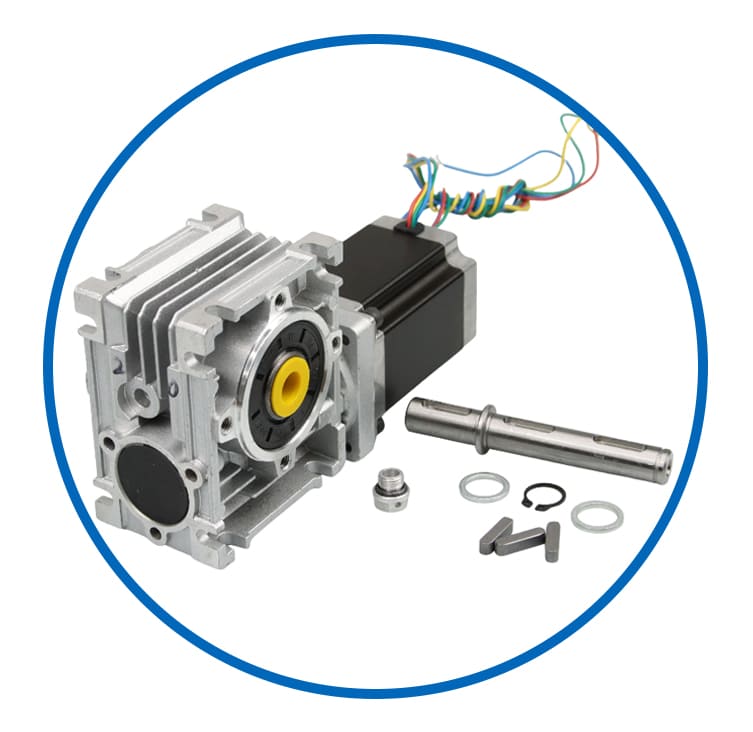

worm geared stepper motor
Worm Gearbox

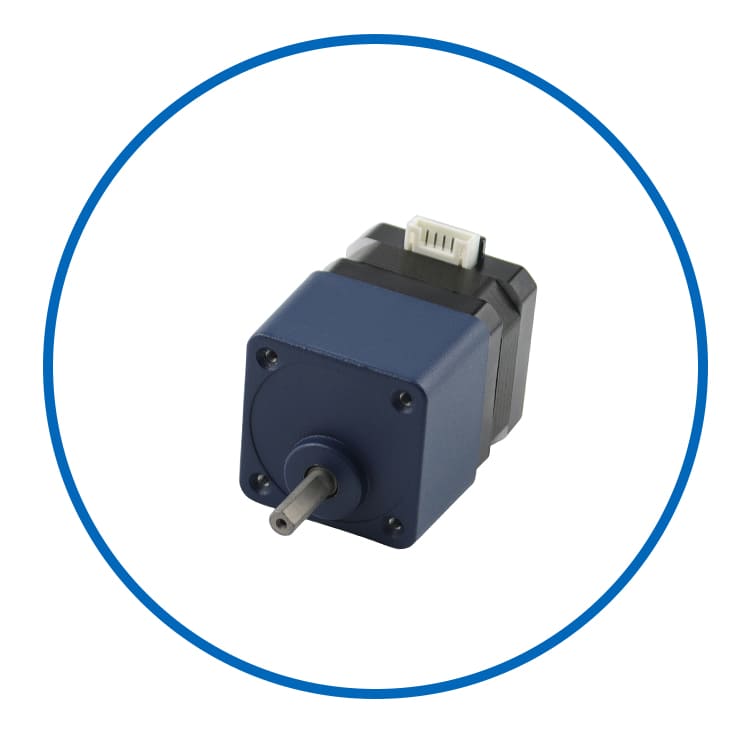

eccentric geared stepper motor supplier
Eccentric Gearbox
stepper motor with integrated driver
Built-In Driver
We specialize in modular design architecture. Whether you need a NEMA 17, 23, or 34 frame size, our factory can quickly swap gear ratios and motor windings to match your specific torque and speed requirements, accelerating your time-to-market.
nema 17 stepper motor with planetary gearbox

42HS Nema 17 42x42mm High Precision Planetary Geared Stepper Motor With Gearbox

Stepper motor, high torque, low noise, smooth type, step angle: 1.8° or 0.9°, NEMA17, 42x42mm
Planetary Gearbox Head: HPR-Round Head / HPS-Square Head
Gear Ratio: 1 Stage: 4/5/10:1
2 Stage: 20/25/50/100:1
Optional: Lead-wires, gearbox, encoder, brake, integrated drivers...
Model Gearbox Step Angle Phase Shaft Wires Body Length Shaft Dia Shaft Length Current Resistance Inductance Holding Torque Leads No. Rotor Inertia Weight
/ (°) / / / (L)mm mm  mm A Ω mH N.cm No. g.cm2 Kg
JK42HS25-0404 HPR42-L 1.8 2 Round Lead wire 25 5 10 0.4 24 36 15 4 20 0.15
JK42HS25-0404 HPR42-LSW 1.8 2 Round Lead wire 25 5 24 0.4 24 36 15 4 20 0.15
JK42HS25-0404 HPS42-L 1.8 2 Round Lead wire 25 5 10 0.4 24 36 15 4 20 0.15
JK42HS25-0404 HPS42-LSW 1.8 2 Round Lead wire 25 5 24 0.4 24 36 15 4 20 0.15
JK42HS28-0504 HPR42-L 1.8 2 Round Lead wire 28 5 10 0.5 20 21 18 4 24 0.22
JK42HS28-0504 HPR42-LSW 1.8 2 Round Lead wire 28 5 24 0.5 20 21 18 4 24 0.22
JK42HS28-0504 HPS42-L 1.8 2 Round Lead wire 28 5 10 0.5 20 21 18 4 24 0.22
JK42HS28-0504 HPS42-LSW 1.8 2 Round Lead wire 28 5 24 0.5 20 21 18 4 24 0.22
JK42HS34-1334 HPR42-L 1.8 2 Round Lead wire 34 5 10 1.33 2.1 2.5 26 4 34 0.22
JK42HS34-1334 HPR42-LSW 1.8 2 Round Lead wire 34 5 24 1.33 2.1 2.5 26 4 34 0.22
JK42HS34-1334 HPS42-L 1.8 2 Round Lead wire 34 5 10 1.33 2.1 2.5 26 4 34 0.22
JK42HS34-1334 HPS42-LSW 1.8 2 Round Lead wire 34 5 24 1.33 2.1 2.5 26 4 34 0.22
JK42HS34-0956 HPR42-L 1.8 2 Round Lead wire 34 5 10 0.95 4.2 2.5 22 6 34 0.22
JK42HS34-0956 HPR42-LSW 1.8 2 Round Lead wire 34 5 24 0.95 4.2 2.5 22 6 34 0.22
JK42HS34-0956 HPS42-L 1.8 2 Round Lead wire 34 5 10 0.95 4.2 2.5 22 6 34 0.22
JK42HS34-0956 HPS42-LSW 1.8 2 Round Lead wire 34 5 24 0.95 4.2 2.5 22 6 34 0.22
JK42HS40-1206 HPR42-L 1.8 2 Round Lead wire 40 5 10 1.2 3 2.7 32 6 54 0.28
JK42HS40-1206 HPR42-LSW 1.8 2 Round Lead wire 40 5 24 1.2 3 2.7 32 6 54 0.28
JK42HS40-1206 HPS42-L 1.8 2 Round Lead wire 40 5 10 1.2 3 2.7 32 6 54 0.28
JK42HS40-1206 HPS42-LSW 1.8 2 Round Lead wire 40 5 24 1.2 3 2.7 32 6 54 0.28
JK42HS40-1704 HPR42-L 1.8 2 Round Lead wire 40 5 10 1.7 1.5 2.3 42 4 54 0.28
JK42HS40-1704 HPR42-LSW 1.8 2 Round Lead wire 40 5 24 1.7 1.5 2.3 42 4 54 0.28
JK42HS40-1704 HPS42-L 1.8 2 Round Lead wire 40 5 10 1.7 1.5 2.3 42 4 54 0.28
JK42HS40-1704 HPS42-LSW 1.8 2 Round Lead wire 40 5 24 1.7 1.5 2.3 42 4 54 0.28
JK42HS48-1206 HPR42-L 1.8 2 Round Lead wire 48 5 10 1.2 3.3 2.8 40 6 68 0.35
JK42HS48-1206 HPR42-LSW 1.8 2 Round Lead wire 48 5 24 1.2 3.3 2.8 40 6 68 0.35
JK42HS48-1206 HPS42-L 1.8 2 Round Lead wire 48 5 10 1.2 3.3 2.8 40 6 68 0.35
JK42HS48-1206 HPS42-LSW 1.8 2 Round Lead wire 48 5 24 1.2 3.3 2.8 40 6 68 0.35
JK42HS48-1684 HPR42-L 1.8 2 Round Lead wire 48 5 10 1.68 1.65 2.8 44 4 68 0.35
JK42HS48-1684 HPR42-LSW 1.8 2 Round Lead wire 48 5 24 1.68 1.65 2.8 44 4 68 0.35
JK42HS48-1684 HPS42-L 1.8 2 Round Lead wire 48 5 10 1.68 1.65 2.8 44 4 68 0.35
JK42HS48-1684 HPS42-LSW 1.8 2 Round Lead wire 48 5 24 1.68 1.65 2.8 44 4 68 0.35
JK42HS60-1206 HPR42-L 1.8 2 Round Lead wire 60 5 10 1.2 6 7 56 6 102 0.55
JK42HS60-1206 HPR42-LSW 1.8 2 Round Lead wire 60 5 24 1.2 6 7 56 6 102 0.55
JK42HS60-1206 HPS42-L 1.8 2 Round Lead wire 60 5 10 1.2 6 7 56 6 102 0.55
JK42HS60-1206 HPS42-LSW 1.8 2 Round Lead wire 60 5 24 1.2 6 7 56 6 102 0.55
JK42HS60-1704A HPR42-L 1.8 2 D-cut Connector 60 5 10 1.7 3 6.2 73 4 102 0.55
JK42HS60-1704A HPR42-LSW 1.8 2 D-cut Connector 60 5 24 1.7 3 6.2 73 4 102 0.55
JK42HS60-1704A HPS42-L 1.8 2 D-cut Connector 60 5 10 1.7 3 6.2 73 4 102 0.55
JK42HS60-1704A HPS42-LSW 1.8 2 D-cut Connector 60 5 24 1.7 3 6.2 73 4 102 0.55

NEMA 17 JK-HPR42 L / LSW Series High Precision Planetary Gearbox Specification

Model / JK-HPR42-L1 JK-HPR42-L2 JK-HPR42-L1SW JK-HPR42-L2SW
Gear Ratio / 3 4 5 7 10 15 16 20 25 28 30 35 40 45 50 70 100 3 4 5 7 10 15 16 20 25 28 30 35 40 50 70 100
Gear Trains / 1 2 1 2
Gearbox Length mm 61.5 72.5 76.5 87.5
Rated Torque N.m 8 9 9 5 5 10 12 12 10 10 10 10 10 10 10 10 5 8 9 9 5 5 10 12 12 10 10 12 10 10 10 10 5
Sundden Stop Torque N.m 16 18 18 10 10 20 24 24 20 20 20 20 20 20 20 20 10 16 18 18 10 10 20 24 24 20 20 24 20 20 20 20 10
Back Lash arcmin ≤15 arcmin ≤20 arcmin ≤15 arcmin ≤20 arcmin
Efficiency % 96 94 96 94
Suitable Motor Dimension mm Φ5-10 / Φ22-2 / F31-M3Φ5-10 / Φ22-2 / F31-M3 Φ5-24 / Φ22-2 / F31-M3
Rated Input Speed rpm 3000
Max Input Speed rpm 6000
Average Life Span h 20000
Axial Force N 100
Radial Force N 300
Noise dB ≤55
Protection Level IP IP54
Work Temp. ℃ -20 to + 150
Out Shaft Type / Key Shaft Type

NEMA 17 JK-HPR42 L / LSW Series High Precision Planetary Gearbox Specification

Model / JK-HPS42-L1 JK-HPS42-L2 JK-HPS42-L1SW JK-HPS42-L2SW
Gear Ratio / 4 5 7 10 16 20 25 28 30 35 40 45 50 70 4 5 7 10 16 20 25 28 30 35 40 50 70
Gear Trains / 1 2 1 2
Gearbox Length mm 60 71 75 86
Rated Torque N.m 9 9 5 5 12 12 10 10 10 10 10 10 10 10 9 9 5 5 12 12 10 10 12 10 10 10 10
Sundden Stop Torque N.m 18 18 10 10 24 24 20 20 20 20 20 20 20 20 18 18 10 10 24 24 20 20 24 20 20 20 20
Back Lash arcmin ≤15 arcmin ≤20 arcmin ≤15 arcmin ≤20 arcmin
Efficiency % 96 94 96 94
Suitable Motor Dimension mm Φ5-10 / Φ22-2 / F31-M3 Φ5-24 / Φ22-2 / F31-M3
Rated Input Speed rpm 3000
Max Input Speed rpm 6000
Average Life Span h 20000
Axial Force N 100
Radial Force N 300
Noise dB ≤55
Protection Level IP IP54
Work Temp. ℃ -20 to + 150
Out Shaft Type / Key Shaft Type
nema 23 planetary gearbox

57HS Nema 23 57x57mm High Precision Planetary Geared Stepper Motor With Gearbox

Stepper motor, high torque, low noise, smooth type, step angle: 0.9° or 1.2° or 1.8° NEMA23, 57x57mm
Gear Ratio: 1 Stage: 3/4/5/7/10:1
2 Stage: 16/20/25/28/30/35/40/50/70/100:1
Optional: Lead-wires, gearbox, encoder, brake, integrated drivers...
Model Gearbox Step Angle Phase Shaft Type Body Length Shaft Dia Shaft Length Current Resistance Inductance Holding Torque Leads No. Rotor Inertia Weight
/ (°) / / (L) mm mm mm A Ω mH Nm No. g.cm2 Kg
JK57HS41-2804 HPR/HPS60-L 1.8 2 Round 41 8 14.5 2.8 0.7 1.4 0.55 4 150 0.47
JK57HS41-2804 HPR/HPS60-LSW 1.8 2 Round 41 8 21 2.8 0.7 1.4 0.55 4 150 0.47
JK57HS51-2804 HPR/HPS60-L 1.8 2 Round 51 8 14.5 2.8 0.83 2.2 1.01 4 230 0.59
JK57HS51-2804 HPR/HPS60-LSW 1.8 2 Round 51 8 21 2.8 0.83 2.2 1.01 4 230 0.59
JK57HS56-2804 HPR/HPS60-L 1.8 2 Round 56 8 14.5 2.8 0.9 2.5 1.26 4 280 0.68
JK57HS56-2804 HPR/HPS60-LSW 1.8 2 Round 56 8 21 2.8 0.9 2.5 1.26 4 280 0.68
JK57HS76-2804 HPR/HPS60-L 1.8 2 Round 76 8 14.5 2.8 1.1 3.6 1.89 4 440 1.1
JK57HS76-2804 HPR/HPS60-LSW 1.8 2 Round 76 8 21 2.8 1.1 3.6 1.89 4 440 1.1
JK57HS82-3004 HPR/HPS60-L 1.8 2 Round 82 8 14.5 3.0 1.2 4.0 2.1 4 600 1.2
JK57HS82-3004 HPR/HPS60-LSW 1.8 2 Round 82 8 21 3.0 1.2 4.0 2.1 4 600 1.2
JK57HS100-3004 HPR/HPS60-L 1.8 2 Round 100 8 14.5 3.0 0.75 3.0 3.0 4 700 1.3
JK57HS100-3004 HPR/HPS60-LSW 1.8 2 Round 100 8 21 3.0 0.75 3.0 3.0 4 700 1.3
JK57HS112-3004 HPR/HPS60-L 1.8 2 Round 112 8 14.5 3.0 1.6 7.5 3.0 4 800 1.4
JK57HS112-3004 HPR/HPS60-LSW 1.8 2 Round 112 8 21 3.0 1.6 7.5 3.0 4 800 1.4
JK57HS112-4204 HPR/HPS60-L 1.8 2 Round 112 8 14.5 4.2 0.9 3.8 3.1 4 800 1.4
JK57HS112-4204 HPR/HPS60-LSW 1.8 2 Round 112 8 21 4.2 0.9 3.8 3.1 4 800 1.4

NEMA 23 JK-HPR60 L Series Common Planetary Gearbox Specification

Model / JK-HPR/HPS60-L1 JK-HPR/HPS60-L2 JK-HPR/HPS60-L1SW JK-HPR/HPS60-L2SW
Gear Ratio / 3 4 5 7 10 16 20 25 28 30 35 40 50 70 100 3 4 5 7 10 16 20 25 28 30 35 40 50 70 100
Gear Trains / 1 2 1 2
Gearbox Length mm 92 108 100.3 112.8
Rated Torque N.m 16 25 28 20 10 30 30 32 30 30 30 25 25 20 10 16 25 28 20 10 30 30 32 30 30 30 25 25 20 10
Sundden Stop Torque N.m 32 50 56 40 20 60 60 64 60 60 60 50 50 40 20 32 50 56 40 20 60 60 64 60 60 60 50 50 40 20
Back Lash arcmin ≤15 arcmin ≤20arcmin ≤15 arcmin ≤20 arcmin
Efficiency % 96 94 96 94
Suitable Motor Dimension mm Φ8-14 / Φ38.1-2 / F47.4-M4 Φ8-30 / Φ38.1-2 / F47.14-M4
Rated Input Speed rpm 3000
Max Input Speed rpm 6000
Average Life Span h 20000
Axial Force N 230
Radial Force N 400
Noise dB ≤65
Protection Level IP IP54
Work Temp. ℃ -20 to + 150
Out Shaft Type / Key Shaft Type
nema 34 planetary gearbox

60HS Nema 24 60x60mm High Precision Planetary Geared Stepper Motor With Gearbox

Stepper motor, high torque, low noise, smooth type, step angle: 1.8° NEMA24, 60x60mm
Gear Ratio: 1 Stage: 3/4/5/7/10:1
2 Stage: 16/20/25/28/30/35/40/50/70/100:1
Optional: Lead-wires, gearbox, encoder, brake, integrated drivers...
Model Gearbox Step Angle Phase Wires Body Length Shaft Dia Shaft Length Current Resistance Inductance Holding Torque Leads No. Rotor Inertia Weight
/ (°) / / (L)mm mm mm A Ω mH Nm No. g.cm2 Kg
JK60HS56-2804 HPR/HPS60-L 1.8 2 Direct wire 56 8 14.5 2.8 0.9 3.6 1.65 4 300 0.77
JK60HS56-2804 HPR/HPS60-LSW 1.8 2 Direct wire 56 8 24 2.8 0.9 3.6 1.65 4 300 0.77
JK60HS67-2804 HPR/HPS60-L 1.8 2 Direct wire 67 8 14.5 2.8 1.2 4.6 2.1 4 570 1.2
JK60HS67-2804 HPR/HPS60-LSW 1.8 2 Direct wire 67 8 24 2.8 1.2 4.6 2.1 4 570 1.2
JK60HS88-2804 HPR/HPS60-L 1.8 2 Direct wire 88 8 14.5 2.8 1.5 6.8 3.1 4 840 1.4
JK60HS88-2804 HPR/HPS60-LSW 1.8 2 Direct wire 88 8 24 2.8 1.5 6.8 3.1 4 840 1.4
JK60HS100-2804 HPR/HPS60-L 1.8 2 Direct wire 100 8 14.5 2.8 1.6 6.4 4 4 980 1100
JK60HS100-2804 HPR/HPS60-LSW 1.8 2 Direct wire 100 8 24 2.8 1.6 6.4 4 4 980 1100
JK60HS111-2804 HPR/HPS60-L 1.8 2 Direct wire 111 8 14.5 2.8 2.2 8.3 4.5 4 1120 1200
JK60HS111-2804 HPR/HPS60-LSW 1.8 2 Direct wire 111 8 24 2.8 2.2 8.3 4.5 4 1120 1200

NEMA 24 JK-HPR60 L Series Common Planetary Gearbox Specification

Model / JK-HPR/HPS60-L1 JK-HPR/HPS60-L2 JK-HPR/HPS60-L1SW JK-HPR/HPS60-L2SW
Gear Ratio / 3 4 5 7 10 16 20 25 28 30 35 40 50 70 100 3 4 5 7 10 16 20 25 28 30 35 40 50 70 100
Gear Trains / 1 2 1 2
Gearbox Length mm 92 108 100.3 112.8
Rated Torque N.m 16 25 28 20 10 30 30 32 30 30 30 25 25 20 10 16 25 28 20 10 30 30 32 30 30 30 25 25 20 10
Sundden Stop Torque N.m 32 50 56 40 20 60 60 64 60 60 60 50 50 40 20 32 50 56 40 20 60 60 64 60 60 60 50 50 40 20
Back Lash arcmin ≤15 arcmin ≤20arcmin ≤15 arcmin ≤20 arcmin
Efficiency % 96 94 96 94
Suitable Motor Dimension mm Φ8-14 / Φ38.1-2 / F47.4-M4 Φ8-30 / Φ38.1-2 / F47.14-M4
Rated Input Speed rpm 3000
Max Input Speed rpm 6000
Average Life Span h 20000
Axial Force N 230
Radial Force N 400
Noise dB ≤65
Protection Level IP IP54
Work Temp. ℃ -20 to + 150
Out Shaft Type / Key Shaft Type
nema 34 planetary gearbox

86HS Nema 34 86x86mm High Precision Planetary Geared Stepper Motor With Gearbox

Stepper motor, low rotor inertia, large torque, fast acceleration, step angle: 1.8°, NEMA34, 86x86mm
Gear Ratio: 1 Stage: 4/5/7/10:1
2 Stage: 16/20/25/28/35/40/50/70:1
Optional: Lead-wires, gearbox, encoder, brake, integrated drivers...
Model Gearbox Step Angle Phase Shaft Type Wires Body Length Current Resistance Inductance Holding Torque Leads No. Rotor Inertia Weight
/ (°) / / / (L)mm A Ω mH Nm No. g.cm2 Kg
JK86HS78-6004 HPS90-LMB 1.8 2 Key Direct wire 78 6.0 0.37 3.4 4.6 4 1400 2.3
JK86HS115-6004 HPS90-LMB 1.8 2 Key Direct wire 115 6.0 0.6 6.5 8.7 4 2700 3.8
JK86HS126-6004 HPS90-LMB 1.8 2 Key Direct wire 126 6.0 0.58 6.5 9.5 4 3200 4.5
JK86HS155-6004 HPS90-LMB 1.8 2 Key Direct wire 155 6.0 0.68 9.0 13.0 4 4000 5.4

NEMA 34 JK- HPS90 LMB Series High Precision Planetary Gearbox Specification

Model / JK-HPS90-L1MB JK-HPS90-L2MB
Gear Ratio / 4 5 7 10 16 20 25 28 35 40 50 70
Gear Trains / 1 2
Gearbox Length mm 150 172.5
Rated Torque N.m 80 90 60 39 90 90 100 90 100 90 100 70
Sundden Stop Torque N.m 160 180 120 78 180 180 200 180 200 180 200 140
Back Lash arcmin ≤10 arcmin ≤15 arcmin
Efficiency % 96 94
Suitable Motor Dimension mm Φ14-40 / Φ73-3 / F69.6-M5
Rated Input Speed rpm 3000
Max Input Speed rpm 6000
Average Life Span h 20000
Axial Force N 800
Radial Force N 1000
Noise dB ≤55
Protection Level IP IP54
Work Temp. ℃ -20 to + 150
Out Shaft Type / Key Shaft Type

Features:

  • Exceptional Torque Performance at Low Speeds
  • Ultra-Precise Positioning and Motion Control
  • Improved Load Inertia Matching
  • Compact Design with High Power Density
  • Enhanced Holding Torque
  • Greater Efficiency at Reduced Speeds
  • Customizable Gear Ratios for Application-Specific Needs
  • Superior Step Accuracy and Reduced Error Margin
  • Cost-Effective Precision Without Encoders
  • Durable and Long-Lasting

Custom Geared Stepper Motor Mechanical Structures for Equipment Integration

Our factory offers fully customizable output shafts (D-cut, keyed, or hollow) and specialized mounting flanges to ensure seamless integration into your existing mechanical assembly without the need for adapters
  • stepper moto manufacturer
    Cables
  • stepper moto manufacturer
    Covers
  • stepper moto manufacturer
    Shaft
  • stepper moto manufacturer
    Lead Screw
  • stepper moto manufacturer
    Encoders
  • stepper moto manufacturer
    Brakes
  • stepper moto manufacturer
    Gearboxes
  • stepper moto manufacturer
    Stepper Kits
  • stepper moto manufacturer
    Integrated Drivers
  • stepper moto manufacturer
    More
Multiple customisation requirements, ensuring your project is error-free.
  • Customized IP ratings to suit different operating environments.
  • A diverse range of gearboxes, varying in type and precision, offering multiple options for your project.
  • Our specialised expertise in all-in-one device manufacturing delivers professional technical support, making your projects more intelligent.
  • A stable supply chain ensures the quality and timeliness of every motor.
  • Manufacturing stepper motors with 20 years, Jkongmotor provide professional technical support and after-sales service.

Custom Geared Stepper Motors for Precision Motion Solutions

We also provide integrated motion control solutions. Our engineering team can pre-configure the planetary stepper motor with matching drivers and encoders, providing a "plug-and-play" system that reduces technical friction for your engineers.
  • Planetary Geared Stepper Motor
    Planetary Geared
  • Worm Geared Stepper Motor Supplier
    Worm Geared
  • Worm Geared Stepper Motors
    Worm Geared
  • Spur Geared Stepper Motors
    Spur Geared
  • Geared Stepper Motor with Encoder
    Gearbox + Encoder
  • Geared stepper motor with brake
    Gearbox + Brake
  • stepper motor with gearbox and brake
    Gearbox + Brake
  • integarted geared stepper motor
    Gearbox + Driver
  • geared stepper motor with built in driver
    Gearbox + Driver
  • Integrated stepper motor with gearbox
    Gearbox + Driver
Multiple customisation requirements, ensuring your project is error-free.
  • Multiple Gearbox Types for Different Load Requirements
  • Integrated Encoder for Closed-Loop Control
  • Built-in Brake for Safety and Position Holding
  • Application-Specific Mechanical Customization
  • Integrated Driver for Simplified System Design
  • Our specialised expertise in all-in-one device manufacturing delivers professional technical support, making your projects more intelligent.
  • Manufacturing stepper motors with 20 years, Jkongmotor provide professional technical support and after-sales service.

Multiple Gearbox Types for Different Load Requirements

Different gearbox structures can be selected to match the application's torque, efficiency, and self-locking needs.

  • Planetary Gearbox – High torque density and high efficiency for robotics and automation.
  • Worm Gearbox – Self-locking capability, ideal for lifting or holding loads.
  • Spur Gearbox – Cost-effective and simple structure for general motion control.

Factory Customization Process (Step-by-Step) for Motion Control Projects

With a decade of expertise, our R&D team offers profound OEM/ODM capabilities to solve specific industry challenges. From acoustic noise reduction to specialized lubrication for extreme temperatures, we collaborate closely with clients to develop differentiated products that stand out in the global market.
  • Application & Requirement Confirmation

    Prototype Development & Sample Build
    ▂▂

                · Equipment Type / Operating Conditions
                     · Load / Speed / Accuracy / Usage Frequency
                     · Installation Space / Protection Rating
                     · Certification Requirements (CE / RoHS / FDA / UL)
                     · Estimated Annual Usage / Project Phase
  • Technical Evaluation & Feasibility Study

    Technical Evaluation & Feasibility Study

    ▂▂
                        · Motor Selection or Structural Redesign
                        · Torque Calculation / Lifespan Assessment
                        · Critical Risk Points Explanation
                        · Cost Range and Delivery Time Evaluation
                        · Customization Level and Recommendations
  • Solution Proposal & Drawing Approval

    Solution Proposal & Drawing Approval

    ▂▂
                              · Recommended Motor Solution
                              · Key Parameters Table
                              · Outline Drawing / Installation Diagram
                              · Optional Configuration List
                              · Sample Lead Time & Test Plan
  • Prototype Development & Sample Build

    Prototype Development & Sample Build

    ▂▂
                       · Sample Production Schedule
                       · Critical Material Confirmation
                       · Sample Assembly
                       · Factory Testing
                       · Sample Documentation Package
  • Sample Testing & Application Validation

    Sample Testing & Application Validation

    ▂▂
                   · Performance Testing
                      · Lifetime and Stability Validation
                      · Customer Equipment Installation Testing
                      · Parameter Adjustment
                      · Secondary Sample Optimization

  • Pilot Order & Mass Production Preparation

    Pilot Order & Mass Production Preparation

    ▂▂
                        · Process Validation
                        · Critical Material Lockdown
                        · Quality Standard Documentation
                        · Inspection Specifications
                        · Packaging and Labeling Validation
  • Mass Production & Export Delivery

    Mass Production & Export Delivery

    ▂▂
                              · Mass Production Plan
                              · Batch Testing
                              · Aging Testing
                              · Final Inspection
                              · Documentation Support
  • After-Sales Support & Long-Term Supply

    After-Sales Support & Long-Term Supply

    ▂▂
                           · Technical Support
                           · Batch Traceability
                           · Spare Parts Solutions
                           · Cost Optimization
                           · New Project Collaborative Development

People Also Ask

A geared stepper motor combines the precision control of a stepper motor with the torque amplification of a gearbox, making it an ideal solution for modern motion control and automation systems. By reducing speed and increasing torque, geared stepper motors provide stable performance in applications such as robotics, CNC machinery, medical devices, packaging equipment, and industrial automation. With multiple gearbox options—including planetary, spur, worm, and helical—manufacturers can customize geared stepper motor solutions to meet specific torque, precision, and efficiency requirements across a wide range of industries.
Geared stepper motor supplier

  • Can you use a stepper motor as a DC motor?

    A stepper motor cannot function like a traditional DC motor because it requires a dedicated stepper driver that sends pulse signals to control each step of rotation. However, with the correct controller and driver, it can achieve precise speed and position control in many automation systems.

  • What is the difference between a stepper motor and a gear motor?

    A stepper motor rotates in discrete steps and is designed for precise positioning control. A gear motor focuses on torque multiplication using gears. When combined, a geared stepper motor provides both accurate positioning and higher torque output.

  • What are the different types of gearbox in stepper motor systems?

    Stepper motors can be paired with different gearbox types depending on the application, including:

    • Planetary gearboxes for high precision motion control

    • Spur gearboxes for economical speed reduction

    • Worm gearboxes for high torque and self-locking

    • Helical gearboxes for smooth and quiet performance

  • What are the 4 types of gearboxes?

    The four common types of gearboxes used in motors include:

    • Planetary gearbox – high torque density and precision

    • Spur gearbox – simple structure and cost-effective

    • Worm gearbox – high reduction ratio and self-locking capability

    • Helical gearbox – smooth operation and high efficiency

  • Which is better: brushless DC motor or stepper motor?

    Both motors have unique advantages. Brushless DC motors (BLDC) are more efficient and suitable for high-speed continuous operation. Stepper motors provide precise position control without feedback systems. For applications requiring accurate positioning and holding torque, stepper motors are often preferred.

  • What is the difference between a gear motor and a normal motor?

    A normal motor converts electrical energy into mechanical rotation without speed reduction. A gear motor integrates a gearbox with the motor to reduce speed and increase torque. This makes gear motors more suitable for applications that require controlled movement and higher load capacity.

  • What are geared motors used for?

    Geared motors are widely used in industries where high torque and controlled speed are required. Common applications include:

    • Robotics and automation systems

    • Conveyor equipment

    • Medical instruments

    • Packaging and labeling machines

    • CNC machinery

    • AGV and mobile robots

  • Which is better: stepper motor or gear motor?

    It depends on the application. A stepper motor provides precise stepstepper motor** provides precise step-by-step motion control and is ideal for positioning systems. A gear motor focuses on torque amplification and speed reduction. A geared stepper motor combines the advantages of both, delivering high torque with accurate positioning, making it suitable for automation and motion control systems.

  • What are the main advantages and disadvantages of gear motors?

    Advantages:

    • Higher torque output

    • Lower operating speed with better control

    • Improved efficiency in load-driven applications

    • Compact power transmission solution

    Disadvantages:

    • Additional mechanical complexity

    • Possible backlash in the gearbox

    • Increased cost compared to standard motors

    • Gear wear over long-term operation

  • Do stepper motors have gears?

    Standard stepper motors typically operate without gears, but they can be paired with external gearboxes to form a geared stepper motor. Adding gears helps increase torque output, improve positioning accuracy, and reduce the motor’s output speed for applications requiring controlled and powerful movement.

  • What is a geared stepper motor?

    A geared stepper motor is a stepper motor combined with a gearbox that reduces output speed while increasing torque. The gearbox allows the motor to deliver higher torque and more precise motion control, making it ideal for applications such as robotics, automation equipment, CNC machines, medical devices, and industrial positioning systems.

Comprehensive Testing Capability for Reliable Motor Performance

Every planetary geared stepper motor undergoes rigorous testing, including noise checks, torque verification, and backlash measurement. Our ISO-certified facility ensures that every custom solution meets international standards for reliability and efficiency.
  • Coordinate Measuring Machine
    Coordinate Measuring Machine
  • 2D Image Testing Machine
    2D Image Testing Machine
  • Constant Temperature and Humidity Chamber
    Vibration Testing Equipment
  • 防水试验箱
    Waterproof Test Chamber
  • Image measuring instrument
    Image Measuring Instrument
  • Salt Spray Corrosion Test Chamber
    Salt Spray Corrosion Test Chamber
  • High and Low Temperature Humidity Test Chamber
    Temperature Humidity Test Chamber
  • Comprehensive Tester
    Comprehensive Testing Machine

Automated Manufacturing Capability for Custom Geared Stepper Motors

JKONGMOTOR leverages its 7,000sqm manufacturing facility and automated production lines to deliver premium quality at competitive prices. Our vertical supply chain integration ensures that every planetary geared motor meets strict quality standards while offering the best value for your investment.


Why Choose Our Gearbox Stepper Motor Manufacturing Solutions

We pride ourselves on providing responsive global technical support. From initial sizing and selection to post-sale troubleshooting, our expert engineers are dedicated to ensuring your project’s success. With exports to over 30 countries, JKONGMOTOR is your trusted global partner for precision motion control.

High Torque Output for Demanding Industrial Applications

Through precision tooth grinding and optimized gear geometry, our planetary geared motors achieve whisper-quiet operation. This makes them the preferred choice for medical, laboratory, and high-end office automation where noise pollution must be minimized.

Get Updated Article And News

—— OEM ODM Customized Intelligent Integrated BLDC / Steper Motion Control Manufacturer / Solution Provider Since 2011 ——

Backed by over 15 years of experience as a professional motor manufacturer, our blog shares up-to-date industry insights, proven best practices, advanced engineering strategies, and innovative concepts drawn from real manufacturing experience.
stepper motor supplier (85).jpg
[Stepper Motor] Mar 30,2026
How To Choose Best Stepper Motor Manufacturers in India?

Choosing the right stepper motor OEM ODM customized manufacturer requires evaluating torque, precision, customization capability, and R&D strength. Reliable suppliers offer integrated solutions with flexible configurations, ensuring high performance, stable quality, and efficient delivery for divers

READ MORE

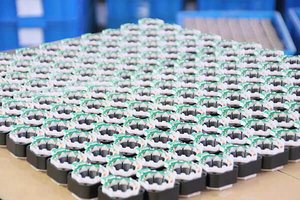

stepper motor supplier (15).jpg
[Stepper Motor] Feb 28,2026
How To Choose Best NEMA 11 Stepper Motor Manufacturers in United States 2026

A NEMA 11 stepper motor is a compact, precision motion solution ideal for small automation, medical, and robotic applications, with performance defined by step angle, torque, and mechanical integration. Choosing a manufacturer with strong OEM ODM customized capabilities ensures tailored shaft config

READ MORE

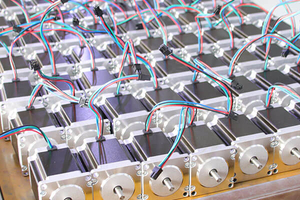

stepper motor companies (24).jpg
[Stepper Motor] Feb 25,2026
How To Choose Reliable Suppliers for Brake Stepper Motors in United States?

A brake stepper motor OEM ODM customized solution combines precision motor performance with tailored brake mechanisms, enhanced safety, and application-specific adaptability, backed by a manufacturer’s engineering expertise, strict quality controls, and flexible production capabilities.The United St

READ MORE

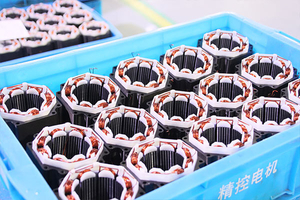

stepper motor supplier (47).jpg
[Stepper Motor] Feb 24,2026
How to Choose Reliable Stepper Motor Manufacturers in India?

A reliable stepper motor OEM ODM customized manufacturer should offer robust production capacity, stringent quality assurance, broad customization options (mechanical, electrical, and protocol), and strong technical support to meet specific application requirements in industrial automation, robotics

READ MORE

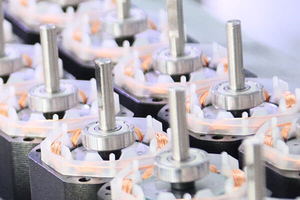

stepper motor supplier (61).jpg
[Stepper Motor] Feb 10,2026
What Is The Difference Between A Stepper Motor And A Normal Motor?

Stepper motors differ from normal motors in that they move incrementally for precise positioning, while normal motors deliver continuous rotation; and OEM/ODM customized motors enable tailored performance, integration features, and optimized system fit for industrial applications.Understanding the d

READ MORE

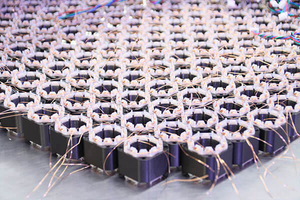

stepper motor supplier (49).jpg
[Stepper Motor] Feb 04,2026
How Many Wires Does A Stepper Motor Have?

High-precision stepper motors can have 2 to 8 wires depending on winding design, and JKongmotor’s OEM-ODM customized service supports tailored wiring, connectors, sizes, encoders, gearboxes, integrated drivers, environmental protection, and factory-level engineering to meet specific industrial motio

READ MORE

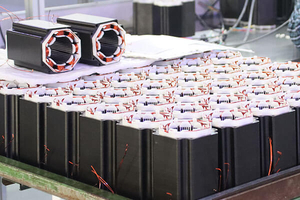

stepper motor supplier (22).jpg
[Stepper Motor] Feb 03,2026
How Does a Stepper Motor Work in Short?

A stepper motor converts electrical pulses into precise incremental motion through controlled coil energizing for accurate positioning, and OEM/ODM customized stepper motors offer tailored designs (e.g., shafts, housings, gearboxes, encoders) that optimize performance, integration, and reliability f

READ MORE
stepper motor supplier (49).jpg
[Stepper Motor] Feb 03,2026
What’s the Difference Between Servo Motors and Stepper Motors?

Stepper motors and servo motors differ mainly in motion control, feedback, torque, speed, and precision: steppers use open-loop steps for cost-effective positioning, while servos use closed-loop feedback for high-performance motion. Both types can be OEM/ODM customized — including size, gearing, fee

READ MORE

Answers to Common Queries about Jkongmotor

—— OEM ODM Customized Intelligent Integrated BLDC / Steper Motion Control Manufacturer / Solution Provider Since 2011 ——
  • 1. What is a stepper motor with a planetary gearbox and how does it work?
    加 Created with Sketch.
    形状 Created with Sketch.
    A stepper motor with a planetary gearbox integrates a precision planetary gear reducer with a stepper motor. The motor drives the sun gear, and the planetary gear system reduces speed while multiplying torque for precise motion control.
  • 2. What are the main advantages of using a planetary gearbox with a stepper motor?
    加 Created with Sketch.
    形状 Created with Sketch.
    Advantages include compact size, high torque density, low backlash, even load distribution, high efficiency, and improved positioning accuracy for precision applications.
  • 3. What gear ratios are available for planetary gearbox stepper motors?
    加 Created with Sketch.
    形状 Created with Sketch.
    Planetary gearbox stepper motors typically support gear ratios ranging from 3:1 up to 100:1 or even 216:1, depending on design and application requirements.
  • 4. What NEMA sizes and step angles are supported?
    加 Created with Sketch.
    形状 Created with Sketch.
    Common options include NEMA 17, NEMA 23, and NEMA 34 stepper motors, with standard step angles of 1.8° or 0.9° for higher resolution motion control.
  • 5. How does a planetary gearbox improve torque and load handling?
    加 Created with Sketch.
    形状 Created with Sketch.
    By reducing output speed through gear reduction, the planetary gearbox increases output torque, enabling the motor to handle heavier loads and higher inertia.
  • 6. Does a planetary gearbox affect positioning accuracy and backlash?
    加 Created with Sketch.
    形状 Created with Sketch.
    Yes, low-backlash planetary gearboxes combined with microstepping control enhance positioning accuracy, repeatability, and overall motion precision.
  • 7. Are planetary gearbox stepper motors suitable for low-speed precision applications?
    加 Created with Sketch.
    形状 Created with Sketch.
    Yes, they are especially suitable for low-speed, high-precision applications, offering smooth motion, stable torque, and accurate positioning.
  • 8. What efficiency, noise level, and lifespan can be expected?
    加 Created with Sketch.
    形状 Created with Sketch.
    High-quality planetary gearboxes typically achieve efficiency above 90%, operate with relatively low noise, and offer long service life under normal operating conditions.
  • 9. Can planetary gearbox stepper motors be customized?
    加 Created with Sketch.
    形状 Created with Sketch.
    Yes, OEM/ODM customization is available, including gear ratio selection, motor size, shaft type, mounting structure, encoders, brakes, and other integrated accessories.
  • 10. What are typical applications, MOQ, and delivery times?
    加 Created with Sketch.
    形状 Created with Sketch.
    These motors are widely used in robotics, CNC machines, automation systems, medical devices, semiconductor equipment, and precision positioning systems. MOQ and delivery times depend on customization level and should be confirmed with the manufacturer.
Contact us
Choose File

    *Please upload only jpg, png, pdf, dxf, dwg files. Size limit is 25MB.

    Leading Stepper Motors & Brushless Motors Manufacturer
    whatsapp
    wechat-jkong
    Products
    Application
    Links

    © COPYRIGHT 2025 CHANGZHOU JKONGMOTOR CO.,LTD ALL RIGHTS RESERVED.
