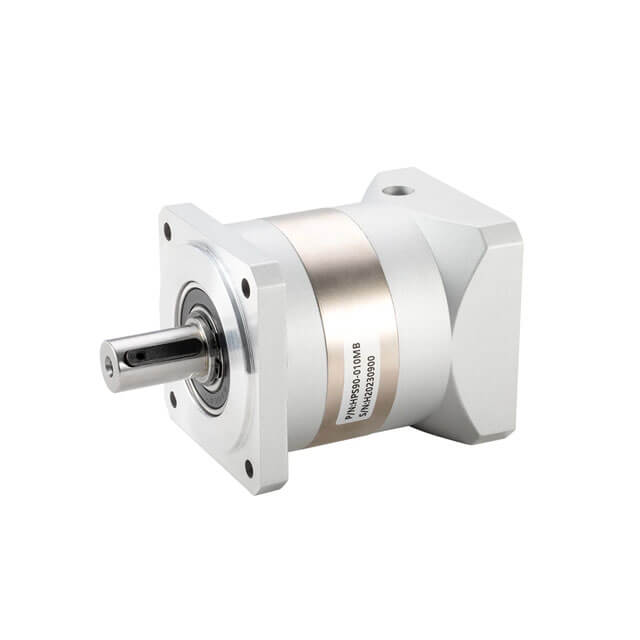

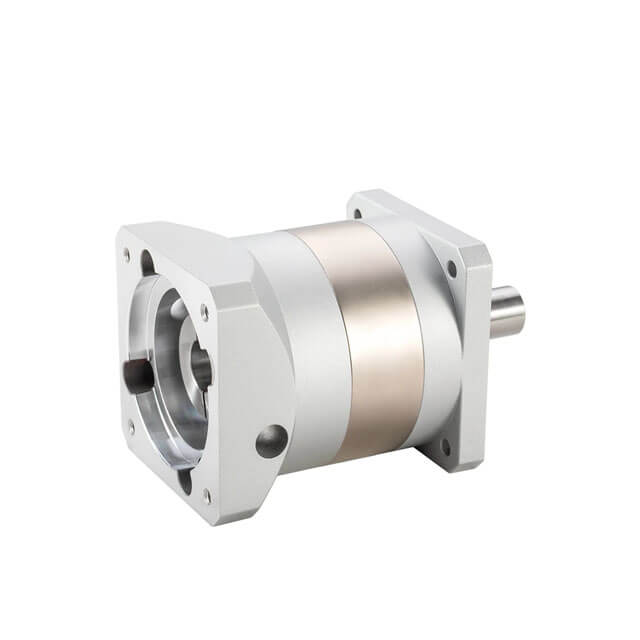

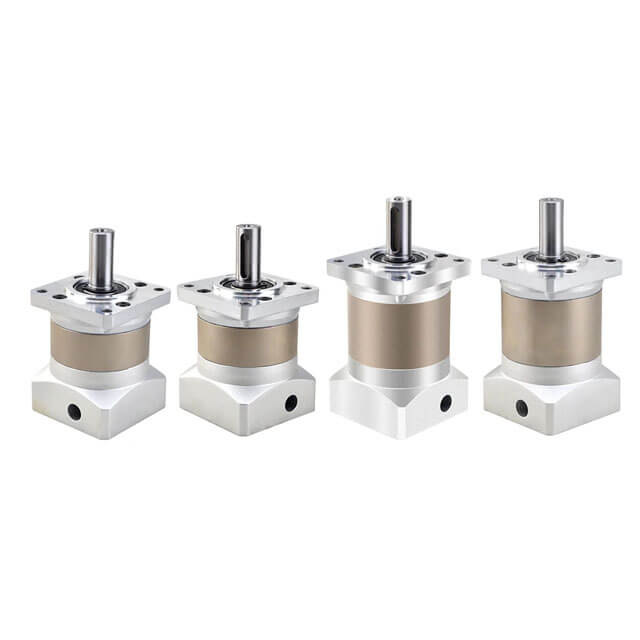

JK-HPS90 Series High Precision Planetary Gearbox for Nema 34 Stepper & Bldc Motor Gear Ratio: 4/5/7/10/16/20/25/28/35/40/50/70:1

The size of this gearbox is 90 x 90mm and the input shaft diameter is 14 mm. This high-precision planetary gearbox is belong to HPS series gearbox, it with gear ratio 4:1 / 5:1 / 7:1 / 10:1/ 16:1 / 20:1 / 25:1 / 28:1 / 35:1 / 40:1  / 50:1 / 70:1 and a maximum 15arc-min~20arc-min backlash. It's an excellent choice for applications that require good accuracy and reliability at an exceptional value. This inline planetary gearbox built-in an input shaft coupling which can match any standard Nema 34 stepper motor and brushless dc motor.

Gearbox Specifications:

• Model: JK-HPS90-LMB Series

• Gearbox Type: Planetary Gearbox

• Gear Ratio: 4:1 / 5:1 / 7:1 / 10:1/ 16:1 / 20:1 / 25:1 / 28:1 / 35:1 / 40:1  / 50:1 / 70:1

• Efficiency: 96% / 94%

• Backlash: ≤15 arcmin - 20 arcmin

• Rated Torque: 39N.m - 100N.m

• Sundden Stop Torque: 78N.m - 200N.m

• Shaft Maximum Axial Load: 800N

• Shaft Maximum Radial Load: 1000N

• Rated Input Speed: 3000rpm

• Max Input Speed: 6000rpm

• Average Life Span: 20000h

• Noise: ≤55dB

• Protection Level: iP54

Physical Specifications:

• Gearbox Length: L: 150mm / 172.5mm

• Gearbox Shaft Diameter: Φ20mm

• Gearbox Shaft Length: 40mm

• Gearbox Key Length: 30mm

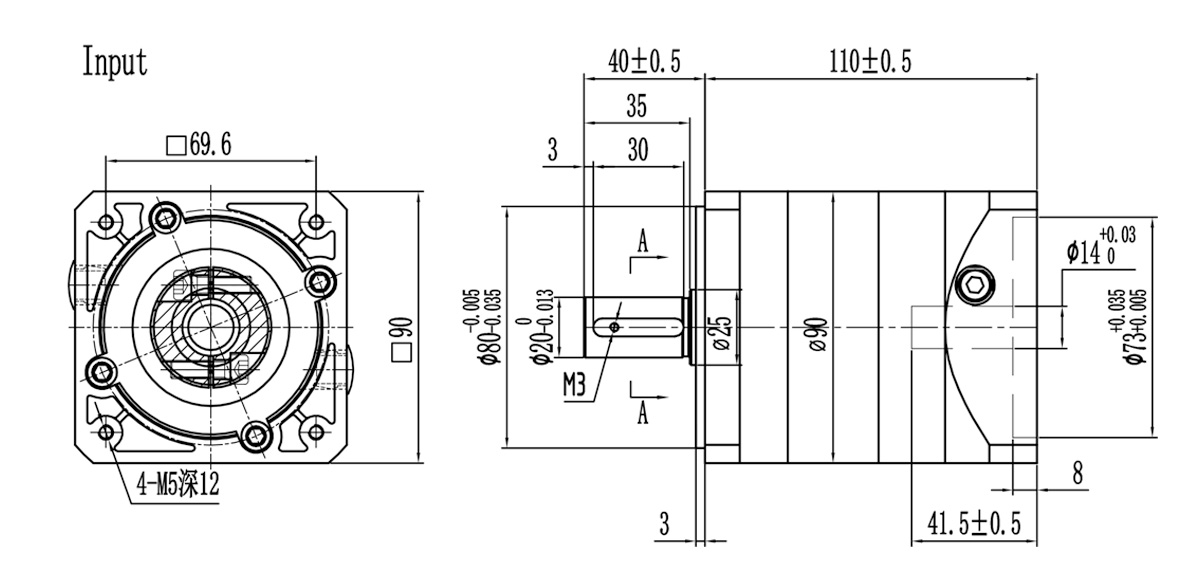

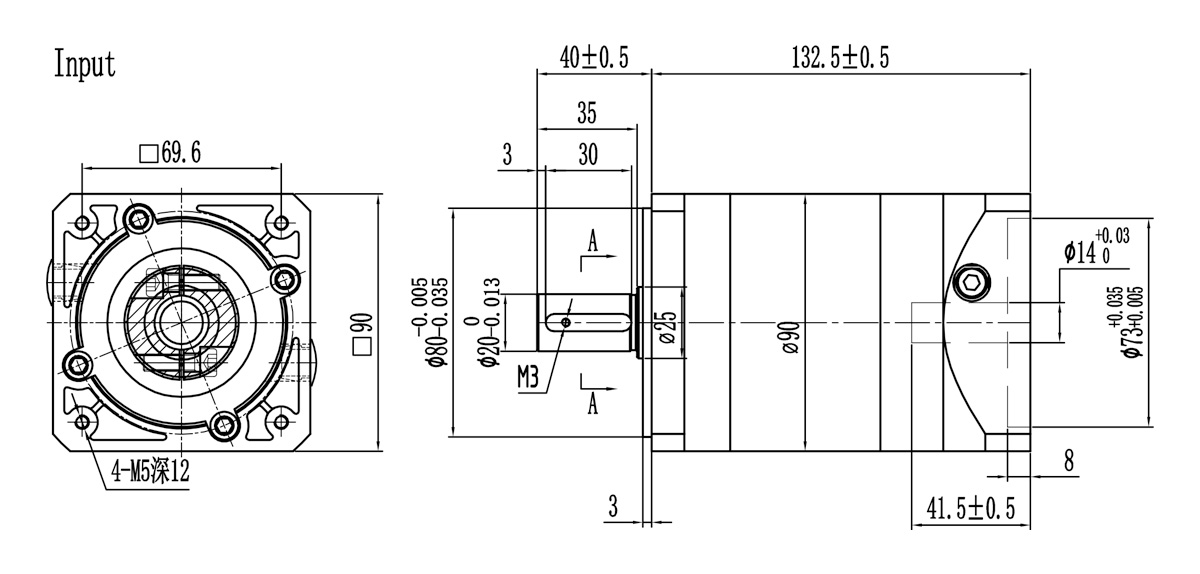

• JK-HPS90-L1MB /L2MB Weight: 2.9kg / 3.7kg
