Top 20 Stepper Motor Manufacturers in India (2026 Updated Guide)

Stepper motors have become one of the most important motion control components in modern automation systems. From CNC machines, 3D printers, medical equipment, packaging machines, robotics, semiconductor equipment, textile machinery, and industrial automation systems, stepper motors provide accurate positioning, reliable torque output, and cost-effective motion solutions.

With the rapid growth of manufacturing automation in India, more companies are searching for reliable stepper motor manufacturers in India, especially suppliers that can provide not only standard motors but also customized OEM and ODM stepper motor solutions.

Choosing the right stepper motor manufacturer is not only about product price. Engineers and purchasing managers usually consider factors such as:

• Motor precision and repeatability

• Torque performance

• Product reliability and lifespan

• Customization capability

• Technical support

• Delivery capability

• Global export experience

• Compatibility with drivers, gearboxes, and controllers

This article introduces the Top 20 Stepper Motor Manufacturers in India and global suppliers serving the Indian market, including company profiles, main products, advantages, and selection considerations.

What Is a Stepper Motor?

A stepper motor is a type of brushless DC motor that converts electrical pulses into precise mechanical movement. Unlike conventional motors that rotate continuously, stepper motors move in fixed angular steps, allowing accurate control of position and speed without requiring a feedback system in many applications.

A typical stepper motor consists of:

• Stator with electromagnetic coils

• Permanent magnet or toothed rotor

• Motor shaft

• Bearings

• Connection terminals

• Optional encoder or gearbox

When the driver sends electrical pulses to the motor phases, the rotor moves step-by-step according to the pulse frequency.

For example:

• One pulse = one movement step

• Higher pulse frequency = higher speed

• More current = higher torque capability

This simple control principle makes stepper motors widely used in automation equipment requiring accurate positioning.

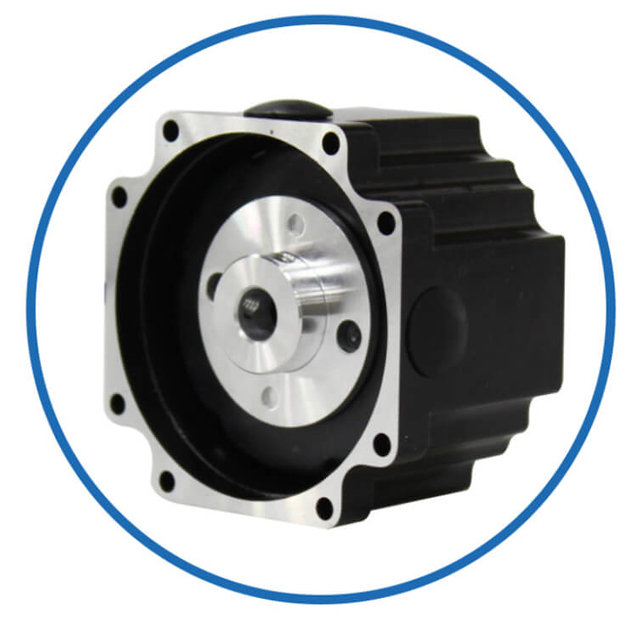

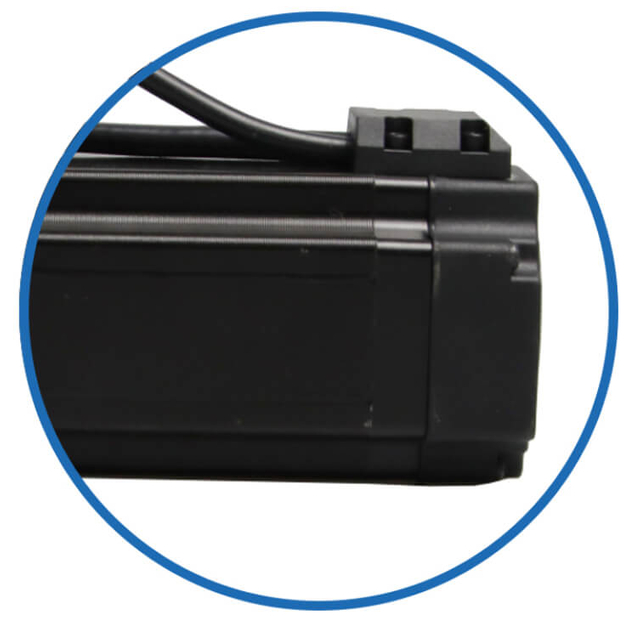

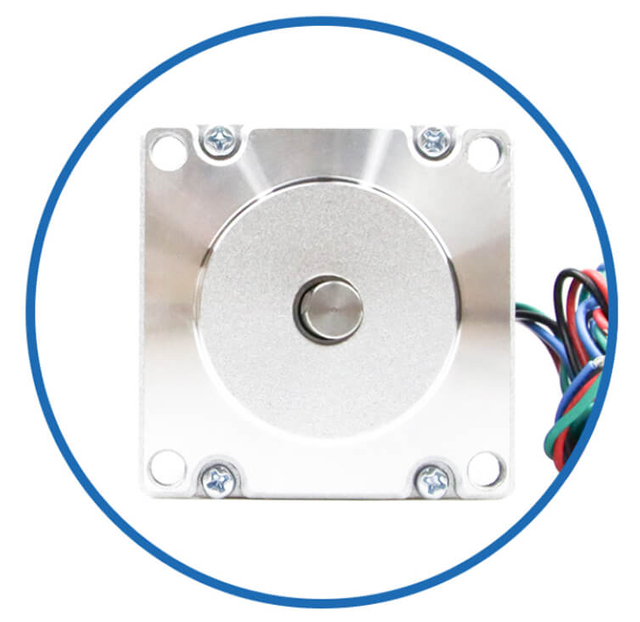

Stepper Motor Customized Service

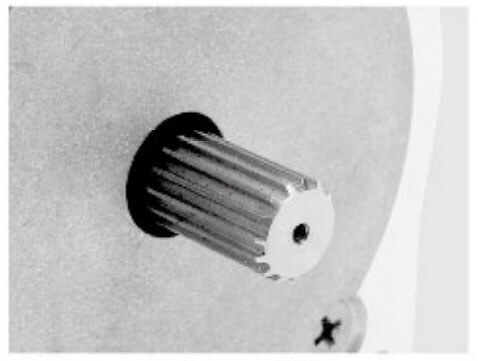

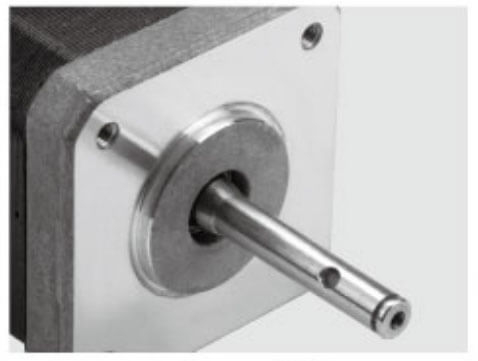

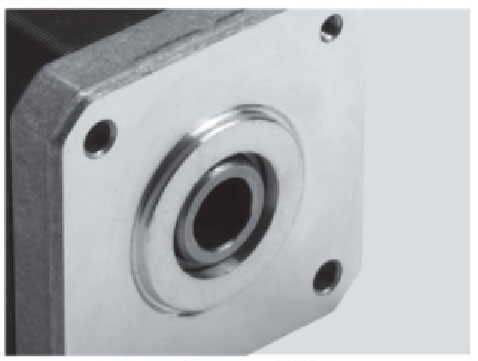

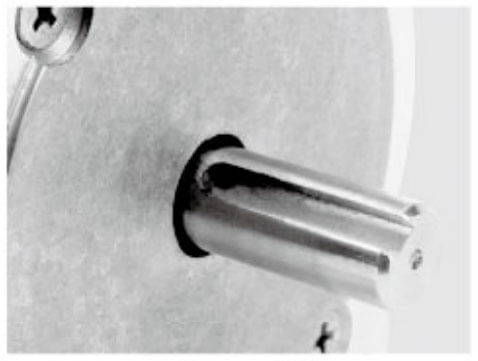

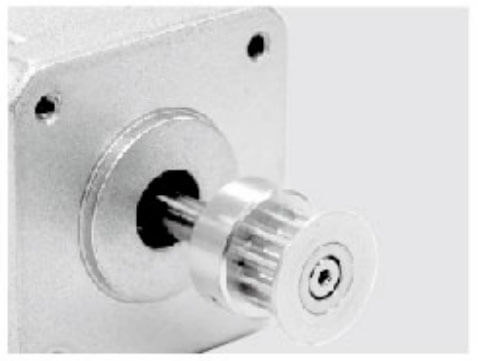

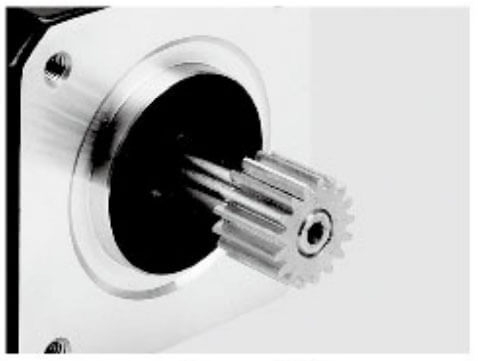

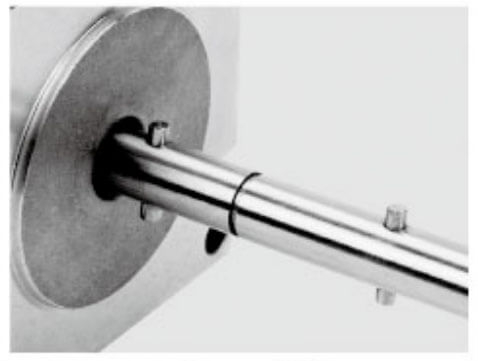

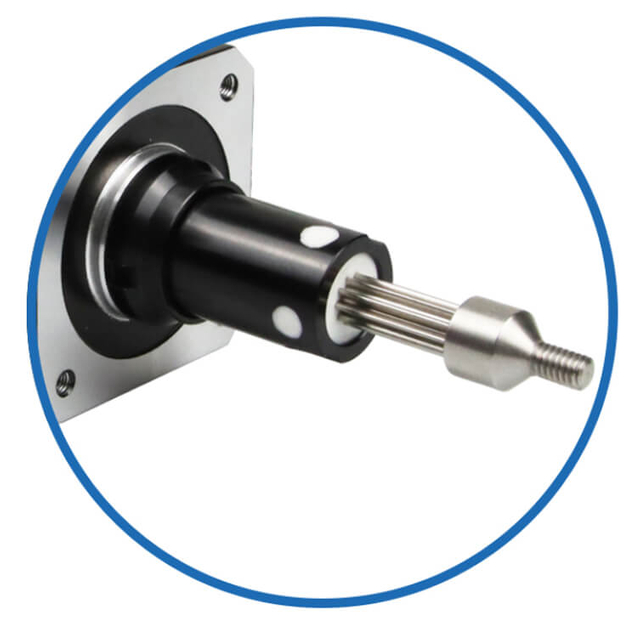

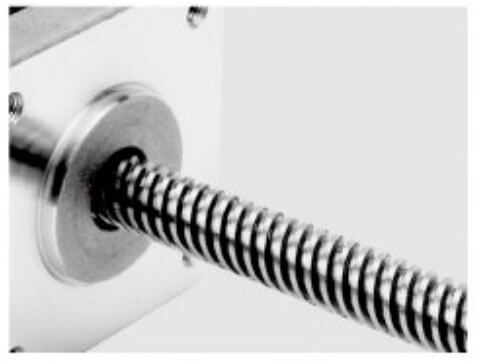

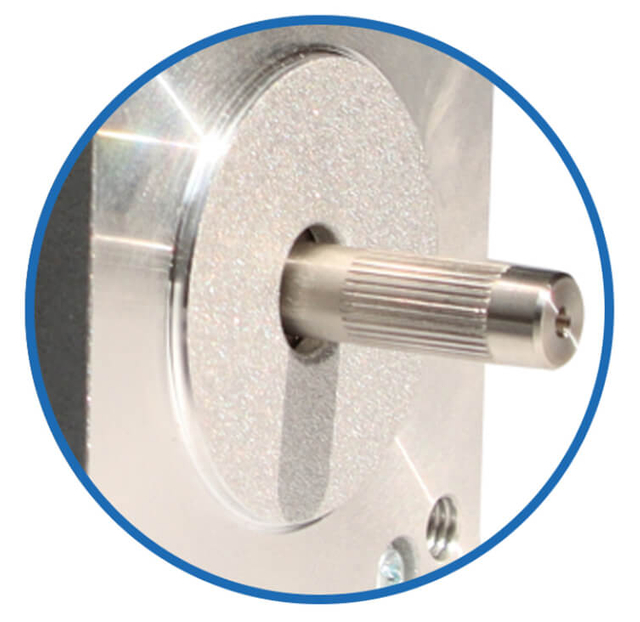

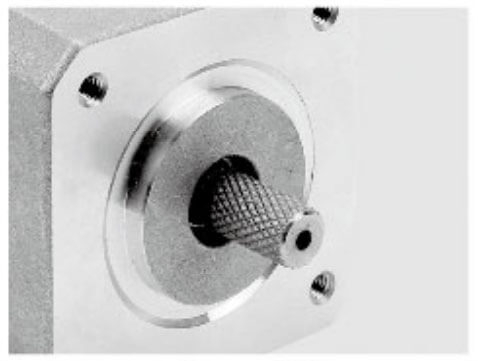

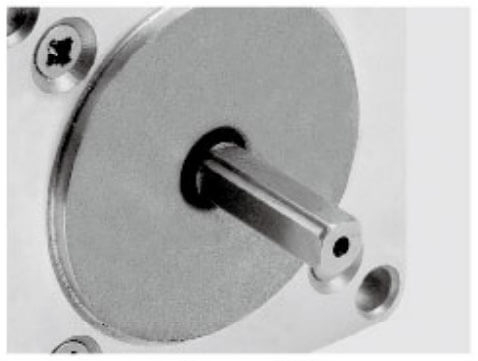

Motor Shaft Customized Service

Main Types of Stepper Motors

Stepper motors are widely used in industrial automation, robotics, CNC machines, medical devices, 3D printers, packaging equipment, and precision motion control systems because they provide accurate positioning, excellent repeatability, and simple control.

Although all stepper motors work based on the principle of converting electrical pulses into precise mechanical movement, their internal structures, performance characteristics, and application areas can be very different.

Understanding the main types of stepper motors helps engineers select the right motor based on requirements such as torque, speed, accuracy, load capacity, installation space, and control method.

The most common types of stepper motors include:

1. Permanent Magnet Stepper Motors (PM Stepper Motors)

2. Variable Reluctance Stepper Motors (VR Stepper Motors)

3. Hybrid Stepper Motors

4. Integrated Stepper Motors

5. Closed-Loop Stepper Motors

6. Geared Stepper Motors

7. Linear Stepper Motors

1. Permanent Magnet Stepper Motors (PM Stepper Motors)

Overview

Permanent Magnet Stepper Motors use a rotor made with permanent magnets that interact with the electromagnetic fields generated by the stator coils.

When current flows through different motor phases, the magnetic field changes and causes the rotor to rotate step-by-step.

PM stepper motors are one of the simplest types of stepper motors and are commonly used in low-cost and low-power applications.

Main Features

• Simple construction

• Low manufacturing cost

• Good holding torque

• Low power consumption

• Compact size

Typical step angles:

• 7.5°

• 15°

Advantages

Cost-effective design:

PM stepper motors are affordable and suitable for applications where high precision is not the primary requirement.

Simple control:

They can operate with basic stepper drivers and pulse signals.

Compact size:

Their small structure makes them suitable for limited installation spaces.

Disadvantages

• Lower positioning accuracy compared with hybrid stepper motors

• Lower torque output

• Limited high-speed performance

Common Applications

PM stepper motors are often used in:

• Small printers

• Office equipment

• Camera systems

• Consumer electronics

• Low-load automation devices

2. Variable Reluctance Stepper Motors (VR Stepper Motors)

Overview

Variable Reluctance Stepper Motors operate based on the principle of magnetic reluctance.

Unlike permanent magnet motors, VR stepper motors do not have permanent magnets inside the rotor. Instead, the rotor is made of soft iron with multiple teeth.

The rotor moves toward the position where magnetic resistance is minimized when the stator coils are energized.

Main Features

• Simple rotor structure

• Lightweight design

• High operating speed capability

• No permanent magnets required

Advantages

High-speed capability:

Because the rotor has low inertia, VR stepper motors can achieve faster acceleration.

Simple manufacturing process:

The absence of magnets reduces production complexity.

Reliable operation:

The motor structure is mechanically robust.

Disadvantages

• Lower torque compared with hybrid motors

• Higher vibration and noise

• Lower holding torque when power is removed

Common Applications

VR stepper motors are used in:

• Industrial instruments

• Positioning systems

• Control equipment

• Some aerospace applications

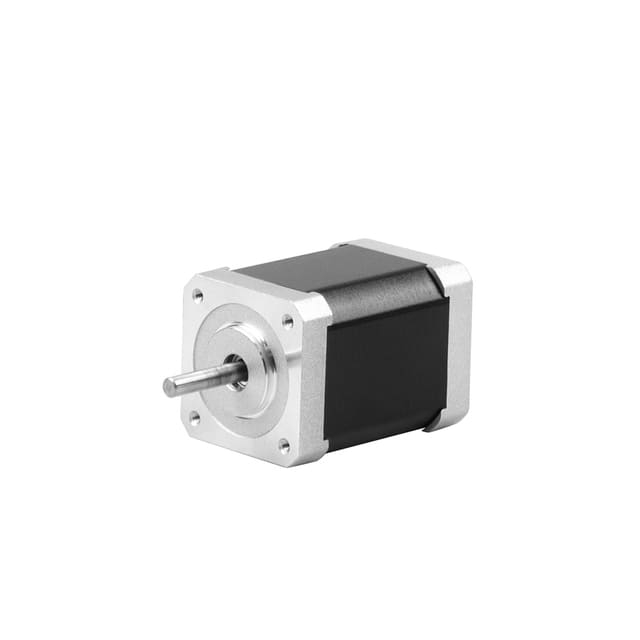

3. Hybrid Stepper Motors

Overview

Hybrid Stepper Motors combine the advantages of Permanent Magnet (PM) and Variable Reluctance (VR) technologies.

They use a permanent magnet rotor with toothed structures to achieve higher torque, better accuracy, and improved efficiency.

Today, hybrid stepper motors are the most widely used type of stepper motor in industrial automation.

Main Features

• High torque output

• High positioning accuracy

• Excellent holding force

• Wide size range

• Reliable operation

Common sizes include:

• NEMA 8

• NEMA 11

• NEMA 14

• NEMA 17

• NEMA 23

• NEMA 24

• NEMA 34

Typical step angles:

• 1.8° per step (200 steps/revolution)

• 0.9° per step (400 steps/revolution)

Advantages

High Precision Motion Control

Hybrid stepper motors provide accurate positioning without requiring an encoder in many applications.

Strong Low-Speed Torque

They maintain high torque at low speeds, making them ideal for positioning systems.

Excellent Reliability

With no brushes and fewer wearing parts, hybrid stepper motors provide long service life.

Flexible Customization

Manufacturers can customize:

• Shaft design

• Cable length

• Connector type

• Gearbox integration

• Encoder options

• Brake systems

Disadvantages

• Torque decreases at higher speeds

• Generates heat during continuous operation

• May lose steps under excessive load

Common Applications

Hybrid stepper motors are widely used in:

• CNC machines

• 3D printers

• Laser engraving machines

• Robotics

• Medical equipment

• Packaging machines

• Textile machinery

• Automation equipment

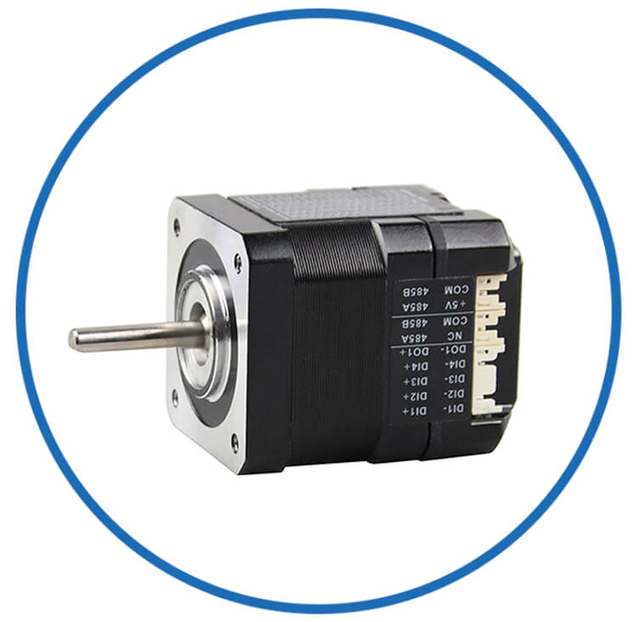

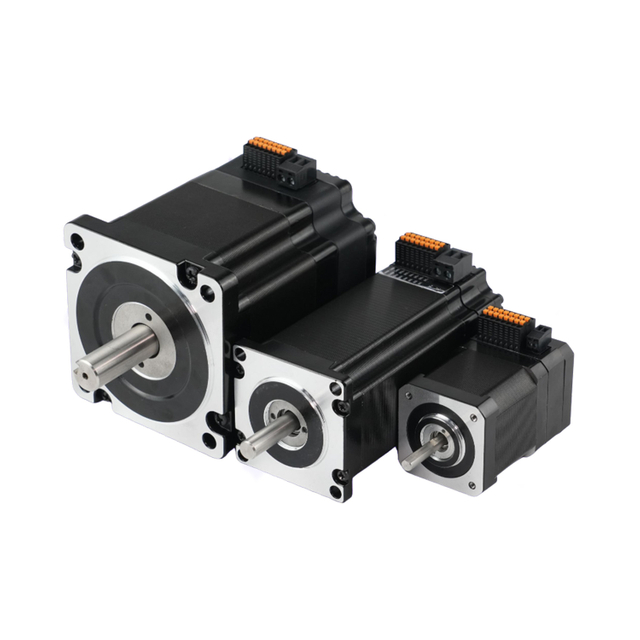

4. Integrated Stepper Motors

Overview

Integrated Stepper Motors combine the stepper motor and driver electronics into a single compact unit.

Traditional systems require separate components:

Controller → Driver → Motor

Integrated stepper motors simplify this structure:

Controller → Integrated Motor

This design reduces wiring complexity and improves system reliability.

Main Features

• Built-in driver

• Compact installation

• Reduced wiring

• Improved electromagnetic compatibility

• Easy system integration

Advantages

Space Saving

The integrated design significantly reduces cabinet space and installation requirements.

Simplified Wiring

Fewer cables mean easier installation and maintenance.

Better System Reliability

Integrated electronics reduce connection failures.

Communication Options

Many integrated stepper motors support:

• RS485

• Modbus RTU

• CANopen

• Pulse & Direction control

Common Applications

Integrated stepper motors are widely used in:

• AGV and AMR robots

• Smart manufacturing equipment

• Medical automation

• Laboratory equipment

• Robotics systems

• Compact automation machines

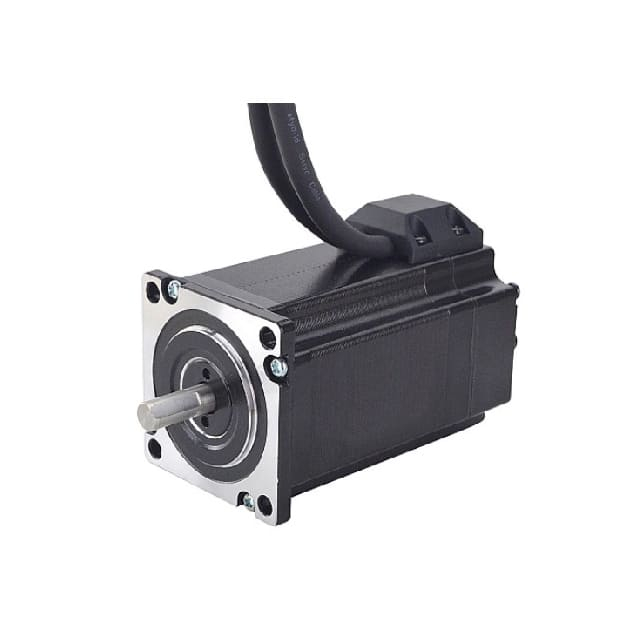

5. Closed-Loop Stepper Motors

Overview

Closed-loop stepper motors add an encoder feedback system to traditional stepper motors.

Traditional open-loop stepper systems operate without position feedback, while closed-loop systems continuously monitor motor position.

The controller can automatically correct errors if the motor experiences overload or external disturbance.

Main Features

• Encoder feedback

• Higher accuracy

• No step loss

• Improved efficiency

Advantages

Prevents Position Loss

The system detects and corrects positioning errors.

Lower Heat Generation

The driver supplies only the required current instead of maintaining maximum current continuously.

Higher Performance

Closed-loop stepper motors can achieve servo-like performance at a lower cost.

Common Applications

• CNC machines

• Robotics

• Precision automation

• Semiconductor equipment

• Medical devices

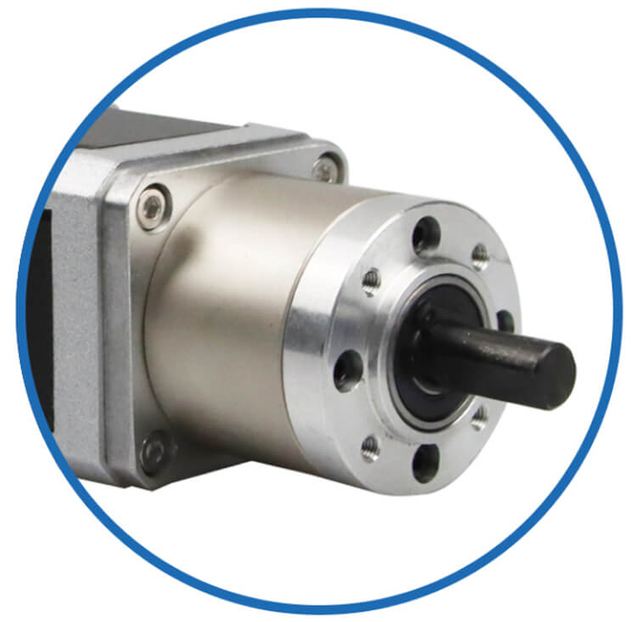

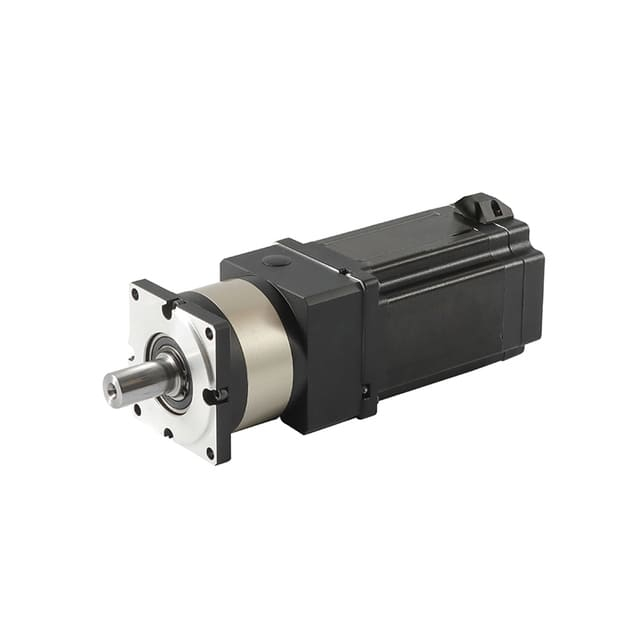

6. Geared Stepper Motors

Overview

Geared stepper motors combine a stepper motor with a gearbox to increase output torque and reduce speed.

Common gearbox types include:

• Planetary gearbox

• Spur gearbox

• Worm gearbox

Advantages

Higher Output Torque

The gearbox increases torque capacity for heavy loads.

Lower Output Speed

Suitable for applications requiring controlled movement.

Improved Load Handling

The motor can drive heavier mechanical systems.

Disadvantages

• Larger size

• Higher cost

• Possible mechanical backlash

Applications

Geared stepper motors are commonly used in:

• Industrial robots

• AGV drive systems

• Conveyor systems

• Valve control

• Medical equipment

7. Linear Stepper Motors

Overview

Linear stepper motors convert electrical pulses directly into linear movement instead of rotary motion.

Unlike rotary motors requiring screws or belts, linear stepper motors provide direct linear positioning.

Main Features

• Direct linear motion

• High positioning accuracy

• Fast response

• Low mechanical transmission loss

Advantages

• No gearbox required

• Reduced mechanical components

• High precision

• Fast acceleration

Applications

Linear stepper motors are commonly used in:

• Precision stages

• Semiconductor equipment

• Optical inspection machines

• Laboratory automation

• Medical instruments

How to Choose the Right Stepper Motor Type

Selecting the correct stepper motor depends on several factors:

1. Required Torque

For light loads:

• PM stepper motors may be sufficient

For industrial applications:

• Hybrid stepper motors

• Geared stepper motors

are usually better choices.

2. Required Accuracy

For standard positioning:

• Open-loop stepper motors

For higher precision:

• Closed-loop stepper motors

• Integrated servo stepper motors

3. Installation Space

If space is limited:

• Integrated stepper motors provide a compact solution.

4. Operating Environment

For demanding environments, consider:

• IP protection rating

• Temperature range

• Dust resistance

• Vibration resistance

Conclusion

Stepper motors have evolved from simple positioning motors into advanced motion solutions for modern automation.

The most widely used type today is the hybrid stepper motor because it offers an excellent balance of torque, accuracy, reliability, and cost. For advanced automation systems, integrated stepper motors, closed-loop stepper motors, and geared stepper motors provide additional advantages in terms of intelligence, efficiency, and performance.

Choosing the right stepper motor type depends on the application requirements, including load, speed, precision, control method, and environmental conditions. A professional stepper motor manufacturer can help OEM customers select or customize the most suitable motor solution for their equipment.

Product Video

Advantages and Disadvantages of Stepper Motors

Stepper motors are one of the most widely used motion control technologies in industrial automation because they provide accurate positioning, simple control, and reliable performance at an affordable cost. They are commonly found in CNC machines, 3D printers, robotics, medical equipment, packaging machinery, textile machines, laboratory instruments, and automation systems.

Compared with conventional DC motors and servo motors, stepper motors have unique advantages in precision control and system simplicity. However, they also have some limitations that engineers need to consider when selecting the right motor for an application.

Understanding the advantages and disadvantages of stepper motors helps OEM manufacturers and engineers choose the most suitable motion solution based on torque requirements, speed, accuracy, operating environment, and cost.

Advantages of Stepper Motors

1. High Positioning Accuracy

One of the biggest advantages of stepper motors is their ability to achieve precise positioning without requiring a feedback system in many applications.

A stepper motor rotates in fixed angular steps according to electrical pulses from the driver.

For example:

• A standard 1.8° stepper motor provides 200 steps per revolution.

• A 0.9° stepper motor provides 400 steps per revolution.

• Microstepping technology can further improve motion smoothness and resolution.

This makes stepper motors ideal for applications requiring repeatable positioning, such as:

• CNC machines

• 3D printers

• Pick-and-place equipment

• Laser engraving machines

• Automated inspection systems

2. Simple Control System

Stepper motors are relatively easy to control compared with servo motors.

A typical stepper motor control system only requires:

• Pulse signal

• Direction signal

• Enable signal

The motor position is determined by the number of input pulses, while speed is controlled by pulse frequency.

This simple control method reduces system complexity and lowers development costs.

For many automation applications, stepper motors can achieve excellent performance without expensive controllers or complicated feedback systems.

3. Excellent Low-Speed Torque Performance

Stepper motors provide strong torque at low speeds, which is one of their biggest advantages over many other motor types.

They can generate high holding torque when stationary, allowing them to maintain position without mechanical brakes.

This makes them suitable for:

• Positioning platforms

• Linear motion systems

• Valve control systems

• Robotic joints

• Automation mechanisms

For applications requiring frequent starts, stops, and precise positioning, stepper motors provide reliable performance.

4. Cost-Effective Motion Solution

Compared with servo motors, stepper motors generally offer a more economical solution.

A complete servo system usually requires:

• Servo motor

• Encoder

• Servo drive

• Controller

A traditional stepper system requires:

• Stepper motor

• Stepper driver

• Controller

The simpler structure reduces:

• Equipment cost

• Installation complexity

• Maintenance requirements

This makes stepper motors popular among OEM manufacturers looking for a balance between performance and cost.

5. High Reliability and Long Service Life

Stepper motors are brushless motors, meaning they do not contain carbon brushes that wear out over time.

Advantages include:

• Low maintenance requirements

• Long operational life

• Stable performance

• High mechanical reliability

With proper operation and thermal management, high-quality stepper motors can operate for many years in industrial environments.

6. Excellent Holding Torque

A stepper motor can maintain its position when energized, producing strong holding torque even without rotation.

This characteristic is valuable for applications where the load must remain fixed.

Common examples include:

• Robotic positioning systems

• Adjustable platforms

• Medical devices

• Automated fixtures

• Camera positioning systems

The holding torque capability eliminates the need for additional mechanical locking mechanisms in many designs.

7. Wide Range of Sizes and Customization Options

Stepper motors are available in many standard frame sizes, including:

• NEMA 8

• NEMA 11

• NEMA 14

• NEMA 17

• NEMA 23

• NEMA 24

• NEMA 34

Manufacturers can also customize stepper motors with:

• Gearboxes

• Encoders

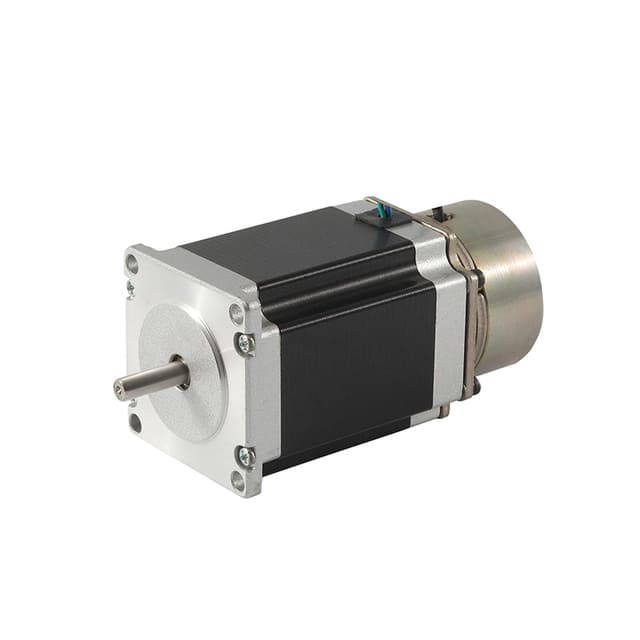

• Brakes

• Special shafts

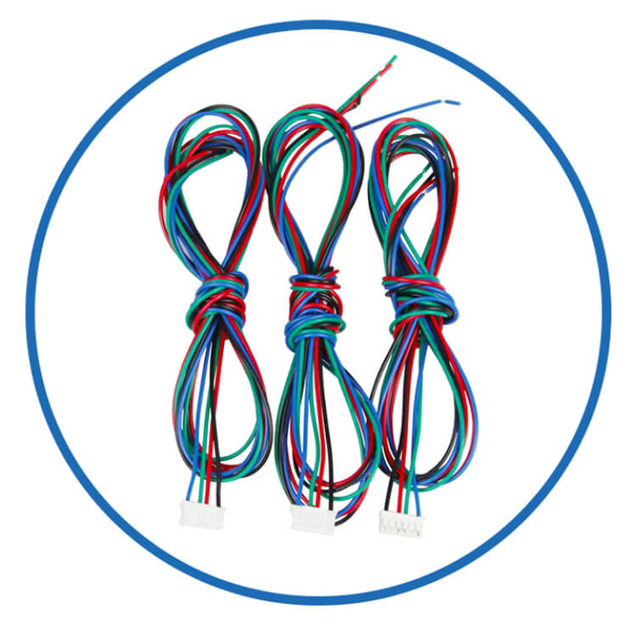

• Custom cables

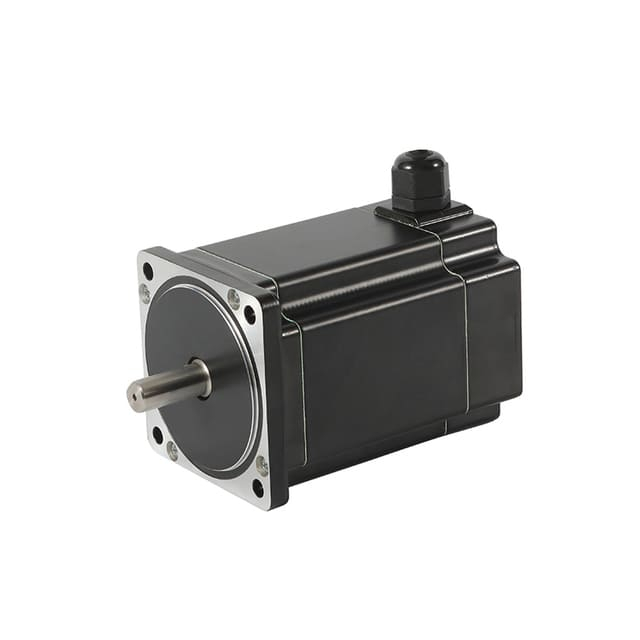

• Waterproof structures

• Integrated drivers

This flexibility allows stepper motors to meet the requirements of different industries.

8. Suitable for Open-Loop Control

One important advantage of stepper motors is that many applications do not require feedback systems.

The controller simply sends a specific number of pulses, and the motor moves the corresponding distance.

Benefits include:

• Lower system cost

• Easier programming

• Reduced wiring

• Simplified maintenance

For applications with predictable loads, open-loop stepper systems are highly effective.

Disadvantages of Stepper Motors

Although stepper motors provide many advantages, they also have some limitations that must be considered.

1. Torque Decreases at High Speed

The biggest limitation of stepper motors is that their torque decreases as operating speed increases.

At low speeds, stepper motors provide excellent torque. However, at higher speeds:

• Current has less time to build up in the motor windings

• Magnetic force decreases

• Available torque drops

Therefore, stepper motors are not always the best choice for applications requiring:

• Very high-speed rotation

• Rapid acceleration

• Continuous high-speed operation

For these applications, servo motors or high-speed BLDC motors may be more suitable.

2. Possible Step Loss Under Overload

Traditional stepper motors usually operate in an open-loop control mode.

If the mechanical load exceeds the available torque, the motor may fail to complete commanded steps.

This can result in:

• Position errors

• Reduced accuracy

• System malfunction

Common causes include:

• Excessive load

• Sudden acceleration

• Mechanical blockage

• Incorrect motor selection

Solutions include:

• Selecting a higher torque motor

• Using acceleration control

• Adding an encoder

• Choosing a closed-loop stepper motor

3. Heat Generation During Operation

Stepper motors often operate with current flowing through the coils even when stationary.

This creates heat generation.

Possible effects include:

• Higher motor temperature

• Reduced efficiency

• Shortened component lifespan

To reduce heat problems, engineers can consider:

• Proper motor sizing

• Current reduction functions

• Better ventilation

• External cooling

• Closed-loop stepper technology

4. Lower Efficiency Compared with Servo Motors

Stepper motors generally consume more energy because they often maintain current even when holding position.

Compared with servo motors:

Stepper motors:

• Consume continuous current

• Have lower efficiency at high speeds

Servo motors:

• Adjust power according to load demand

• Provide higher efficiency

For energy-sensitive applications, servo motors may provide better performance.

5. Vibration and Noise Issues

Traditional stepper motors can generate vibration and audible noise, especially at certain operating speeds.

Causes include:

• Resonance effects

• Step movement characteristics

• Mechanical load conditions

Possible solutions include:

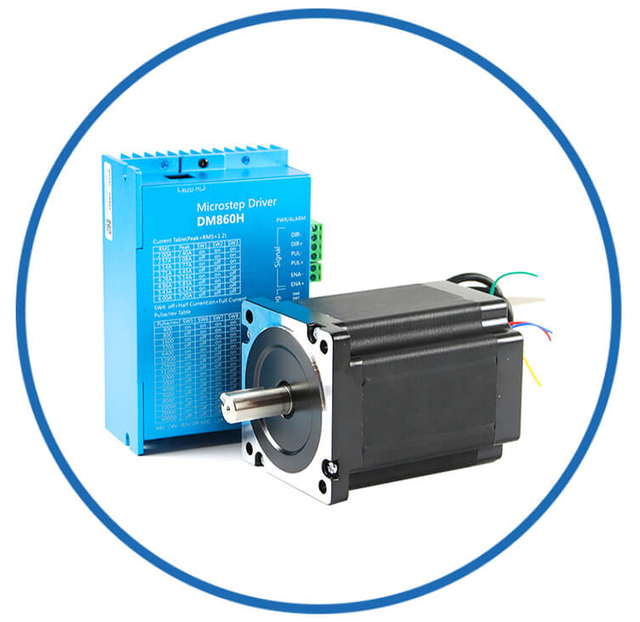

• Microstepping drivers

• Advanced control algorithms

• Dampers

• Closed-loop control

Modern integrated stepper motors have significantly improved vibration performance compared with traditional designs.

6. Limited Feedback Capability in Standard Models

Standard open-loop stepper motors do not know their actual position.

If external forces move the shaft unexpectedly, the system cannot automatically detect the error.

For applications requiring guaranteed positioning accuracy, consider:

• Closed-loop stepper motors

• Integrated servo motors

• Servo systems with encoders

7. Not Ideal for Extremely Dynamic Applications

Stepper motors are excellent for controlled positioning but may struggle in applications requiring:

• Very fast acceleration

• Constant speed adjustment

• High-speed motion changes

Examples:

• High-performance robots

• High-speed industrial machines

• Dynamic motion platforms

Servo motors are usually preferred in these situations.

Stepper Motors vs Servo Motors: Quick Comparison

How to Choose the Right Stepper Motor

When selecting a stepper motor, engineers should evaluate:

1. Load Requirements

Calculate:

• Required torque

• Load inertia

• Acceleration requirements

• Duty cycle

A motor with insufficient torque may lose steps.

2. Speed Requirements

Check:

• Maximum operating speed

• Acceleration time

• Required response speed

For high-speed applications, consider hybrid or closed-loop stepper motors.

3. Accuracy Requirements

For standard positioning:

• Open-loop stepper motors are suitable.

For higher precision:

• Closed-loop stepper motors are recommended.

4. Working Environment

Consider:

• Temperature

• Dust

• Moisture

• Vibration

• Installation space

For harsh environments, customized motors with higher protection ratings may be required.

Conclusion

Stepper motors remain one of the most popular motion solutions because they offer an excellent combination of precision, reliability, simplicity, and cost efficiency.

Their main advantages include:

• Accurate positioning

• Simple control

• Strong low-speed torque

• Low maintenance

• Affordable system cost

However, engineers should also consider their limitations:

• Reduced torque at high speeds

• Possible step loss under overload

• Heat generation

• Lower efficiency compared with servo systems

For modern automation applications, technologies such as integrated stepper motors, closed-loop stepper motors, and geared stepper motors have improved traditional limitations and expanded the use of stepper motors into more demanding industries, including robotics, AGV/AMR systems, medical equipment, and smart manufacturing solutions.

Why Indian Companies Choose Advanced Stepper Motor Suppliers

The Indian automation market is rapidly developing. OEM manufacturers increasingly require motors with:

• Higher torque density

• Compact installation size

• Better protection ratings

• Custom shaft designs

• Integrated electronics

• Faster delivery

Many traditional stepper motor suppliers only provide standard products. However, modern automation companies often need suppliers that can support:

• Mechanical customization

• Electrical customization

• Firmware adjustment

• Small batch production

• OEM branding

Therefore, selecting a manufacturer with strong engineering capability is becoming increasingly important.

Top 20 Stepper Motor Manufacturers in India and Global Suppliers

1. JKONGMOTOR – Professional Integrated Stepper Motor Manufacturer

Company Profile

JKONGMOTOR is a professional motion control manufacturer specializing in integrated stepper motors, integrated servo motors, BLDC motors, and customized OEM/ODM motor solutions.

The company focuses on providing compact and intelligent motion products for industrial automation, robotics, AGV/AMR systems, medical equipment, and precision machinery.

With strong R&D capability and manufacturing experience, JKONGMOTOR supports customers worldwide with customized motor solutions.

Main Products

• Integrated stepper motors

• Closed-loop stepper motors

• Integrated servo motors

• BLDC motors

• DC servo motors

• Geared stepper motors

• Planetary gearbox motors

• Linear stepper motors

• Customized OEM motors

Advantages

• OEM and ODM customization capability

• Integrated motor and driver solutions

• Wide NEMA size range

• High torque density design

• Support for CANopen, RS485, Modbus communication

• Suitable for industrial automation applications

• Global export experience

JKONGMOTOR is an ideal partner for companies looking for customized stepper motor solutions rather than standard catalog products.

2. BESFOC Motor – Intelligent Motion Control Solutions

Company Profile

BESFOC Motor is a professional motor manufacturer focusing on precision motion products.

The company provides stepper motors and integrated motion solutions for automation industries.

Main Products

• Stepper motors

• Integrated stepper motors

• Servo motors

• BLDC motors

• Linear motors

• Customized motors

Advantages

• Strong customization capability

• Precision manufacturing

• Competitive pricing

• Suitable for automation equipment

• Export-oriented production

BESFOC Motor is widely selected by OEM customers requiring customized motion solutions.

3. LeanMotor – Precision Stepper Motor Supplier

Company Profile

LeanMotor specializes in compact motion control products and provides motors for industrial automation applications.

Main Products

• Stepper motors

• Brushless DC motors

• Integrated motors

• Gear motors

• Custom motor solutions

Advantages

• Compact motor design

• Flexible customization

• Competitive OEM solutions

• Suitable for robotics and automation

4. Rotomag Motors

Company Profile

Rotomag Motors is an Indian manufacturer focusing on electric motors and automation solutions.

Main Products

• Stepper motors

• Industrial motors

• Automation motors

Advantages

• Local Indian support

• Industrial experience

• Manufacturing capability

5. Schneider Electric India

Company Profile

Schneider Electric provides automation and motion control products for industrial customers.

Main Products

• Motion controllers

• Automation solutions

• Motor control systems

Advantages

• Global brand reputation

• Strong industrial ecosystem

• Reliable service network

6. Siemens India

Company Profile

Siemens India provides industrial automation solutions used in factories worldwide.

Main Products

• Automation systems

• Motion control products

• Industrial drives

Advantages

• Advanced engineering capability

• Global support network

7. ABB India

Company Profile

ABB is a global automation technology company serving industrial markets.

Main Products

• Motion systems

• Drives

• Automation equipment

Advantages

• High reliability

• Industrial automation expertise

8. Delta Electronics India

Company Profile

Delta provides automation products including motion control solutions.

Main Products

• Stepper drives

• Servo systems

• Controllers

Advantages

• Cost-effective automation solutions

• Wide market presence

9. Panasonic Industrial Devices India

Company Profile

Panasonic provides industrial components and automation technologies.

Main Products

• Motors

• Servo systems

• Control products

Advantages

• Japanese engineering quality

• Reliable performance

10. Oriental Motor India

Company Profile

Oriental Motor specializes in precision motor technology.

Main Products

• Stepper motors

• Gear motors

• Motion control products

Advantages

• Precision engineering

• Long product history

11. Moons' Industries

Company Profile

Moons' is an international motion control manufacturer.

Main Products

• Stepper motors

• Drivers

• Servo systems

Advantages

• Strong R&D

• Global distribution

12. Nidec India

Company Profile

Nidec develops various motor technologies.

Main Products

• Precision motors

• Industrial motors

Advantages

• Advanced motor technology

13. Maxon Motor

Company Profile

Maxon specializes in precision drive systems.

Main Products

• Precision motors

• Controllers

Advantages

• High precision

• Medical and robotics applications

14. Faulhaber India

Company Profile

Faulhaber provides miniature precision motion solutions.

Main Products

• Mini motors

• Controllers

Advantages

• Compact design

• High performance

15. Parker Hannifin India

Company Profile

Parker provides industrial motion control solutions.

Main Products

• Automation components

• Motion systems

Advantages

• Industrial reliability

16. Kollmorgen India

Company Profile

Kollmorgen specializes in advanced motion control technology.

Main Products

• Servo motors

• Motion systems

Advantages

• High-performance automation solutions

17. Yaskawa India

Company Profile

Yaskawa provides industrial automation and robotics solutions.

Main Products

• Servo motors

• Controllers

• Robotics systems

Advantages

• Robotics expertise

• Global support

18. Mitsubishi Electric India

Company Profile

Mitsubishi Electric supplies industrial automation products.

Main Products

• Motion controllers

• Drives

• Automation systems

Advantages

• Reliable industrial solutions

19. Toshiba Industrial India

Company Profile

Toshiba provides electrical and automation products.

Main Products

• Industrial motors

• Control equipment

Advantages

• Strong engineering background

20. Hiwin India

Company Profile

Hiwin is known for precision motion components.

Main Products

• Linear motion systems

• Motors

• Automation components

Advantages

• Precision mechanical solutions

How to Choose the Right Stepper Motor Manufacturer

Before selecting a supplier, companies should evaluate:

1. Technical Capability

Check whether the supplier can provide:

• Torque calculation support

• Motor selection guidance

• Customized designs

• Engineering drawings

2. Customization Ability

For OEM projects, customization is often critical.

Important options include:

• Shaft modification

• Cable customization

• Encoder installation

• Gearbox integration

• Brake options

• Waterproof design

3. Quality Control

A reliable manufacturer should have:

• Material inspection

• Motor performance testing

• Temperature testing

• Load testing

• Aging tests

4. Application Experience

The best supplier understands your industry.

For example:

• AGV motors require high torque and reliability

• Medical equipment requires low noise

• CNC machines require precision

• Packaging machines require fast response

Conclusion: Selecting the Best Stepper Motor Supplier

Choosing the right stepper motor supplier is a critical decision for companies developing automation equipment, robotics systems, and industrial machinery. A high-quality stepper motor is not only a power transmission component but also a key factor that directly affects the accuracy, efficiency, reliability, and long-term performance of the entire machine.

With the rapid development of industrial automation, smart manufacturing, robotics, AGV/AMR systems, and precision equipment, customers increasingly require more than standard stepper motors. They need a professional supplier that can provide customized motor solutions, technical support, flexible production capability, and complete motion control solutions.

A reliable stepper motor manufacturer should help customers solve real engineering challenges, from motor selection and mechanical integration to product optimization and mass production.

What Should You Consider When Choosing a Stepper Motor Supplier?

1. Product Quality and Motor Performance

The first consideration when selecting a stepper motor supplier is product reliability and performance.

A professional manufacturer should provide stepper motors with:

• Stable torque output

• High positioning accuracy

• Low vibration and noise

• Long operating life

• Consistent quality performance

For different applications, the motor needs to meet specific requirements such as:

• Load capacity

• Operating speed

• Duty cycle

• Installation space

• Environmental conditions

A reliable supplier should have strict quality control processes to ensure every motor delivers stable performance in real-world applications.

2. Strong OEM and ODM Customization Capability

Modern automation equipment often requires customized motor solutions instead of standard products.

The best stepper motor suppliers should have strong OEM and ODM capabilities to customize motors according to customer requirements.

Customization options may include:

• Motor dimensions

• Shaft design

• Mounting structure

• Cable length and connector type

• Gearbox integration

• Encoder installation

• Brake configuration

• Protection rating

• Communication interface

This is especially important for industries such as:

• Robotics

• AGV and AMR

• Medical equipment

• Packaging machinery

• Laboratory automation

• Industrial equipment

A supplier with strong customization capability can help customers reduce development time and achieve better system performance.

3. Complete Stepper Motor Product Solutions

A professional stepper motor manufacturer should offer a comprehensive product range to meet different application requirements.

Typical solutions include:

Hybrid Stepper Motors

Hybrid stepper motors are widely used because of their:

• High torque density

• Excellent positioning accuracy

• Reliable operation

• Cost-effectiveness

They are suitable for:

• CNC machines

• 3D printers

• Automation equipment

• Precision positioning systems

Integrated Stepper Motors

Integrated stepper motors combine the motor and driver into one compact unit.

Advantages include:

• Reduced wiring complexity

• Smaller installation space

• Easier system integration

• Improved reliability

They are ideal for:

• AGV/AMR robots

• Smart automation equipment

• Compact machinery

Closed-Loop Stepper Motors

Closed-loop stepper motors add encoder feedback technology to traditional stepper motors.

Benefits include:

• No step loss

• Higher positioning reliability

• Lower heat generation

• Improved efficiency

They are suitable for applications requiring higher precision and reliability.

Geared Stepper Motors

Geared stepper motors combine stepper motors with gear reduction systems to provide:

• Higher output torque

• Lower speed operation

• Better load handling capability

Common applications include:

• Robotics

• Conveyor systems

• Automated equipment

• Industrial machinery

Why Choose JKONGMOTOR as Your Stepper Motor Supplier?

JKONGMOTOR is a professional stepper motor manufacturer and OEM ODM customized motion solution provider, specializing in the research, development, and production of advanced motor solutions for global customers.

With years of experience in motion control technology, JKONGMOTOR provides customized solutions for industries requiring reliable and precise movement systems.

The product portfolio includes:

• Hybrid stepper motors

• Integrated stepper motors

• Closed-loop stepper motors

• Geared stepper motors

• Linear stepper motors

• Integrated servo motors

• BLDC motor solutions

JKONGMOTOR Advantages as a Professional Stepper Motor Manufacturer

1. Customized Motion Solutions

JKONGMOTOR understands that every application has different requirements.

The engineering team supports customers with customized solutions including:

• Torque optimization

• Motor size selection

• Gearbox matching

• Encoder integration

• Mechanical customization

• Electrical parameter adjustment

This enables OEM customers to achieve better machine performance and product competitiveness.

2. Integrated Motor Technology

For modern automation systems, space efficiency and simplified installation are becoming increasingly important.

JKONGMOTOR provides integrated stepper motor solutions that combine:

• Stepper motor

• Driver electronics

• Communication interface

into a compact design.

Available control options include:

• Pulse and direction control

• RS485 communication

• Modbus communication

• CANopen communication

These solutions help customers reduce wiring costs, improve system reliability, and simplify machine design.

3. Wide Application Experience

JKONGMOTOR stepper motor solutions are widely used in various industries, including:

Industrial Automation

Providing accurate and reliable motion control for:

• Assembly machines

• Inspection equipment

• Automated production lines

Robotics and Intelligent Equipment

Supporting:

• Service robots

• AGV/AMR systems

• Robotic mechanisms

Medical and Laboratory Equipment

Meeting requirements for:

• Low noise operation

• High precision movement

• Stable performance

Packaging and Manufacturing Equipment

Providing reliable motion solutions for:

• Filling machines

• Labeling equipment

• Printing systems

• Processing machinery

A Reliable Partner for Long-Term OEM Projects

For OEM manufacturers, selecting a stepper motor supplier is not only about purchasing motors. It is about finding a long-term partner who can support product development, technical improvement, and future expansion.

A professional supplier should provide:

• Engineering consultation

• Prototype support

• Flexible production capacity

• Quality assurance

• Continuous technical service

JKONGMOTOR focuses on building long-term partnerships with customers by providing reliable products and customized motion solutions.

Final Thoughts: Choosing the Right Stepper Motor Supplier

The best stepper motor supplier is not necessarily the supplier with the lowest price. The right partner should provide a combination of:

• High-quality stepper motors

• Advanced manufacturing capability

• OEM and ODM customization

• Professional technical support

• Industry application experience

• Reliable delivery and service

As automation technology continues to evolve, companies need smarter, more compact, and more reliable motion solutions.

With professional engineering expertise, customized production capability, and a complete range of motion products, JKONGMOTOR provides dependable stepper motor solutions for global OEM customers, helping manufacturers improve equipment performance and create competitive automation products.

FAQ Section: Selecting the Best Stepper Motor Supplier

FAQ 1: What should I consider when choosing a stepper motor supplier?

When choosing a stepper motor supplier, you should consider product quality, customization capability, technical support, manufacturing experience, delivery reliability, and application expertise. A professional supplier should be able to provide suitable motor solutions based on your requirements, including torque, speed, accuracy, installation space, and operating environment.

A reliable stepper motor manufacturer should not only supply standard motors but also provide OEM and ODM customized solutions to help optimize the performance of your equipment.

FAQ 2: What types of stepper motors does JKONGMOTOR provide?

JKONGMOTOR provides a wide range of stepper motor solutions, including:

• Hybrid stepper motors

• Integrated stepper motors

• Closed-loop stepper motors

• Geared stepper motors

• Planetary gearbox stepper motors

• Linear stepper motors

• Customized OEM stepper motors

These products are designed for applications requiring precise positioning, stable torque output, and reliable motion control.

FAQ 3: Can JKONGMOTOR provide customized stepper motor solutions?

Yes. JKONGMOTOR specializes in OEM and ODM customized stepper motor solutions.

Customization options include:

• Motor dimensions

• Shaft design

• Mounting structure

• Cable and connector configuration

• Gearbox integration

• Encoder installation

• Brake options

• Communication interfaces

• Special environmental protection designs

Customized solutions help OEM customers achieve better compatibility between the motor and their equipment.

FAQ 4: What industries use JKONGMOTOR stepper motors?

JKONGMOTOR stepper motors are widely used in various industries, including:

• Industrial automation

• Robotics

• AGV and AMR systems

• Medical equipment

• Packaging machinery

• CNC machines

• 3D printers

• Laboratory equipment

• Textile machinery

• Smart manufacturing systems

The motors are designed to meet different requirements for precision, torque, reliability, and compact installation.

FAQ 5: What are the advantages of integrated stepper motors compared with traditional stepper motors?

Integrated stepper motors combine the motor and driver electronics into one compact unit.

Compared with traditional motor and driver combinations, integrated stepper motors offer:

• Reduced wiring complexity

• Smaller installation space

• Easier system integration

• Improved reliability

• Lower electromagnetic interference

They are especially suitable for compact automation systems, robotics, AGV/AMR equipment, and intelligent manufacturing applications.

FAQ 6: Does JKONGMOTOR support different communication methods for stepper motors?

Yes. JKONGMOTOR provides stepper motor solutions supporting multiple control methods, including:

• Pulse and Direction control

• RS485 communication

• Modbus communication

• CANopen communication

These options allow stepper motors to integrate easily with PLC systems, industrial controllers, and automated equipment.

FAQ 7: What is the difference between open-loop and closed-loop stepper motors?

Traditional open-loop stepper motors operate without position feedback. They are cost-effective and suitable for applications with stable loads.

Closed-loop stepper motors include encoder feedback, which provides:

• Position monitoring

• Error correction

• Reduced risk of step loss

• Higher efficiency

• Improved performance under variable loads

Closed-loop stepper motors are recommended for applications requiring higher reliability and precision.

FAQ 8: How can I select the right stepper motor for my application?

The correct stepper motor should be selected based on:

• Required torque

• Operating speed

• Load characteristics

• Positioning accuracy

• Duty cycle

• Installation environment

• Control requirements

A professional stepper motor supplier like JKONGMOTOR can help customers analyze application requirements and recommend the most suitable motor solution.

FAQ 9: Why choose JKONGMOTOR as a stepper motor manufacturer?

JKONGMOTOR is a professional stepper motor manufacturer specializing in customized motion control solutions.

Key advantages include:

• Strong OEM/ODM customization capability

• Complete stepper motor product range

• Advanced motor design experience

• Flexible production capability

• Reliable quality control

• Professional technical support

JKONGMOTOR helps global customers develop efficient and reliable automation equipment.

FAQ 10: Can JKONGMOTOR support small-batch and large-volume production?

Yes. JKONGMOTOR supports both prototype development and mass production.

The company provides flexible manufacturing solutions for:

• New product development

• Customized motor projects

• Small quantity testing

• Large-volume OEM production

This allows customers to work with one reliable supplier throughout the entire product development cycle.
