Leading Brushless Dc Servo Motor Solutions Provider In China

OEM ODM Customized Brushless Dc Servo Motor Motion Control Manufacturer / Solution Provider Since 2011

As a professional manufacturer, Jkongmotor provides high-performance brushless DC servo motor solutions that combine the advantages of AC and DC motor technologies. These motors deliver high efficiency, precise speed control, and strong torque output, making them ideal for automation, robotics, and industrial systems. With electronic commutation replacing mechanical brushes, the motors achieve longer lifespan, reduced maintenance, and stable operation even under demanding conditions.

Strong OEM/ODM Customization Capabilities for Tailored Solutions

Jkongmotor stands out with its robust OEM/ODM capabilities, offering fully customized bldc servo motor solutions tailored to specific application needs. The factory can adjust motor parameters such as torque, speed range, and efficiency, while also customizing wiring, connectors, and mounting structures. Additional integration of gearboxes, brakes, encoders, and drivers allows customers to receive a complete motion control system optimized for their equipment.


geared bldc motor supplier
Gearbox
brushless dc motor with brake
Brake
Integrated dc servo motors
Integrated Driver
Waterproof brushless dc motor
IP65 Protection
Brushless dc Servo Motor
Encoder
Jkongmotor offers a comprehensive portfolio of BLDC servo motors ranging from small sizes (42mm) to large frames (110mm), with power outputs up to 3000W. This wide range allows engineers to select the optimal motor for various applications, from precision instruments to heavy-duty equipment. The availability of integrated servo motors with communication protocols such as RS485 and CANopen further enhances system flexibility and simplifies control integration.

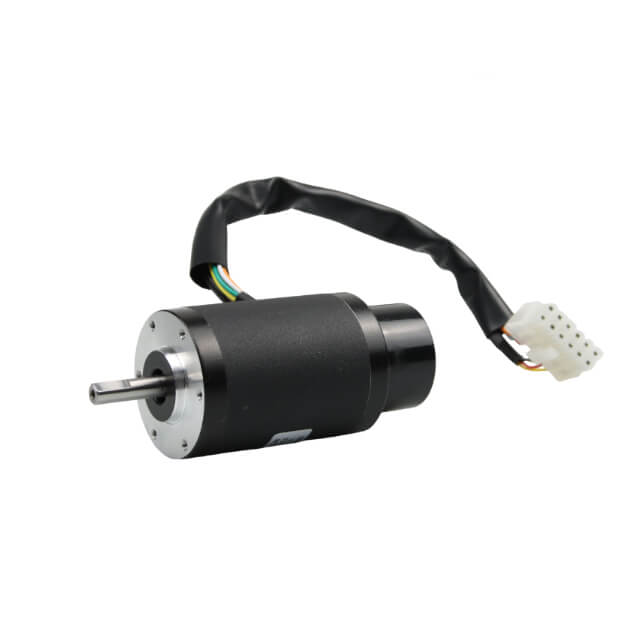

42 BLS BLDC Motor with Encoder

Nema 17 42BL Series 42mm 24V Round Brushless BLDC DC Servo Motor With Encoder

Brushless DC motor, power: 6.5W ~ 76W, rated voltage: 24V 36V, rated speed: 3500 ~ 6300rpm, rated torque: 18mNm ~ 115mNm
Optional parts: Gearbox, brake, encoder, integrated built-in drivers...
Model Phase Poles Rated Voltage Rated Speed Rated Torque Rated Current Rated Power Body Length Rotor Inertia Encoder Weight
Phase Poles Vdc Rpm mN.m A W mm g.cm2 / Kg
JK42BL30 3 8 24 3500 18 1.5 6.5 30 15.6 1000ppr 0.25
JK42BL60 3 8 36 4000 80 5 32 60 33 1000ppr 0.35
JK42BL85 3 8 24 4000 150 7.5 62 85 84 1000ppr 0.7
JK42BL93 3 8 24 6300 115 10 76 93 94 1000ppr 0.8
42 BLS BLDC Motor with Encoder

Nema 17 42BLS Series 24V 42mm Square Brushless BLDC DC Servo Motor With Encoder

Brushless DC motor, power: 30W ~ 100W, rated voltage: 24V, rated speed: 4000rpm, rated torque: 0.0716Nm ~ 0.26Nm
Optional parts: Gearbox, brake, encoder...
Model Phase Poles Rated Voltage Rated Speed Rated Torque Peak Current Rated Power Inductancs Body Length Encoder Weight
Phase Poles Vdc Rpm N.m A W mH mm / Kg
JK42BLS01-X038ED 3 8 24 4000 0.0716 0.3 30 1.8 59 1000ppr 0.35
JK42BLS02-X035ED 3 8 24 4000 0.143 0.45 60 0.73 79 1000ppr 0.5
JK42BLS03-X024ED 3 8 24 4000 0.191 0.6 80 0.55 99 1000ppr 0.7
JK42BLS04-X028ED 3 8 24 4000 0.26 0.75 110 0.36 119 1000ppr 0.85
57 BLS Round BLDC Motor

Nema 23 57BLS Series 57mm 24V 36V Round or Square Brushless BLDC DC Servo Motor With Encoder

Brushless DC motor, power: 50W ~ 200W, rated voltage: 24V, rated speed: 4000rpm, rated torque: 0.18Nm ~ 0.48mNm
Optional parts: Gearbox, brake, encoder, integrated built-in drivers...
Model Phase Poles Rated Voltage Rated Speed Rated Torque Rated Current Rated Power Body Length Driver Weight
Phase Poles Vdc Rpm N.m A W mm / Kg
JK57BLS01-X005ED 3 8 36 4000 0.18 0.35 50 68 1000ppr 0.5
JK57BLS02-X010ED 3 8 36 4000 0.24 0.5 100 88 1000ppr 0.8
JK57BLS03-X014ED 3 8 36 4000 0.36 0.7 150 108 1000ppr 1.05
JK57BLS04-X022ED 3 8 36 4000 0.48 0.9 200 128 1000ppr 1.3

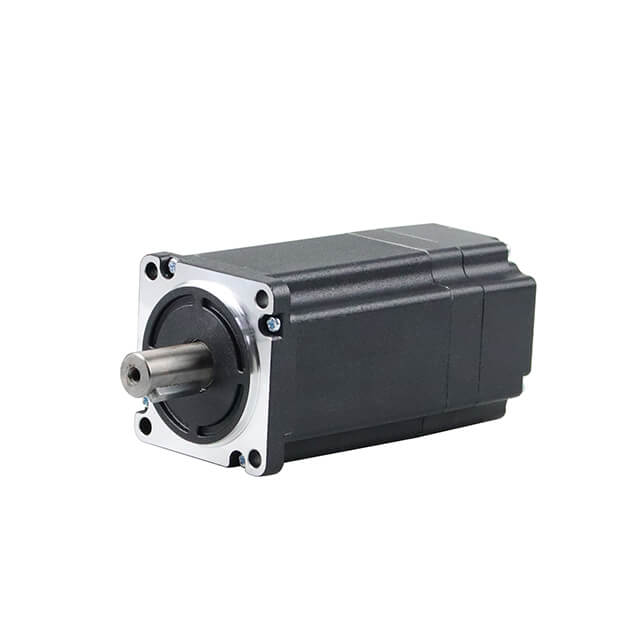

48V brushless dc servo motor

Nema 24 60BLS Series 60mm 48V Square Brushless BLDC DC Servo Motor With Encoder

Brushless DC motor, power: 94W ~ 377W, rated voltage: 48V, rated speed: 3000rpm, rated torque: 0.3Nm ~ 1.2Nm
Optional parts: gearbox, brake, encoder, fan, integrated built-in drivers...
Model Phase Poles Rated Voltage Rated Speed Rated Torque Rated Current Rated Power Body Length Rotor Inertia Encoder Weight
Phase Poles Vdc Rpm N.m A W mm kg.cm2 / Kg
JK60BLS01 3 8 48 3000 0.3 2.8 94 78 0.24 1000ppr 0.85
JK60BLS02 3 8 48 3000 0.6 5.2 188 99 0.48 1000ppr 1.25
JK60BLS03 3 8 48 3000 0.9 7.5 283 120 0.72 1000ppr 1.65
JK60BLS04 3 8 48 3000 1.2 9.5 377 141 0.96 1000ppr 2.05

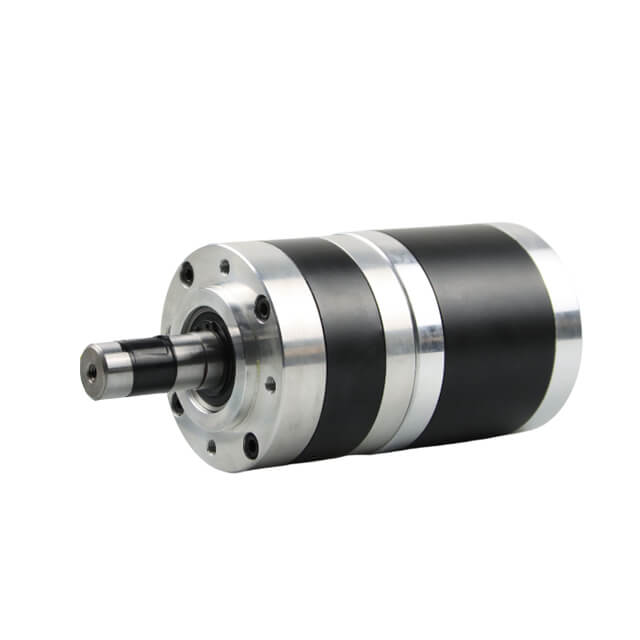

48V brushless dc servo motor

80BLS Series 80mm 48V Round Brushless BLDC DC Servo Motor With Encoder

Brushless DC motor, power: 110W ~ 440W, rated voltage: 48V, rated speed: 3000rpm, rated torque: 0.35Nm ~ 1.4Nm
Optional parts: gearbox, brake, encoder, fan, integrated built-in drivers...
Model Phase Poles Rated Voltage Rated Speed Rated Torque Rated Current Rated Power Body Length Rotor Inertia Encoder Weight
Phase Poles Vdc Rpm N.m A W mm g.cm2 / Kg
JK80BLS01 3 8 48 3000 0.35 3 110 78 210 1000ppr 1.4
JK80BLS02 3 8 48 3000 0.7 5.5 220 98 420 1000ppr 2
JK80BLS03 3 8 48 3000 1.05 8 330 118 630 1000ppr 2.6
JK80BLS04 3 8 48 3000 1.4 10.5 440 138 840 1000ppr 3.2

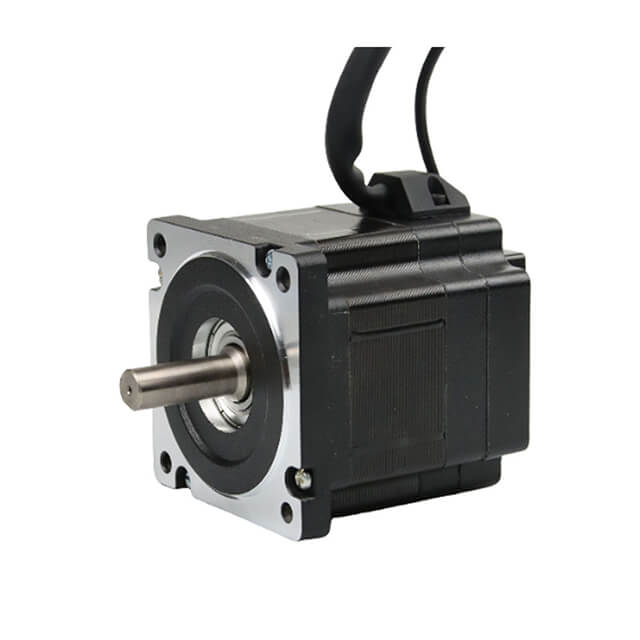

48v bldc servo motor

Nema 34 86BLS Series 86mm 48V Square Brushless BLDC DC Servo Motor With Encoder

Brushless DC motor, power: 110W ~ 660W, rated voltage: 48V, rated speed: 3000rpm, rated torque: 0.35Nm ~ 2.1Nm
Optional parts: gearbox, brake, encoder, fan, integrated built-in drivers...
Model Phase Poles Rated Voltage Rated Speed Rated Torque Rated Current Rated Power Body Length Rotor Inertia Encoder Weight
Phase Poles Vdc Rpm N.m A W mm g.cm2 / Kg
JK86BLS58-X002 3 8 48 3000 0.35 3 110 71 400 1000ppr 1.5
JK86BLS71-X001 3 8 48 3000 0.7 6.3 220 84.5 800 1000ppr 1.9
JK86BLS84 3 8 48 3000 1.05 9 330 98 1200 1000ppr 2.3
JK86BLS98-X015 3 8 48 3000 1.4 11.5 440 111.5 1600 1000ppr 2.7
JK86BLS125-X015 3 8 48 3000 2.1 18 660 138.5 2400 1000ppr 4

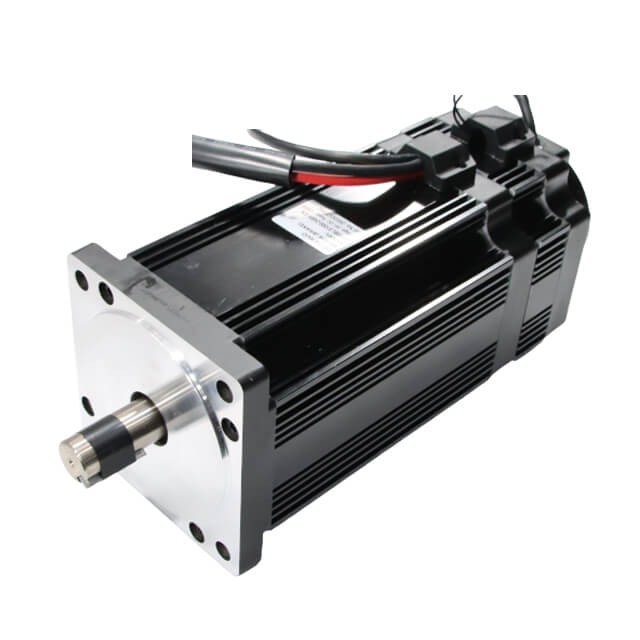

Bldc Servo Motor Manufacturer

Nema 42 110BLS Series 110mm 310V Square Brushless BLDC DC Servo Motor With Encoder

Brushless DC motor, power: 750W ~ 2073W, rated voltage: 310V, rated speed: 3000rpm, rated torque: 1.65Nm ~ 6.6Nm
Optional parts: gearbox, brake, encoder, fan, integrated built-in drivers...
Model Phase Poles Rated Voltage Rated Speed Rated Torque Rated Current Rated Power Body Length Encoder Weight
Phase Poles Vdc Rpm N.m A KW mm / Kg
JK110BLS50 3 8 310 3000 2.38 2.7 0.75 134 1000ppr 4.2
JK110BLS75 3 8 310 3000 3.3 3.7 1.03 159 1000ppr 5.7
JK110BLS100 3 8 310 3000 5 5.6 1.57 184 1000ppr 7
JK110BLS125 3 8 310 3000 6.6 7.5 2.07 209 1000ppr 8.5

Features:

  • No Brushes – Reduced Maintenance and Increased Lifespan
  • High Efficiency and Low Power Loss
  • High Torque-to-Weight Ratio
  • Precise Speed and Position Control
  • Quiet and Smooth Operation
  • Wide Speed Range and Dynamic Performance
  • Excellent Thermal Management Customizable Designs and Modular Configurations
  • Multiple Control Methods
  • Integration with Digital Interfaces and Sensors

Jkongmotor Brushless DC Motors has the following main advantages:

(1) With good mechanical characteristics and regulating characteristics, can replace the DC brush motor speed regulation, frequency conversion motor speed regulation, induction motor plus reducer speed regulation.

(2) Can run at low speed and high power, save the reducer, and directly drive the large load.
(3) It has many advantages of the traditional DC brush motor, but also eliminates the brush and collector ring structure.
(4) Excellent torque performance, medium, and low-speed torque performance start torque is large, start current is small.
(5) Step-less speed regulation, wide speed range, strong overload capacity.
(6) Small volume, light weight, large output.
(7) Soft start, soft stop, and good braking characteristics can leave out the original mechanical or electromagnetic device.
(8) The motor itself has no excitation loss and brush loss, high efficiency, and a good comprehensive power-saving effect.
(9) High reliability, good stability, strong adaptability, and simple repair and maintenance.
(10) Vibration resistance, low noise, small vibration, smooth operation, and long life.
(11) No spark, especially suitable for public places, anti-interference, good safety performance.




Flexible Mechanical and Structural Customization for Seamless Integration

Beyond electrical design, Jkongmotor provides extensive mechanical customization options to ensure seamless system integration. Customers can customize motor shafts, housings, and mounting configurations to fit their equipment precisely. Options such as pulleys, gears, and lead screws enable direct connection to transmission systems, reducing installation complexity and improving overall efficiency. This flexibility helps manufacturers shorten development cycles and reduce assembly costs.

Customized BLDC Servo Motor Solutions for Flexible System Integration

Jkongmotor delivers tailored brushless DC servo motor solutions designed to solve diverse motion control challenges across industries. With a modular platform covering 20W–3000W, 12V–310V, and frame sizes from 42mm to 110mm, engineers can configure motors to match exact performance and structural needs. Integrated options such as gearboxes, brakes, fans, and drivers enable compact, ready-to-use systems. Combined with OEM/ODM customization of wiring, interfaces, and housing, these solutions enhance efficiency, simplify installation, and ensure seamless compatibility with automation equipment.
  • bldc motor supplier
    Wires
  • bldc motor supplier
    Covers
  • bldc motor supplier
    Fans
  • bldc motor supplier
    Shafts
  • bldc motor supplier
    Integrated Drivers
  • bldc motor supplier
    Brakes
  • bldc motor supplier
    Gearboxes
  • bldc motor supplier
    Out Rotors
  • bldc motor supplier
    Coreless Dc
  • bldc motor supplier
    Drivers
Professional custom brushless motor services safeguard your projects or equipment.
  • No Brushes – Reduced Maintenance and Increased Lifespan
  • High Efficiency and Low Power Loss
  • High Torque-to-Weight Ratio
  • Precise Speed and Position Control
  • Quiet and Smooth Operation
  • Wide Speed Range and Dynamic Performance
  • Excellent Thermal Management Customizable Designs and Modular Configurations
  • Multiple Control Methods
  • Integration with Digital Interfaces and Sensors

Precision Motor Shaft Customization for Application-Specific Performance

Jkongmotor provides advanced motor shaft customization solutions to meet precise mechanical integration requirements. Shaft options include pulleys, gears, screw shafts, pins, and cross-drilled designs for direct system compatibility. Additional processes such as flats, keyways, knurling, and hobbing improve torque transfer and positioning accuracy. These customized shaft solutions minimize post-processing, reduce assembly complexity, and enhance reliability. By aligning shaft design with the complete motor system, Jkongmotor ensures optimal performance for every brushless DC servo motor application.
  • stepper motor company
    Pulleys
  • stepper motor company
    Gears
  • stepper motor company
    Shaft Pins
  • stepper motor company
    Screw Shafts
  • stepper motor company
    Cross Drilled Shafts
  • stepper motor company
    Flats
  • stepper motor company
    Keys
  • stepper motor company
    Knurlings
  • stepper motor company
    Hobbing Shafts
  • 12、空心轴
    Drivers
A diverse range of products and bespoke services to match the optimal solution for your project.
  • Motors passed CE Rohs ISO Reach certifications
  • Rigorous inspection procedures ensure consistent quality for every motor.
  • Through high-quality products and superior service, jkongmotor have secured a solid foothold in both domestic and international markets.

Strong Manufacturing Capability and Global Quality Standards

With more than 15 years of industry experience, Jkongmotor operates a modern production facility covering over 7,000 m² with an annual production capacity exceeding 2 million motors. The company maintains strict quality control procedures and uses advanced testing equipment to ensure consistent product performance. Its motors meet international standards including ISO9001, ISO14001, CE, and RoHS, ensuring reliability for global customers and industrial applications.
  • Application & Requirement Confirmation

    Prototype Development & Sample Build

    ▂▂

                · Equipment Type / Operating Conditions
                     · Load / Speed / Accuracy / Usage Frequency
                     · Installation Space / Protection Rating
                     · Certification Requirements (CE / RoHS / FDA / UL)
                     · Estimated Annual Usage / Project Phase
  • Technical Evaluation & Feasibility Study

    Technical Evaluation & Feasibility Study

    ▂▂
                        · Motor Selection or Structural Redesign
                        · Torque Calculation / Lifespan Assessment
                        · Critical Risk Points Explanation
                        · Cost Range and Delivery Time Evaluation
                        · Customization Level and Recommendations
  • Solution Proposal & Drawing Approval

    Solution Proposal & Drawing Approval

    ▂▂
                              · Recommended Motor Solution
                              · Key Parameters Table
                              · Outline Drawing / Installation Diagram
                              · Optional Configuration List
                              · Sample Lead Time & Test Plan
  • Prototype Development & Sample Build

    Prototype Development & Sample Build

    ▂▂
                       · Sample Production Schedule
                       · Critical Material Confirmation
                       · Sample Assembly
                       · Factory Testing
                       · Sample Documentation Package
  • Sample Testing & Application Validation

    Sample Testing & Application Validation

    ▂▂
                   · Performance Testing
                      · Lifetime and Stability Validation
                      · Customer Equipment Installation Testing
                      · Parameter Adjustment
                      · Secondary Sample Optimization

  • Pilot Order & Mass Production Preparation

    Pilot Order & Mass Production Preparation

    ▂▂
                        · Process Validation
                        · Critical Material Lockdown
                        · Quality Standard Documentation
                        · Inspection Specifications
                        · Packaging and Labeling Validation
  • Mass Production & Export Delivery

    Mass Production & Export Delivery

    ▂▂
                              · Mass Production Plan
                              · Batch Testing
                              · Aging Testing
                              · Final Inspection
                              · Documentation Support
  • After-Sales Support & Long-Term Supply

    After-Sales Support & Long-Term Supply

    ▂▂
                           · Technical Support
                           · Batch Traceability
                           · Spare Parts Solutions
                           · Cost Optimization
                           · New Project Collaborative Development

Customized Bldc Servo Motor Production Process

We specialize in custom integrated servo motor solutions for equipment manufacturers and system integrators worldwide.
  • oem odm stepper motor
    Incoming Inspection
  • oem odm stepper motor
    Stator Inner Grinding
  • oem odm stepper motor
    Stator Winding
  • oem odm stepper motor
    Rotor Pressing
  • oem odm stepper motor
    Rotor Outside Grinding
  • oem odm stepper motor
    Assembly
  • oem odm stepper motor
    Motor Testing
  • oem odm stepper motor
    Packing & Shipping

High-precision automated equipment ensures quality assurance for each motor

By integrating high-speed winding, automated assembly, precision rotor pressing, multi-stage grinding, intelligent inspection, and uniform coating processes, we establish a complete and reliable motor quality assurance system. Each motor benefits from strict dimensional control, stable electromagnetic performance, and consistent mechanical balance.


Brushless DC Motor Reliability Verification for Industrial Applications

By integrating high-speed winding, automated assembly, precision rotor pressing, multi-stage grinding, intelligent inspection, and uniform coating processes, we establish a complete and reliable motor quality assurance system. Each motor benefits from strict dimensional control, stable electromagnetic performance, and consistent mechanical balance.
  • Coordinate Measuring Machine
    Coordinate Measuring Machine
  • 2D Image Testing Machine
    2D Image Testing Machine
  • Constant Temperature and Humidity Chamber
    Vibration Testing Equipment
  • 防水试验箱
    Waterproof Test Chamber
  • Image measuring instrument
    Image Measuring Instrument
  • Salt Spray Corrosion Test Chamber
    Salt Spray Corrosion Test Chamber
  • High and Low Temperature Humidity Test Chamber
    Temperature Humidity Test Chamber
  • Comprehensive Tester
    Comprehensive Testing Machine

Why Choose Our OEM ODM Brushless Dc Servo Motors?

—— OEM ODM Customized Intelligent BLDC / Stepper Motion Control Manufacturer / Solution Provider Since 2011 ——

The Ultimate Solution for Efficient Bldc Servo Motors

By integrating high-speed winding, automated assembly, precision rotor pressing, multi-stage grinding, intelligent inspection, and uniform coating processes, we establish a complete and reliable motor quality assurance system. Each motor benefits from strict dimensional control, stable electromagnetic performance, and consistent mechanical balance.

Industry-Focused Motion Control Solutions

—— OEM ODM Customized Intelligent BLDC / Stepper Motion Control Manufacturer / Solution Provider Since 2011 ——
Brushless DC motors (BLDC motors) are widely used across many industries because they offer high efficiency, long lifespan, low maintenance, and precise speed control . Below are the major application fields of brushless DC motors .



Beyond supplying standard products, Jkongmotor focuses on delivering application-specific motion control solutions for industries such as industrial automation, AGV robots, textile machinery, packaging equipment, medical devices, and consumer electronics. By combining motor engineering expertise with customized design capabilities, the company helps equipment manufacturers optimize efficiency, energy consumption, noise control, and system integration, making it a reliable partner for advanced motion systems worldwide.

Get Updated Article And News

Backed by over 15 years of experience as a professional brushless dc motor manufacturing solutions provider, our blog shares up-to-date industry insights, proven best practices, advanced engineering strategies, and innovative concepts drawn from real manufacturing experience.
  • 2026 Top 16 DC Servo Motor Suppliers in India

    2026 Top 16 DC Servo Motor Suppliers in India
    Why Precise Motor Selection Is Critical for Industrial Success in IndiaIn India’s rapidly evolving manufacturing landscape, precise motor selection is no longer optional—it is a decisive factor for operational efficiency, cost control, and long-term competitiveness. With industries transitioning tow Read More
  • 2026 Top 15 Brushless DC Motor Manufacturers in India

    2026 Top 15 Brushless DC Motor Manufacturers in India
    The Indian industrial automation and electric mobility sectors are experiencing rapid transformation, driving the demand for high-efficiency brushless DC (BLDC) motors. As a result, numerous manufacturers across India are delivering advanced, reliable, and customizable BLDC motor solutions for diver Read More
  • How To Identify & Eliminate Motor Noise Sources？

    How To Identify & Eliminate Motor Noise Sources？
    Electric motors are essential components in modern industrial systems, automation equipment, and consumer devices. However, motor noise remains one of the most persistent challenges affecting performance, reliability, and user experience. In this comprehensive guide, we provide a deep technical appr Read More
  • 2026 Top 25 BLDC Motor Manufacturers in Germany

    2026 Top 25 BLDC Motor Manufacturers in Germany
    Brushless BLDC motors combine high efficiency, precision control, and long lifespan, while OEM ODM customized capabilities enable tailored solutions for diverse industrial and automation applications. BLDC Motors (Brushless DC Motors) are a type of electric motor that operates using direct current ( Read More
  • Top 15 Brushless BLDC Servo Motor Manufacturers in India

    Top 15 Brushless BLDC Servo Motor Manufacturers in India
    India’s brushless BLDC motor ecosystem includes a strong set of manufacturers producing high‑efficiency, OEM/ODM customized brushless BLDC motor and servo solutions for industrial automation, robotics, EV, packaging, and CNC applications. The market supports extensive customization options — includi Read More
  • Top 15 Brushless BLDC Servo Motor Manufacturers in Poland

    Top 15 Brushless BLDC Servo Motor Manufacturers in Poland
    Top brushless BLDC motor manufacturers in Poland supply a wide range of high-performance brushless BLDC motors and servo systems with strong OEM/ODM customized capabilities for tailored industrial automation, robotics, and motion control applications.Poland has rapidly become a strategic hub for ind Read More
  • Top 15 Brushless BLDC Servo Motor Manufacturers in United Kingdom

    Top 15 Brushless BLDC Servo Motor Manufacturers in United Kingdom
    Top UK brushless BLDC motor manufacturers deliver high-performance motors, servo systems, and motion solutions with strong OEM/ODM customized capabilities — including tailored torque, speed, integrated drives, encoders, gearbox options, and engineered solutions for automation, robotics, and industri Read More
  • Top 15 Brushless BLDC Servo Motor Manufacturers in France

    Top 15 Brushless BLDC Servo Motor Manufacturers in France
    French brushless BLDC motor manufacturers provide a wide range of high-performance brushless BLDC motors and servo solutions, with strong OEM/ODM customized capabilities including tailored windings, shafts, feedback systems, and integrated drive options — ideal for automation, robotics, aerospace, a Read More

Frequently Ask Questions

—— OEM ODM Customized Intelligent BLDC / Steper Motion Control Manufacturer / Solution Provider Since 2011  ——
Contact us
Choose File

    *Please upload only jpg, png, pdf, dxf, dwg files. Size limit is 25MB.

    Leading Stepper Motors & Brushless Motors Manufacturer
    whatsapp
    wechat-jkong
    Products
    Application
    Links

    © COPYRIGHT 2025 CHANGZHOU JKONGMOTOR CO.,LTD ALL RIGHTS RESERVED.
