Top 20 Brushless BLDC Motor Manufacturers in the United Kingdom

The UK market for brushless DC (BLDC) motors covers a wide range of applications, from industrial automation and robotics to medical equipment, material handling, pumps, ventilation, electric mobility, and precision machinery. For OEM buyers, the challenge is not simply finding a motor that rotates. The right supplier needs to provide the required voltage, torque, speed, efficiency, thermal performance, control method, mechanical interface, gearbox options, encoder feedback, protection level, and long-term supply support.

This guide presents 20 manufacturers and specialist suppliers relevant to UK buyers. Because the market includes both UK-based manufacturers and international manufacturers with products supplied into the UK, the ranking should be viewed as a practical sourcing shortlist rather than a formal industry certification or market-share ranking.

What Is a Brushless BLDC Motor?

A brushless DC motor, commonly called a BLDC motor, is a permanent-magnet motor that uses electronic commutation instead of mechanical brushes and a commutator.

Traditional brushed DC motors rely on physical brushes to switch current between the windings. BLDC motors replace this mechanical switching system with an electronic controller. The controller energizes the stator windings in a controlled sequence, causing the permanent-magnet rotor to rotate.

This design gives BLDC motors several characteristics that make them attractive to modern equipment manufacturers:

• High efficiency

• Long operating life

• Low maintenance

• Low electrical and mechanical wear

• Good speed regulation

• High power density

• Fast dynamic response

• Low noise and vibration when properly designed

• Easy integration with encoders and controllers

• Excellent suitability for continuous-duty applications

Parvalux, for example, describes its BLDC motors as providing high starting torque, good speed regulation, efficiency, power density, and quiet operation, while also offering motor-only and geared configurations.

Main Types of Brushless BLDC Motors

Before choosing a manufacturer, it helps to understand the major BLDC motor configurations.

1. Inner-Rotor BLDC Motors

The permanent-magnet rotor is located inside the stator.

These motors are widely used in:

• Industrial automation

• Pumps

• Fans

• Robotics

• Medical equipment

• AGVs and AMRs

• Machine tools

They can provide relatively high operating speeds and are available in many industrial frame sizes.

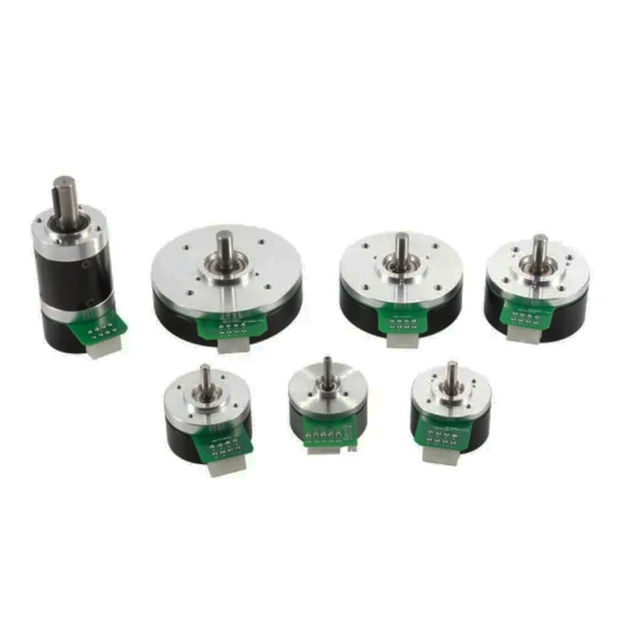

2. Outer-Rotor BLDC Motors

The rotor surrounds the stator.

The larger rotor diameter can provide useful torque characteristics, making outer-rotor designs popular for:

• Cooling fans

• Blowers

• Robotics

• Direct-drive systems

• Electric mobility

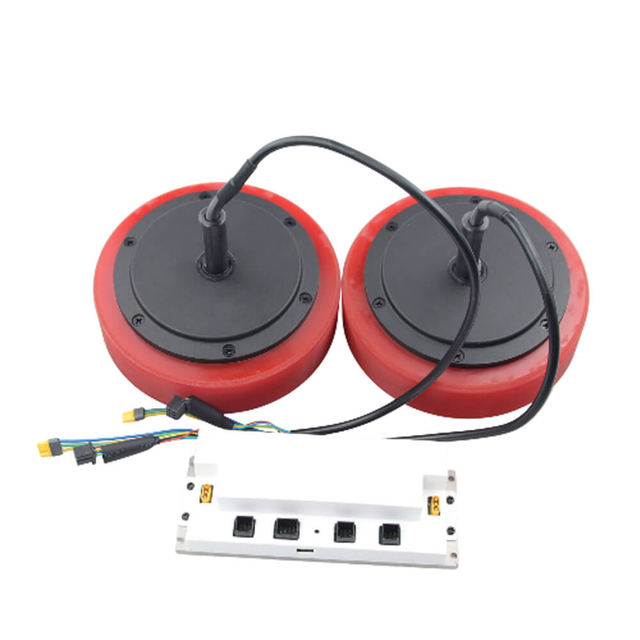

• AGV wheel systems

3. Slotless BLDC Motors

Slotless designs can offer low cogging torque, low inertia, and smooth rotation. They are particularly interesting for precision motion applications.

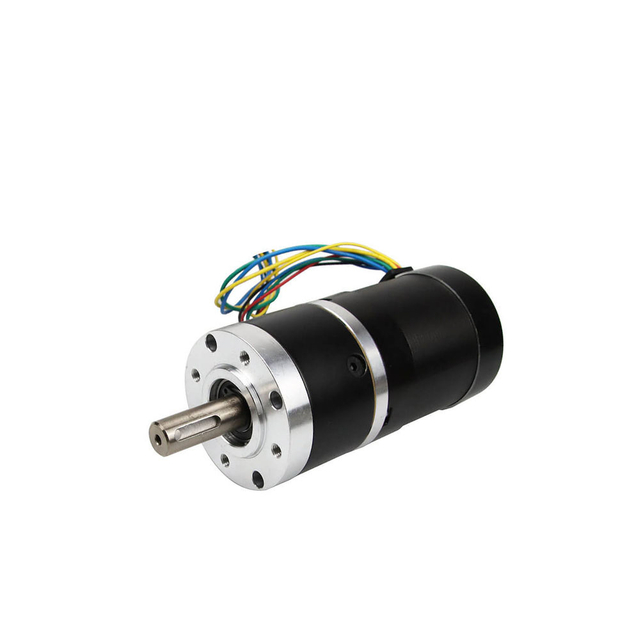

4. Geared BLDC Motors

A gearbox is attached to the motor to reduce speed and increase output torque.

Common gearbox configurations include:

• Planetary gearbox

• Worm gearbox

• Spur gearbox

• Right-angle gearbox

Geared BLDC motors are frequently used where the application requires high output torque at relatively low speed.

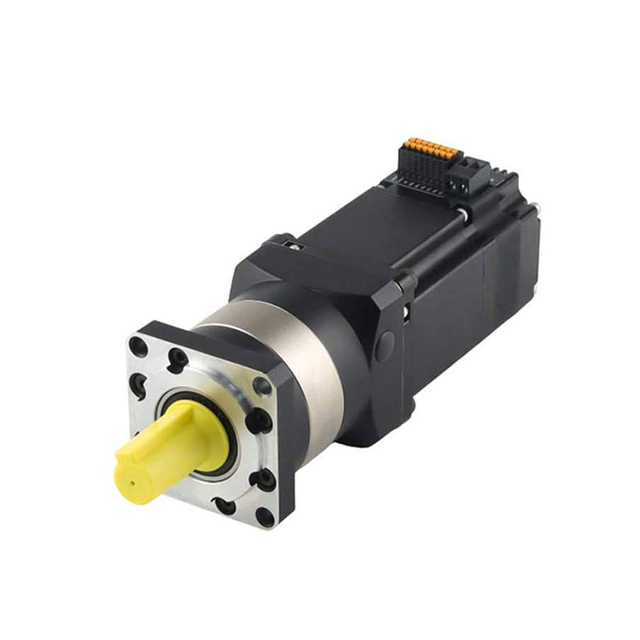

5. Integrated BLDC Motors

An integrated BLDC motor combines the motor with electronics such as a driver, controller, encoder interface, or communication electronics.

For machine builders, this can reduce:

• Wiring

• Cabinet space

• Installation complexity

• Separate component count

Integrated BLDC solutions are particularly useful for compact automation equipment and mobile robots.

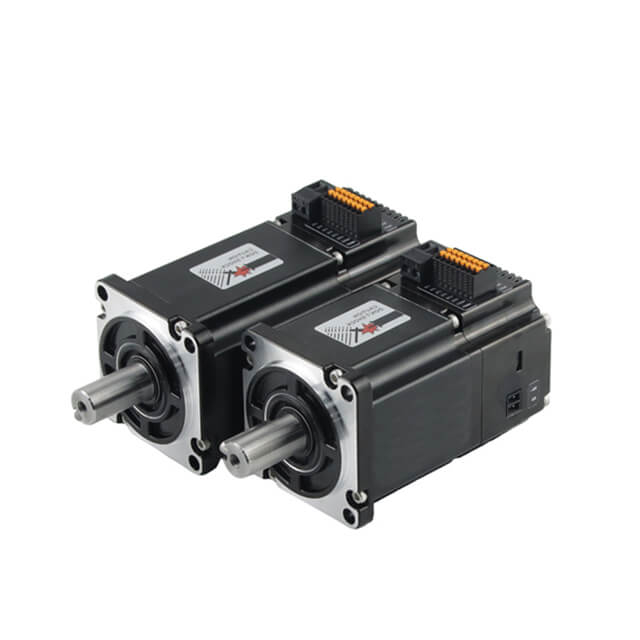

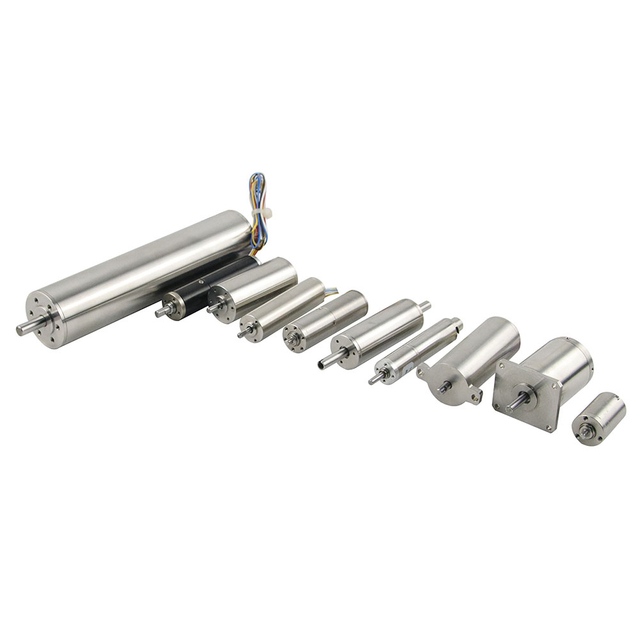

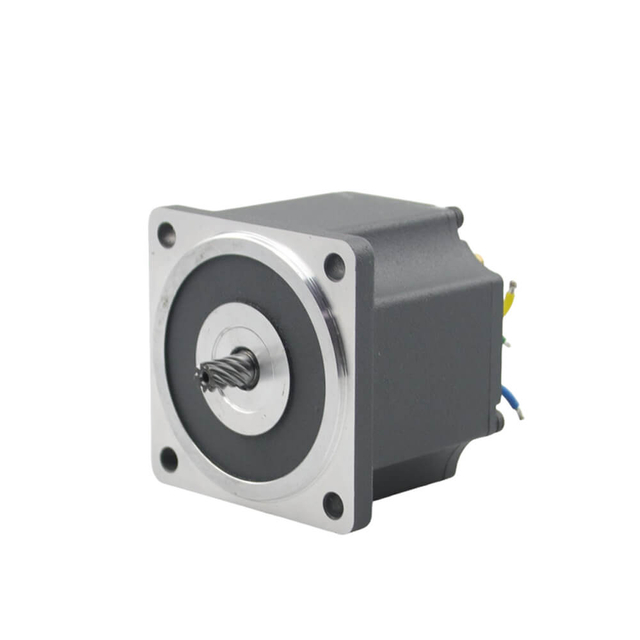

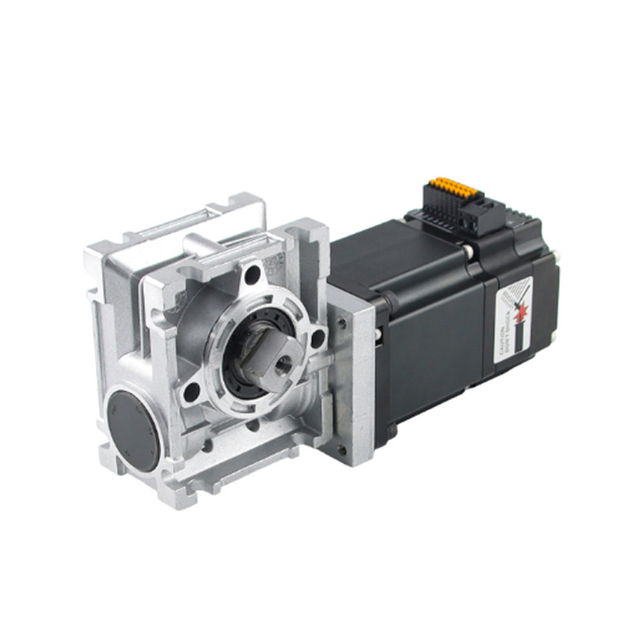

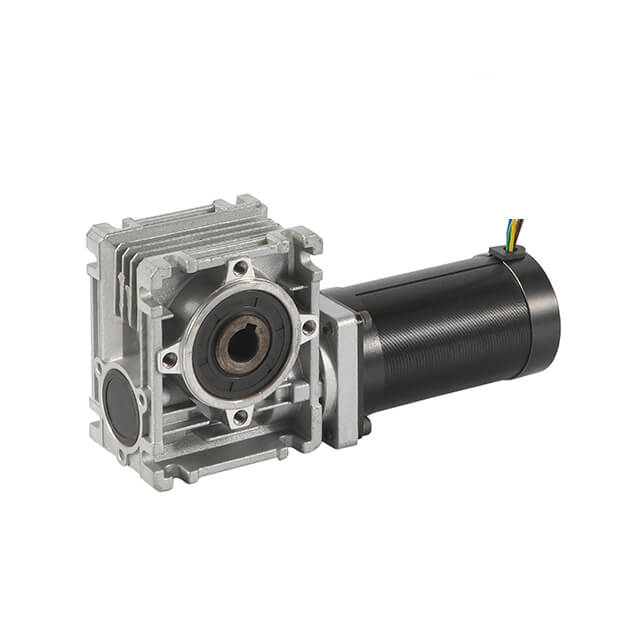

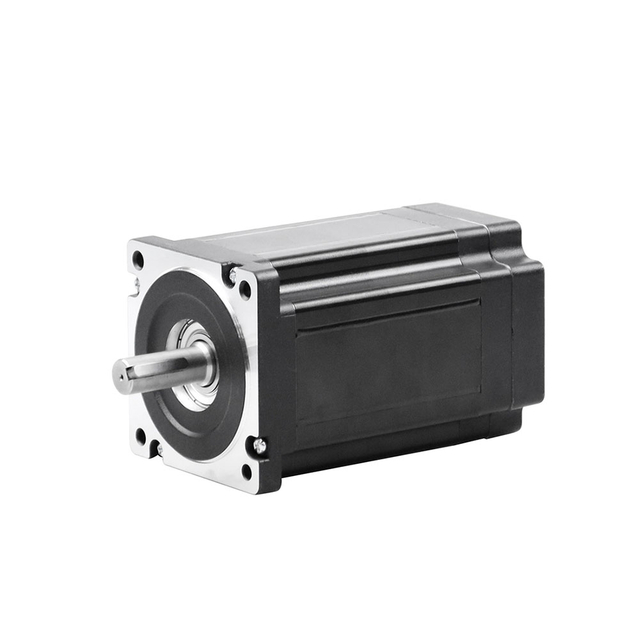

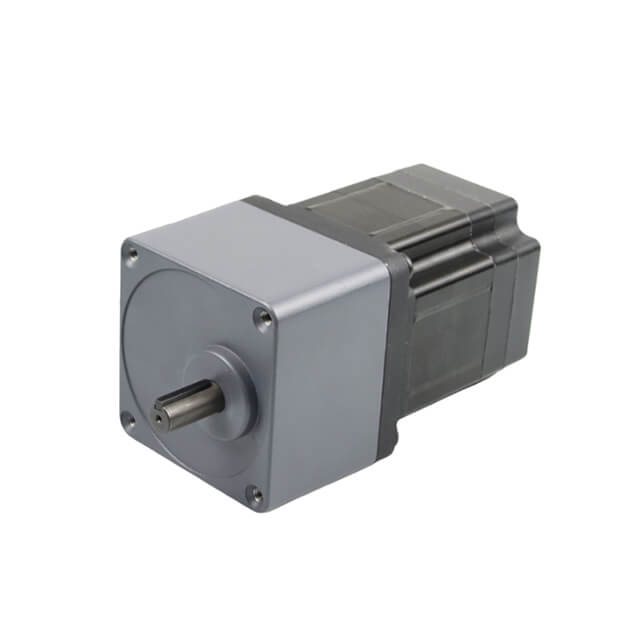

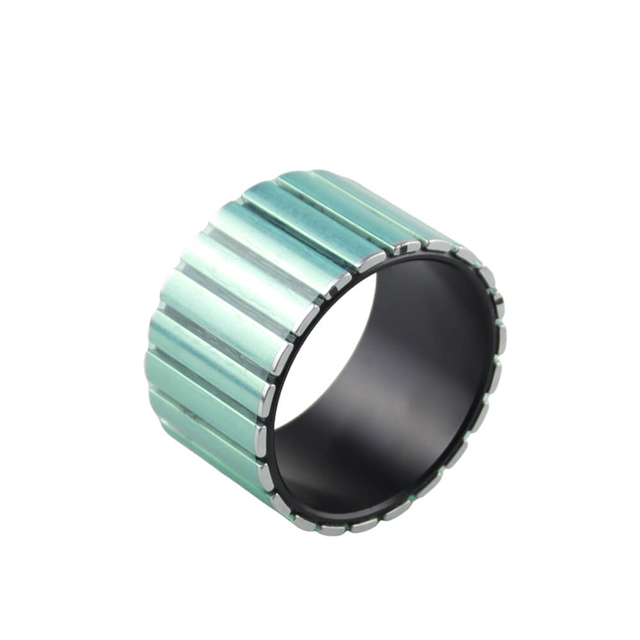

Jkongmotor ODM OEM Customized Bldc Motor Types

Bldc Motor Customized Service

As a professional brushless dc motor manufacturer with 13 years in china, Jkongmotor offer various bldc motors with customized requirements, including 33 42 57 60 80 86 110 130mm, additionally, gearboxes, brakes, encoders, brushless motor drivers and integrated drivers are optional.

Advantages and Disadvantages of BLDC Motors

Brushless DC (BLDC) motors have become a popular choice for industrial automation, robotics, AGVs, medical equipment, pumps, fans, conveyors, and other applications that require efficient, reliable, and controllable motion. Unlike brushed DC motors, BLDC motors use electronic commutation instead of mechanical brushes and a commutator. This eliminates brush wear and allows the motor to operate efficiently at high speeds.

However, BLDC motors are not automatically the best choice for every application. Their performance depends heavily on the motor design, controller, feedback system, load profile, thermal conditions, and commutation strategy. Understanding both the advantages and disadvantages is therefore important when selecting a BLDC motor for an OEM machine or motion-control system.

Advantages of BLDC Motors

1. High Efficiency

One of the biggest advantages of a BLDC motor is its high operating efficiency. Because there are no mechanical brushes rubbing against a commutator, brush friction and associated electrical losses are eliminated.

The electronic controller also allows the motor to regulate current according to rotor position and operating conditions. This makes BLDC motors particularly attractive for variable-speed applications where energy consumption matters.

For equipment that operates continuously, even a relatively small improvement in efficiency can produce meaningful energy savings over the service life of the machine.

2. Long Service Life

BLDC motors generally have a longer service life than brushed DC motors because they do not have brushes that gradually wear out.

The practical life of a BLDC motor is instead influenced primarily by components such as:

• Bearings

• Permanent magnets

• Insulation system

• Windings

• Electronics

• Operating temperature

With appropriate bearing selection and thermal management, BLDC motors can support long operating periods and continuous-duty applications.

This makes them particularly useful for 24/7 industrial equipment, automated machinery, pumps, fans, AGVs, and robotic systems.

3. Low Maintenance Requirements

Because there are no brushes or mechanical commutators, routine maintenance is generally lower than with brushed DC motors.

There is no need for regular brush replacement, and there is considerably less mechanical wear associated with the commutation system.

For OEM equipment installed in locations where maintenance access is difficult, this can be a major advantage.

4. High-Speed Operation

BLDC motors are capable of operating at high speeds because their rotation is not limited by brush and commutator mechanical limitations.

This makes them suitable for:

• High-speed fans

• Pumps

• Spindles

• Compressors

• Medical equipment

• Precision machinery

• High-speed automation

The actual maximum speed still depends on rotor balance, bearings, winding design, iron losses, controller characteristics, and thermal limitations.

5. High Power Density

BLDC motors can provide substantial power and torque from a relatively compact package.

This is particularly important when the machine designer has limited installation space.

For example, robotics, AGVs, AMRs, medical devices, and portable automation equipment often need a motor that delivers sufficient torque without significantly increasing the size and weight of the machine.

Modern BLDC designs can also combine the motor with a gearbox, encoder, brake, or integrated driver, creating a compact drive module.

6. Excellent Speed Control

BLDC motors work with electronic controllers that can provide precise speed regulation.

Depending on the controller architecture, the system can support:

• Speed control

• Torque control

• Current control

• Acceleration control

• Deceleration control

• Closed-loop positioning

• Communication with a PLC or motion controller

An encoder or Hall sensor can provide rotor-position feedback, while advanced control strategies such as field-oriented control (FOC) can further improve dynamic performance and torque control.

7. Good Dynamic Response

BLDC motors can respond quickly to changes in speed and load.

This is useful for machines that frequently accelerate, decelerate, start, stop, or reverse.

Typical applications include:

• Robotic joints

• Pick-and-place machines

• AGV drive wheels

• Automated conveyors

• Packaging machinery

• Servo mechanisms

For demanding motion-control applications, selecting the correct controller and feedback system is just as important as selecting the motor itself.

8. Low Electrical and Mechanical Wear

BLDC motors eliminate brush arcing and mechanical commutation.

Compared with brushed motors, this can reduce:

• Brush dust

• Mechanical wear

• Electrical arcing

• Commutator wear

• Electromagnetic interference associated with brush commutation

This makes BLDC motors attractive for applications where long operating life and relatively clean operation are important.

9. Flexible Feedback Options

BLDC motors can be supplied with different feedback configurations depending on the control requirements.

Common options include:

• Hall-effect sensors

• Incremental encoders

• Absolute encoders

• Temperature sensors

• Sensorless control

For simple speed-control applications, Hall sensors may be sufficient. For precision servo applications, an encoder is usually more appropriate.

Sensorless BLDC control can reduce component count, wiring, and installation space, although sensorless operation becomes more challenging at very low speed and during startup because back-EMF is weak or absent at standstill.

10. Excellent Suitability for OEM Customization

BLDC motors are available in a wide range of configurations.

An OEM manufacturer can specify:

• Voltage

• Rated power

• Rated torque

• Speed

• Shaft dimensions

• Mounting flange

• Winding

• Encoder

• Hall sensors

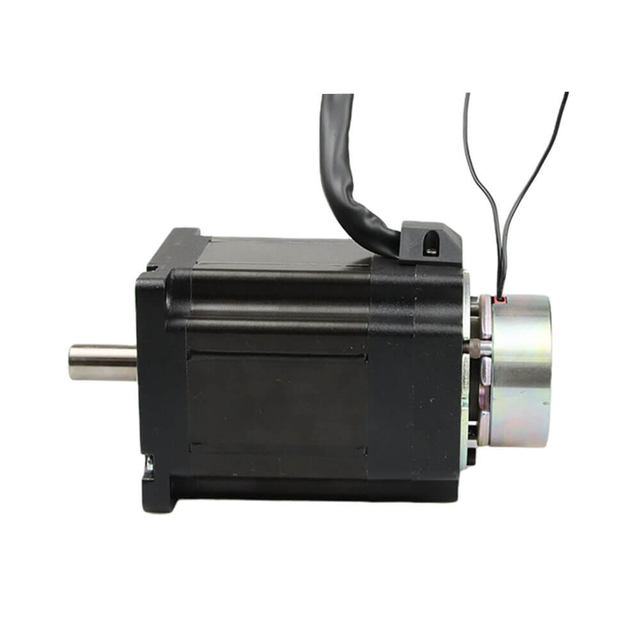

• Brake

• Gearbox

• Connector

• Cable length

• IP protection

• Integrated driver

This makes BLDC technology highly adaptable to customized automation equipment.

Disadvantages of BLDC Motors

Despite their advantages, BLDC motors also have several limitations that OEM engineers need to consider.

1. Higher Initial System Cost

A BLDC motor normally requires an electronic controller for commutation.

A simple brushed DC motor can often be connected directly to a DC power supply, while a BLDC motor requires suitable electronics to determine rotor position and energize the motor phases.

Therefore, the initial cost of a BLDC drive system can be higher because it may include:

• Motor

• Controller

• Hall sensors

• Encoder

• Driver electronics

• Wiring

• Connectors

However, the higher initial cost can be offset by longer service life, lower maintenance, and better efficiency.

2. More Complex Control System

A BLDC motor is not simply a motor that can be connected directly to a DC voltage source.

The controller needs to manage electronic commutation and, depending on the application, closed-loop speed, torque, or position control.

This introduces additional engineering considerations such as:

• Phase sequence

• Hall sensor signals

• Current limits

• PWM frequency

• Commutation angle

• Acceleration

• Regenerative energy

• Controller protection

As a result, BLDC systems generally require more technical integration than basic brushed DC motors.

3. Controller Compatibility Is Critical

Not every BLDC controller is suitable for every BLDC motor.

The controller must be compatible with parameters such as:

• Rated voltage

• Maximum current

• Motor phase configuration

• Hall sensor arrangement

• Electrical angle

• Speed range

• Feedback type

• Communication interface

A motor can be mechanically correct but still perform poorly if it is paired with an unsuitable controller.

For OEM projects, it is often preferable to have the motor supplier validate the motor-controller combination rather than selecting each component independently.

4. Torque Ripple Can Occur

BLDC motors can experience torque ripple, depending on motor construction and commutation method.

Traditional block commutation can produce noticeable torque variation. Advanced sinusoidal commutation and FOC can significantly reduce torque ripple, although the actual result also depends on motor construction, sensors, tolerances, and controller performance.

For applications requiring extremely smooth low-speed motion, such as precision positioning or certain robotic systems, the motor and controller should therefore be evaluated as a complete system.

5. Electronic Components Can Fail

Although the motor itself has no brushes, the overall BLDC system contains electronic components that can fail.

Potential failure points include:

• MOSFETs

• Power transistors

• Capacitors

• Position sensors

• Controller PCB

• Connectors

• Communication circuits

High temperature, voltage spikes, excessive current, poor cooling, and electromagnetic interference can reduce electronic component life.

This makes thermal design, electrical protection, and controller quality important parts of BLDC system design.

6. Sensorless Control Has Low-Speed Limitations

Sensorless BLDC systems can reduce cost and wiring, but they have an important limitation: rotor-position estimation becomes difficult at very low speed because the back-EMF signal becomes weak.

At standstill, there is no back-EMF to directly determine rotor position. Special startup strategies are therefore required.

For applications requiring:

• High starting torque

• Precise low-speed control

• Frequent starts and stops

• Position control at standstill

a Hall sensor or encoder-based solution may be preferable.

7. Permanent-Magnet Material Considerations

Many BLDC motors use permanent magnets such as NdFeB magnets.

Permanent-magnet motors can be affected by:

• High temperature

• Demagnetization risk

• Magnet material cost

• Rare-earth material supply considerations

The U.S. Department of Energy notes that some BLDC designs use rare-earth materials whose supply can be a consideration.

For demanding high-temperature applications, engineers should confirm the magnet's temperature rating and the motor's complete thermal design.

BLDC Motor Advantages vs. Disadvantages

Are BLDC Motors Better Than Brushed DC Motors?

For many modern industrial applications, yes—but not in every situation.

A brushed DC motor can still be a sensible choice when the application prioritizes:

• Very low initial cost

• Simple electrical connection

• Basic speed control

• Short operating time

• Easy replacement

A BLDC motor is generally more attractive when the application requires:

• Long service life

• High efficiency

• Continuous operation

• High speed

• Low maintenance

• Compact size

• Precise speed control

• Encoder feedback

• High power density

The correct decision should therefore be based on the complete motor-drive system rather than the motor price alone.

How to Reduce the Disadvantages of BLDC Motors

Many of the disadvantages can be addressed during the design stage.

Use a Matched Motor and Controller

A properly matched motor-controller combination can improve efficiency, starting performance, speed stability, and torque smoothness.

Select the Correct Feedback

Use Hall sensors for relatively straightforward commutation and speed-control applications, while considering encoders when precise speed, torque, or position control is required.

Use FOC for Smooth Motion

For applications sensitive to torque ripple and acoustic noise, sinusoidal commutation or FOC can provide smoother operation than basic block commutation.

Improve Thermal Management

Correctly size:

• Motor

• Controller

• Heat sink

• Housing

• Cooling system

Do not evaluate motor temperature only during a short no-load test. Continuous operation under the actual load is much more representative.

Consider an Integrated BLDC Motor

For compact OEM equipment, an integrated BLDC motor with a built-in driver can reduce wiring, cabinet space, and system complexity.

Conclusion

BLDC motors offer an excellent combination of efficiency, long service life, low maintenance, high speed, compact size, and precise electronic control. These characteristics make them particularly suitable for robotics, AGVs, AMRs, industrial automation, medical equipment, pumps, fans, conveyors, and other applications requiring reliable continuous operation.

The main disadvantages are the higher initial system cost, requirement for electronic commutation, greater control complexity, controller compatibility requirements, and potential torque ripple or low-speed limitations depending on the control architecture.

For OEM buyers, the most important point is to evaluate the motor, controller, feedback, gearbox, thermal conditions, and load profile as one complete system. A correctly matched BLDC motor can deliver excellent long-term performance, while an incorrectly specified motor may suffer from overheating, unstable control, insufficient starting torque, or premature component failure.

Top 20 Brushless BLDC Motor Manufacturers and Suppliers for the UK Market

1. JKONGMOTOR

Company Profile

JKONGMOTOR is a China-based manufacturer specializing in stepper motors, BLDC motors, integrated servo motors, geared motors, and motion-control solutions. The company states that it was established in 2010/2011 and operates a manufacturing facility in Changzhou, China, with more than 100 employees and annual production exceeding two million motors.

For UK OEM customers, its main positioning is particularly relevant to projects requiring OEM/ODM customization, rather than simply buying standard catalog motors.

Main Products

• Standard BLDC motors

• Geared BLDC motors

• Integrated BLDC motors

• BLDC servo motors

• Brake BLDC motors

• BLDC motors with encoders

• Planetary geared BLDC motors

• Worm geared BLDC motors

• Integrated drivers

• Stepper motors

• Integrated stepper servo motors

• DC servo motors

Its BLDC range covers approximately 5 W to 3000 W, with motor sizes from about 28 mm to 110 mm, and options including gearboxes, brakes, encoders, and integrated drivers.

Advantages

JKONGMOTOR is particularly attractive for OEMs that need:

• OEM/ODM customization

• Customized shafts and mounting interfaces

• Customized windings

• Gearbox matching

• Encoder integration

• Brake options

• Integrated drivers

• Industrial automation solutions

• AGV/AMR motor solutions

• Competitive high-volume manufacturing

Its BLDC products are positioned for automation, robotics, AGVs, medical equipment, printers, home appliances, agriculture, and other industrial applications.

2. BESFOC Motor

Company Profile

BESFOC Motor is an international motion-control motor manufacturer focused on compact and customized motor solutions. Its product portfolio is particularly relevant to automation engineers and OEM customers looking for integrated motor and drive technologies.

Main Products

• BLDC motors

• Brushless servo motors

• Integrated BLDC motors

• Geared BLDC motors

• Stepper motors

• Closed-loop stepper motors

• Integrated stepper motors

• DC servo motors

• Linear motors

• Motor drivers

Advantages

BESFOC is worth considering for applications where the customer needs a combination of motor, control electronics, feedback, and mechanical customization rather than a motor alone.

Its portfolio makes it suitable for:

• Robotics

• AGV/AMR

• Industrial automation

• Medical equipment

• Packaging machinery

• CNC equipment

• Smart machinery

3. LeanMotor

Company Profile

LeanMotor is a motion-control motor supplier serving OEM and automation applications. The company focuses on compact electric motor technologies and customized solutions for industrial equipment manufacturers.

Main Products

• BLDC motors

• Brushless servo motors

• Integrated BLDC motors

• Geared motors

• Stepper motors

• Servo motors

• Motor controllers

• Motion-control products

Advantages

LeanMotor can be considered when the project requires custom motor specifications, compact packaging, integrated control, and OEM support.

Its solutions are relevant to:

• Robotics

• Automation equipment

• Medical devices

• Packaging

• AGV systems

• Smart manufacturing equipment

4. Parvalux Electric Motors

Company Profile

Parvalux is one of the strongest UK-based names on this list. The company describes itself as the UK's largest manufacturer of fractional-horsepower geared electric motors and has manufactured motors since 1947. Its products are used internationally in industrial automation, material handling, building automation, healthcare, leisure, and other markets.

Main Products

• BLDC motors

• PMDC motors

• AC motors

• Geared motors

• BLDC geared motors

• Inline gearmotors

• Right-angle gearmotors

Advantages

Parvalux offers a major advantage for UK customers that value UK manufacturing and engineering support. Its BLDC products can be supplied as motor-only units or with gearboxes, and the company also offers semi-custom and fully customized drive solutions.

5. maxon

Company Profile

maxon is a globally recognized precision motion-control manufacturer with a strong presence in the UK market.

Main Products

• EC/BLDC motors

• Brushless servo motors

• Gearheads

• Encoders

• Controllers

• Integrated drive systems

Advantages

maxon is particularly strong where customers need precision, compact dimensions, high speed, low inertia, and advanced feedback/control.

Its EC motor portfolio covers miniature to industrial-scale precision applications, with published ranges extending to very high speeds and compact diameters.

6. FAULHABER

Company Profile

FAULHABER is a well-known precision micro-drive manufacturer whose products are available to UK customers through specialist distribution channels.

Main Products

• Brushless DC motors

• DC motors

• Servo motors

• Gearheads

• Encoders

• Integrated drive systems

Advantages

FAULHABER is especially suitable for medical technology, laboratory equipment, robotics, aerospace, automation, and precision instruments. EMS, a UK supplier, identifies FAULHABER as one of its key brushless motor brands.

7. Precision Microdrives

Company Profile

Precision Microdrives is a UK specialist in miniature low-voltage motors and motor mechanisms.

Main Products

• Miniature BLDC motors

• Brushed DC motors

• Gear motors

• Vibration motors

• Encoders

• Integrated motion-control systems

Advantages

Its strongest advantage is miniaturization and application engineering. The company designs and manufactures motors below 60 mm diameter and supports applications including medical devices and instrumentation.

8. Rotalink

Company Profile

Rotalink provides miniature DC motor and gearmotor solutions with UK design, manufacturing, and support.

Main Products

• Brushed DC motors

• Brushless DC motors

• DC gearmotors

• Custom gearboxes

• Motor assemblies

Advantages

Rotalink is attractive for OEMs needing small motors, customized windings, and integrated gearbox solutions. Its published miniature motor range includes brushless and brushed motors from 1–150 W, with customized winding options available.

9. Lynch Motor Company

Company Profile

Lynch Motor Company specializes in bespoke electric and hybrid motor technologies and has more than 30 years of experience in electric motor engineering.

Main Products

• Brushless DC motors

• Brushed DC motors

• Electric drive motors

• Marine motors

• Automotive motors

Advantages

Lynch is particularly interesting for electric mobility, marine systems, robotics, automotive projects, and specialized electric drives.

10. Mellor Electrics

Company Profile

Mellor Electrics is a UK motor manufacturer based in Lancashire, offering small electric motors and motor-gearbox assemblies.

Main Products

• BLDC motors

• Brushed PM motors

• Shaded-pole motors

• Gearmotors

• Motor-gearbox assemblies

Advantages

Its BLDC products include integrated electronics, PWM speed control, feedback, locked-rotor protection, current protection, and thermal shutdown. The company states that its BLDC motors can operate continuously and can be supplied with gearboxes.

11. PMW Dynamics

Company Profile

PMW Dynamics is a UK manufacturer based in Alton, Hampshire. The company manufactures motors and has a long history in printed armature motor technology while also supporting brushed and brushless motor technologies.

Main Products

• Printed motors

• Brushless motors

• Brushed motors

• Servo motors

• Custom motor solutions

Advantages

PMW Dynamics is well suited to specialized and custom motor applications, including aerospace, agricultural, automotive, industrial, marine, medical, robotics, and test-and-measurement systems.

12. Mclennan

Company Profile

Mclennan is a UK motion-control company offering BLDC motors and matching drives.

Main Products

• BLDC motors

• BLDC drives

• Slotless motors

• Slotted motors

• Outer-rotor motors

• Motion-control systems

Advantages

Mclennan provides a useful combination of motor and drive engineering, which is important for OEMs that need the motor and controller to work as one system. Its product range includes slotless, slotted, and outer-rotor BLDC designs.

13. EMS

Company Profile

EMS is a UK supplier and engineering partner specializing in small DC motors and precision motion systems.

Main Products

• FAULHABER BLDC motors

• Bühler Motor products

• Encoders

• Gearboxes

• Micro-drive systems

• Custom drive systems

Advantages

EMS is particularly valuable for UK OEMs that need technical distribution plus application engineering. Its target markets include medical, automotive, aerospace, robotics, metrology, and industrial equipment.

14. Electric Motor Power

Company Profile

Electric Motor Power provides brushed and brushless electric motor solutions and focuses on motion-control applications.

Main Products

• BLDC motors

• Brushed DC motors

• Motor controllers

• Custom DC motors

• Motion-control accessories

Advantages

The company emphasizes custom engineering, with a broad motor range covering different voltage, power, and speed requirements.

15. Air Bearing Developments

Company Profile

Air Bearing Developments is a UK precision-motion engineering company specializing in high-precision air-bearing spindles.

Main Products

• Air-bearing spindles

• Direct-drive brushless motor spindles

• High-speed precision rotary systems

• Custom spindle systems

Advantages

Its brushless motor technology is particularly relevant to semiconductor manufacturing, optics, precision machining, and high-speed rotary applications. The company describes direct-drive BLDC spindle solutions with Hall-effect commutation and encoder options.

16. OEM Automatic UK

Company Profile

OEM Automatic UK supplies automation components and electric motor solutions to machine builders.

Main Products

• BLDC motors

• Integrated BLDC motors

• BLDC motors with external drives

• Geared BLDC motors

• Motor controllers

Advantages

Its portfolio is useful for OEMs looking for ready-to-integrate BLDC solutions, including economical integrated-drive motors. Its published products include compact 24 V BLDC motors with integrated drives in several frame sizes.

17. Bühler Motor

Company Profile

Bühler Motor is an established motor manufacturer serving industrial and specialized applications. Its products are available in the UK through specialist channels including EMS.

Main Products

• BLDC motors

• DC motors

• Gearmotors

• Drive systems

• Encoders

Advantages

Bühler Motor is worth considering for OEM projects where custom drive engineering, reliability, and long-term industrial supply are important.

18. Portescap

Company Profile

Portescap specializes in miniature motion technologies and serves precision applications requiring compact and dynamic motors.

Main Products

• Brushless DC motors

• Slotless BLDC motors

• Brushed DC motors

• Stepper motors

• Gearheads

• Encoders

Advantages

Portescap is particularly relevant to medical devices, robotics, laboratory automation, aerospace, and precision instruments, where motor size, inertia, efficiency, and dynamic performance are critical.

19. ElectroCraft

Company Profile

ElectroCraft is a specialist manufacturer of fractional-horsepower motor and motion solutions serving OEM applications.

Main Products

• BLDC motors

• DC motors

• Servo motors

• Gearmotors

• Integrated motion systems

Advantages

ElectroCraft is a useful option for OEMs that need custom motor and gearmotor engineering, particularly for automation, medical equipment, mobile equipment, and industrial systems.

20. Nidec

Company Profile

Nidec is one of the world's major electric motor manufacturers, with a very broad portfolio covering consumer, industrial, automotive, and precision applications.

Main Products

• BLDC motors

• AC motors

• DC motors

• Servo motors

• Gearmotors

• Motor drives

Advantages

Nidec's major strengths are global manufacturing capability, broad motor technology coverage, engineering resources, and large-scale OEM supply capability.

How to Choose the Right BLDC Motor Manufacturer in the UK

The biggest mistake when purchasing a BLDC motor is comparing suppliers only by unit price.

A motor that costs less but requires a different controller, custom gearbox, additional encoder, redesign of the mounting structure, or frequent engineering changes can ultimately be more expensive.

For OEM procurement, we recommend evaluating the following factors.

1. Rated Voltage

Common BLDC motor voltages include:

• 12 VDC

• 24 VDC

• 36 VDC

• 48 VDC

• 72 VDC

• Higher DC bus voltages for industrial systems

For AGVs, AMRs, mobile robots, and battery-powered machinery, 24 V and 48 V BLDC motors are especially common.

2. Rated Torque and Peak Torque

Do not select a motor based only on rated power.

Torque must be considered together with:

• Load torque

• Acceleration torque

• Gear ratio

• Duty cycle

• Starting conditions

• Friction

• Inclines

• Shock loads

For a geared application, calculate the required gearbox output torque rather than simply comparing motor torque.

3. Speed Range

Check:

• Rated speed

• Maximum speed

• Minimum stable speed

• Continuous speed

• Acceleration/deceleration requirements

A motor rated at 3,000 rpm is not automatically suitable for an application that requires stable operation at 100 rpm unless an appropriate gearbox or control strategy is used.

4. Encoder and Hall Sensor Requirements

For basic speed control, Hall sensors may be sufficient.

For precision positioning, closed-loop speed control, or servo applications, an encoder may be required.

Typical options include:

• Hall sensors

• Incremental encoders

• Magnetic encoders

• Optical encoders

• Absolute encoders

5. Integrated Driver or External Driver

OEM buyers should decide whether they want:

Motor + external controller

or

Motor + integrated driver/controller

Integrated solutions can save installation space and reduce wiring. However, an external controller may offer greater flexibility for complex control architectures.

6. Gearbox Selection

For low-speed, high-torque applications, consider:

• Planetary gearbox for high torque density and precision

• Worm gearbox for high reduction ratios and compact right-angle layouts

• Spur gearbox for cost-sensitive applications

• Right-angle gearbox where installation space is limited

7. Protection Rating

For industrial environments, ask whether the motor can meet requirements such as:

• IP54

• IP65

• IP66

• IP67

The correct IP rating depends on actual exposure to dust, water, cleaning chemicals, condensation, and outdoor conditions.

8. Thermal Performance

A BLDC motor may perform well during a short test but overheat during 24/7 operation.

OEM buyers should provide:

• Ambient temperature

• Continuous load

• Duty cycle

• Installation orientation

• Housing conditions

• Available cooling

• Maximum allowable winding temperature

This information allows the manufacturer to select the correct winding and thermal design.

BLDC Motor Applications in the UK

BLDC motors are used across a broad range of industries.

Industrial Automation

Applications include:

• Conveyors

• Pumps

• Actuators

• Automated machinery

• Packaging machines

• Pick-and-place systems

Robotics

BLDC motors are widely used in:

• Industrial robots

• Collaborative robots

• AGVs

• AMRs

• Mobile robots

• Service robots

The combination of high power density, encoder feedback, compact dimensions, and electronic speed control makes BLDC technology especially useful for robotic motion.

Medical Equipment

Low noise, long life, controllability, and compact packaging make BLDC motors suitable for:

• Medical pumps

• Diagnostic equipment

• Laboratory automation

• Patient-care equipment

• Surgical equipment

Material Handling

BLDC gearmotors are useful for:

• Conveyor systems

• Sorting equipment

• Automated warehouses

• AGV drive systems

• Lift mechanisms

• Roller conveyors

Electric Mobility

BLDC motors can be found in:

• Electric vehicles

• Mobility equipment

• Marine propulsion

• Electric bicycles

• Robotics platforms

• Battery-powered machinery

BLDC Motor vs Brushed DC Motor

For a simple low-cost mechanism, a brushed DC motor may still make sense. For long-life industrial equipment, robotics, automation, and continuous-duty machines, BLDC technology is often a stronger choice.

Why OEM Buyers Should Consider Customized BLDC Motors

For OEM equipment manufacturers, choosing a standard BLDC motor is not always enough. Real-world machines often have specific requirements for torque, speed, installation space, shaft dimensions, noise, protection rating, control method, and operating environment. A customized brushless DC (BLDC) motor can be engineered around these requirements instead of forcing the machine design to adapt to an off-the-shelf motor.

JKONGMOTOR is a professional BLDC motor manufacturer and motion-control solution provider established in 2011, offering OEM and ODM customized BLDC motor solutions for equipment manufacturers. Its product range includes standard BLDC motors, integrated BLDC motors, BLDC servo motors, geared BLDC motors, brake BLDC motors, and outer-rotor BLDC motors.

Why Customized BLDC Motors Are Important for OEM Equipment

OEM machines frequently have requirements that cannot be satisfied by a standard motor catalog. For example, an AGV may require a specific combination of 24 V or 48 V input, high starting torque, encoder feedback, compact dimensions, a planetary gearbox, and a customized output shaft.

Rather than redesigning the equipment around a standard motor, OEM buyers can customize the motor to match the machine.

According to JKONGMOTOR's customized BLDC motor information, customization can cover motor parameters, shafts, housing, mounting structures, connectors, gearboxes, encoders, brakes, integrated drivers, and electronics.

1. Match Torque and Speed to the Actual Application

One of the main reasons to customize a BLDC motor is to achieve the required torque-speed curve.

An OEM application may need:

• High starting torque

• Stable low-speed operation

• High-speed continuous operation

• Frequent acceleration and deceleration

• High peak torque

• Continuous-duty performance

Instead of selecting an oversized standard motor, JKONGMOTOR can optimize the motor design around the application's required operating range. Its published customization service includes parameter optimization and torque-curve tuning.

2. Optimize the Motor for Limited Installation Space

Space is often a major constraint in modern equipment.

Robots, AGVs, medical devices, automated doors, packaging machines, and compact industrial equipment may have very limited space for the drive system.

JKONGMOTOR supports customized motor dimensions and mechanical configurations so that the motor can be designed to fit the customer's equipment rather than requiring major changes to the machine structure.

3. Customize the Output Shaft

The shaft is one of the most frequently customized mechanical components.

Depending on the equipment, an OEM may require:

• Different shaft diameter

• Extended shaft length

• Flat shaft

• Keyway

• Threaded shaft

• Cross-drilled shaft

• Special gear interface

• Pulley interface

• Hollow shaft

JKONGMOTOR specifically lists customized shaft dimensions and shapes among its OEM/ODM capabilities.

This can eliminate the need for additional adapters and simplify mechanical assembly.

4. Integrate Gearboxes for Higher Output Torque

Many machines do not need high motor speed; they need high output torque at a controlled low speed.

In these cases, a geared BLDC motor can be more practical than a standalone motor.

JKONGMOTOR provides customized BLDC solutions with planetary, worm, and other geared configurations, allowing the motor and gearbox to be matched to the application's required speed and torque.

For example, a conveyor, AGV drive wheel, automated actuator, or lifting mechanism may benefit from a BLDC motor combined with a suitable gear reduction.

5. Add Encoders for Closed-Loop Control

For applications requiring accurate speed or position control, an encoder can be integrated with the BLDC motor.

Depending on the application, OEM buyers may specify:

• Encoder resolution

• Incremental or absolute feedback

• Communication interface

• Cable configuration

• Connector type

This is particularly useful for robotics, AGVs, AMRs, automation systems, and servo-driven equipment.

6. Add Brakes for Safety and Holding

Some applications require the motor to hold a load when power is removed.

A customized BLDC motor can therefore be supplied with an integrated electromagnetic brake.

This can be useful for:

• Vertical lifting equipment

• AGVs operating on slopes

• Automated doors

• Material-handling systems

• Positioning mechanisms

The brake should be selected according to the actual holding torque, stopping requirements, duty cycle, and safety architecture.

7. Reduce Noise and Vibration

Noise and vibration can be critical for medical equipment, laboratory equipment, precision instruments, and indoor mobile robots.

JKONGMOTOR states that its BLDC motor designs can be optimized for noise reduction, vibration reduction, and longer operating life.

Customization can involve electromagnetic design, winding selection, mechanical structure, balancing, bearing selection, and controller parameters.

8. Customize Protection and Environmental Performance

The operating environment can significantly affect motor selection.

OEM buyers may need customized protection against:

• Dust

• Water

• Moisture

• Condensation

• Corrosive environments

• Temperature extremes

JKONGMOTOR's OEM/ODM service includes customized IP protection requirements, allowing the motor configuration to be adapted to the intended operating environment.

9. Integrate the Driver to Simplify Installation

For compact equipment, an integrated BLDC motor with a built-in driver can reduce external components and wiring.

JKONGMOTOR offers integrated BLDC and integrated BLDC servo configurations, including control options such as pulse, RS485, and CANopen on relevant product lines.

For OEMs, an integrated solution can help reduce:

• Control cabinet space

• Wiring

• Separate component sourcing

• Installation time

• System integration work

10. Support the Complete OEM Development Process

Customization is most valuable when the supplier can support more than the final production stage.

JKONGMOTOR describes an OEM/ODM process that includes requirement confirmation, prototype and sample development, technical feasibility evaluation, motor selection or redesign, torque calculation, lifespan assessment, testing, and mass production.

This approach is particularly useful when the OEM does not already have a finalized motor specification.

Instead of simply asking for a motor quotation, the buyer can provide:

• Equipment type

• Load

• Required speed

• Required torque

• Duty cycle

• Installation dimensions

• Operating temperature

• Protection requirements

• Feedback requirements

• Estimated annual quantity

The motor manufacturer can then help determine the appropriate configuration.

JKONGMOTOR Customized BLDC Motor Solutions

JKONGMOTOR's BLDC portfolio covers a broad range of configurations, including standard BLDC motors, integrated BLDC motors, geared BLDC motors, BLDC servo motors, brake BLDC motors, and outer-rotor BLDC motors. The company publishes a power range from approximately 5 W to 3000 W and motor sizes from approximately 28 mm to 110 mm, with options for integrated servo control.

For OEM and ODM projects, additional options can include:

• Customized winding

• Customized voltage

• Customized torque and speed

• Special shaft designs

• Custom housing

• Custom mounting

• Encoders

• Brakes

• Planetary gearboxes

• Worm gearboxes

• Integrated drivers

• Custom connectors

• Communication interfaces

• Customized IP protection

This makes the product range suitable for applications including industrial automation, robotics, AGVs and AMRs, medical equipment, logistics equipment, pumps, valves, green energy systems, movable doors, vending machines, and other automated equipment.

Why Choose JKONGMOTOR for OEM BLDC Motor Projects?

The key value of JKONGMOTOR is not simply supplying a standard brushless motor. Its positioning is as an OEM/ODM motor and motion-control partner capable of adapting the motor to the customer's equipment requirements.

The company states that it was established in 2011, has a professional R&D and design team, and provides customized R&D, design, and production services. Its manufacturing information also states that its production capacity exceeds two million motors per year.

For an OEM buyer, this means the evaluation should focus on the complete solution:

Motor + Controller + Feedback + Gearbox + Brake + Mechanical Interface + Thermal Design + Production Support

rather than comparing only the price of a standard BLDC motor.

For OEM manufacturers developing a new machine or upgrading an existing drive system, the practical approach is to provide the motor supplier with the complete application requirements first. This gives the engineering team enough information to optimize the BLDC motor for the actual machine, rather than forcing the machine to compromise around a standard motor.

Final Selection: Which BLDC Motor Manufacturer Is Right for You?

There is no single BLDC motor manufacturer that is ideal for every application.

For UK-made geared BLDC motors, Parvalux is a particularly important company to evaluate.

For miniature precision motors, Precision Microdrives, maxon, FAULHABER, Portescap, and similar specialists are strong candidates.

For highly customized OEM/ODM BLDC motors, integrated motor solutions, geared BLDC motors, and automation-oriented products, JKONGMOTOR, BESFOC Motor, and LeanMotor are practical suppliers to investigate.

For specialized electric mobility applications, Lynch Motor Company deserves attention.

For small UK-designed DC and gearmotor applications, Rotalink and Mellor Electrics are worth considering.

The best procurement decision should ultimately be based on the complete technical package: motor performance, controller compatibility, thermal behavior, mechanical fit, feedback, gearbox selection, customization capability, quality control, production capacity, lead time, and total cost of ownership.

For OEM buyers, the most effective approach is to send the supplier a complete motor specification rather than requesting a generic “BLDC motor price.” A technically detailed RFQ makes it much easier for the manufacturer to recommend the correct winding, frame size, controller, encoder, gearbox, and mechanical configuration.

A well-matched BLDC motor can become a long-term component of an automation platform, AGV, robot, medical device, or industrial machine. The right supplier should therefore be evaluated not only as a component vendor, but as a long-term motion-control engineering partner.

Frequently Asked Questions About Customized BLDC Motors

1. What is a customized BLDC motor?

A customized BLDC motor is a brushless DC motor engineered to meet specific application requirements such as voltage, torque, speed, dimensions, shaft configuration, gearbox, encoder, brake, connector, or protection rating. Customized BLDC motors are especially useful for OEM equipment that cannot use a standard motor.

2. Why should OEM buyers choose customized BLDC motors?

OEM buyers can customize the motor to match the machine's actual torque, speed, installation space, control method, and operating environment. This can reduce mechanical modifications, simplify integration, and improve overall system performance.

3. What BLDC motor customization options does JKONGMOTOR provide?

JKONGMOTOR offers customized BLDC motor solutions covering motor parameters, dimensions, shafts, mounting structures, gearboxes, encoders, brakes, integrated drivers, and other application-specific requirements. Its portfolio includes standard, geared, integrated, servo, brake, outer-rotor, and AGV hub BLDC motors.

4. Can JKONGMOTOR provide BLDC motors with gearboxes?

Yes. JKONGMOTOR provides geared BLDC motor solutions with options such as planetary, worm, and spur gearboxes. Gearbox selection can be matched to the required output speed, torque, installation space, and application conditions.

5. Can a BLDC motor be equipped with an encoder?

Yes. A BLDC motor can be configured with encoder feedback for closed-loop speed or position control. Encoder-equipped BLDC motors are commonly used in robotics, AGVs, AMRs, automation equipment, and other applications requiring accurate motion control.

6. Can JKONGMOTOR customize the BLDC motor shaft and mounting dimensions?

Yes. OEM customers can request customized shaft dimensions, shaft shapes, mounting configurations, and other mechanical interfaces. This helps the motor fit directly into the customer's equipment and can reduce the need for additional adapters.

7. Are integrated BLDC motors suitable for OEM equipment?

Yes. An integrated BLDC motor combines the motor with drive or control electronics in a compact package. This can reduce wiring, installation space, external components, and system integration work, making integrated BLDC motors suitable for automation, robotics, AGVs, AMRs, and compact machinery.

8. What applications use customized BLDC motors?

Customized BLDC motors are used in industrial automation, robotics, AGVs, AMRs, medical equipment, pumps, valves, logistics equipment, solar energy systems, automated doors, vending machines, and electric mobility. The appropriate motor configuration depends on the application's load, speed, duty cycle, environment, and control requirements.

9. What information should OEM buyers provide when requesting a customized BLDC motor?

OEM buyers should provide the required voltage, rated and peak torque, speed range, duty cycle, load characteristics, installation dimensions, shaft requirements, operating temperature, IP rating, feedback requirements, gearbox requirements, brake requirements, and estimated annual quantity. Providing these specifications helps the manufacturer recommend or develop the correct BLDC motor.

10. Why choose JKONGMOTOR for customized BLDC motor solutions?

JKONGMOTOR is a professional motor manufacturer offering OEM/ODM customized BLDC motor solutions. Its product portfolio covers standard BLDC motors, geared BLDC motors, integrated BLDC motors, BLDC servo motors, brake BLDC motors, outer-rotor BLDC motors, and AGV hub motors. The company also supports customization of parameters, gearboxes, encoders, brakes, and integrated drivers for different applications.
