Nema 17 JK42BLS01-X038ED Square Head 4000rpm 24V 0.0716N.m 30W Ф42x42x59mm Brushless BLDC Dc Servo Motor With 1000PPR Encoder

Type: 42mm 24V 30W Brushless Dc Servo Motor

Phase: 3
Poles: 8
Rated Torque: 0.0716N.m

Body Length: 59mm
Customized Parts: Motors, Gearboxes, Encoders, Brakes, Integrated Drivers...

Model:
JK42BLS01-X038ED
Brand:
Jkongmotor
Rated Speed:
4000rpm
Bldc Poles:
8 poles
Bldc Motor Size:
Nema17 (42mm)
Rated Voltage:
24V
MOQ:
10 Pcs


Availability:



Inquire

Jkongmotor Nema 17 24v brushless bldc dc servo motor (JK42BLS01-X038ED) with 4000Rpm speed and size 42x42x59mm. It has 13 wires (3 wires for motors, 5 wires for hallsensor, and 5wires for encoder), 0.0716N.m and 30W. For more different bldc motors requirements (such as gearbox, brake, encoder, or integrated motors), please contact us!!!

Electrical Specifications：

Type: Nema 17 24v 42mm brushless dc servo motor
Model Name: JK42BLS01-X038ED
Number of Phase: 3
Number of Poles: 8
Rated Speed: 4000Rpm
No load Speed: 6800Rpm
Rated Torque: 0.0716N.m
Rated Power: 30W
Back E.M.F: 4.36V/Krpm
Torque Constant: 0.042N.m/A
Insulation Class: B
Optional Parts: Gearbox, Encoder, Brake, Integrated Driver...

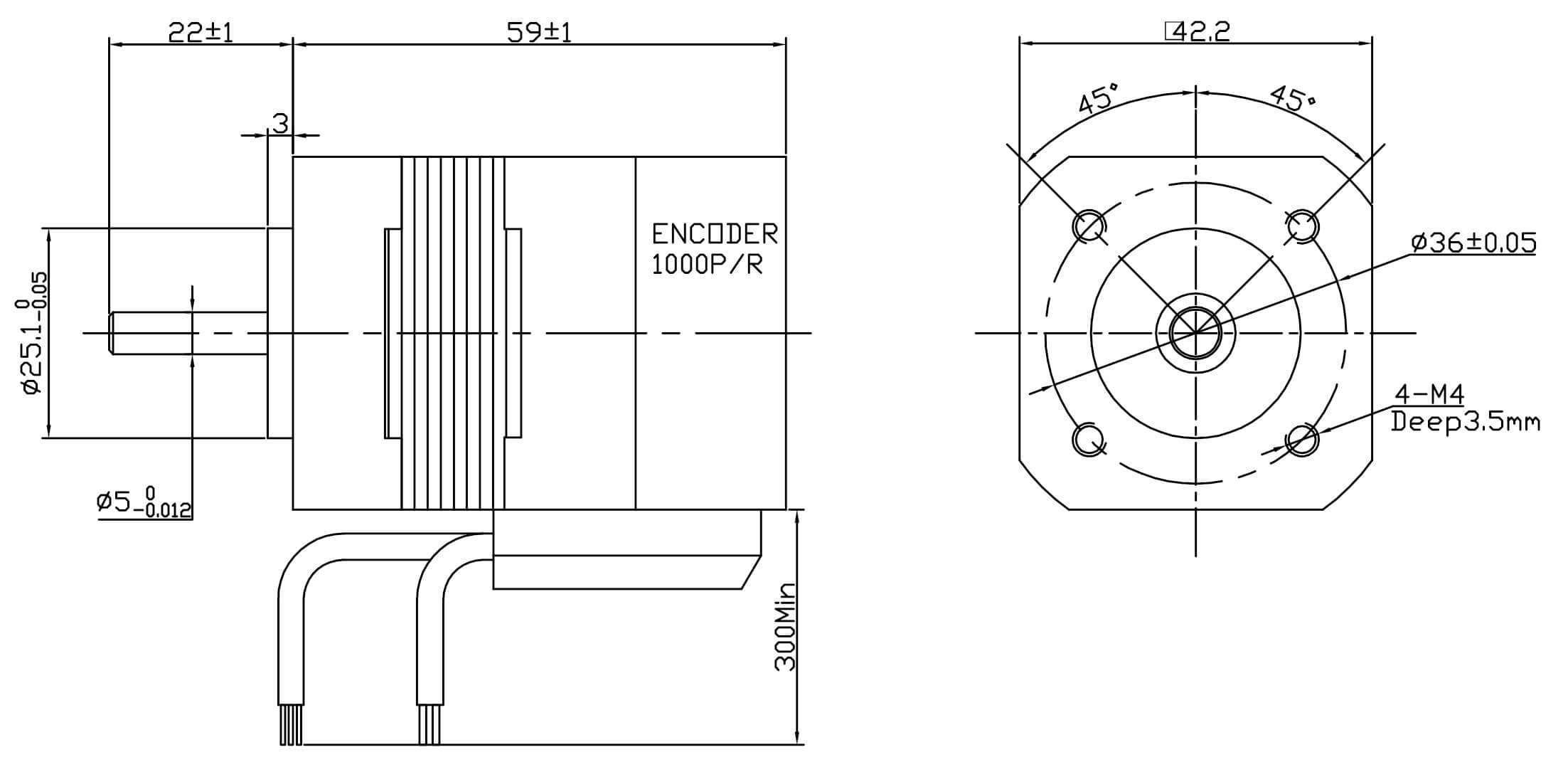

Physical Specifications:

Frame Size: Nema 17 ( 42 x 42mm)
Body Length: 59mm
Shaft Diameter: 5mm
Number of Leads: 8
Leads Length: 300mm
Sensor: Hall Sensor
Encoder: 1000PPR
Weight: 0.35kg

Wires Connection:

Bldc Motors Wires			Hall Sensor Wires
U	V	W	+5VDC	GND	Hu	Hv	Hw
Yellow	Green	Blue	Red	Black	Yello	Green	Blue

Encoder Wires Connection:

Vcc-Encoder Voltage (+5V)	EGND-Encoder Grand（0V)	EA-Encoder A phase input	EB-Encoder B phase input	EZ-Encoder Z phase input
RED	BLACK	GREEN	BLUE	YELLOW

brushless servo motor brushless motor bldc electric motor bldc nema 17 bldc electric motor bldc motor with encoder bldc servo motor 3 phase bldc motor brushless motor with encoder high torque bldc motor bldc motor manufacturer

Related Products

Nema 23 JK57BLS04-X022ED Round Head 4000rpm 36V 0.48N.m 200W Ф57x57x128mm Brushless BLDC Dc Servo Motor With 1000PPR Encoder

Nema 23 JK57BLS03-X014ED Round Head 4000rpm 36V 0.36N.m 150W Ф57x57x108mm Brushless BLDC Dc Servo Motor With 1000PPR Encoder

Nema 23 JK57BLS02-X010ED Round Head 4000rpm 36V 0.24N.m 100W Ф57x57x88mm Brushless BLDC Dc Servo Motor With 1000PPR Encoder

Nema 23 JK57BLS01-X005ED Round Head 4000rpm 36V 0.12N.m 50W Ф57x57x68mm Brushless BLDC Dc Servo Motor With 1000PPR Encoder

Nema 17 JK42BLS04-X028ED Square Head 4000rpm 24V 0.26N.m 110W Ф42x42x119mm Brushless BLDC Dc Servo Motor With 1000PPR Encoder

Nema 17 JK42BLS03-X024ED Square Head 4000rpm 24V 0.191N.m 80W Ф42x42x99mm Brushless BLDC Dc Servo Motor With 1000PPR Encoder

Nema 17 JK42BLS02-X035ED Square Head 4000rpm 24V 0.143N.m 60W Ф42x42x79mm Brushless BLDC Dc Servo Motor With 1000PPR Encoder

General Specifications
Item	Specification
Winding type	Delt
Hall effect angle	120 degree electrical angle
Shaft run out	0.025mm
Radial play	0.02mm@450g
End play	0.08mm@450g
Max.radial force	28N@20mm from the flange
Max. axial force	10N
Insulation class	Class B
Dielectric Strength	500VDC for one minute
Insulation Resistance	100MΩ Min., 500VDC

General Specifications
Item	Specification
Winding type	Delt
Hall effect angle	120 degree electrical angle
Shaft run out	0.025mm
Radial play	0.02mm@450g
End play	0.08mm@450g
Max.radial force	28N@20mm from the flange
Max. axial force	10N
Insulation class	Class B
Dielectric Strength	500VDC for one minute
Insulation Resistance	100MΩ Min., 500VDC
