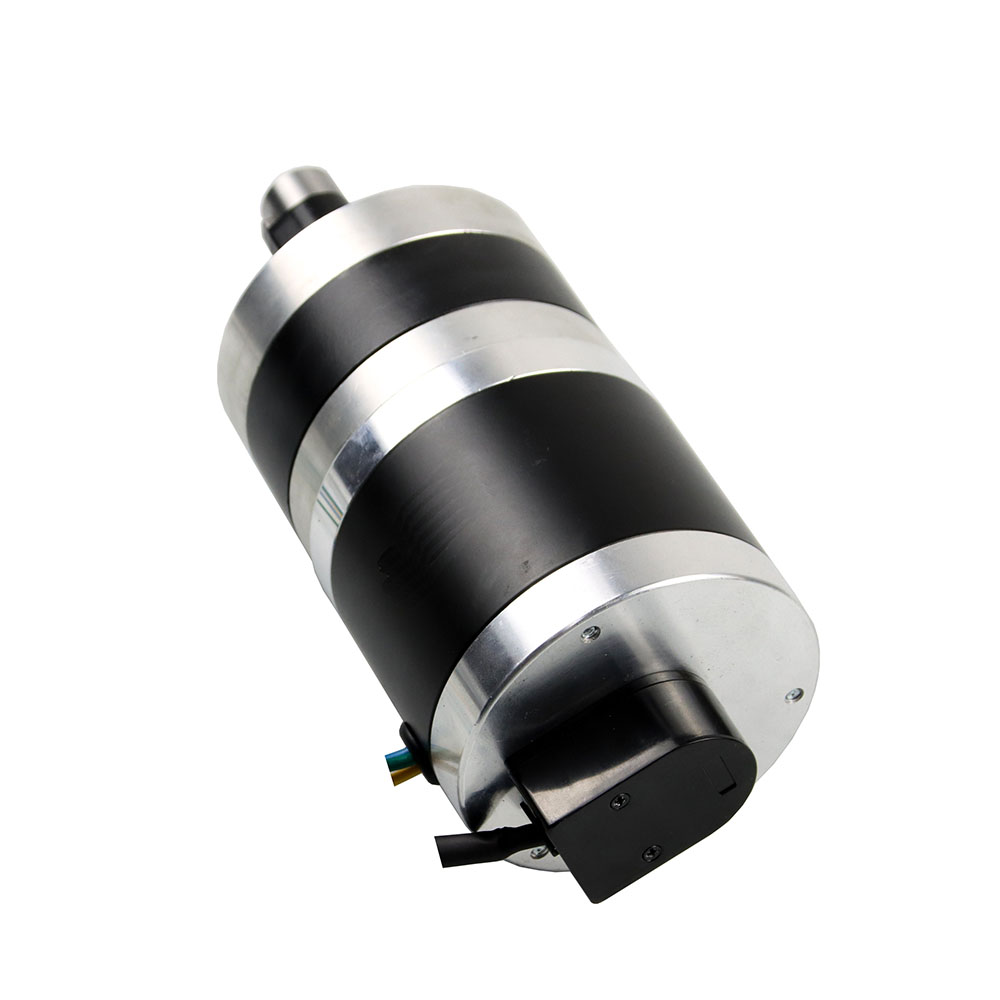

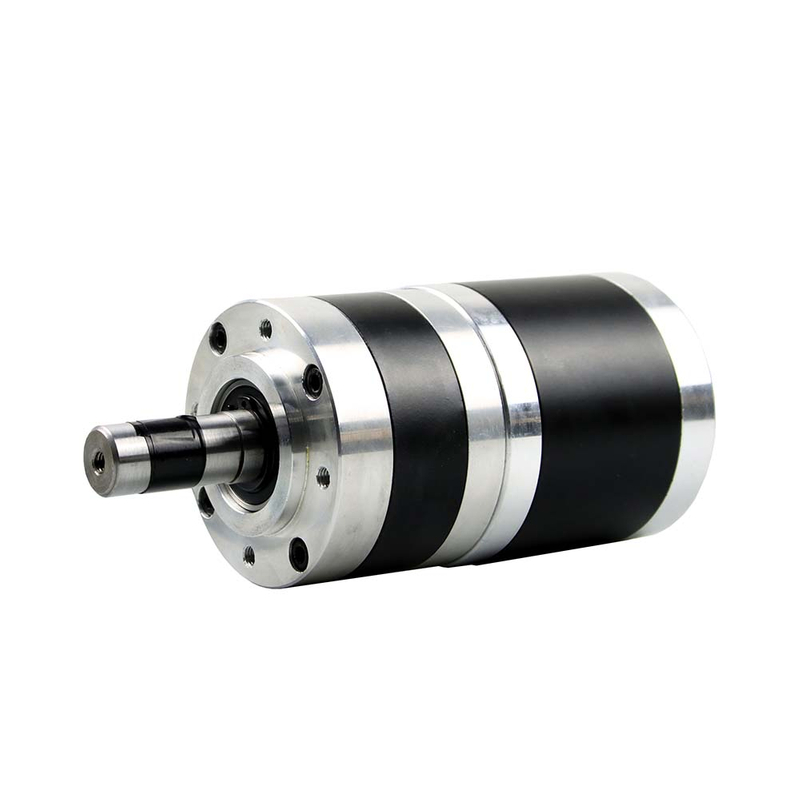

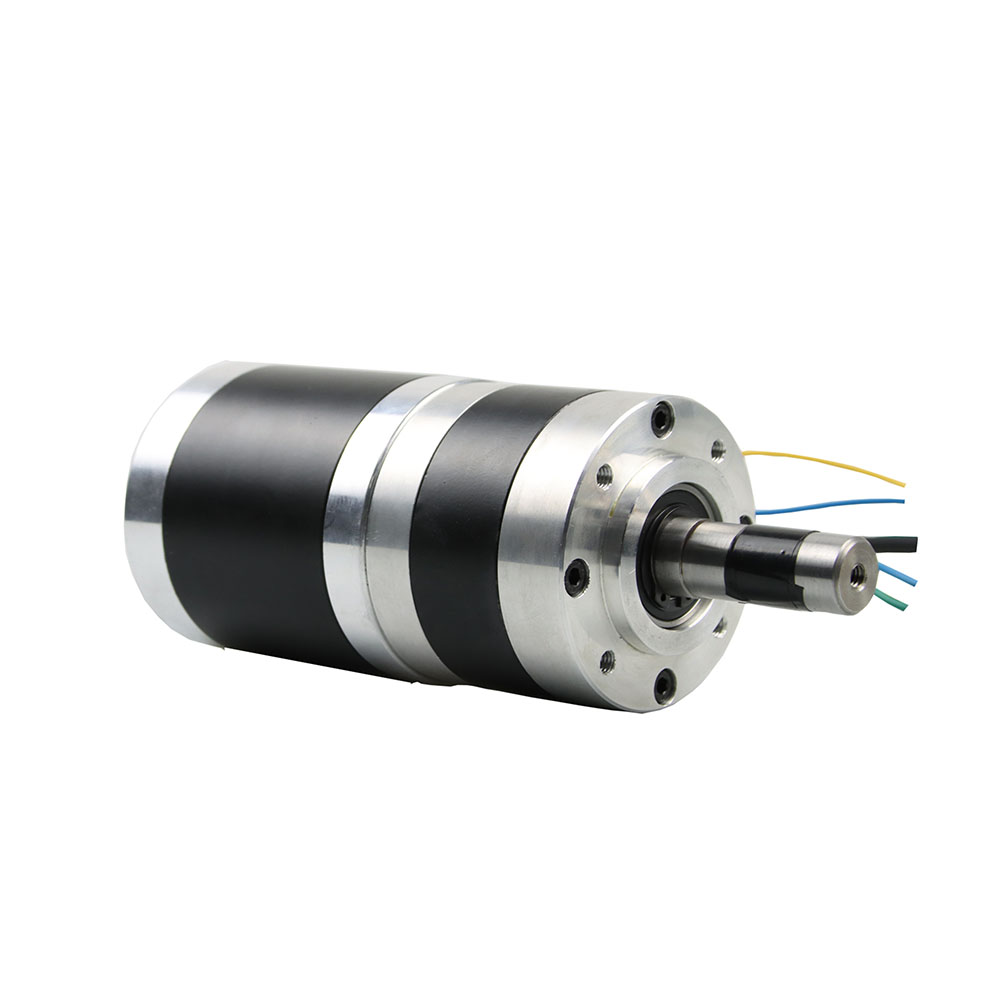

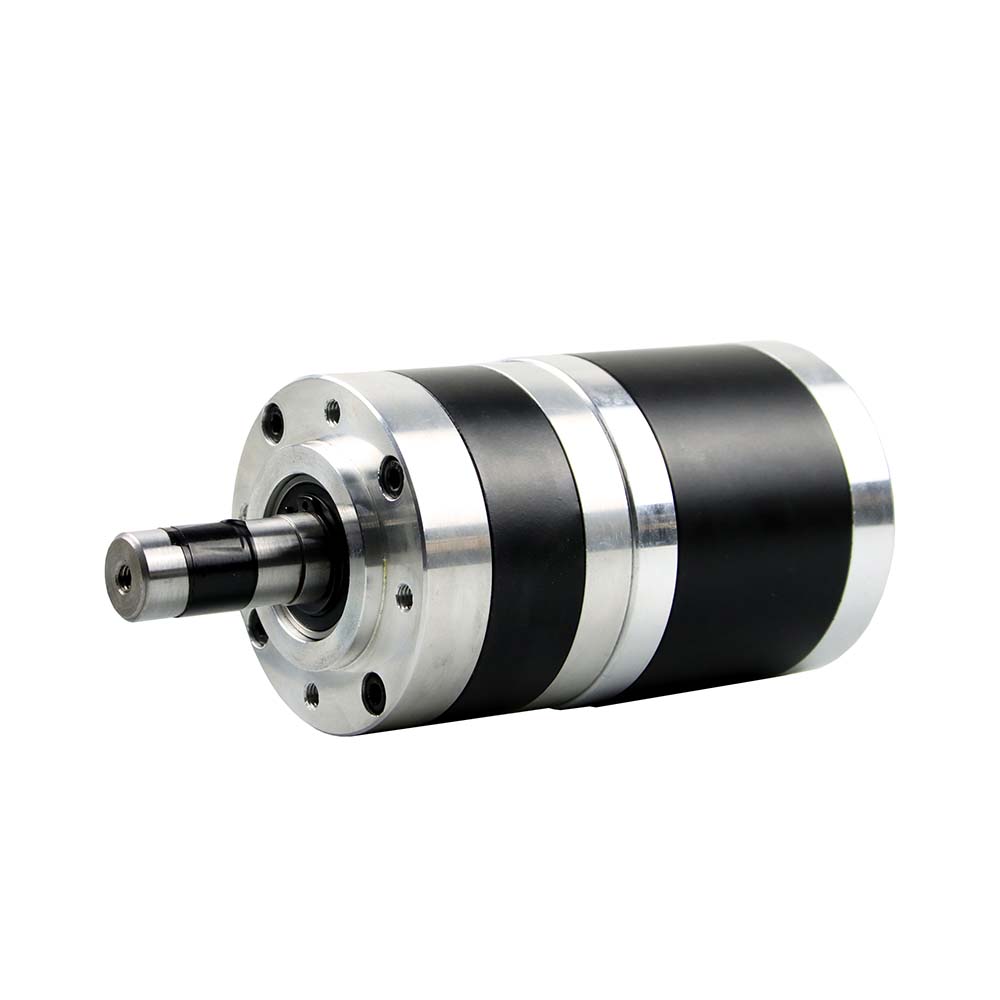

80BLS Geared Round Head BLDC Motor with Common Planetary Gearbox 3000rpm 80x80mm 48V 3 Phase

Type: 80BLS Common Planetary Geared Square Head BLDC Motor

Motor Length: 78mm / 98mm / 118mm /138mm

Rated voltage：48V

Model:
80BLS Common Planetary Geared Square Head BLDC Motor
Brand:
Jkongmotor
Bldc Motor Size:
80mm
Phase:
3 phase
Rated Voltage:
48V
MOQ:
10 Pcs


Availability:



Inquire

80BLS 80mm Brushless Dc Motor General Specifications:

General Specifications
Item	Specification
Winding type	Star
Hall effect angle	120 degree electrical angle
Shaft run out	0.025mm
Radial play	0.02mm@450g
End play	0.08mm@450g
Max.radial force	115N@10mm from the flange
Max. axial force	45N
Insulation class	Class B
Dielectric Strength	500VDC for one minute
Insulation Resistance	100MΩ Min., 500VDC

Electrical Specifications:

Model No.	Rated voltage	Motor Length	Current	Rated power	Rotor Inertia	Rated torque	Rated speed	Weight
Model No.	VDC	(L)mm	A	W	g.cm²	N.m	Rpm	kg
JK80BLS01	48	78	3	110	210	0.35	3000	1.4
JK80BLS02	48	98	5.5	220	420	0.7	3000	2
JK80BLS03	48	118	8	330	630	1.05	3000	2.6
JK08BLS04	48	138	10.5	440	840	1.4	3000	3.2

Wires Connection:

Bldc Motors Wires			Hall Sensor Wires
U	V	W	+5VDC	GND	Hu	Hv	Hw
Yellow	Green	Blue	Red	Black	Yello	Green	Blue

brushless dc gear motor 500w brushless dc motor 1000w brushless dc motor brushless dc motor for rc plane 48v bldc motor 48v bldc motor controller bldc 48v motor geared bldc motors bldc motor with encoder inrunner bldc motor

Related Products

Nema 42 110BLS Geared Square Head BLDC Motor with High Precision Planetary Gearbox 3000rpm 110x110mm 310V 3 Phase

Nema 34 86BLS Geared Square Head BLDC Motor with High Precision Planetary Gearbox 3000rpm 86x86mm 48V 3 Phase

80BLS Geared Round Head BLDC Motor with High Precision Planetary Gearbox 3000rpm 80x80mm 48V 3 Phase

Nema 24 60BLS Geared BLDC Motor with High Precision Planetary Gearbox 60x60mm 48V 3 Phase

Nema 24 60BLS Geared Square Head BLDC Motor with High Precision Planetary Gearbox 60x60mm 48V 3 Phase

Nema 23 57BLS Geared BLDC Motor with High Precision Planetary Gearbox 57x57mm 36V 3 Phase

Nema 17 42BLS Geared BLDC Motor with High Precision Planetary Gearbox 42x42mm 3 Phase

Nema 17 42BLS Geared Square Head BLDC Motor with High Precision Planetary Gearbox 42x42mm 24V 3 Phase

Nema 34 86BLS Geared Square Head BLDC Motor with 90 Degree Right Angle Gearbox 3000rpm 86x86mm 48V 3 Phase

Nema 24 60BLS Geared Square Head BLDC Motor with Common Planetary Gearbox 60x60mm 48V 3 Phase

Nema 23 57BLS Geared Round Head BLDC Motor with Common Planetary Gearbox 57x57mm 36V 3 Phase

Nema 17 42BLS Geared Square Head BLDC Motor with 90 Degree Right Angle Planetary Gearbox 42x42mm 24V 3 Phase

Nema 17 42BLS Geared Square Head Brushless DC Motor with Common Planetary Gearbox 42x42mm 24V 3 Phase

Nema 17 42BLS Geared Square Head BLDC Motor with Common Planetary Gearbox 42x42mm 24V 3 Phase

Nema 17 42BL Geared Round Head BLDC Motor with Common Planetary Gearbox 42x42mm 3 Phase

Jkongmotor 33BL Geared Round Head BLDC Motor with Common Planetary Gearbox 33x33mm 3 Phase 4-Wires

Nema 34 86BLS Spur Geared Square Head BLDC Motor with Spur Gearbox 86x86mm 48V 3 Phase

Nema 23 57BLS Spur Geared Round Head Brushless BLDC DC Motor with Spur Gearbox 57x57mm 36V 3 Phase

Nema 24 60BLS Worm Geared Square Head Brushless BLDC DC Motor 60x60mm 48V 3 Phase

Nema 23 57BLS Round Head Worm Geared Brushless BLDC DC Motor with Worm Gearbox 57x57mm 36V 3 Phase

Ring material	Metal
Bearing at output	Ball bearings
Max. Radial (12mm from flange)	600N
Max. shaft axial load	200N
Radial play of shaft (near to flange)	≤0.08mm
Axial play of shaft	≤0.4mm
Backlash at no-load	≤2.5°
Shaft press fit force, max	1000N

Module	1
No. of teeth	12	13	22
Pressure angle	20°
Hole diameter	10 teeth pinion	Φ7H7	Φ8H7
Reduction ratio	1:6.6 1:23 1:26 1:37 1:92 1:138	1:5.31 1:19 1:30 1:74 1:111	1:3.55 1:13 1:50

Reduction ratio	Exact reduction ratio	Rated tolerance torque	Max momentary tolerance torque	Efficiency	L (mm)	Weight (g)
1:3.55 1:5.31 1:6.6	1:3.55 1:5.31 1:6.6	8 N.m Max	12 N.m	90%	55.7±0.5	1100
1:13 1:19 1:23	1:12.57 1:18.82 1:23.4	30 N.m Max	45 N.m	81%	72.2±0.5	1500
1:26 1:30 1:37	1:26.05 1:30.08 1:37.4	60 N.m Max	90 N.m	73%	72.2±0.5	1500
1:50 1:74 1:92 1:111 1:138	1:49.62 1:74.28 1:92.37 1:111.2 1:138.28	80 N.m Max	120 N.m	66%	88.5±0.5	1880
Input & output same rotation direction; Motor Max. input speed: <4000rpm; Operating temperature range: -15℃ ~ +80℃

Ring material	Metal
Bearing at output	Ball bearings
Max. Radial (12mm from flange)	600N
Max. shaft axial load	200N
Radial play of shaft (near to flange)	≤0.08mm
Axial play of shaft	≤0.4mm
Backlash at no-load	≤2.5°
Shaft press fit force, max	1000N

Module	1
No. of teeth	12	13	22
Pressure angle	20°
Hole diameter	10 teeth pinion	Φ7H7	Φ8H7
Reduction ratio	1:6.6 1:23 1:26 1:37 1:92 1:138	1:5.31 1:19 1:30 1:74 1:111	1:3.55 1:13 1:50
