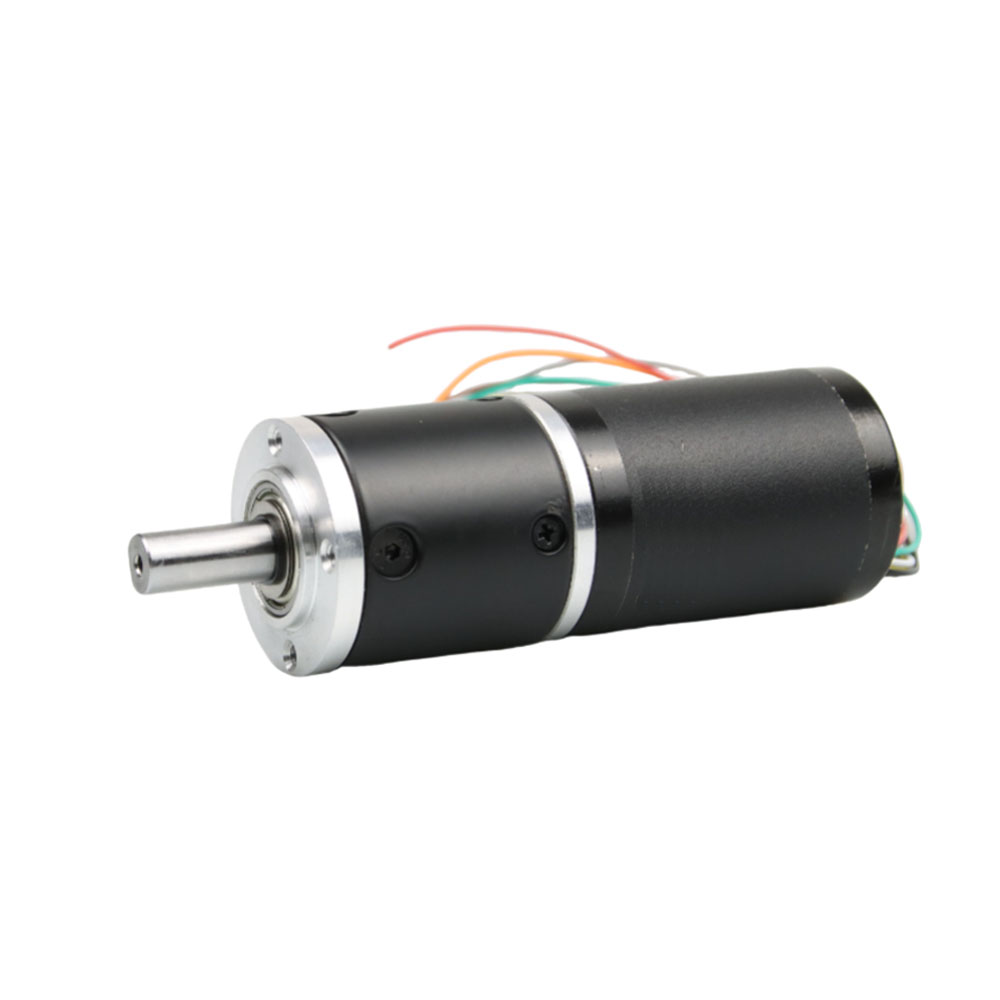

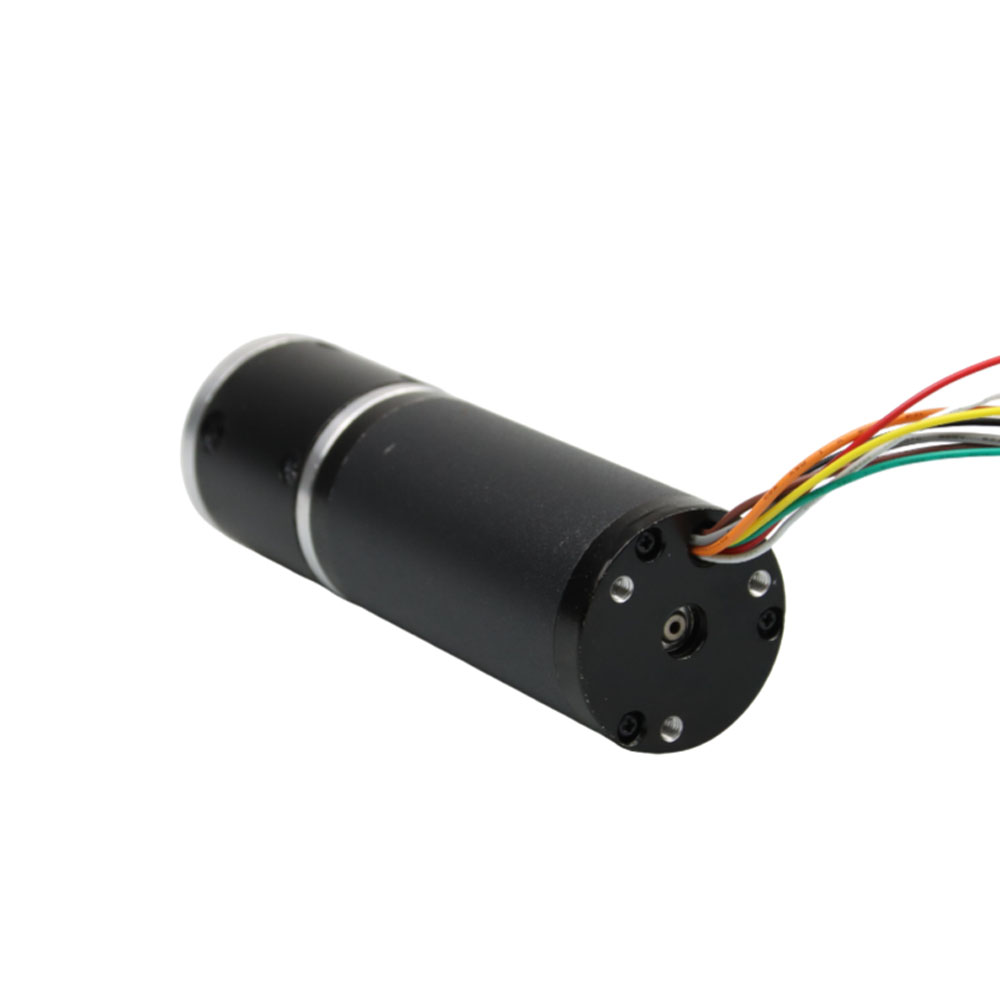

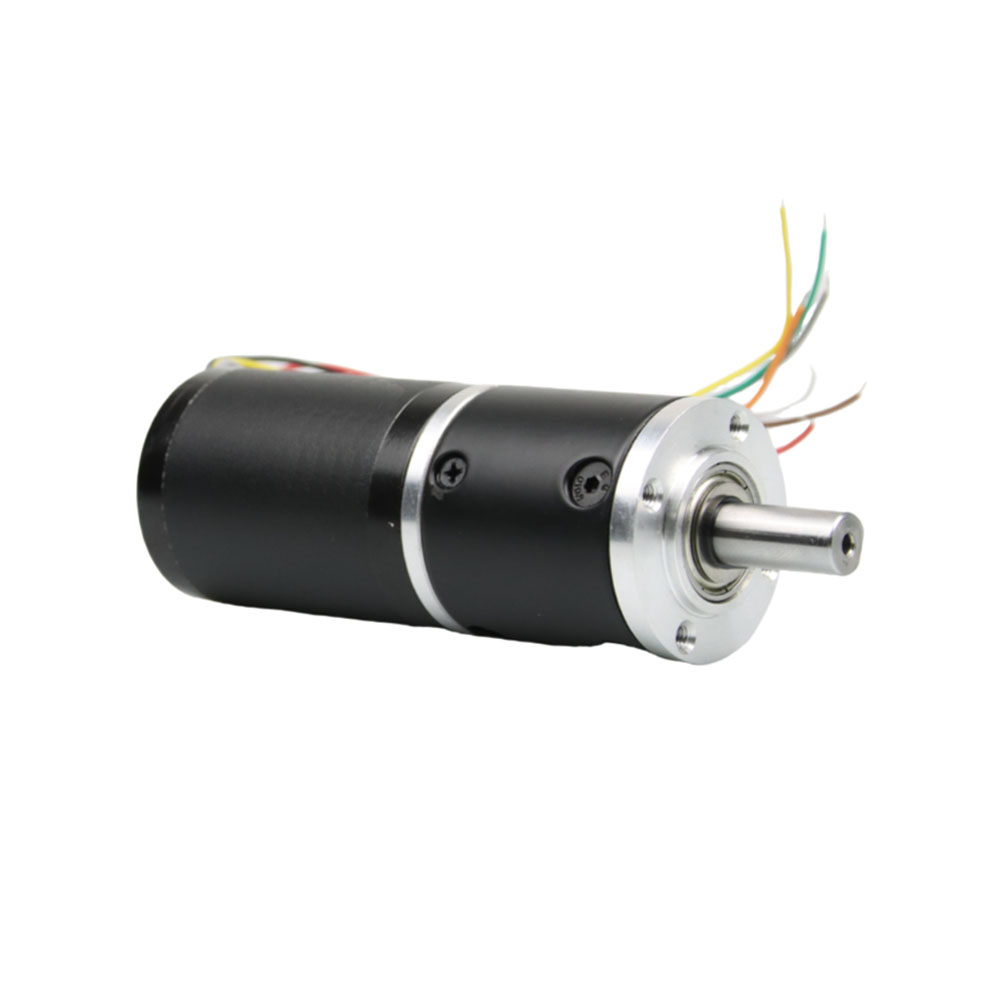

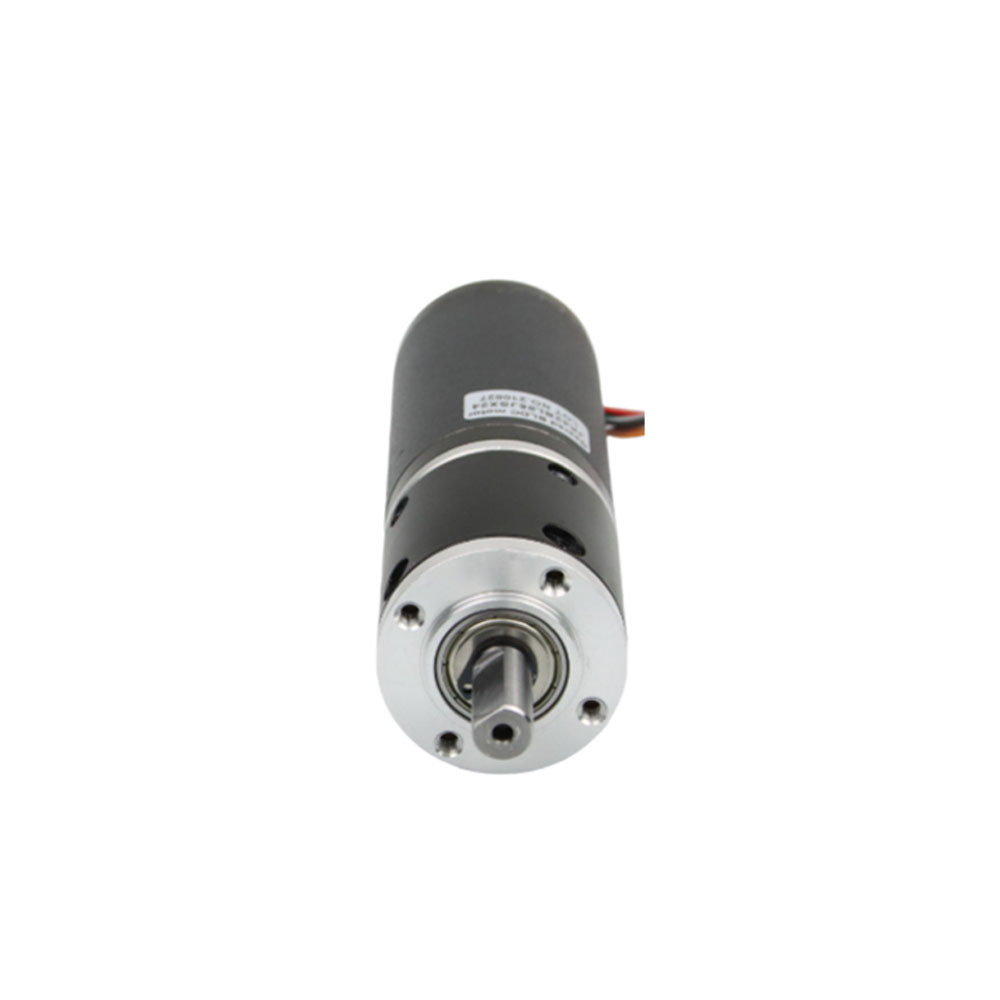

Nema 17 42BL Geared Round Head BLDC Motor with Common Planetary Gearbox 42x42mm 3 Phase

Type: Nema 17 42BL Common Planetary Geared Round Head BLDC Motor

Motor Length: 30mm / 60mm / 85mm /93mm

Rated voltage：24V / 36V

Model:
Nema 17 42BL Common Planetary Geared Round Head BLDC Motor
Brand:
Jkongmotor
Bldc Motor Size:
Nema17 (42mm)
Phase:
3 phase
Rated Voltage:
24V, 36V
MOQ:
10 Pcs


Availability:



Inquire

Nema 17 42BL 42mm Brushless Dc Motor General Specifications:

General Specifications
Item	Specification
Winding type	Star
Hall effect angle	120 degree electrical angle
Shaft run out	0.025mm
Radial play	0.02mm@450g
End play	0.08mm@450g
Max.radial force	15N@10mm from the flange
Max. axial force	10N
Insulation class	Class B
Dielectric Strength	500VDC for one minute
Insulation Resistance	100MΩ Min., 500VDC

Electrical Specifications:

Model No.	Rated voltage	Motor Length	Current	Rated power	Rotor Inertia	Rated torque	Rated speed	Weight
Model No.	VDC	(L)mm	A	W	g.cm²	mN.m	Rpm	kg
JK42BL30	24	30	1.5	6.5	15.6	18	3500	0.25
JK42BL60	36	60	5.0	32	33	80	4000	0.35
JK42BL85	24	85	7.5	62	84	150	4000	0.7
JK42BL93	24	93	10	76	94	115	6300	0.8

Wires Connection:

Bldc Motors Wires			Hall Sensor Wires
U	V	W	+5VDC	GND	Hu	Hv	Hw
Yellow	Green	Blue	Red	Black	Yello	Green	Blue

42mm bldc motor brushless motor bldc electric motor bldc nema 17 bldc electric motor rc bldc motor bldc servo motor 3 phase bldc motor bldc brushless motor high torque bldc motor bldc motor manufacturer
