Motor Length: 41mm / 61mm / 81mm /100mm
Rated voltage：24V

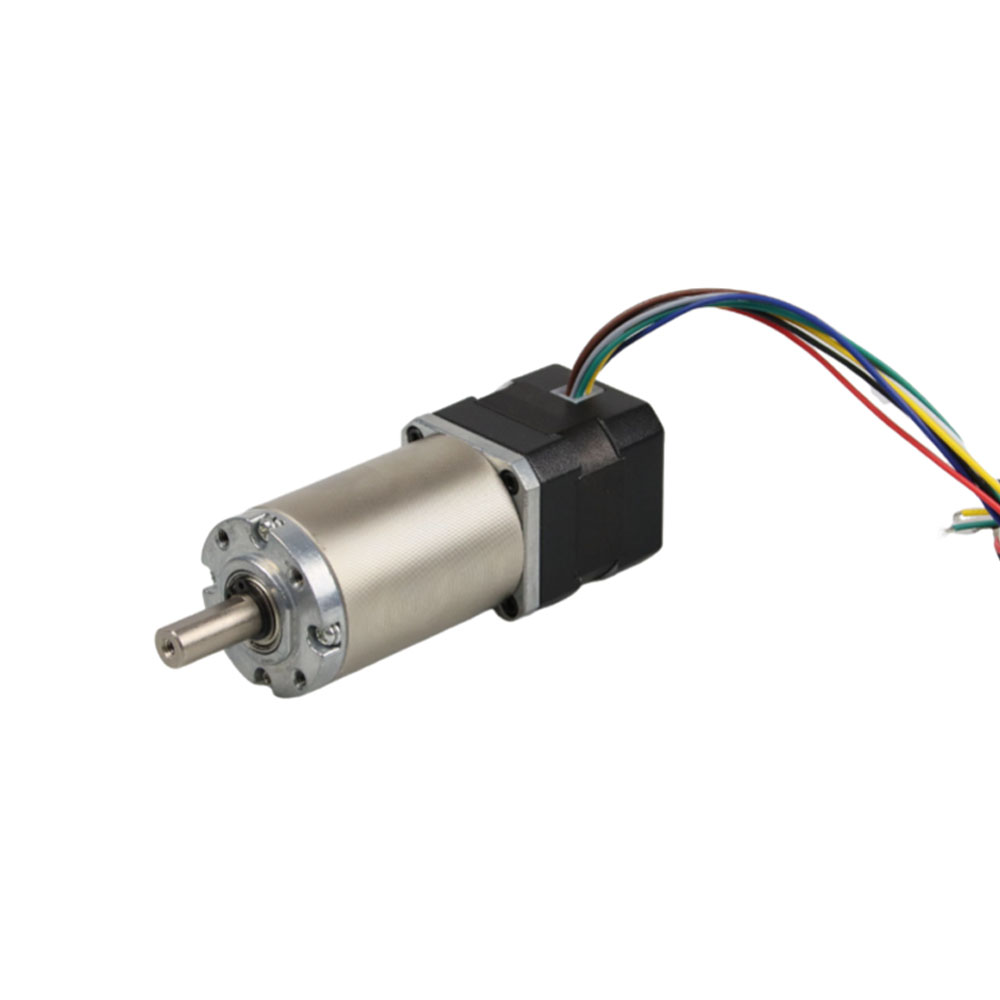

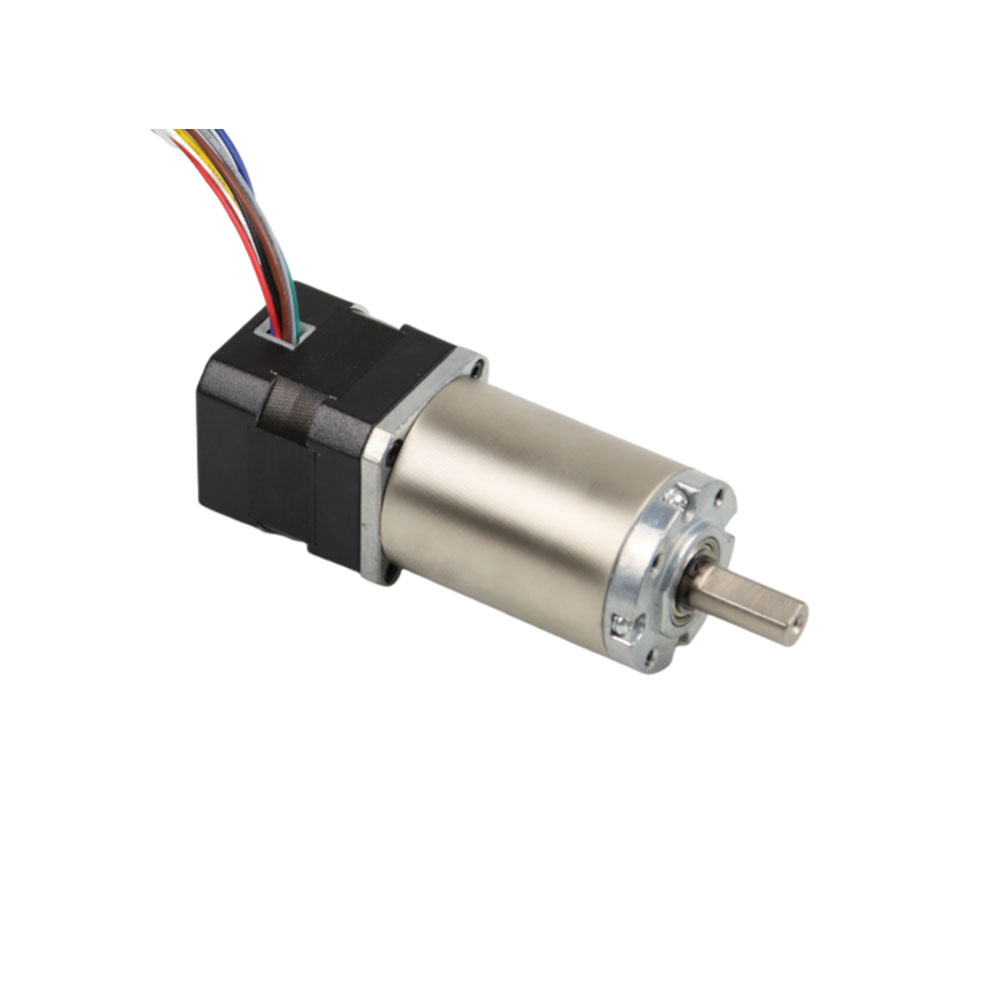

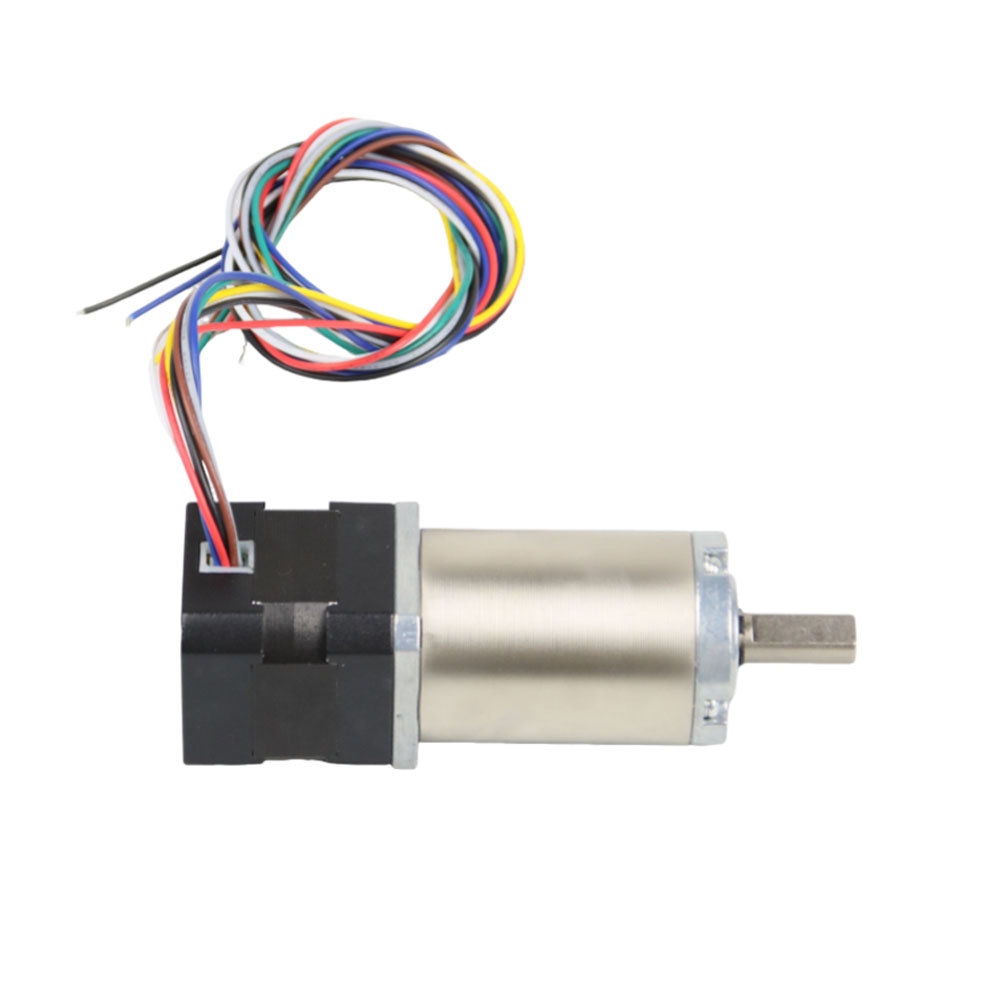

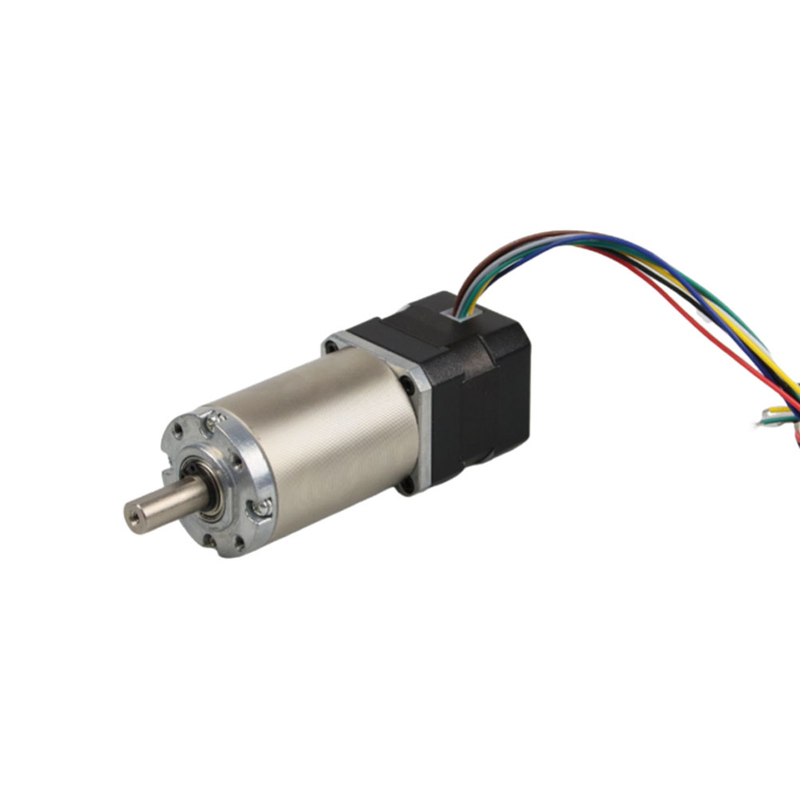

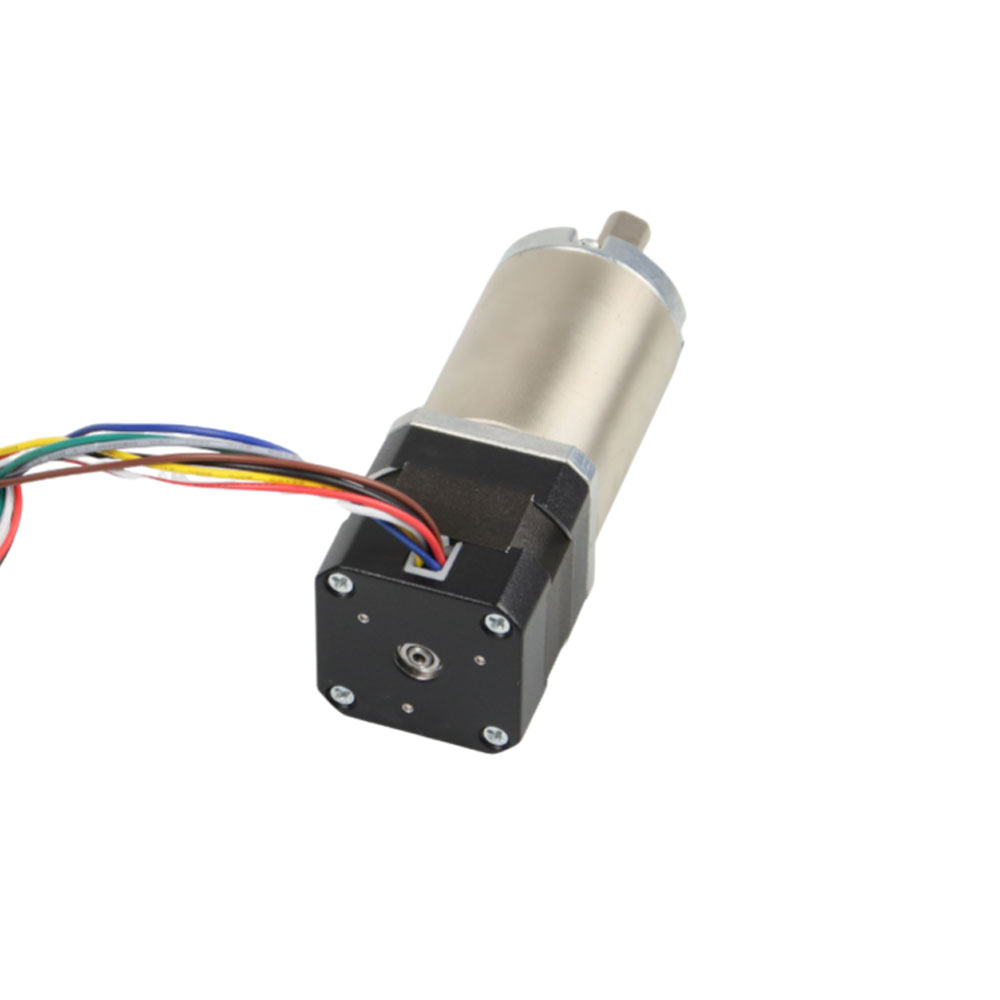

Nema 17 42BLS Common Planetary Geared Square Head BLDC Motor
Jkongmotor
Nema17 (42mm)
3 phase
24V
10 Pcs
General Specifications | |
| Item | Specification |
| Winding type | Star |
| Hall effect angle | 120 degree electrical angle |
| Shaft run out | 0.025mm |
| Radial play | 0.02mm@450g |
| End play | 0.08mm@450g |
| Max.radial force | 15N@10mm from the flange |
| Max. axial force | 10N |
| Insulation class | Class B |
| Dielectric Strength | 500VDC for one minute |
| Insulation Resistance | 100MΩ Min., 500VDC |
| Model No. | Rated voltage | Motor Length | Current | Rated power | Rotor Inertia | Rated torque | Rated speed | Weight |
| VDC | (L)mm | A | W | g.cm² | N.m | Rpm | kg | |
| JK42BLS01 | 24 | 41 | 5.4 | 26 | 24 | 0.0625 | 4000 | 0.3 |
| JK42BLS02 | 24 | 61 | 10.6 | 52.5 | 48 | 0.125 | 4000 | 0.45 |
| JK42BLS03 | 24 | 81 | 15.5 | 77.5 | 72 | 0.185 | 4000 | 0.65 |
| JK42BLS04 | 24 | 100 | 20 | 105 | 96 | 0.25 | 4000 | 0.8 |
| Bldc Motors Wires | Hall Sensor Wires | ||||||
| U | V | W | +5VDC | GND | Hu | Hv | Hw |
| Yellow | Green | Blue | Red | Black | Yello | Green | Blue |
General Specifications | |
| Item | Specification |
| Winding type | Star |
| Hall effect angle | 120 degree electrical angle |
| Shaft run out | 0.025mm |
| Radial play | 0.02mm@450g |
| End play | 0.08mm@450g |
| Max.radial force | 15N@10mm from the flange |
| Max. axial force | 10N |
| Insulation class | Class B |
| Dielectric Strength | 500VDC for one minute |
| Insulation Resistance | 100MΩ Min., 500VDC |
| Model No. | Rated voltage | Motor Length | Current | Rated power | Rotor Inertia | Rated torque | Rated speed | Weight |
| VDC | (L)mm | A | W | g.cm² | N.m | Rpm | kg | |
| JK42BLS01 | 24 | 41 | 5.4 | 26 | 24 | 0.0625 | 4000 | 0.3 |
| JK42BLS02 | 24 | 61 | 10.6 | 52.5 | 48 | 0.125 | 4000 | 0.45 |
| JK42BLS03 | 24 | 81 | 15.5 | 77.5 | 72 | 0.185 | 4000 | 0.65 |
| JK42BLS04 | 24 | 100 | 20 | 105 | 96 | 0.25 | 4000 | 0.8 |
| Bldc Motors Wires | Hall Sensor Wires | ||||||
| U | V | W | +5VDC | GND | Hu | Hv | Hw |
| Yellow | Green | Blue | Red | Black | Yello | Green | Blue |
