Motor Length: 58mm / 71mm / 84mm / 98mm /125mm
Rated voltage：48V

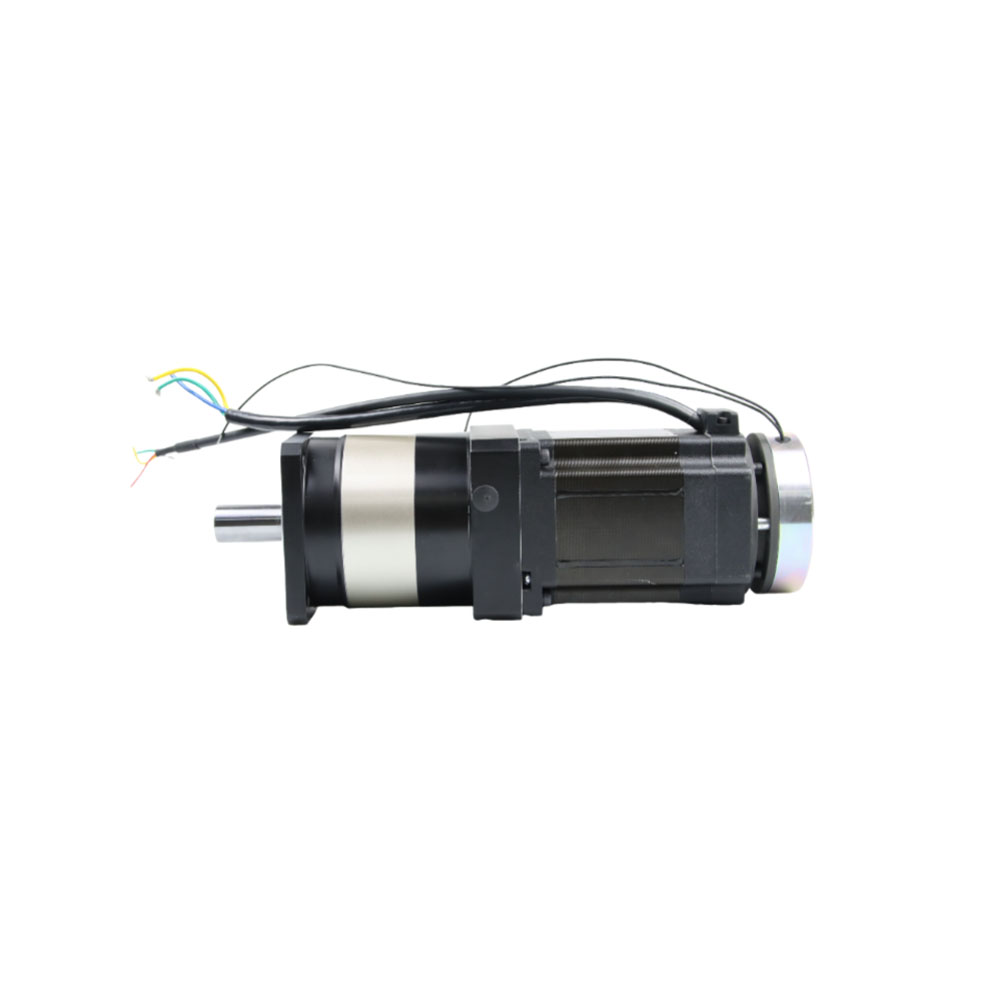

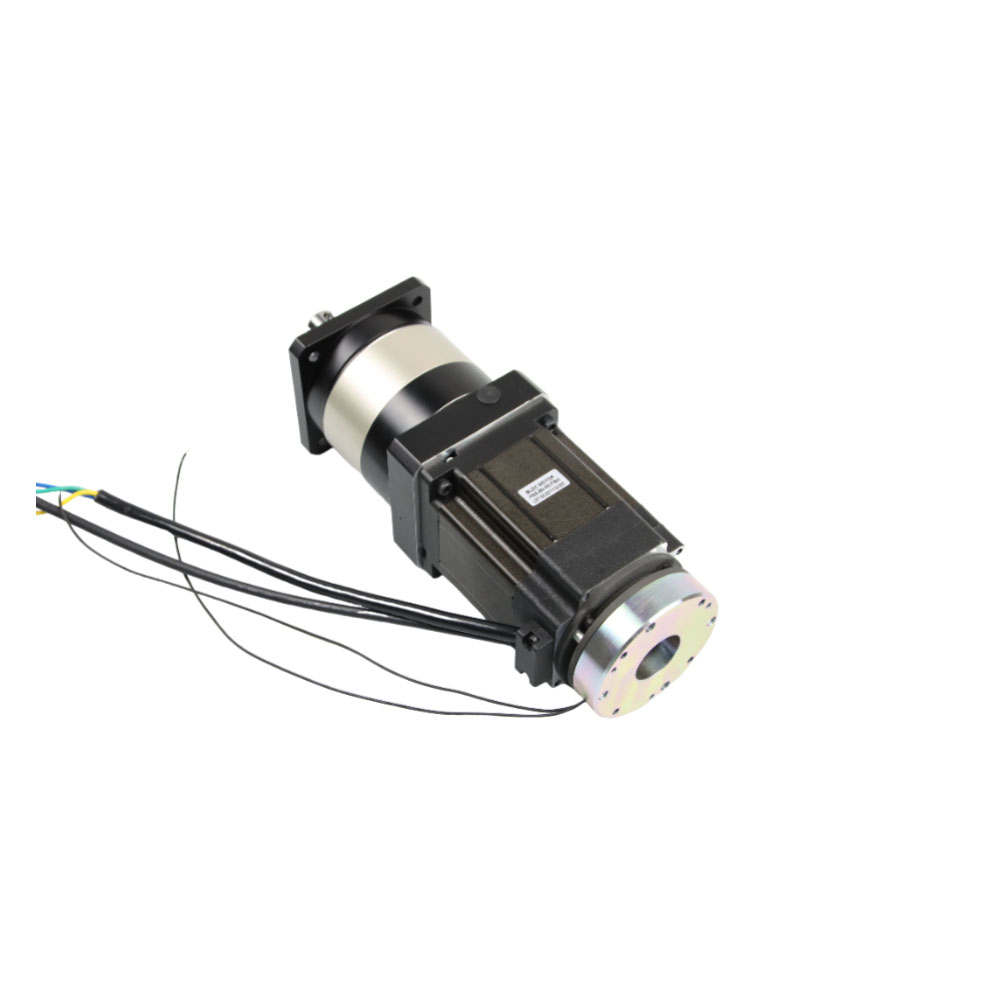

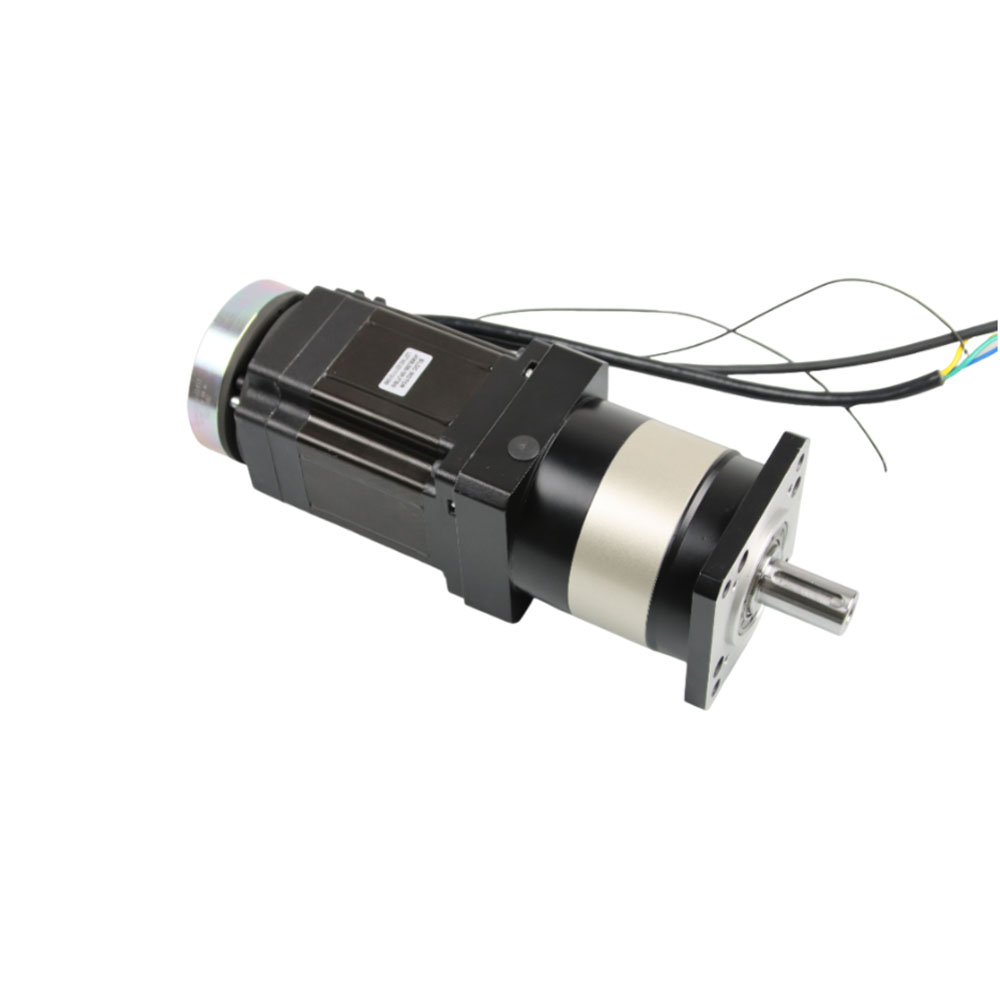

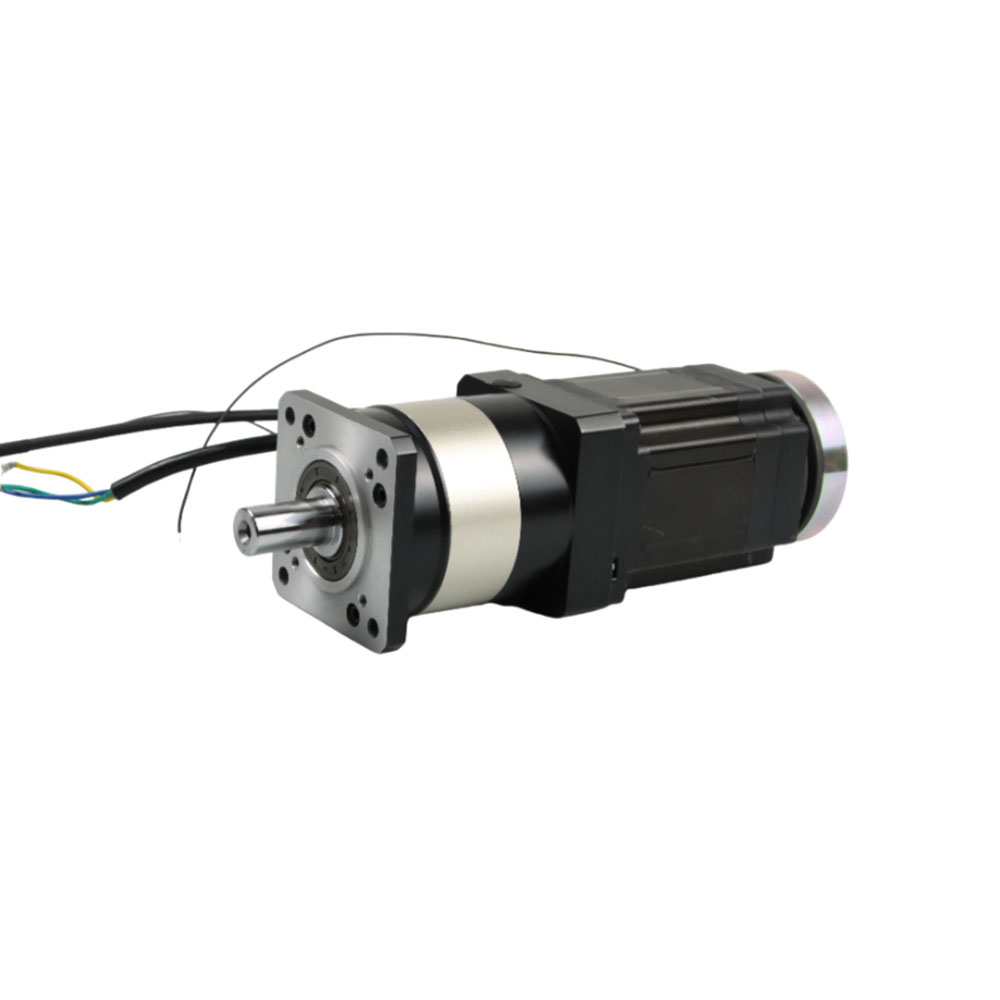

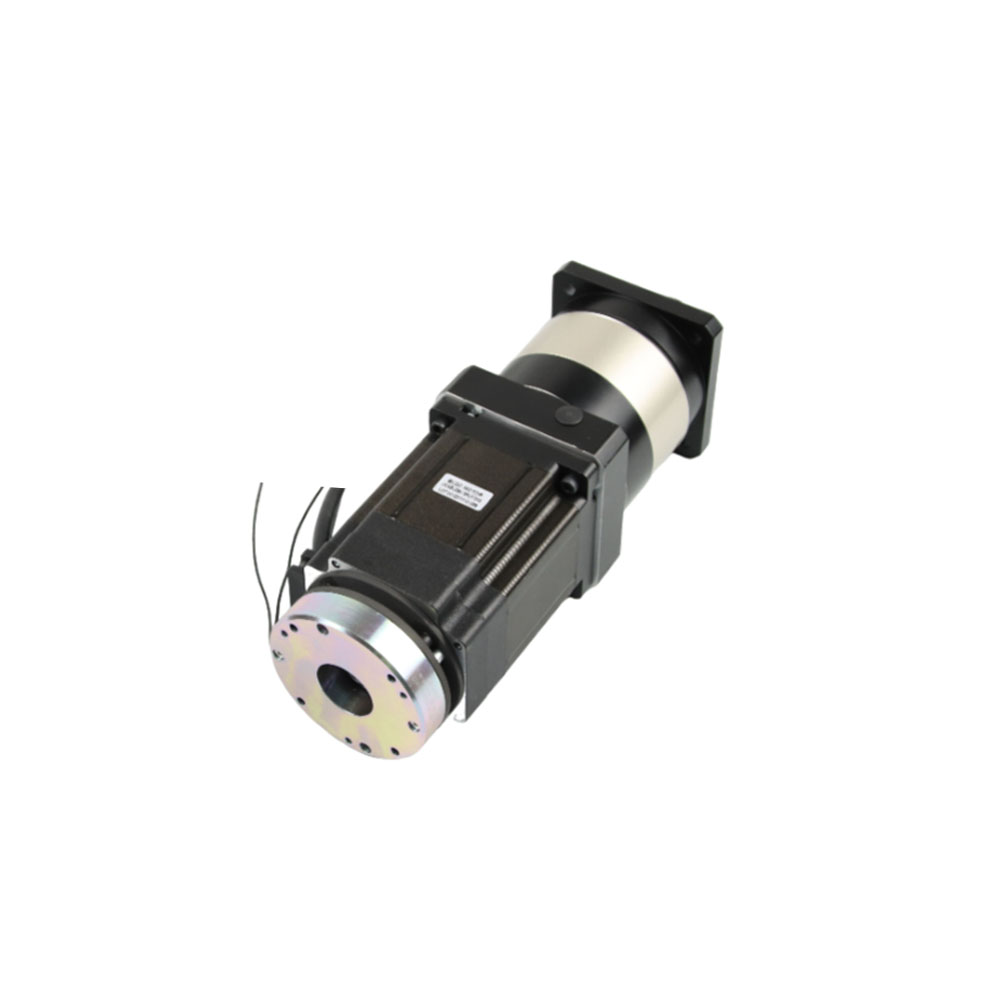

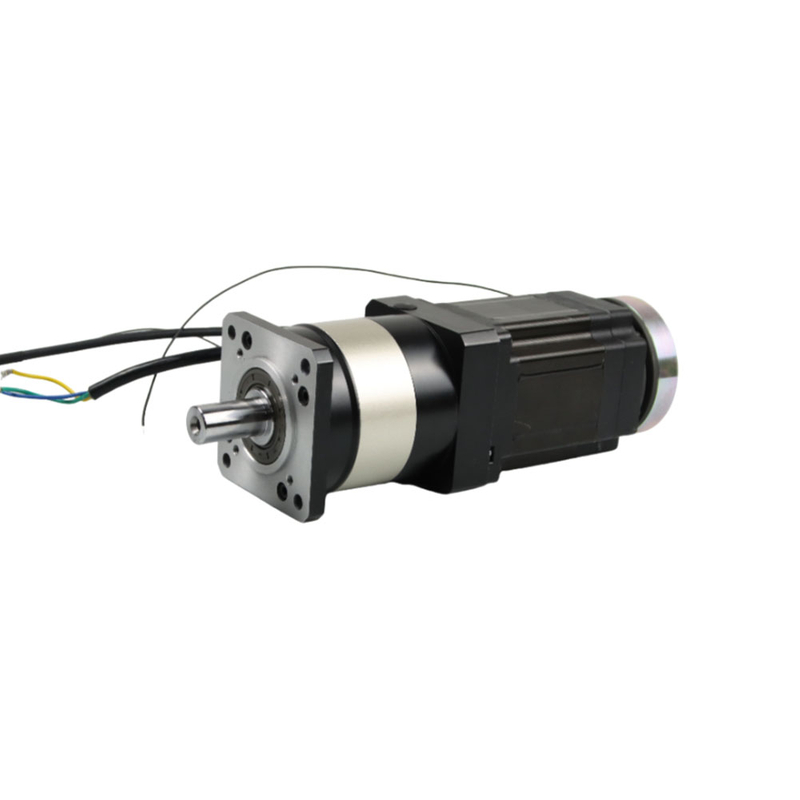

Nema 34 86BLS Geared Square Head BLDC Motor with High Precision Planetary Gearbox
Jkongmotor
3000rpm
8 poles
Nema34 (86mm)
3 phase
48V
10 Pcs
General Specifications | |
| Item | Specification |
| Winding type | Delt |
| Hall effect angle | 120 degree electrical angle |
| Shaft run out | 0.025mm |
| Radial play | 0.02mm@450g |
| End play | 0.08mm@450g |
| Max.radial force | 220N@20mm from the flange |
| Max. axial force | 60N |
| Insulation class | Class B |
| Dielectric Strength | 500VDC for one minute |
| Insulation Resistance | 100MΩ Min., 500VDC |
| Model No. | Rated voltage | Motor Length | Current | Rated power | Rotor Inertia | Rated torque | Rated speed | Weight |
| VDC | (L)mm | A | W | g.cm² | N.m | Rpm | kg | |
| JK86BLS58 | 48 | 71 | 3 | 110 | 400 | 0.35 | 3000 | 1.5 |
| JK86BLS71 | 48 | 84.5 | 6.3 | 220 | 800 | 0.7 | 3000 | 1.9 |
| JK86BLS84 | 48 | 98 | 9 | 330 | 1200 | 1.05 | 3000 | 2.3 |
| JK86BLS98 | 48 | 111.5 | 11.5 | 440 | 1600 | 1.4 | 3000 | 2.7 |
| JK86BLS125 | 48 | 138.5 | 18 | 660 | 2400 | 2.1 | 3000 | 4 |
| Bldc Motors Wires | Hall Sensor Wires | ||||||
| U | V | W | +5VDC | GND | Hu | Hv | Hw |
| Yellow | Green | Blue | Red | Black | Yello | Green | Blue |
