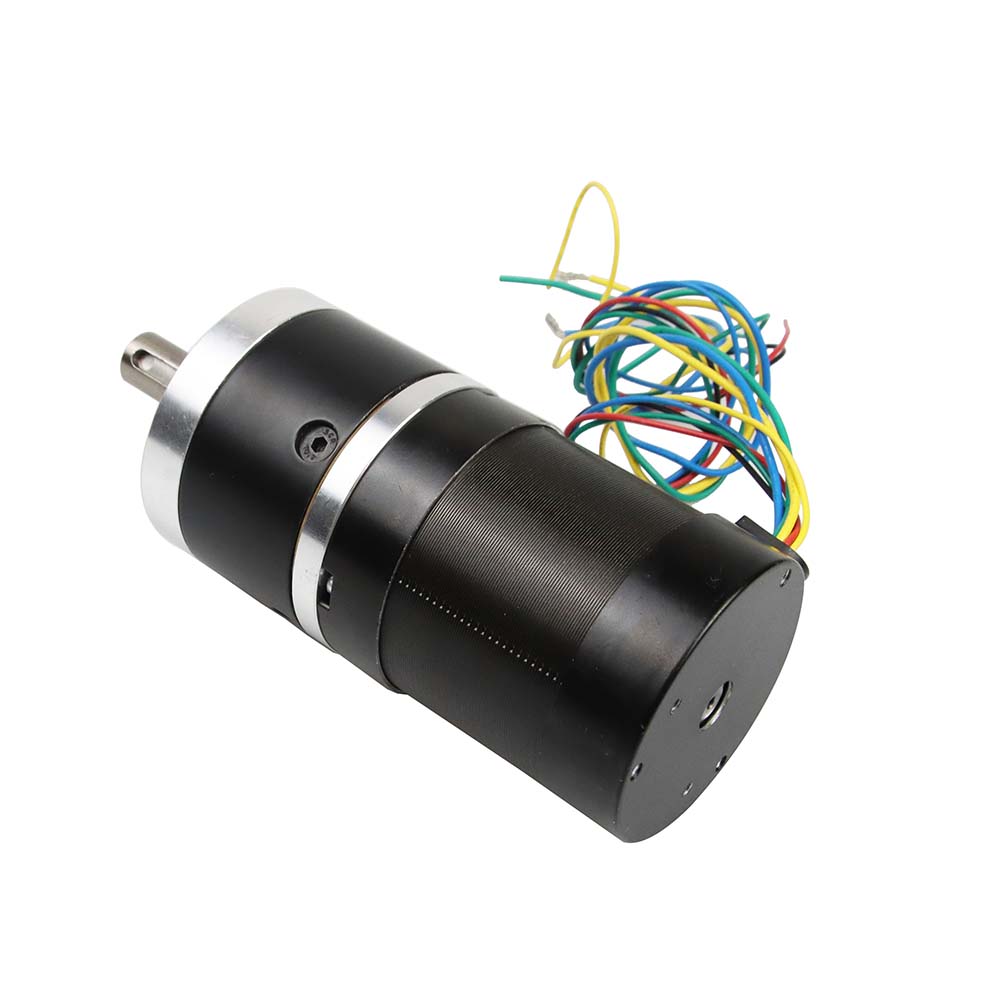

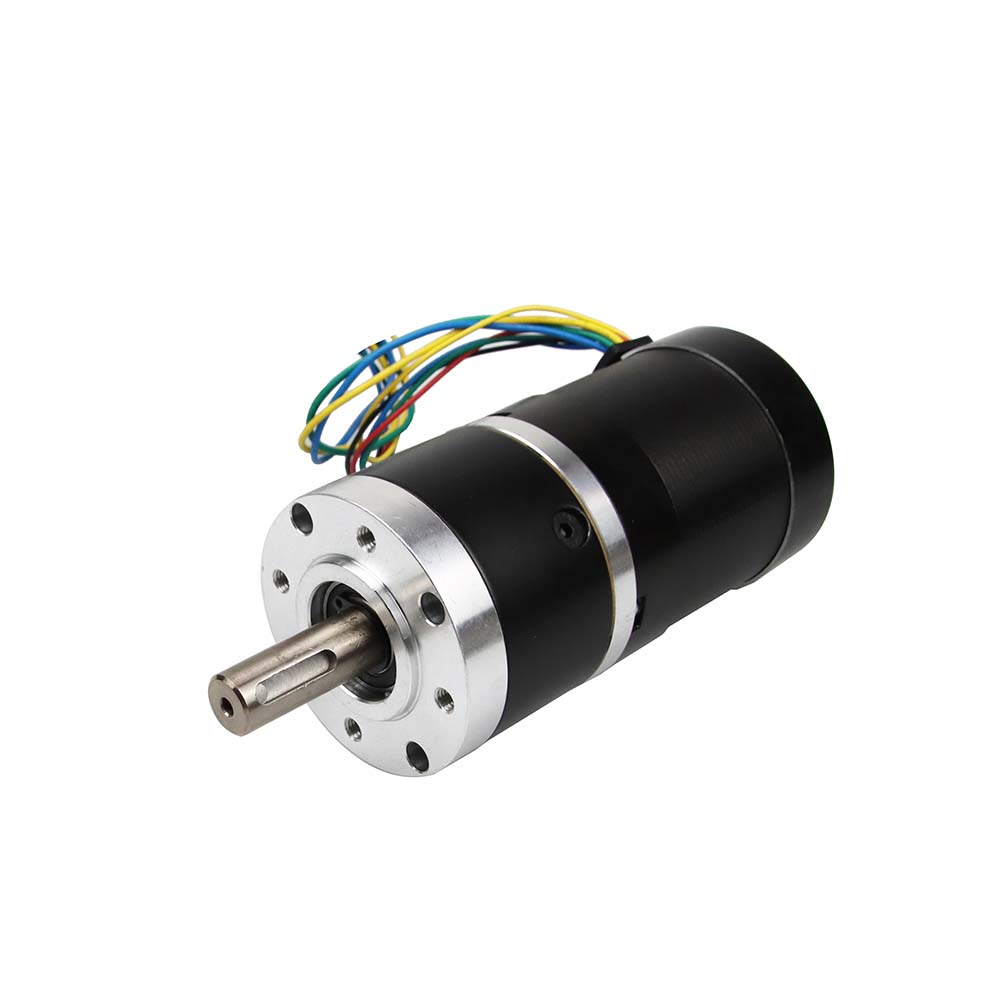

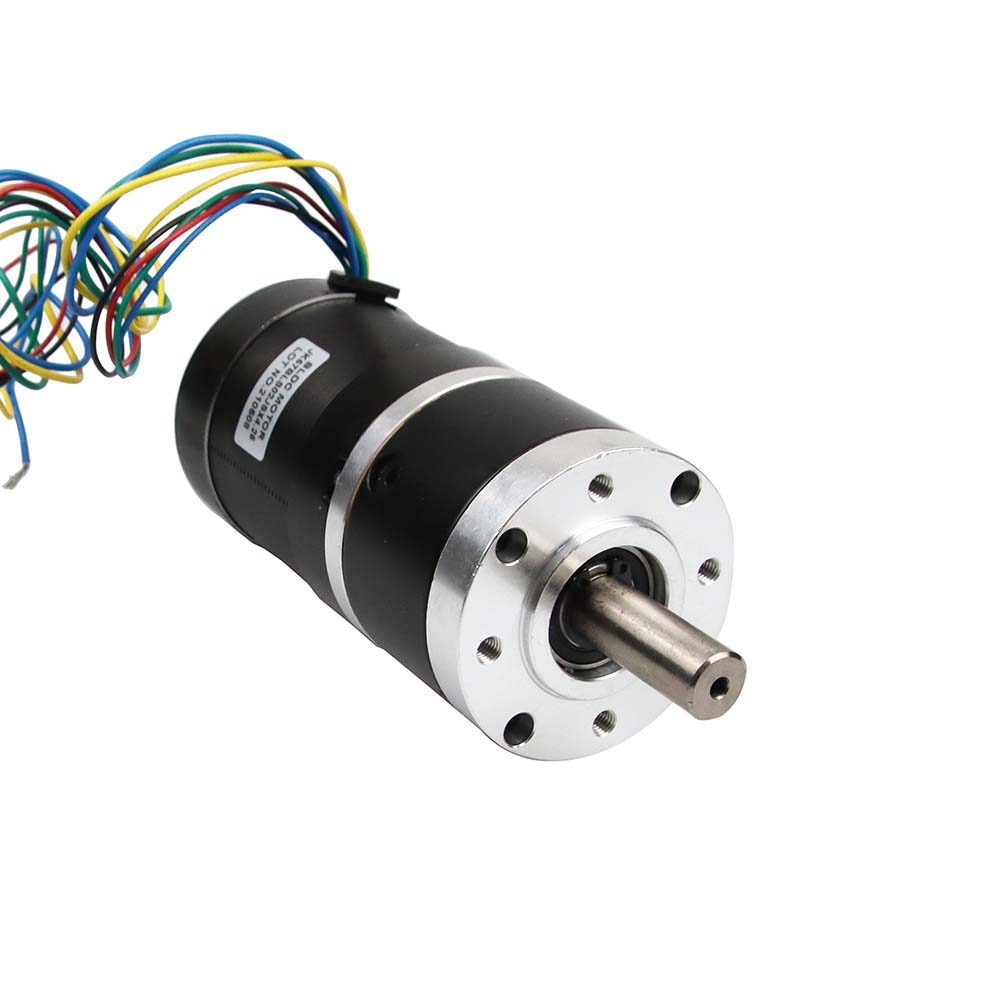

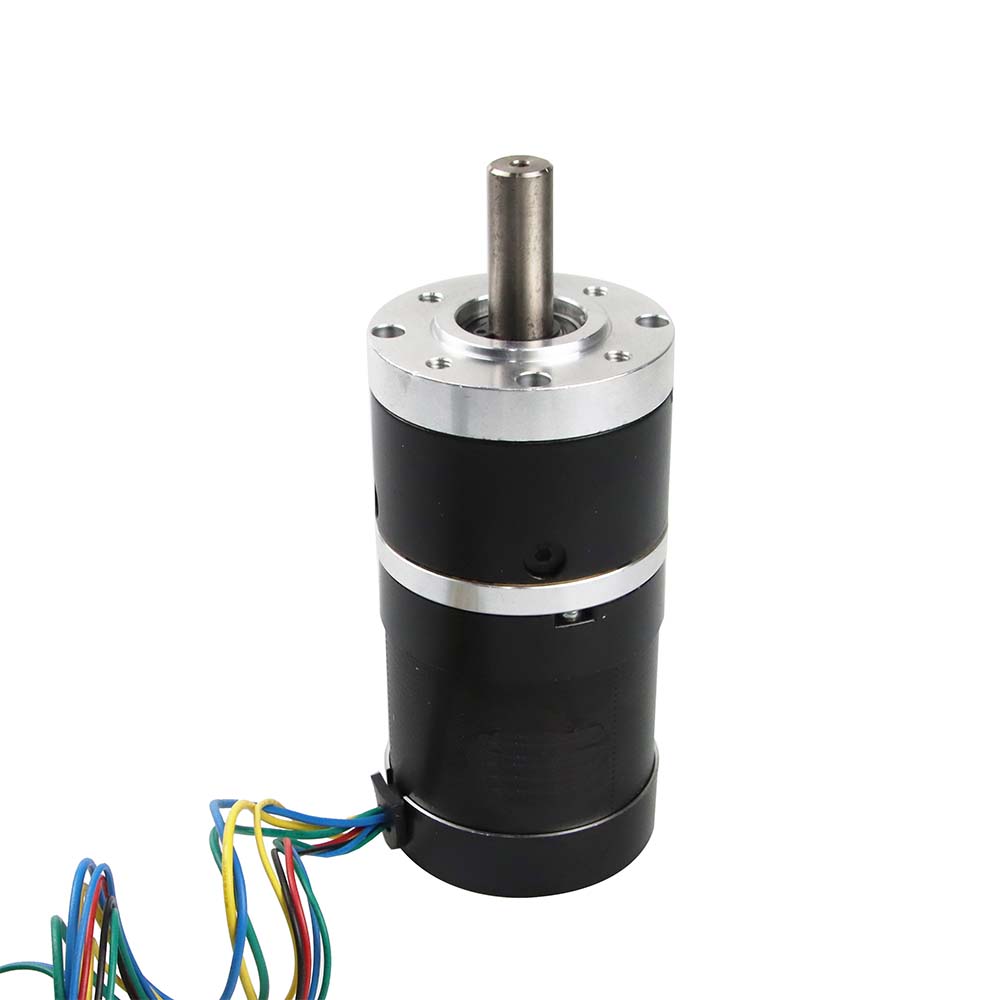

Nema 23 57BLS Geared Round Head BLDC Motor with Common Planetary Gearbox 57x57mm 36V 3 Phase

Type: Nema 23 57BLS Common Planetary Geared Round Head BLDC Motor

Motor Length: 37mm / 47mm / 67mm / 87mm /107mm

Rated voltage：36V

  • Nema 23 57BLS Common Planetary Geared Round Head BLDC Motor

  • Jkongmotor

  • Nema23 (57mm)

  • 3 phase

  • 36V

  • 10 Pcs

Availability:
Inquire

 Nema 23 57BLS 57mm Brushless Dc Motor General Specifications:

General Specifications
Item Specification
Winding type Star
Hall effect angle 120 degree electrical angle
Shaft run out 0.025mm
Radial play 0.02mm@450g
End play 0.08mm@450g
Max.radial force 75N@10mm from the flange
Max. axial force 10N
Insulation class Class B
Dielectric Strength 500VDC for one minute
Insulation Resistance 100MΩ Min., 500VDC


Electrical Specifications:

Model No. Rated voltage Motor Length Current Rated power Rotor Inertia Rated torque Rated speed Weight
VDC (L)mm A W g.cm² N.m

Rpm

 kg
JK57BLS005 36 37 3.5 23 30 0.055 4000 0.33
JK57BLS01 36 47 6.8 46 75 0.11 4000 0.44
JK57BLS02 36 67 11.5 92 119
 0.22 4000 0.75
JK57BLS03 36 87 15.5 138 173 0.33 4000 1
JK57BLS04 36 107 20.5 184 230 0.44 4000 1.25


Wires Connection:

Bldc Motors Wires Hall Sensor Wires
U V W +5VDC
 GND Hu
 Hv Hw
Yellow Green Blue Red Black Yello
 Green Blue


JK-56JXE300K Planetary Gearbox Specification:

Ring material Metal
Bearing at output Ball bearings
Max. Radial (12mm from flange) 300N
Max. shaft axial load 200N
Radial play of shaft (near to flange) ≤0.08mm
Axial play of shaft ≤0.4mm
Backlash at no-load ≤2.5°
Shaft press fit force, max 300N


Motor Shaft Pinion Specifications:

Module 1
No. of teeth 12 15 9
Pressure angle 20°
Hole diameter Φ6H7
Reduction ratio

1:4.25,1:15,1:18,1:23,1:52,1:61,1:72,1:96

1:121,1:220,1:260,1:307

 1:3.6,1:13,1:43,1:154,1:187 1:5.33,1:28












Planetary Gearbox Physical Specification:

Reduction ratio Exact reduction ratio Rated tolerance torque Max momentary tolerance torque Efficiency L (mm) Weight (g)
1:3.6  1:4.25  1:5.33 1:3.6  1:4.25  1:5.33 3 N.m Max 9 N.m 90% 37.8±0.5 489
1:13  1:15  1:18  1:23  1:28 1:12.96  1:15.30  1:18.06  1:22.67  1:28.44 12 N.m Max 36 N.m 81% 49.5±0.5 681
1:43  1:52  1:61  1:72  1:96  1:121 1:42.69  1:51.84  1:61.20  1:72.25  1:96.33  1:120.89 24 N.m Max 72 N.m 73% 60.8±0.5 871
1:154  1:187  1:220  1:260  1:307 1:153.69  1:186.62  1:220.32  1:260.10  1:307.06 30 N.m Max 90 N.m 66% 71.9±0.5 1066
Input & output same rotation direction; Motor Max. input speed: <6000rpm; Operating temperature range: -15℃ ~ +80℃


JK-56JXE450K Planetary Gearbox Specification:

Ring material Metal
Bearing at output Ball bearings
Max. Radial (12mm from flange) 400N
Max. shaft axial load 120N
Radial play of shaft (near to flange) ≤0.08mm
Axial play of shaft ≤0.4mm
Backlash at no-load ≤2.5°
Shaft press fit force, max 300N


Motor Shaft Pinion Specifications:

Module 1
No. of teeth 12 15 9
Pressure angle 20°
Hole diameter Φ6H7
Reduction ratio

1:4.25,1:15,1:18,1:23,1:52,1:61,1:72,1:96

1:121,1:220,1:260,1:307

 1:3.6,1:13,1:43,1:154,1:187 1:5.33,1:28


Planetary Gearbox Physical Specification:

Reduction ratio Exact reduction ratio Rated tolerance torque Max momentary tolerance torque Efficiency L (mm) Weight (g)
1:3.6  1:4.25  1:5.33 1:3.6  1:4.25  1:5.33 4 N.m Max 12 N.m 90% 40.3±0.5 510
1:13  1:15  1:18  1:23  1:28 1:12.96  1:15.30  1:18.06  1:22.67  1:28.44 18 N.m Max 50 N.m 81% 53.8±0.5 720
1:43  1:52  1:61  1:72  1:96  1:121 1:42.69  1:51.84  1:61.20  1:72.25  1:96.33  1:120.89 36 N.m Max 100 N.m 73% 67.2±0.5 930
1:154  1:187  1:220  1:260  1:307 1:153.69  1:186.62  1:220.32  1:260.10  1:307.06 45 N.m Max 110 N.m 66% 80.6±0.5 1150
Input & output same rotation direction; Motor Max. input speed: <6000rpm; Operating temperature range: -15℃ ~ +80℃


Nema23 24V Bldc Motor Dimension:

36v brushless dc motor hall sensor



Hybrid Stepper Motor Optional Parts：

Connectors, Gearbox, Encoder, Brake, Integrated Driver...


Customized Service:

步进电机金属带轮

Metal Pulleys

步进电机塑料带轮

Plastic Pulley

步进电机齿轮

Gear

步进电机定制

Shaft Pin

步进电机厂家

Threaded Shaft

步进电机直销

Panel Mount

步进电机工厂直销

Hollow Shaft

步进电机厂家直销

Threaded Shaft

步进电机促销

Panel Mount

步进电机工厂

Single Flat

步进电机批发

Dual Flat

步进电机直销厂家

Key Shaft


Hybrid Stepper Motor Customized Service:

stepper motor manufacturer

Cables

42mm gearbox stepper motor manufacturer

Flanges

86mm stepper motor manufacturer

Shaft

china stepper motor manufacturer

Lead Screw Rod

oem hybrid stepper motor manufacturer

Encoders

stepper motor china manufacturer

Brakes

stepper motor manufacturer in china

Gearboxes

stepper motor driver manufacturer

Motor Kits

3d stepper motor manufacturer

Integrated Drivers

12v stepper motor manufacturer

More Customized


24V Nema 23 Brushless Dc Motor Drawing:

JK57BLS Series Dimension.pdf

JK57BLS Series Wires Connections.pdf



Suitable Drivers Manual:

JKBLD300V2 User Manual_v1.1.pdf
