As warehouse automation, smart manufacturing, and intelligent logistics continue to evolve, Automated Guided Vehicles (AGVs) have become one of the most important components of modern material handling systems. Whether transporting pallets in a warehouse, delivering components in an automotive factory, or moving goods in an e-commerce fulfillment center, AGVs rely on one critical technology to achieve accurate, stable, and efficient movement—the steering wheel drive system.
For OEM manufacturers and system integrators, choosing the right AGV steering wheel drive system is far more than selecting a motor. It directly affects navigation accuracy, vehicle stability, payload capacity, maintenance costs, energy efficiency, and long-term reliability.
This guide explains how an AGV steering wheel drive system works, compares different steering solutions, and highlights why integrated servo wheel drives have become the preferred choice for next-generation AGVs and AMRs.
What Is an AGV Steering Wheel Drive System?
As automation continues to transform warehousing, manufacturing, and logistics, Automated Guided Vehicles (AGVs) have become essential for improving efficiency and reducing labor costs. At the heart of every AGV is its motion system, and one of the most advanced solutions available today is the AGV Steering Wheel Drive System.
Unlike traditional drive systems that rely on multiple independent components, an AGV steering wheel drive system integrates driving, steering, braking, and motion control into a single compact module. This integrated design enables AGVs to move more accurately, respond faster to navigation commands, and operate reliably in complex environments.
In this article, we'll explain what an AGV steering wheel drive system is, how it works, its key components, and why it has become the preferred choice for modern AGV manufacturers.
What Is an AGV Steering Wheel Drive System?

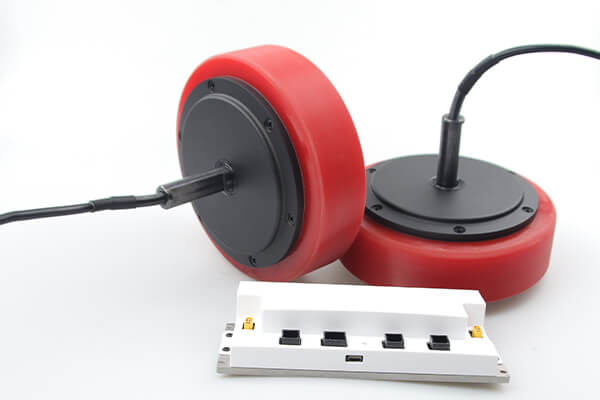

An AGV Steering Wheel Drive System is an integrated motion module that combines propulsion, steering, and intelligent control into one compact assembly. It allows an AGV to move forward, reverse, turn, rotate, and stop with exceptional precision.
Instead of using separate motors for driving and steering, this system integrates multiple functions into a single unit, reducing mechanical complexity and improving overall vehicle performance.
A steering wheel drive system acts as the "power and control center" of an AGV, ensuring every movement follows the commands issued by the vehicle's navigation system.
Why Is the Steering Wheel Drive System Important?
The performance of an AGV depends heavily on the quality of its drive system. Even the most advanced navigation technology cannot achieve accurate movement without a responsive and reliable steering module.
A high-performance steering wheel drive system provides:
Accurate positioning for precise navigation
Smooth steering in narrow aisles
Stable operation under different payloads
Fast dynamic response for obstacle avoidance
Energy-efficient motion to maximize battery life
Reliable long-term operation with minimal maintenance
For OEM manufacturers, selecting the right steering drive system directly impacts the AGV's performance, operating costs, and customer satisfaction.
A modern steering wheel drive system consists of several integrated components that work together seamlessly.
1. Drive Servo Motor
The drive servo motor provides the power that moves the AGV.
Its responsibilities include:
Forward and reverse movement
Speed control
Torque output
Smooth acceleration and deceleration
High-performance servo motors deliver stable torque even at low speeds, making them ideal for heavy-load applications.
2. Steering Servo Motor
The steering servo motor controls the direction of the drive wheel.
Unlike traditional steering mechanisms, servo steering offers:
High positioning accuracy
Rapid angle adjustment
Smooth directional changes
Excellent repeatability
This allows AGVs to navigate complex routes with greater precision.
3. Precision Gearbox
The gearbox transfers motor power to the drive wheel while increasing torque.
A high-quality planetary gearbox offers:
High transmission efficiency
Low backlash
Quiet operation
Long service life
4. Encoder
The encoder continuously measures the position and speed of both the drive and steering motors.
It provides real-time feedback that allows the controller to:
Correct positioning errors
Maintain speed accuracy
Improve navigation precision
Without encoder feedback, accurate closed-loop control would not be possible.
5. Brake System
Many AGVs operate on ramps or transport valuable goods.
An electromagnetic brake helps:
Hold the vehicle securely when stopped
Prevent unintended movement
Improve operational safety
6. Integrated Servo Drive and Controller
The integrated servo drive acts as the brain of the motion system.
It processes commands from the AGV controller and precisely regulates:
Motor speed
Torque
Steering angle
Position control
Motion synchronization
Many modern systems also support industrial communication protocols such as CANopen, EtherCAT, Modbus, and PROFINET, making integration with different AGV control platforms straightforward.
One-Stop Integrated DC Servo Motor Solution Provider
Shaft
Lead Screw
Module
Linear Motion
Brake
Gearbox
Worm Gearbox
Wires
Protect Level
Protect Level
How Does an AGV Steering Wheel Drive System Work?

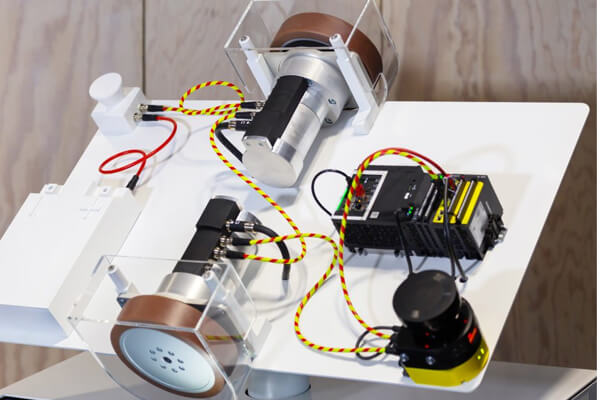

An AGV Steering Wheel Drive System works by integrating driving, steering, braking, and closed-loop motion control into a single intelligent module. It enables an Automated Guided Vehicle (AGV) to move forward, reverse, rotate, and navigate complex routes with high precision while continuously adjusting its speed and steering angle based on real-time navigation data.
Unlike conventional drive systems, which often separate the drive motor and steering mechanism, a steering wheel drive system combines these functions into one compact unit. This integrated design allows the AGV to achieve smoother movement, tighter turning, and more accurate positioning, making it ideal for modern warehouses, smart factories, and automated logistics centers.
Below is a step-by-step explanation of how the system works.
Step 1: The AGV Receives a Navigation Command
Every movement begins with the AGV's navigation controller.
Depending on the application, the controller receives positioning information from technologies such as:
SLAM navigation
Laser navigation
QR code navigation
Magnetic strip guidance
Vision navigation
Based on the destination and surrounding environment, the controller calculates:
Travel direction
Driving speed
Steering angle
Acceleration and deceleration
Turning path
These motion commands are then transmitted to the steering wheel drive system through industrial communication protocols such as CANopen, EtherCAT, Modbus, or PROFINET.
Step 2: The Steering Servo Motor Adjusts the Wheel Direction
After receiving the command, the steering servo motor rotates the drive wheel to the required angle.
Unlike traditional steering systems that rely on mechanical linkages, the steering servo uses high-precision closed-loop control to achieve fast and accurate positioning.
During this process, the steering encoder continuously monitors the wheel angle and sends real-time feedback to the controller. If there is any deviation between the target angle and the actual position, the controller immediately corrects it.
This ensures that the AGV always follows the planned route with minimal steering error.
Step 3: The Drive Servo Motor Powers the Vehicle
Once the steering wheel reaches the correct position, the drive servo motor begins to propel the AGV.
The motor precisely controls:
Driving speed
Output torque
Rotation direction
Acceleration
Deceleration
Unlike conventional motors that mainly operate at fixed speeds, servo motors continuously adjust their output according to the vehicle's load and operating conditions.
This allows the AGV to start smoothly, transport heavy loads, and stop accurately without sudden movement or vibration.
Step 4: The Gearbox Transfers Power to the Drive Wheel
The motor's rotational power is transmitted through a precision planetary gearbox.
The gearbox performs two important functions:
Increases output torque
Reduces motor speed to an optimal wheel speed
A high-quality gearbox provides:
High transmission efficiency
Low backlash
Quiet operation
Long service life
This enables the AGV to maintain stable driving performance even when carrying heavy payloads.
Step 5: Encoders Continuously Monitor Motion
One of the biggest advantages of a servo-based steering wheel drive system is its closed-loop feedback control.
Throughout operation, high-resolution encoders continuously monitor:
Motor speed
Wheel rotation
Steering angle
Vehicle position
The encoder data is sent back to the controller in real time.
The controller compares the actual movement with the planned trajectory and instantly adjusts motor output whenever necessary.
This process happens thousands of times per second, allowing the AGV to maintain exceptional navigation accuracy.
Step 6: The Controller Makes Real-Time Motion Adjustments
Industrial environments are constantly changing.
An AGV may encounter:
Unexpected obstacles
Different floor conditions
Heavy or uneven loads
Sharp corners
Busy traffic areas
The steering wheel drive system continuously receives updated commands from the navigation controller and immediately adjusts:
Steering angle
Driving speed
Torque output
Acceleration
Braking force
This dynamic adjustment enables the AGV to move safely and efficiently without interrupting production.
Step 7: The Brake System Ensures Safe Stopping
When the AGV reaches its destination or needs to stop, the electromagnetic brake engages.
The brake provides several important safety functions:
Holds the vehicle in position
Prevents rolling on ramps
Protects heavy loads during loading and unloading
Improves operational safety during emergency stops
Many industrial AGVs rely on automatic braking systems to ensure stable operation under all working conditions.
How Do All the Components Work Together?
A modern AGV steering wheel drive system integrates multiple components into one coordinated motion solution.
The complete workflow can be summarized as follows:
The navigation controller calculates the desired route.
Motion commands are transmitted to the steering wheel drive module.
The steering servo motor rotates the wheel to the target angle.
The encoder verifies steering accuracy.
The drive servo motor generates propulsion.
The gearbox transfers torque to the wheel.
Encoders continuously monitor speed and position.
The controller adjusts motor output in real time.
The brake system safely stops and holds the vehicle when required.
Because every component operates under closed-loop servo control, the AGV can maintain smooth, accurate, and reliable movement even in demanding industrial environments.
Why Closed-Loop Servo Control Is Essential
Modern AGVs require much more than simple motor rotation. They must navigate narrow aisles, avoid obstacles, transport valuable goods, and stop within millimeters of a target location.
Closed-loop servo control provides several key advantages:
High positioning accuracy
Fast steering response
Smooth acceleration and braking
Stable speed under varying loads
Automatic error correction
Reduced wheel slip
Improved navigation reliability
Longer equipment lifespan
These capabilities are especially important for AGVs using SLAM navigation or operating in high-density warehouse environments.
Conclusion
An AGV Steering Wheel Drive System operates by seamlessly coordinating navigation commands, servo motors, steering mechanisms, precision gearboxes, encoders, and braking systems into a single intelligent motion module. Every movement—from steering adjustment to propulsion and real-time correction—is managed through closed-loop control, ensuring precise positioning, smooth operation, and reliable performance.
As AGVs become more intelligent and are increasingly deployed in warehouses, factories, hospitals, and logistics centers, integrated steering wheel drive systems have become the industry standard. Their ability to deliver high torque, precise steering, rapid response, compact integration, and long-term reliability makes them the ideal motion solution for next-generation automated guided vehicles and autonomous mobile robots.
Selecting the right AGV Steering Wheel Drive System is one of the most important decisions when designing or purchasing an Automated Guided Vehicle (AGV) or Autonomous Mobile Robot (AMR). While factors such as payload capacity and travel speed are important, the quality of the steering wheel drive system ultimately determines the vehicle's navigation accuracy, operating efficiency, reliability, and maintenance costs.
A high-performance steering wheel drive system should provide more than basic propulsion. It should deliver precise motion control, seamless integration, and long-term stability in demanding industrial environments. Below are the key features that distinguish a high-quality AGV steering wheel drive system.
1. High Torque Output for Heavy Loads
AGVs often transport heavy materials, pallets, or production equipment. A high-quality steering wheel drive system must generate sufficient torque to ensure smooth starting, climbing, and continuous operation under full load.
High torque output provides several benefits:
Smooth startup without slipping
Stable operation on ramps and inclines
Reliable transportation of heavy payloads
Reduced mechanical stress on the drivetrain
Better performance at low speeds
Servo motors are particularly effective because they can deliver maximum torque even at low rotational speeds, making them ideal for industrial AGVs.
2. High Positioning Accuracy
Precise positioning is essential for modern AGVs, especially those using SLAM, laser navigation, or vision-based guidance.
A high-quality steering wheel drive system uses high-resolution encoders and closed-loop servo control to achieve exceptional positioning accuracy.
Benefits include:
Accurate docking
Consistent path tracking
Reduced navigation errors
Precise loading and unloading
Improved production efficiency
Accurate positioning also minimizes collision risks when operating in narrow aisles or shared workspaces.
3. Fast Dynamic Response
Industrial environments are constantly changing. AGVs frequently need to accelerate, decelerate, stop, or change direction in response to obstacles or updated navigation commands.
A high-performance steering wheel drive system offers:
Rapid acceleration
Smooth deceleration
Quick steering adjustments
Immediate response to control commands
Excellent path-following capability
Fast dynamic response enables AGVs to maintain productivity while operating safely in busy environments.
4. Integrated Steering and Drive Design
Modern steering wheel drive systems integrate multiple components into one compact module, including:
Drive servo motor
Steering servo motor
Gearbox
Encoder
Brake
Servo drive
Communication interface
This integrated design offers several advantages:
Simplified installation
Reduced wiring
Smaller vehicle footprint
Faster assembly
Easier maintenance
For OEM manufacturers, integrated systems significantly shorten development and production cycles.
5. Closed-Loop Servo Control
Closed-loop control is one of the defining characteristics of a premium steering wheel drive system.
Unlike open-loop systems, servo control continuously monitors motor performance using encoder feedback and automatically adjusts motor output to maintain the desired motion.
Advantages include:
Stable speed control
Accurate steering angles
Automatic error correction
Consistent torque output
Improved motion precision
This technology ensures smooth and reliable operation even under changing loads or operating conditions.
6. Excellent Maneuverability
A high-quality steering wheel drive system enables AGVs to move efficiently in confined spaces.
Key maneuverability features include:
Small turning radius
Smooth cornering
Precise directional changes
Stable rotation
Flexible movement in narrow aisles
These capabilities are particularly valuable in warehouses, manufacturing plants, and logistics centers where space is limited.
7. Energy-Efficient Operation
Battery life is a critical factor in AGV productivity. Energy-efficient steering wheel drive systems help maximize operating time while reducing charging frequency.
Advanced servo technology contributes by:
Optimizing motor current
Adjusting power output according to load
Reducing heat generation
Miniming power output according to load
Reducing heat generation
Minimizing energy waste
Improved energy efficiency lowers operating costs and extends battery lifespan.
8. Reliable Industrial Communication
Modern AGVs require seamless communication between the steering drive system and the vehicle controller.
A high-quality system typically supports multiple industrial communication protocols, including:
CANopen
EtherCAT
Modbus RTU
Modbus TCP
PROFINET
EtherNet/IP
These communication options simplify system integration and ensure compatibility with a wide range of automation platforms.
9. Robust Safety Features
Safety is a top priority in automated material handling.
A premium steering wheel drive system incorporates multiple protective functions, such as:
Electromagnetic brake
Overload protection
Overcurrent protection
Overvoltage protection
Overtemperature protection
Encoder fault detection
Emergency stop support
These features protect both equipment and personnel while minimizing unplanned downtime.
10. Durable Construction for Continuous Operation
Many AGVs operate around the clock in demanding industrial environments. Therefore, the steering wheel drive system must be built for long-term reliability.
Important durability features include:
High-strength housing
Industrial-grade bearings
Precision planetary gearbox
Dust and water resistance (IP-rated protection)
Corrosion-resistant materials
Low-maintenance design
A durable drive system reduces maintenance frequency and lowers the total cost of ownership.
11. Low Noise and Smooth Operation
Quiet operation has become increasingly important, particularly in hospitals, electronics manufacturing, laboratories, and indoor logistics.
A high-quality steering wheel drive system delivers:
Low vibration
Quiet motor operation
Smooth acceleration
Stable deceleration
Reduced mechanical wear
This improves operator comfort while protecting sensitive equipment and transported goods.
12. Flexible Customization Options
Different AGV applications require different motion solutions. Leading manufacturers offer customized steering wheel drive systems tailored to specific project requirements.
Common customization options include:
Motor power and voltage
Wheel diameter and material
Gear ratio
Encoder type
Brake configuration
Communication protocol
Mounting dimensions
IP protection level
Payload capacity
Customization allows OEM manufacturers to optimize vehicle performance without redesigning the entire drive system.
Why These Features Matter for OEM Buyers
When selecting an AGV steering wheel drive system, OEM manufacturers evaluate more than just motor specifications. They look for a solution that offers long-term value across the entire lifecycle of the vehicle.
A high-quality system can provide:
Higher navigation accuracy for reliable autonomous operation
Improved operational efficiency through faster response and smoother motion
Reduced installation time with integrated, plug-and-play designs
Lower maintenance costs thanks to durable, low-maintenance components
Better energy efficiency, extending battery runtime and reducing operating expenses
Greater flexibility through support for multiple communication protocols and customization options
Long-term reliability in demanding industrial environments
These advantages not only enhance AGV performance but also help manufacturers reduce total ownership costs and improve customer satisfaction.
Conclusion
A high-quality AGV Steering Wheel Drive System is the foundation of precise, efficient, and reliable autonomous vehicle operation. Features such as high torque output, precise positioning, fast dynamic response, closed-loop servo control, integrated design, energy efficiency, industrial communication, and robust safety protection enable AGVs to operate with exceptional accuracy and stability.
As factories and warehouses continue to embrace intelligent automation, choosing an advanced steering wheel drive system is no longer just a technical decision—it is a strategic investment in productivity, reliability, and future scalability. OEM manufacturers that prioritize these key features can build AGVs capable of meeting the evolving demands of smart logistics and Industry 4.0.
The rapid growth of warehouse automation, smart manufacturing, and intelligent logistics has significantly increased the demand for high-performance Automated Guided Vehicles (AGVs) and Autonomous Mobile Robots (AMRs). As these vehicles become more intelligent and operate in increasingly complex environments, traditional drive systems are no longer able to meet the industry's expectations for precision, efficiency, and reliability.
To address these challenges, more OEM manufacturers are adopting Integrated Steering Wheel Drive Systems. By combining the drive motor, steering motor, gearbox, encoder, brake, servo drive, and communication interface into a single compact module, integrated systems simplify AGV design while delivering superior motion performance.
Below are the key reasons why integrated steering wheel drive systems are becoming the preferred choice across modern automation industries.
1. Simplified AGV Design and Faster Integration
Traditional AGV drive systems require multiple independent components that must be installed, aligned, wired, and configured separately. This process increases engineering complexity and extends production time.
Integrated steering wheel drive systems eliminate much of this complexity by providing a factory-assembled, pre-tested solution.
Key benefits include:
Faster installation
Reduced wiring
Easier system integration
Shorter development cycles
Lower engineering costs
For OEM manufacturers, this plug-and-play design helps accelerate product development and reduces time to market.
2. Higher Motion Accuracy
Navigation accuracy is one of the most important performance indicators for an AGV.
Because integrated steering wheel drive systems are designed as a complete motion solution, all components work together under a unified closed-loop control system. This ensures precise synchronization between steering and driving.
The result is:
More accurate positioning
Smoother trajectory tracking
Better docking accuracy
Reduced navigation errors
Improved repeatability
These advantages are especially valuable for AGVs using SLAM, laser navigation, or vision-based positioning systems.
3. Compact Structure Saves Valuable Space
Space inside an AGV is extremely limited. In addition to the drive system, the vehicle must also accommodate batteries, controllers, sensors, communication devices, and safety equipment.
An integrated steering wheel drive system combines multiple functions into a single compact module, allowing manufacturers to make better use of the available space.
This compact design offers several advantages:
Smaller vehicle size
Increased battery capacity
Better internal layout
Reduced mechanical complexity
Greater design flexibility
Compact AGVs are particularly useful in warehouses with narrow aisles and high-density storage systems.
4. Reduced Wiring and Improved Reliability
One of the biggest advantages of integrated systems is the significant reduction in electrical wiring.
Traditional drive systems often require numerous cables connecting separate motors, drivers, encoders, and controllers. More wiring means more installation time and more potential failure points.
Integrated systems simplify electrical architecture by reducing external connections.
This provides:
Cleaner installation
Faster assembly
Lower risk of loose connections
Reduced electromagnetic interference (EMI)
Improved long-term reliability
Simplified wiring also makes troubleshooting and maintenance much easier.
5. Lower Maintenance Costs
Maintenance is a major operating expense for AGV fleets.
Integrated steering wheel drive systems reduce maintenance requirements because they contain fewer independent mechanical and electrical components.
Benefits include:
Fewer wear points
Faster replacement
Easier diagnostics
Reduced downtime
Lower service costs
Instead of replacing multiple individual parts, technicians can often replace the entire drive module quickly, minimizing production interruptions.
6. Better Energy Efficiency
Battery life directly affects AGV productivity.
Modern integrated steering wheel drive systems use advanced servo control algorithms that automatically adjust motor output based on the vehicle's operating conditions.
This intelligent control helps:
Reduce energy consumption
Improve motor efficiency
Extend battery runtime
Reduce heat generation
Lower operating costs
Longer operating hours mean fewer charging interruptions and higher overall productivity.
7. Superior Dynamic Performance
Today's AGVs operate in environments where they must constantly respond to changing conditions.
Integrated steering wheel drive systems provide:
Faster acceleration
Smooth deceleration
Rapid steering adjustments
Stable low-speed operation
Excellent torque control
High dynamic response allows AGVs to avoid obstacles, navigate tight corners, and transport goods more efficiently without sacrificing accuracy.
8. Enhanced Safety Performance
Safety is becoming increasingly important as AGVs work alongside people in factories and warehouses.
These integrated safety features improve operational reliability while protecting personnel and equipment.
9. Easier Support for Smart Factory Communication
Industry 4.0 requires seamless communication between equipment, control systems, and manufacturing software.
Integrated steering wheel drive systems typically support multiple industrial communication protocols, such as:
CANopen
EtherCAT
Modbus RTU
Modbus TCP
PROFINET
EtherNet/IP
This compatibility enables AGVs to integrate easily into existing factory automation systems while supporting future upgrades.
10. Greater Flexibility Through Customization
Every AGV application has unique requirements.
Leading steering wheel drive manufacturers offer customized solutions based on:
Vehicle size
Payload capacity
Motor power
Gear ratio
Wheel diameter
Encoder type
Brake configuration
Communication protocol
Environmental protection level
This flexibility allows OEM manufacturers to optimize vehicle performance without extensive redesign.
11. Lower Total Cost of Ownership
Although integrated steering wheel drive systems may have a higher initial purchase price than conventional solutions, they often deliver significant long-term savings.
Lower total ownership costs come from:
Reduced installation time
Lower maintenance expenses
Fewer replacement parts
Higher energy efficiency
Longer service life
Reduced downtime
Improved operational reliability
For companies operating large AGV fleets, these savings can substantially improve return on investment over the system's lifetime.
12. Ready for the Future of Intelligent Automation
As AGVs continue to evolve, motion systems must support increasingly advanced technologies.
Integrated steering wheel drive systems are well positioned for future developments, including:
AI-assisted motion control
Predictive maintenance
Cloud-based diagnostics
Digital twin integration
Autonomous fleet management
Higher safety standards
More compact vehicle designs
Their modular architecture makes them easier to upgrade as automation technologies continue to advance.
Why OEM Manufacturers Are Making the Switch
More AGV manufacturers are replacing traditional drive systems with integrated steering wheel drive solutions because they offer clear advantages throughout the product lifecycle.
Compared with conventional systems, integrated solutions provide:
Higher positioning accuracy
Simplified mechanical design
Reduced installation and wiring
Better energy efficiency
Lower maintenance costs
Greater system reliability
Improved compatibility with industrial automation platforms
Faster product development and deployment
These benefits help OEMs deliver more competitive AGVs while reducing engineering effort and long-term operating costs.
Conclusion
Integrated steering wheel drive systems are becoming more popular because they address the key challenges faced by today's AGV and AMR manufacturers. By combining propulsion, steering, braking, control, and communication into a single intelligent module, they simplify vehicle design while improving precision, efficiency, and reliability.
As the demand for smarter warehouses and automated production lines continues to grow, integrated steering wheel drive systems are rapidly becoming the industry standard. Their compact design, plug-and-play integration, high dynamic performance, and low total cost of ownership make them the preferred choice for OEMs seeking to build next-generation AGVs that are more efficient, easier to maintain, and ready for the future of intelligent automation.
As automation continues to reshape modern industries, AGV Steering Wheel Drive Systems have become a key technology for achieving efficient, precise, and reliable material handling. Thanks to their high torque, accurate steering, compact integrated design, and excellent maneuverability, these drive systems are widely used in Automated Guided Vehicles (AGVs) and Autonomous Mobile Robots (AMRs) across a variety of industrial applications.
Whether transporting heavy materials, navigating narrow warehouse aisles, or delivering sensitive products in cleanroom environments, integrated steering wheel drive systems provide the motion performance required for today's intelligent logistics.
Below are some of the most common applications.
1. Smart Warehousing and Distribution Centers
Modern warehouses rely heavily on AGVs to automate material transportation between storage locations, picking stations, and shipping areas.
An integrated steering wheel drive system enables AGVs to:
Navigate narrow aisles with precision
Transport pallets and containers efficiently
Perform accurate docking at storage racks
Avoid obstacles safely
Operate continuously with minimal downtime
Its precise steering and smooth motion help improve warehouse throughput while reducing labor costs.
Typical applications include:
Automated pallet transport
Goods-to-person systems
Storage and retrieval operations
Cross-docking logistics
E-commerce fulfillment centers
2. Automotive Manufacturing
The automotive industry is one of the largest users of AGV technology. AGVs are responsible for transporting engines, body parts, batteries, and production materials throughout the assembly process.
Steering wheel drive systems are ideal for automotive factories because they provide:
High load capacity
Smooth acceleration and braking
Accurate positioning at workstations
Stable movement with heavy components
Reliable 24/7 operation
These capabilities ensure uninterrupted production while protecting valuable automotive parts.
Typical tasks include:
Engine transportation
Chassis delivery
Body assembly logistics
Component replenishment
Finished vehicle movement
3. Electronics Manufacturing
Electronic products require extremely careful handling due to their high value and sensitivity.
AGVs equipped with integrated steering wheel drive systems deliver:
Smooth vibration-free transportation
High positioning accuracy
Low-noise operation
Precise movement between production stations
These features help reduce product damage and improve manufacturing efficiency.
Common applications include:
PCB transportation
Semiconductor handling
Consumer electronics assembly
Precision component delivery
Automated production lines
4. Lithium Battery and New Energy Manufacturing
Battery manufacturing demands highly stable and accurate material handling because battery cells are sensitive to vibration, contamination, and positioning errors.
Integrated steering wheel drive systems provide:
Smooth transportation
Precise positioning
High cleanliness compatibility
Stable low-speed control
Reliable heavy-load performance
These characteristics make them ideal for modern battery production facilities.
Typical applications include:
Battery cell transportation
Module assembly
Pack production
Material transfer between workstations
Automated warehouse logistics
5. Pharmaceutical and Medical Logistics
Hospitals and pharmaceutical factories increasingly use AGVs to improve operational efficiency while minimizing human contact.
Steering wheel drive systems support these environments by offering:
Quiet operation
Precise navigation
Smooth transportation of sensitive products
Reliable operation around the clock
Medical logistics applications include:
Medicine delivery
Laboratory sample transportation
Sterile material handling
Hospital supply distribution
Pharmaceutical production logistics
6. Food and Beverage Processing
Food production facilities require automated equipment that can operate reliably while maintaining strict hygiene standards.
AGVs equipped with integrated steering wheel drive systems help automate internal logistics by transporting:
Raw materials
Packaging materials
Finished products
Production containers
Cold storage goods
Their smooth motion minimizes product movement while improving production efficiency.
7. Airport and Baggage Handling Systems
Airports use AGVs to automate baggage transportation over long distances while maintaining accurate scheduling.
Steering wheel drive systems provide:
Stable high-speed operation
Precise routing
Continuous heavy-duty performance
Reliable operation in busy logistics environments
Typical airport applications include:
Baggage transport
Cargo movement
Warehouse logistics
Ground support equipment
8. Heavy Industrial Manufacturing
Large manufacturing facilities often require AGVs capable of transporting several tons of material safely and accurately.
Integrated steering wheel drive systems deliver:
High starting torque
Excellent traction
Stable low-speed operation
Heavy-load capability
Long service life
Typical industries include:
Steel production
Machinery manufacturing
Metal processing
Shipbuilding
Aerospace manufacturing
9. Cold Chain and Refrigerated Warehousing
Cold storage warehouses present unique challenges, including low temperatures, slippery floors, and continuous operation.
High-quality steering wheel drive systems are designed to perform reliably under these demanding conditions.
Benefits include:
Stable operation at low temperatures
Reliable traction
Accurate navigation
Reduced maintenance
Long-term durability
Applications include:
Frozen food logistics
Pharmaceutical cold storage
Temperature-controlled distribution centers
10. Cleanroom and Semiconductor Manufacturing
Cleanroom environments require extremely precise and contamination-free transportation.
Integrated steering wheel drive systems support these demanding conditions through:
Low particle generation
Smooth motion control
Quiet operation
High positioning accuracy
Reliable continuous performance
Common applications include:
Semiconductor wafer transport
Display manufacturing
Optical equipment production
Precision assembly
11. Automated Logistics Centers
Large logistics hubs depend on AGVs to move goods efficiently between receiving, storage, sorting, and shipping areas.
Integrated steering wheel drive systems improve logistics efficiency by providing:
Fast response
Smooth navigation
Flexible route planning
High operational reliability
Energy-efficient performance
These systems support high-volume operations while minimizing manual intervention.
12. Smart Factories and Industry 4.0
As manufacturers embrace Industry 4.0, AGVs have become an essential part of connected production systems.
Integrated steering wheel drive systems enable AGVs to communicate seamlessly with factory automation platforms while delivering precise motion control.
They support:
Flexible manufacturing
Automated material flow
Digital production management
Intelligent scheduling
Real-time monitoring
This integration helps manufacturers improve productivity, reduce downtime, and optimize resource utilization.
Compared with traditional drive systems, integrated steering wheel drive systems offer several advantages that make them suitable for a wide range of applications:
High positioning accuracy for reliable navigation
Compact all-in-one design that simplifies AGV integration
Excellent maneuverability in narrow spaces
High torque output for heavy-load transport
Smooth acceleration and braking to protect sensitive goods
Energy-efficient servo control for longer battery life
Reduced maintenance requirements with fewer mechanical components
Support for multiple industrial communication protocols, including CANopen, EtherCAT, Modbus, and PROFINET
Scalable customization to meet different payloads, environments, and vehicle designs
These benefits enable OEM manufacturers to develop AGVs that are more efficient, reliable, and adaptable to diverse industrial needs.
Conclusion
The application range of AGV Steering Wheel Drive Systems continues to expand as industries accelerate their adoption of automation. From smart warehouses and automotive assembly lines to battery production, semiconductor manufacturing, hospitals, airports, and cold chain logistics, integrated steering wheel drive systems provide the precision, flexibility, and reliability required for efficient material handling.
With their compact integrated design, advanced servo control, high torque output, and intelligent communication capabilities, these systems have become the preferred motion solution for modern AGVs and AMRs. As automation technology advances, their role will continue to grow, helping manufacturers and logistics providers build smarter, safer, and more productive operations.
Selecting the right AGV Steering Wheel Drive System is one of the most important decisions when designing or purchasing an Automated Guided Vehicle (AGV) or Autonomous Mobile Robot (AMR). The steering wheel drive system is responsible for the vehicle's movement, steering, positioning, and overall motion performance. A well-matched system not only improves navigation accuracy and operational efficiency but also reduces maintenance costs and extends the service life of the AGV.
However, not all steering wheel drive systems are suitable for every application. The ideal solution depends on factors such as payload, operating environment, navigation method, and communication requirements. Understanding these key considerations can help OEM manufacturers and system integrators select a drive system that delivers reliable performance and long-term value.
1. Determine Your AGV's Payload Capacity
The first step is to identify how much weight the AGV will carry during normal operation.
Payload directly affects the required:
Motor power
Output torque
Gear ratio
Wheel size
Brake capacity
For example:
AGV Type
Typical Payload
Light-duty AGV
100–500 kg
Medium-duty AGV
500–1,500 kg
Heavy-duty AGV
1,500–5,000+ kg
Choosing a drive system with insufficient torque can lead to slow acceleration, overheating, and reduced motor lifespan. On the other hand, an oversized system increases costs and may reduce energy efficiency.
Tip: Always calculate the total moving weight, including the AGV itself, the payload, and any attachments.
2. Evaluate the Required Torque and Driving Performance
Torque is often more important than maximum speed, especially for AGVs transporting heavy loads or operating on ramps.
A high-quality steering wheel drive system should provide:
High starting torque
Stable low-speed operation
Smooth acceleration
Strong climbing capability
Reliable continuous output
Servo-based steering wheel drive systems are ideal because they maintain high torque even at low speeds while providing precise motion control.
3. Consider the Navigation Method
Different navigation technologies require different levels of motion precision.
Common AGV navigation methods include:
SLAM navigation
Laser navigation
QR code navigation
Vision navigation
Magnetic strip guidance
For AGVs using SLAM or laser navigation, the steering wheel drive system should offer:
High encoder resolution
Precise steering angle control
Fast dynamic response
Accurate closed-loop positioning
The more advanced the navigation system, the more important motion accuracy becomes.
4. Choose the Appropriate Steering Configuration
Different AGV applications require different steering capabilities.
Typical steering configurations include:
Single Steering Wheel Drive
Suitable for:
Standard warehouse AGVs
Medium-load transport vehicles
General material handling
Advantages:
Compact design
Lower cost
Good maneuverability
Dual Steering Wheel Drive
Suitable for:
Heavy-duty AGVs
High-speed transport
Large industrial vehicles
Advantages:
Better traction
Higher load capacity
Improved stability
Omnidirectional Steering Systems
Suitable for:
Precision manufacturing
Semiconductor production
Tight working environments
Advantages:
360-degree movement
Sideways travel
Zero-radius turning
Maximum flexibility
5. Assess the Operating Environment
The working environment has a significant impact on the performance and durability of the steering wheel drive system.
Consider factors such as:
Indoor or outdoor operation
Floor condition
Dust levels
Humidity
Water exposure
Ambient temperature
Chemical exposure
For harsh industrial environments, choose a drive system with:
High IP protection rating
Corrosion-resistant materials
Sealed bearings
Durable housing
Wide operating temperature range
Selecting a system designed for the environment helps improve reliability and reduce maintenance.
6. Select the Right Communication Protocol
The steering wheel drive system must communicate efficiently with the AGV controller.
Most industrial applications require support for one or more of the following protocols:
CANopen
EtherCAT
PROFINET
Modbus RTU
Modbus TCP
EtherNet/IP
Choosing a compatible communication protocol simplifies system integration and improves real-time motion control.
If future upgrades are planned, selecting a system with multiple communication options provides greater flexibility.
7. Prioritize Positioning Accuracy
Modern AGVs often need to stop within millimeters of a target location for loading, unloading, or docking.
To achieve this level of precision, the steering wheel drive system should include:
High-resolution encoders
Closed-loop servo control
Low-backlash gearbox
Precise steering motor
Accurate positioning reduces operational errors and improves overall automation efficiency.
8. Consider Energy Efficiency
Battery life is a major factor in AGV productivity.
Energy-efficient steering wheel drive systems help maximize operating time by:
Optimizing motor current
Reducing power consumption
Minimizing heat generation
Delivering torque only when required
Lower energy consumption results in:
Longer operating hours
Reduced charging frequency
Lower operating costs
Extended battery lifespan
Servo motors generally outperform conventional motors in terms of efficiency and dynamic control.
9. Evaluate Safety Features
Industrial AGVs frequently operate around people and valuable equipment, making safety a critical consideration.
A high-quality steering wheel drive system should include:
Electromagnetic brake
Overload protection
Overcurrent protection
Overvoltage protection
Overtemperature monitoring
Encoder fault detection
Emergency stop compatibility
These built-in protections help prevent equipment damage while ensuring safe operation.
Integrated steering wheel drive systems combine multiple components into a single module, including:
Drive motor
Steering motor
Gearbox
Encoder
Brake
Servo drive
Communication interface
Compared with traditional multi-component systems, integrated solutions offer:
Faster installation
Reduced wiring
Easier maintenance
Smaller installation space
Higher reliability
For OEM manufacturers, integrated systems reduce assembly time and simplify vehicle design.
11. Choose a Supplier with Customization Capabilities
Every AGV project has unique requirements. A reliable supplier should be able to customize the steering wheel drive system based on your application.
Common customization options include:
Motor voltage
Rated power
Output torque
Gear ratio
Wheel diameter
Brake configuration
Encoder type
Communication protocol
Mounting dimensions
IP protection level
Customization ensures the drive system integrates seamlessly into your AGV while meeting specific performance goals.
12. Consider Long-Term Reliability and Technical Support
The steering wheel drive system is a long-term investment. Choosing a trusted manufacturer with proven engineering experience can significantly reduce operational risks.
Look for suppliers that offer:
Strict quality control
Long product lifespan
Stable component supply
Technical consultation
OEM/ODM services
Fast after-sales support
Global delivery capabilities
Reliable technical support is particularly important for large-scale AGV deployments and customized automation projects.
Common Mistakes to Avoid
When selecting an AGV steering wheel drive system, avoid these common mistakes:
Choosing a motor based only on power instead of torque
Ignoring payload growth for future upgrades
Overlooking communication protocol compatibility
Selecting a drive system without sufficient IP protection
Focusing only on purchase price instead of total ownership cost
Using non-integrated systems that increase wiring and maintenance complexity
Taking a long-term approach helps ensure better performance and lower lifecycle costs.
Final Checklist Before Making a Decision
Before selecting an AGV steering wheel drive system, confirm the following:
✔ Payload capacity and total vehicle weight
✔ Required torque and travel speed
✔ Navigation method and positioning accuracy
✔ Steering configuration
✔ Operating environment and IP protection
✔ Communication protocol compatibility
✔ Energy efficiency requirements
✔ Safety features and braking system
✔ Integrated design and installation space
✔ Customization options
✔ Supplier experience and technical support
Conclusion
Choosing the right AGV Steering Wheel Drive System requires more than comparing motor specifications. It involves evaluating the complete motion solution, including torque performance, steering precision, navigation compatibility, communication protocols, energy efficiency, safety, environmental durability, and long-term reliability.
For most modern AGVs and AMRs, integrated servo steering wheel drive systems offer the best balance of performance, compactness, and ease of integration. Their all-in-one design simplifies vehicle development, reduces maintenance, and delivers the precise motion control required for today's intelligent automation systems.
By carefully assessing your application requirements and working with an experienced manufacturer, you can select a steering wheel drive system that not only meets your current operational needs but also supports future upgrades, ensuring your AGV remains efficient, reliable, and competitive in an increasingly automated world.
Whether you're developing a compact warehouse AGV, a heavy-duty material handling vehicle, or an intelligent AMR, selecting the right steering wheel drive system is essential for achieving precise navigation, smooth motion heavy-duty material handling vehicle, or an intelligent AMR, selecting the right steering wheel drive system is essential for achieving precise navigation, smooth motion, and long-term reliability.
JKONG MOTOR specializes in integrated AGV steering wheel drive solutions designed to simplify vehicle integration while delivering exceptional torque, positioning accuracy, and energy efficiency. Our systems combine servo motors, steering mechanisms, gearboxes, encoders, brakes, and intelligent controllers into a compact, ready-to-integrate solution that helps OEMs reduce development time and improve overall vehicle performance.
Support for CANopen, EtherCAT, Modbus, and other industrial protocols
Custom motor, gearbox, wheel, and control configurations
Reliable performance for 24/7 industrial applications
Professional OEM & ODM customization services
Experienced engineering support from concept to production
Whether your application is in warehouse automation, automotive manufacturing, lithium battery production, semiconductor fabrication, medical logistics, or smart factories, our engineering team can help you select the ideal motion solution for your project.
An AGV steering wheel drive system is an integrated motion module that combines the drive motor, steering motor, gearbox, encoder, brake, and controller into a single unit. It enables an Automated Guided Vehicle (AGV) or Autonomous Mobile Robot (AMR) to move, steer, and position itself accurately while simplifying installation and improving overall system reliability.
2. How does an AGV steering wheel drive system work?
The system receives navigation commands from the AGV controller, adjusts the steering angle using a servo motor, and drives the vehicle through a high-torque drive motor. Encoders continuously provide real-time feedback, allowing the controller to precisely regulate speed, torque, and steering for smooth, accurate movement.
3. What are the advantages of an integrated steering wheel drive system?
Compared with traditional drive systems, integrated steering wheel drive systems offer higher positioning accuracy, reduced wiring, easier installation, compact design, lower maintenance costs, improved energy efficiency, and better long-term reliability.
OEM manufacturers prefer integrated systems because they reduce vehicle design complexity, shorten assembly time, improve motion accuracy, simplify maintenance, and support multiple industrial communication protocols, helping accelerate product development and reduce the total cost of ownership.
Key factors include payload capacity, required torque, travel speed, steering accuracy, navigation method, communication protocol, operating environment, IP protection rating, energy efficiency, braking system, and customization requirements.
6. What communication protocols are commonly supported by AGV steering wheel drive systems?
Most modern steering wheel drive systems support industrial communication protocols such as CANopen, EtherCAT, Modbus RTU, Modbus TCP, PROFINET, and EtherNet/IP, ensuring compatibility with a wide range of AGV controllers and automation platforms.
7. Which industries commonly use AGV steering wheel drive systems?
These systems are widely used in warehouse automation, automotive manufacturing, electronics assembly, lithium battery production, pharmaceutical logistics, food processing, airport baggage handling, semiconductor manufacturing, cold chain logistics, and smart factories.
8. Can AGV steering wheel drive systems be customized?
Yes. Many manufacturers offer OEM and ODM customization services, including different motor power ratings, voltages, gear ratios, wheel sizes, encoder options, brake configurations, communication interfaces, and mounting dimensions to meet specific application requirements.
9. What are the benefits of using servo motors in AGV steering wheel drive systems?
Servo motors provide high torque at low speeds, precise position control, rapid dynamic response, smooth acceleration and braking, and excellent motion stability. These advantages improve navigation accuracy, reduce wheel slip, and increase overall AGV efficiency.
10. How can I select the right supplier for an AGV steering wheel drive system?
Choose a supplier with proven experience in AGV motion control, strong engineering capabilities, customization services, comprehensive technical support, strict quality control, and reliable after-sales service. A qualified supplier should also provide integrated solutions that are compatible with your AGV platform and future expansion needs.
