How To Choose Integrated Servo Motor for Liquid Filling Machine?

Integrated servo motor OEM ODM customized solutions combine precision control, compact design, and flexible customization, making them the ideal motion control choice for high-accuracy and high-efficiency liquid filling machines.

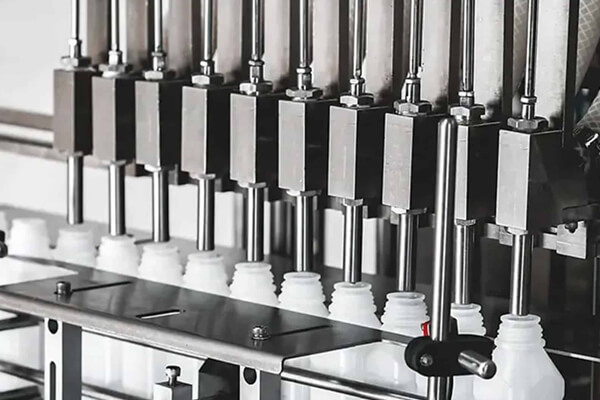

Introduction: Matching Motor Technology with Filling Precision

In high-speed liquid filling systems, precision, repeatability, and reliability are non-negotiable. The selection of the right integrated servo motor directly determines filling accuracy, production efficiency, and long-term operational stability.

We engineer advanced integrated motion solutions combining ISC Series integrated stepper servo motors and IDC Series integrated BLDC servo motors, delivering tailored performance for different filling machine architectures—from low-speed precision dosing to high-speed continuous filling lines.

The Role of Integrated Servos in Liquid Filling

Integrated servo technology is replacing traditional centralized control systems in modern filling machinery. By consolidating the motor, encoder, and drive into a single unit, this architecture simplifies machine design and addresses the specific challenges of fluid handling.

1. Volumetric Precision and Flow Control

Integrated servos function as the primary control mechanism for dosing. Whether coupled with a piston, gear pump, or peristaltic system, they provide:

• High-Resolution Positioning: Using 17-bit or 23-bit absolute encoders to ensure repeatable volume accuracy across thousands of cycles.

• Dynamic Speed Profiling: The ability to adjust velocity mid-stroke to manage liquid behavior—starting slowly to prevent turbulence, accelerating for throughput, and decelerating to eliminate foam or "crowning" at the neck.

2. Reduced Machine Footprint and Wiring

Multi-head filling lines (e.g., 8–12 heads) traditionally require large electrical cabinets to house multiple drives.

• Decentralized Layout: Moving the drive logic onto the motor allows for significantly smaller control cabinets.

• Daisy-Chain Connectivity: Standard power and communication cables (EtherCAT/CANopen) can be looped from one motor to the next. This reduces total cabling by over 50%, minimizing both material costs and labor time.

3. Multi-Axis Synchronization

In high-speed linear or rotary lines, the filling cycle must remain synchronized with the conveyor.

• Electronic Camming: Integrated servos utilize bus-based synchronization to match the nozzle's movement with the bottle's position in real-time, compensating for any fluctuations in line speed.

• Independent Head Control: Since each head is an intelligent node, individual nozzles can be adjusted or disabled via software without affecting the rest of the manifold.

4. Environmental Durability (IP Protection)

Filling areas are often high-moisture environments requiring frequent washdowns.

• Hardware Integration: Fewer external connectors and shorter cable runs reduce the risk of signal interference and moisture ingress.

• Ingress Protection: Industrial integrated servos are typically available with IP65 or IP67 ratings, utilizing specialized coatings and seals to withstand humidity and cleaning agents.

5. Efficient Product Changeover

Manual mechanical adjustments are a bottleneck in bottling plants.

• Software-Defined Parameters: Transitioning between different viscosities or bottle sizes is handled through HMI recipe selection. The servos automatically recalibrate stroke length and torque limits, reducing downtime between production runs.

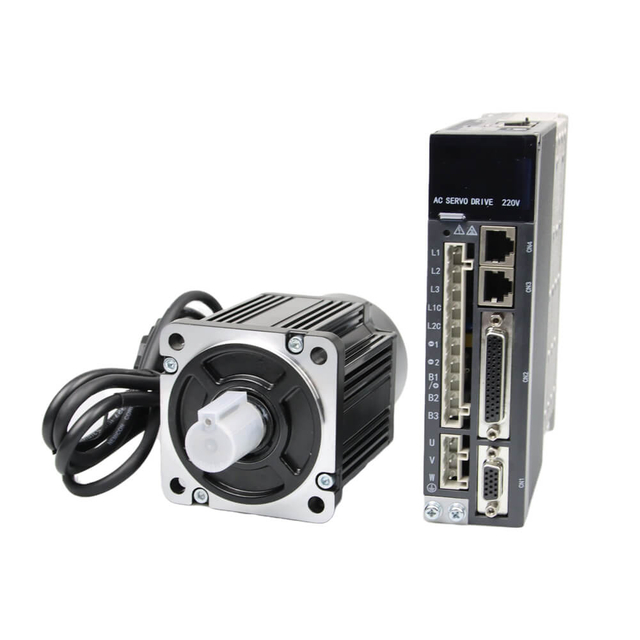

Comparison: Integrated vs. Centralized Architecture

Understanding ISC vs IDC: Two Core Technologies for Filling Machines

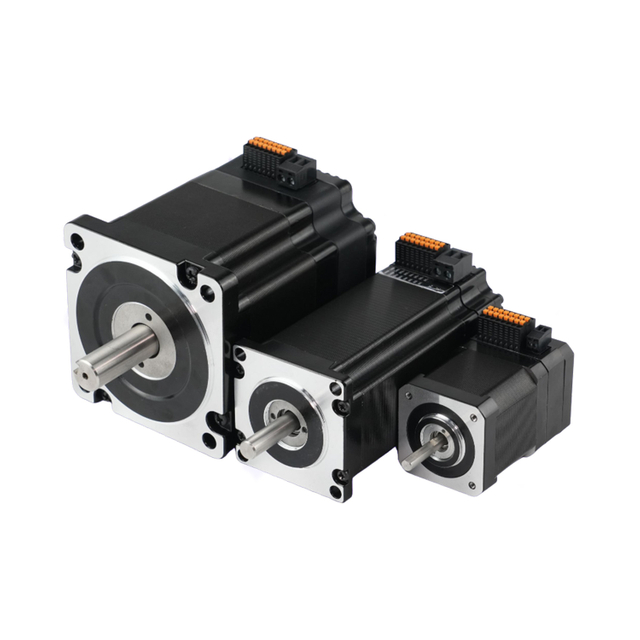

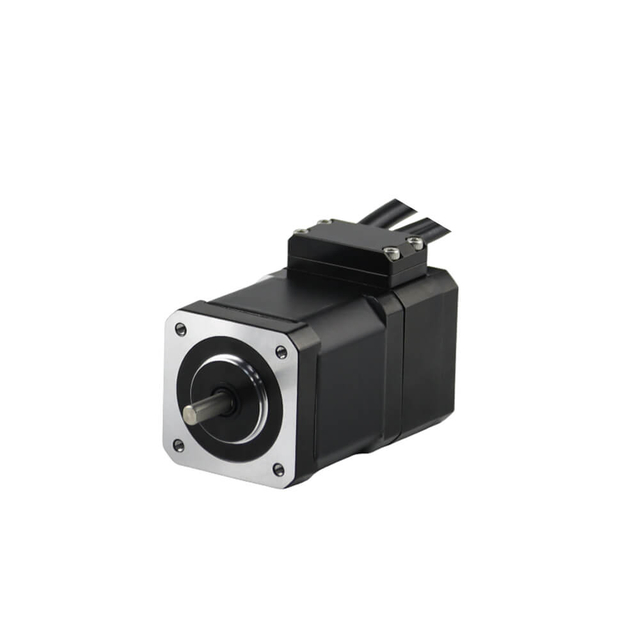

ISC Series Integrated Stepper Servo Motor (Closed-Loop Precision Control)

The ISC Series integrated stepper servo motor is designed for ultra-precise positioning and stable low-speed control, making it ideal for dosing-critical filling systems.

Key technical highlights:

• Closed-loop control with high-resolution encoder (up to 17-bit)

• Torque range: 0.065Nm to 12Nm (NEMA 11–34)

• Pulse / RS485 / CANopen communication support

• Low heat generation (30% lower with optimized MOS design)

• Voltage range: DC12V–36V

Core Advantage for Filling Machines:

• Eliminates lost steps, ensuring consistent volume control

• Provides smooth low-speed torque, essential for viscous liquids

• Enables precise start-stop control for drip-free filling

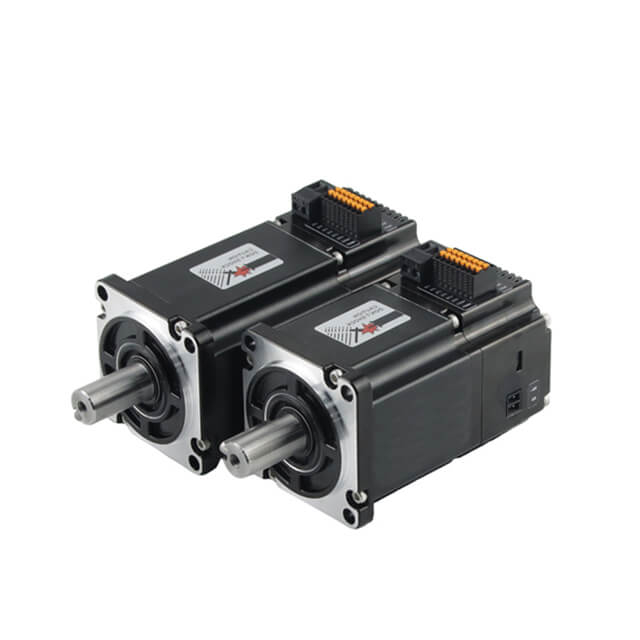

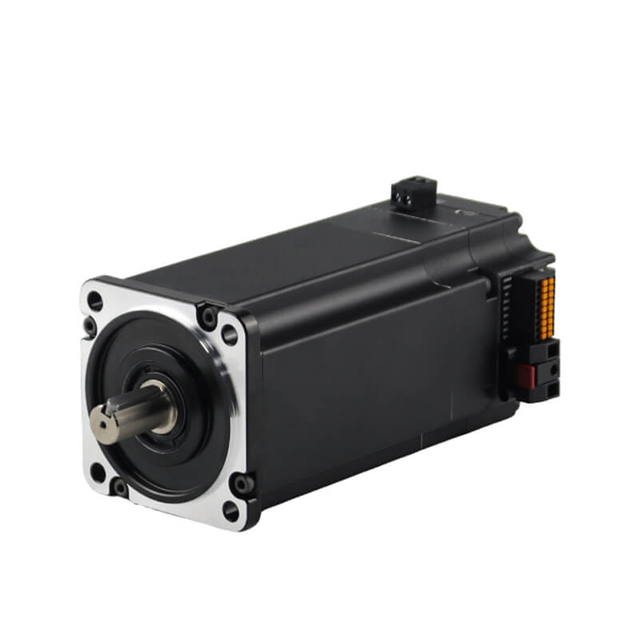

IDC Series Integrated BLDC Servo Motor (High-Speed Dynamic Performance)

The IDC Series integrated BLDC servo motor is built for high-speed, continuous operation, delivering superior efficiency and dynamic response.

Key technical highlights:

• Power range: 26W to 1000W

• Torque range up to 3.2Nm (higher with gearbox)

• Wide voltage options: 24V / 36V / 48V / 72V

• Stable torque from low to high speed

• Integrated 17-bit absolute encoder for closed-loop control

Core Advantage for Filling Machines:

• Maintains high-speed consistency in continuous filling lines

• Offers fast acceleration and deceleration for throughput optimization

• Ensures energy-efficient operation with low temperature rise

Jkongmotor Customized Servo Motor Motions

One-Stop Integrated DC Servo Motor Solution Provider

How to Choose Between ISC and IDC for Liquid Filling Machines

1. Filling Accuracy vs Production Speed

Choose ISC Series when:

• Micro-volume precision is critical (e.g., pharmaceuticals)

• Intermittent motion or indexing is required

• Viscous liquids demand stable torque at low speed

Choose IDC Series when:

• High-speed production is prioritized

• Continuous rotary filling systems are used

• Efficiency and cycle time reduction are key

2. Torque and Load Matching

ISC Series provides:

• High holding torque at low speed

• Torque up to 12Nm for heavy-duty applications

IDC Series provides:

• High-speed torque stability

• Power scalability up to 1000W for demanding loads

Selection Insight:

• Piston filling machines → ISC preferred

• Rotary or conveyor-based filling → IDC preferred

3. Control System Compatibility

Both ISC and IDC series support:

• Pulse control

• RS485 Modbus RTU

• CANopen networking

This ensures:

• Seamless integration with PLC systems

• Easy multi-axis synchronization for multi-nozzle filling

4. Installation Space and System Simplification

Both series feature:

• All-in-one design (motor + driver + encoder)

• Reduced wiring and compact footprint

But ISC is more suitable for:

• Compact precision modules

While IDC is ideal for:

• High-power compact systems

5. Environmental Adaptability

Both ISC and IDC support:

• IP30 / IP54 / IP65 protection levels

This enables:

• Operation in washdown environments

• Resistance to moisture and chemical exposure

Application Mapping in Liquid Filling Machines

ISC Series Applications

• Syringe filling systems

• Peristaltic pump dosing

• Laboratory liquid handling equipment

• Small-volume precision filling

Why ISC excels:

Closed-loop stepper eliminates step loss and ensures repeatable dosing accuracy.

IDC Series Applications

• Rotary filling machines

• Beverage and food production lines

• High-speed conveyor filling systems

• Multi-head synchronized filling

Why IDC excels:

BLDC servo ensures continuous smooth motion and high throughput.

Advanced Customization Capabilities for Filling Equipment

We deliver OEM/ODM customized integrated servo solutions tailored for liquid filling machine manufacturers.

Mechanical Customization

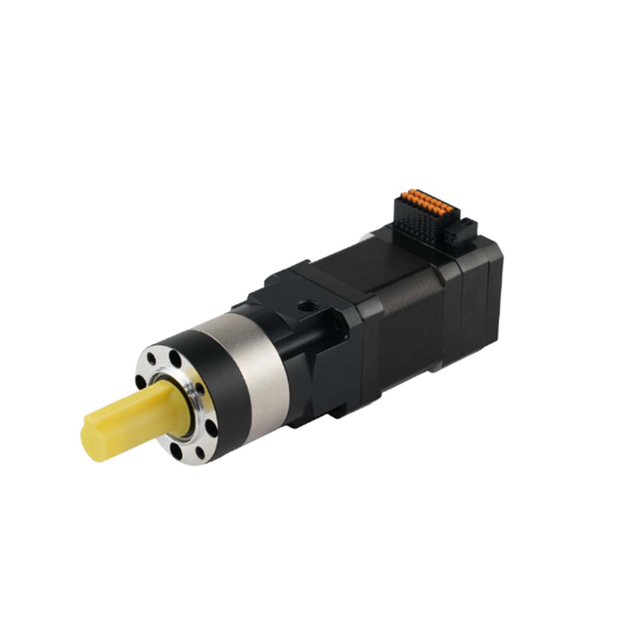

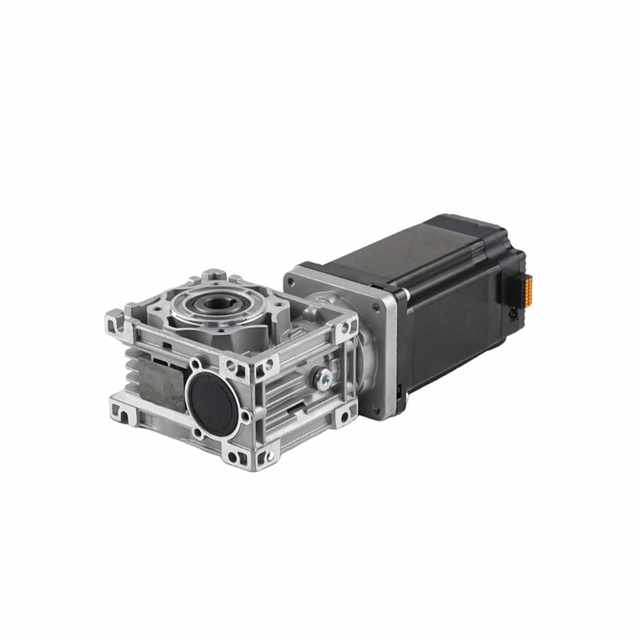

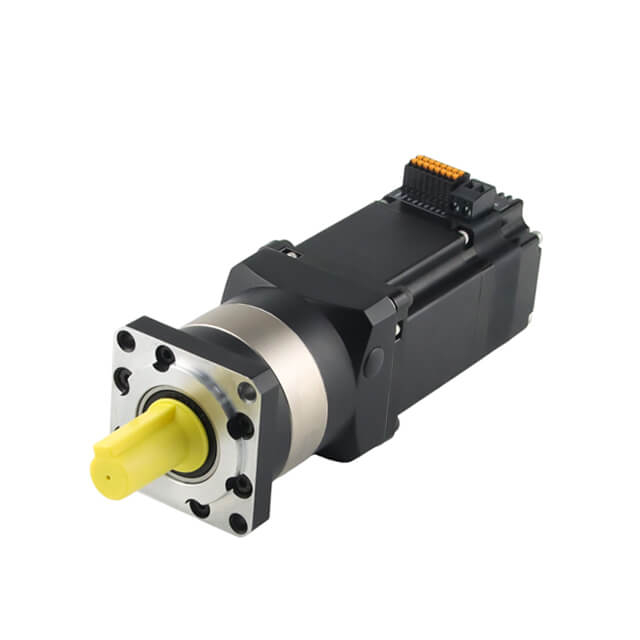

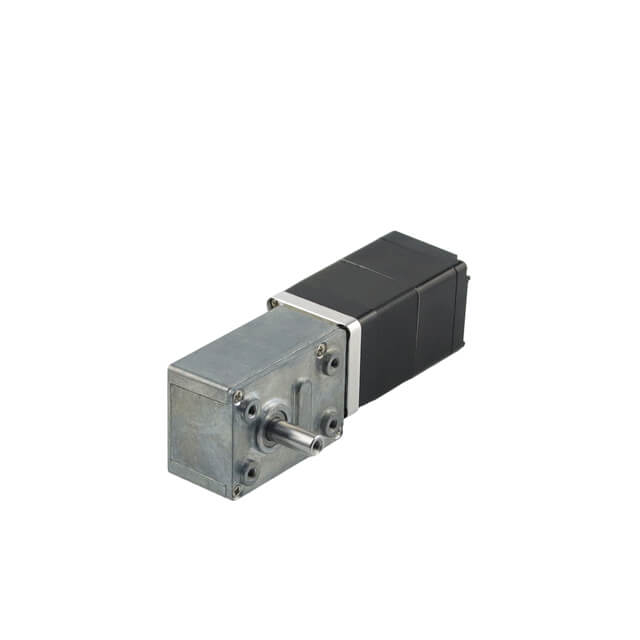

• Planetary and worm gearboxes

• Special shaft designs

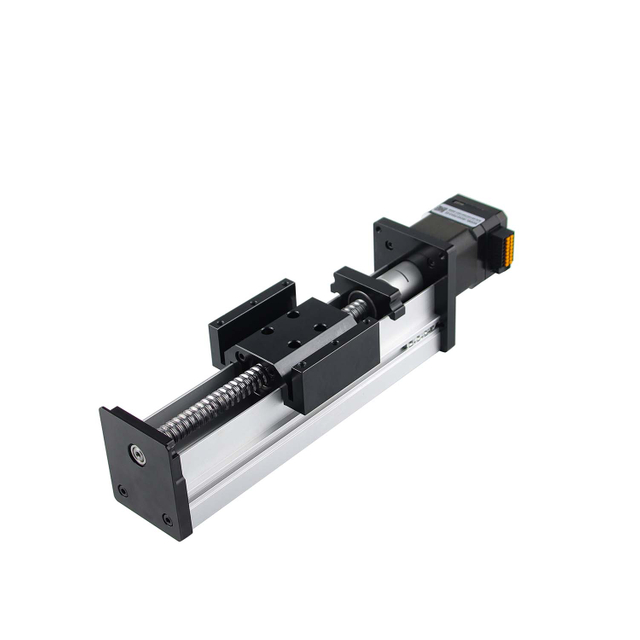

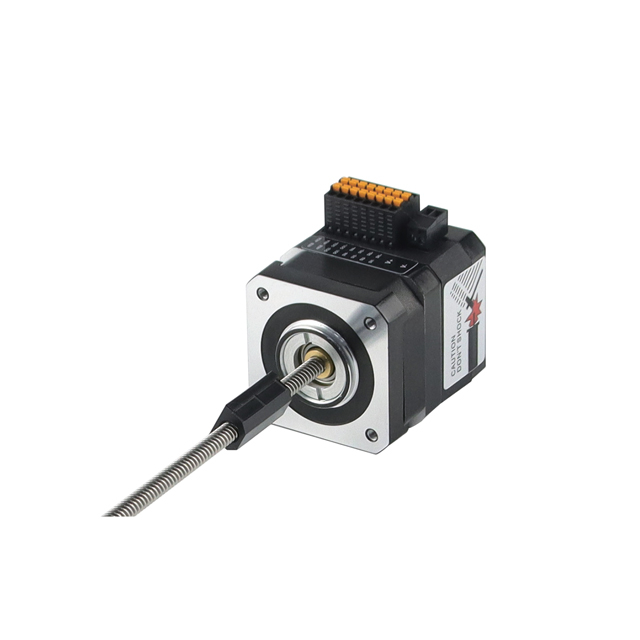

• Integrated linear modules

• Compact mounting structures

Electrical & Control Customization

• Encoder resolution (15-bit / 17-bit absolute)

• Communication protocols customization

• Pre-configured motion parameters

Environmental Customization

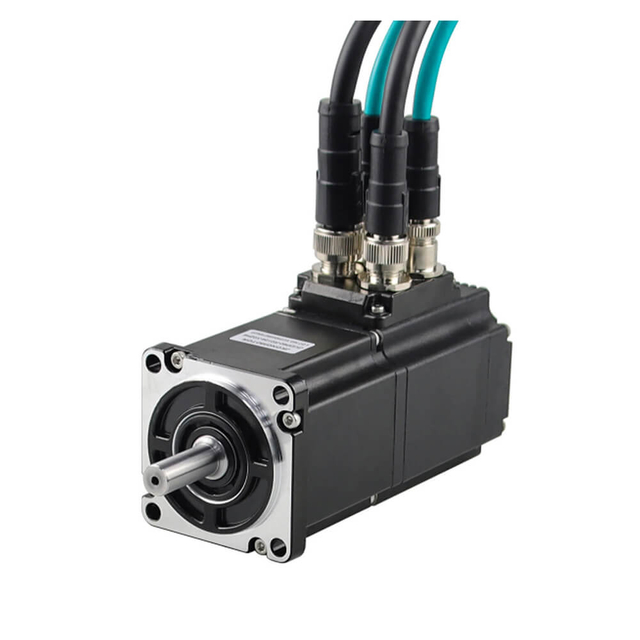

• Waterproof (IP65) designs

• Corrosion-resistant coatings

• High-humidity and washdown adaptation

Why Our ISC & IDC Integrated Servo Solutions Stand Out

1. Intelligent Integrated Architecture

• Eliminates external drivers

• Reduces wiring complexity by up to 70%

• Improves EMC performance

2. High-Performance Control Core

• 32-bit high-speed processors ensure real-time response

• Closed-loop feedback guarantees precision

3. Proven Industrial Reliability

• Built-in protection: overcurrent, overvoltage, overheating

• Long service life and low maintenance

4. Flexible Modular Design

• Optional brakes, gearboxes, cooling fans

• Plug-and-play integration

5. Strong Engineering Support

• Pre-tuned parameters

• Rapid prototyping

• Full lifecycle technical support

Integrated Servo Selection Strategy for Liquid Filling OEMs

To achieve optimal performance:

• Use ISC Series for precision-critical dosing modules

• Use IDC Series for high-speed continuous filling systems

• Combine both in hybrid systems for maximum flexibility and efficiency

This dual-technology strategy allows manufacturers to build high-performance, scalable filling equipment that meets diverse industry demands.

Conclusion: Precision Meets Performance with ISC & IDC Integration

Selecting the right integrated servo motor is no longer just about torque or speed—it is about matching motion technology to application requirements.

With ISC Series delivering unmatched precision and IDC Series enabling high-speed efficiency, we empower liquid filling machine manufacturers to achieve:

• Higher accuracy

• Greater production capacity

• Reduced system complexity

• Enhanced reliability

Our integrated servo solutions provide the ultimate balance of precision, intelligence, and customization, making them the ideal choice for next-generation liquid filling systems.

FAQs

1. What is an integrated servo motor for liquid filling machine OEM ODM customized solutions?

An integrated servo motor OEM ODM customized solution combines motor, driver, encoder, and controller into a single compact unit, enabling precise closed-loop control, reduced wiring, and simplified installation for liquid filling machines.

2. Why choose integrated servo motor OEM ODM customized systems for liquid filling machines?

Integrated servo motor OEM ODM customized systems provide high precision, stable torque, and compact design, reducing system complexity while improving filling accuracy and machine efficiency.

3. How does an integrated servo motor OEM ODM customized solution improve filling accuracy?

An integrated servo motor OEM ODM customized design uses high-resolution encoders and real-time feedback control, ensuring consistent positioning, precise dosing, and repeatable filling performance.

4. What customization options are available for integrated servo motor OEM ODM customized projects?

Integrated servo motor OEM ODM customized services support:

• Gearbox integration (planetary, worm)

• Encoder types (15-bit / 17-bit absolute)

• Communication protocols (Pulse, RS485, CANopen)

• Shaft and mounting customization

• IP protection levels (IP30 / IP54 / IP65)

5. What industries use integrated servo motor OEM ODM customized solutions besides liquid filling machines?

Integrated servo motor OEM ODM customized systems are widely used in:

• Packaging machinery

• Robotics and automation

• Medical devices

• CNC equipment

• Semiconductor and AGV systems

6. How does ISC series integrated servo motor OEM ODM customized solution benefit precision filling?

The ISC series integrated servo motor OEM ODM customized solution offers closed-loop stepper control, high holding torque at low speed, and zero step loss, making it ideal for high-precision dosing and viscous liquid applications.

7. How does IDC series integrated servo motor OEM ODM customized solution support high-speed filling lines?

The IDC series integrated servo motor OEM ODM customized solution delivers high-speed response, stable torque output, and power up to 1000W, ensuring continuous and efficient operation in high-throughput filling systems.

8. Can integrated servo motor OEM ODM customized solutions reduce machine wiring and installation cost?

Yes, integrated servo motor OEM ODM customized systems can reduce wiring by up to 70–80%, minimizing installation complexity, lowering costs, and improving system reliability.

9. What are the key advantages of choosing a manufacturer for integrated servo motor OEM ODM customized solutions?

A professional manufacturer provides:

• 15+ years of R&D experience

• Full customization from design to production

• Rapid prototyping and engineering support

• Strict quality control and scalable manufacturing

10. How to select the right integrated servo motor OEM ODM customized solution for liquid filling machines?

When selecting an integrated servo motor OEM ODM customized solution, consider:

• Required torque and speed

• Precision level and encoder resolution

• Environmental protection (IP rating)

• Communication compatibility

• Custom mechanical and electrical requirements

This ensures optimal performance, efficiency, and long-term reliability.
