Nema 23 JKIDS57-R03A Integrated Brushless Dc Servo Motor 57x57x141mm RS485 Control 200W 36V/48V 3000Rpm 0.6N.m with Integrated Driver

Type:JKIDS57-R03A Pulse Control Integrated Brushless Dc Servo Motor

Poles: 8poles

Rated Power: 200W

Rated Speed: 3000±10%RPM

Rated Current: 6A

Rated Torque: 0.6Nm(84.97oz.in)

Encoder: 17Bit Absolute Encoder

Model:
JKIDS57-R03A
Brand:
JKONGMOTOR
Rated Speed:
3000rpm
Bldc Poles:
8 poles
Integrated Brushless Servo Motor Size:
Nema17-42mm
Rated Voltage:
36V, 48V
Communication Methods:
Pulse Type, RS485 ModBus, CANopen Network
MOQ:
10 Pcs


Availability:



Inquire

Jkong nema 23 JKIDS57-R03A 57x57x141mm integrated bldc servo motor with RS485 control 200W 36V / 48V 3000Rpm 0.6N.m with 17bit integrated driver. For more different integrated servo motor requirements please contact us!!!

Electrical Specifications：

Model Name: JKIDS57-R03A with RS485 Control
Phase: 3
Poles: 8
Rated Power: 200W
Rated Voltage: 36V / 48V
Rated Speed: 3000±10%RPM
Rated Current: 6A
Rated Torque: 0.6Nm(84.97oz.in)
Encoder: 17Bit
Control Method: RS485 (Pulse, CANopen optional)

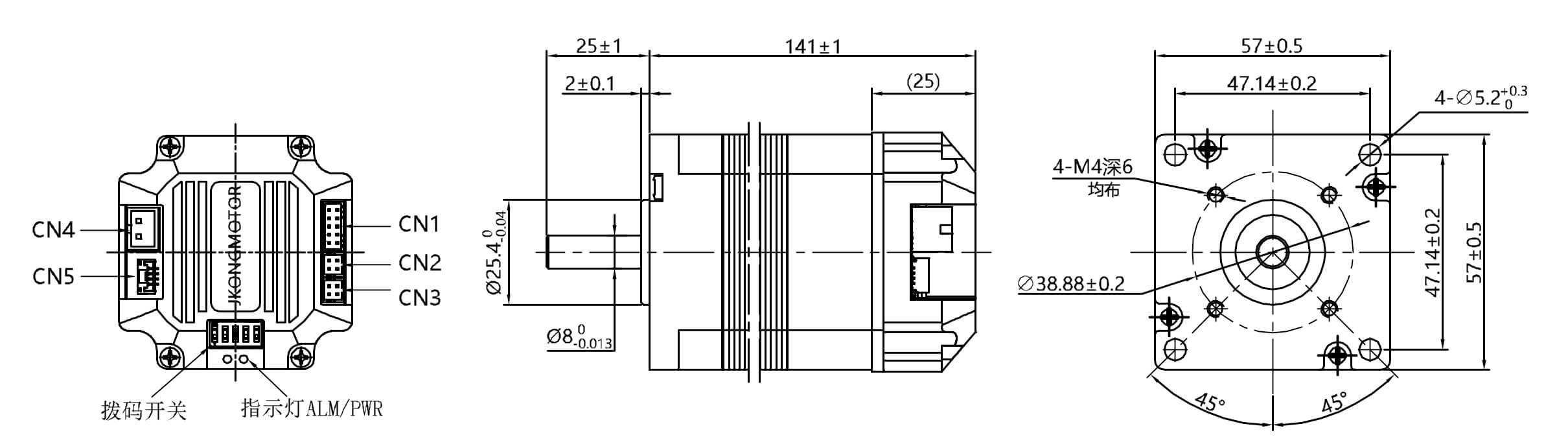

Physical Specifications:

Frame Size: Nema 23 (57 x 57mm)
Body Length: 141mm
Shaft Diameter: 8mm
Shaft Length: 25mm

Nema23 Integrated Bldc Servo Motor Features:

Adopting a new 32-bit M4+core with 120M or 240M main frequency
Stable torque characteristics from low to high speeds, with high speed and precision
Equipped with brake resistor interface to prevent damage to the electromechanical braking system
Wide speed range, low temperature rise, and high efficiency
Integrated motor and drive, compact size, simple wiring, and drive Good compatibility with the motor
Equipped with overcurrent, overvoltage, over temperature, and over differential protection functions
Configure a 17 bit single turn absolute encoder

Communication method:

Pulse type
RS485 MOdbus RTU network type
CANopen network type

Protection level:

Waterproof type: IP30, IP54, IP65, optional

Nema 23 Integrated Servo Motor Electrical Specification:

Electrical Specification
Product Type	/	0.64N.m Integrated Servo Motor (RS485)
Model Name	/	JKIDS57-R03A
Phase	/	3
Poles	/	8
Power	W	200
Rated Voltage	V	48
Rated Current	A	6
No Load Current	A	0.8
Rated Speed	Rpm	3000±10%
No Load Speed	Rpm	4000±10%
Rated Torque	N.m	0.6
Total Height	mm	141
Encoder	/	17Bit
Back EMF Constant	V/Krpm	12
Torque Constant	N-m/A	0.1146
Rotor Inertia	g.cm²	403
Insulation Class	/	B

Integrated Driver Specification：

Driver Parameters	Min	Rated	Max
Input Voltage（V）	16	24	48
Logic Input Voltage (V）	5	5	24
Logic Input Current（mA）	10	10	50
Pulse Frequency（KHz)			200

48v Integrated Bldc Motors Usage Environment：

Environment	Parameters
Cooling Method	Natural or forced cooling
Application	Avoid dust, oil and corrosive gases; keep away from other heat generating equipment; prohibit the presence of combustible gases and conductive dust.
Operating Temperature	0℃ ～ +50℃
Environmental humidity	≤85%RH（no condensation）
Vibrations	5.9m/s² max
Storage Temperature	-25℃ ～ +70℃

Status Indicator：

Color	Name	Function
Green	PWR	Power indicator
Red	ALM	Alarm indicator

I/O port：

Ports	Pin	Port Name	Description	Function
CN1	1	DI1+	Digital input 1	Origin signal
	2	DI1-	Digital input 1	Origin signal
	3	DI2+	Digital input 2	Positive Limit Signal
	4	DI2-	Digital input 2	Positive Limit Signal
	5	DI3+	Digital input 3	Negative Limit Signal
	6	DI3-	Digital input 3	Negative Limit Signal
	7	DO1+	Digital input 1	undefined
	8	DO1-	Digital input 1	undefined
	9	DO2+	Digital input 2	Alarm signal
	10	DO2-	Digital input 2	Alarm signal
CN2	1	485A	RS485 Communication Positive Side	-
	2	NC	undefined	-
	3	485B	RS485 communication negative terminal	-
	4	COM	Common Ports	-
CN3	1	485A	RS485 Communication Positive Side	-
	2	5V	+5V	-
	3	485B	RS485 communication negative terminal	-
	4	COM	Common Ports	-

DIP Switches：

Pin	Name	Description
1	SW1	Slave address setting
2	SW2
3	SW3
4	SW4
5	SW5	RS485 communication baud rate setting

Power and Communication Ports：

Ports	Pin	Port Name	Description
CN4	1	GND	Negative power supply wiring
CN4	2	VCC	Positive power supply wiring
CN5	1	RXD	Serial port communication receiver
	2	TXD	serial port communications sender
	3	COM	Common port
	4	5V	+5V

Subdivide Settings：

Subdivide	SW1	SW2	SW3	SW4
*Default	OFF	OFF	OFF	OFF
1	ON	OFF	OFF	OFF
2	OFF	ON	OFF	OFF
3	ON	ON	OFF	OFF
4	OFF	OFF	ON	OFF
5	ON	OFF	ON	OFF
6	OFF	ON	ON	OFF
7	ON	ON	ON	OFF
8	OFF	OFF	OFF	ON
9	ON	OFF	OFF	ON
10	OFF	ON	OFF	ON
11	ON	ON	OFF	ON
12	OFF	OFF	ON	ON
13	ON	OFF	ON	ON
14	OFF	ON	ON	ON
15	ON	ON	ON	ON
