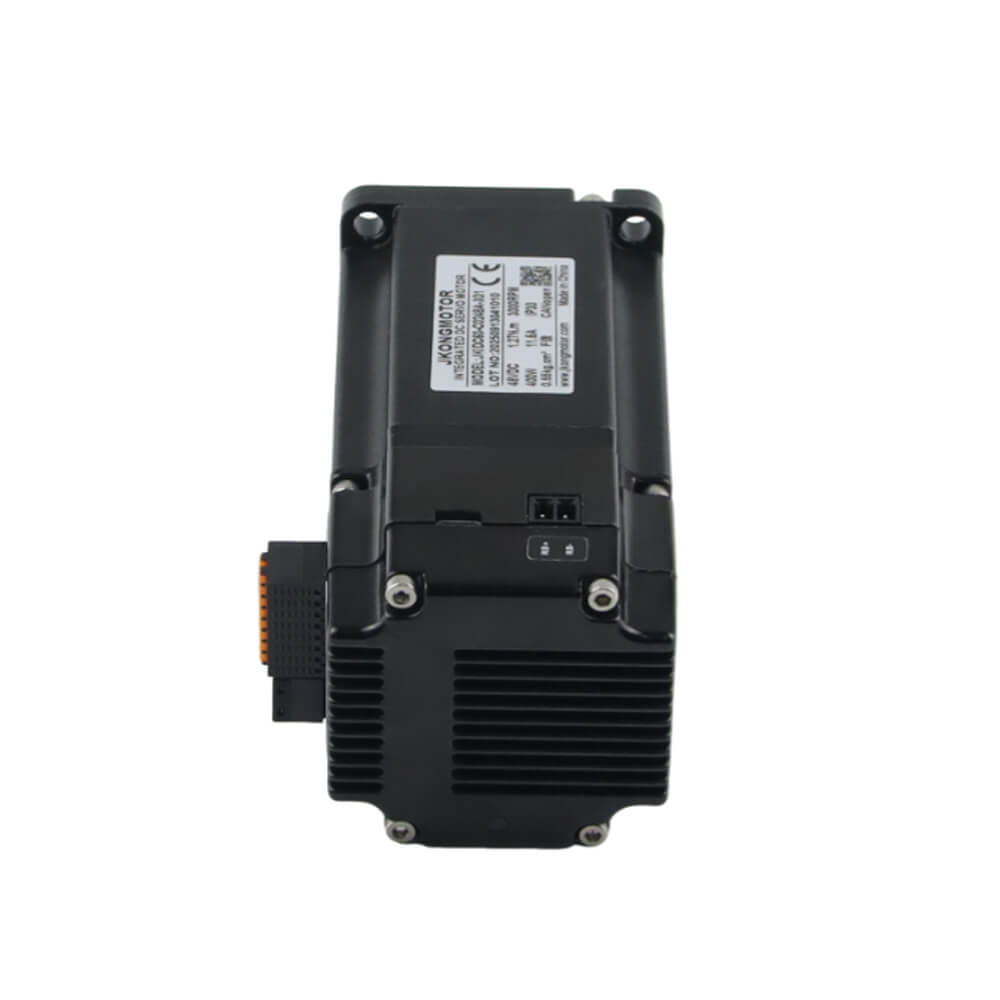

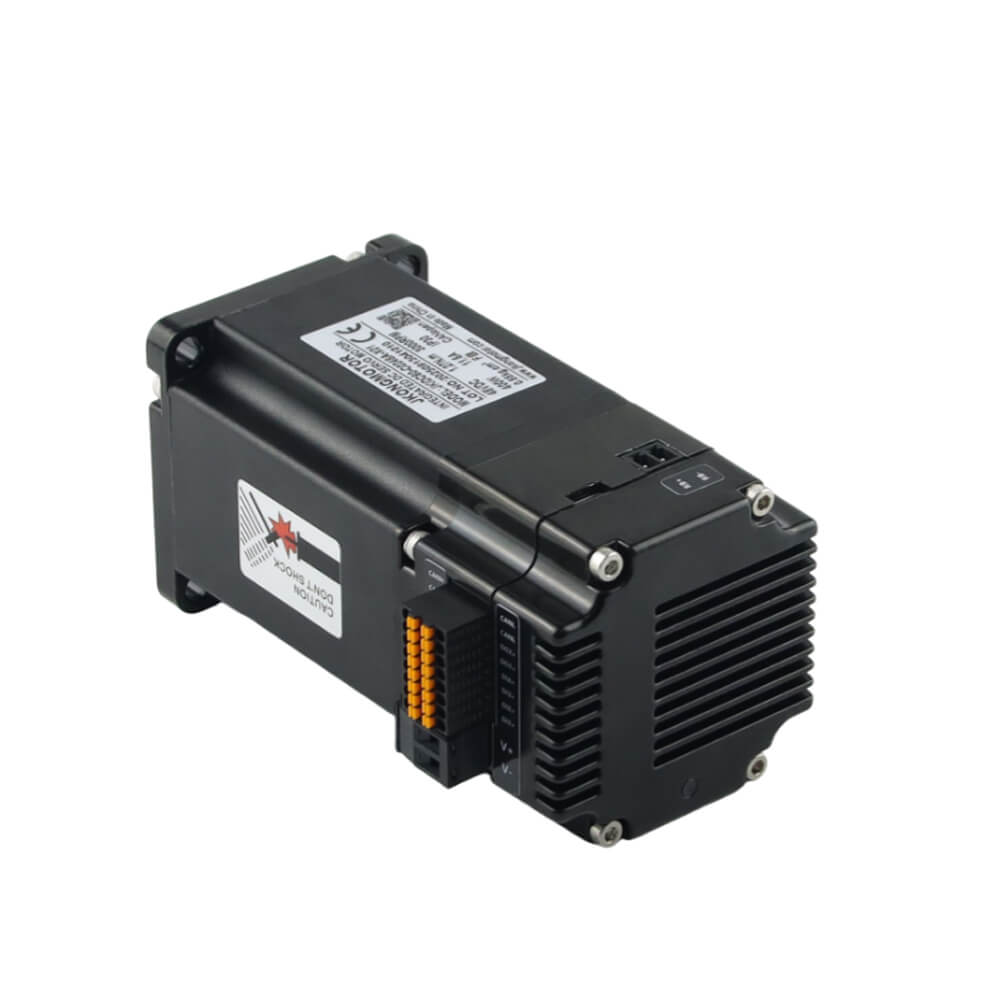

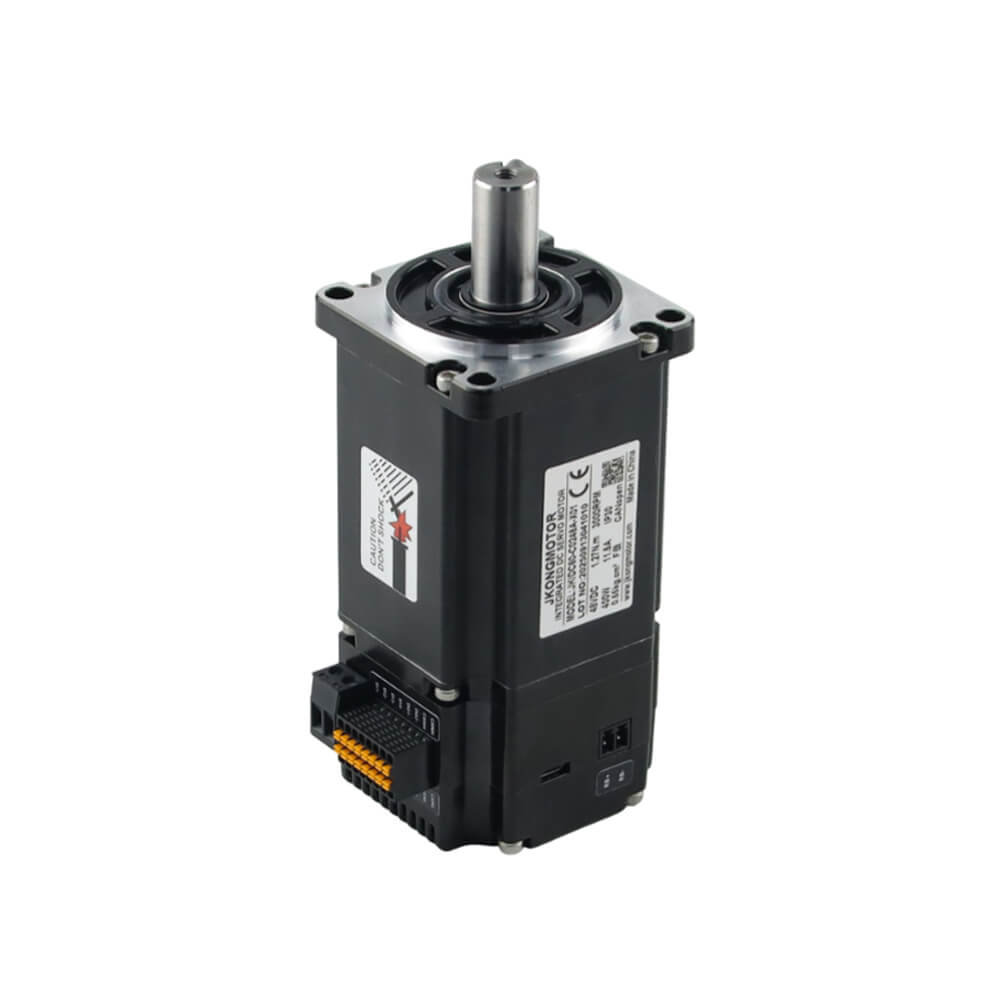

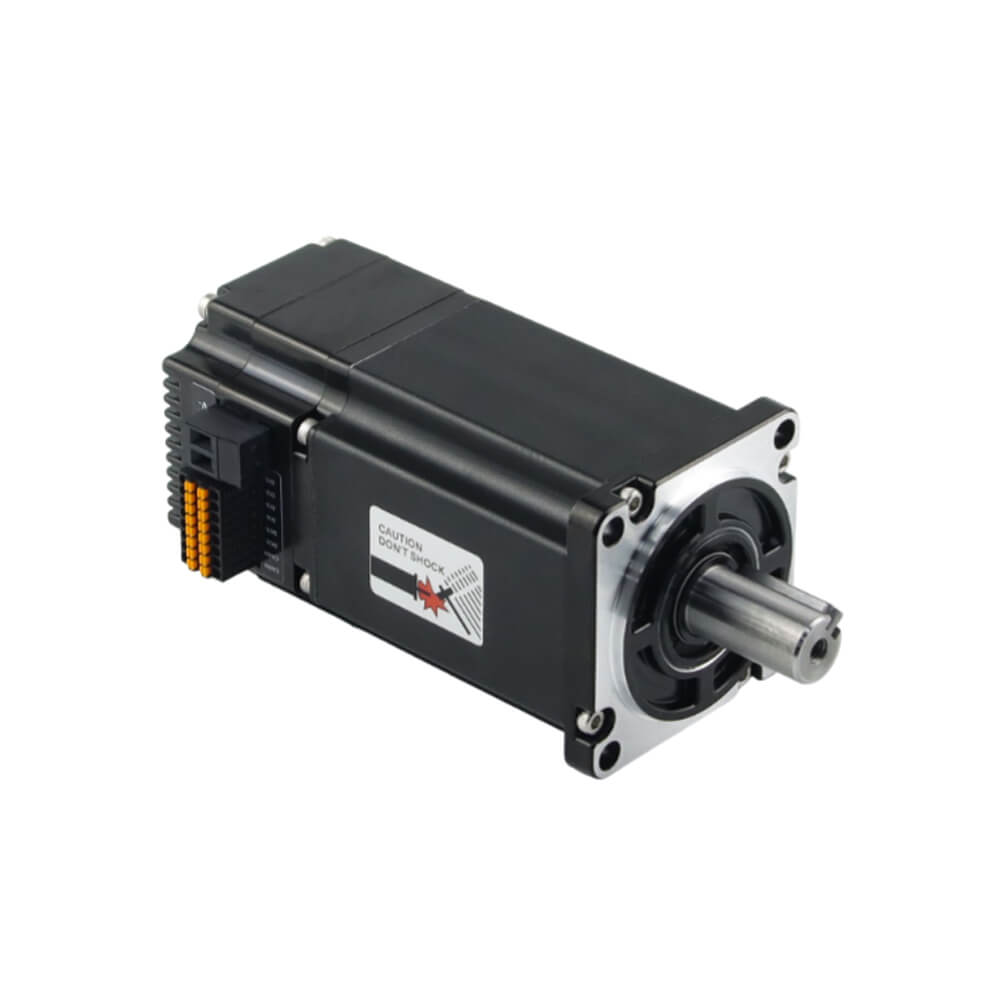

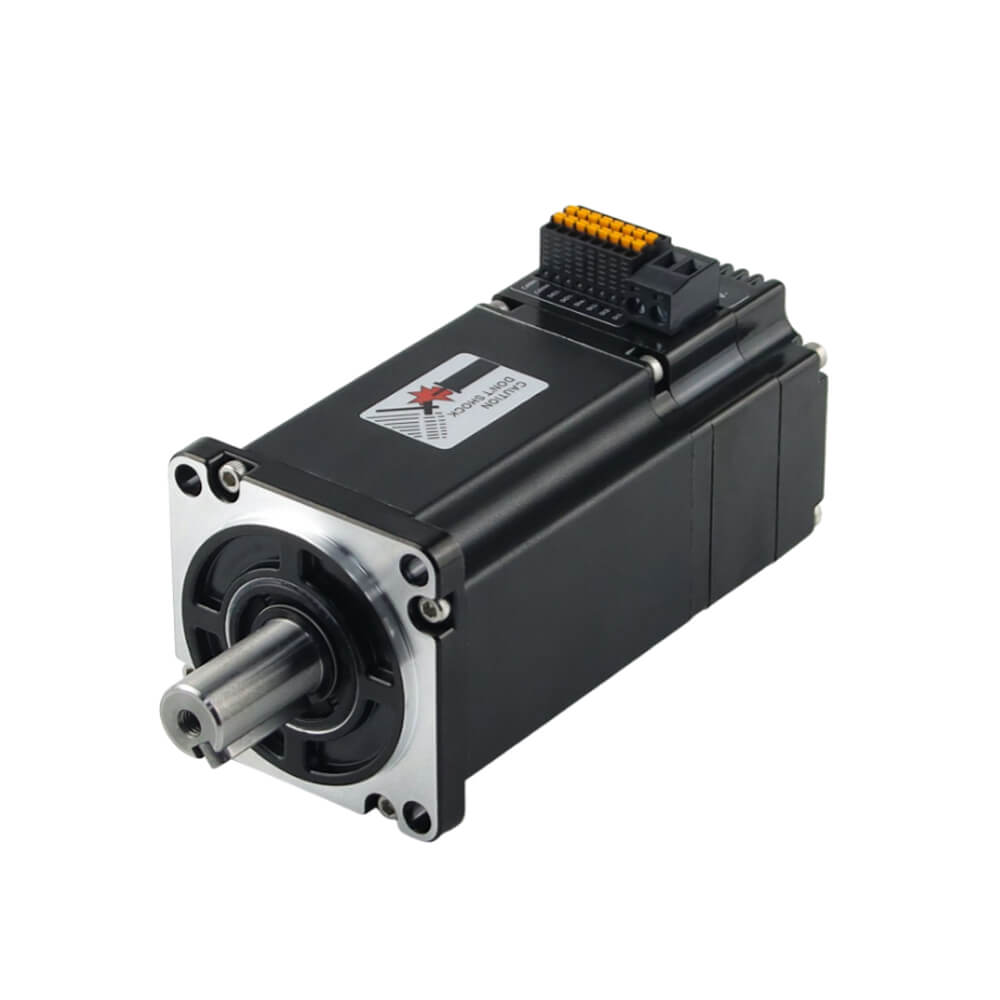

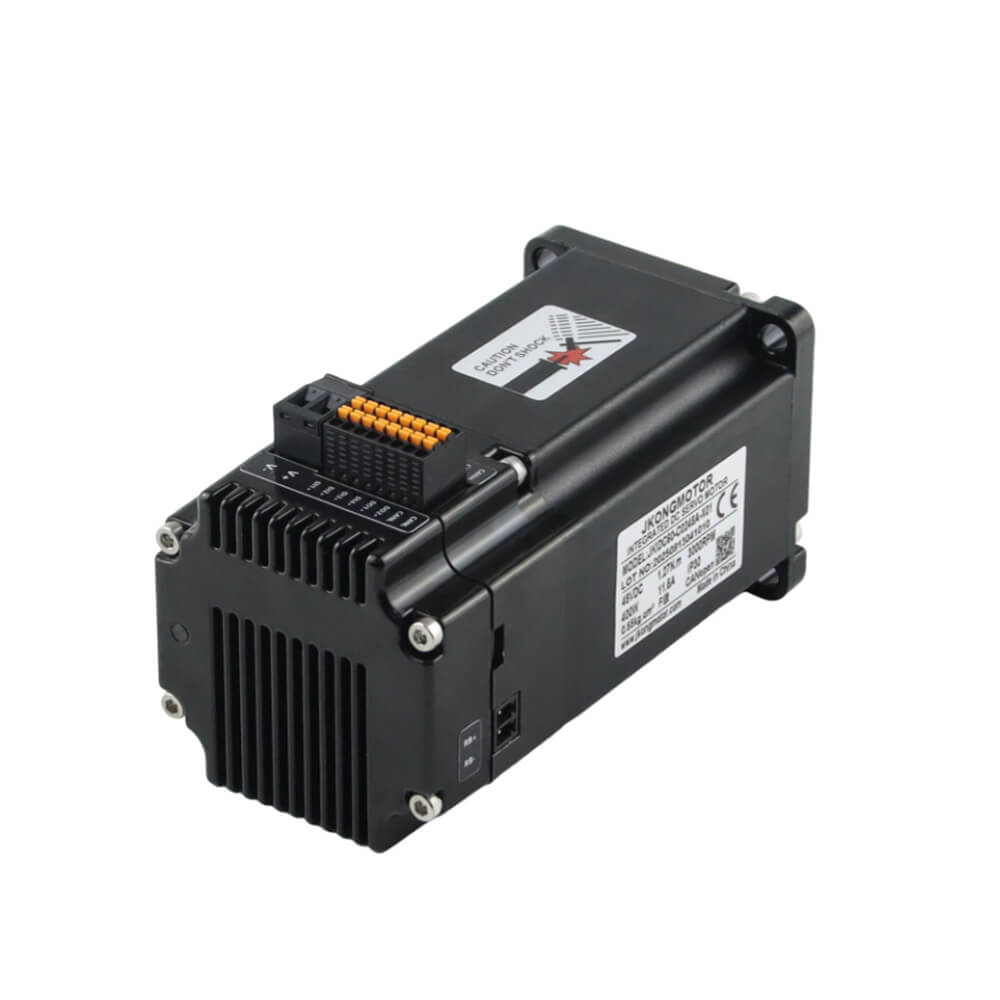

Nema 24 JKIDC60-R248A1 Integrated Brushless Dc Servo Motor 60x60x116.3mm RS485 Control 400W 48V 3000Rpm 1.27N.m with Integrated Driver

Jkongmotor nema 24 JKIDC60-R248A1 60x60x116.3mm RS485 ModBus-RTU Control integrated brushless dc servo motor with RS485 control 400W 48V 3000Rpm 1.27N.m with 17bit integrated driver. For more different integrated servo motor requirements please contact us!!!

Electrical Specifications：

• Model Name: JKIDC60-R248A1 RS485 ModBus-RTU Control

• Phase: 3

• Poles: 8

• Rated Power: 400W

• Rated Voltage: 48V

• Rated Speed: 3000±10%RPM

• Rated Current: 11.5A

• Rated Torque:1.27Nm(179.84oz.in)

• Encoder: 17Bit

• Control Method: RS485 (Pluse, CANopen optional)





Physical Specifications:

• Frame Size: Nema 24 (60x60mm)

• Body Length: 116.3mm

• Shaft Diameter: 14mm

• Shaft Length: 30mm





Nema24 Integrated Brushless Dc Servo Motors Features:

• Adopting a new 32-bit M4+core with 120M or 240M main frequency

• Stable torque characteristics from low to high speeds, with high speed and precision

• Equipped with brake resistor interface to prevent damage to the electromechanical braking system

• Wide speed range, low temperature rise, and high efficiency

• Integrated motor and drive, compact size, simple wiring, and drive Good compatibility with the motor

• Equipped with overcurrent, overvoltage, over temperature, and over differential protection functions

• Configure a 17 bit single turn absolute encoder




Communication method:

• Pulse type

• RS485 MOdbus RTU network type

• CANopen network type





Protection level:

Waterproof type: IP30, IP54, IP65, optional
