Nema 23 JKIDS57-R02A Integrated Brushless Dc Servo Motor 57x57x121mm RS485 Control 145W 24V/36V 3000Rpm 0.45N.m with Integrated Driver

Jkongmotor nema 23 JKIDS57-R02A 57x57x121mm integrated bldc servo motor with RS485 control 145W 24V / 36V 3000Rpm 0.45N.m with 17bit integrated driver. For more different integrated servo motor requirements please contact us!!!

Electrical Specifications：

• Model Name: JKIDS57-R02A

• Phase: 3

• Poles: 8

• Rated Power: 145W

• Rated Voltage: 24V / 36V

• Rated Speed: 3000±10%RPM

• Rated Current: 6A

• Rated Torque: 0.45Nm(63.73oz.in)

• Encoder: 17Bit

• Control Method: RS485 (Pulse, CANopen optional)

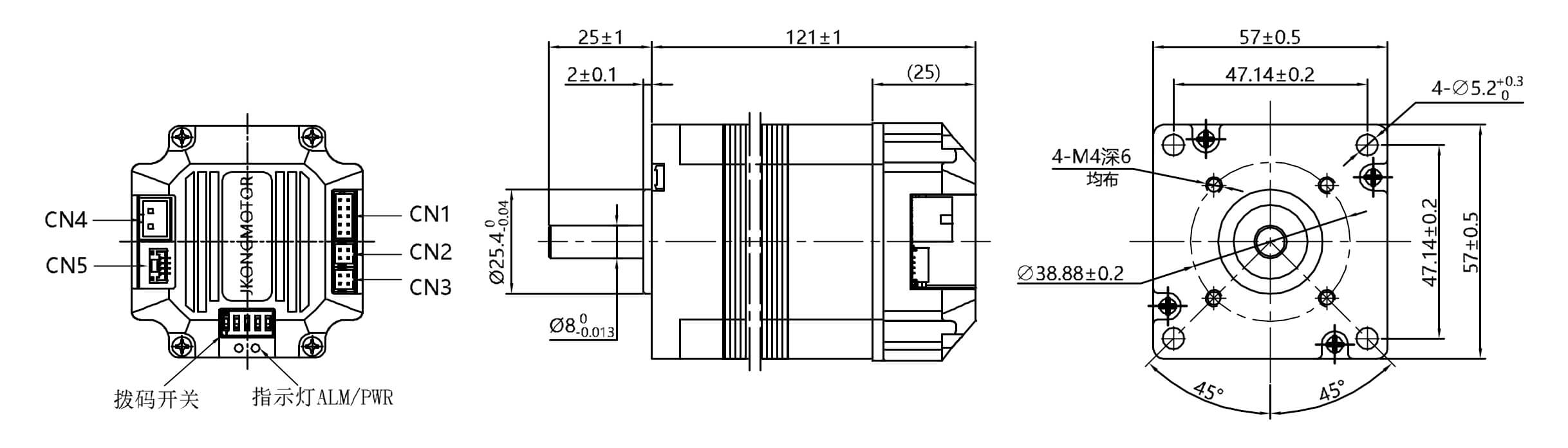

Physical Specifications:

• Frame Size: Nema 23 (57 x 57mm)

• Body Length: 121mm

• Shaft Diameter: 8mm

• Shaft Length: 25mm





57mm Integrated Bldc Servo Motor Features:

• Adopting a new 32-bit M4+core with 120M or 240M main frequency

• Stable torque characteristics from low to high speeds, with high speed and precision

• Equipped with brake resistor interface to prevent damage to the electromechanical braking system

• Wide speed range, low temperature rise, and high efficiency

• Integrated motor and drive, compact size, simple wiring, and drive Good compatibility with the motor

• Equipped with overcurrent, overvoltage, over temperature, and over differential protection functions

• Configure a 17 bit single turn absolute encoder




Communication method:

• Pulse type

• RS485 MOdbus RTU network type

• CANopen network type





Protection level:

Waterproof type: IP30, IP54, IP65, optional

100W Integrated Servo Motor Usage:

Medical equipment, logistics transportation, industrial automation, textile machinery, laser, drawing, traditional Chinese medicine ingredient industry, etc
