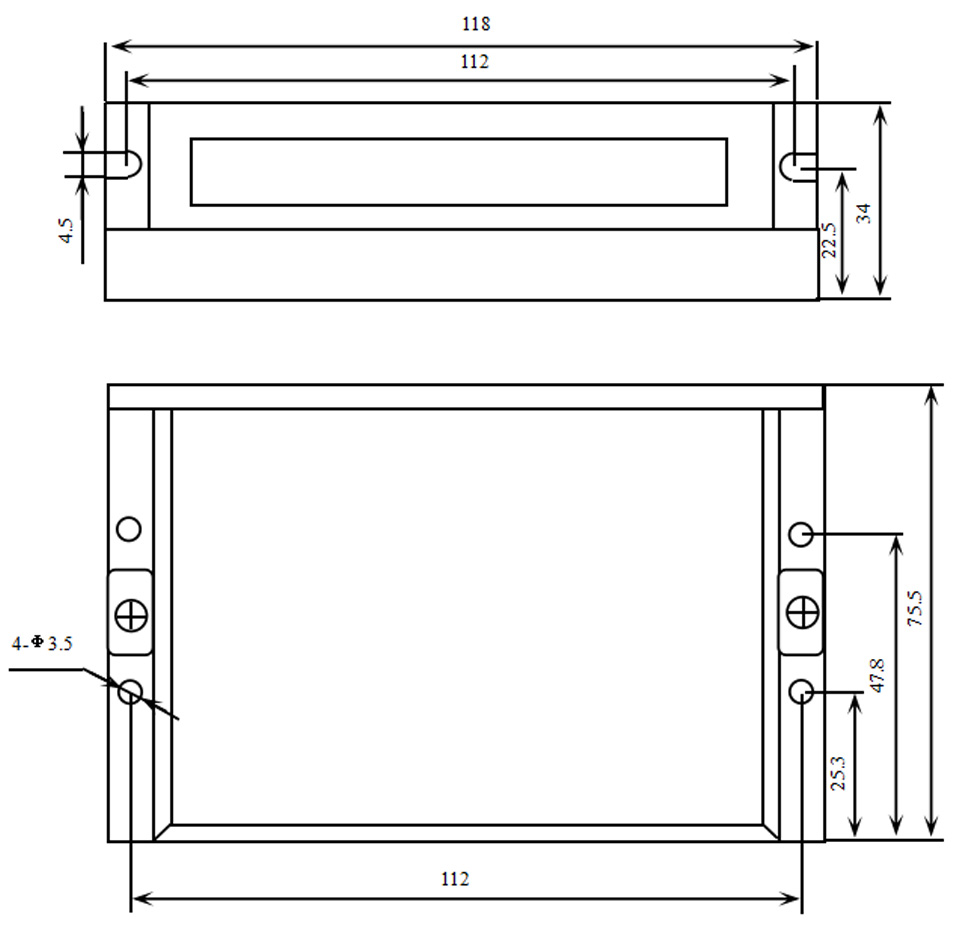

JKD7208S
JKONGMOTOR
10 Pcs
Availability: | |
---|---|
Description:
JKD7208S is a new digital stepper motor driver by JKONGMOTOR. It adopts the latest 32-bit DSP digital processing technology. The drive control algorithm adopts advanced variable current technology and advanced frequency conversion technology. The driver has small heating, small motor vibration and stable operation. Users can set any subdivision within 200 ~ 51200 and any current value in the rated current to meet the application needs in most occasions. Thanks to the built-in micro-subdivision technology, the subdivision effect can be achieved even under the condition of low subdivision. The operation is smooth and the noise is ultra-small under low, medium and high speed. The driver integrates the parameter auto-adjust function, which can automatically generate optimal operating parameters for different motors to maximize the performance of the motor.
Application
Suitable for all kinds of small and medium sized automation equipment and instruments, such as: engraving machine, marking machine, cutting machine, laser lighting, plotter, cnc machine, automatic assembly equipment, etc. It use very well in the equipment that user expects small noise, and high peed.
New 32-bit DSP technology
Ultra-low vibration noise
Built-in high subdivision
Automatic parameter adjustment function when power on
Variable current control reduces
the heating of the motor
The current automatically halve at rest
Can drive two phase stepping motors of 4, 6, 8 lines
Optical isolation differential signal input
The pulse response frequency can reach to 500KHz(Factory default 200KHz)
The current setting is convenient and can choose between 0.1 to 7.2A
Subdivision setting range is between 200 to 51200
Has the protection function of overpressure, underpressure and overcurrent
Description:
JKD7208S is a new digital stepper motor driver by JKONGMOTOR. It adopts the latest 32-bit DSP digital processing technology. The drive control algorithm adopts advanced variable current technology and advanced frequency conversion technology. The driver has small heating, small motor vibration and stable operation. Users can set any subdivision within 200 ~ 51200 and any current value in the rated current to meet the application needs in most occasions. Thanks to the built-in micro-subdivision technology, the subdivision effect can be achieved even under the condition of low subdivision. The operation is smooth and the noise is ultra-small under low, medium and high speed. The driver integrates the parameter auto-adjust function, which can automatically generate optimal operating parameters for different motors to maximize the performance of the motor.
Application
Suitable for all kinds of small and medium sized automation equipment and instruments, such as: engraving machine, marking machine, cutting machine, laser lighting, plotter, cnc machine, automatic assembly equipment, etc. It use very well in the equipment that user expects small noise, and high peed.
New 32-bit DSP technology
Ultra-low vibration noise
Built-in high subdivision
Automatic parameter adjustment function when power on
Variable current control reduces
the heating of the motor
The current automatically halve at rest
Can drive two phase stepping motors of 4, 6, 8 lines
Optical isolation differential signal input
The pulse response frequency can reach to 500KHz(Factory default 200KHz)
The current setting is convenient and can choose between 0.1 to 7.2A
Subdivision setting range is between 200 to 51200
Has the protection function of overpressure, underpressure and overcurrent
Brand | Jkongmotor |
Model | JKD7208S |
Driver Type | Stepper Driver |
DC / AC | DC |
Input Voltage | 24V - 75V |
Output Current | 0.1A - 7.2A |
Subdivide Setting | 8 (400 - 40000) |
Storage Environment | -20℃ - 80℃ |
Using environment and parameters
Cooling method | Natural cooling or forced air cooling | |
Using environment | occasion | Can not be placed next to other heating equipment, should avoid dust, oil mist, corrosive gas, too big humidity and strong vibration place, prohibit to have combustible gas and conductive dust |
temperature | -5℃ ~ +50℃ | |
humidity | 40 ~ 90%RH | |
vibration | 5.9m/s2MAX | |
Storage temperature | -20℃~80℃ | |
Using altitude | Below 1000 metres | |
Weight | About 280 g |
Electrical indicators
Instruction | JKD7208S | |||
Minimum | Typical | Maximum | Unit | |
The output current | 0.1 | - | 7.2 | A |
Input voltage | 24 | 48 | 75 | VDC |
Control signal input current | 6 | 10 | 16 | mA |
Control signal interface | 4.5 | 5 | 28 | VDC |
Pins | Functions |
PUL | Pulse signal |
DIR | Direction signal |
VCC | Pulse direction enable power supply |
ENA- | Enable signal |
A+ | A phase of stepper motor |
A- | A phase of stepper motor |
B+ | B phase of stepper motor |
B- | B phase of stepper motor |
GND | DC power input:0V |
VDC | DC power output:18 ~30V |
Current setting
1)Working (dynamic) current setting
Output peak current | Output average current | SW1 | SW2 | SW3 | Current self-setting |
Default[2.0A] | ON | ON | ON | When SW1, SW2, SW3 are set to off off off, the required current can be set by PC software,max 7.2 A, resolution 0.1 A. Default current is 2 A without setting | |
3.08A | 2.57A | OFF | ON | ON | |
3.77A | 3.14A | ON | OFF | ON | |
4.45A | 3.71A | OFF | OFF | ON | |
5.14A | 4.28A | ON | ON | OFF | |
5.83A | 4.86A | OFF | ON | OFF | |
6.52A | 5.43A | ON | OFF | OFF | |
7.20A | 6.00A | OFF | OFF | OFF |
2) Static current setting
Static current can set by SW4 DIP switch settings, off means the static current is set to half of dynamic current, on means static current and dynamic current is the same. SW4 should be set to off for general use, can reduce the heating of the motor and the driver. About 400ms after the pulse train stopped it will automatically reduced to half current (60% of the actual value), the heat will reduced to 30% theoretically .
2. Subdivision setting
Step/Rpm | SW5 | SW6 | SW7 | SW8 |
400 | ON | ON | ON | ON |
800 | OFF | ON | ON | ON |
1600 | ON | OFF | ON | ON |
3200 | OFF | OFF | ON | ON |
6400 | ON | ON | OFF | ON |
12800 | OFF | ON | OFF | ON |
25600 | ON | OFF | OFF | ON |
51200 | OFF | OFF | OFF | ON |
1000 | ON | ON | ON | OFF |
2000 | OFF | ON | ON | OFF |
4000 | ON | OFF | ON | OFF |
5000 | OFF | OFF | ON | OFF |
8000 | ON | ON | OFF | OFF |
10000 | OFF | ON | OFF | OFF |
20000 | ON | OFF | OFF | OFF |
40000 | OFF | OFF | OFF | OFF |
Brand | Jkongmotor |
Model | JKD7208S |
Driver Type | Stepper Driver |
DC / AC | DC |
Input Voltage | 24V - 75V |
Output Current | 0.1A - 7.2A |
Subdivide Setting | 8 (400 - 40000) |
Storage Environment | -20℃ - 80℃ |
Using environment and parameters
Cooling method | Natural cooling or forced air cooling | |
Using environment | occasion | Can not be placed next to other heating equipment, should avoid dust, oil mist, corrosive gas, too big humidity and strong vibration place, prohibit to have combustible gas and conductive dust |
temperature | -5℃ ~ +50℃ | |
humidity | 40 ~ 90%RH | |
vibration | 5.9m/s2MAX | |
Storage temperature | -20℃~80℃ | |
Using altitude | Below 1000 metres | |
Weight | About 280 g |
Electrical indicators
Instruction | JKD7208S | |||
Minimum | Typical | Maximum | Unit | |
The output current | 0.1 | - | 7.2 | A |
Input voltage | 24 | 48 | 75 | VDC |
Control signal input current | 6 | 10 | 16 | mA |
Control signal interface | 4.5 | 5 | 28 | VDC |
Pins | Functions |
PUL | Pulse signal |
DIR | Direction signal |
VCC | Pulse direction enable power supply |
ENA- | Enable signal |
A+ | A phase of stepper motor |
A- | A phase of stepper motor |
B+ | B phase of stepper motor |
B- | B phase of stepper motor |
GND | DC power input:0V |
VDC | DC power output:18 ~30V |
Current setting
1)Working (dynamic) current setting
Output peak current | Output average current | SW1 | SW2 | SW3 | Current self-setting |
Default[2.0A] | ON | ON | ON | When SW1, SW2, SW3 are set to off off off, the required current can be set by PC software,max 7.2 A, resolution 0.1 A. Default current is 2 A without setting | |
3.08A | 2.57A | OFF | ON | ON | |
3.77A | 3.14A | ON | OFF | ON | |
4.45A | 3.71A | OFF | OFF | ON | |
5.14A | 4.28A | ON | ON | OFF | |
5.83A | 4.86A | OFF | ON | OFF | |
6.52A | 5.43A | ON | OFF | OFF | |
7.20A | 6.00A | OFF | OFF | OFF |
2) Static current setting
Static current can set by SW4 DIP switch settings, off means the static current is set to half of dynamic current, on means static current and dynamic current is the same. SW4 should be set to off for general use, can reduce the heating of the motor and the driver. About 400ms after the pulse train stopped it will automatically reduced to half current (60% of the actual value), the heat will reduced to 30% theoretically .
2. Subdivision setting
Step/Rpm | SW5 | SW6 | SW7 | SW8 |
400 | ON | ON | ON | ON |
800 | OFF | ON | ON | ON |
1600 | ON | OFF | ON | ON |
3200 | OFF | OFF | ON | ON |
6400 | ON | ON | OFF | ON |
12800 | OFF | ON | OFF | ON |
25600 | ON | OFF | OFF | ON |
51200 | OFF | OFF | OFF | ON |
1000 | ON | ON | ON | OFF |
2000 | OFF | ON | ON | OFF |
4000 | ON | OFF | ON | OFF |
5000 | OFF | OFF | ON | OFF |
8000 | ON | ON | OFF | OFF |
10000 | OFF | ON | OFF | OFF |
20000 | ON | OFF | OFF | OFF |
40000 | OFF | OFF | OFF | OFF |
JKD7208S digital two phase stepper motor driver manual_compressed.pdf
JKD7208S digital two phase stepper motor driver manual_compressed.pdf
1, Q: The motor does not turn and no holding torque:
A: ① check whether the power line is connected to the wrong voltage is too low, need to increase the voltage or correct the power line
② check whether the motor wiring is correct, if not correct motor wiring. Check if the motor wiring is correct, if not, correct the motor wiring.
③ Whether the enable signal is valid, resulting in the motor does not work.
④ Is the subdividing parameter correct?
⑤ Is the current parameter correct?
2Q:Motor does not rotate but has holding torque:
A: ① The phase sequence of motor wires is wrong, need to swap any two wires.
② Pulse signal input is wrong, need to check the pulse wiring.
3Q: The motor torque is too small:
A: ① Phase current setting is too small, need to set the phase current corresponding to the motor.
② acceleration is too fast, reduce the acceleration value
③ motor blocking, need to rule out mechanical problems
④ drive and motor mismatch, need to replace the appropriate drive
4Q:Motor steering error:
A: ① motor line phase sequence is wrong, need to swap any two wires
② motor line has a broken circuit, check and connect the right
5Q:The alarm indicator light is on:
A: ① Is the motor wire connected incorrectly
② Whether there is over-voltage and under-voltage conditions
③ Motor or driver is damaged
6Q:Motor acceleration blocking:
A: ① short acceleration time
② motor torque is too small
③ Low voltage or current
1, Q: The motor does not turn and no holding torque:
A: ① check whether the power line is connected to the wrong voltage is too low, need to increase the voltage or correct the power line
② check whether the motor wiring is correct, if not correct motor wiring. Check if the motor wiring is correct, if not, correct the motor wiring.
③ Whether the enable signal is valid, resulting in the motor does not work.
④ Is the subdividing parameter correct?
⑤ Is the current parameter correct?
2Q:Motor does not rotate but has holding torque:
A: ① The phase sequence of motor wires is wrong, need to swap any two wires.
② Pulse signal input is wrong, need to check the pulse wiring.
3Q: The motor torque is too small:
A: ① Phase current setting is too small, need to set the phase current corresponding to the motor.
② acceleration is too fast, reduce the acceleration value
③ motor blocking, need to rule out mechanical problems
④ drive and motor mismatch, need to replace the appropriate drive
4Q:Motor steering error:
A: ① motor line phase sequence is wrong, need to swap any two wires
② motor line has a broken circuit, check and connect the right
5Q:The alarm indicator light is on:
A: ① Is the motor wire connected incorrectly
② Whether there is over-voltage and under-voltage conditions
③ Motor or driver is damaged
6Q:Motor acceleration blocking:
A: ① short acceleration time
② motor torque is too small
③ Low voltage or current
