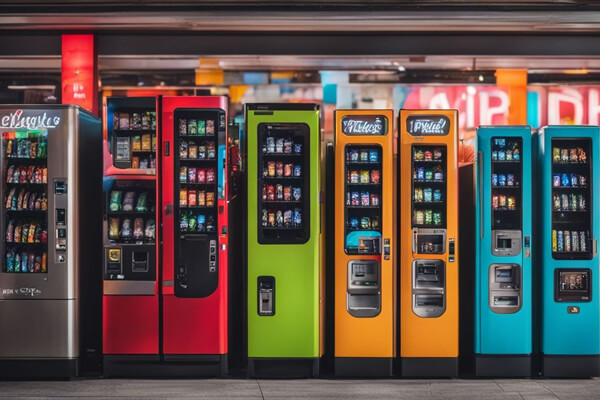

Automatic vending machines have evolved from simple snack dispensers into intelligent self-service retail systems capable of selling beverages, fresh food, medicines, electronics, cosmetics, and even customized products. Behind every reliable vending machine is a highly efficient motion control system, where the integrated brushless DC (BLDC) motor plays a critical role.
Whether driving the spiral dispensing mechanism, elevator system, conveyor belt, rotating shelves, robotic picking device, or automatic door, selecting the right motor directly affects dispensing accuracy, operating efficiency, service life, energy consumption, and customer satisfaction.
This guide explains the unique requirements of vending machine applications, the key factors to consider when selecting an integrated BLDC motor, and why Integrated geared brushless motors have become the preferred solution for modern vending equipment manufacturers.
Understanding the Automatic Vending Machine Industry
The automatic vending machine industry has rapidly evolved from traditional snack dispensers into intelligent self-service retail systems. Powered by IoT technology, cashless payment, AI, cloud management, and smart inventory tracking, today's vending machines are capable of selling a wide variety of products while operating around the clock with minimal human intervention.
As labor costs continue to rise and consumers demand greater convenience, vending machines have become an essential solution across multiple industries. This trend has also created higher performance requirements for the motion control systems inside the machines, making motor selection a critical factor in equipment design.
Applications of Modern Automatic Vending Machines
Today's vending machines are used in a wide range of industries, including:
Food and beverage vending
Fresh food and refrigerated products
Coffee and hot drink vending
Medicine and healthcare products
Cosmetics and personal care items
Electronics and accessories
Industrial PPE and safety equipment
Smart lockers and parcel collection systems
Each application has different load capacities, operating speeds, and positioning requirements, but all rely on reliable motor-driven mechanisms.
Key Motion Systems Inside a Vending Machine
A modern vending machine typically contains several independent drive systems, such as:
Spiral dispensing mechanisms
Conveyor belt transport systems
Elevator lifting platforms
Rotating shelves or carousel systems
Automatic doors
Product delivery gates
Robotic pick-and-place mechanisms
Each subsystem requires smooth motion, accurate positioning, and consistent performance to ensure products are dispensed correctly.

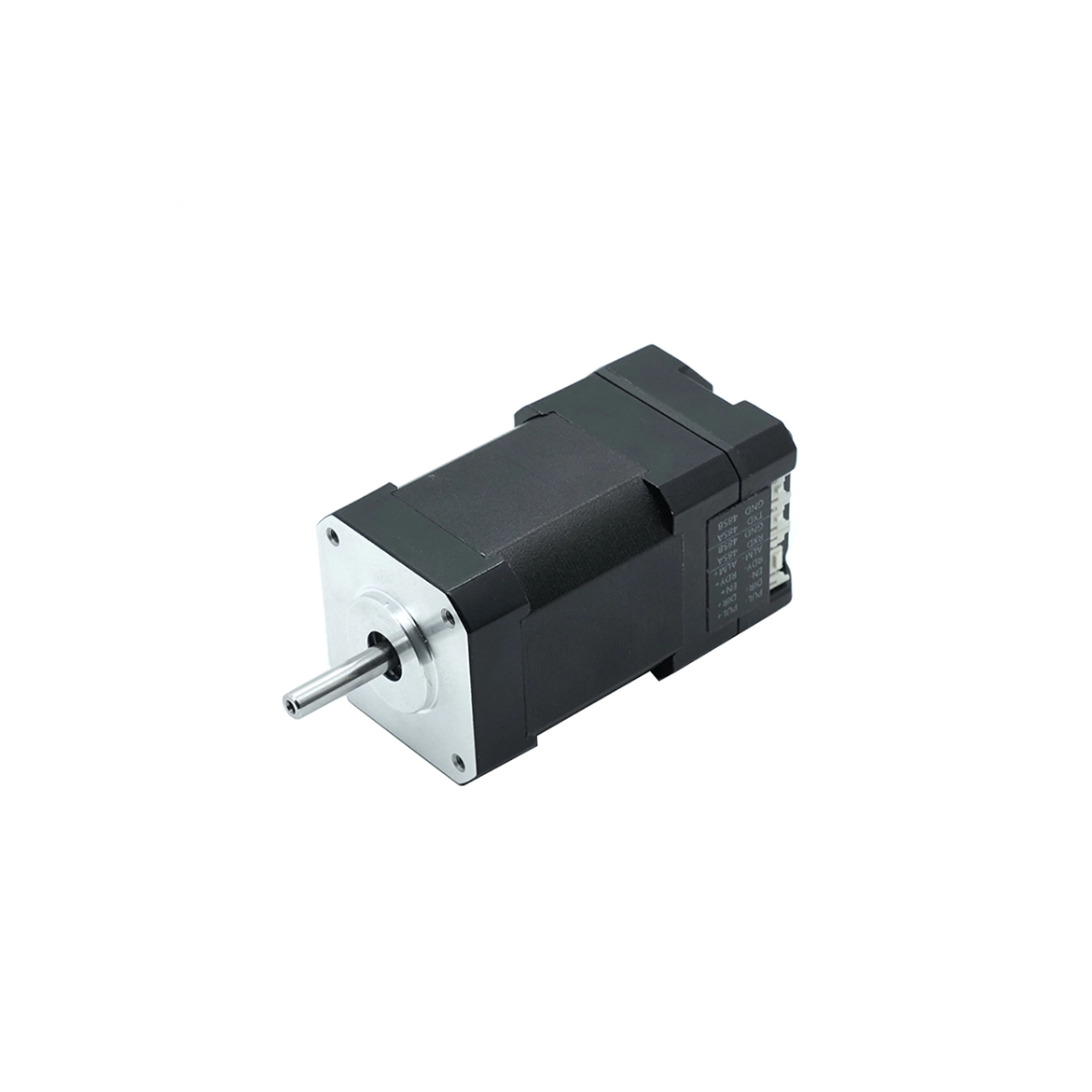

IDS42 Integrated BLDC Servo Motor — High-Efficiency, Compact, and Smart Closed-Loop Motion Control Solution
Product Overview: The IDS42 is a next-generation 42mm (NEMA 17) low-voltage integrated brushless DC servo motor developed by JKONGMOTOR. Designed with an ultra-compact footprint, the IDS42 seamlessly integrates a high-efficiency BLDC motor, a high-precision magnetic encoder, a servo drive, and a smart controller into a single, unified device. By eliminating complex external wiring between the motor and drive, it drastically saves installation space, reduces labor costs, and minimizes electromagnetic interference (EMI), delivering exceptional system reliability and rapid dynamic response.
Key Technical Highlights:
Highly Integrated, Space-Saving Design: The drive-and-motor integration limits the total body length (base model) to just 61mm. It optimizes the internal layout of compact machinery and simplifies cable management.
High-Precision Closed-Loop Control: Equipped with a built-in 17-bit high-resolution magnetic encoder supporting single-turn absolute feedback, ensuring precise position and speed control with zero step-loss.
Industry-Standard Communication Protocols: Supports Pulse/Direction, RS485 (Modbus-RTU network type), and CANopen bus control (with EtherCAT extension options) for seamless interfacing with mainstream PLCs and motion controllers.
Excellent Dynamic Performance: Operating at a rated 24VDC, the power output ranges from 26W to 78W with a rated speed of up to 4000 RPM and a rated torque of 0.0625Nm to 0.25Nm, ensuring smooth and stable torque delivery.
Powerful Modular Customization (OEM/ODM):
Gearbox Options: Can be paired with high-precision planetary gearboxes (such as the JK-HPS42 series) or worm gearboxes for high-torque, low-speed applications.
Brake Integration: Optional electromagnetic power-off brake to ensure mechanical safety during power outages.
Protection Rating: Available in multiple IP ratings (IP30, IP54, IP65) to withstand harsh industrial environments.
Typical Applications: Thanks to its compact size, high precision, and industrial-grade reliability, the IDS42 is widely used in:
Robotics & Automation: AGVs/AMRs (wheel drives and steering), collaborative robots (cobots), cleaning robots, and robotic arms.
One-Stop Integrated DC Servo Motor Solution Provider
Shaft
Lead Screw
Module
Linear Motion
Brake
Gearbox
Worm Gearbox
Wires
Protect Level
Protect Level
What Are the Performance Requirements for Vending Machine Motors?
To achieve reliable long-term operation, the motor must satisfy several critical requirements.
High Positioning Accuracy
The motor must stop precisely at the programmed position to ensure every product is dispensed correctly, reducing product jams and customer complaints.
High Starting Torque
Many vending machines dispense heavy items such as bottled beverages, canned drinks, frozen foods, or electronic products. The motor must provide sufficient torque to start under load without stalling.
Quiet Operation
Since vending machines are commonly installed in shopping malls, hospitals, offices, hotels, and schools, low operating noise is essential for a better user experience.
Continuous Duty Capability
Most vending machines operate 24 hours a day, 7 days a week, requiring motors that can perform reliably for thousands of operating cycles with minimal maintenance.
Energy Efficiency
Lower power consumption helps reduce operating costs, especially for vending operators managing large fleets of machines.
Compact Installation
Internal space inside vending machines is limited, so compact motor solutions help simplify mechanical design and maximize available space for products.
Why Motor Selection Matters
Choosing the right motor directly impacts the overall performance of the vending machine. An unsuitable motor may lead to:
Product dispensing failures
Motor overheating
Increased maintenance costs
Higher energy consumption
Shorter equipment lifespan
Poor customer experience
By selecting a motor that matches the application's torque, speed, and control requirements, manufacturers can improve machine reliability while reducing long-term operating costs.
The Growing Preference for Integrated Geared BLDC Motors
To meet these demanding requirements, many OEM manufacturers are replacing traditional brushed motors with integrated geared brushless DC (BLDC) motors.
These motors combine the brushless motor, driver, controller, and gearbox into a compact unit, offering several advantages:
High torque at low speeds
Precise speed and position control
Maintenance-free operation
Long service life
Lower energy consumption
Simplified wiring and installation
Support for intelligent communication protocols such as RS485, CAN Bus, and Modbus
As vending machines become smarter and more automated, integrated geared BLDC motors have become the preferred motion solution, providing the reliability, efficiency, and intelligent control required for next-generation self-service retail equipment.
As automatic vending machines become smarter and more sophisticated, the demands placed on their motion control systems continue to increase. Motors are expected to deliver high precision, reliable performance, low maintenance, compact installation, and intelligent control while operating continuously in public environments. An Integrated Brushless DC (BLDC) Motor is specifically designed to meet these requirements, making it the preferred choice for modern vending machine manufacturers.
What Is an Integrated Brushless DC Motor?
An integrated BLDC motor combines multiple components into a single compact unit, including:
Brushless DC motor
Built-in driver
Integrated controller
Encoder (optional)
Communication interface
Protection circuitry
Unlike conventional motor systems that require separate drivers and controllers, an integrated solution simplifies installation, reduces wiring, and improves overall system reliability.
Key Advantages of Integrated BLDC Motors
1. Simplified System Integration
With the driver and controller integrated into the motor housing, manufacturers can significantly reduce electrical wiring and cabinet space.
Benefits include:
Faster installation
Reduced wiring errors
Cleaner machine layout
Lower assembly costs
Easier maintenance
This compact design is particularly valuable in vending machines where internal space is limited.
2. Precise Motion Control
Accurate product dispensing depends on precise motor control.
Integrated BLDC motors provide:
Stable speed regulation
Precise position control
Smooth acceleration and deceleration
High repeatability
Closed-loop feedback with encoder support
These features help ensure every dispensing cycle is accurate, reducing product jams and improving the customer experience.
3. High Efficiency and Low Power Consumption
Brushless motors are significantly more efficient than traditional brushed DC motors.
Advantages include:
Higher energy efficiency
Lower operating current
Reduced heat generation
Longer battery or power supply life
Lower operating costs
For vending operators managing hundreds or thousands of machines, improved efficiency translates into substantial long-term energy savings.
4. Long Service Life with Minimal Maintenance
Traditional brushed motors require periodic brush replacement due to mechanical wear.
Integrated BLDC motors eliminate this issue by using electronic commutation, providing:
Maintenance-free operation
Longer service life
Consistent performance
Reduced downtime
Lower maintenance costs
This makes them ideal for vending machines that operate continuously in unattended locations.
5. Quiet and Smooth Operation
Noise is an important consideration for vending machines installed in hospitals, offices, hotels, schools, and shopping malls.
Integrated BLDC motors offer:
Low vibration
Quiet operation
Smooth startup and stopping
Improved user experience
The absence of carbon brushes also minimizes electrical noise and mechanical friction.
6. Intelligent Communication and Control
Modern vending machines are increasingly connected to cloud platforms and centralized management systems.
Integrated BLDC motors can support various communication protocols, including:
RS485
CAN Bus
CANopen
Modbus RTU
EtherCAT
PWM
Pulse & Direction
These interfaces enable remote monitoring, parameter adjustment, fault diagnosis, and seamless integration with intelligent vending machine controllers.
7. Built-in Protection Functions
Reliable operation requires more than just motor performance.
Many integrated BLDC motors include built-in protection features such as:
Overcurrent protection
Overvoltage protection
Undervoltage protection
Overtemperature protection
Stall detection
Locked-rotor protection
Soft start and soft stop
These functions improve system safety and help extend the lifespan of both the motor and the vending machine.
Why Geared Integrated BLDC Motors Are Even Better
Most vending machine mechanisms require high torque at relatively low output speeds. Applications such as spiral dispensers, conveyor belts, elevator systems, and rotating shelves cannot be driven efficiently by a high-speed motor alone.
By integrating a precision gearbox with the BLDC motor, manufacturers gain several additional benefits:
Higher output torque
Lower operating speed
Improved positioning accuracy
Better load handling capability
Reduced motor current
Increased transmission efficiency
More compact overall design
Planetary gearboxes are especially popular because they provide high torque density, excellent efficiency, and long service life while maintaining a compact footprint.
Comparison: Integrated BLDC Motors vs. Traditional Brushed Motors
Feature
Integrated BLDC Motor
Traditional Brushed DC Motor
Service Life
Very Long
Limited by brush wear
Maintenance
Virtually Maintenance-Free
Regular Brush Replacement
Energy Efficiency
High
Moderate
Noise Level
Low
Higher
Speed Control
Precise Closed-Loop Control
Basic Control
Position Accuracy
Excellent
Limited
Wiring Complexity
Simple
More Complex
Intelligent Communication
Supported
Generally Not Available
Reliability
Excellent
Moderate
Ideal Applications in Automatic Vending Machines
Integrated BLDC motors are widely used in various vending machine functions, including:
Spiral product dispensing
Conveyor belt systems
Elevator lifting mechanisms
Rotating shelf drives
Automatic doors
Product delivery gates
Smart locker systems
Robotic pick-and-place modules
Their flexibility allows manufacturers to use a standardized motor platform across multiple machine designs, reducing development time and simplifying inventory management.
As vending machines continue to incorporate AI-powered management, IoT connectivity, cashless payment systems, and remote diagnostics, the need for intelligent motion control will continue to grow. Integrated BLDC motors provide the perfect combination of compact design, precise control, high efficiency, and long-term reliability, enabling manufacturers to build smarter, more dependable self-service retail equipment.
For OEMs seeking to improve machine performance while reducing maintenance and installation complexity, integrated geared BLDC motors have become the industry-standard solution for next-generation automatic vending machines.
Key Motor Functions Required for Automatic Vending Machines
The performance of an automatic vending machine depends heavily on the capabilities of its motor system. Whether dispensing snacks, beverages, pharmaceuticals, or other products, the motor must provide precise, reliable, and efficient motion control under continuous operating conditions. Selecting a motor with the right functions not only improves machine performance but also reduces maintenance costs and enhances the overall customer experience.
Below are the essential motor functions that manufacturers should consider when designing or upgrading an automatic vending machine.
1. High Positioning Accuracy
Accurate positioning is one of the most important requirements for vending machine motors. Every dispensing cycle must stop at the exact programmed position to ensure the correct product is released.
A high-precision motor helps to:
Prevent dispensing errors
Reduce product jams
Improve inventory accuracy
Enhance customer satisfaction
Minimize product waste
Integrated BLDC motors with encoder feedback provide excellent positioning accuracy through closed-loop control.
2. High Torque at Low Speed
Most vending machine mechanisms operate at relatively low speeds while handling moderate to heavy loads. For example, beverage dispensers, elevator platforms, and rotating shelves require sufficient torque to move products smoothly without stalling.
A geared brushless motor offers:
Strong starting torque
Stable low-speed operation
Reliable performance under varying loads
Improved mechanical efficiency
This makes geared BLDC motors the preferred choice for vending applications.
3. Smooth Speed Control
Different vending mechanisms require different operating speeds. Smooth acceleration and deceleration are essential to prevent products from falling, shifting, or becoming damaged during dispensing.
Effective speed control provides:
Stable product movement
Reduced mechanical vibration
Lower component wear
Improved dispensing consistency
Integrated motor controllers allow manufacturers to easily adjust speed profiles for different product types.
4. Quiet Operation
Vending machines are often installed in environments where noise levels matter, such as:
Hospitals
Hotels
Office buildings
Schools
Shopping malls
Airports
A quiet motor improves the overall user experience and creates a more professional product image.
Brushless motors naturally produce less mechanical noise because they operate without carbon brushes.
5. Continuous Duty Performance
Most vending machines operate 24 hours a day, 7 days a week, often completing thousands of dispensing cycles every month.
The motor should be designed for continuous operation with features such as:
High-quality bearings
Efficient heat dissipation
Stable thermal performance
Long operating life
Reliable continuous-duty performance reduces unexpected downtime and maintenance expenses.
6. High Energy Efficiency
Energy consumption directly affects operating costs, especially for large vending machine networks.
High-efficiency BLDC motors offer several advantages:
Lower power consumption
Reduced heat generation
Higher operating efficiency
Lower electricity costs
Improved system sustainability
These benefits make brushless motors an economical solution for long-term operation.
7. Intelligent Communication Capability
Modern vending machines are increasingly connected to cloud-based management systems for remote monitoring and diagnostics.
The motor should support common industrial communication protocols, including:
RS485
CAN Bus
CANopen
Modbus RTU
EtherCAT
PWM
Pulse & Direction
These interfaces enable seamless integration with vending machine controllers and IoT platforms.
8. Compact and Integrated Design
Space inside a vending machine is limited, making compact motor solutions highly desirable.
An integrated BLDC motor combines the motor, driver, and controller into one unit, offering advantages such as:
Reduced wiring
Faster installation
Simplified system design
Lower assembly costs
Improved reliability
This compact architecture also frees up valuable internal space for additional products or system components.
9. Built-in Safety and Protection Features
Reliable motor operation requires comprehensive protection against abnormal operating conditions.
Important protection functions include:
Overcurrent protection
Overvoltage protection
Undervoltage protection
Overtemperature protection
Stall detection
Locked-rotor protection
Soft start and soft stop
These features help protect both the motor and the vending machine from damage while extending overall equipment lifespan.
10. OEM Customization Flexibility
Different vending machines have unique mechanical structures and operating requirements. A suitable motor should support a wide range of customization options, including:
Gear ratios
Output shafts
Mounting dimensions
Encoder configurations
Communication protocols
Cable lengths
Connector types
Brake integration
Waterproof and dustproof protection
OEM customization allows manufacturers to optimize performance while simplifying equipment integration.
Summary
When selecting a motor for an automatic vending machine, manufacturers should prioritize more than just power and speed. The ideal solution should combine high positioning accuracy, strong low-speed torque, smooth speed control, quiet operation, continuous-duty reliability, energy efficiency, intelligent communication, compact integration, comprehensive protection features, and flexible customization.
These capabilities make integrated geared brushless DC motors the preferred choice for modern vending machines, helping OEMs deliver reliable, efficient, and intelligent self-service equipment that meets the growing demands of the global unattended retail market.
Factors to Consider When Selecting an Integrated Brushless DC Motor
Choosing the right integrated brushless DC (BLDC) motor is essential for ensuring the reliability, efficiency, and long-term performance of an automatic vending machine. A well-matched motor not only improves dispensing accuracy but also reduces maintenance costs, energy consumption, and system complexity. Before selecting a motor, manufacturers should carefully evaluate the following key factors.
1. Determine the Required Torque
Torque is one of the most important parameters in motor selection. Different vending machine mechanisms require different levels of output torque depending on the load they drive.
Consider factors such as:
Product weight
Friction within the transmission system
Gear reduction ratio
Starting load
Safety margin
An undersized motor may stall or overheat, while an oversized motor increases costs and consumes unnecessary power. Proper torque calculation ensures reliable and efficient operation.
2. Select the Appropriate Output Speed
Every vending machine application has unique speed requirements. The motor's output speed should match the operating characteristics of the mechanism.
Typical applications include:
Application
Typical Output Speed
Spiral dispenser
20–80 RPM
Conveyor belt
30–150 RPM
Elevator platform
50–300 RPM
Rotating shelf
10–60 RPM
Automatic door
40–150 RPM
Choosing the correct speed improves dispensing accuracy, reduces vibration, and extends the lifespan of mechanical components.
3. Choose the Right Gearbox Type
Most vending machines require high torque at relatively low speeds, making a gearbox an essential component.
The most common gearbox options include:
Planetary Gearbox
Best suited for applications requiring high precision and torque.
Advantages:
High torque density
Excellent transmission efficiency
Low backlash
Compact size
Long service life
Typical applications:
Elevator mechanisms
Conveyor systems
Robotic dispensing units
Spur Gearbox
A cost-effective solution for moderate-load applications.
Advantages:
Simple structure
Lower manufacturing cost
Reliable performance
Compact design
Typical applications:
Spiral dispensers
Product release mechanisms
Worm Gearbox
Ideal for applications requiring self-locking capability.
Advantages:
High reduction ratio
Smooth operation
Self-locking function
Good shock resistance
Typical applications:
Lifting systems
Automatic doors
4. Select the Appropriate Operating Voltage
Integrated BLDC motors are available in several voltage options to match different vending machine designs.
Common voltages include:
12V DC
24V DC
36V DC
48V DC
Among these, 24V DC is the most widely used because it offers an excellent balance of safety, efficiency, and compatibility with standard vending machine power systems.
5. Evaluate Control and Communication Requirements
Modern vending machines rely on intelligent control systems for precise operation and remote management.
Choose a motor that supports communication protocols such as:
RS485
CAN Bus
CANopen
Modbus RTU
EtherCAT
PWM
Pulse & Direction
These interfaces simplify integration with PLCs, embedded controllers, and IoT platforms while enabling remote diagnostics and parameter configuration.
6. Consider Position Feedback Options
Applications requiring precise positioning should use motors equipped with feedback devices.
Available options include:
Hall sensors
Incremental encoders
Absolute encoders
Encoder feedback improves:
Positioning accuracy
Speed stability
Repeatability
Closed-loop control performance
This is especially important for elevator systems and high-value product dispensing.
7. Assess Environmental Conditions
Vending machines may operate in a variety of environments, from climate-controlled shopping malls to outdoor public spaces.
Environmental factors to consider include:
Ambient temperature
Humidity
Dust exposure
Water resistance
Refrigerated environments
Corrosive conditions
Selecting a motor with the appropriate IP protection rating, corrosion-resistant housing, and wide operating temperature range ensures reliable performance under these conditions.
8. Prioritize Energy Efficiency
Energy-efficient motors help reduce long-term operating costs while improving system sustainability.
High-efficiency integrated BLDC motors provide:
Lower power consumption
Reduced heat generation
Higher overall efficiency
Lower electricity costs
Extended component life
These benefits are particularly valuable for operators managing large fleets of vending machines.
9. Verify Built-in Protection Functions
Integrated motors with built-in protection features offer greater operational safety and reduce the risk of unexpected failures.
Recommended protection functions include:
Overcurrent protection
Overvoltage protection
Undervoltage protection
Overtemperature protection
Stall detection
Locked-rotor protection
Soft start and soft stop
These functions protect both the motor and the vending machine during abnormal operating conditions.
10. Evaluate OEM Customization Capabilities
Every vending machine manufacturer has unique mechanical and electrical requirements. A professional motor supplier should be able to provide customized solutions to match specific project needs.
Common customization options include:
Gear reduction ratio
Output shaft design
Mounting dimensions
Encoder type
Communication protocol
Cable length
Connector style
Electromagnetic brake integration
Waterproof design
Firmware customization
Working with a supplier that offers OEM and ODM services can shorten development time, simplify system integration, and improve overall product performance.
Selection Checklist
Before finalizing your motor selection, verify the following specifications:
✔ Required output torque meets load requirements
✔ Output speed matches the application
✔ Gearbox type is suitable for the mechanism
✔ Operating voltage is compatible with the system
✔ Communication interface supports the control platform
✔ Position feedback meets accuracy requirements
✔ Environmental protection rating matches the operating conditions
✔ Energy efficiency aligns with operating cost goals
✔ Built-in protection features ensure reliable operation
✔ OEM customization is available for future product upgrades
Conclusion
Selecting the right integrated brushless DC motor requires a comprehensive evaluation of torque, speed, gearbox configuration, voltage, communication protocol, positioning accuracy, environmental protection, energy efficiency, safety features, and customization capabilities. By carefully matching these specifications to the application's requirements, manufacturers can build vending machines that deliver smooth operation, precise dispensing, lower maintenance costs, and exceptional long-term reliability.
For most modern vending applications, an integrated geared BLDC motor provides the optimal combination of compact design, intelligent control, high torque, and energy efficiency, making it the preferred solution for next-generation self-service retail equipment.
Evaluate Environmental Conditions
Vending machines operate in diverse environments.
Examples include:
Outdoor installations
Humid locations
Refrigerated cabinets
High-temperature areas
Dusty factories
Motor protection should include:
Appropriate IP ratings
Corrosion-resistant housing
Wide operating temperature range
Moisture-resistant connectors
These features ensure reliable operation under demanding conditions.
Integrated Control Features That Improve Machine Performance
Modern integrated BLDC motors offer advanced built-in functions such as:
Soft start
Soft stop
Stall detection
Overcurrent protection
Overvoltage protection
Undervoltage protection
Overtemperature protection
Speed regulation
Position control
Closed-loop feedback
Fault diagnostics
Programmable acceleration and deceleration
These intelligent features reduce controller programming complexity while enhancing system safety and reliability.
Benefits of Jkongmotor OEM Customization
Every automatic vending machine is designed with unique dispensing mechanisms, cabinet dimensions, product capacities, and control architectures. As a result, a standard off-the-shelf motor may not always deliver the best performance. Choosing an OEM-customized integrated BLDC motor, such as the IDS42 Series, enables manufacturers to optimize machine performance, simplify system integration, and shorten product development cycles. The IDS42 platform supports multiple hardware and control configurations, making it suitable for a wide range of smart vending applications.
Customized Motor Performance to Match Your Application
Different vending machines have different torque and speed requirements. The IDS42 integrated BLDC motor is available in multiple power and torque options, allowing OEMs to select the most suitable configuration for their dispensing mechanism.
Customization options include:
Power range from 26W to 78W
Rated torque from 0.0625 Nm to 0.25 Nm
24V DC operating voltage
Multiple speed and performance configurations
Optimized acceleration and deceleration parameters
This flexibility ensures smooth operation for spiral dispensers, conveyor systems, rotary shelves, elevator mechanisms, and automatic doors.
Multiple Control Interfaces for Easy System Integration
Different machine controllers require different communication methods. The IDS42 series supports several control options, allowing seamless integration into both existing and newly developed vending systems.
Available control methods include:
Pulse & Direction
RS485 (Modbus RTU)
CANopen
These communication options simplify software development while supporting intelligent motion control and remote system management.
Flexible Gearbox and Brake Options
Vending machines often require higher output torque than a direct-drive motor can provide. The IDS42 platform can be configured with different transmission solutions to meet specific application requirements.
Optional configurations include:
Planetary gearbox for high torque and precise positioning
Worm gearbox for high reduction ratios and self-locking applications
Electromagnetic brake for vertical lifting mechanisms and safety-critical systems
These options enable one motor platform to support multiple vending machine designs while improving efficiency and reducing mechanical complexity.
High-Resolution Encoder for Precise Position Control
Accurate product dispensing depends on reliable position feedback. The IDS42 motor features a 17-bit absolute magnetic encoder, providing high-resolution feedback for smooth and repeatable motion control.
Benefits include:
High positioning accuracy
Stable low-speed operation
Improved dispensing consistency
Reduced product jams
Faster system response
This level of precision is particularly valuable for vending machines that dispense fragile, high-value, or irregularly shaped products.
Mechanical Customization for Faster Assembly
To simplify equipment integration, OEM manufacturers can customize the mechanical design of the motor to match their machine structure.
Available customization includes:
Output shaft dimensions
Shaft type and keyway design
Mounting flange
Housing configuration
Cable exit direction
Connector type
Cable length
These modifications reduce installation time, minimize mechanical redesign, and accelerate product development.
Protection Level for Different Operating Environments
Automatic vending machines are installed in a variety of environments, including indoor retail locations, transportation hubs, and outdoor public areas.
Depending on the application, the IDS series can be configured with different protection levels, including:
IP30
IP54
IP65
Higher protection ratings improve resistance to dust, moisture, and harsh operating conditions, increasing system reliability and service life.
Firmware and Motion Control Customization
Beyond hardware, OEM customers can also customize motor control parameters to meet specific application requirements.
Typical firmware customization includes:
Speed profiles
Torque limits
Acceleration and deceleration curves
Position control parameters
Stall detection settings
Brake control logic
Communication protocol configuration
Pre-configured firmware reduces commissioning time and allows manufacturers to bring products to market more quickly.
One Platform for Multiple Vending Machine Designs
One of the greatest advantages of the IDS42 integrated motor platform is its scalability. The same motor family can be adapted for multiple vending machine applications, including:
Beverage vending machines
Snack vending machines
Coffee vending equipment
Fresh food vending systems
Medicine vending machines
Smart lockers
Automated retail kiosks
Using a common motor platform simplifies inventory management, lowers procurement costs, and standardizes maintenance across different product lines.
Why OEM Customization Creates Long-Term Value
By choosing a customizable solution like the IDS42 Integrated BLDC Motor, vending machine manufacturers gain more than just a motor—they gain a motion control platform tailored to their equipment. With configurable power ratings, communication protocols, gearboxes, encoder options, protection levels, mechanical dimensions, and firmware, OEMs can achieve faster development, easier integration, higher reliability, and improved product competitiveness. These advantages help reduce engineering costs while delivering smarter, more efficient, and more reliable automatic vending machines.
Industry Applications Beyond Traditional Snack Vending
The rapid growth of smart retail and unattended commerce has expanded the role of automatic vending machines far beyond traditional snack and beverage sales. Today's self-service equipment is designed to dispense a wide variety of products, each with unique motion control requirements. As a result, integrated geared BLDC motors have become a versatile solution for many automated dispensing and retail applications.
Their compact design, precise positioning, high torque, and intelligent control make them suitable for a broad range of industries.
Food and Beverage Vending Machines
Food and beverage vending remains the largest market for automated retail. These machines require motors to drive spiral dispensers, conveyor belts, elevators, and delivery doors while ensuring smooth and accurate product dispensing.
Typical products include:
Bottled beverages
Canned drinks
Snacks
Fresh sandwiches
Frozen meals
Ice cream
Key motor requirements include:
High torque for heavy products
Precise positioning
Quiet operation
Continuous-duty performance
Coffee and Hot Beverage Machines
Modern coffee vending machines automate the entire beverage preparation process, requiring multiple synchronized motors to control ingredient dispensing, cup delivery, mixing mechanisms, and brewing systems.
Motor applications include:
Coffee bean dispensers
Powder ingredient feeders
Stirring mechanisms
Cup dispensing systems
Automatic doors
Integrated BLDC motors provide precise speed control, ensuring consistent beverage quality while reducing maintenance.
Pharmaceutical and Medical Vending Machines
Healthcare facilities increasingly use vending machines to provide controlled access to medicines, medical supplies, and personal protective equipment.
Common applications include:
Prescription medication dispensing
Medical consumables
First-aid supplies
PPE distribution
Healthcare products
These systems require motors capable of accurate positioning, secure operation, and reliable performance to prevent dispensing errors.
Cosmetics and Beauty Product Vending
The cosmetics industry has embraced smart vending solutions to offer customers convenient access to premium beauty products.
Typical products include:
Skincare products
Makeup
Perfumes
Travel-size cosmetics
Personal care products
Motors must operate smoothly and quietly while handling delicate packaging without causing damage.
Integrated geared BLDC motors deliver the positioning accuracy needed to protect valuable products during dispensing.
Industrial and PPE Vending Systems
Many factories use automated vending systems to manage inventory and distribute tools, safety equipment, and industrial consumables.
Common items include:
Safety gloves
Helmets
Safety glasses
Hand tools
Fasteners
Maintenance supplies
These machines improve inventory control while reducing manual distribution and operating costs.
Smart Locker and Parcel Delivery Systems
With the rapid growth of e-commerce, smart lockers have become an important part of last-mile delivery solutions.
Integrated motors are used to control:
Electronic door locks
Automatic compartment doors
Parcel retrieval systems
Package transfer mechanisms
Reliable operation and precise motion ensure secure package storage and retrieval.
Fresh Food and Refrigerated Retail
Fresh food vending machines present additional engineering challenges due to low-temperature operating environments.
Typical products include:
Fresh salads
Dairy products
Fruits
Ready-to-eat meals
Frozen foods
Motors used in refrigerated systems must maintain stable performance under cold conditions while delivering sufficient torque for heavier products.
Smart Retail Cabinets and Unattended Stores
The rise of AI-powered retail has led to the development of intelligent shopping cabinets and unmanned convenience stores.
Motor-driven systems are used for:
Automatic doors
Rotating shelves
Inventory movement
Product delivery
Smart access control
Integrated BLDC motors support seamless communication with cloud-based management systems, enabling real-time monitoring and intelligent operation.
Customized Automated Dispensing Equipment
Beyond standard vending machines, integrated BLDC motors are widely used in customized dispensing solutions across various industries.
Applications include:
Ticket vending machines
Book vending systems
Laundry detergent dispensers
Pet food vending machines
Flower vending machines
Phone charging kiosks
Self-service rental equipment
Laboratory sample dispensing systems
Their flexibility allows manufacturers to develop specialized self-service equipment with minimal changes to the motor platform.
Why Integrated Geared BLDC Motors Fit Diverse Applications
Regardless of the industry, automated dispensing equipment shares several common motion control requirements:
Accurate product positioning
High torque at low speeds
Smooth and reliable operation
Low maintenance requirements
Compact installation
Energy-efficient performance
Intelligent communication and control
Long service life
Integrated geared BLDC motors combine all of these advantages in a single compact solution, making them an ideal choice for manufacturers developing next-generation automated retail and self-service equipment.
As smart retail continues to expand globally, these motors will play an increasingly important role in enabling reliable, efficient, and intelligent automation across a wide range of industries beyond traditional snack vending.
Why Choose an Experienced Integrated BLDC Motor Manufacturer
Selecting the right integrated BLDC motor manufacturer is just as important as selecting the motor itself. A reliable supplier should not only provide high-quality products but also offer engineering expertise, flexible customization, stable manufacturing capacity, and responsive technical support. At Jkongmotor, we combine years of experience in motion control technology with comprehensive OEM/ODM capabilities to help equipment manufacturers develop reliable, high-performance automation systems.
For automatic vending machine manufacturers, Jkongmotor delivers integrated motion solutions that simplify machine design, improve dispensing accuracy, and reduce overall development costs.
Comprehensive Integrated Motion Solutions
Unlike conventional motor suppliers, Jkongmotor provides complete integrated BLDC motor solutions that combine the motor, driver, controller, and encoder into a compact, all-in-one package.
Our integrated design offers several advantages:
Reduced wiring and installation complexity
Compact structure for space-saving machine designs
Simplified system integration
Improved reliability with fewer external components
Lower maintenance and operating costs
This integrated architecture allows OEM manufacturers to shorten assembly time while improving the overall performance of their vending machines.
A Complete Product Portfolio for Every Application
Every vending machine has different motion requirements. Whether you are designing a compact snack vending machine or a heavy-duty automated retail kiosk, Jkongmotor offers an integrated motor solution to match your application.
Our integrated BLDC motor portfolio includes:
Frame sizes: 42 mm, 57 mm, 60 mm, 80 mm, and 86 mm
Power range:26W to 1000W
Voltage options: 24V, 36V, 48V, and 72V
Multiple speed and torque configurations
Optional planetary and worm gearboxes
Electromagnetic brake options
This broad product range enables customers to standardize their motion platform while supporting multiple equipment models.
Advanced Motion Control Technology
At Jkongmotor, we continuously invest in intelligent motion control technology to improve precision, efficiency, and reliability.
Our IDS Series Integrated BLDC Motors feature:
High-performance 32-bit ARM Cortex-M4 processor
17-bit absolute magnetic encoder for precise closed-loop control
Smooth low-speed operation
Fast dynamic response
High positioning accuracy
Stable torque output across a wide speed range
These advanced technologies ensure smooth product dispensing, accurate positioning, and reliable long-term operation for vending machines and other automated equipment.
Flexible Communication for Smart Equipment
As vending machines become increasingly connected, communication compatibility is essential.
Jkongmotor integrated motors support multiple industrial communication protocols, including:
RS485 (Modbus RTU)
CANopen
Pulse & Direction
EtherCAT(available on selected models)
These communication options enable seamless integration with PLCs, industrial controllers, embedded systems, and IoT-based vending management platforms.
Professional OEM & ODM Customization
Every customer's equipment is different, which is why Jkongmotor provides comprehensive OEM and ODM customization services.
Mechanical Customization
We can customize:
Output shaft dimensions
Shaft type and machining
Mounting flange
Gearbox configuration
Cable length
Connector type
Housing design
Lead screw integration
Electromagnetic brake installation
Electrical & Software Customization
Our engineering team also supports:
Operating voltage customization
Encoder configuration
Communication protocol selection
Firmware programming
Motion parameter optimization
Protection parameter settings
Speed and torque profile adjustment
This flexible customization helps customers reduce development time while ensuring optimal machine performance.
Modular Design for Maximum Flexibility
One of the key advantages of Jkongmotor's IDS Series is its modular platform.
Optional configurations include:
Planetary gearbox
Right-angle planetary gearbox
Worm gearbox
Electromagnetic brake
Lead screw actuator
Cooling fan
IP65 protection
This modular design allows OEM customers to configure the ideal motor solution without redesigning the entire drive system, reducing engineering costs and accelerating product development.
Strict Quality Control You Can Trust
Quality is at the core of every Jkongmotor product.
Each integrated BLDC motor undergoes comprehensive testing before delivery, including:
Performance testing
Encoder calibration
Torque verification
Noise and vibration testing
Electrical safety inspection
Burn-in testing
Load testing
Our rigorous quality control process ensures consistent product performance and long-term reliability, even in demanding 24/7 operating environments.
Stable Manufacturing Capacity and Fast Delivery
As an experienced motor manufacturer, Jkongmotor maintains a stable supply chain and efficient production system to support customers worldwide.
We offer:
Fast prototype development
Flexible OEM production
Stable mass production capacity
Reliable delivery schedules
Long-term product consistency
This enables customers to reduce procurement risks and maintain uninterrupted production.
Dedicated Engineering Support
At Jkongmotor, we believe technical support is just as important as product quality.
Our experienced engineering team provides assistance throughout every stage of your project, including:
Motor selection
Torque and speed calculations
Gearbox matching
Motion control optimization
Communication integration
Prototype evaluation
Application testing
After-sales technical support
By working closely with customers, we help shorten development cycles and improve equipment performance.
Proven Experience Across Multiple Industries
Beyond automatic vending machines, Jkongmotor's integrated BLDC motors are trusted in a wide range of automation applications, including:
Smart vending machines
AGVs and AMRs
Service robots
Medical devices
Laboratory automation
Packaging machinery
Industrial automation equipment
Smart logistics systems
Food processing equipment
This extensive industry experience allows us to provide practical, application-specific motion solutions that meet the evolving needs of global OEM manufacturers.
Partner with Jkongmotor for Smarter Motion Solutions
Choosing Jkongmotor means partnering with a manufacturer that understands both motion control technology and OEM equipment development. Our IDS Series Integrated BLDC Motors combine advanced control electronics, high-performance servo technology, flexible communication, and comprehensive customization into a compact, reliable solution designed for modern automation.
Whether you are developing automatic vending machines, smart retail kiosks, self-service lockers, or other intelligent dispensing systems, Jkongmotor is committed to delivering high-quality products, professional engineering support, and dependable manufacturing services that help you bring innovative products to market faster.
With a strong focus on innovation, quality, customization, and customer success, Jkongmotor is your trusted partner for integrated BLDC motor solutions worldwide.
Conclusion
Choosing the right Integrated Brushless DC Motor for Automatic Vending Machines requires careful evaluation of torque, speed, gearbox type, control method, communication interface, environmental conditions, and long-term reliability. For most vending applications, a geared integrated BLDC motor delivers the ideal balance of high torque, precise motion control, compact design, low maintenance, and energy efficiency.
As vending technology becomes smarter and more connected, integrated motor solutions provide manufacturers with simplified system architecture, improved performance, and reduced total ownership costs. By partnering with an experienced motor supplier capable of delivering customized, application-specific solutions, OEMs can develop reliable, quiet, and highly efficient vending machines that meet the evolving demands of modern self-service retail.
Integrated BLDC motors combine the motor, driver, and controller into a single compact unit, reducing wiring, simplifying installation, improving reliability, and providing precise motion control with minimal maintenance.
2. Why do most vending machines use geared BLDC motors instead of direct-drive motors?
Geared BLDC motors provide higher torque at lower speeds, making them ideal for dispensing mechanisms, conveyors, elevators, and rotating shelves that require smooth, accurate movement under load.
3. What voltage is commonly used for vending machine motors?
Most automatic vending machines operate with 24V DC integrated brushless motors, although 12V, 36V, and 48V options are also available depending on the application.
4. What communication interfaces should an integrated BLDC motor support?
Popular interfaces include RS485, CAN Bus, CANopen, Modbus RTU, EtherCAT, PWM, and Pulse & Direction, allowing seamless integration with modern vending machine control systems.
5. Can integrated brushless motors be customized for OEM vending machine projects?
Yes. Professional motor manufacturers typically offer customization services such as gear ratios, shaft dimensions, encoder options, mounting configurations, communication protocols, connectors, firmware, and environmental protection to match specific vending machine designs.
Whether you are developing smart vending machines, automated retail kiosks, self-service lockers, or intelligent dispensing systems, choosing the right motor is essential for achieving reliable performance and long-term operational efficiency.
Our engineering team specializes in high-performance integrated brushless DC motors, offering custom gearbox configurations, intelligent control solutions, OEM/ODM services, and application-specific motion systems tailored to your equipment. From prototype development to mass production, we help manufacturers reduce development time, improve product reliability, and gain a competitive advantage in the rapidly growing self-service retail market.
